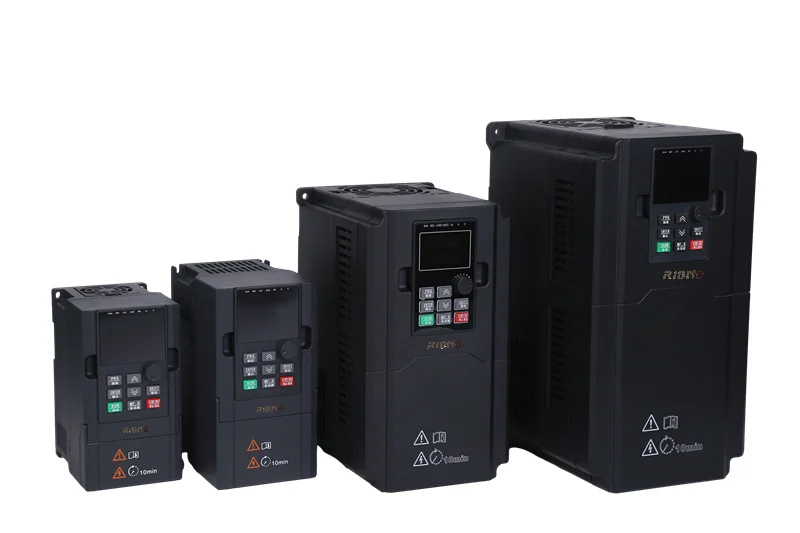

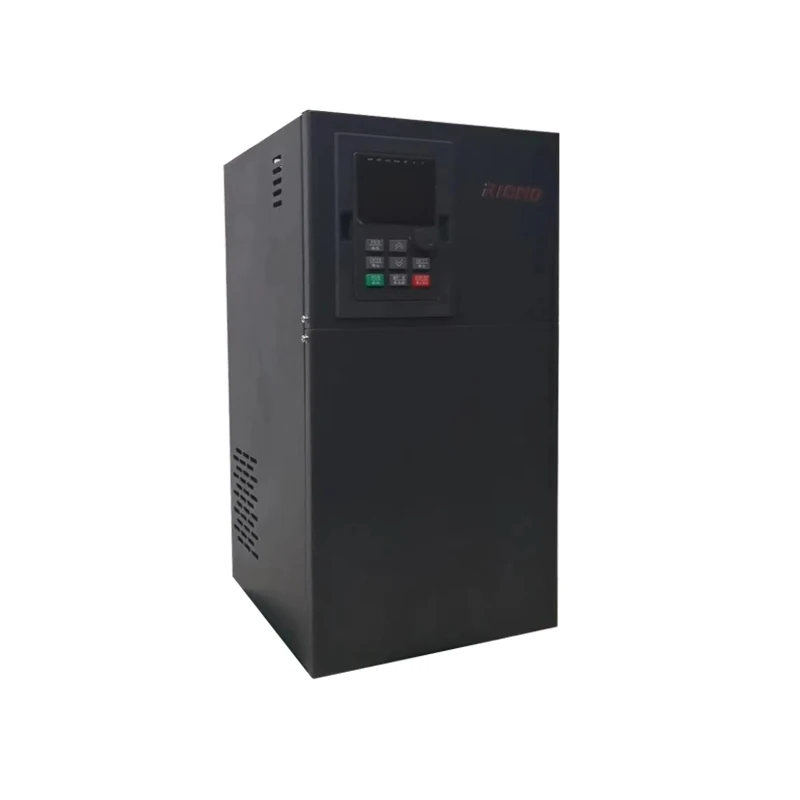

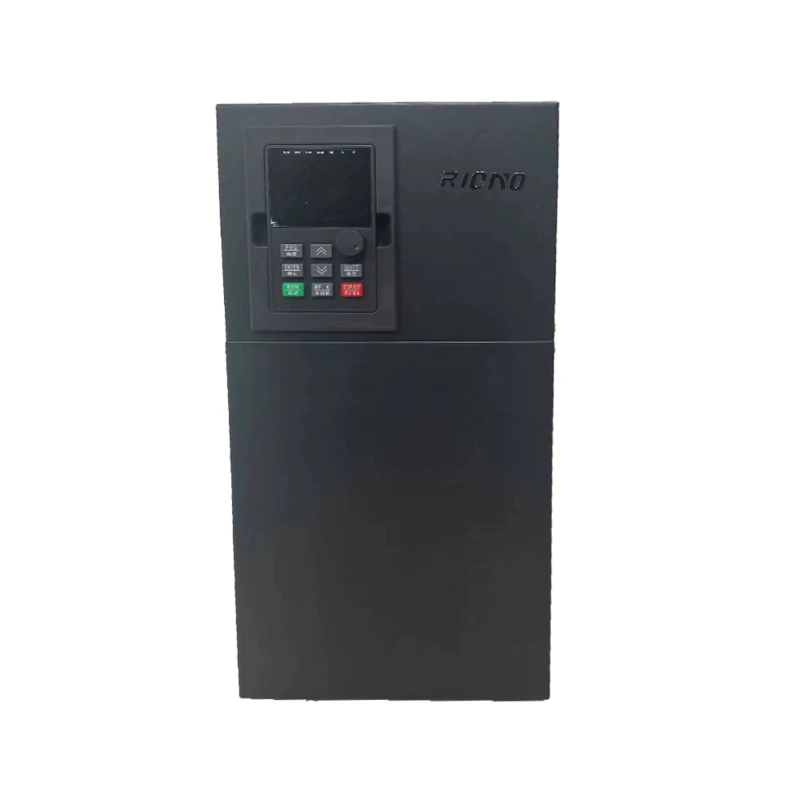

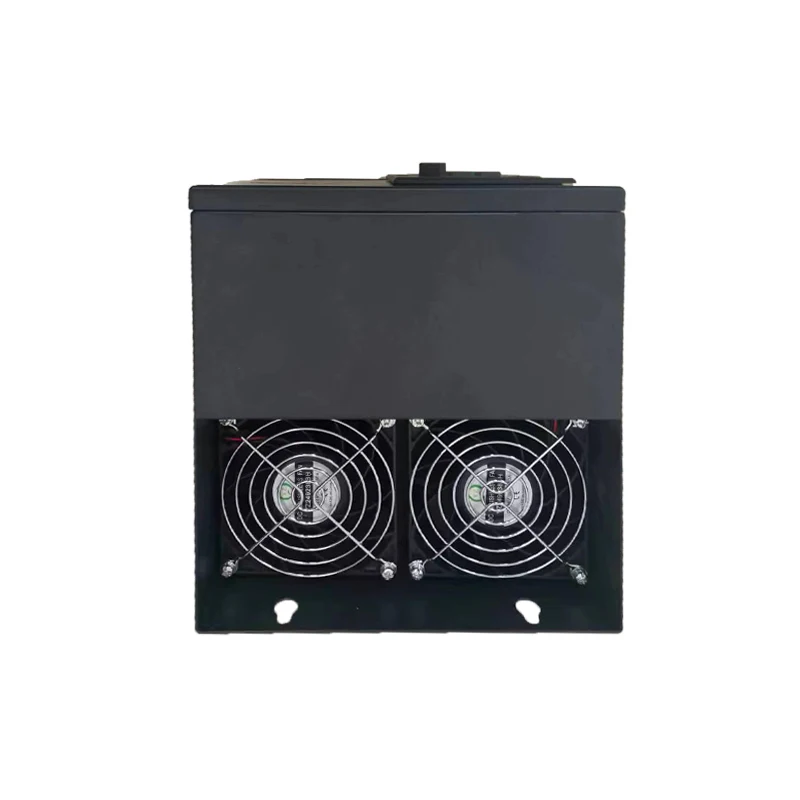

A600 series 380V 3 phase 125 kw inverter washing machines IGBT heavy duty vfd drive for motor
- Category: >>>
- Supplier: Jiangsu Riqno Electric Co. Ltd.
Share on (1601014054701):
Product Overview
Description
Product Description
Certifications
Specification
item | value |
Place of Origin | China |
Jiangsu | |
Brand Name | RIQNO |
Model Number | A600-132RG/160RP-T4 |
Warranty | 24 months |
Type | AC/DC/AC |
Size | 780*400*325mm |
Customized | Yes |
Control Mode | V/F or Vector control |
Rated Power | 132kw |
Nominal Voltage | 380v |
power phase number | 3 phase |
Product name | Frequency Inverter VFD |
Application | Industrial Equipment Ect |
Color | Black |
Package | Carton |
Protection | IP 20 |
Condition | 100% Original |
Input voltage | 380V |
Output voltage | 0-380V |
OEM | Accepted |
MOQ | 1 Piece |

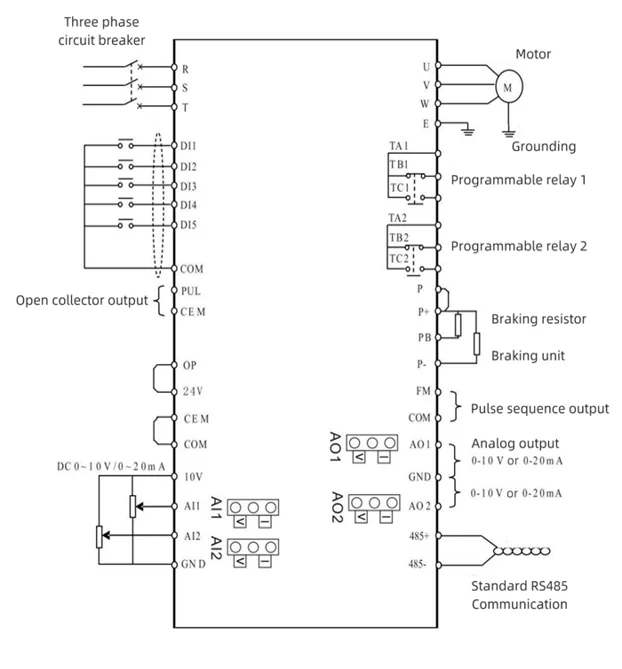

Wiring Diagram
Product Paramenters
A600 Series General Purpose Vector Frequency Inverter | ||||||||||||
No. | Model No. | Motor Power (kw) | Rated Current (A) | Outline Dimensions （H*W*D)(mm) | Package Dimensions （H*W*D)(mm) | Gross Weight （KG） | ||||||
1 | A600-0R7G/1R5G-T4 | 0.75 | 2.1/3.8 | 164*89*125 | 238*141*184 | 1.0 | ||||||
2 | A600-1R5G/2R2P-T4 | 1.5 | 3.8/5.1 | 164*89*125 | 238*141*184 | 1.0 | ||||||
3 | A600-2R2G/4R0P-T4 | 2.2 | 5.1/9 | 164*89*125 | 238*141*184 | 1.2 | ||||||
4 | A600-3R0G/4R0P-T4 | 3.0 | 7.2/9 | 164*89*125 | 238*141*184 | 1.2 | ||||||
5 | A600-4R0G/5R5P-T4 | 3.7 | 9/13 | 185*98*135 | 238*141*184 | 1.4 | ||||||
6 | A600-5R5G/7R5P-T4 | 5.5 | 13/17 | 185*98*136 | 238*141*184 | 1.5 | ||||||
7 | A600-7R5G/11RP-T4 | 7.5 | 17/25 | 260*145*185 | 320*220*239 | 3.2 | ||||||
8 | A600-11RG/15RP-T4 | 11 | 25/32 | 260*145*186 | 320*220*239 | 3.3 | ||||||
9 | A600-15RG/18RP-T4 | 15 | 32/37 | 260*145*186 | 320*220*239 | 5.6 | ||||||
10 | A600-18RG/22RP-T4 | 18 | 37/45 | 320*170*210 | 390*230*271 | 5.8 | ||||||
11 | A600-22RG/30RP-T4 | 22 | 45/60 | 320*170*210 | 390*230*271 | 6.0 | ||||||
12 | A600-30RG/37RP-T4 | 30 | 60/75 | 400*200*220 | 465*290*290 | 11 | ||||||
13 | A600-37RG/45RP-T4 | 37 | 75/91 | 400*200*220 | 465*290*290 | 12 | ||||||
14 | A600-45RG/55RP-T4 | 45 | 91/112 | 510*260*250 | 580*310*290 | 20 | ||||||
15 | A600-55RG/75RP-T4 | 55 | 112/152 | 530*260*255 | 580*310*290 | 23.5 | ||||||
16 | A600-75RG/90RP-T4 | 75 | 152/176 | 530*260*255 | 580*310*290 | 24.5 | ||||||
17 | A600-90RG/110RP-T4 | 90 | 176/210 | 600*300*270 | 650*350*320 | 30.0 | ||||||
18 | A600-110RG/132RP- T4 | 110 | 210/253 | 600*300*270 | 650*350*320 | 31.0 | ||||||
19 | A600-132RG/160RP- T4 | 132 | 253/304 | 780*400*325 | 850*470*390 | 56.0 | ||||||
20 | A600-160RG/185RP- T4 | 160 | 304/340 | 780*400*325 | 850*470*390 | 57.0 | ||||||
21 | A600-185RG/200RP- T4 | 185 | 340/377 | 780*400*325 | 850*470*390 | 58.0 | ||||||

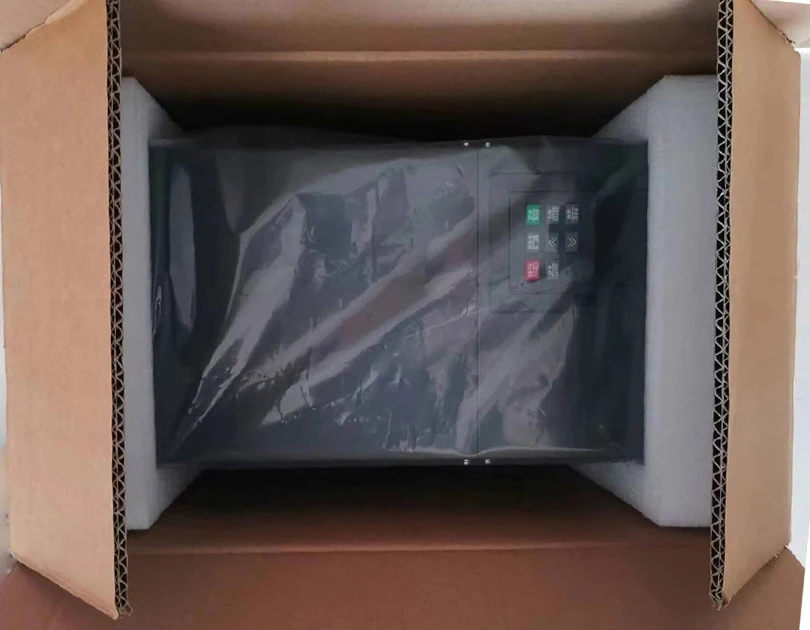

Packing & Delivery
Package Carton

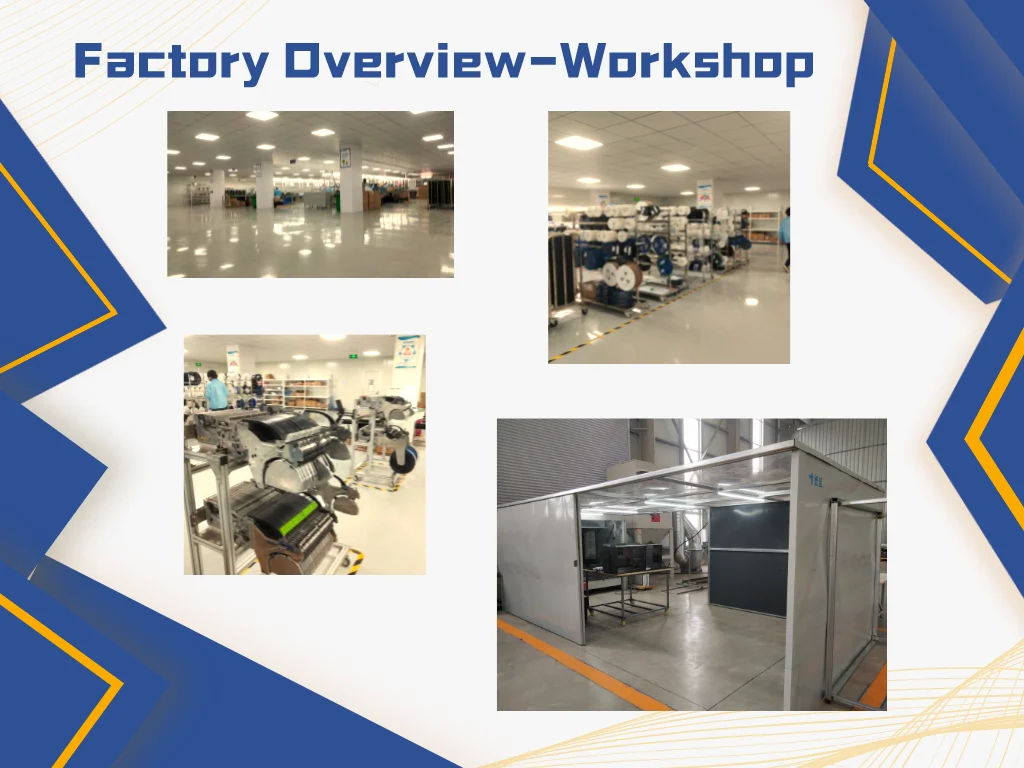

Company Profile
COMPANY PROFILE
Jiangsu RIQNO Electric Co., Ltd. is one high-tech enterprise focusing on motor drive (frequency inverter), automation control, system solution integration and related technical services. The company's main products are high-performance vector frequency inverters, servo control systems, AC-to-magnetic synchronous motor drives and automation control system integration and so on. Our products are widely applied in petroleum, chemical, metallurgy, CNC machinery, packaging machinery, textile machinery, food machinery and various other electrical control fields.
At present, RIQNO has several key technologies that have obtained national patents, and have passed ISO9001 quality management system verification & intellectual property management system
verification with national high-tech enterprise certification. Powerful technical development capability
and mature production quality system are the guarantee for providing customers with high-quality
products and efficient technical support services. Our company has already mastered key technologies such as high-performance vector frequency inverter, servo drive and automation integration control. Meanwhile, RIQNO has one core R&D team to maintain continuous upgrading and improvement of our core technology.
Since its establishment, RIQNO has always been adhering to the business philosophy of "To seek the truth, To be pragmatic, To be pioneering, To keep innovating". Most of important, we promise to insist on working hard to provide customers with considerate and sustainable industrial automation solutions to achieve the common value. Our pursuit is to become the most trustworthy partner.
Jiangsu RIQNO Electric Co., Ltd. is one high-tech enterprise focusing on motor drive (frequency inverter), automation control, system solution integration and related technical services. The company's main products are high-performance vector frequency inverters, servo control systems, AC-to-magnetic synchronous motor drives and automation control system integration and so on. Our products are widely applied in petroleum, chemical, metallurgy, CNC machinery, packaging machinery, textile machinery, food machinery and various other electrical control fields.
At present, RIQNO has several key technologies that have obtained national patents, and have passed ISO9001 quality management system verification & intellectual property management system
verification with national high-tech enterprise certification. Powerful technical development capability
and mature production quality system are the guarantee for providing customers with high-quality
products and efficient technical support services. Our company has already mastered key technologies such as high-performance vector frequency inverter, servo drive and automation integration control. Meanwhile, RIQNO has one core R&D team to maintain continuous upgrading and improvement of our core technology.
Since its establishment, RIQNO has always been adhering to the business philosophy of "To seek the truth, To be pragmatic, To be pioneering, To keep innovating". Most of important, we promise to insist on working hard to provide customers with considerate and sustainable industrial automation solutions to achieve the common value. Our pursuit is to become the most trustworthy partner.
