Hot sale small high efficient laboratory electric pulverizer cooling automatic grinder
- Category: >>>
- Supplier: Jiangyin Fangyuan Machinery Manufacturing Co. Ltd.
Share on (1601014065374):
Product Overview
Description
Hot sale samll Laboratory electric pulverizer high efficient cooling grinder
Main Application:
This machine is mainly suitable for crushing soft、brittle and fiber materials with Mohs hardness less than 3 in 、chemical、food、pesticide、building and plastics industries.Such as fuel、food additives and plastic additives can achieve satisfactory crushing effect.
Working Principle:
The machine adopts wind wheel type high-speed rotary knife and fixed tooth ring for impact and shear grinding. A strong airflow is generated in the crushing chamber, and the heat of the crushing chamber and the finished product flow out of the screen together, and the particle size is obtained by replacing the screen. It can realize vacuum feeding or lifting machine material for users, which can be selected according to user needs.
Features：
The grinding room adopts the wind wheel type high-speed rotating knife, the air volume in the chamber is large, and the chamber is not easy to heat. It has the advantages of smooth operation, convenient disassembly and cleaning, low noise and good crushing effect.
This machine is mainly suitable for crushing soft、brittle and fiber materials with Mohs hardness less than 3 in 、chemical、food、pesticide、building and plastics industries.Such as fuel、food additives and plastic additives can achieve satisfactory crushing effect.
Working Principle:
The machine adopts wind wheel type high-speed rotary knife and fixed tooth ring for impact and shear grinding. A strong airflow is generated in the crushing chamber, and the heat of the crushing chamber and the finished product flow out of the screen together, and the particle size is obtained by replacing the screen. It can realize vacuum feeding or lifting machine material for users, which can be selected according to user needs.
Features：
The grinding room adopts the wind wheel type high-speed rotating knife, the air volume in the chamber is large, and the chamber is not easy to heat. It has the advantages of smooth operation, convenient disassembly and cleaning, low noise and good crushing effect.
Technical data :
Model | FL-150 | FL-250 | FL-350 |
Capacity(kg/h) | 20-80 | 30-200 | 50-300 |
Size of input granules(mm) | ≤6 | ≤6 | ≤6 |
Size of Output granules(mm) | 50-150 | 50-150 | 50-150 |
Power(kw) | 3 | 4 | 7.5 |
Speed of principal axis(rpm) | 4200 | 3400 | 2900 |
Overall Dimension(L*W*H)(mm) | 550*420*1088 | 770*750*1500 | 870*750*1708 |
Weight(kg) | 185 | 220 | 300 |

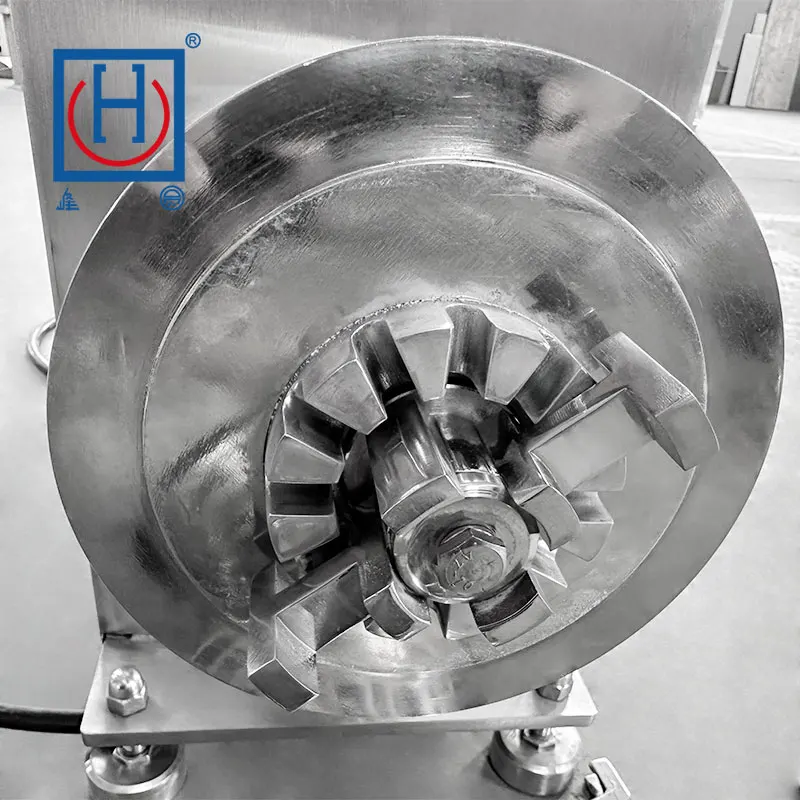

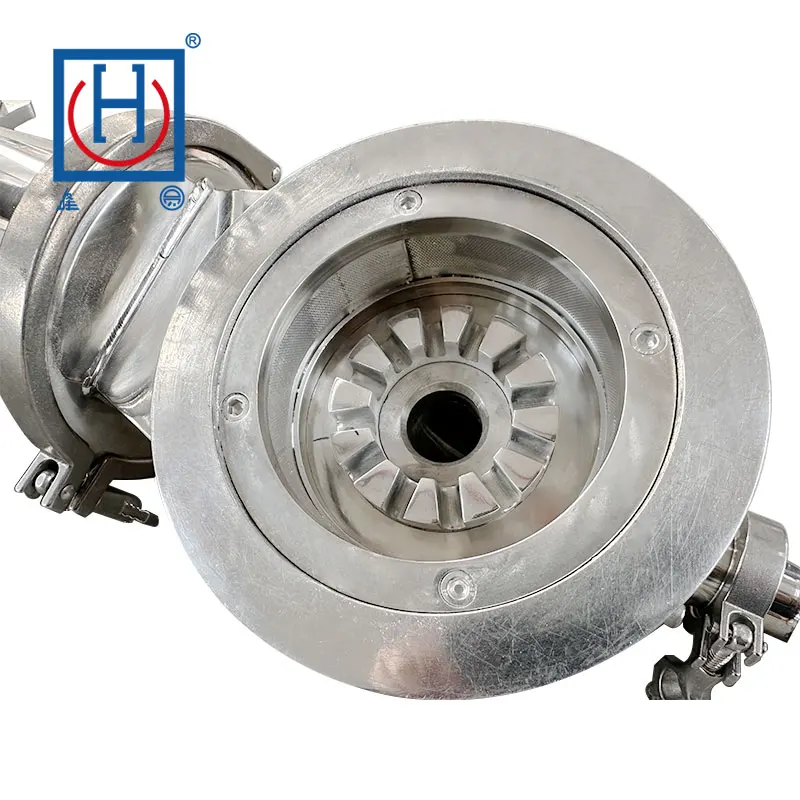

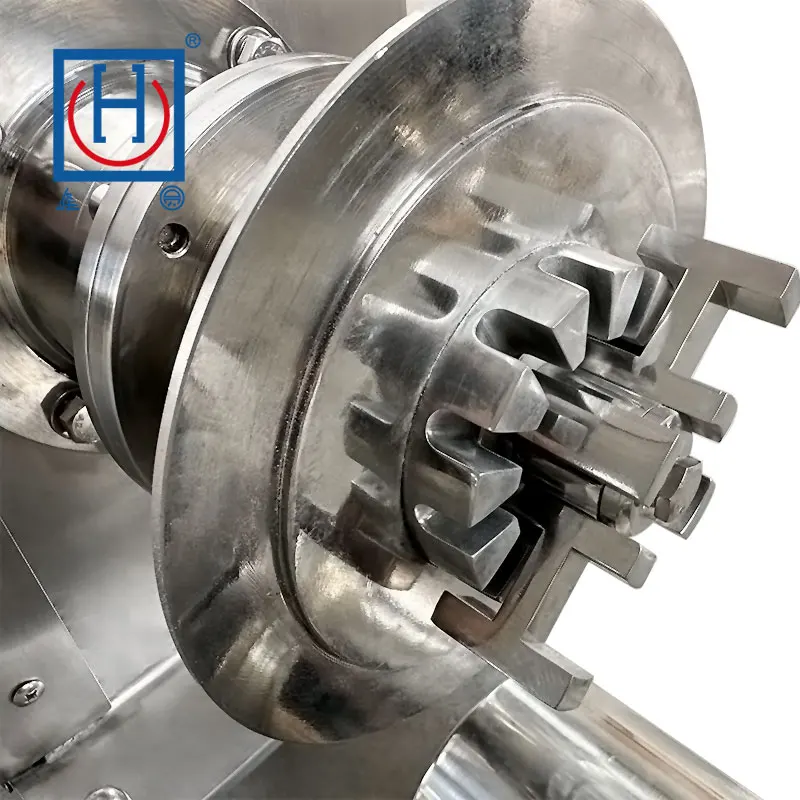

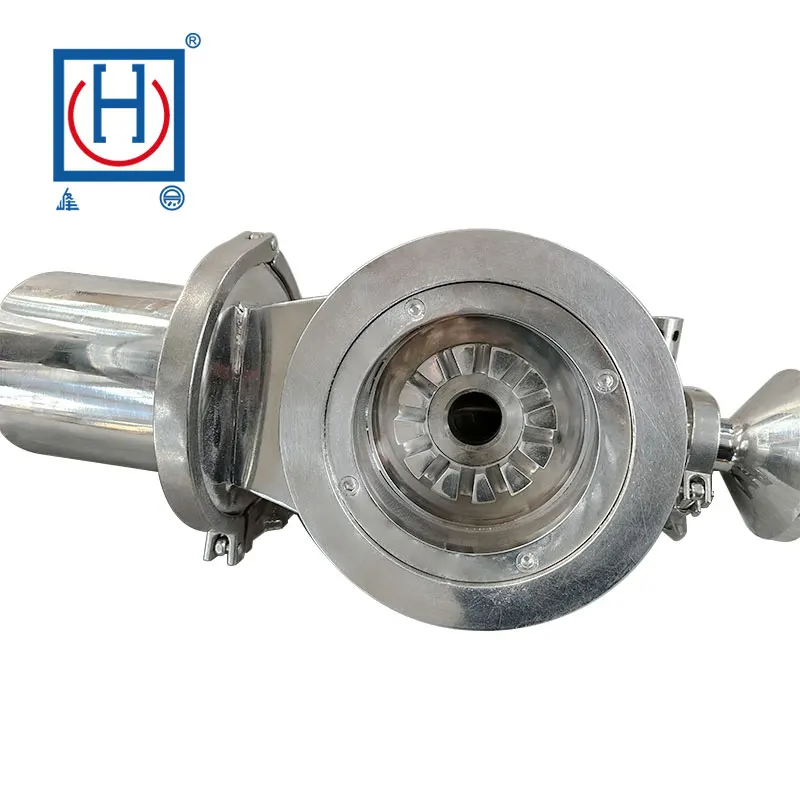

Detail picture :
We are online 24 hours a day, please feel free to contact us!
If you want to send inquiry to me about our crusher,could you please tell me?
1) What's your pre/after-sale service ?
① Professional advice and rich experience help to choose machine.
② Longtime maintainance and considerate technical support
③ Technicians can be sent to abroad to install.
④ One year guarantee. Whole life service. Within 1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).
⑤ Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
⑥ Video / CD of test running and installation, Maunal book.
2) How long is your production time?
Our production time is usually 35-40 days. If there is a custom service, the time needs to be calculated separately.
① Professional advice and rich experience help to choose machine.
② Longtime maintainance and considerate technical support
③ Technicians can be sent to abroad to install.
④ One year guarantee. Whole life service. Within 1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).
⑤ Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
⑥ Video / CD of test running and installation, Maunal book.
2) How long is your production time?
Our production time is usually 35-40 days. If there is a custom service, the time needs to be calculated separately.
3) Do you have any certifications qualifying our country?
A: our company’s equipment have passed ISO9001,meanwhile meet the GMP standard with CE & UL certifications, we have exported various countries all over the world, also other certifications is workable if demanded.
