Shunhang Boat Protection Pneumatic Ship Rubber Floating Fenders Supplier
- Category: >>>
- Supplier: Qingdao Shunhang Marine Supplies Co. Ltd.
Share on (1601014066342):
Product Overview
Description
Products Description

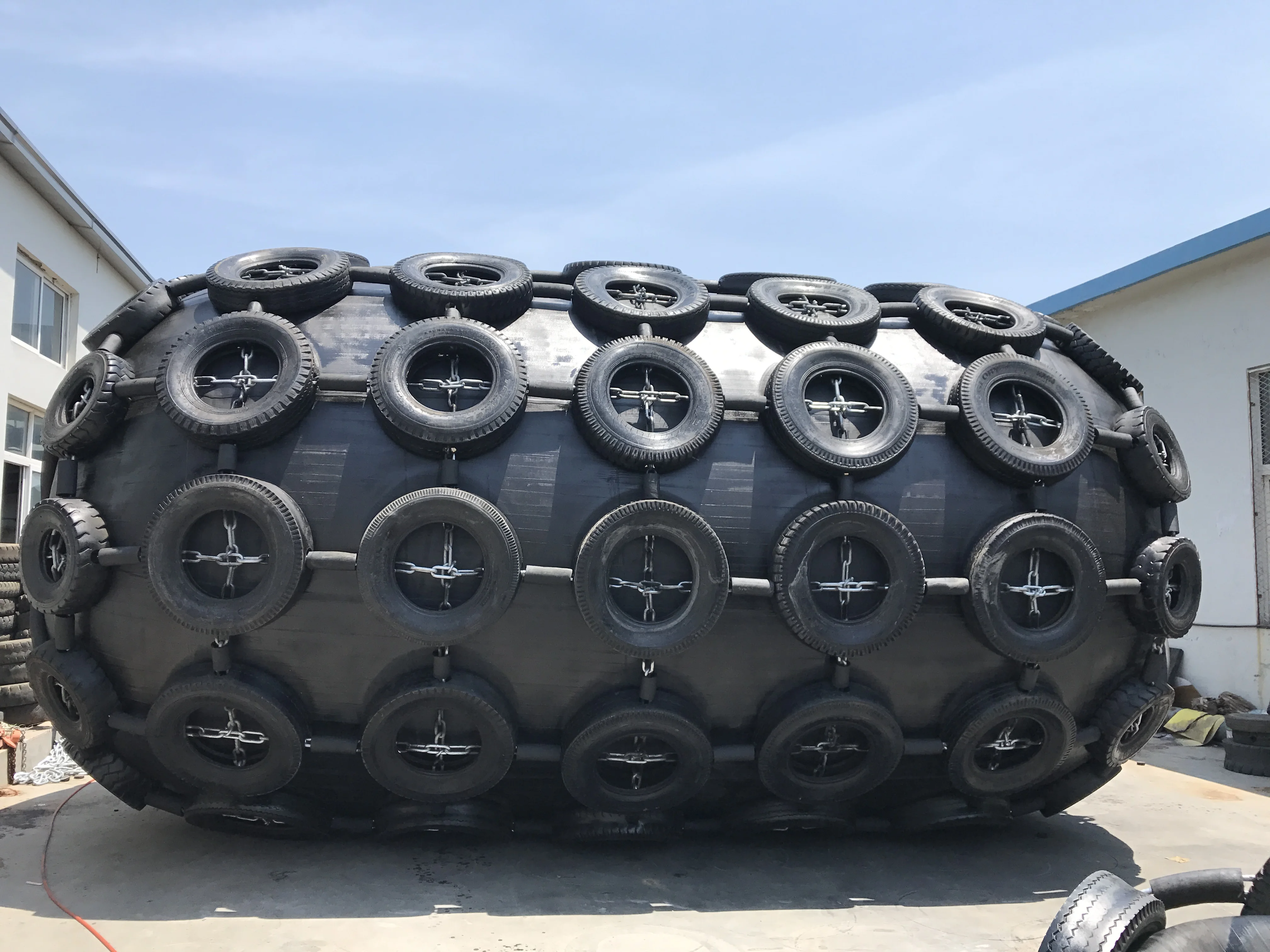

Rubber Marine Fender also called pneumatic fender, rubber fender, yokohama fender, made by rubber & multi layers of rubber-dipped tyre fabric, is a leading anti-collision device for marine application in the world today. Marine fenders have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they are widely used for large tankers, vessels, docks, harbor wharf and ocean platforms.
Safety Valve
Pneumatic Yokohama fenders of diameter 2500mm and larger sizes shall be equipped with a safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally. Fender which is smaller than 2500mm in diameter can also be equipped with a safety valve if requested.
Pneumatic Yokohama fenders of diameter 2500mm and larger sizes shall be equipped with a safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally. Fender which is smaller than 2500mm in diameter can also be equipped with a safety valve if requested.
Characteristic
● External wear resistance ● Bearing pressure
● Ageing resistance ● Long service life
● Good air tightness ● Easy storage
● Non deformation ● Simple installation
● External wear resistance ● Bearing pressure
● Ageing resistance ● Long service life
● Good air tightness ● Easy storage
● Non deformation ● Simple installation
Product Details
Specification
Product Name | Rubber Marine Fender |
Place of Origin | Shandong,China |
Brand Name | Shunhang |
Part | Tyre-chain net |
Size | Customized Size |
Initial internal pressure | 50kpa, 80kpa |
Material | Natural rubber, Nylon rubber |
Color | Black |
Techonlogy | Anti-high pressure, Anti-explosion,Anti-aging |
Product part | Tyre and chain net |
Warranty | 2 Years |
Function | Ship protection |
Certificate | CCS, BV, SGS, ABS, RS, ISO9001 |
Some common sizes of our pneumatic yokohma fender, customed sizes are also available | ||||||||||
Specification | Compression Deflection 60% | |||||||||
D(mm） | L(mm) | Initial internal pressure 50kpa | Initial internal pressure 80kpa | |||||||
RF(KN) | GEA(KJ) | RF(KN) | GEA(KJ) | |||||||
500 | 1000 | 64 | 6 | 85 | 8 | |||||
600 | 1200 | 86 | 10 | 108 | 13 | |||||
700 | 1500 | 137 | 17 | 180 | 24 | |||||
1000 | 1500 | 182 | 32 | 239 | 45 | |||||
1000 | 2000 | 257 | 45 | 338 | 63 | |||||
1200 | 2000 | 297 | 63 | 390 | 88 | |||||
1350 | 2500 | 427 | 102 | 561 | 142 | |||||
1500 | 3000 | 579 | 153 | 761 | 214 | |||||
1700 | 3000 | 639 | 191 | 840 | 287 | |||||
2000 | 3500 | 875 | 308 | 1150 | 430 | |||||
2500 | 4000 | 1381 | 663 | 1815 | 925 | |||||
2500 | 5500 | 2019 | 943 | 2653 | 1317 | |||||
3000 | 5000 | 2000 | 1050 | 2709 | 1571 | |||||
3000 | 6000 | 2488 | 1312 | 3292 | 1888 | |||||
3300 | 4500 | 1884 | 1175 | 2476 | 1640 | |||||
3300 | 6000 | 2783 | 1675 | 3652 | 2338 | |||||
3300 | 6500 | 3015 | 1814 | 3961 | 2532 | |||||
3300 | 10600 | 5257 | 3067 | 6907 | 4281 | |||||
4500 | 9000 | 5747 | 4752 | 7551 | 6633 | |||||
Our Advantages
Rubber Marine Fenders
1 Compliance with ISO 17357:2002
2 More safety and reliability
3 Lower mooring forces
4 Adaptable to the tide
5 Low maintenance cost
6 Low reaction force and hull pressure
7 Most cost competitive system
8 Simple and low cosy installation
9 Various optional fitting
10 Advange against shearing force
2 More safety and reliability
3 Lower mooring forces
4 Adaptable to the tide
5 Low maintenance cost
6 Low reaction force and hull pressure
7 Most cost competitive system
8 Simple and low cosy installation
9 Various optional fitting
10 Advange against shearing force
Production Process

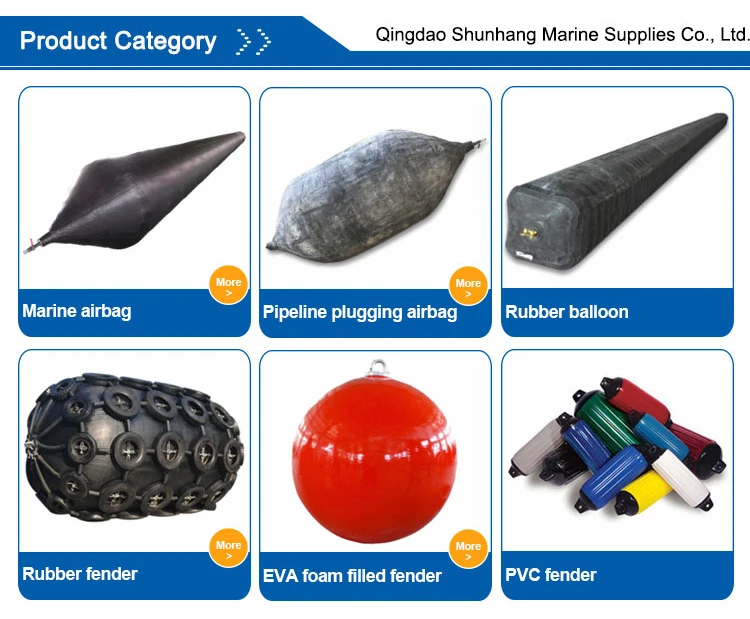

Product Category

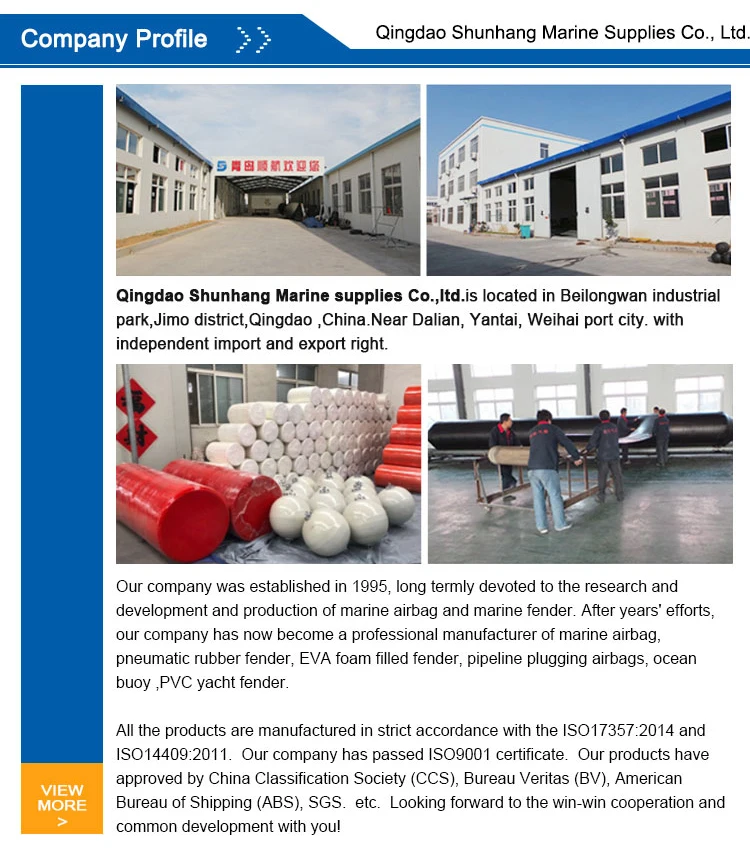

Company Profile
Exhibition
Package and Shipping
FAQ
1."I have ships but don't know how to choose the size of rubber marine fender, can you help me?"
Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable size and quantity for you.
2."I want to try your rubber marine fender, but I never use it and don't know how to use, can you help me?"
Answer: We will send instruction book together with rubber marine fender.
3."What's your MOQ?"
Answer: Our MOQ is 1PC. Sample order is accepted.
4."How about the lifespan of your rubber marine fender?"
Answer: Designed lifespan of our rubber marine fender is 6 to 10 years.
5."What's your warranty period ?"
Answer: Our warranty period is 2 years. we will responsible for the repair or replace the new ones for you if it proved to be our quality problem.
6."What kind of certificate can you provide ?"
Answer: ISO9001, CCS, BV, SGS, RS, ABS etc. certificate is available.
Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable size and quantity for you.
2."I want to try your rubber marine fender, but I never use it and don't know how to use, can you help me?"
Answer: We will send instruction book together with rubber marine fender.
3."What's your MOQ?"
Answer: Our MOQ is 1PC. Sample order is accepted.
4."How about the lifespan of your rubber marine fender?"
Answer: Designed lifespan of our rubber marine fender is 6 to 10 years.
5."What's your warranty period ?"
Answer: Our warranty period is 2 years. we will responsible for the repair or replace the new ones for you if it proved to be our quality problem.
6."What kind of certificate can you provide ?"
Answer: ISO9001, CCS, BV, SGS, RS, ABS etc. certificate is available.
