Wholesale Frigid Weather Ultra Fast Charging 12V 24V Car Jump Starter for Tractors Large Off road RV Trucks Tank Aircraft
- Category: >>>
- Supplier: Yesa Company (Hong Kong)
Share on (1601014094601):
Product Overview
Description
Product Features
2. Suitable for charging in remote areas without power supply or AC power use the started car engine to quickly charge the machine for 5-10 minutes, and can start multiple vehicles continuously.One machine, after being fully charged, can start two 24v large truck batteries.
3. Use high-rate lithium batteries from A123 Company. Still strong even at -30℃

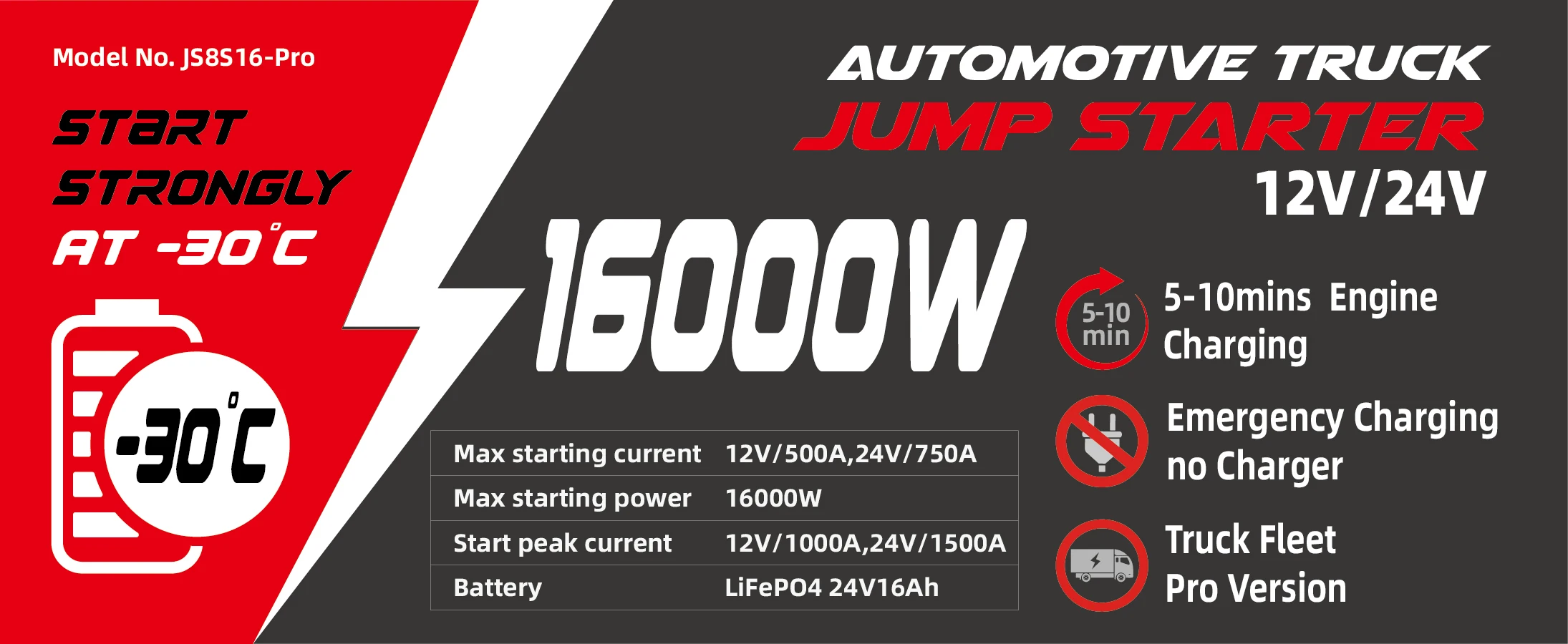

Item No. | JS8S16-Pro |
Capacity | 410Wh |
Max start current | 12V/500A,24V/750A |
Start peak current | 12V/1000A,24V/1500A |
Max start power | 16000W |
Protection function | Reverse-battery protection |
Output short circuit protection | |
Low voltage protection | |
Clips loose automatic power protection | |
Over start time protection | |
Overcurrent protection | |
Overtemperature protection | |
Size | 330*140*335mm |
Net weight | 9kgs |
Using temperature | -30℃ ~ 50℃ |
· Reverse-battery protection
· Output short circuit protection
· Low voltage protection
· Clips loose automatic power protection
· Over start time protection
· Overcurrent protection
· Overtemperature protection
· Output short circuit protection
· Low voltage protection
· Clips loose automatic power protection
· Over start time protection
· Overcurrent protection
· Overtemperature protection

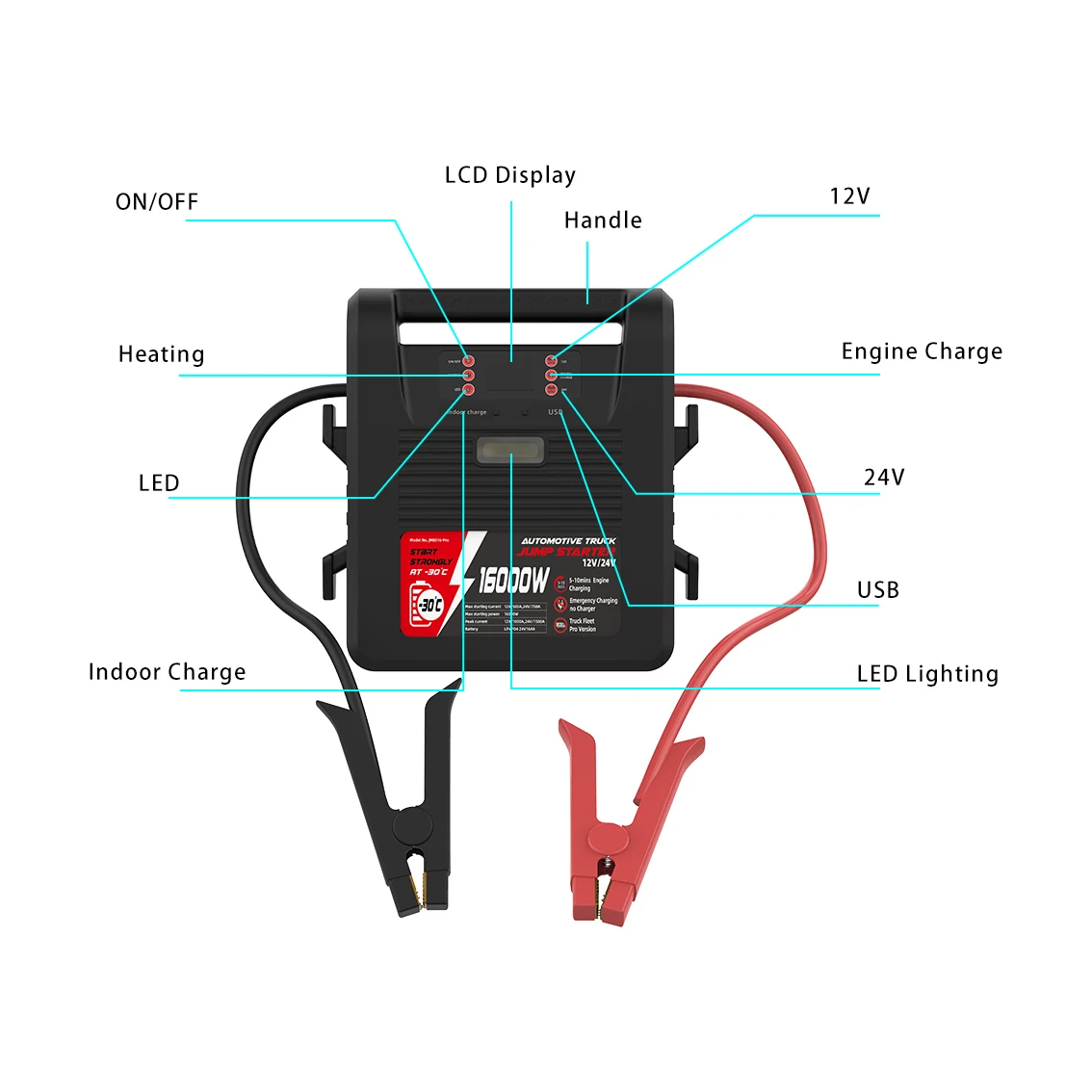

ON / OFF
100% means fully charged. The flashing voltage means low capacity and the vehicle cannot be started. However, USB output and LED can be available. Please charge in time.
Heating
The device can automatically detect the temperature of the inside battery. Press button, if Heating flashes on the screen, it means the inside battery is heating up. If the Heating keeps on , the device is ready . 10 minutes later, Heating automatically disappears.
LED
There are 5 stages.During this process, press it twice continuously to turn it off.
12V
Press 2 seconds, the screen display 12V. Each time start time is 8 seconds, each time interval 3 seconds, the device automatically protects after 3 times when " clamps " flashes, press and hold for 2 seconds to turn off the power and then turn it on again.
Engine Charge
Emergency charging button
Please refer to engine charge function
Please refer to engine charge function
24V
Press 2 seconds, the screen display 24V. Each time start time is 12 seconds, each time interval 3 seconds, the device automatically protects after 3 times when " clamps " flashes, press and hold for 2 seconds to turn off the power and then turn it on again.
Indoor Charge
Charge with 12v-30v/4.5A-3.5A charger until it reaches 100% and 28.8v on the screen and the voltage stops flashing. Charging time is approximately 6 hours.
USB
DC 5V/2.1A *2

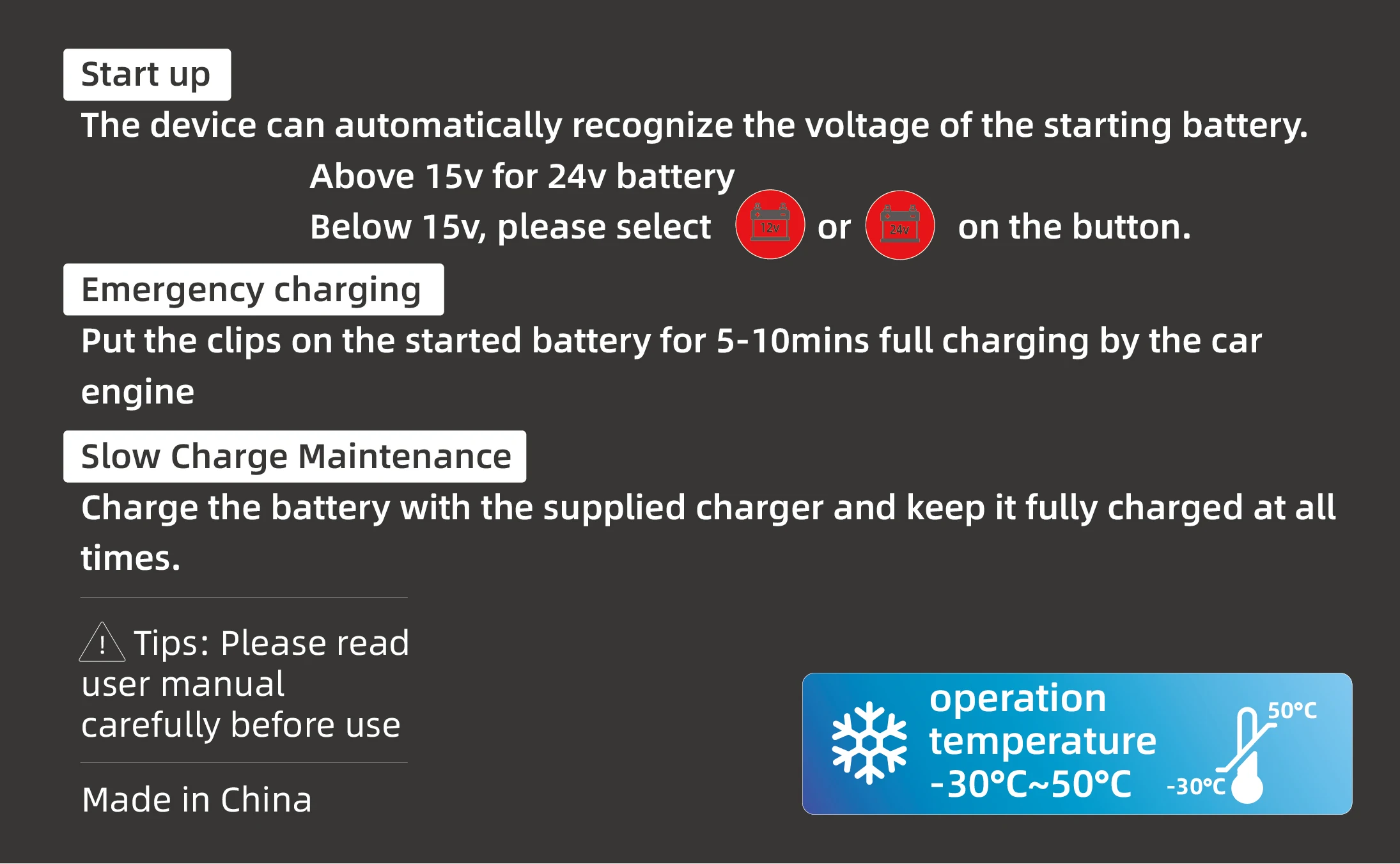

Starting up
1.Make sure the oil polish on the battery terminal is cleared
2.Clamp the starting batteries (+) and (-) via the red clip and black clip of the device. Stable clamping for maximum contact area. Turn on the power until the " clamps " appears on the screen, otherwise clamp it again and press the power button to turn it on.
3. On the screen " ⚪ "means the battery connected correctly ，" × " means the reverse-battery
2.Clamp the starting batteries (+) and (-) via the red clip and black clip of the device. Stable clamping for maximum contact area. Turn on the power until the " clamps " appears on the screen, otherwise clamp it again and press the power button to turn it on.
3. On the screen " ⚪ "means the battery connected correctly ，" × " means the reverse-battery
Step2 ：confirming the starting battery voltage
The device can automatically detect the starting battery voltage
when the screen displays more than 15V, the starting battery is 24v battery by default.
When the voltage is less than 15V, need to select " 12V " or " 24V "button.
When the voltage is 0.3V or less, the starting battery is damaged, Please remove the starting battery from the car asap.
when the screen displays more than 15V, the starting battery is 24v battery by default.
When the voltage is less than 15V, need to select " 12V " or " 24V "button.
When the voltage is 0.3V or less, the starting battery is damaged, Please remove the starting battery from the car asap.
Step3 ：start
The screen shows everything is normal, turn on the vehicle's start switch
Warnings
1.Don’t operate in the explosive environment
(the flammable gas, liquid and dust)
2.Don’t put the device into water and fire
3.For not in use, the device should be placed in a room with a temperature of 10℃-45℃ and kept fully charged. It should be charged at least once every 3 months.
4.Products based on lithium batteries should be disposed of in accordance with local regulations at the end of their product life.
(the flammable gas, liquid and dust)
2.Don’t put the device into water and fire
3.For not in use, the device should be placed in a room with a temperature of 10℃-45℃ and kept fully charged. It should be charged at least once every 3 months.
4.Products based on lithium batteries should be disposed of in accordance with local regulations at the end of their product life.
Warranty Policy
Warranty period for one year.
The following is non-normal use, does not belong to the warranty
1.using the device for neither 12V nor 24V car start
2.Using the non-affixed charger to charge
3.Putting the device at a high temperature environment for a long time
4.Disassembling the device and clips without permission
1.using the device for neither 12V nor 24V car start
2.Using the non-affixed charger to charge
3.Putting the device at a high temperature environment for a long time
4.Disassembling the device and clips without permission
* Shipping fees may vary in real time. Please contact our customer service for the most accurate information regarding shipping costs. ---->>>>>contact us.
