9 Color Rotogravure Printing Machine Electronic Line Shaft Roto Printing Machine Rotogravure Printing Machinery 8color

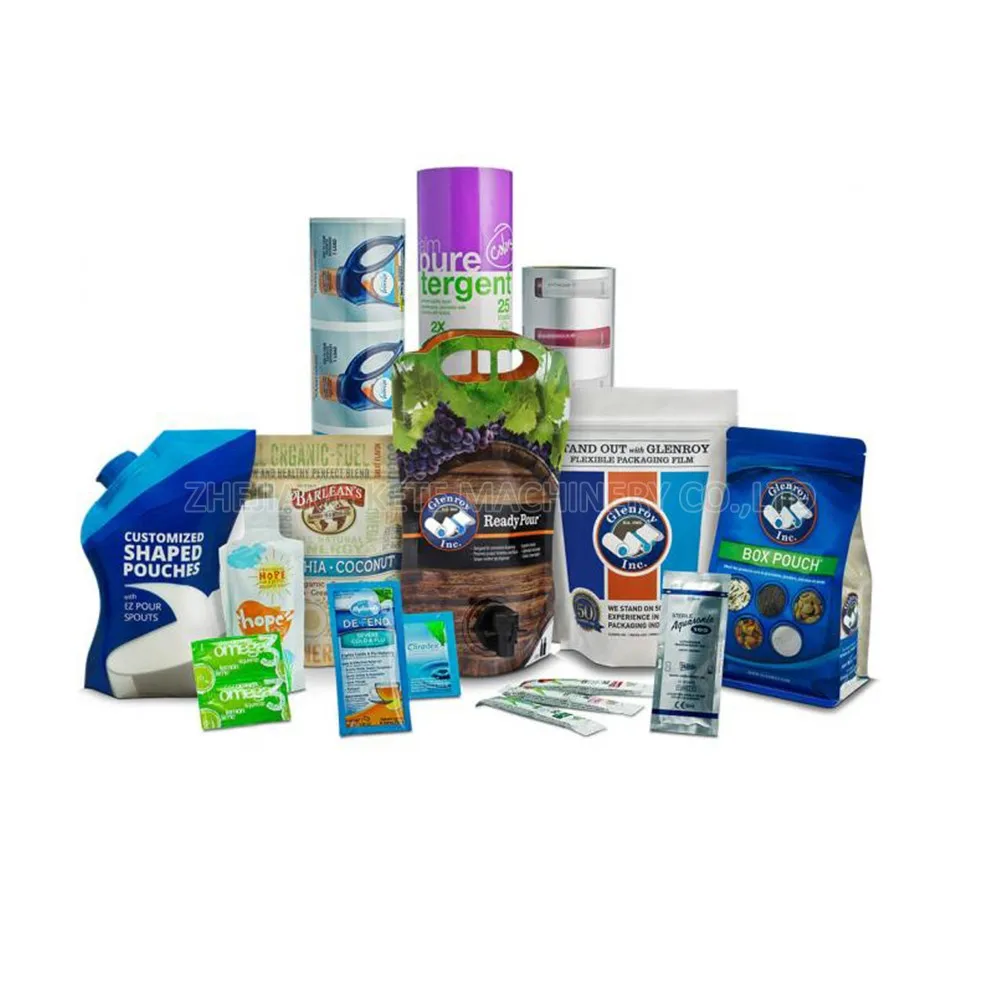

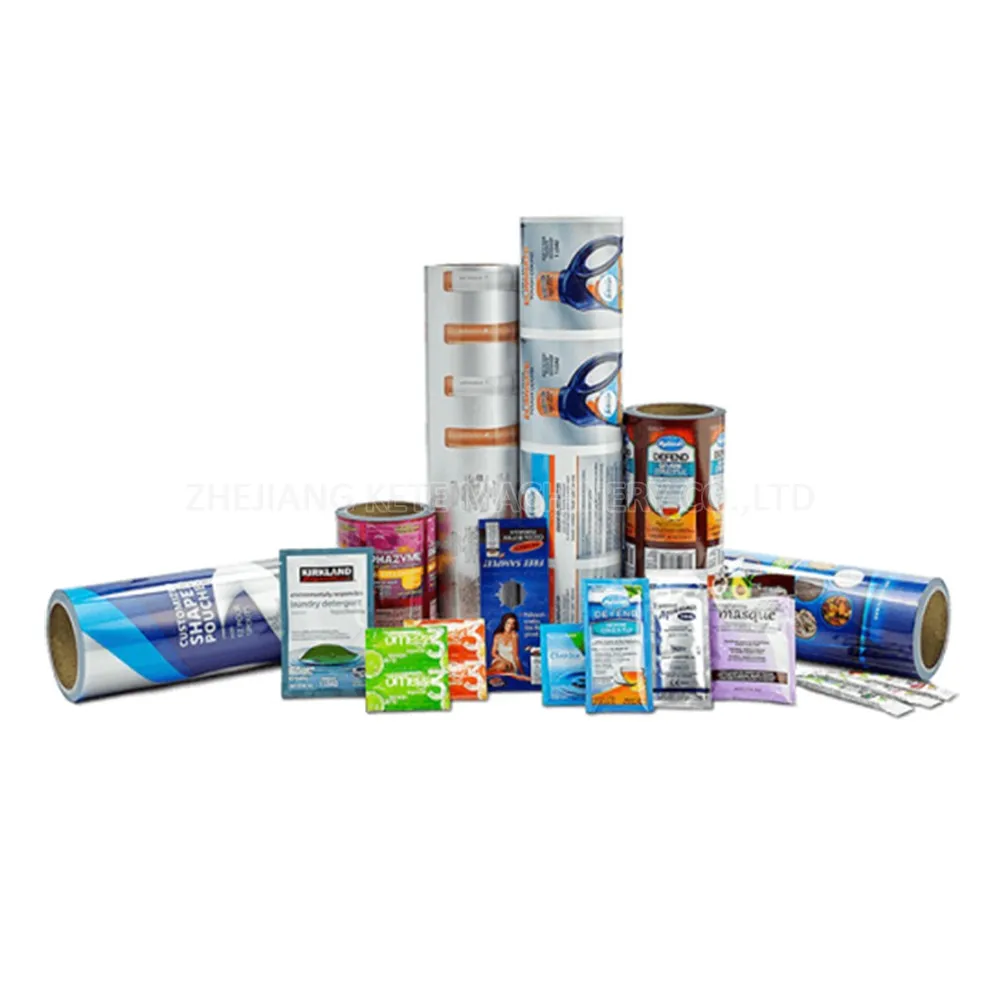

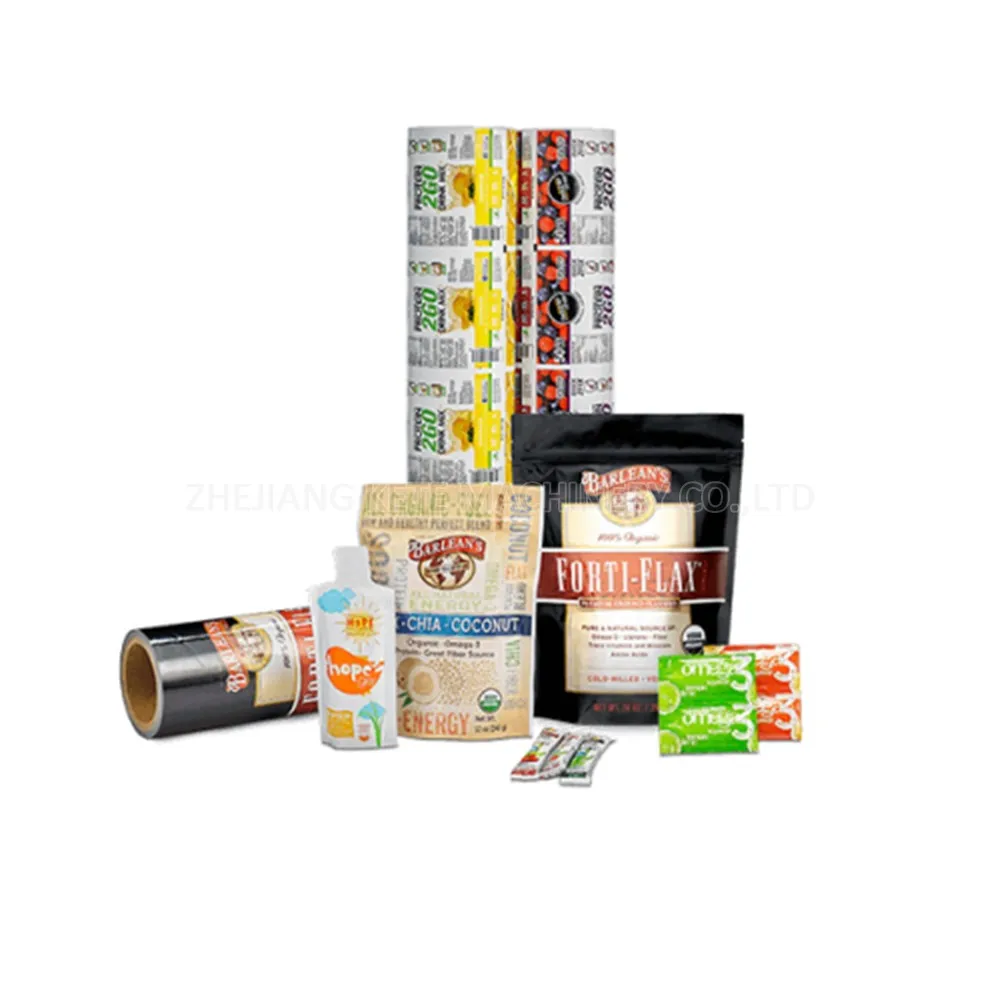

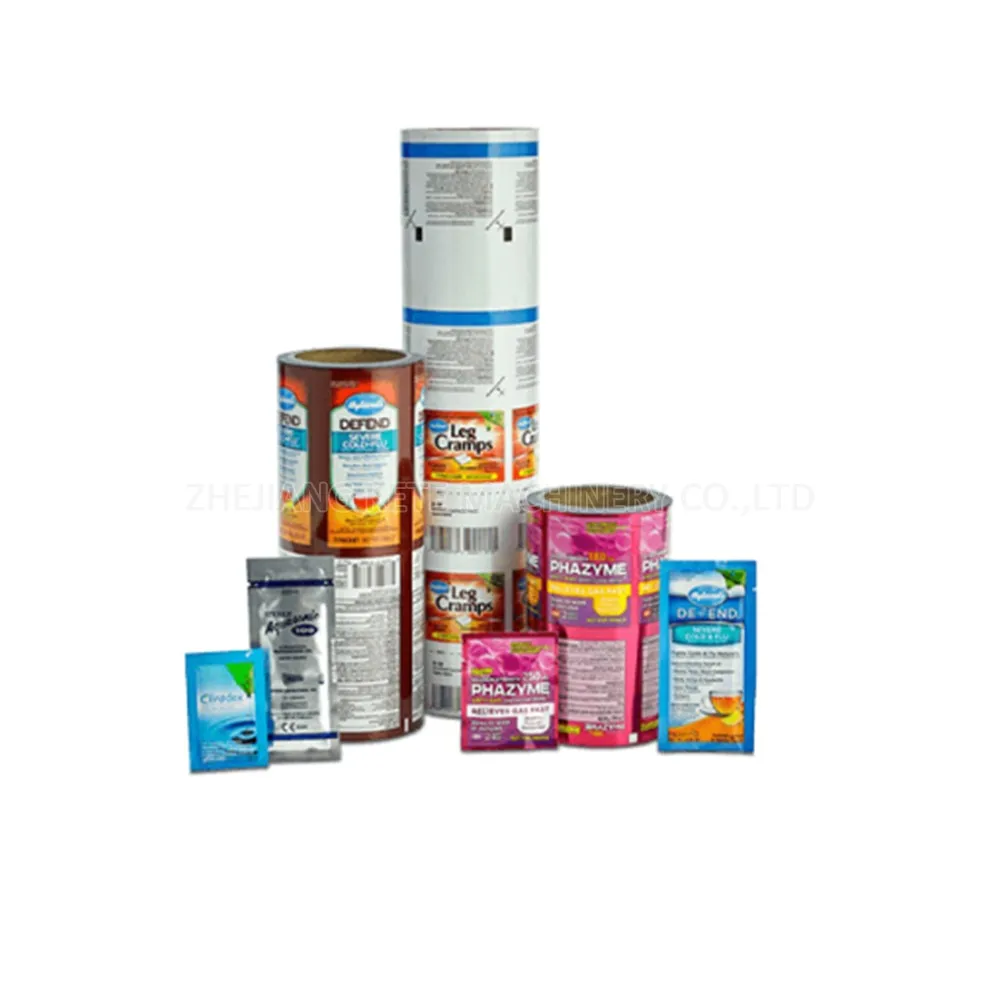

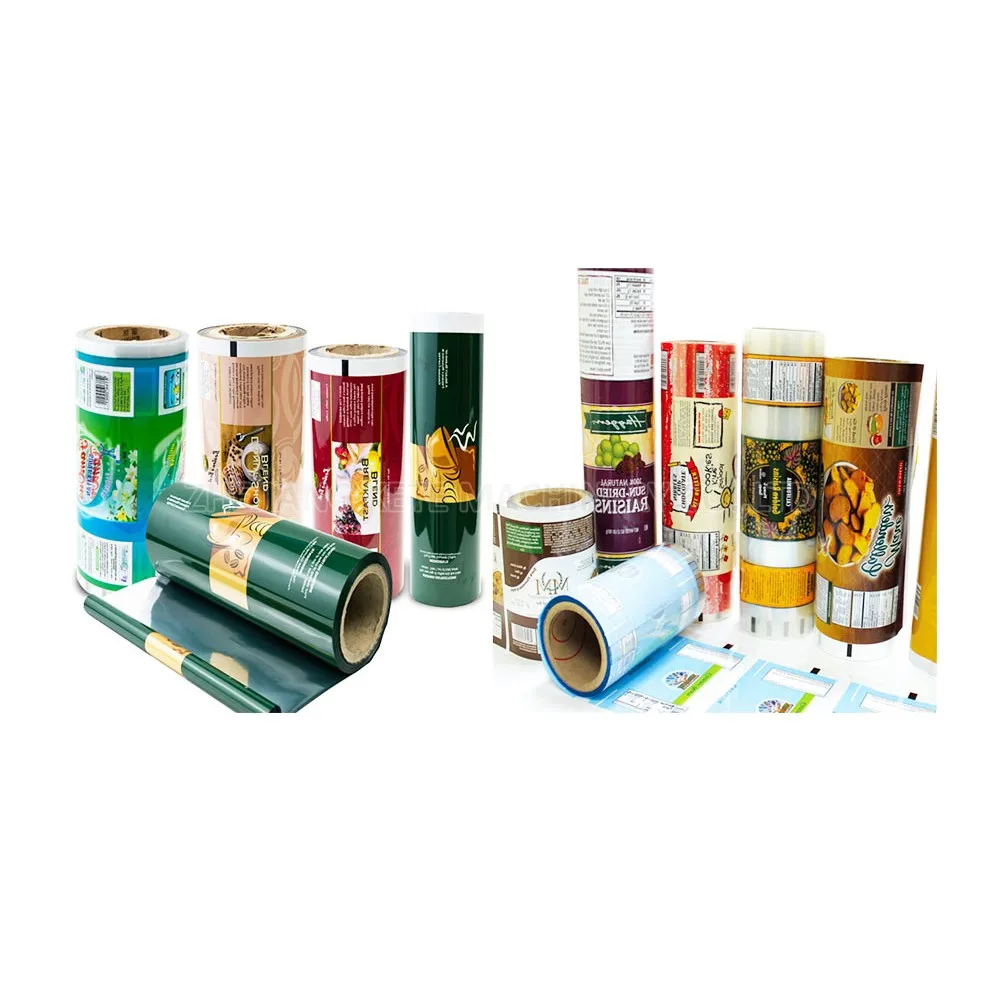

This Electronic Line Shaft (ELS) High Speed Rotogravure Printing Machine is Suitable for Roll To Roll Printing Materials Such As BOPP, CPP, PET, PVC, PE, Nylon, Metalized Film, Paper, Aluminum Foil, etc. It Is Widely Used in High-Quality Packaging Material Printing Industries.
● Independent Rotary type Unwind and Rewind ● Unwind and Rewind Auto Splicing and Cutting
● Doctor Blade Pneumatic Type Design ● Doctor Blade Moving Controlled by Separate Motor
● Shaft-less Printing Cylinder Loading Design ● With Servo Motor Drive Each Printing Unit
● With Water Chilling System ● Auto Ink Recycle System
● With Computer Auto Color Register System ● With Web Video Inspection System
● With Ink Transfer Roller ● Optional: Reverse Printing Turn Bar
● Optional: Water Base Ink ● Optional: Ink Viscosity Controller
Model | KTGP-ES400 |
Printing Colors | 4 - 12 colors |
Printing Width | 850mm / 1050mm / 1250mm |
Max. Mechanical Speed | 400 m/min |
Max. Printing Speed | 350m/min (Cylinder Diameter ≥ 160mm) |
Unwind Diameter | Φ800mm |
Rewind Diameter | Φ800mm |
Printing Cylinder Diameter | Φ120mm - Φ300mm |
Color Register Precision (Vertical) | ±0.10mm (BOPP or PET) |
Color Register Precision (Horizontal) | ±0.10mm (BOPP or PET) |
Heating Way | Electric Heating / Gas Heating / Oil Heating |
Total Power | About 330kw (8colors) |
Machine Weight | About 42000kg (8colors) |
Machine Size (LWH) | 21200 x 3580 x 3550mm (8colors) |
Machine Power | 3 Phase 220 / 380 / 440v 50/60Hz |
