Highly rated flat die board high speed 3x23.8 mm steel clicking die cutting blade rule for die making

Product Overview

Description

YT 0.71*23.8mm steel die cutting rule blade



Our YT brand flat bed cutting rule has the excellent properties of a soft steel, with the long service life of an extra hard cutting edge and can , therefore be universally used.



C. Types available:



1. 2pt thickness height is from 23mm-23.8mm



2. 3pt thickness height is from 23mm-23.8mm



3. Perforating rule, wave rule and cutting rule available.



4. Special high blade like 30mm 50mm 80mm and so on



5. Special zip rule available



6. Long center bevel and center bevel



D. Specifications:

cutting rule	2PT/3pt*22-60mm CFDB/CF
	Blade hardness	33-35HRC
	Blade/blade hardness	600HV ( 56 HRC)
	Best bending degree (3PT shaved)	a=40°R~ 0.5mm
	specification	3pt*23.8mm DB
	Knife processing	Pull mouth
	Blade angle	42°/48°/52°/
tooth rule	2pt*23.8 2*1
	Blade hardness	35°
	Blade/blade hardness	35°
	specification	2pt*23.8 2*1
	Knife processing	Pull mouth
	Tooth profile	customizable
creasing rule	2PT/3PT
	hardness	35-40 hrc
	height	22.00-23.80









I. Shipment Terms:



DHL, UPS, EMS, TNT, Fedex, sea transportation are available



J. Trade terms:



EXW, FOB, CIF preferred

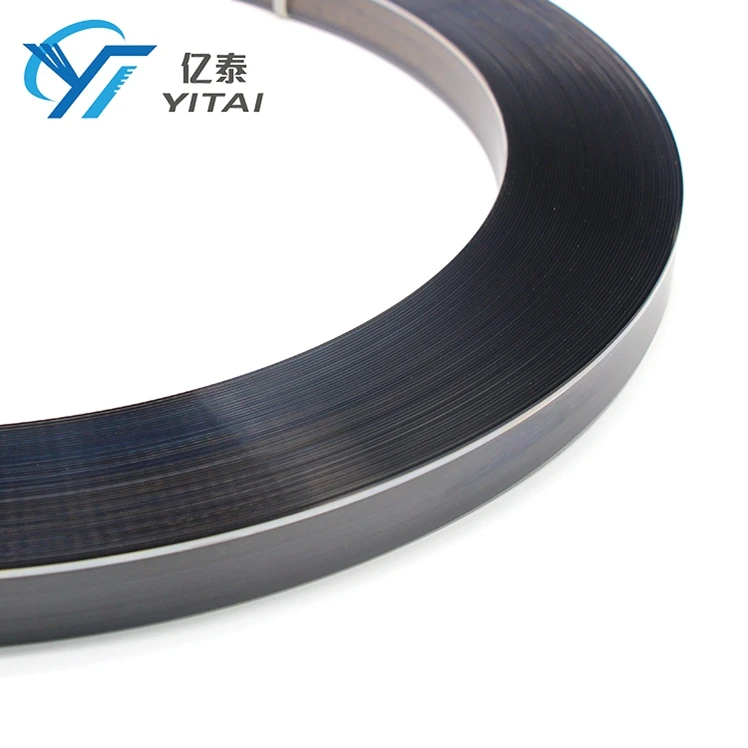

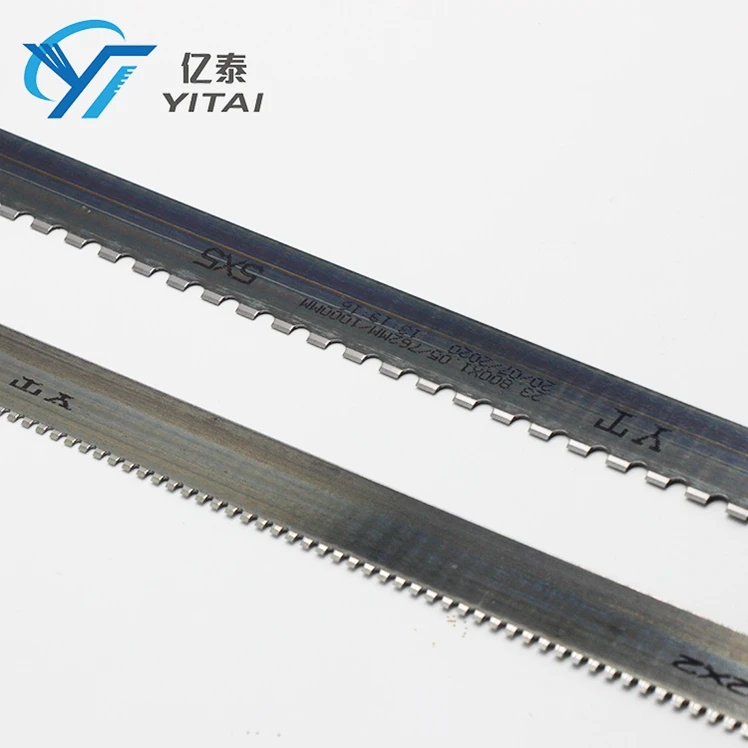

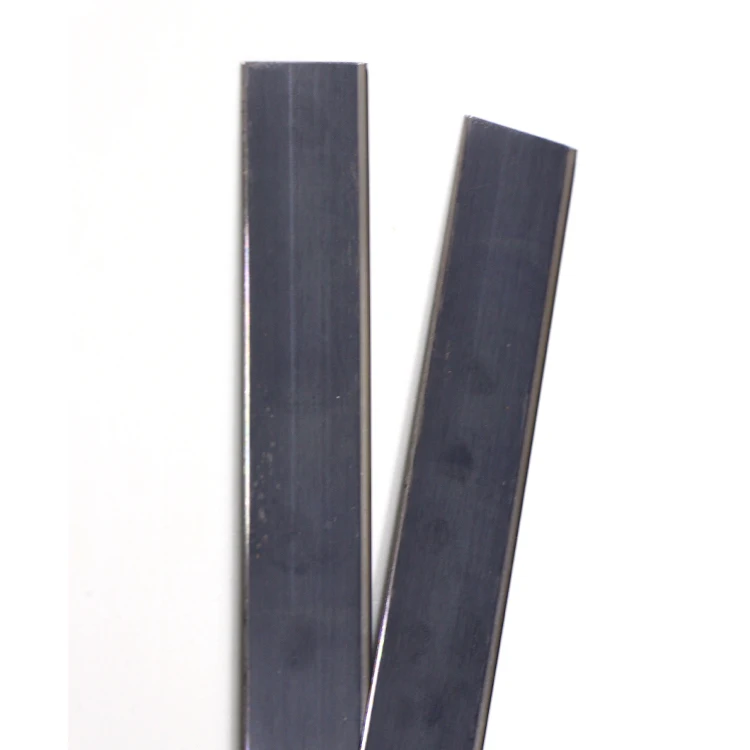

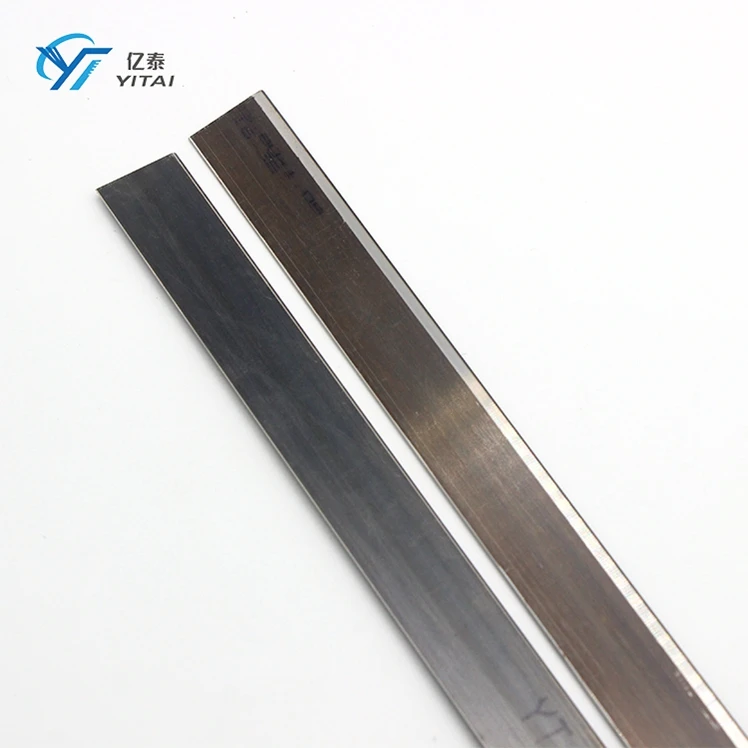

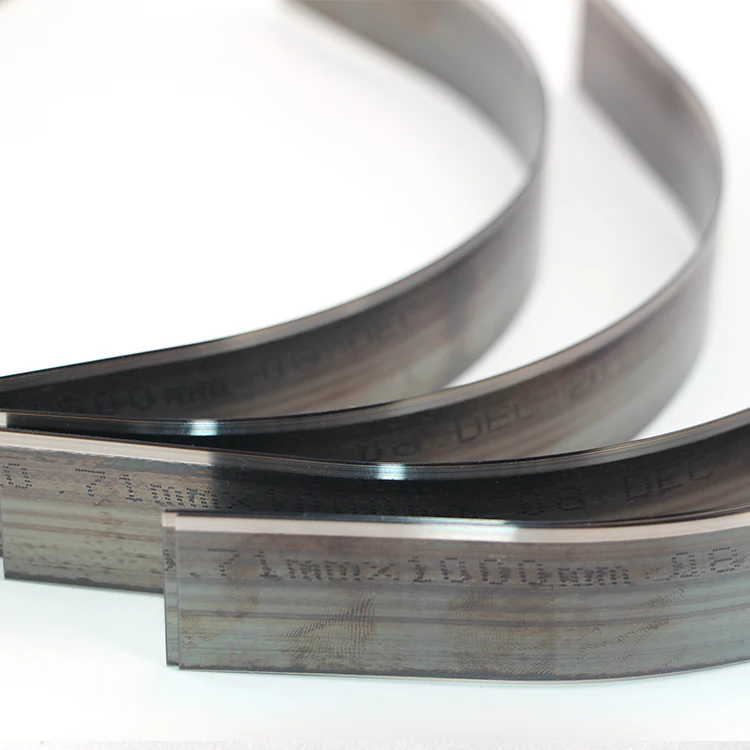

The pictures for your reference
