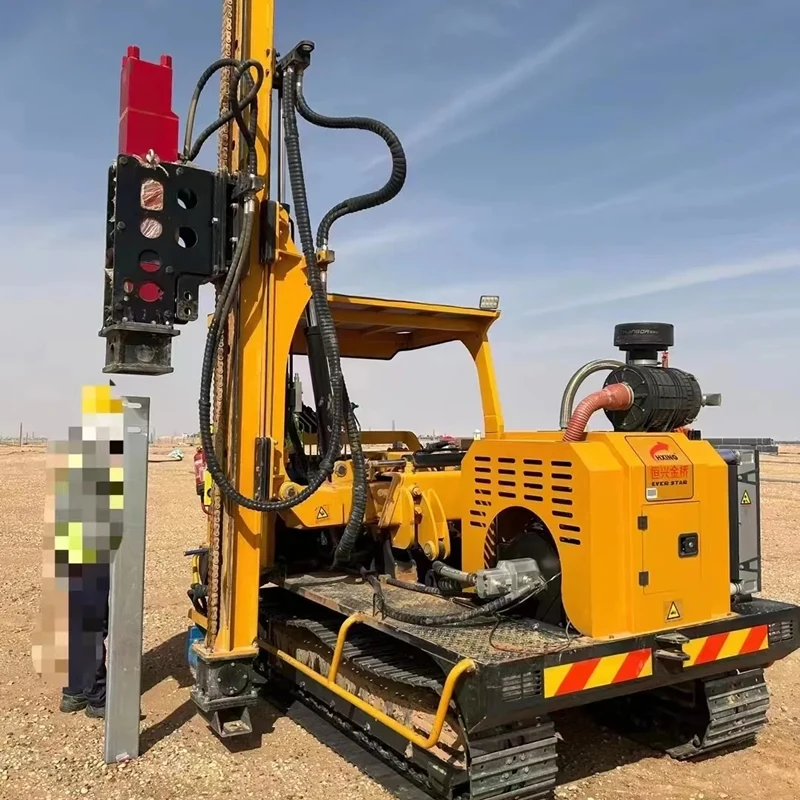

Crawler Solar Pile Driver Attachment Deep Hole Hammer Pile Driver Machine for Sale
$15,999.00-18,999.00

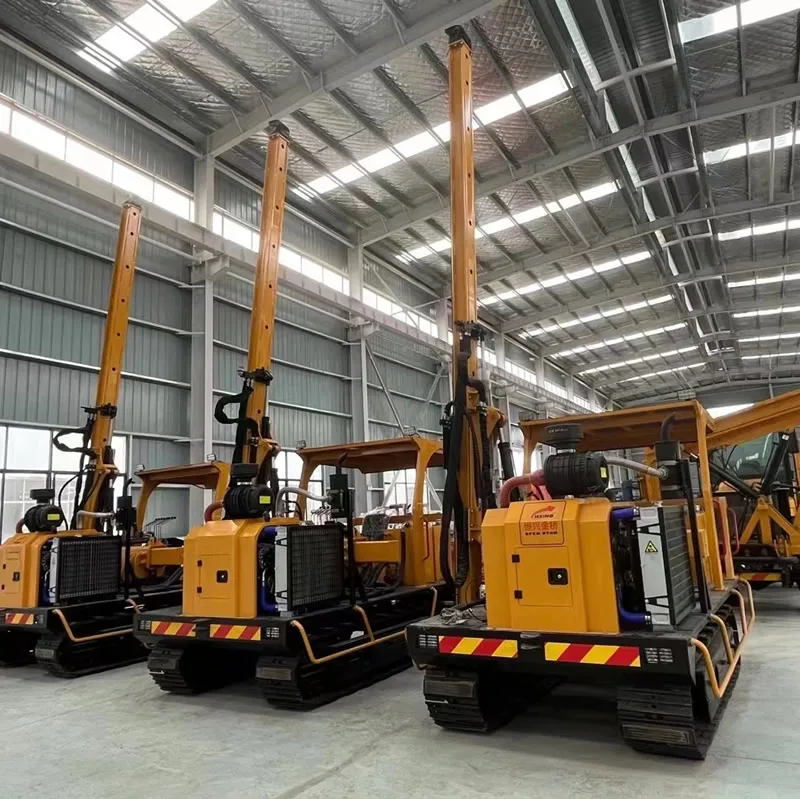

Hydraulic Photovoltaic Post Pile Driver/ Pile driving machine wholesale
- Category: >>>
- Supplier: Xuzhou Hengxing Jinqiao Machinery Technology Co. Ltd.
Share on (1601014130355):
Product Overview
Description
Advantage of Pile Driver
Technical Data Sheet of Pile Driver
No. | Item | Unit | Value |
1 | Transportation Size (L*W*H) | MM | 6500*2200*2700 |
2 | Working Size (L*W*H) | MM | 3500*2200*5800 |
3 | Crawler Size (L*W*H) | MM | 2550*1700*530 |
4 | Weight | KG | 4500-5200 |
5 | Diesel Engine Power | KW | 97KW / 70KW |
6 | Ratedf Flow of Hydraulic System | L/MIN | 113.4 |
7 | Hydraulic Pressure (Max) | Mpa | 20 |
8 | Mast Strok | MM | 200-5500 |
9 | Hydraulic Hammer | / | YC360 (85MM borehole rod ) |
10 | Piling Efficiency | MM/MIN | 3200 |
11 | Drilling Depth | MM | 3500 |
12 | Borehole Diameter | MM | 50-300 |
13 | Climbing Ability(Max) | Degrees | 30 |
14 | Speed | KM/H | 3.8 |
15 | Left/Right slide Strok | MM | 500 |
16 | Max Inclination angle of Sliding Guide Fra,e | Degrees | Left 30/ Right 8 |
17 | Front/Rear Adjusting Angle of Frame | Degrees | Front 75/ Rear 15 |
18 | Min Ground Clearance | MM | 230 |

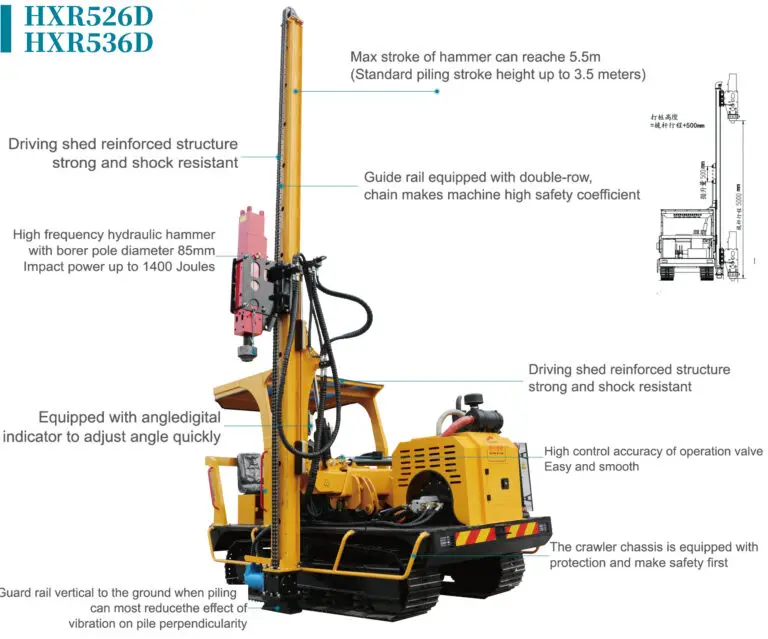

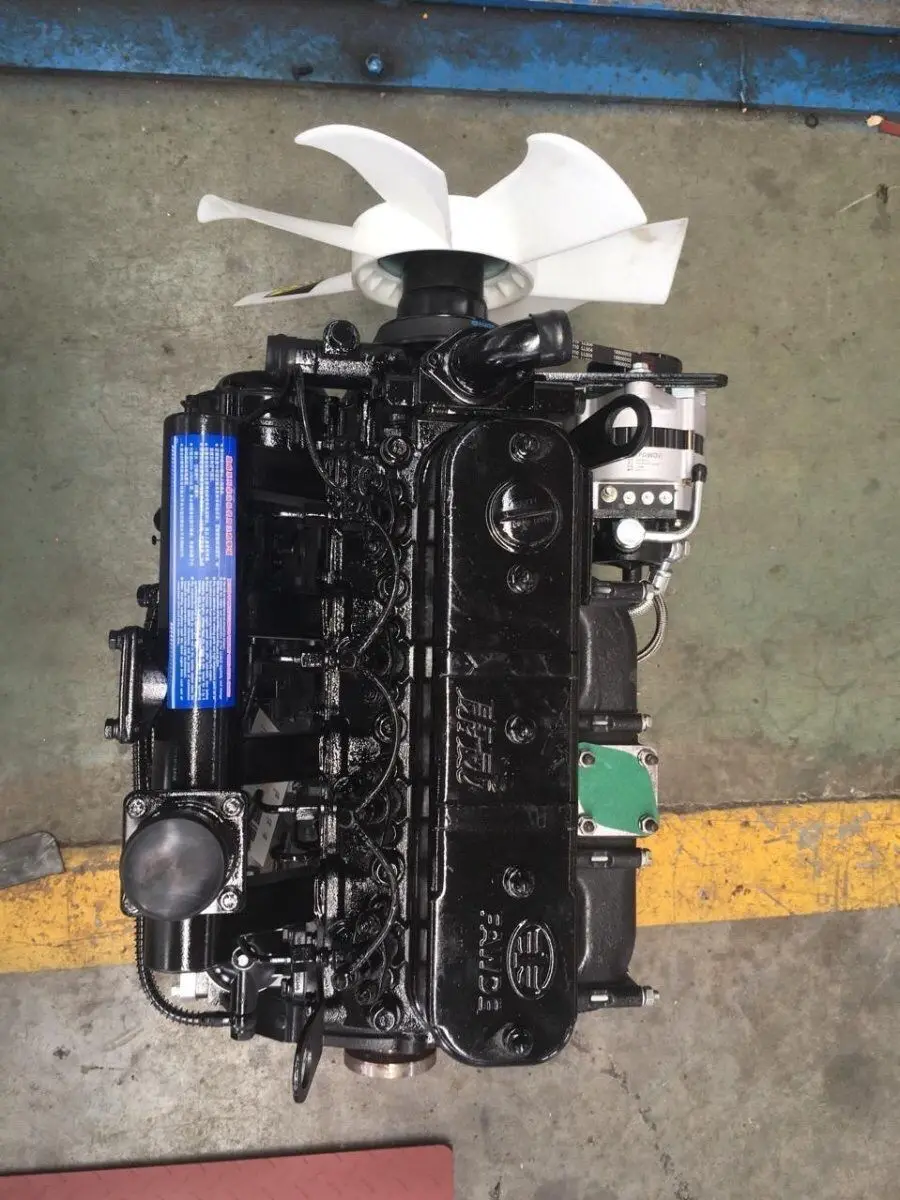

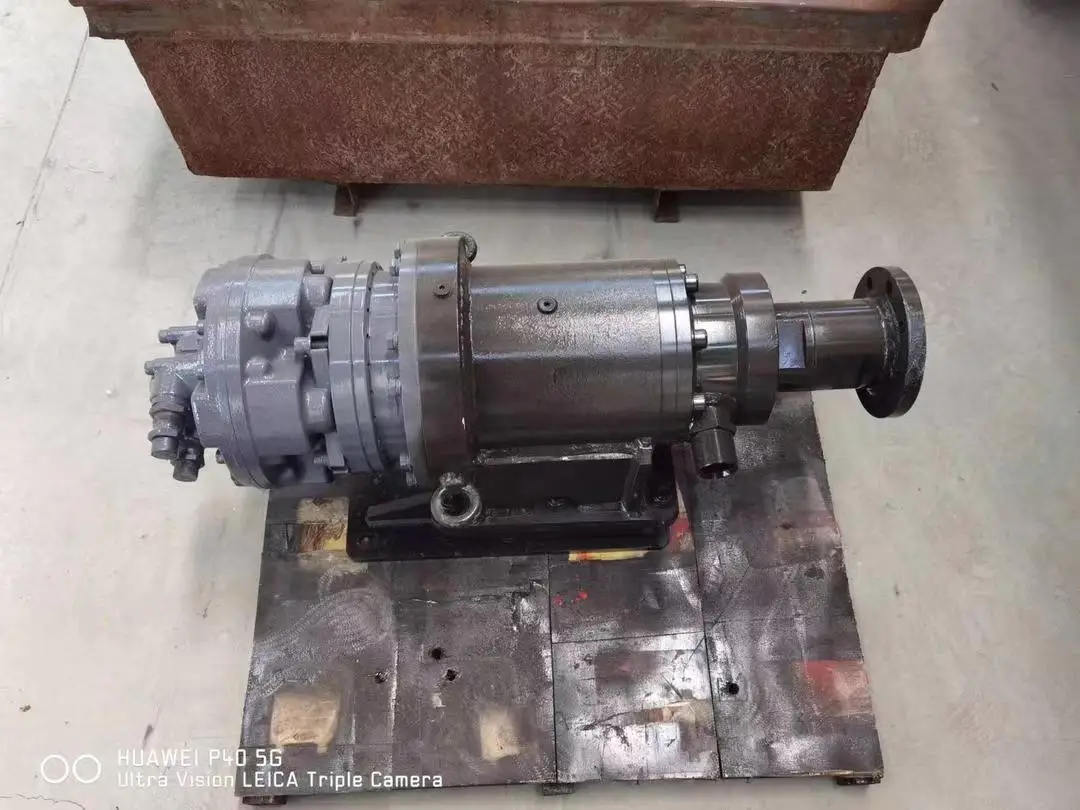

Main Parts Of Pile Driver

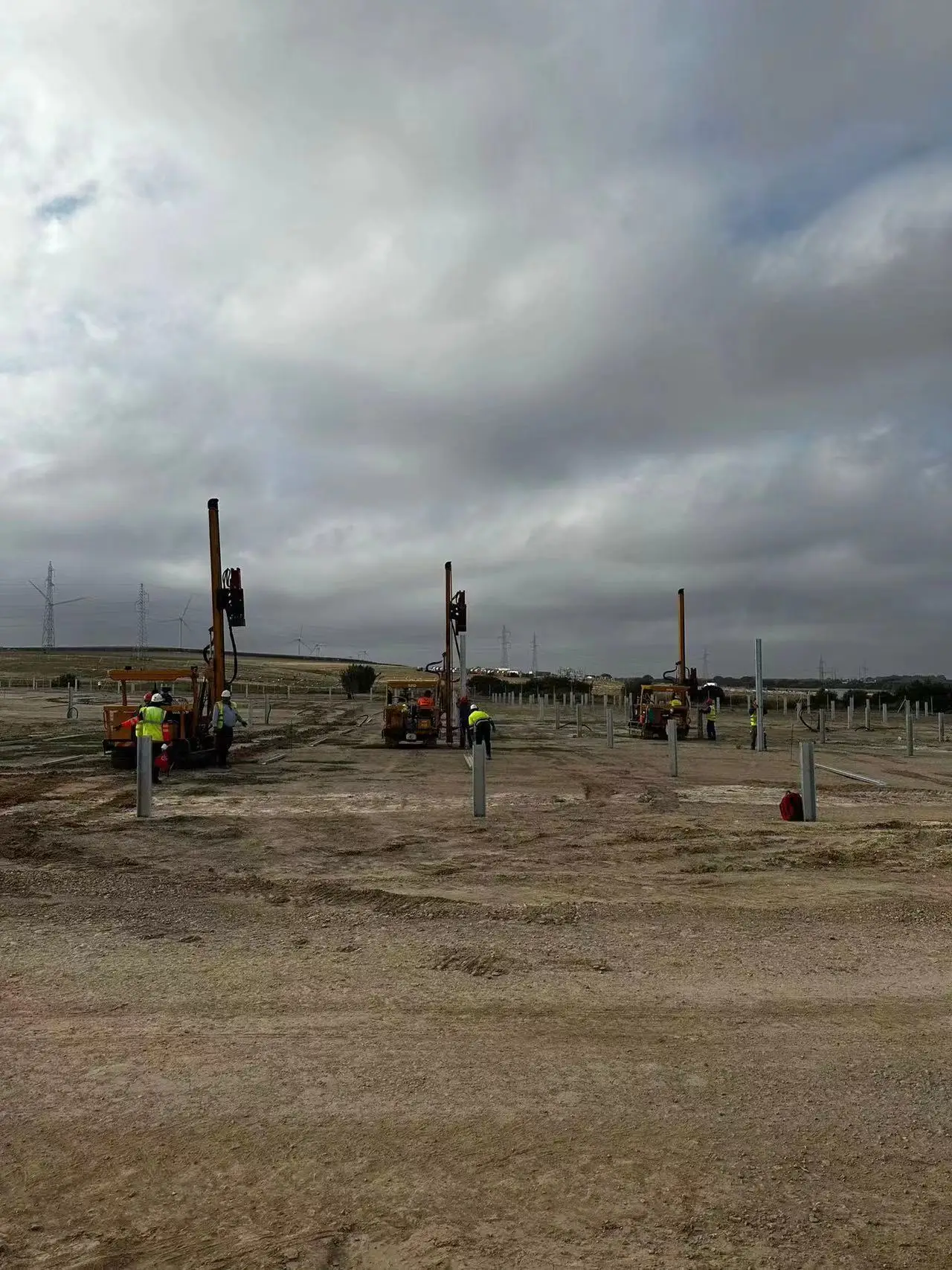

Demonstration of Pile Driver with Different Attachmen

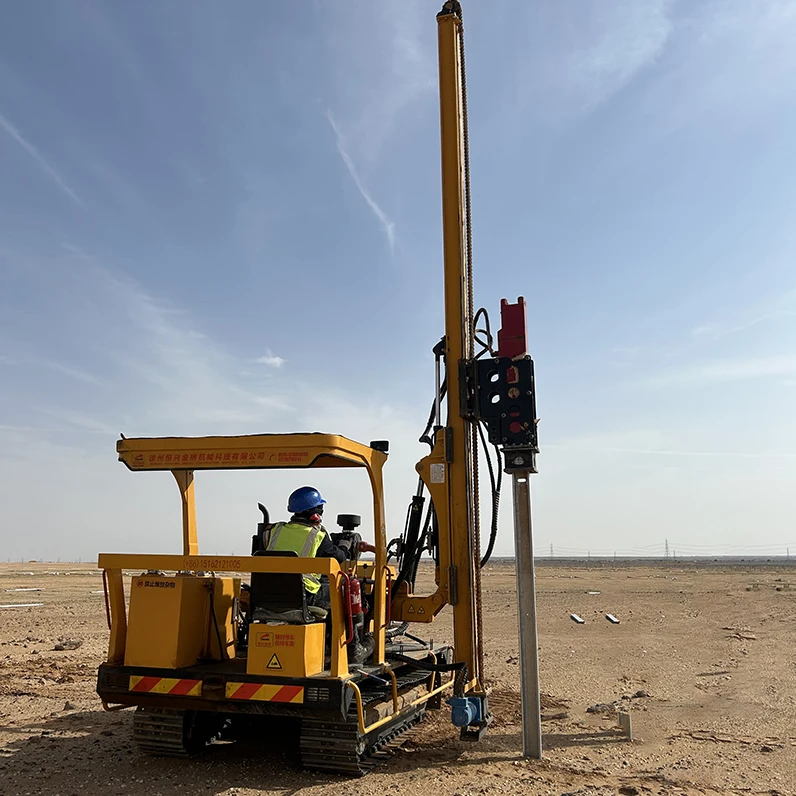

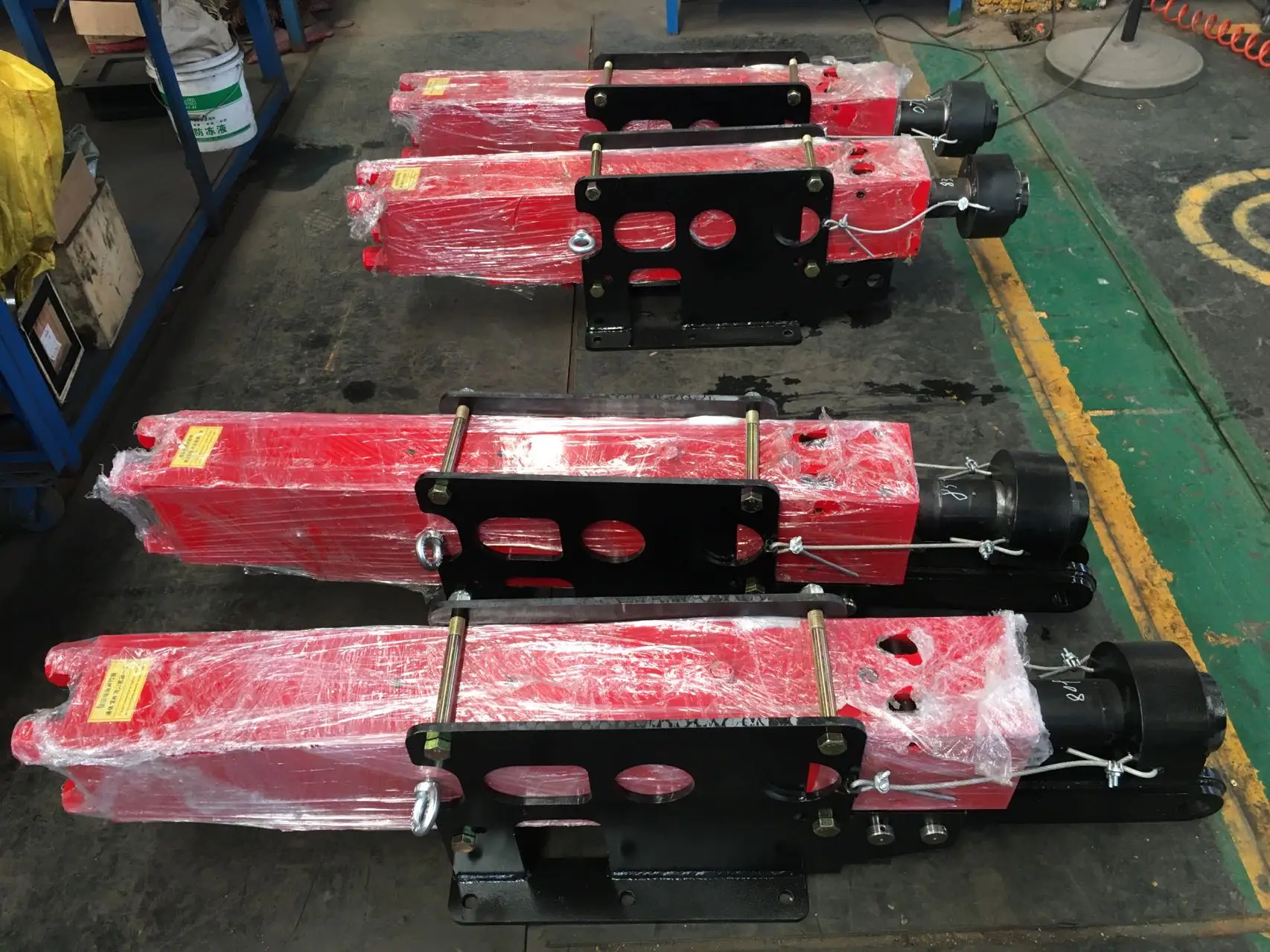

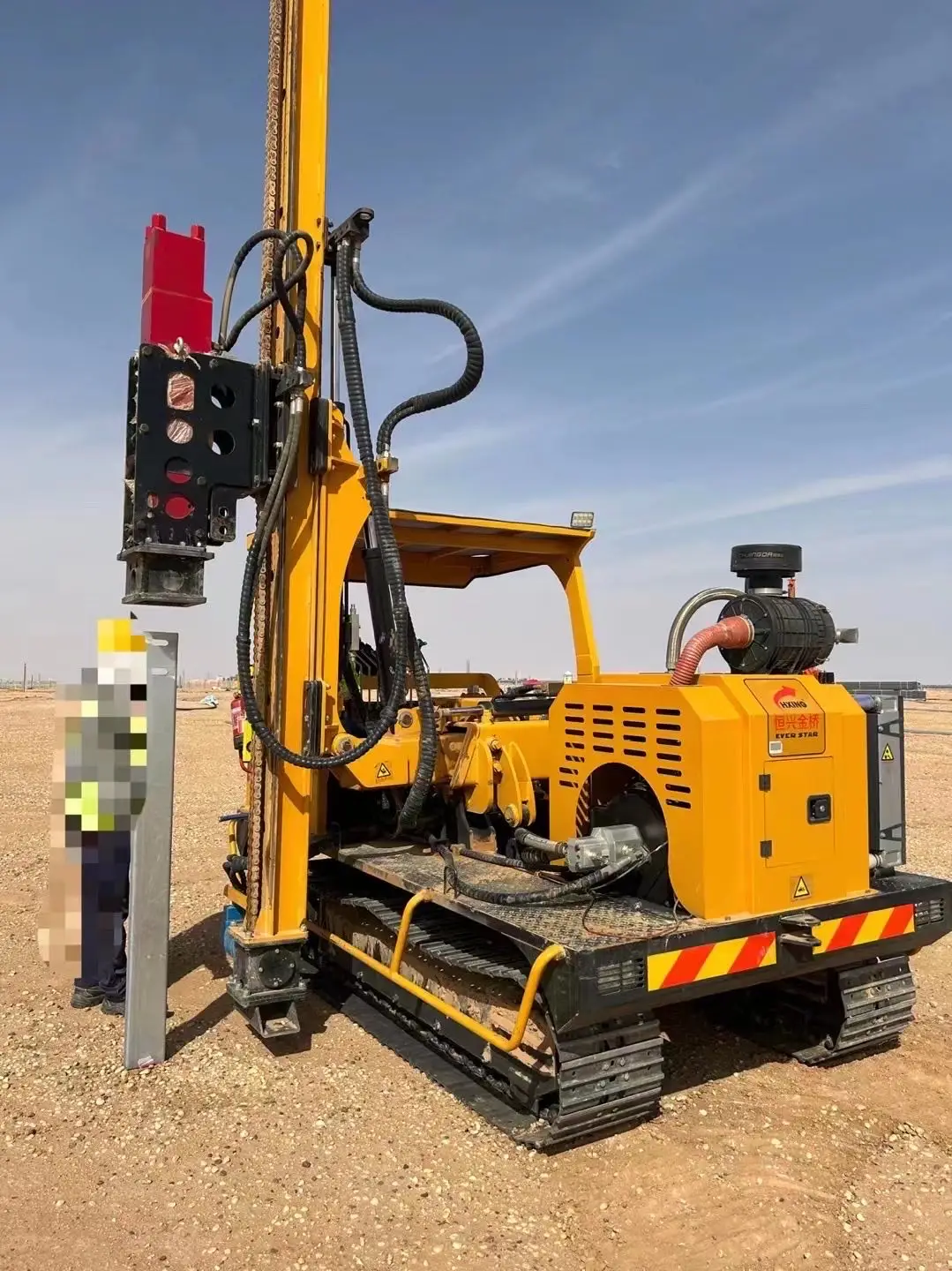

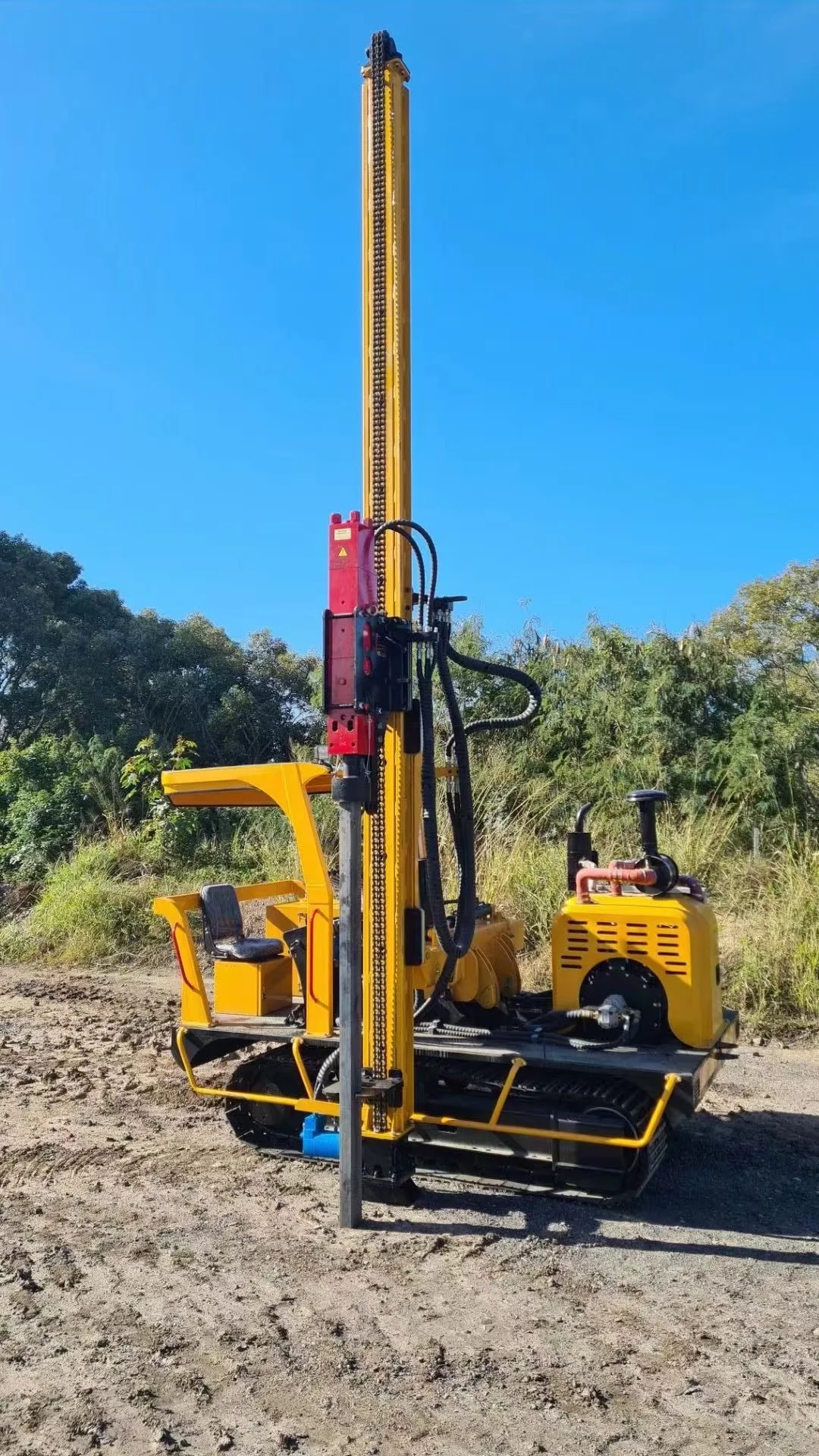

Pile driver with hydrulic hammer

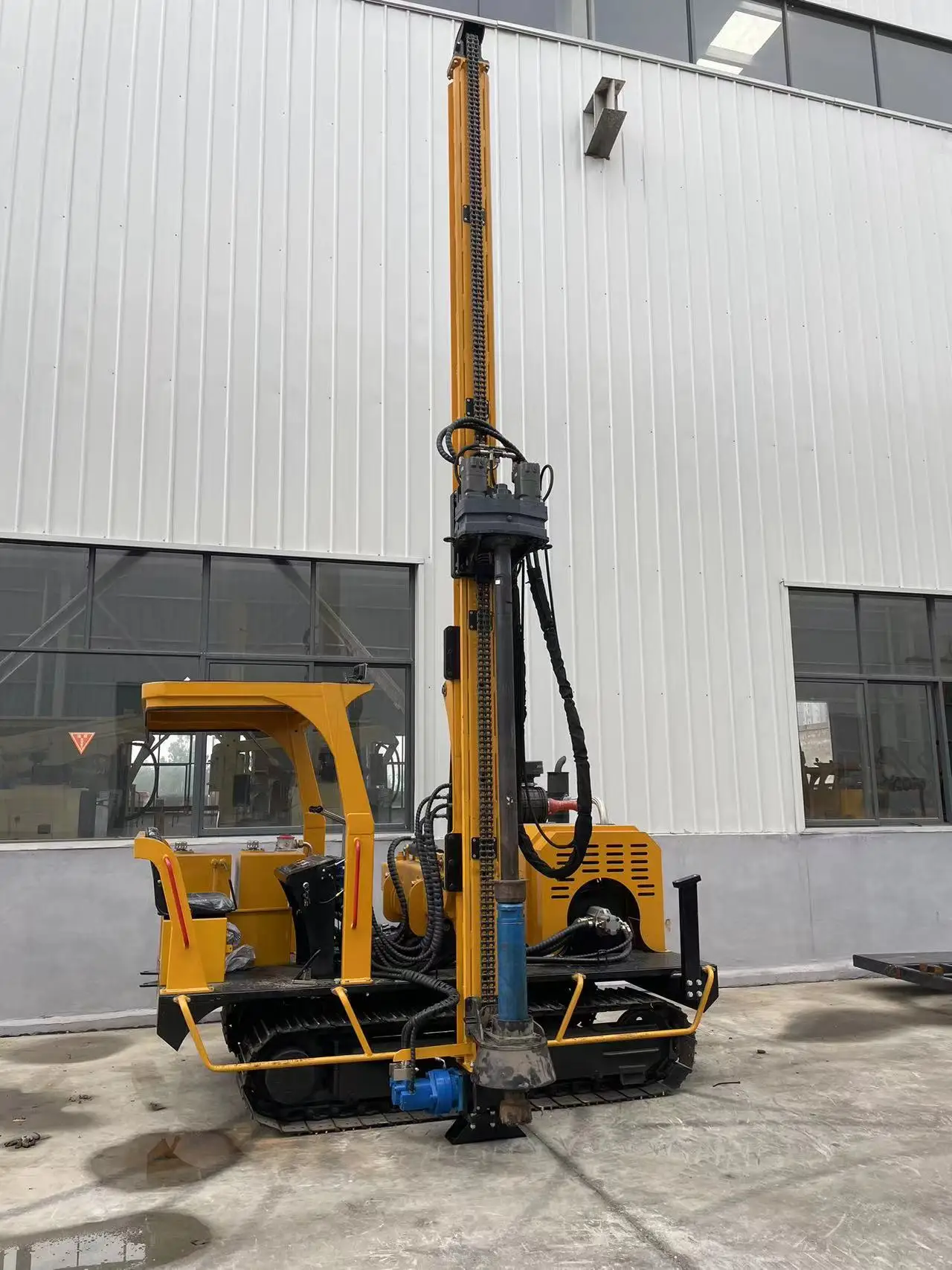

Pile driver with DTH (down-the-hole) hammer

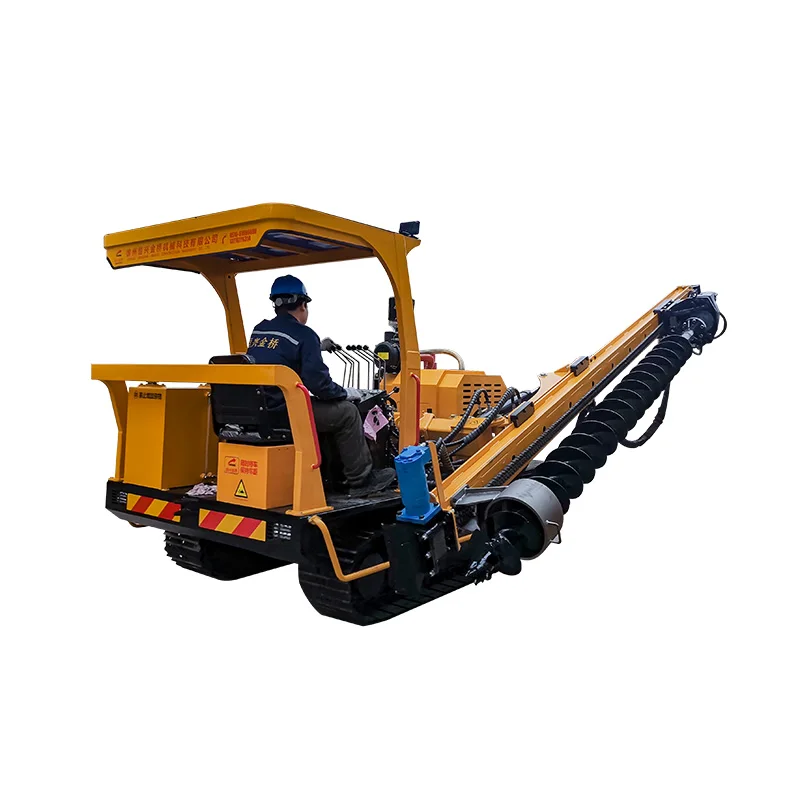

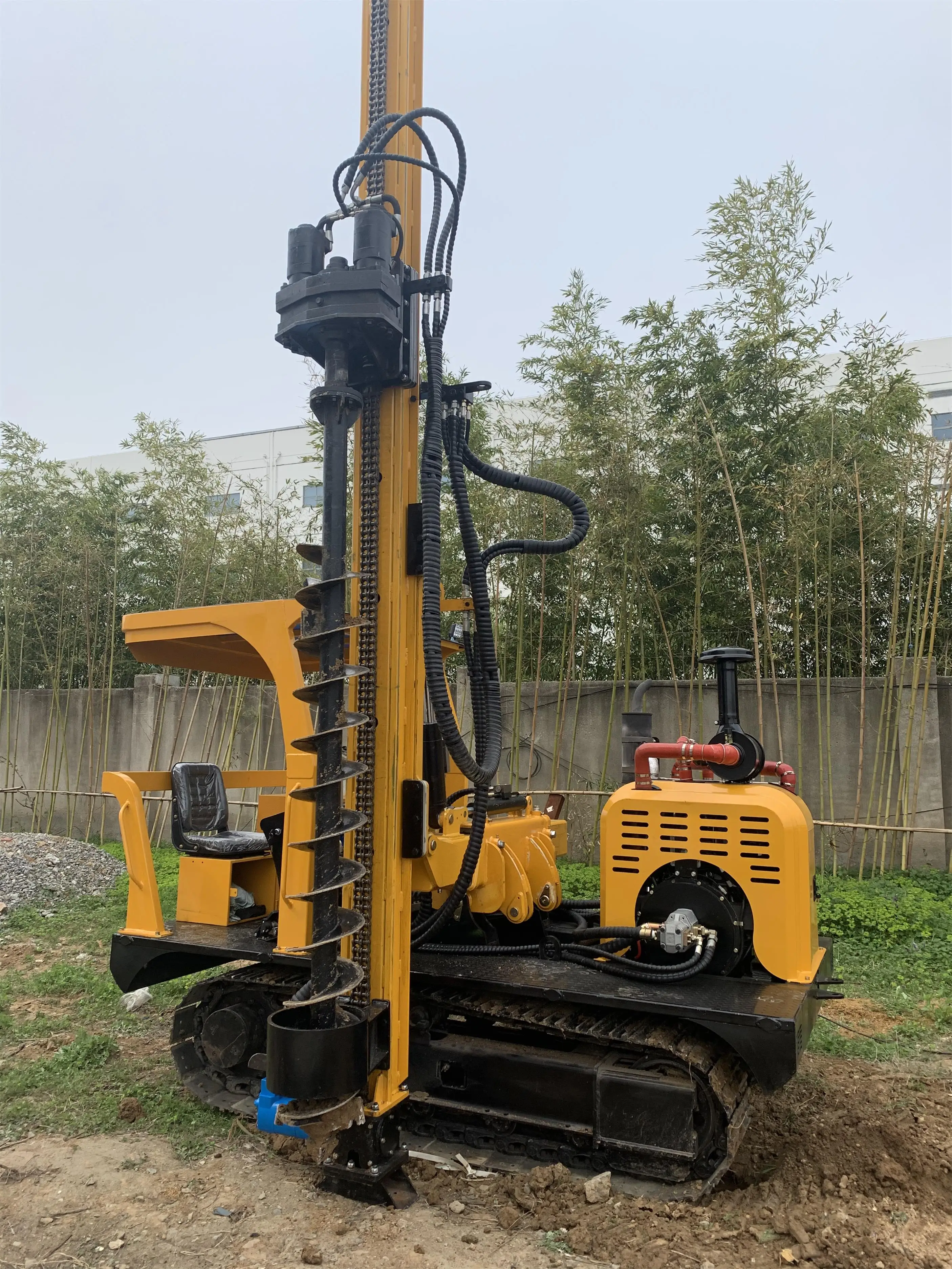

Pile driver with screw driving unit

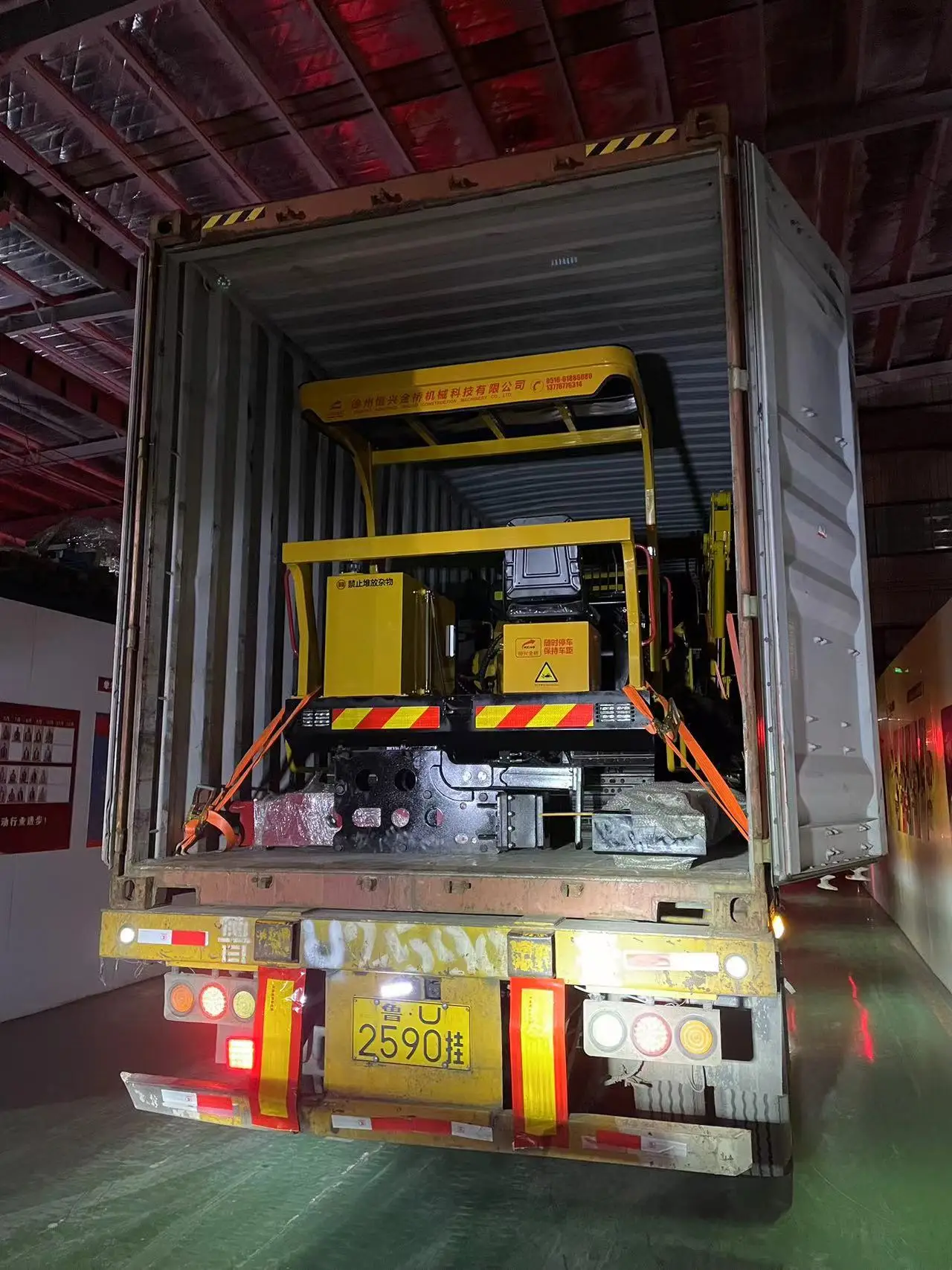

Packing & Delivery
Feedback from Client
Certificate & Exhibition
Why Choose Us
15 years of strength factory，Factory price direct sales
Welcome to visit the factory or Video
- The company was founded in 2008
- We have 15 years of experience in the production of construction machinery
- Company has an area of 40,000 square meters and nearly 300 employees
- We have 4 invention patents, 51 utility model patents, 15 appearance patents
- All products have passed the CE certification
- Passed the ISO9001:2008 international quality certification
- We have 15 years of experience in the production of construction machinery
- Company has an area of 40,000 square meters and nearly 300 employees
- We have 4 invention patents, 51 utility model patents, 15 appearance patents
- All products have passed the CE certification
- Passed the ISO9001:2008 international quality certification
EXPORT CASE
Products exported to many countries around the world
Factory direct sales, best price, assured quality
Welcome to send inquiries
welcome to visit the factory or conduct video inspection.
Exhibition
