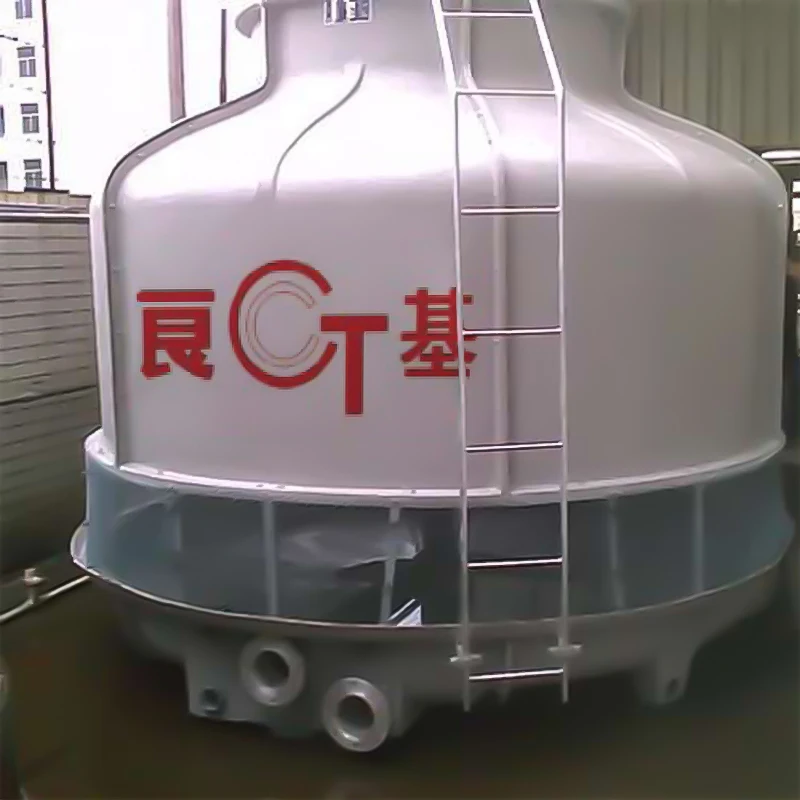

For Injection Machine Plastic Custom Made 200T Frp Water Cooling Tower

Product Overview

Description

Small Mini Cooling Tower

Round cooling tower is designed with advanced heat exchange technology based on many years of cooling tower production, sales, maintenance. Each model has various of spec. for different water flow can meet various cooling requirements.



Round cooling tower is suitable for circulating water cooling applications, including air conditioning, refrigeration, heat storage systems natural cooling and condenser water cooling.



It is widely used in dissipate waste heat of industrial and manufacturing processes, such as injection molding, tanning, foaming, power generation, steam turbine, metal processing, air compressor and other industrial cooling.

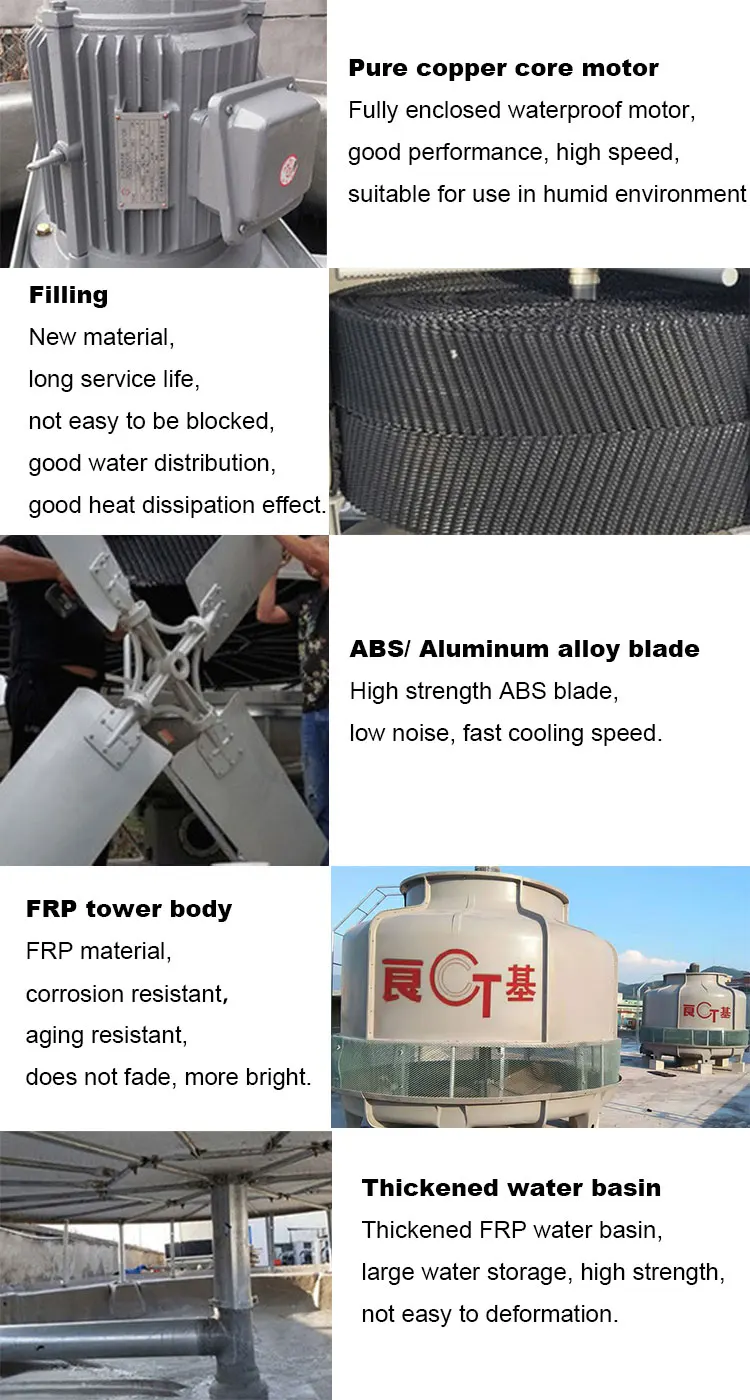

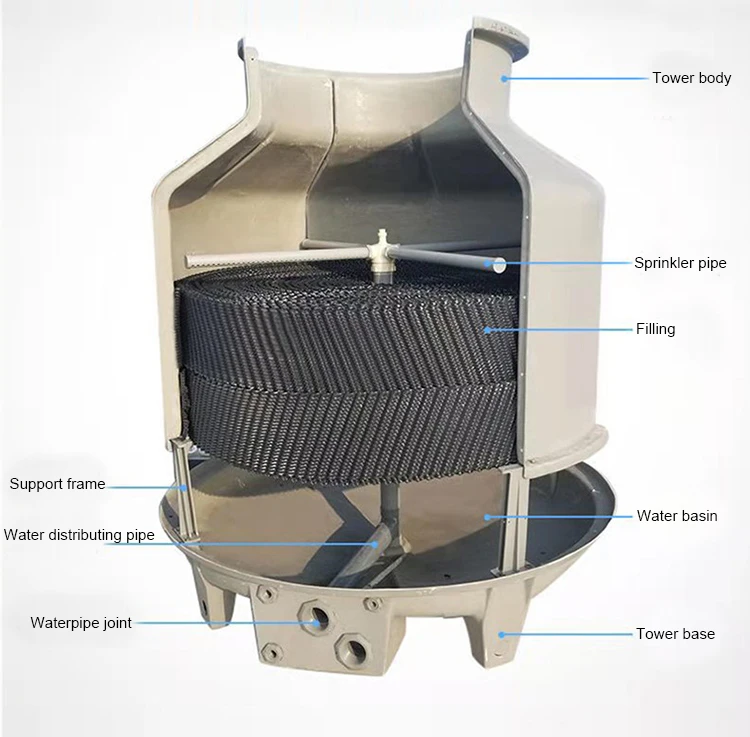

Cooling tower is mainly composed by motor,fan,sprinkler head,PVC filler,casing,basing and air intake louver.



 Type Counter Flow Water 200 Ton High Temperature Round Small Mini Cooling Tower  Type Counter Flow Water 200 Ton High Temperature Round Small Mini Cooling Tower

Structural features

1, Tower body: lightweight structure, aging resistance, corrosion resistance, high strength, small size, beautiful and durable.

2, Filling: low resistance, high flame retardant, good thermal performance, low temperature -50℃, high temperature 120℃.

3, Water distributor sprinkler pipe: stainless steel bearing, flexible and reliable operation, uniform water distribution, equipped with water baffle, no water drift.

4, Fan: aluminum alloy or ABS blade, low noise, high efficiency.

5, Motor: pure copper core, low noise, high temperature resistance, energy saving and environmental protection, good sealing and waterproof performance.

6, Support frame: galvanized anti-corrosion, with good anti-aging performance, durable.

7. Fast installation and easy maintenance.



 Type Counter Flow Water 200 Ton High Temperature Round Small Mini Cooling Tower  Type Counter Flow Water 200 Ton High Temperature Round Small Mini Cooling Tower



 Type Counter Flow Water 200 Ton High Temperature Round Small Mini Cooling Tower  Type Counter Flow Water 200 Ton High Temperature Round Small Mini Cooling Tower





 Type Counter Flow Water 200 Ton High Temperature Round Small Mini Cooling Tower  Type Counter Flow Water 200 Ton High Temperature Round Small Mini Cooling Tower

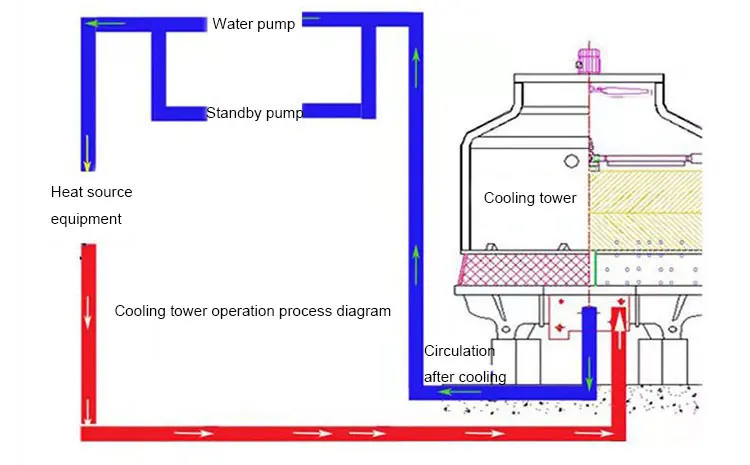

Round cooling tower working principle:
1 The hot water is usually caused by air conditioning condensers or other industrial processes. That water is pumped through pipes directly into the cooling tower. Cooling tower nozzles are used to spray the water onto to the fillings, which slows the water flow down and exposes the maximum amount of water surface area possible for the best air-water contact. The water is exposed to air as it flows throughout the cooling tower. The air is being pulled by an motor-driven electric “cooling tower fan”.

2 When the air and water come together, a small volume of water evaporates, creating an action of cooling. The colder water gets pumped back to the process/equipment that absorbs heat or the condenser. It repeats the loop over and over again to constantly cool down the heated equipment or condensers.



 Type Counter Flow Water 200 Ton High Temperature Round Small Mini Cooling Tower  Type Counter Flow Water 200 Ton High Temperature Round Small Mini Cooling Tower

Round cooling tower is widely used in air conditioning system, frozen series, injection molding, plastic, leather, foam, power generation, food, textile, steam turbine, chemicals, packing industrial, aluminum processing, air compressors, industrial cooling water and other fields. Most used for air conditioning cooling, freezing, plastic chemical industry etc.
