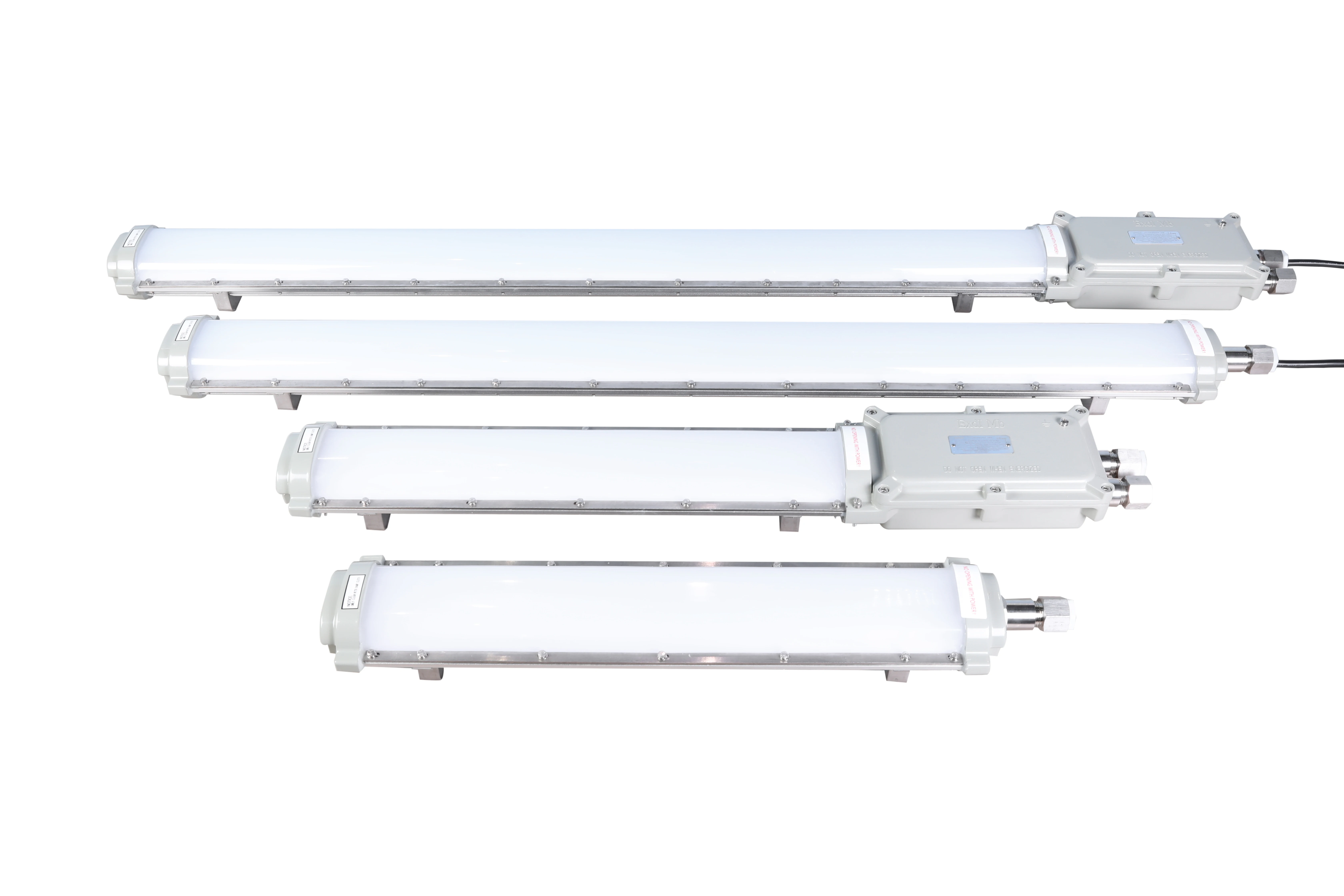

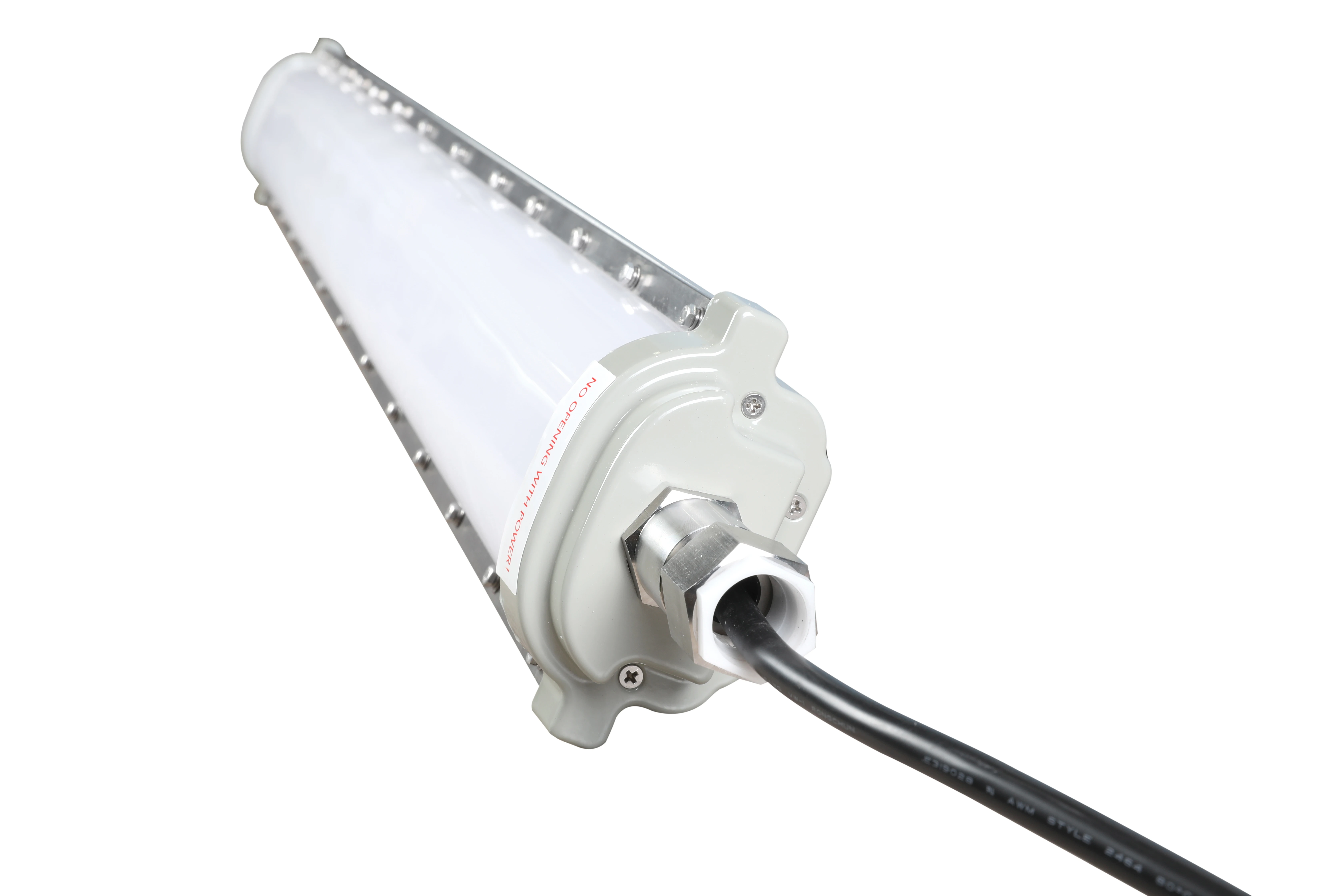

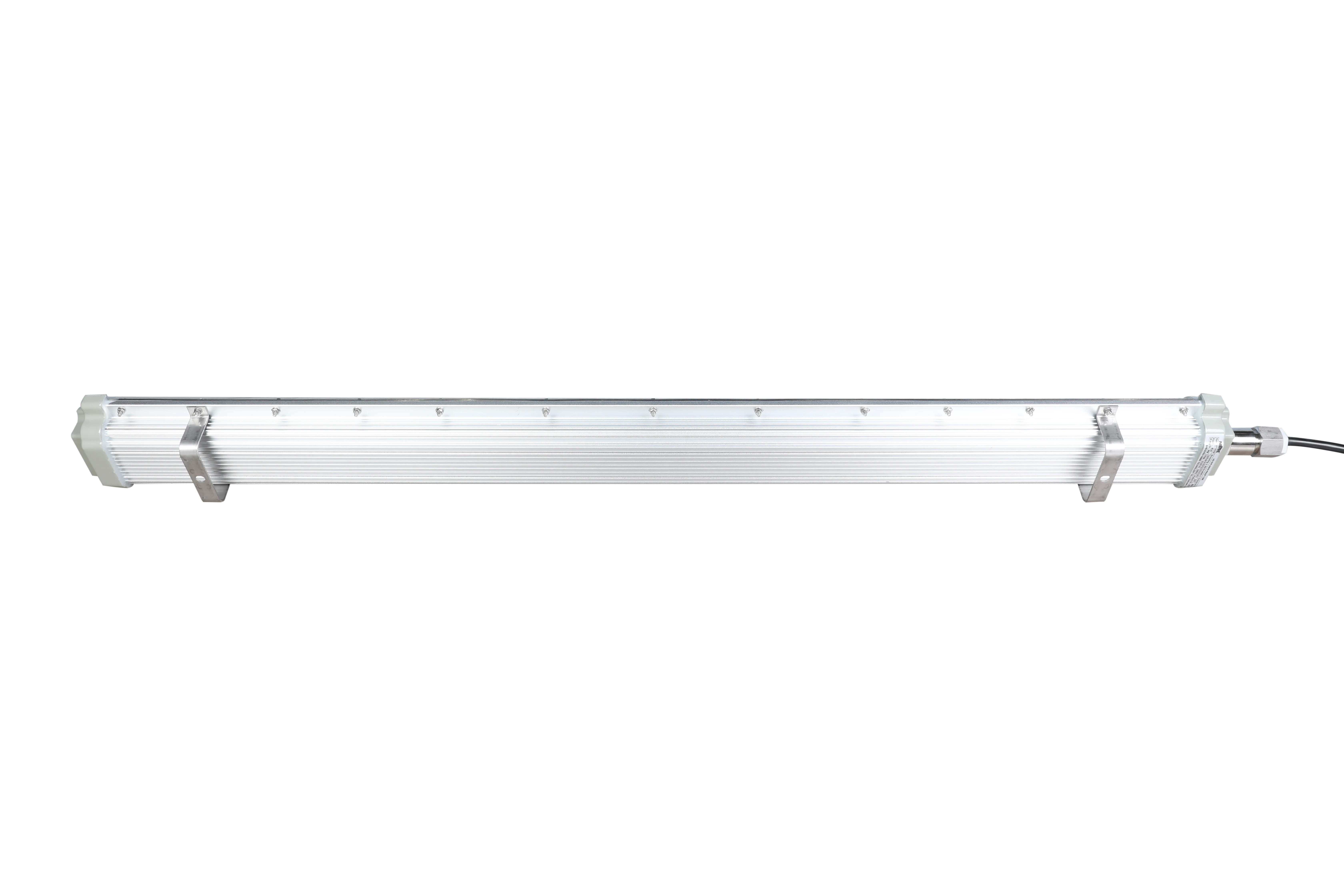

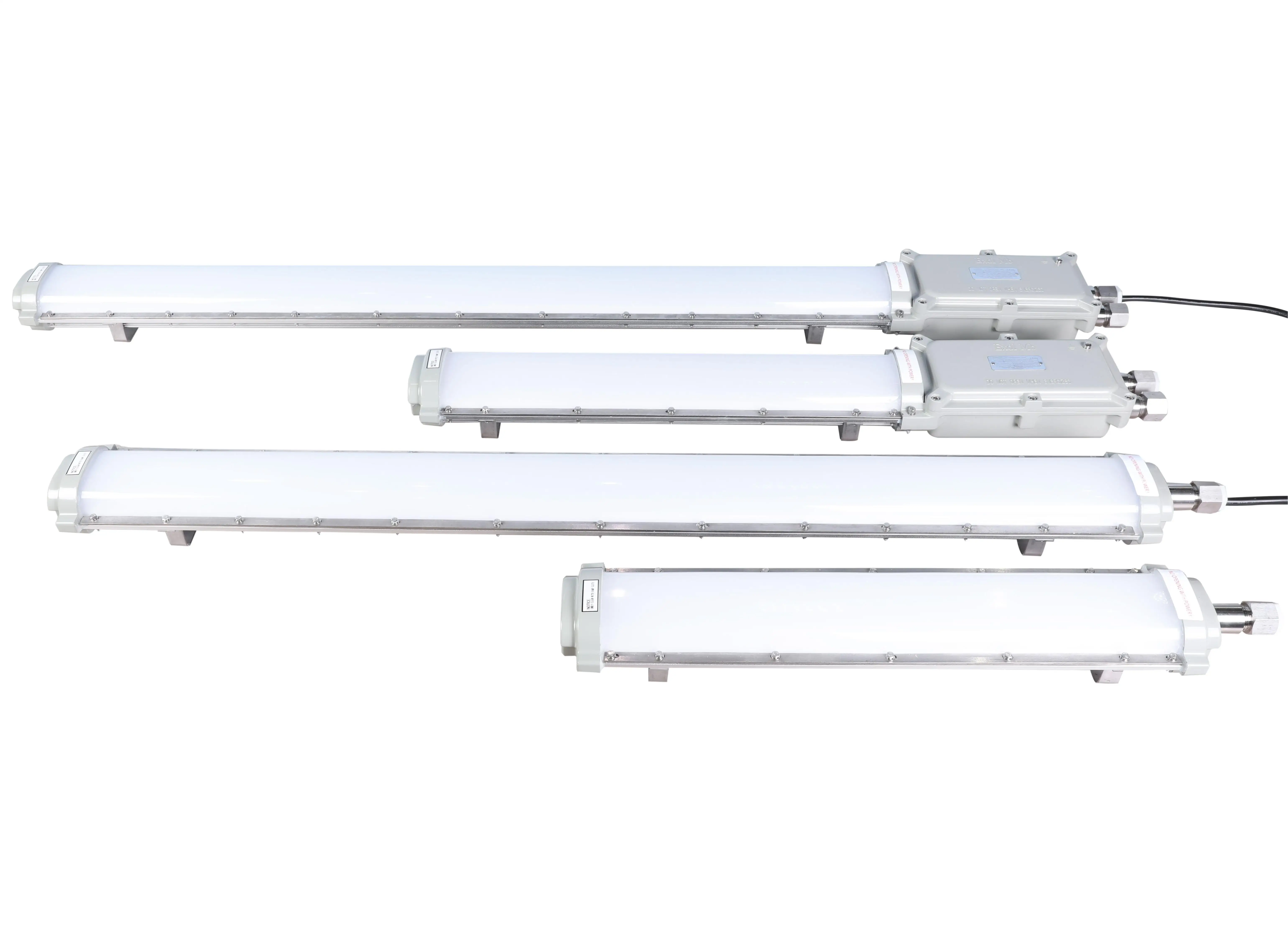

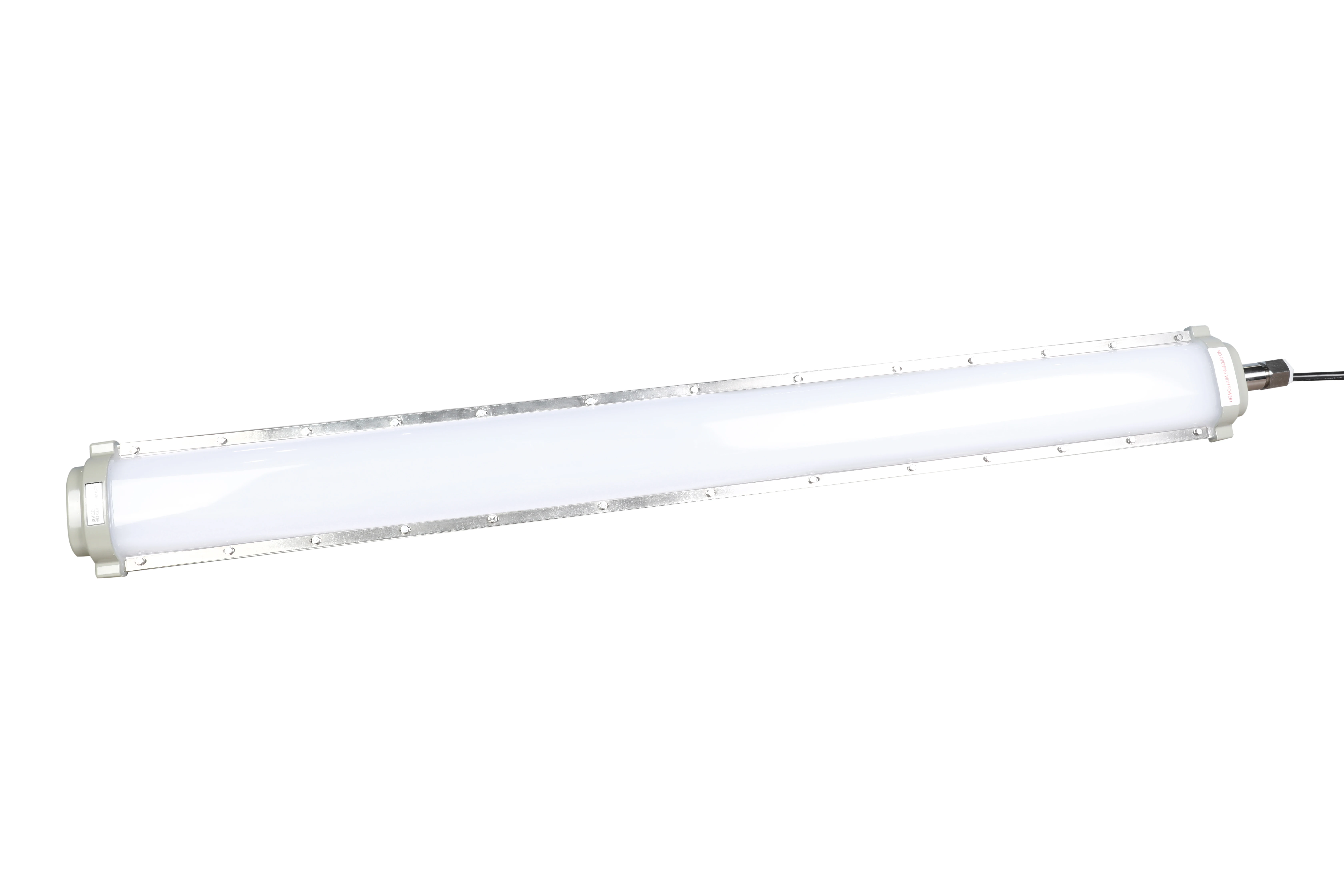

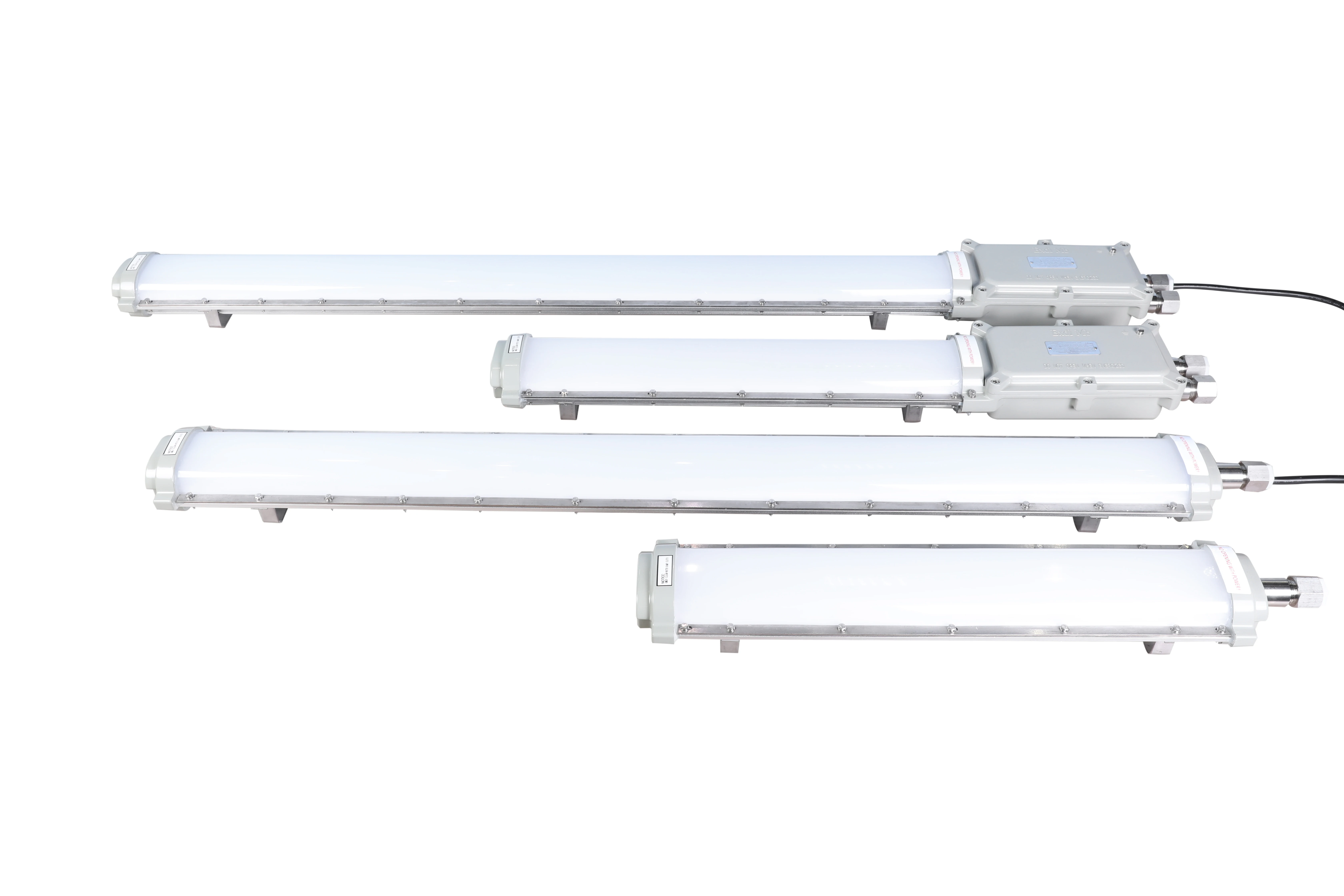

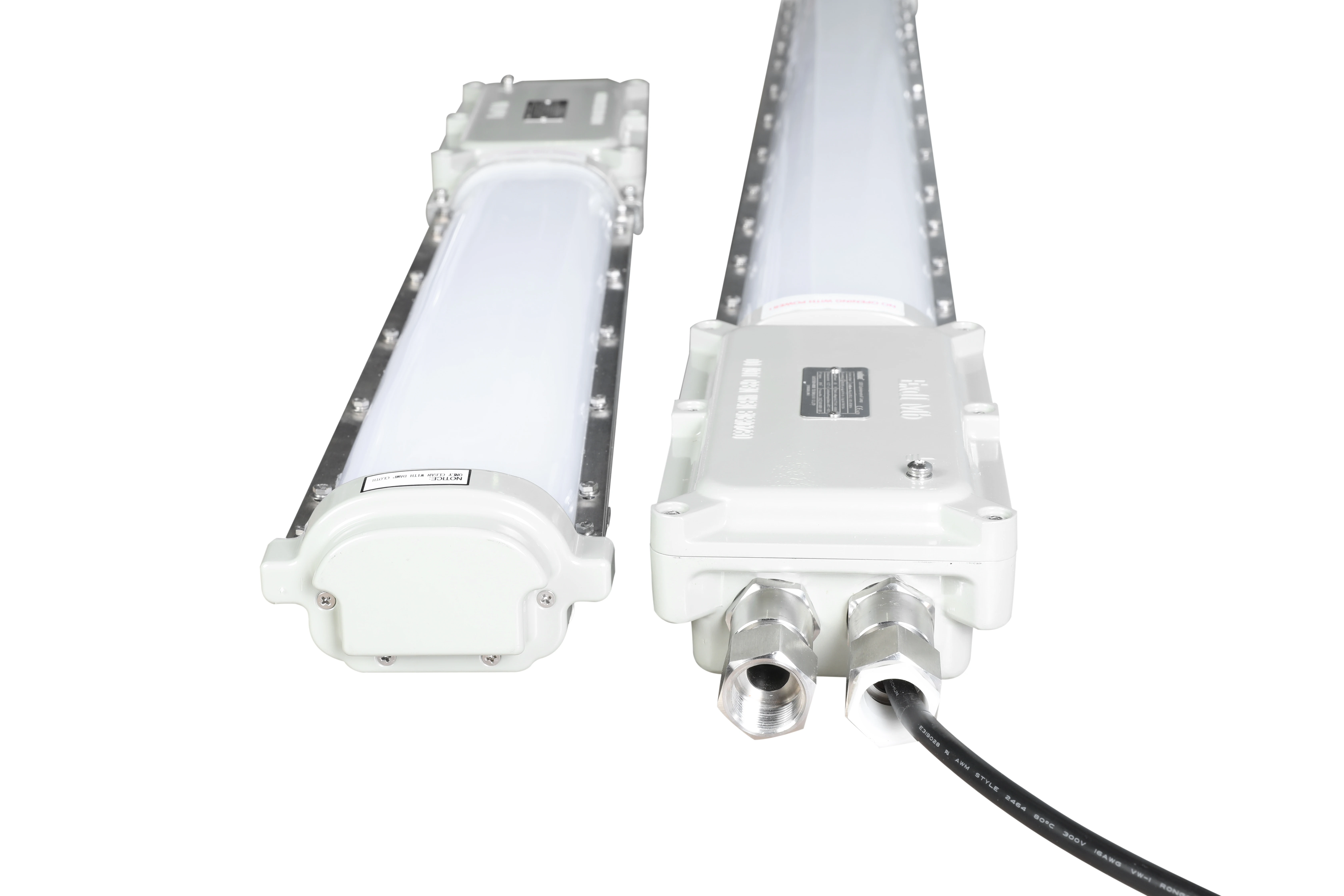

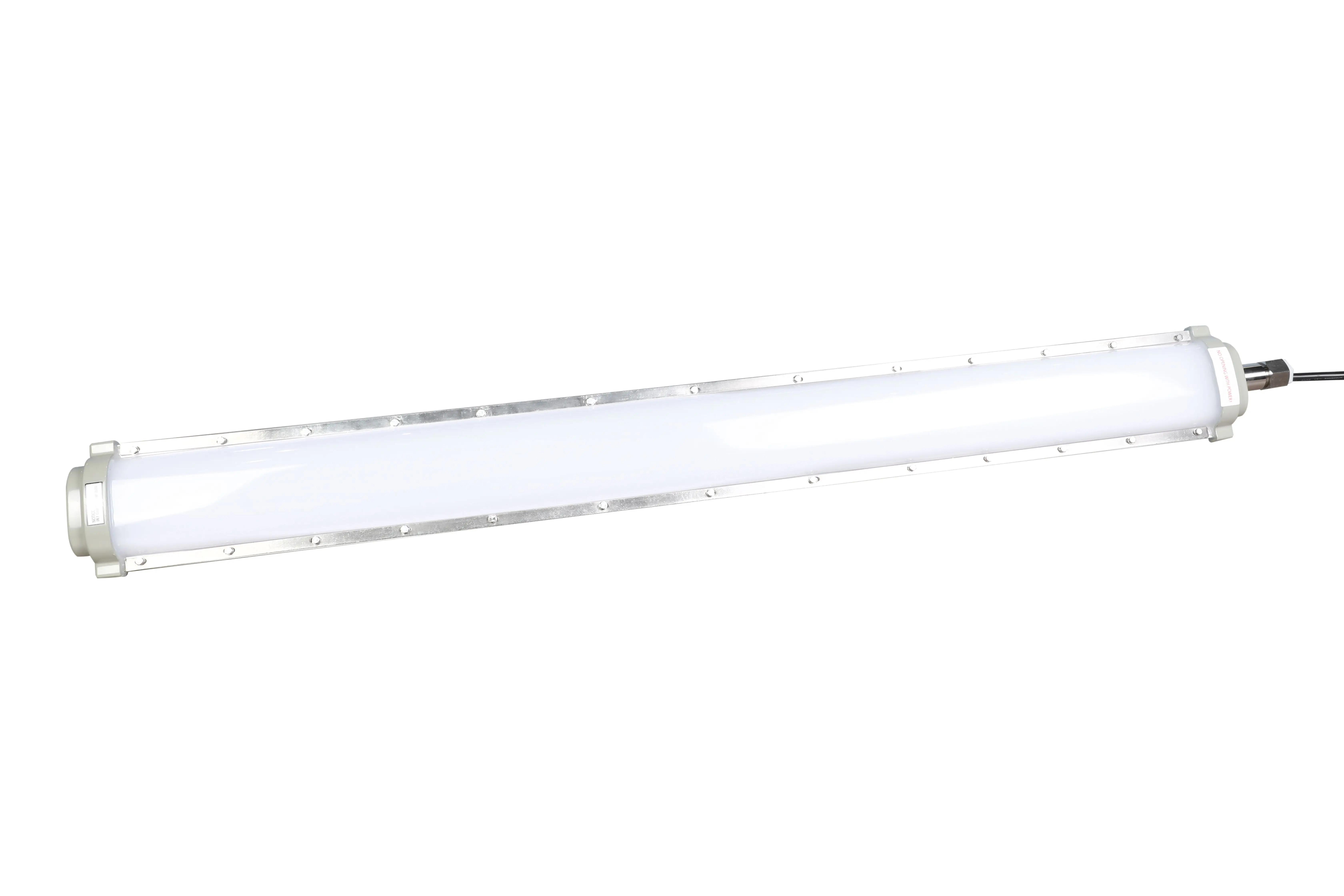

NIBBE Zone I and Zone II ,4FT, 1200mm 60W explosion proof led lighting fixture

Product Overview

Description

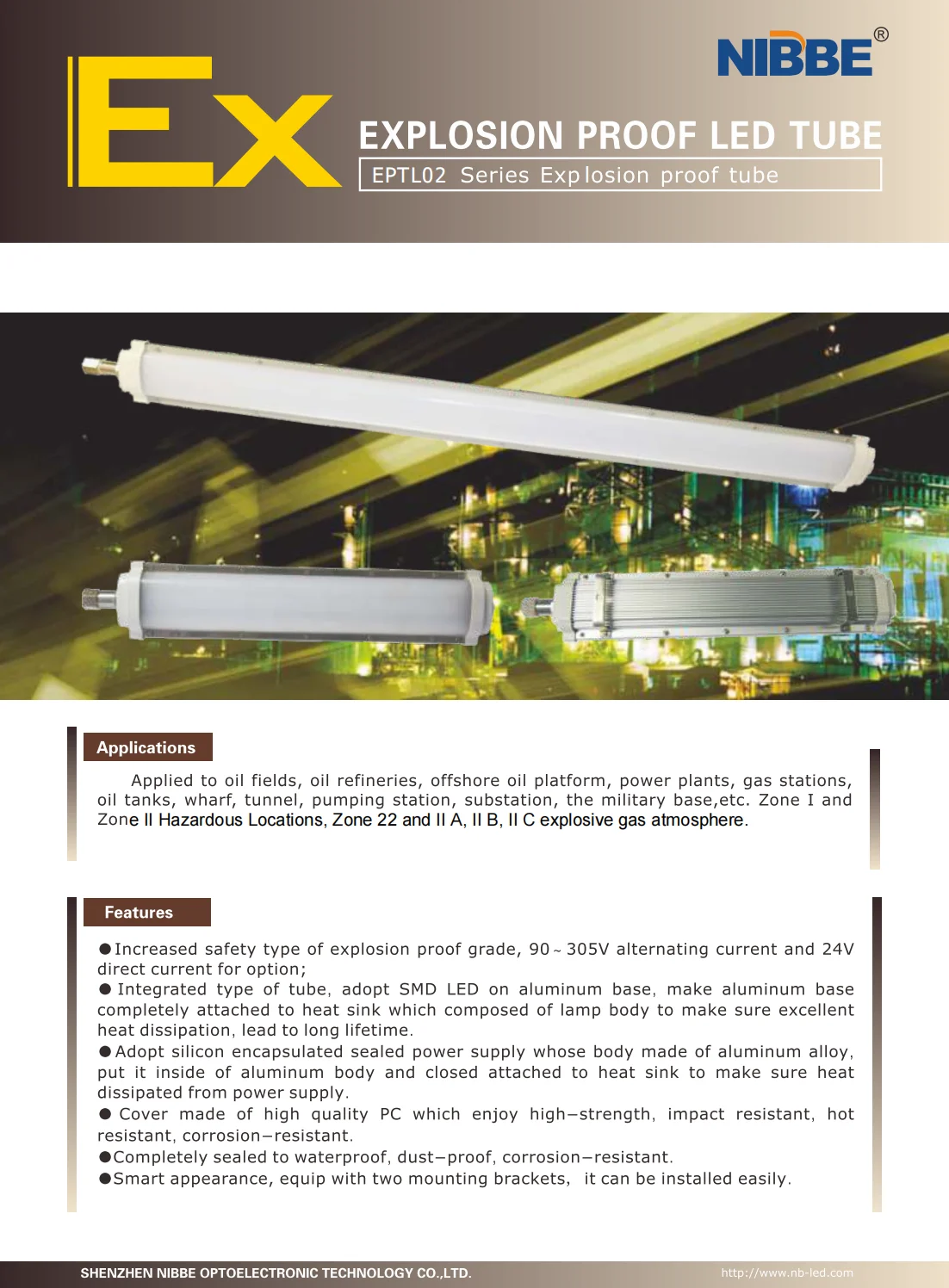

led explosion proof fluorescent tube

Application:

Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base,etc. Zone I and Zone IIHazardous Locations, Zone 20, Zone 21, Zone 22 and IIA, IIB, IIC explosive gas atmosphere.

Features:

1. Die casting aluminum housing, with anti-static and anti-corrosion coating,high explosion-proof degree of flameproof type; dust-proof, waterproof.


2. Adopt single-pin led tube as light source, fit up with one or two led tubes to make low power consumption with high light effect and high brightness. Under the same luminance condition, it saves over 70% power than high pressure mercury lamp, saves 65% power than traditional fluorescent tube, 18w led tube equival to 36w fluorescent tube, 32w led tube equival to 100w high pressure mercury lamp.


3. lens made of PC which is thermal resistance,corrosion resistance, high light transmission.

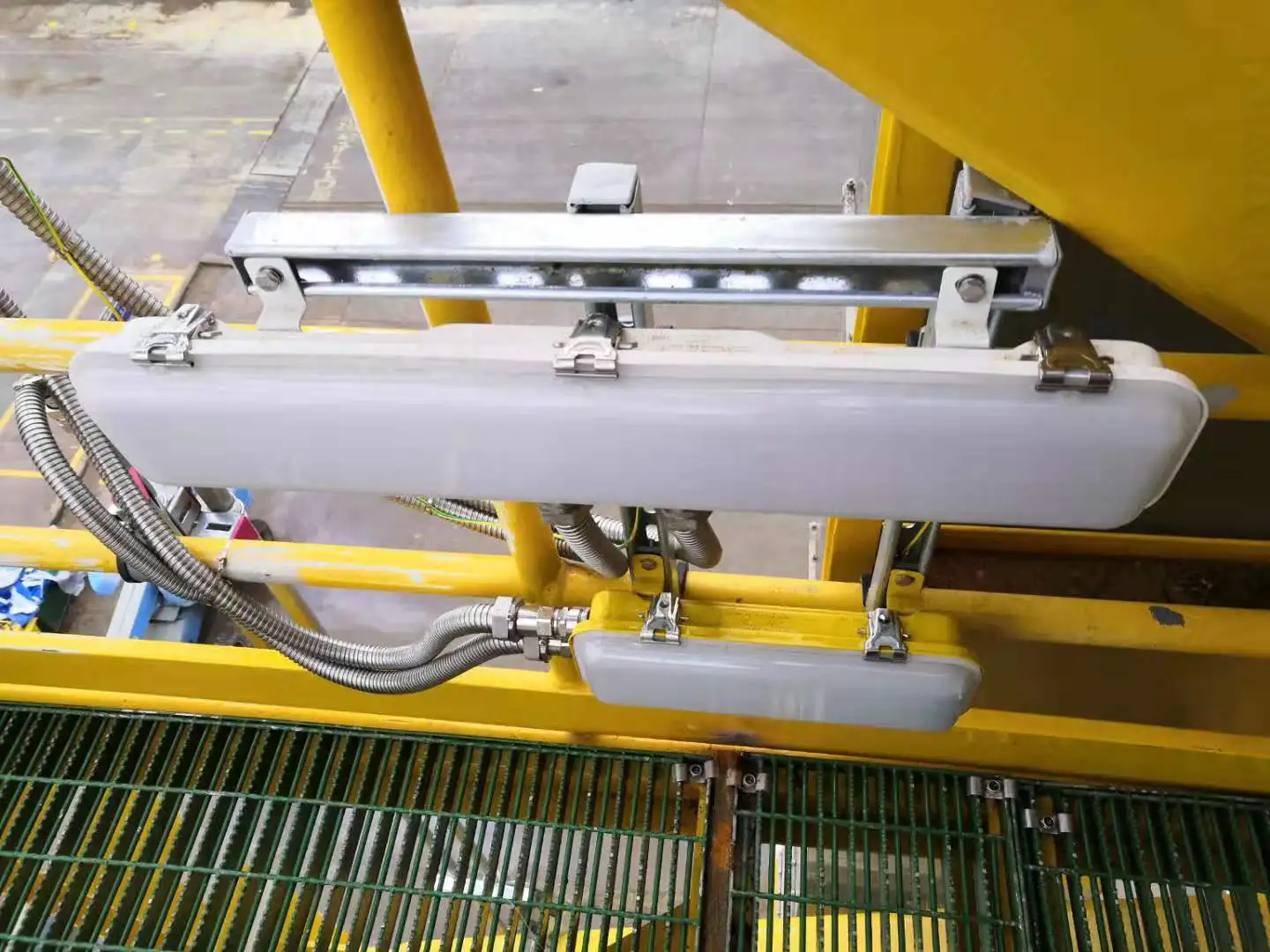

4. Smart appearance, several types of installation methods available.

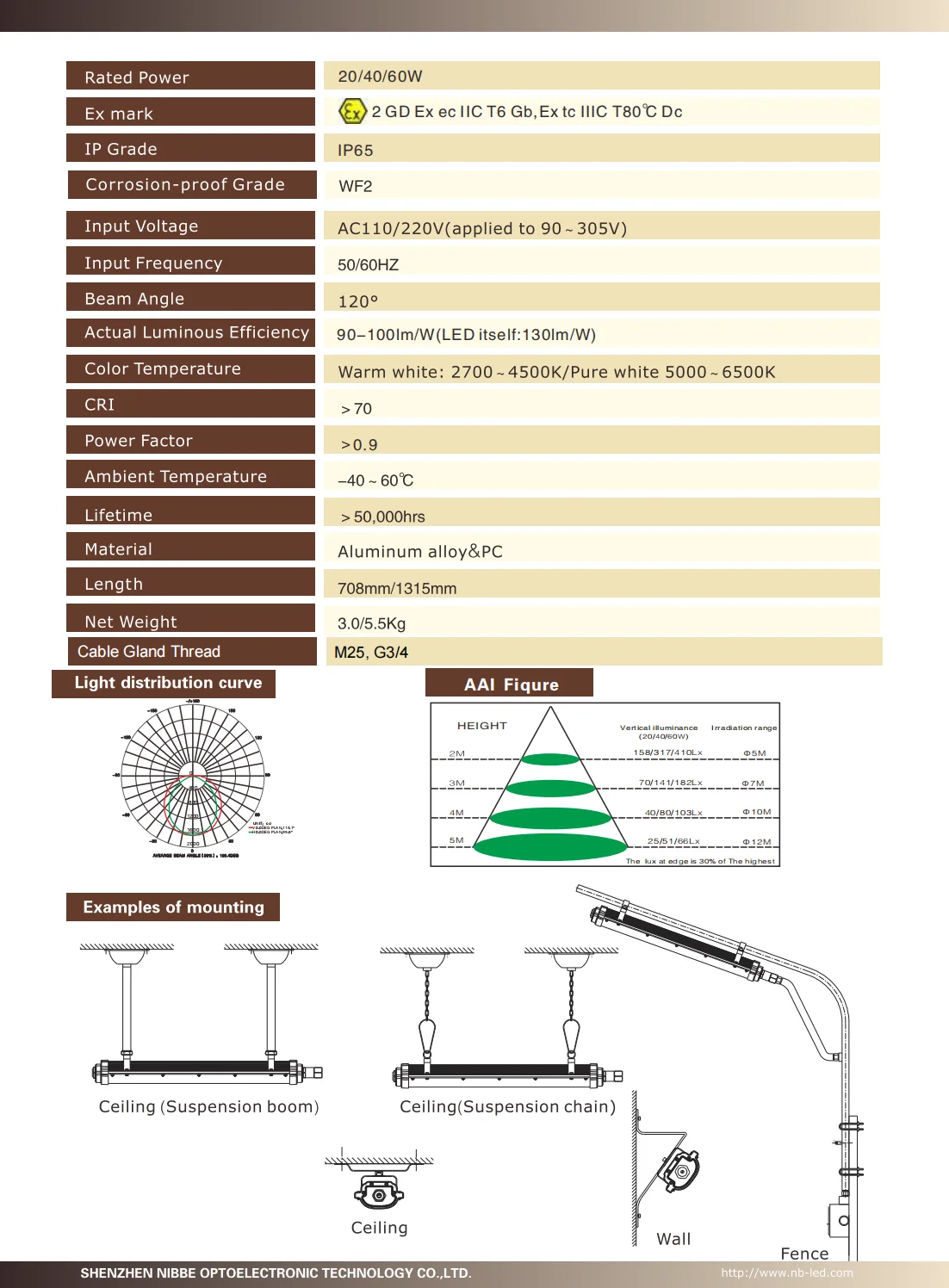

Technical Parameters:

Power Consumption	20W	40W	60W
Input Voltage	220V AC(applied for 95-265V)
Frequency	50Hz/60Hz
Explosion-proof Grade	Ex eIIC T6
Corrosion-proof Grade	WF2
IP Grade	IP66
Light Effect	≥55lm/W
Beam Angle	120°
Power Factor	≥0.90
Cable Entry	Φ8~Φ10mm
Installation Height	2~3m	3~5m	3~6m
Illuminance at 3m	75LX	100 LX	130 LX
Ambient Environment	Temperature:-30°C-55°C;Humidity:10-90%RH(25°C)
Storage Temperature	-40°C-60°C
Lifespan	>50000Hs
Material	Aluminum Alloy&PC
Dimension	L1315*W132*H82mm
Net Weight	5.5Kg
