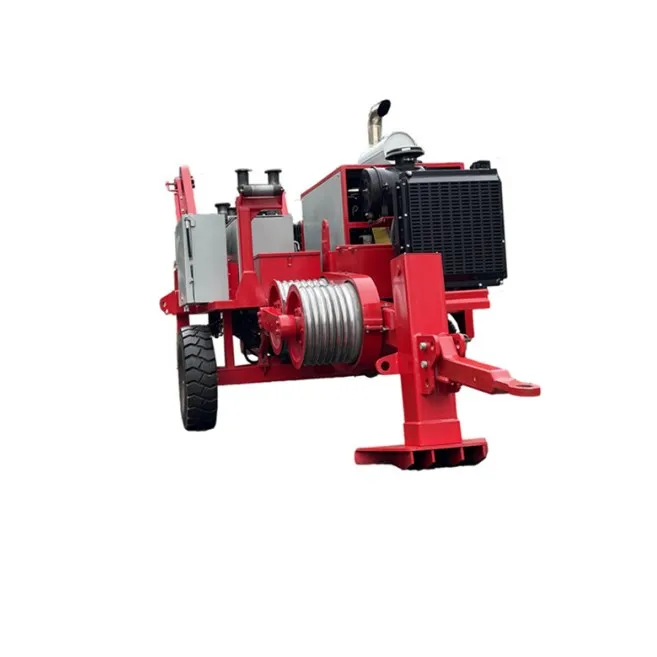

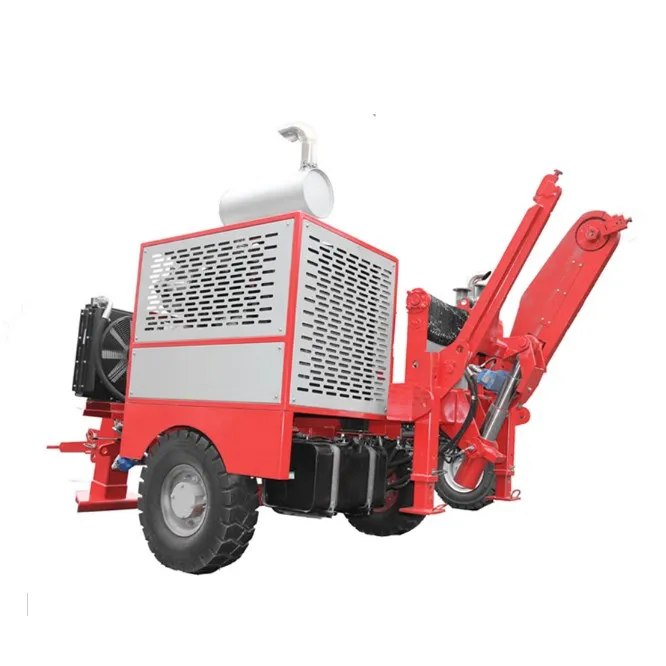

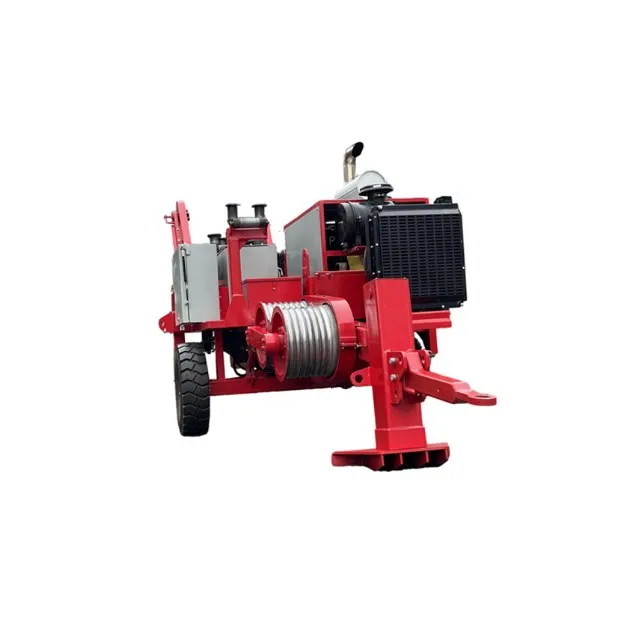

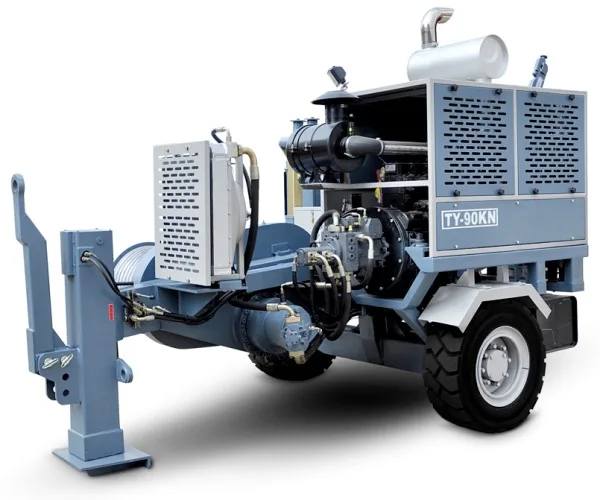

Hydraulic Cable Puller Tensioner 90kn Stringing Equipment For Overhead Transmission Line
Hydraulic Cable Puller Tensioner 90kn Stringing Equipment For Overhead Transmission Line
Hydraulic Cable Puller Tensioner 90kn Stringing Equipment For Overhead Transmission Line
Hydraulic Cable Puller Tensioner 90kn Stringing Equipment For Overhead Transmission Line
Hydraulic Cable Puller Tensioner 90kn Stringing Equipment For Overhead Transmission Line

Hydraulic Cable Puller Tensioner 90kn Stringing Equipment For Overhead Transmission Line

Share on (1601014144640):


Price:$30,000.00

Quantity:


Product Overview

Description



Product Description


This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.




Performance parameter
Max pull: 100kN
Max continuous pull: 90kN
Speed at max pull: 2.5km/h
Max speed: 5km/h
Pull at max speed: 40kN

Structure parameter
Bull-wheel diameter: 540mm
Groove number: 8
Max rope diameter : 21mm
Max diameter of rope reel: 1400mm
Total weight: 4350kg
Overall dimension (length*width*height): 4500×2100×2450mm

Engine
Diesel 118kw(158hp) Euro II, 4-stroke cycle, turbo-charged
Cooling system liquid, Electrical system 24V

Main configurations
Engine: Cummins
hydraulic pump: German Rexroth
Main motor: German Rexroth
speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German WIKA
Operating handle: German Rexroth


Performance parameter
max inMax intermittent pulling force
100kn
Max continous pulling force
90kn
Corresponding speed
2.5km/h
Max continous pulling speed
5km/h
Corresponding pulling force
40KN
Structure parameter
Puller wheel diameter
540mm
Groove number
8
Max diameter of applicable wire coil:
1400mm
Main comfigurations
Engine
Cummins
Main pump
German Rexroth


Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull
pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the
operation speed according to the friction and unexpected loads which may occur.

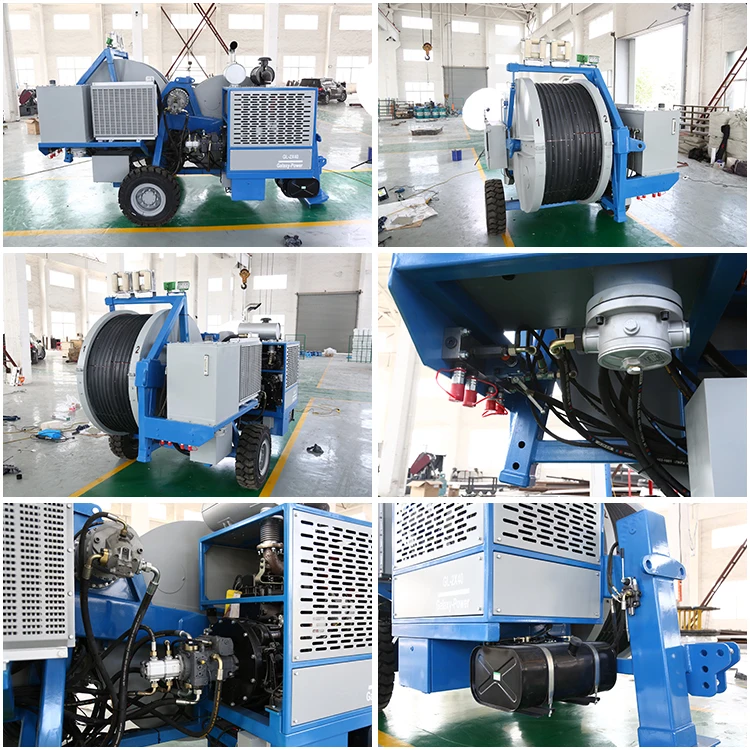

Configuration
Hydraulic dynamometer with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
Hydraulic front stabilizer
Grounding connection point

Additional Devices
Lighting system for the trailer
Hydraulic rope clamp for reel change
Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Extra shaft
Digital speed and meter counter (extra charge)

The chassis provided with Brake, back lights and mudguard, with a single point lift to allow lifting with a crane.
Cable and radio remote control fully replacing all controls at machine panel.
Remote diagnosis via GSM network with GPS modem, Synchronization system
Hydraulic system for drum stand control with flat face quick action couplings
Auxiliary Hydraulic system (700/1000 bar) for power pressing tool
Lockable toolbox, Holding fixture for hose kit, Grounding plate, Acoustic insulation
Biodegradable hydraulic oil, Allowable tension indictor, Overload tension alarm, First Aid Kit
Manufacturer's workshop maintenance manual, in English
Manufacturer's recommended tools.
Manufacturer's routine spares for five years' duty (filters, bulbs, etc.).




Specifications

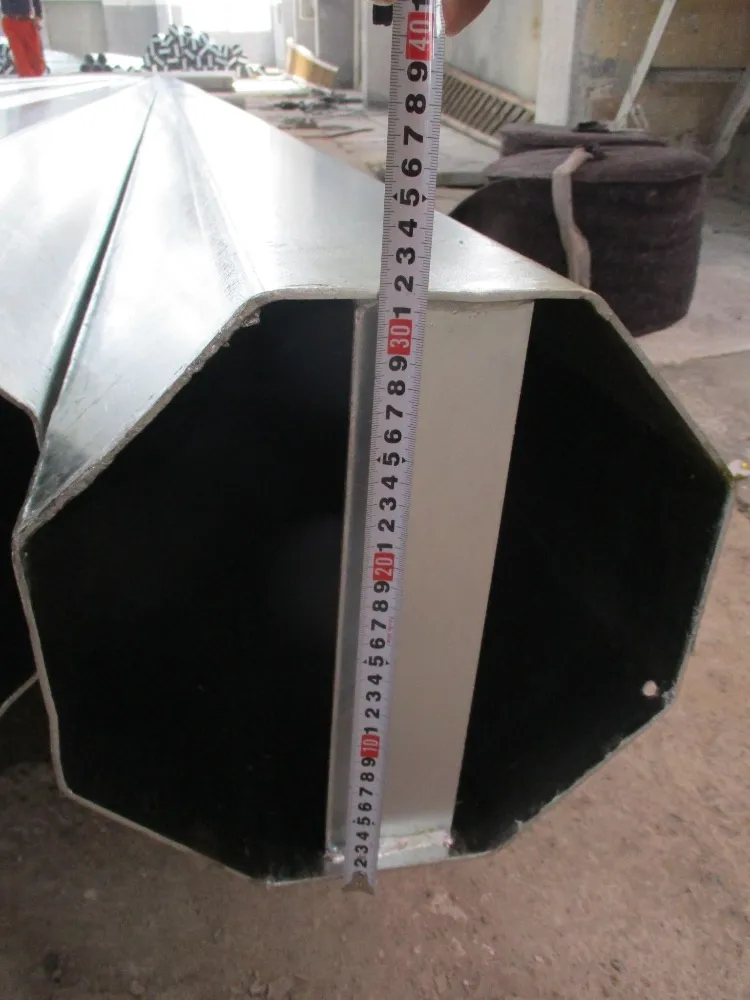

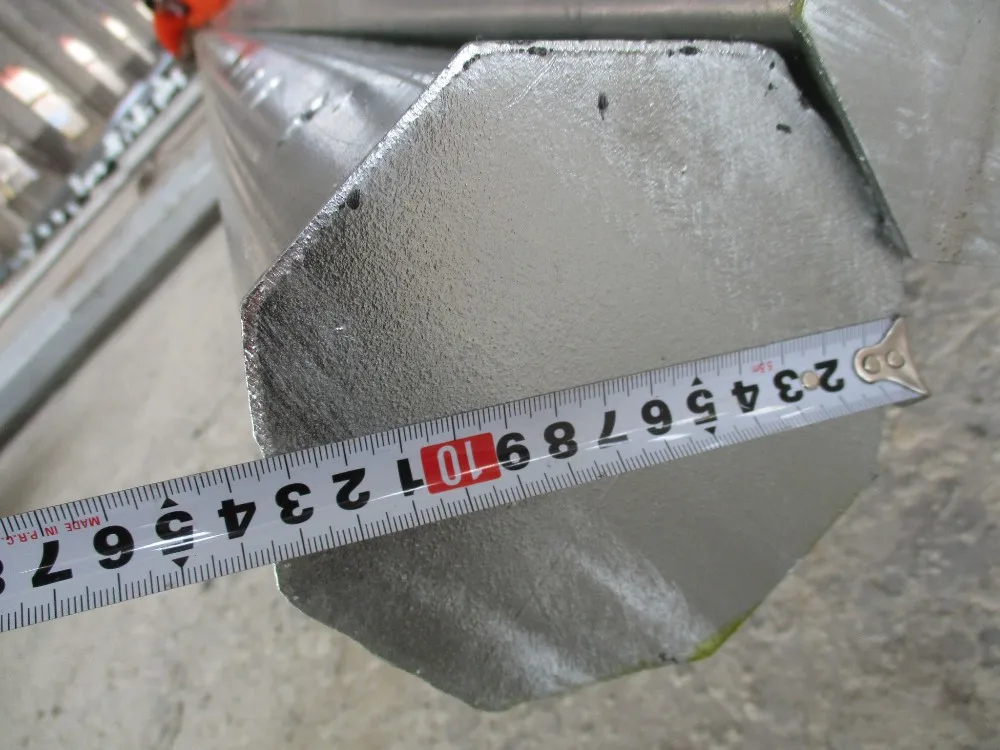

GENERAL SPECIFICATIONS FOR STEEL POLE
Type
Customized electric steel pole hot dip galvanized steel pole
Suit for
Electricity distribution
Shape
Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material
Usually Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490
Power
10 KV ~550 KV
Design Load in Kg
300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles
Insert mode,innerflange mode,face to face joint mode .
Design of pole
Against earthquake of 8 grade
Standard
ISO 9001

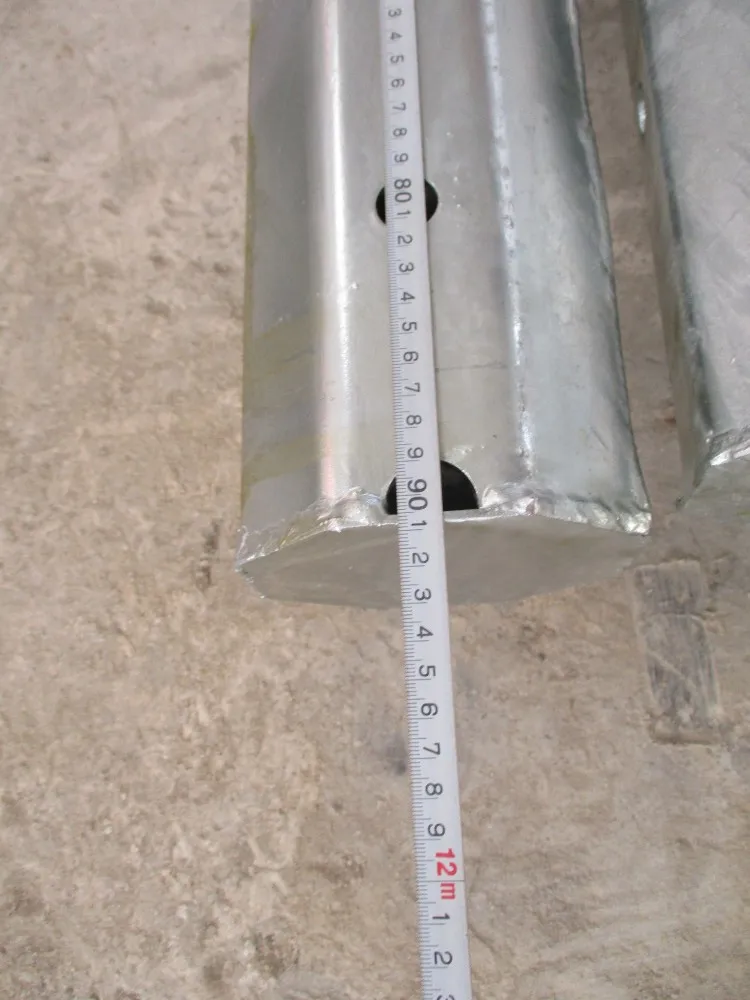

Welding
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

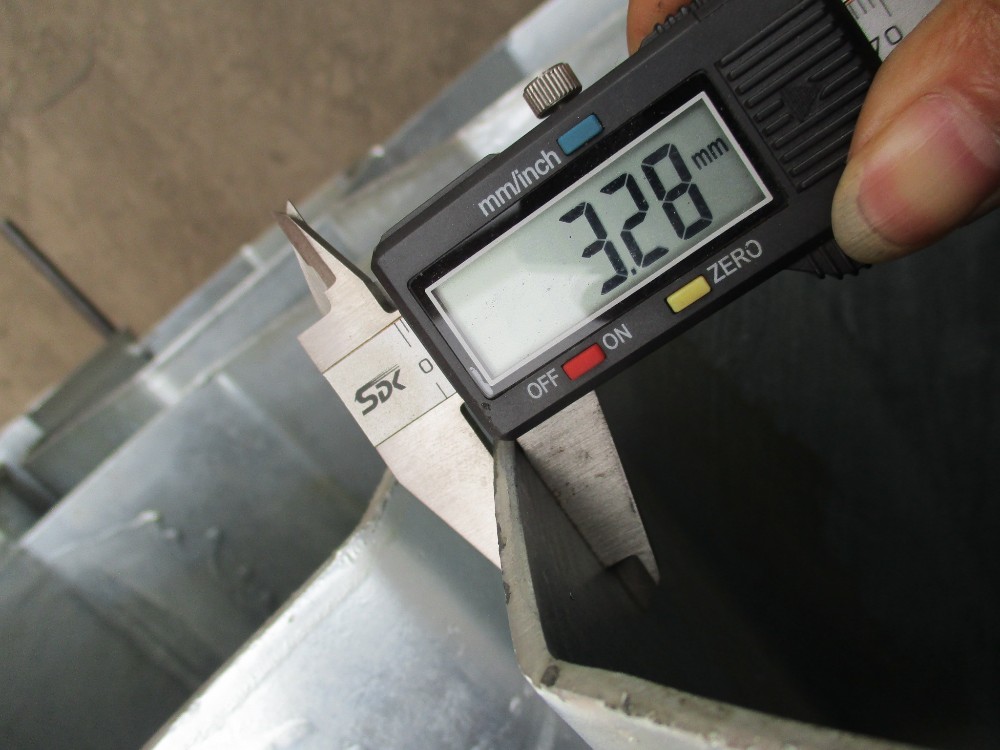

Thickness
1 mm to 30 mm




Company Profile


Jiangsu Milky Way Steel Poles Co.,Ltd.
Estabilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on

We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on
As an BV ,ISO ,SGS approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment .
