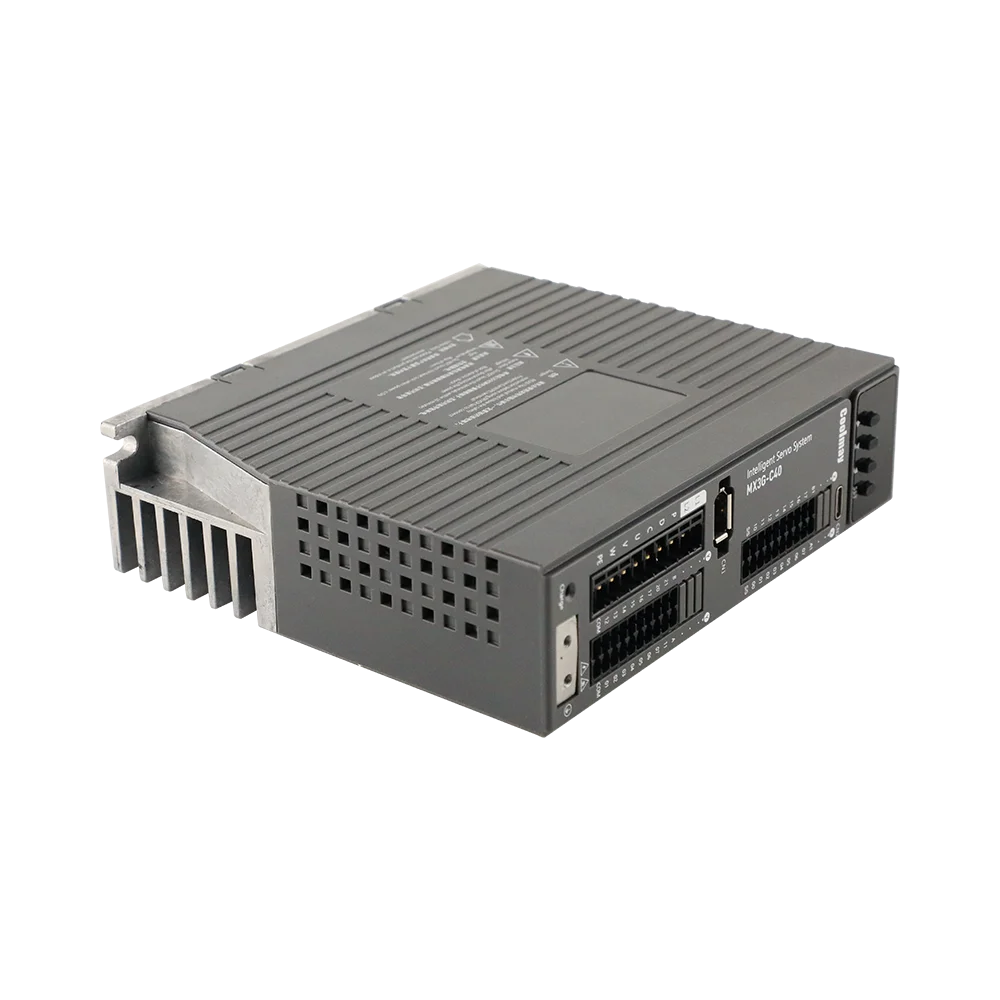

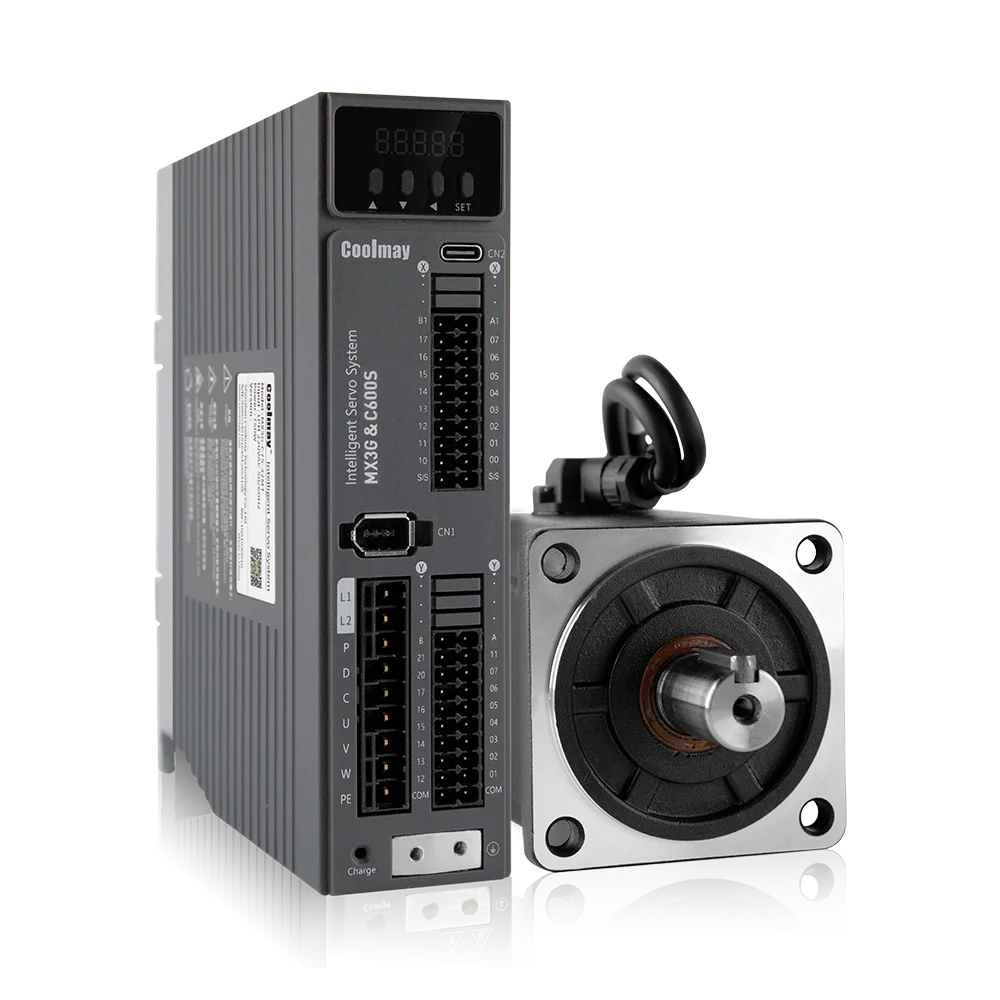

High speed pulse 24VDC PLC servo All in one control support modbus RTU
High speed pulse 24VDC PLC servo All-in-one control support modbus RTU
High speed pulse 24VDC PLC servo All-in-one control support modbus RTU
High speed pulse 24VDC PLC servo All-in-one control support modbus RTU

High speed pulse 24VDC PLC servo All in one control support modbus RTU

Share on (1601014148913):


Price:

Quantity:


Product Overview

Description



High speed pulse 24VDC PLC servo All-in-one control support modbus RTU




Specification


Model
MX3G-C40-32MT
MX3G-C75-32MT
Dimension
160*135*42
Installation dimension
150*27
Weight(kg)
0.75
Servo
output power
0.05KW~0.4KW
0.75KW~1KW
Adaptive motor
CN7J-060430A3KUAA or
CN7J-060430A3KVBA (with brake)
CN7J-080830A3KUAA or
CN7J-080830A3KVBA (with brake)
Main circuit input power supply
Single-phase AC220V-15%~+10% 50/60Hz
Input power
Main circuit power supply: single-phase AC220V, voltage range 200V~240V, 50/60Hz
Control loop power supply: provided by internal conversion, no external power supply required
Communication method
Comes with 1 RS485 (terminal A B), supports standard modbus RTU protocol (connected with internal PLC)
Control mode
0: Position control mode; 1: Speed control mode; 2: Torque control mode; 3: Position-speed hybrid control mode;
4: Position-torque hybrid control mode; 5: Speed-torque hybrid control mode
Protection function
Overspeed/main power overvoltage and undervoltage/overcurrent/overload/encoder abnormality/control power abnormality/position out
of tolerance
Monitoring function
Speed/current position/command pulse accumulation/position deviation/motor torque/motor current/running status, etc.
Control input
1: Servo enable 2: Alarm clear 3: CCW drive prohibition 4: CW drive prohibition
5: Deviation counter is cleared 6: Command pulse prohibited 7: CCW torque limit 8: CW torque limit
Control output
Servo ready/servo alarm/positioning complete/mechanical brake
Energy consumption braking
Support built-in and external
Applicable load
Less than 3 times of motor inertia
Display operation
5-digit LED digital tube display, 4 operation keys
Encoder feedback
17-bit single-turn absolute encoder
PLC
PLC logic supply voltage
DC24V
I/O
Fixed 16DI/16DO, all programmable and universal
I/O level
Input: passive NPN, common terminal connected to 24V+; output MT: low level NPN, COM connected to negative
DO type and load
MOS tube: 2A/point, 4A/4 points COM, 5A/12 points COM;
High-speed counting
Conventional 2 channel single-phase 60KHz + 4 channel 10KHz or 1-way AB(Z) phase 30KHz + 1 channel AB(Z) phase 5KHz
High-speed pulse
Conventional 4 channel Y0-Y1 is 100KHz, Y2-Y3 is 50KHz; (wherein, the internal servo of Y0 is occupied)
High-speed counting + high-speed pulse total can not exceed 300KHz
Communication port
Comes with 1 RS485 (terminal A1 B1) (support modbus protocol, RS protocol, etc.)
Software
Compatible with GX Works2/GX Developer8.86Q


Wiring


Company Profile






Located in Shenzhen, south of China, Coolmay has been committed to the field of automation control based on the business philosophy of "cooperation, integrity, pragmatism and innovation" since 2006. It is a high-tech enterprise which researches, develops and manufactures HMI+PLC all-in-one, PLC controller, HMI and other automation products, and provides automation technology services.
Mission: Keep innovation. Move forward.


















FAQ


1. who are we?
We are based in Guangdong, China, start from 2006,sell to Southeast Asia(30.00%),South Asia(20.00%),South America(15.00%),Western Europe(5.00%),Eastern Europe(5.00%),North America(5.00%),Mid East(5.00%),Southern Europe(5.00%),Africa(5.00%),Central America(2.00%),Eastern Asia(1.00%),Oceania(1.00%),Northern Europe(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
VFD,Servo,HMI/PLC,HMI,PLC

4. why should you buy from us not from other suppliers?
* Supports OEM and ODM
1. logo printing on housing
2. Customize package
3. Software Customization: Booting image, UI, Function...and so on
* The HMI PLC All-in-one controller is Easy maintenance with small size, plug and play

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
