Crawler Solar Pile Driver Attachment Deep Hole Hammer Pile Driver Machine for Sale
$15,999.00-18,999.00
Excavator Vibro Hammer Sheet Pile Driver
- Category: >>>
- Supplier: Yantai SC Equipment Co. Ltd.
Share on (1601014155244):
Product Overview
Description
SC pile hammer
Suitable for excavator:
- Driving sheet piles into the ground.
- Pulling sheet pies out of the ground.

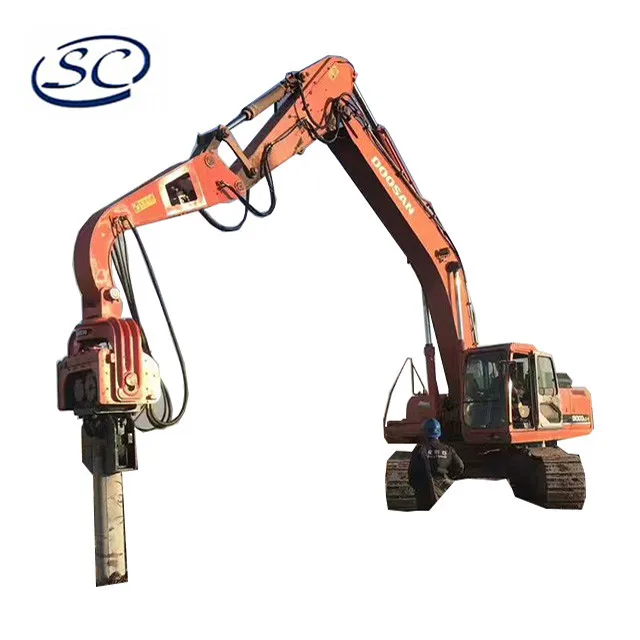

Our Pile Hammers have been developed to give you a highly effective piling rig based around a standard, readily available excavator.

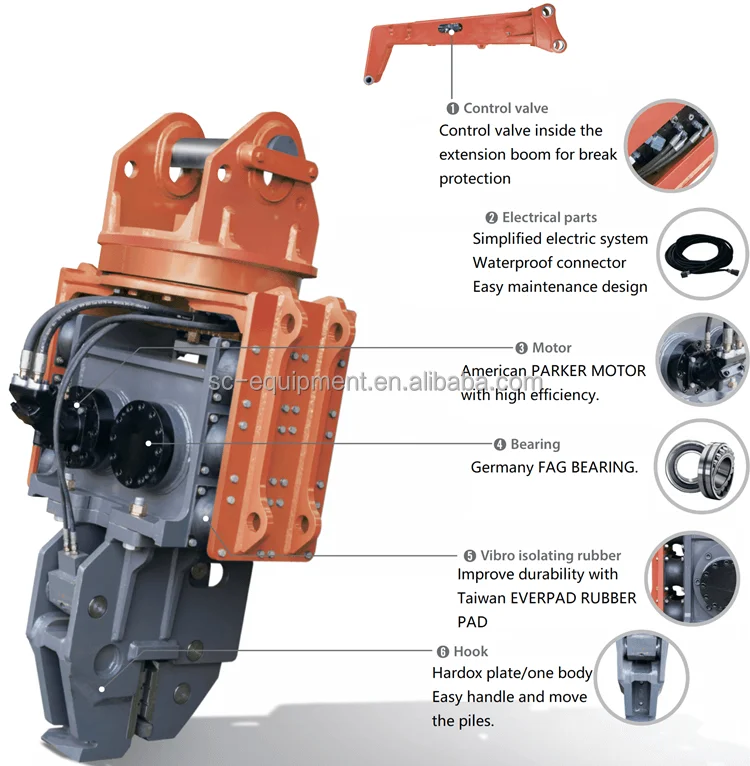

The equipment has been specifically designed to be able to lift the pile vertical - the compact, reliable and robust model grips piles tightly with its powerful jaw in minimal height to maximise the pile length.

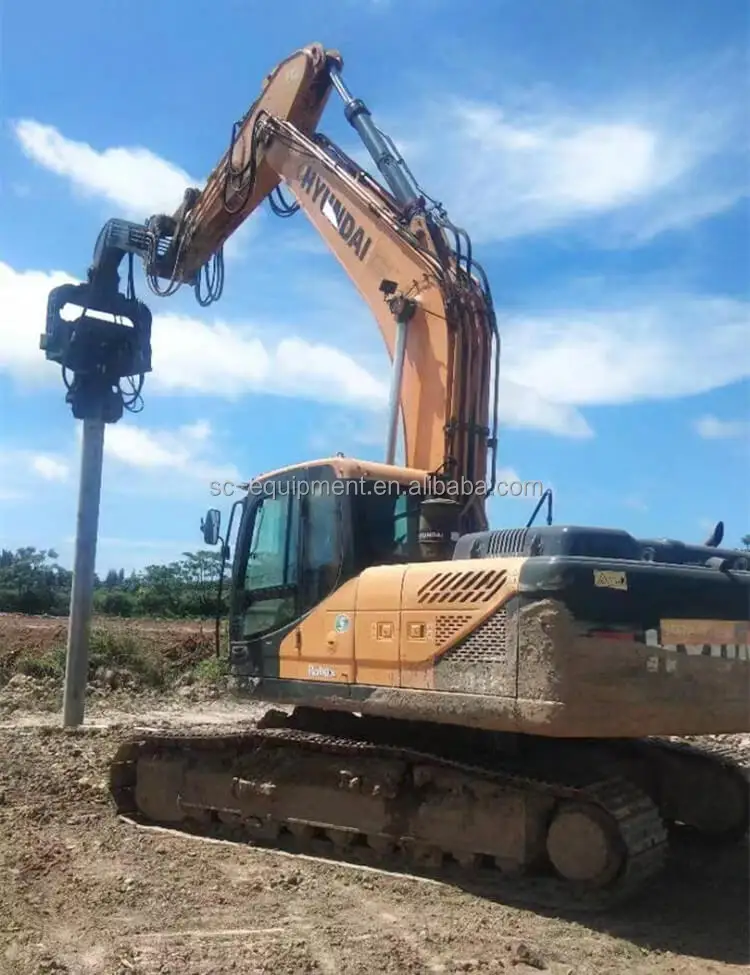

Once secured, the pile is then vibrated with high frequency vibrations so as to ‘fluidise’ the soil resisting the pile. Down-crowd force applied by the excavator boom, coupled with the self-weight of the pile and the vibrator, provides sufficient force to push the pile into the ground. Naturally, the process also works in reverse for pile extraction.
- Driving sheet piles into the ground.
- Pulling sheet pies out of the ground.
Our Pile Hammers have been developed to give you a highly effective piling rig based around a standard, readily available excavator.
The equipment has been specifically designed to be able to lift the pile vertical - the compact, reliable and robust model grips piles tightly with its powerful jaw in minimal height to maximise the pile length.
Once secured, the pile is then vibrated with high frequency vibrations so as to ‘fluidise’ the soil resisting the pile. Down-crowd force applied by the excavator boom, coupled with the self-weight of the pile and the vibrator, provides sufficient force to push the pile into the ground. Naturally, the process also works in reverse for pile extraction.
PRODUCT SPECIFICATIONS

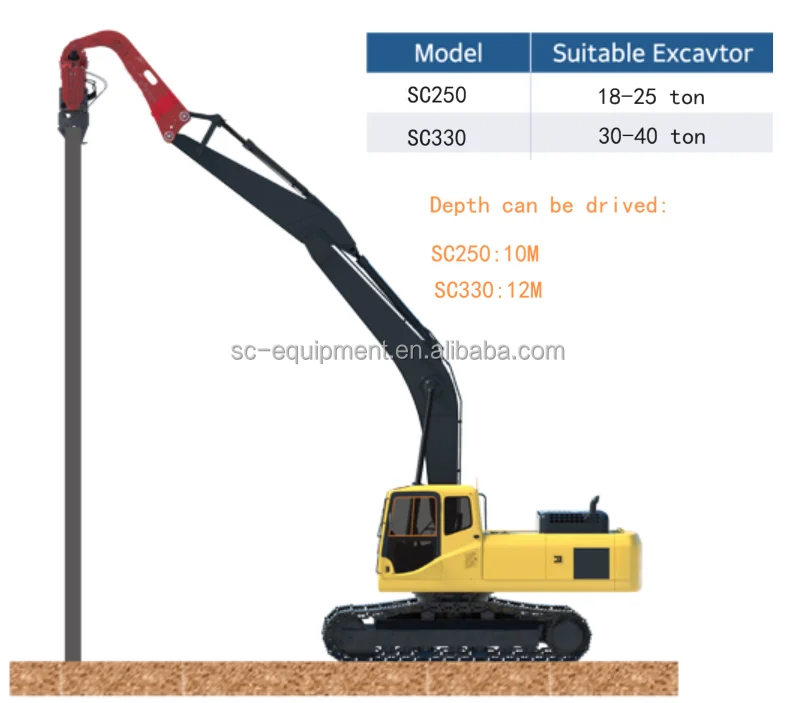

Model | SC-250 | SC-330 | SC-350 | SC-450 | SC-500 | ||
Suitable excavator(t) | 18-25 | 30-40 | 36-50 | 40-50 | 45-60 | ||
Eccentric moment(Nm) | 48 | 52 | 65 | 85 | 85 | ||
Frequency(r/min) | 2800 | 2800 | 2800 | 2800 | 2800 | ||
Centrifugal force(kn) | 400 | 480 | 580 | 750 | 750 | ||
Working pressure(bar) | 300 | 320 | 300 | 300 | 320 | ||
Oil flow(lpm) | 155 | 210 | 255 | 255 | 255 | ||
Max turning(degree) | 180 | 180 | 180 | 180 | 180 | ||
Main body | 1950 | 2650 | 2900 | 3000 | 3100 | ||

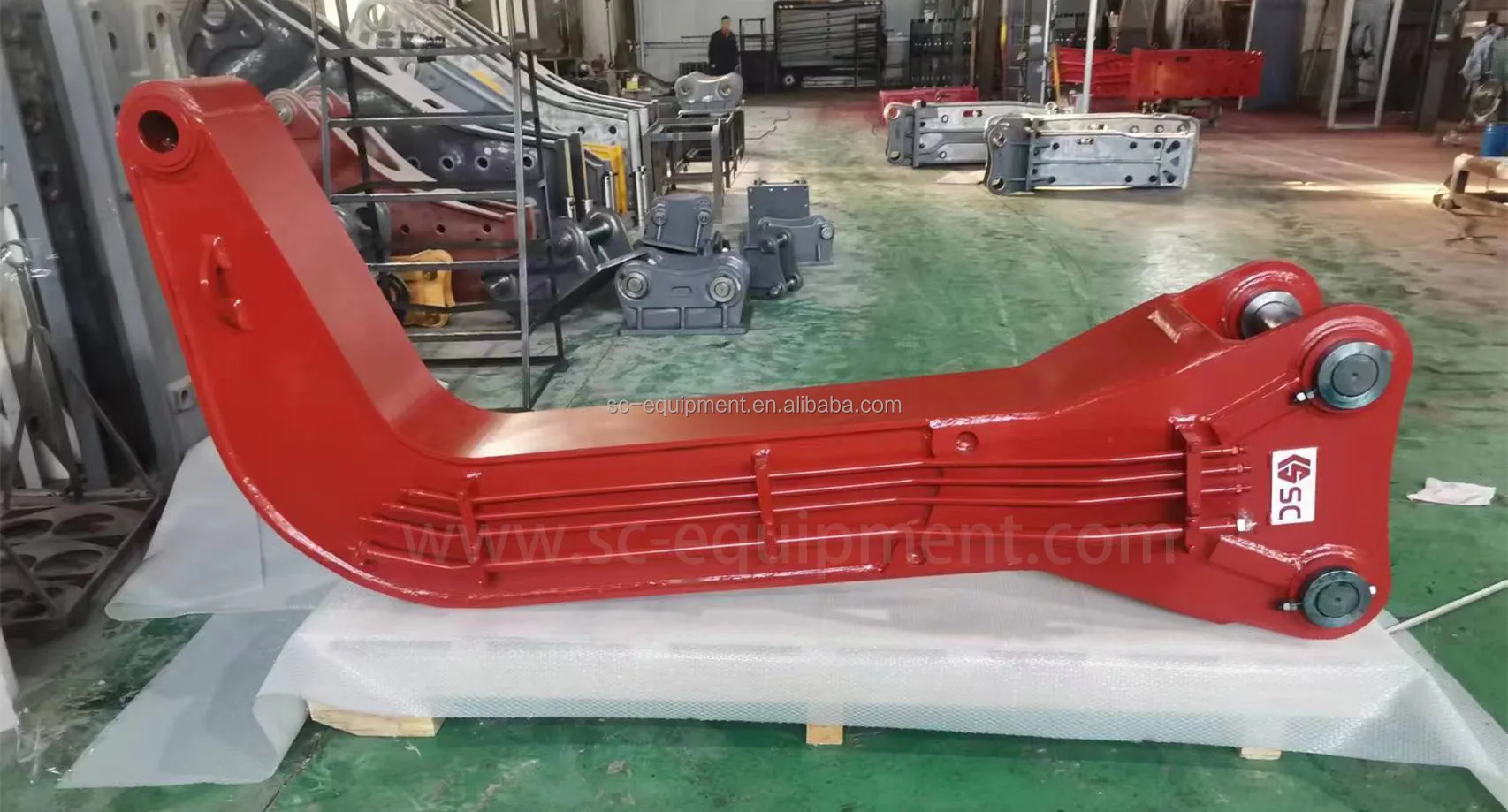

Weight (Kg) | Extension boom | 450 | 650 | 740 | 650 | 650 | |
Total weight | 2400 | 3300 | 3640 | 3650 | 3750 | ||
Product Overview

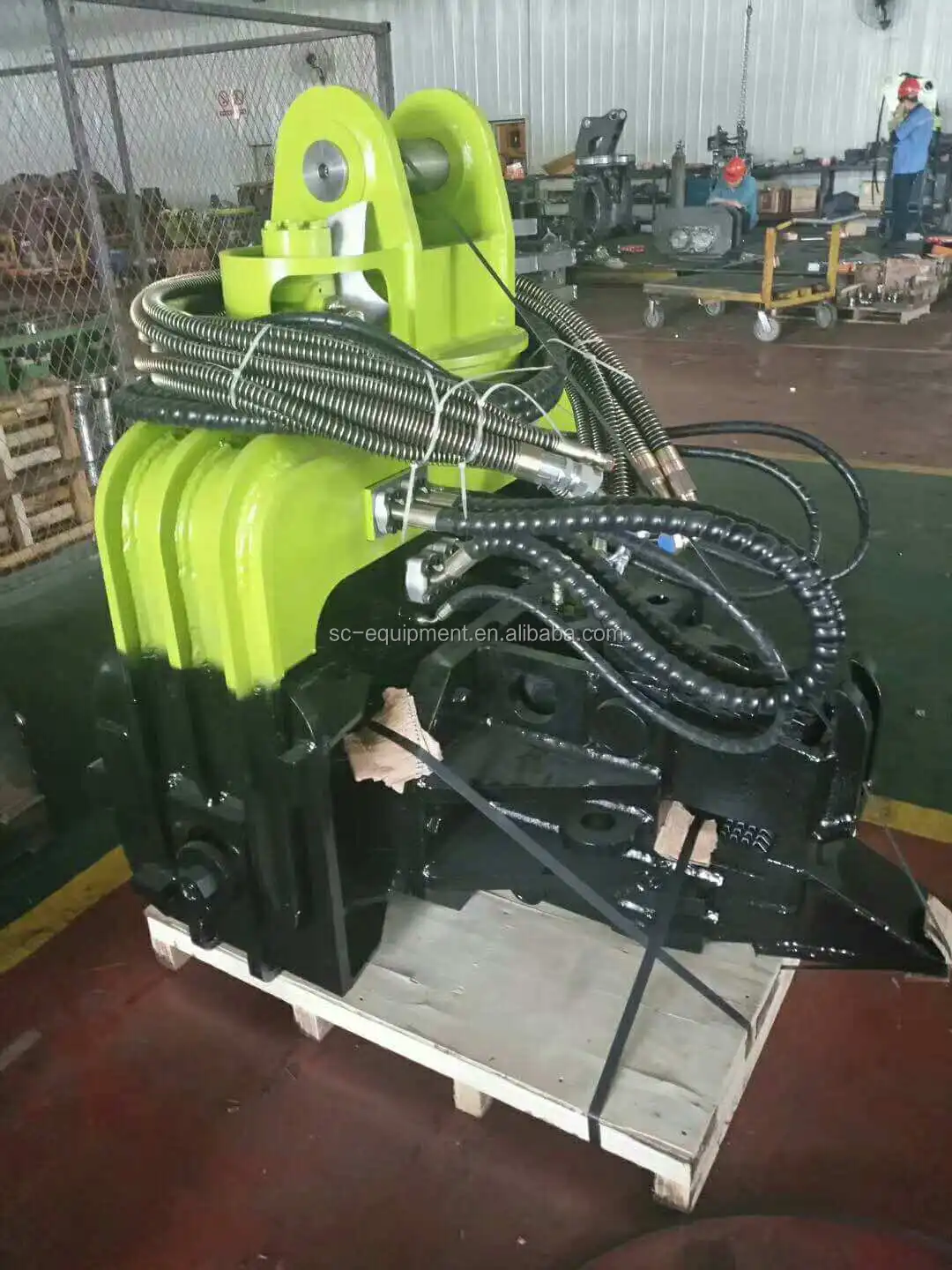

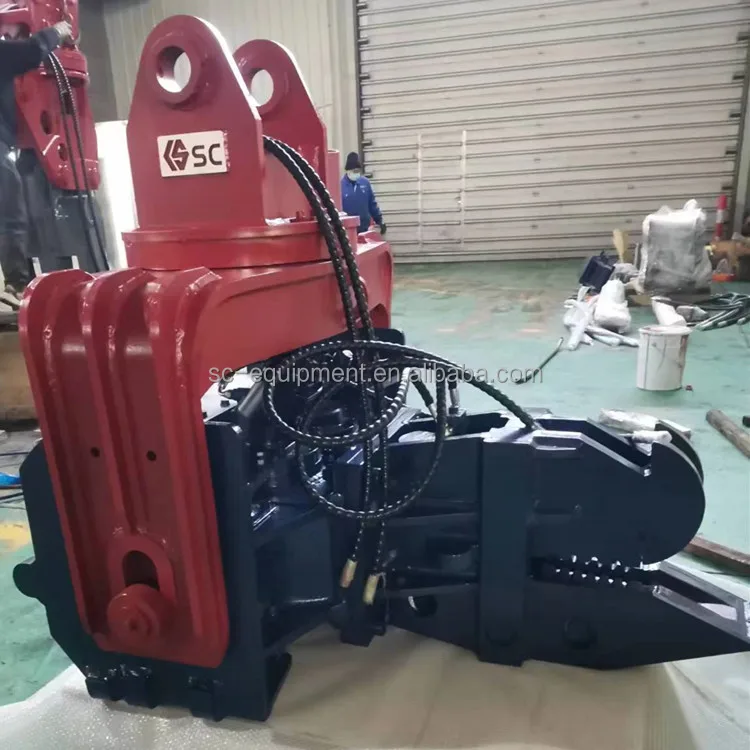

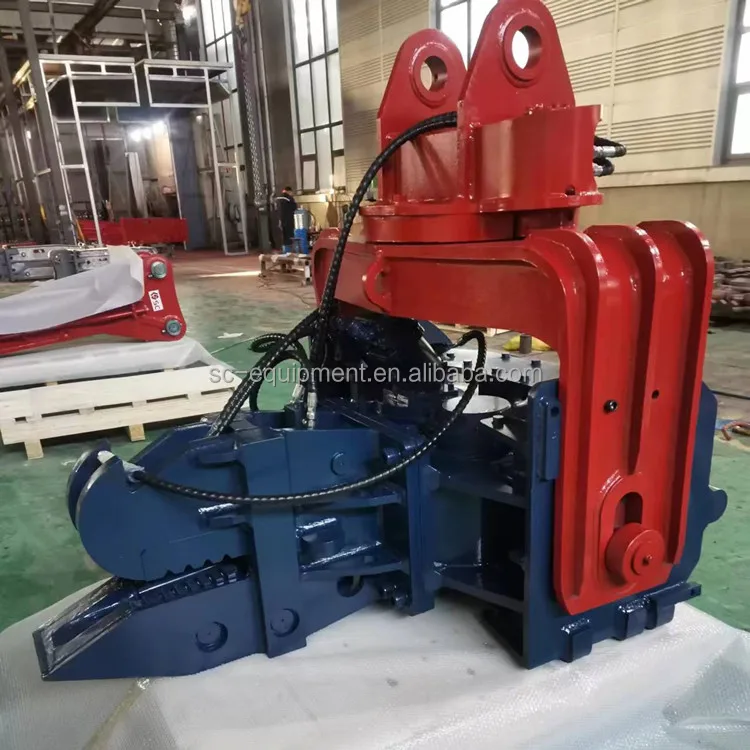

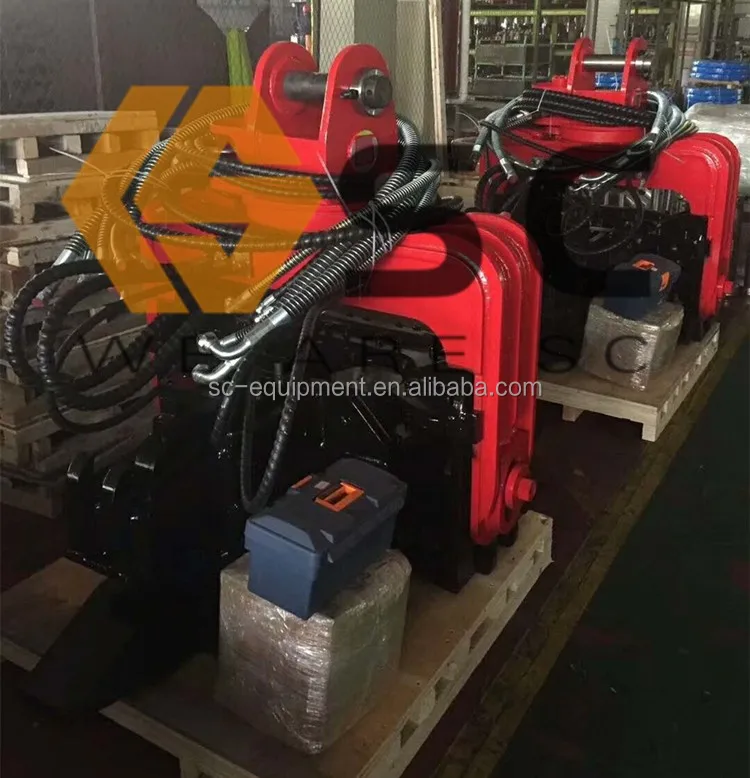

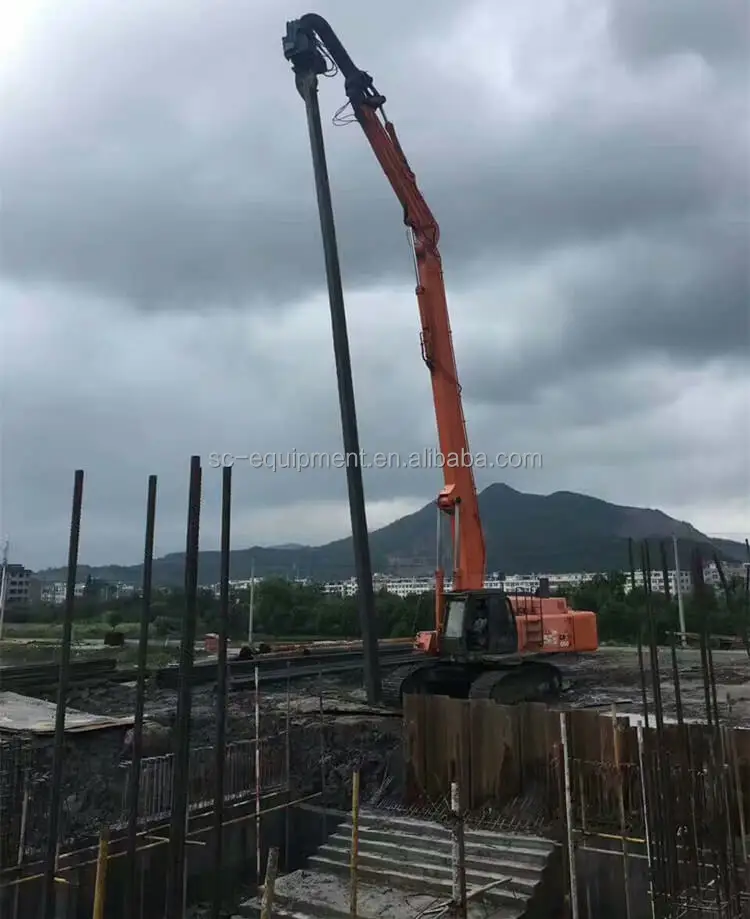

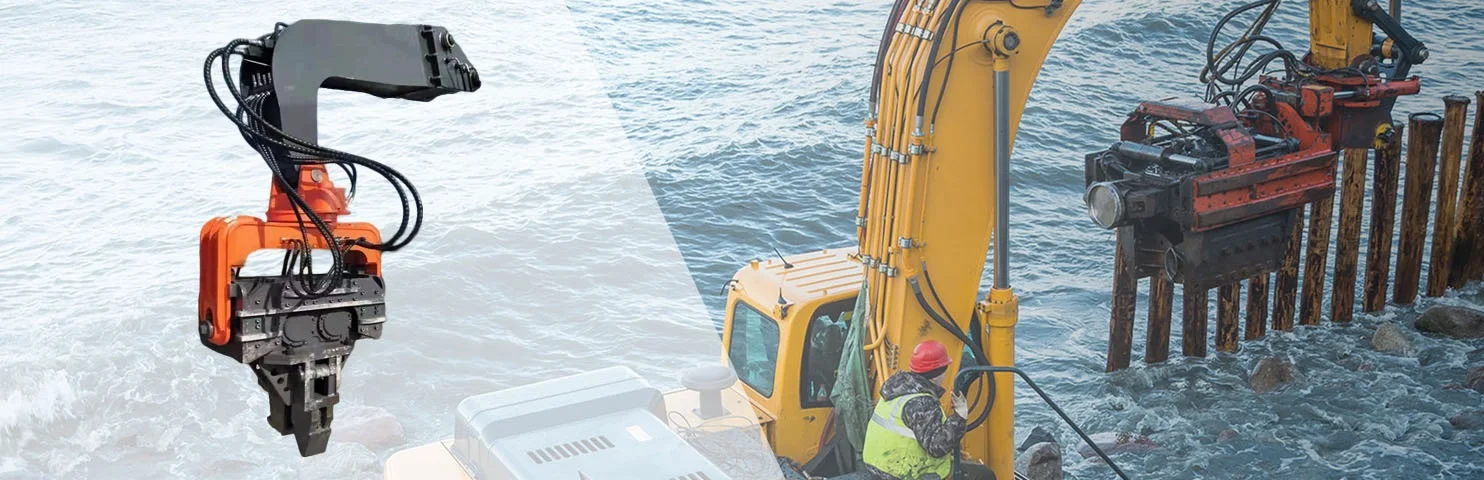

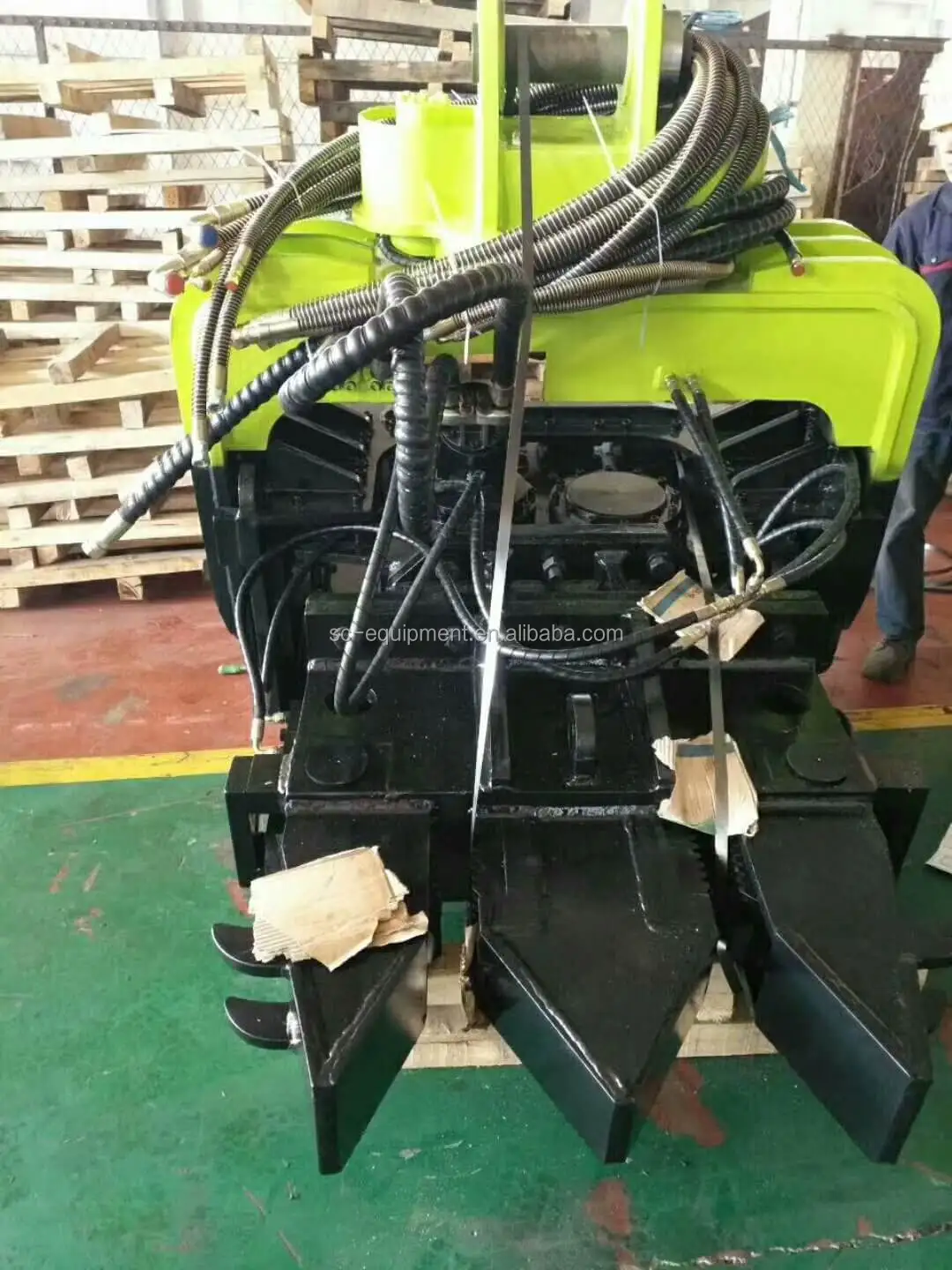

Photo galary
Other pile drivers we can supply
FAQ
Q:How do I choose suitable PILE DRIVER ?
A: What's your excavator weight? What's kind of pile to drive? We will recommend suitable model for you by these questions.
Q:Can you supply relative parts?
A:Yes, we can produce relative clamp as your pile shape.
Q:What's the final price ?
A:After confirm suitable model, we will quote you the price with the freight to your nearest port. That will be the final price.
A:Yes, we can produce relative clamp as your pile shape.
Q:What's the final price ?
A:After confirm suitable model, we will quote you the price with the freight to your nearest port. That will be the final price.
Company Profile

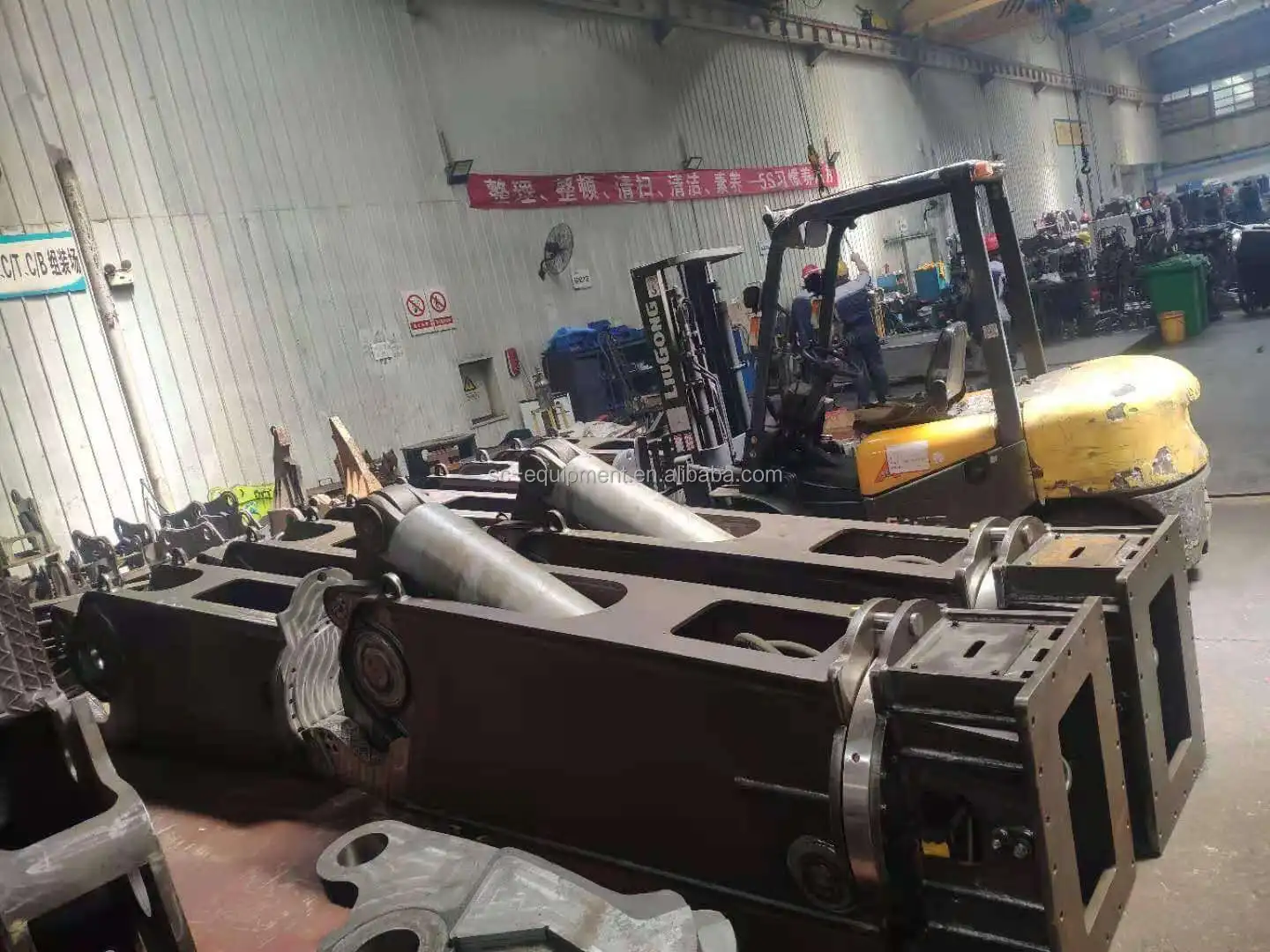

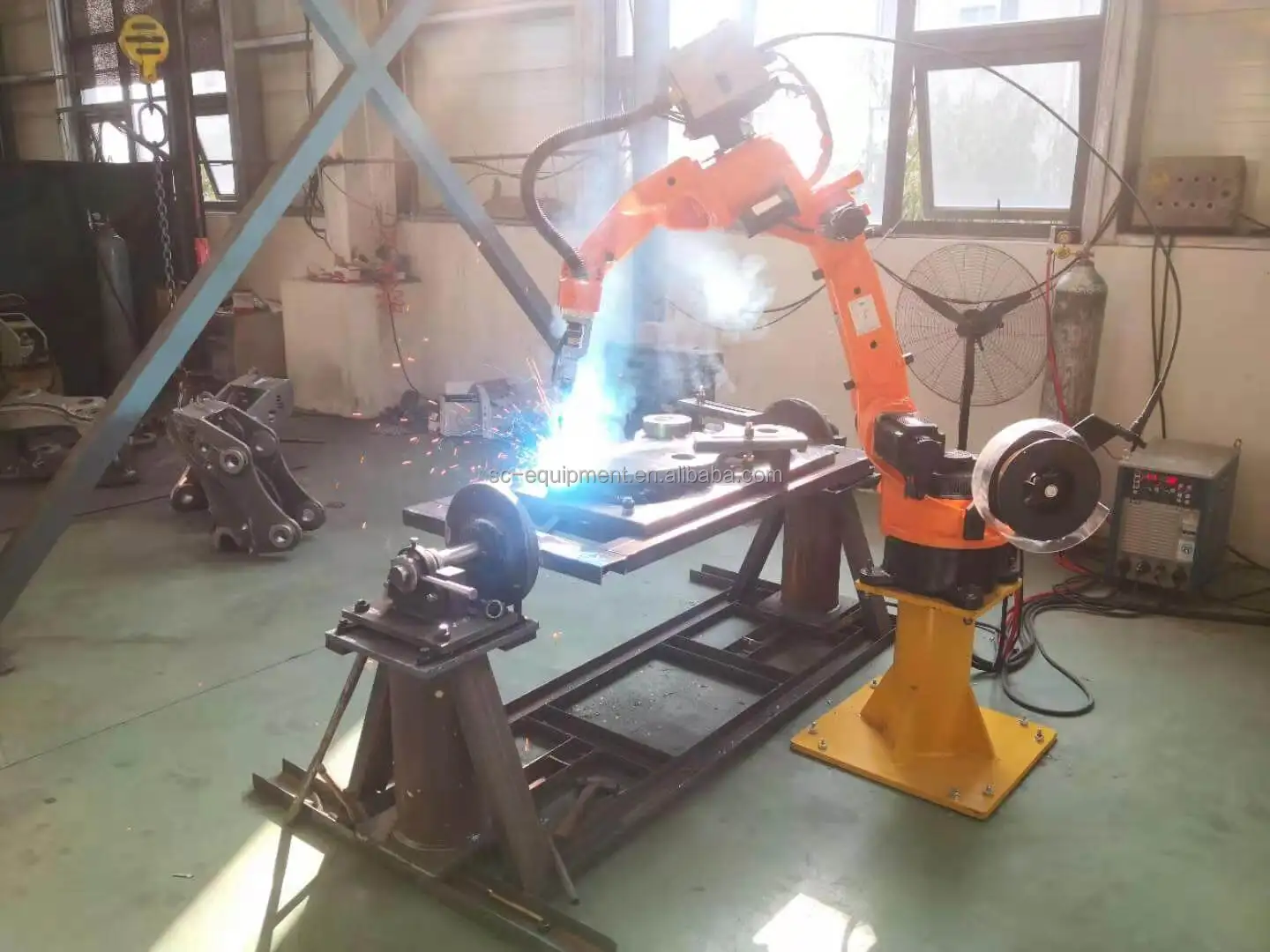

Established in 2008, SC equipment is a professional company integrating R&D, manufacturing and sales of construction machinery attachments, we have several sets of advanced precision installation & inspection equipment including heating, cleaning, testing to assure our high quality. We understand a perfect combination of high-quality material and strong R&D are the key factors behind the success of SC brand. And as well as most professional sales team can surely satisfy any of your customization requirements
promptly. We own more than 5 patents and most of products have CE certifications. Our attachments scope is continually expanding, we can also custom order any attachments you do not find in our listings.
promptly. We own more than 5 patents and most of products have CE certifications. Our attachments scope is continually expanding, we can also custom order any attachments you do not find in our listings.
