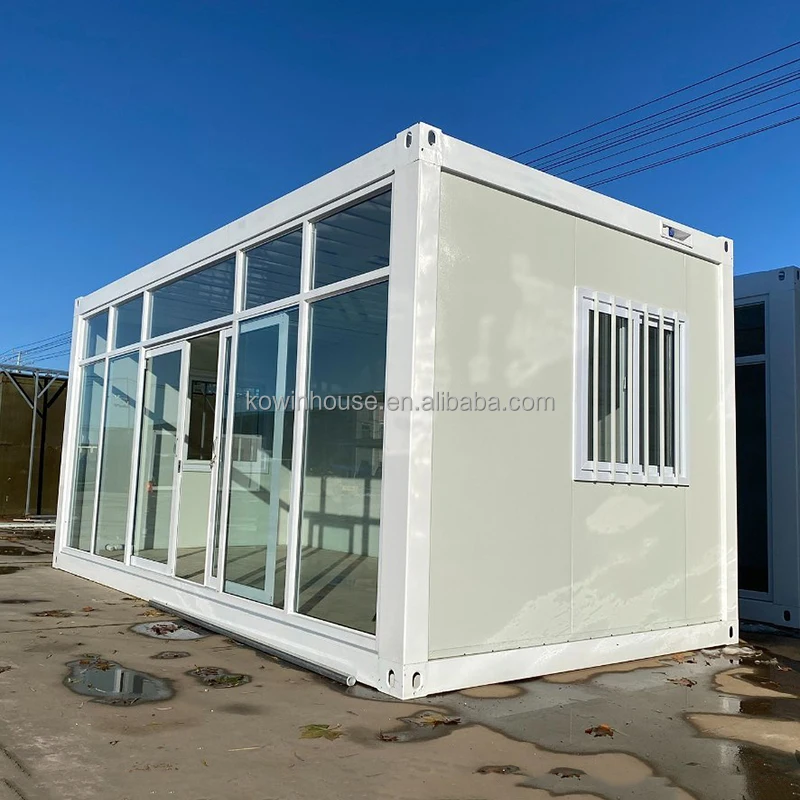

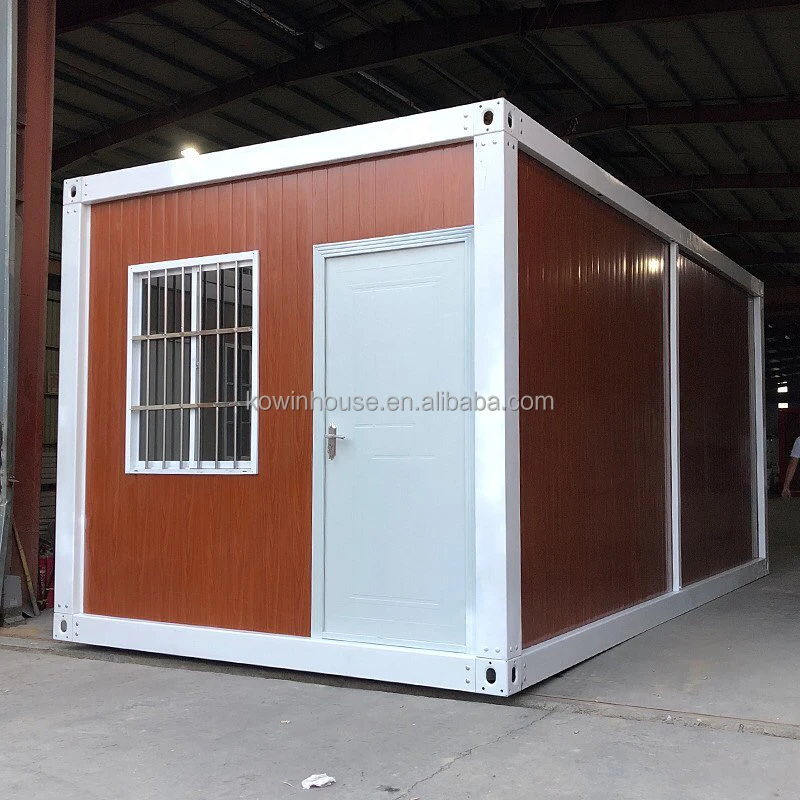

Chinese manufacturers low price Prefab mobile Modular Portable Temporary Container office Houses for sale

Product specifications

External dimension (mm)

5800 *2480 *2560

Internal dimension (mm)

5640*2320*2400

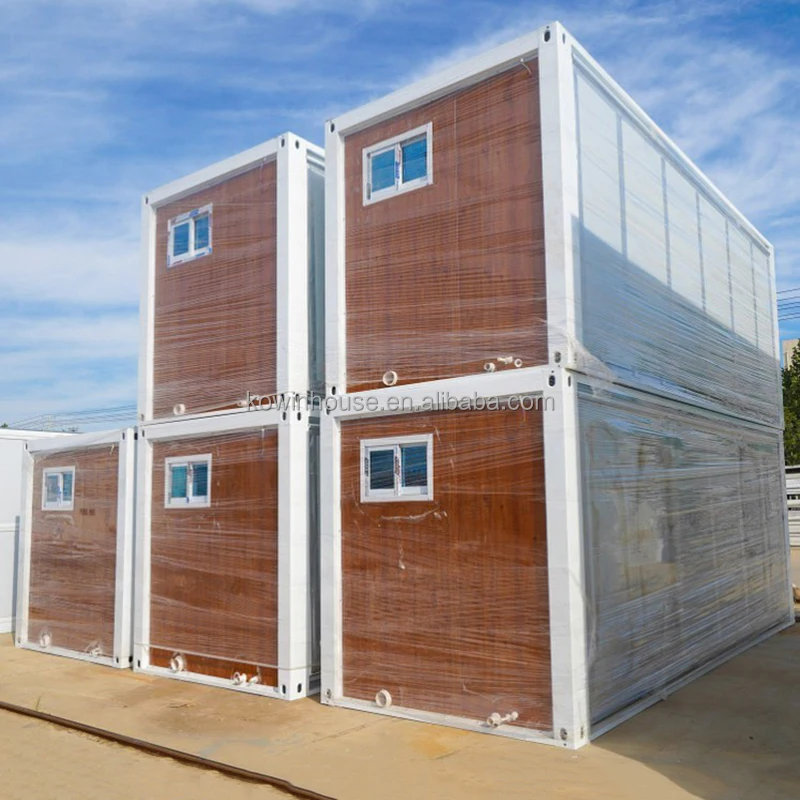

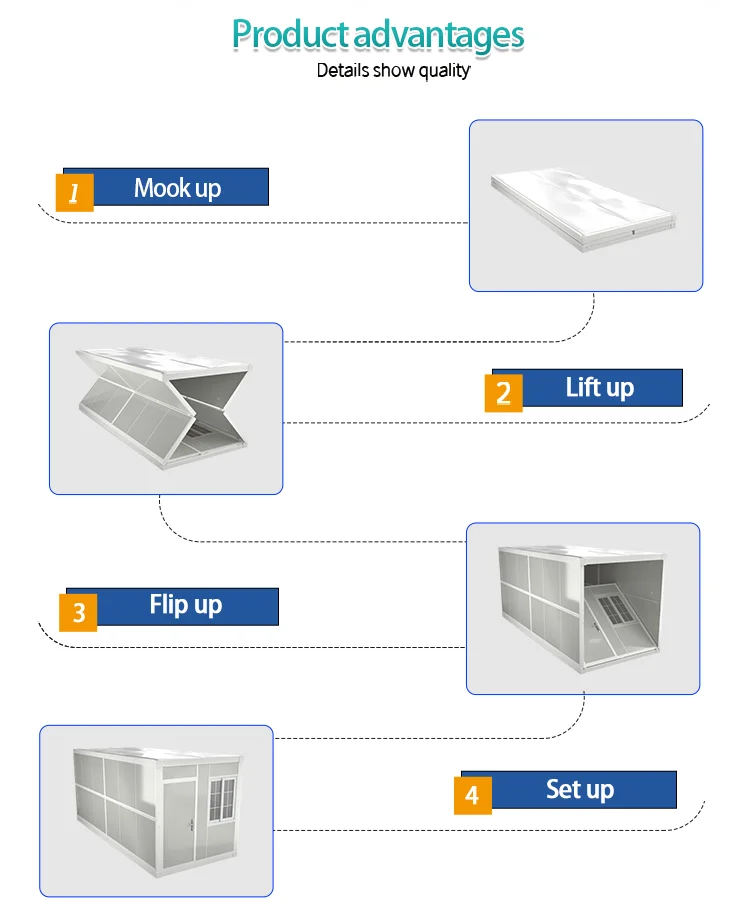

Folding state (mm)

5800 *2480 *400

Total mass (kg)

1000~1300 Including doors and Windows and simple indoor electrical switch socket [1*40HQ It holds 10 sets]

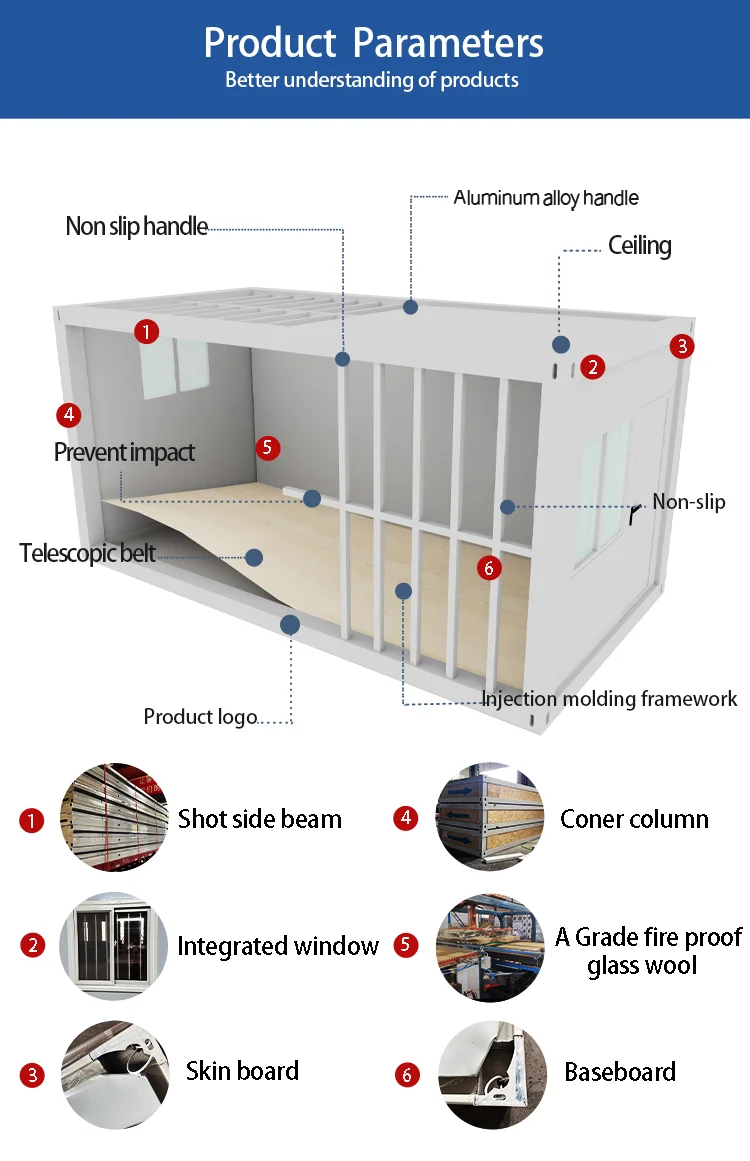

Main body frame

Top frame

Top main beam: Rectangular square tube60×80×1.3mm

Top bearing bottom: Rectangular square tube40×40×1.3mm

Internal ceiling: Color steel veneerV930*0.25㎜

Insulating glass wool: Glass wool roll 50mm (unit weight 16kg)

External roof panel: Galvanized sheet0.5mm

Protective coating for integral frame: Electrostatic spray/high gloss

Hanging head: 155*110*（6mm)

Bottom frame

Bottom main beam: Rectangular square tube 60×140×1.3mm

Bottom bearing: Rectangular square tube 40×40×1.3mm

Front and rear main beams: Rectangular square tube60×80×1.3mm

Stand column

Side wall frame: Rectangular square tube40×60×1.3mm

Galvanized buckle groove: 50mm

Fold hinge: Galvanized hinge 13mm

Floor

Floor board

Fireproof glass magnesium floor18mm

Door

High grade steel door

High-quality security door（Warm white）930mm*1970mm

Window

The anti-theft window

930*930Plastic steel anti-theft integrated window、Glass thickness4mm（Warm white）

Simple electric distribution

Simple electric distribution

Electrical wiring，Install in strict accordance with moisture-proof specifications，All electricalAll electrical products shall
comply with ce certification. Connect the circuit according to the circuit engineering specification，indoor: coil in4²National
standard flexible copper wire, 20 Acircuit breaker 1, Socket incoming line 2.5², three-hole single socket3pcs，2 lamps.

Wallboard

Model

50mm Composite plate0.23mm+Basalt rock wool(unit weight50kg）+0.23mm

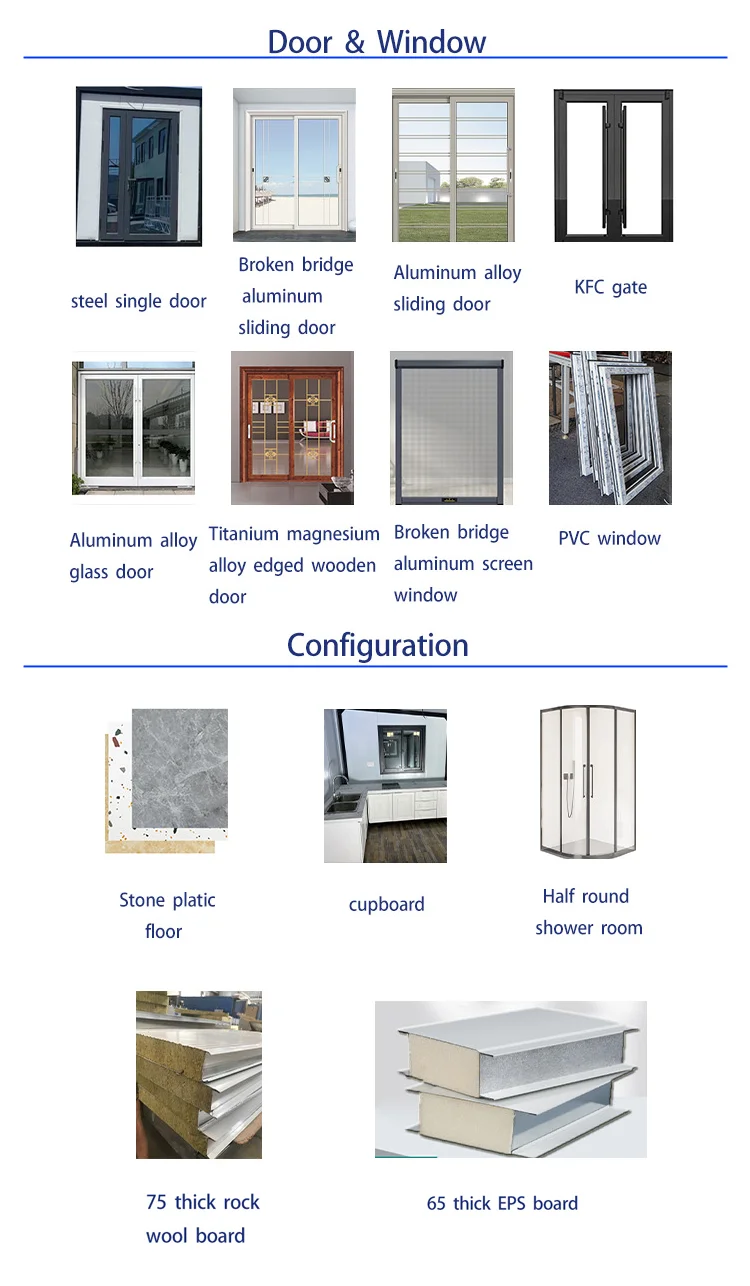

Optional Accessories

Optional Accessories

Furniture, sanitary, kitchen, A/C, electrical appliance for accomodation, office, dormitory, toliet, kitchen, bathroom, shower,
steel roof, cadding panels, decorative material, etc.

Load bearing/level

Roof bearing capacity

≧50kg/m²

Aisle bearing capacity

≧200kg/m²

Floor load bearing

≧150kg/m²

Wall side pressure

≧80kg/m²

Wall deformation coefficient

≦300kg/m²

Fire protection level

Class A

Seismic grade

Level 10

Wind resistance rating

Level 11
