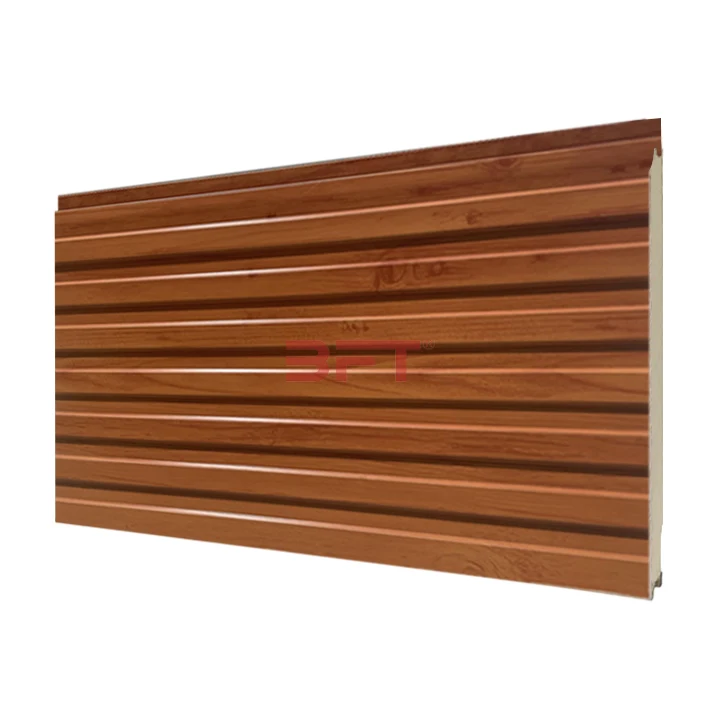

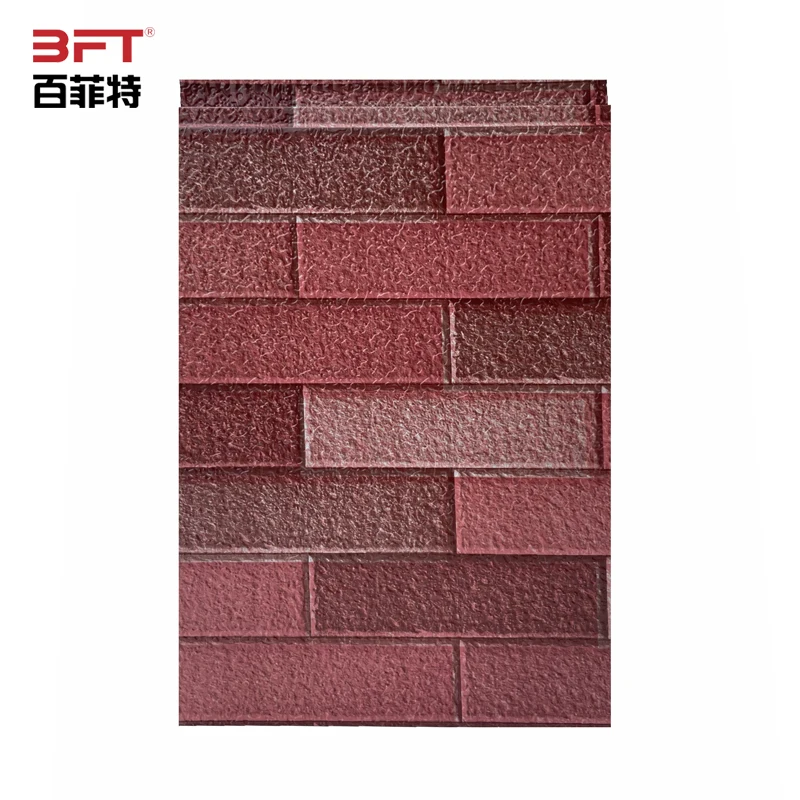

Pu Sandwich Panels For Wall Finishing And Insulation Metal Embossed Aluminum Foam Sandwich Polyurethane
- Category: >>>
- Supplier: Shandong Perfect Building Material Co. Ltd.
Share on (1601014187601):
Product Overview
Description
Products Description

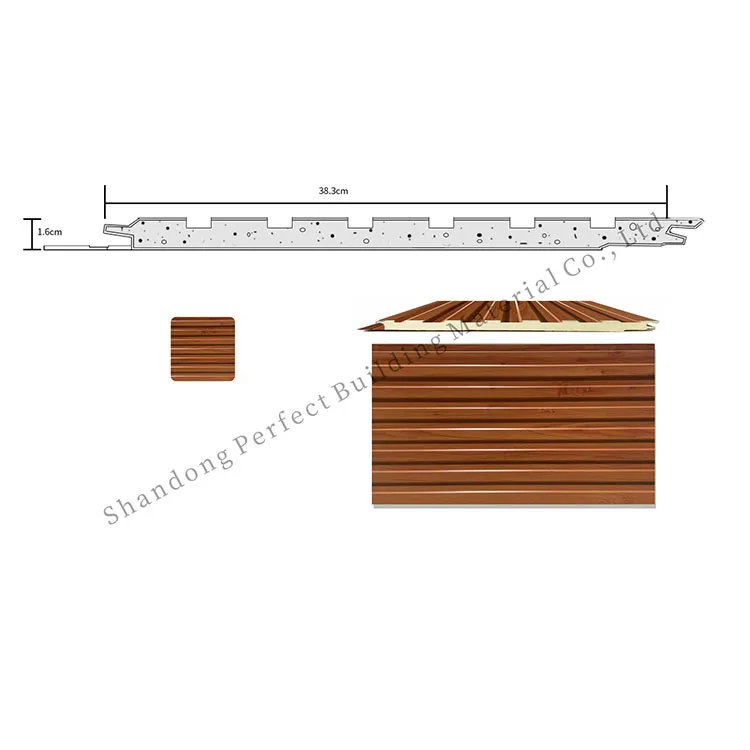

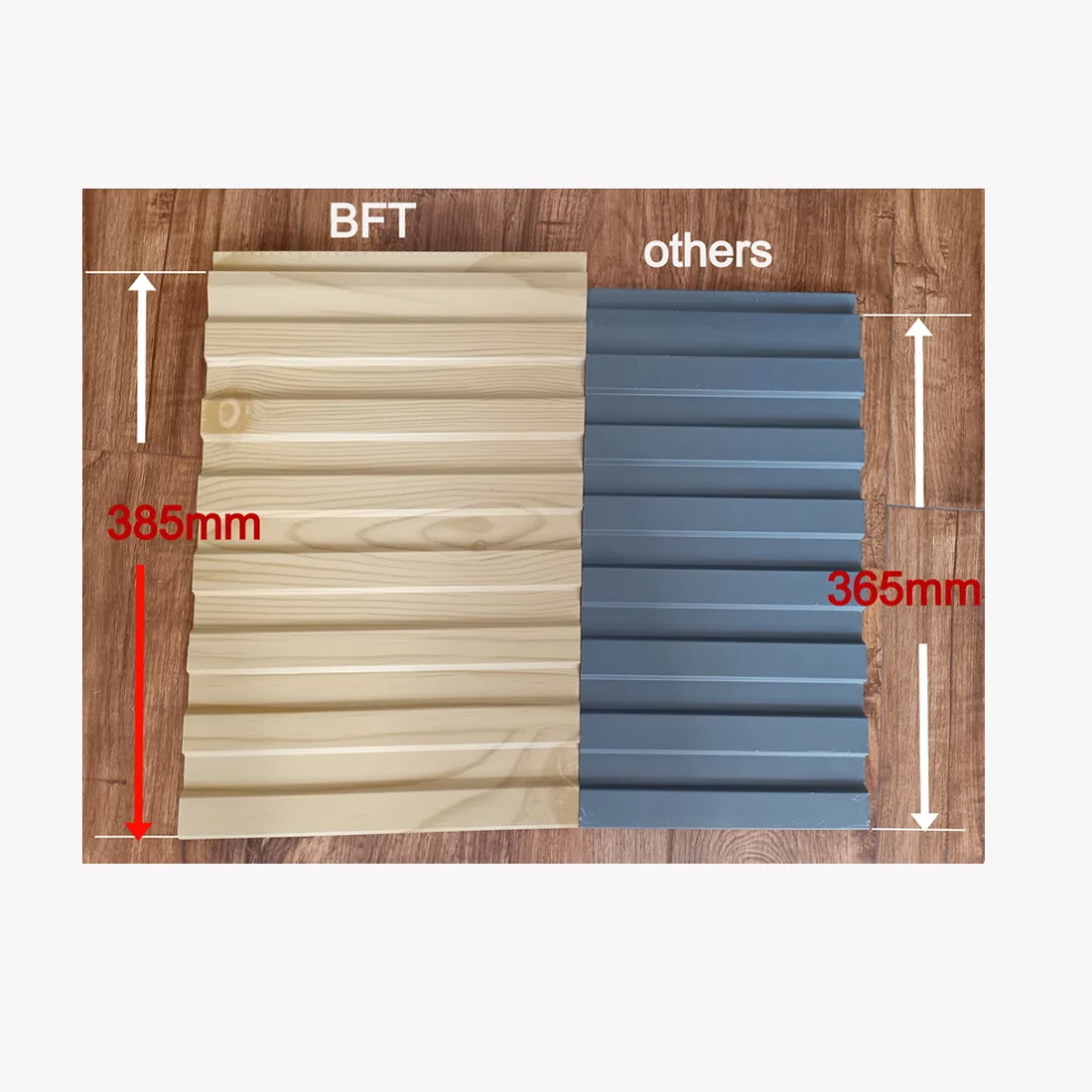

Width | 383mm,15 5/64 inch | Size tolerance | -/+2mm |
Length | 2000mm~6000mm, 78 47/64 inch ~ 236 7/32 inch | Tensile bond strength | 0.17MPA |
Surface steel | Galvalume,C type | Wind load value | 9KPA |
Steel alloy composition | Aluminum 55%,Zinc 43.5%,Silicon 1.5%,ect. | Package | 10 pieces/carton,8pieces/carton |
Steel coating | HDP,>30um | Package Size | 4010mm*41mm*170mm(10 pieces/carton) 4010mm*41mm*138mm(8 pieces/carton) |
Core material | Polyurethane,40kg/m3 | OEM | Logo and panel size |
Closed cell rate | 90%~95% | Container load | 20GP :1300sqm 40GP : 3500 sqm |
Bottom material | Aluminum foil glass fiber | Warranty | 5 years |
Thickness of bottom material | 0.26mm | After-sale Service | Online traing,online technical support |
Panel weight | 3.5~3.7kg/m2 | Port | QINGDAO |
R-VALUE | 0.55 m2*k/w | Payment | T/T,L/C |
Heat conductivity | 0.024 w/m*k(in theory) | Brand | BFT |

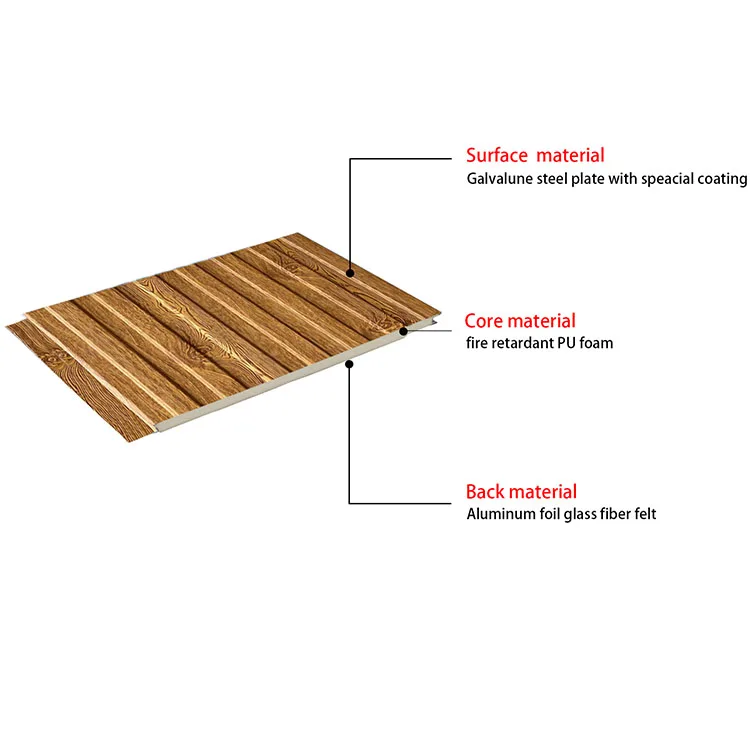

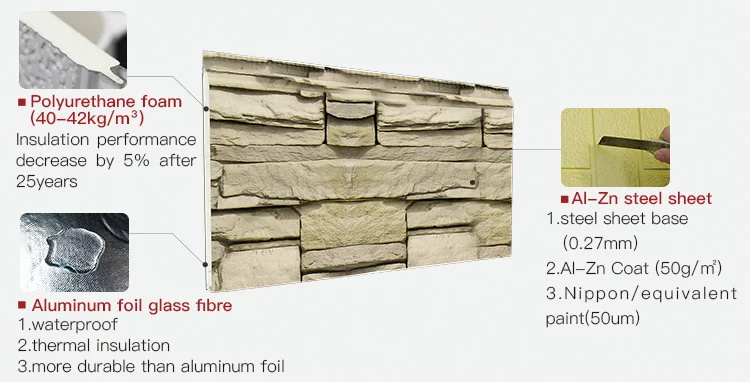

The PU sandwich panel is composed of surface material,core material and bottom material.
1.Its surface material is a metal layer made from AL-ZN alloy coated steel sheet(containing 55% aluminum,43% zinc),and it will not rust for 45 years.
2.Its core material is the rigid high-density polyurethane foam insulation layer with flame retardant treatment has the advantages of heat preservation.
3.The bottom surface is an aluminum foil protective layer that plays a role of heat insulation, heat preservation and moisture prevention.
2.Its core material is the rigid high-density polyurethane foam insulation layer with flame retardant treatment has the advantages of heat preservation.
3.The bottom surface is an aluminum foil protective layer that plays a role of heat insulation, heat preservation and moisture prevention.

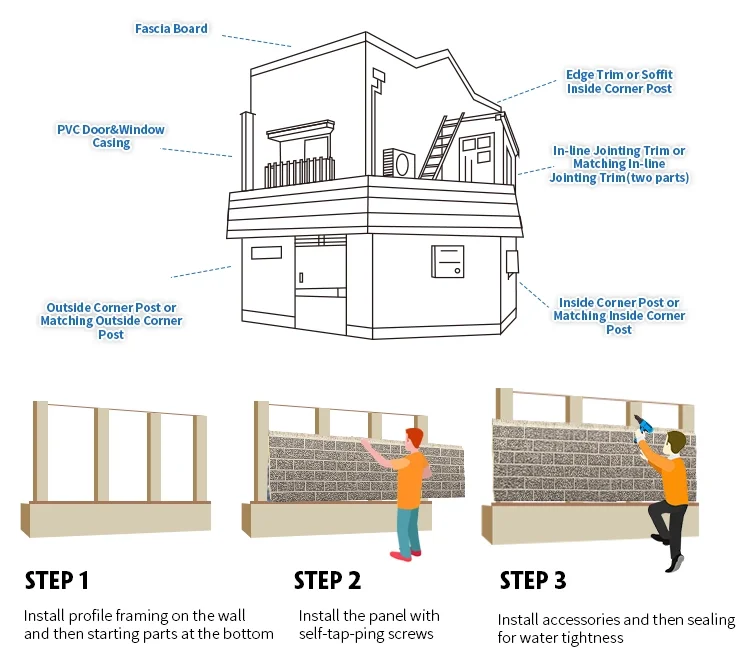

Installation Instructions

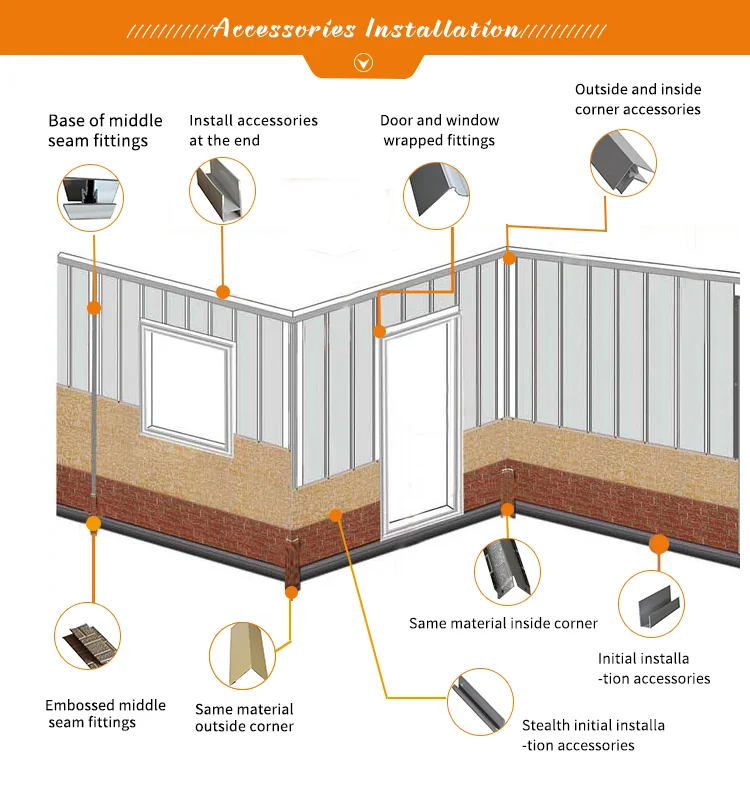

Accessories
Starting part
Ending part
Connecting part
Inside corner
Outside corner
Window-door part
Company Profile

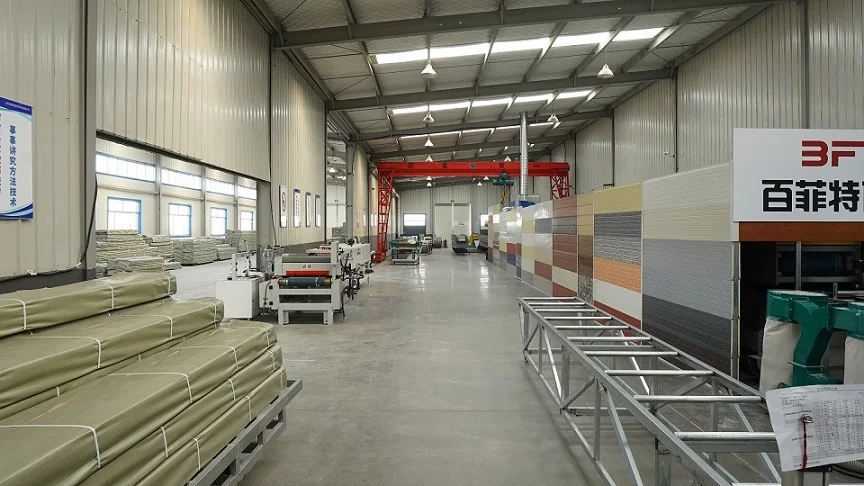

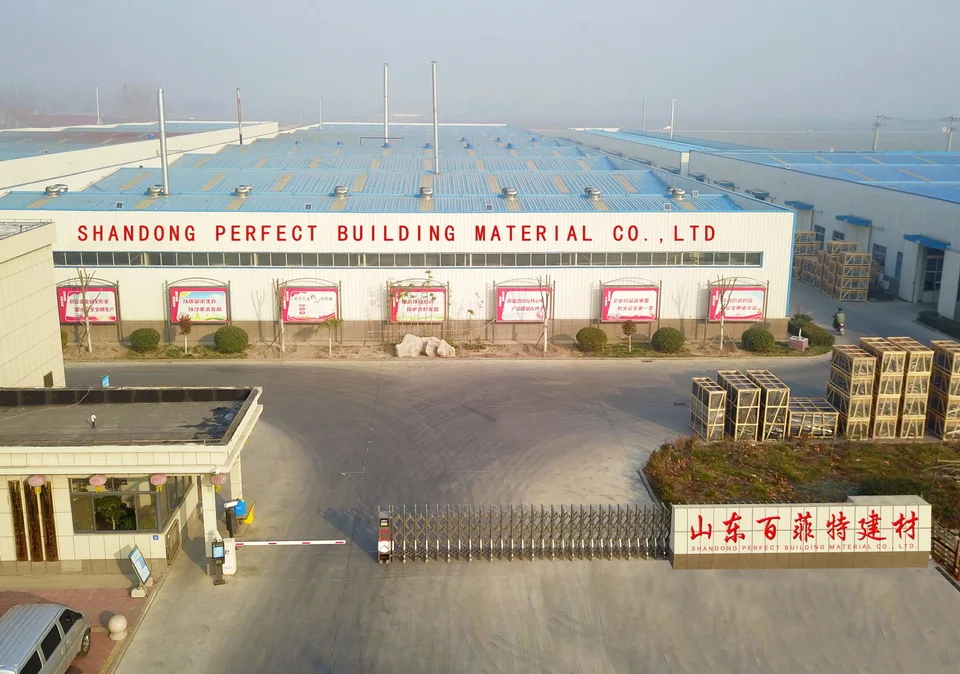

Company introduction
Shandong Perfect Building Material Co., Ltd. is located in Zibo City, Shandong Province. We are mainly engaged in the
production and sales of ,PU sandwich panels, EPS wall panels, etc. BFT metal sidings are suitable for decoration of exterior wall of various buildings,as well as certain interior decoration,partition,etc.
Our sidings have been widly adopted both in China and at abroad,such as USA,South America,Korea,Japan,South Africa,the MiddleEast,Russia,Malaysia,Thailand,etc. Such metal sidings can be used on such constructions as

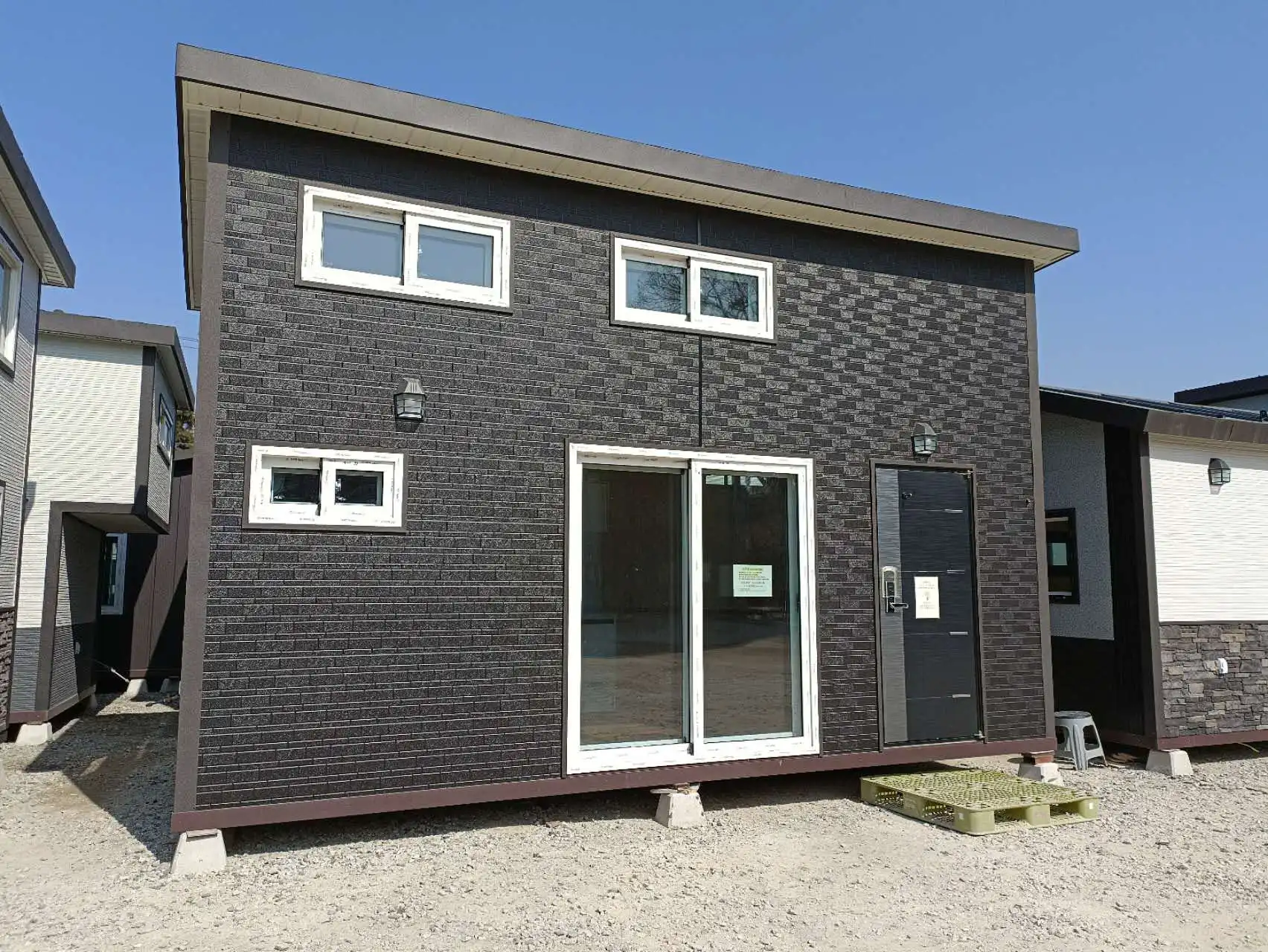

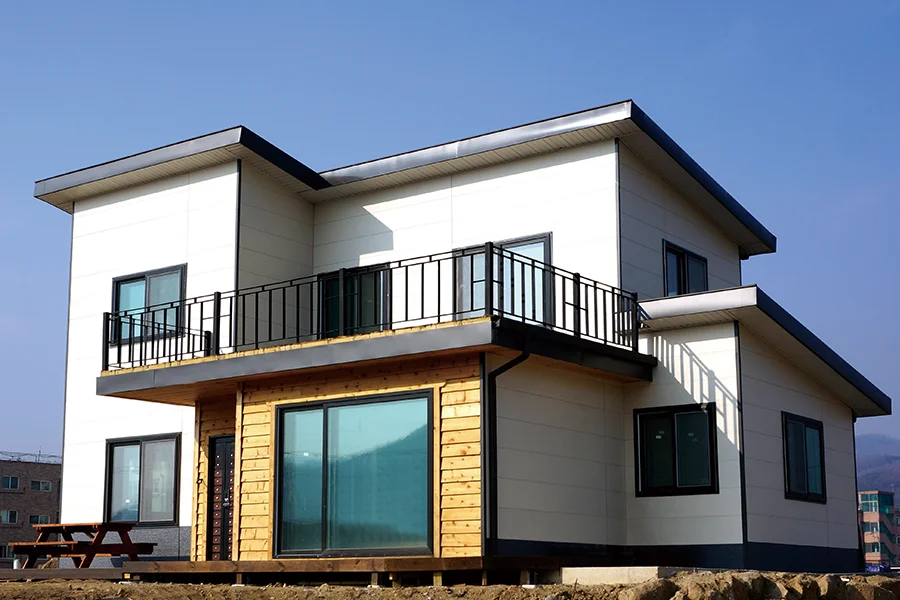

hospitals,schools,residences,hotels,office buildings,tourist holiday houses,government agencies,etc. ,and also can be used tobuild many temporary and prefabric houses such as integrated houses,sentry boxes,mobile toilets and municipal houses.
We guarantee that you get the best products at a competitive price, and we will serve you whole heartedly to meet all your
specifications and needs.
Welcome your inquiry!
production and sales of ,PU sandwich panels, EPS wall panels, etc. BFT metal sidings are suitable for decoration of exterior wall of various buildings,as well as certain interior decoration,partition,etc.
Our sidings have been widly adopted both in China and at abroad,such as USA,South America,Korea,Japan,South Africa,the MiddleEast,Russia,Malaysia,Thailand,etc. Such metal sidings can be used on such constructions as
hospitals,schools,residences,hotels,office buildings,tourist holiday houses,government agencies,etc. ,and also can be used tobuild many temporary and prefabric houses such as integrated houses,sentry boxes,mobile toilets and municipal houses.
We guarantee that you get the best products at a competitive price, and we will serve you whole heartedly to meet all your
specifications and needs.
Welcome your inquiry!
Packing Details
Export carton packing
20ft GP Load 1000-1500 square meters
40ft GP Load 3000-3500 square meters
Waterproof Plastic paper
4010mm*41mm*170mm(10 pieces/carton)
4010mm*41mm*138mm(8 pieces/carton)
4010mm*41mm*138mm(8 pieces/carton)

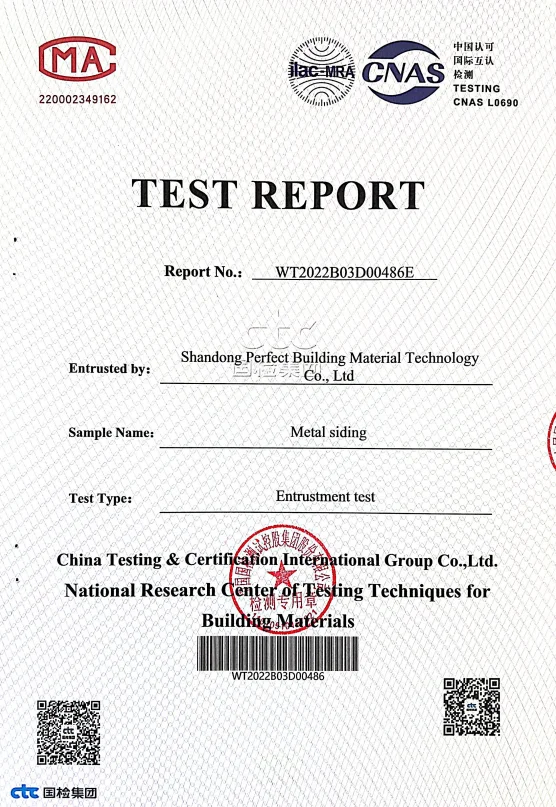

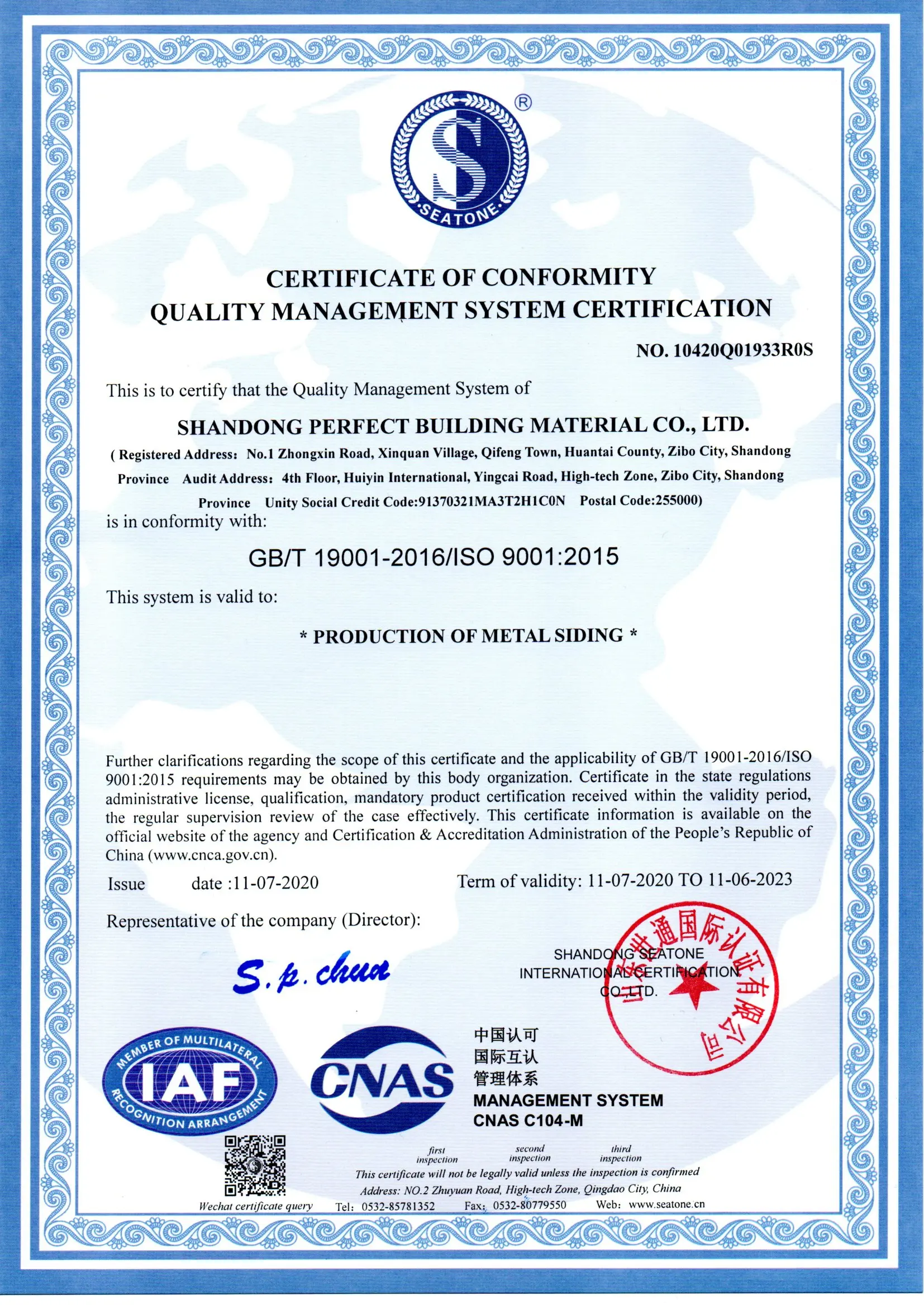

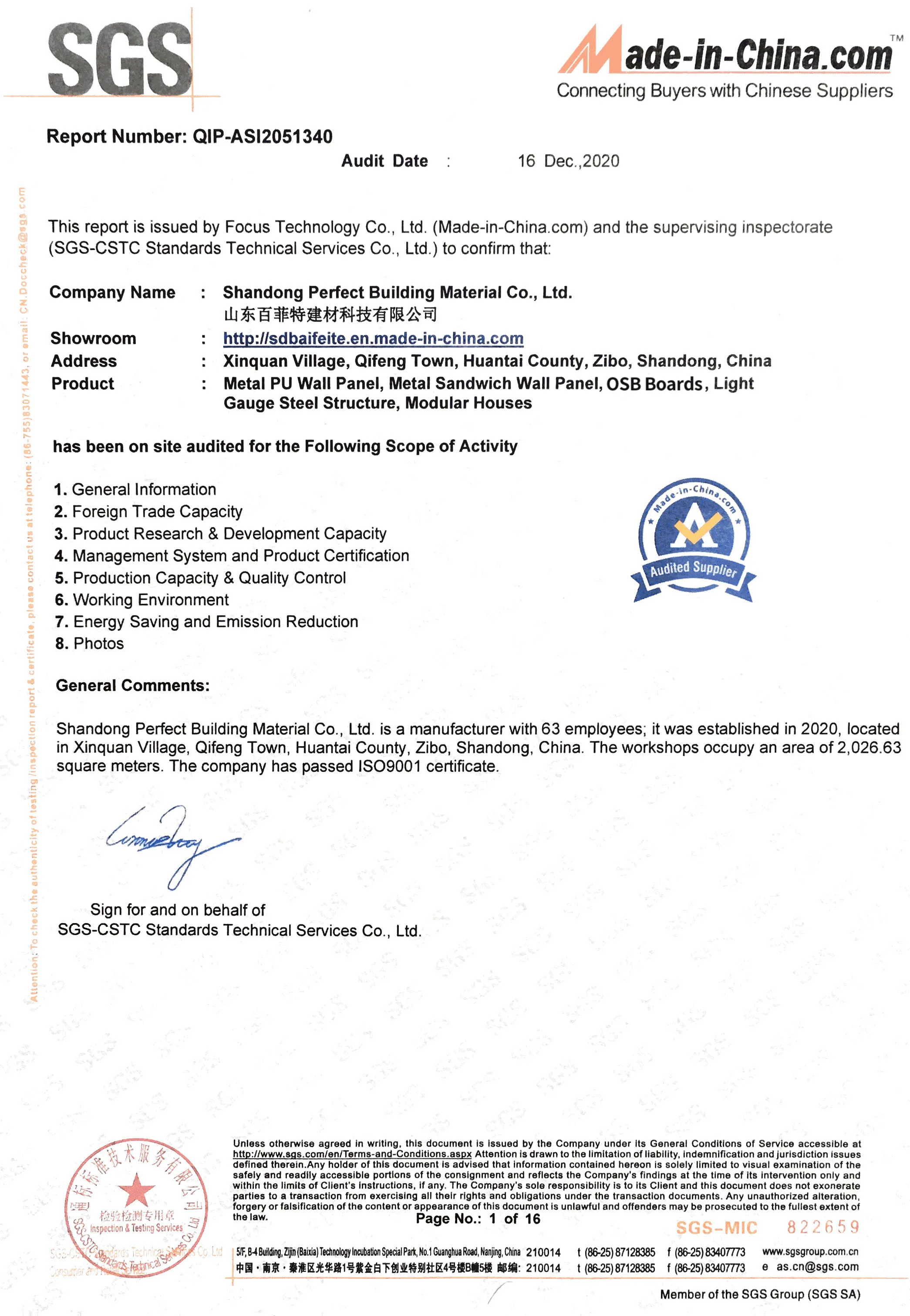

Certifications
FAQ
FAQ
Q: Are you manufacturer?
A: Yes, we are. Welcome you to inspection the factory.
Q:Why do you choose us?
A: we are the manufacturer and have competitive price and steay quality , good delivery and service.
Q:Can you produce according to my requirement?
A:Yes, all the design, size, printing and packaging can be done according to customer's request. About any further detail, please feel free to contact us.
Q: Can I get free samples?
A: Sure,we are glad to send you free samples for your reference .
Q: What's your MOQ?
A: We can accept smaller quantities if you have other products shipped from China together.
Q:How long is your delivery time?
A: About 10-15 days.
Q:What specification should I tell you if I wanna get the quotation?
A: 1.Size 2. Application 3. Surface treatment 4. Estimated quantity
Q: What's your payment term?
A: We accept T/T, Western Union, L/C etc.
