Product Overview

Description



Products Description


ATC Industrail remote Ethernet I/O module is an industrial class.High reliability, high stability and high precision data
acquisition module. Embedded ARM-Cortex-M4 MCU (ST). Integrated 1-Port Industrial 10/100M Ethernet port. It provides multi I/O
with digital input/output and analog input/output. It support ModBus TCP protocol. The user's can through IPC or DCS controller
communication with Ethernet I/O module and support 7 independent TCP socket connection.
It’s design for working in the harsh industrial application environment. Such as industrial automation, factory automation,
building antomation,automatically measurement and control system.


Specifications


Type
A-1812
Operation Voltage
10~30VDC/24VAC
Analog Input
4*AI (16Bit)
Analog Input Type
2*0/4-20mA + 2*PT100/1000(-200 ~ +600℃)
Analog Output
2*AO （12 bit）
Analog Output Type
0/4-20mA
Digital Inputs
2*Isolation DI
status low:<1VDC
status high:>5~30VDC
Input Isolation
YES(5000VDC)
Input Operating Frequency
10HZ
Output Operating Frequency
Transistor:10HZ
Interface Type
Ethernet(10/100Mbps)+USB(1.1,2.0 Configration Only )
Operation Temperature
-20 to +75 °C
Degree Of Protection
IP20
Installation
35 mm DIN rail or Flush mounting
Dimension (W x H x D mm)
76.4*118.2*38.5 mm

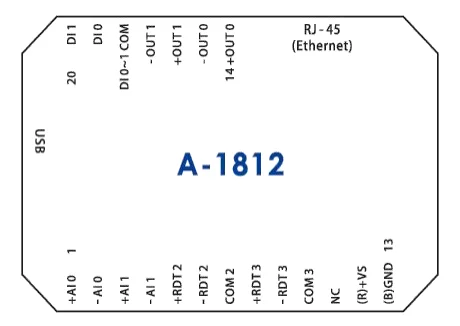

Pin Assignments

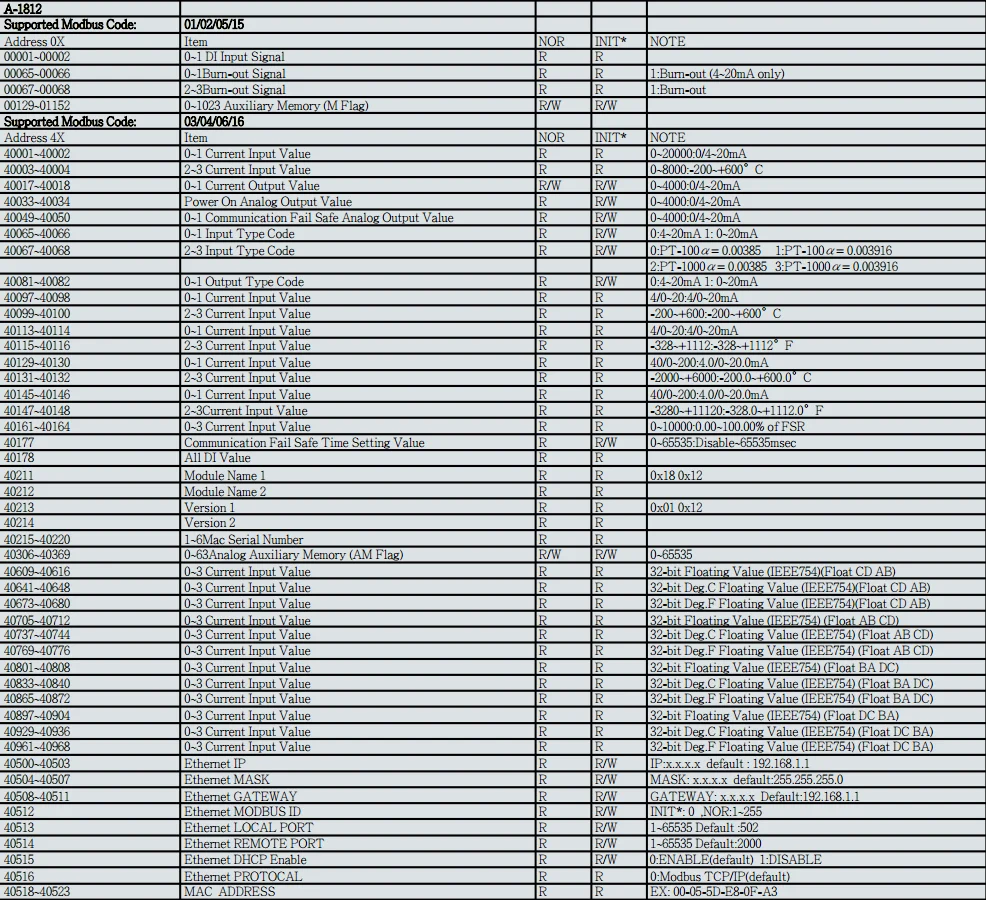

Address Mapping




Product size




Product Category












Order information
