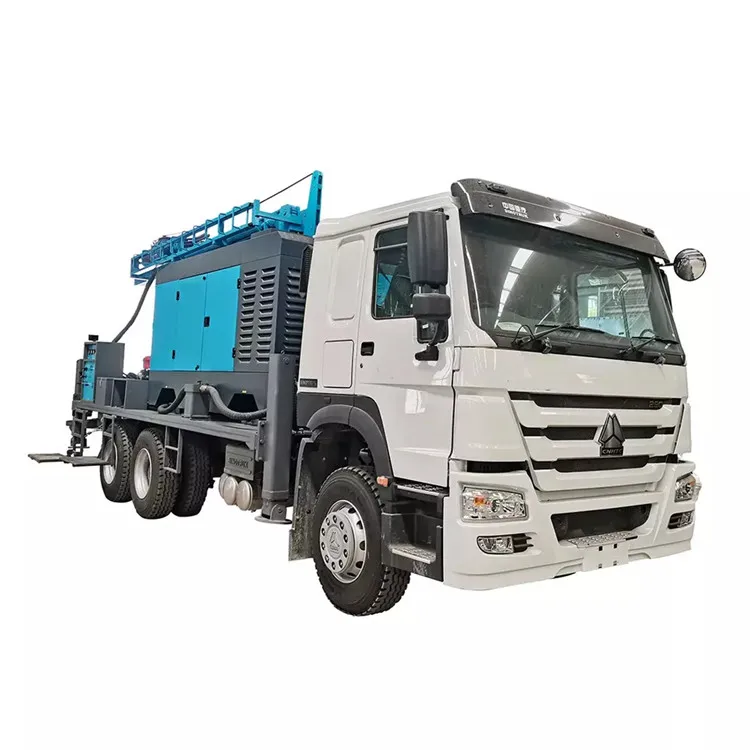

Water well drill rig borehole truck drilling machine water drilling rigs truck mounted with truck
Water well drill rig borehole truck drilling machine water drilling rigs truck mounted with truck
Water well drill rig borehole truck drilling machine water drilling rigs truck mounted with truck
Water well drill rig borehole truck drilling machine water drilling rigs truck mounted with truck
Water well drill rig borehole truck drilling machine water drilling rigs truck mounted with truck
Water well drill rig borehole truck drilling machine water drilling rigs truck mounted with truck
Water well drill rig borehole truck drilling machine water drilling rigs truck mounted with truck

Water well drill rig borehole truck drilling machine water drilling rigs truck mounted with truck

Share on (1601014196135):


Price:$85,000.00 - $95,000.00

Quantity:


Product Overview

Description



Product Description




For the 600 truck-mounted drill, you can refer to the torque, speed, etc. of the 500 rig for drilling rig parameters. Because of the quadruple pump used, the full power take-off has 210 horsepower vehicle power, so the performance will be improved.
In terms of rotational speed, a quick confluence valve is generally required to use a mud pump. The 400 rig is not standard. When the vehicle-mounted rig is added, the rotational speed is 65-140 rpm of the 500 rig.


Specification


ct
truck chassis
Product name
Dongfeng 210 horsepower tractor
model
DFL1250
engine
Dongfeng Cummins B210-33 210 hp, country II
cab
Dongfeng Tianjin Flat Roof Cab, Single Sleeper, Air Conditioning, Double Seats with Locking Structure Seatbelts, Mp3+USD
Entertainment System, Manual Lift, Left Drive
front axle
HF5. 0 5. 0 ton drum brake
gearbox
8JS118A gearbox, 8 forward, 2 reverse
Drive axle
10 ton double rear drive axle
Tire specifications
10. 00R20 steel wire tire, 10+ 1 spare tire
tank
300L fuel tank
Steering machine
Domestic steering machine, left
Girder/Frame
local double layer
suspension
Leaf spring suspension, heavy-duty multi-leaf spring plate, four-riding helix
Braking System
Air pump brake, exhaust EVB brake, parking brake
color
Multi-color optional
power supply
24V, negative ground, 165A.H battery
wheelbase
5200+1350mm
Dimensions
‘10950*2496*3215 mm
front suspension rear suspension
1297/3288 mm
On-board spare parts
Equipped with vehicle maintenance toolbox, jack, crowbar, maintenance, etc.
Main parameters of drilling rig
Drilling diameter:
140--500mm
Drilling depth:
400m
One-time push length:
6.6m
Working air pressure:
1.7--3.5mpa
Air consumption:
17-35m³
Drill pipe diameter:
Φ89 Φ102 Φ108
Drill pipe length:
3m 6m
Lifting force:
25T
Rotation speed:
45--115 rpm
Swing torque:
6500--9000 N.m
Air compressor parameter table
Exhaust volume
31 m 3 / min
Exhaust pressure
25bar
diesel engine
310KW
host
secondary compression
weight
4.5t
