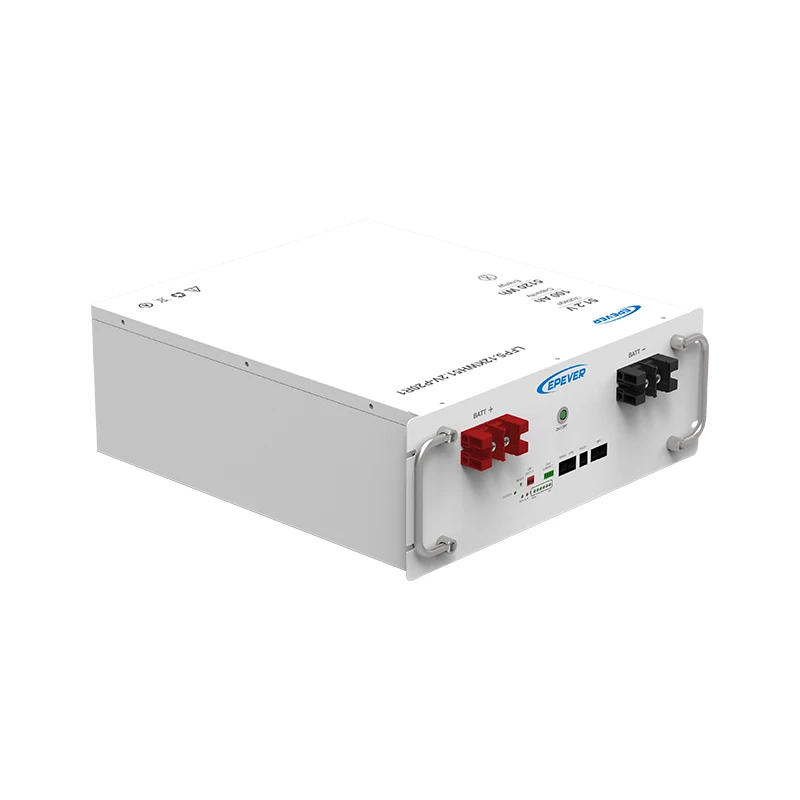

Aluminum shell 5kw home lithium battery pack 100ah solar system 48V lifepo4 lithium ion battery for solar panel 51.2V
- Category: >>>
- Supplier: Huizhou Epever Technology Co. Ltd.Huizhou Ltd.
Share on (1601014241369):
Product Overview
Description
Features

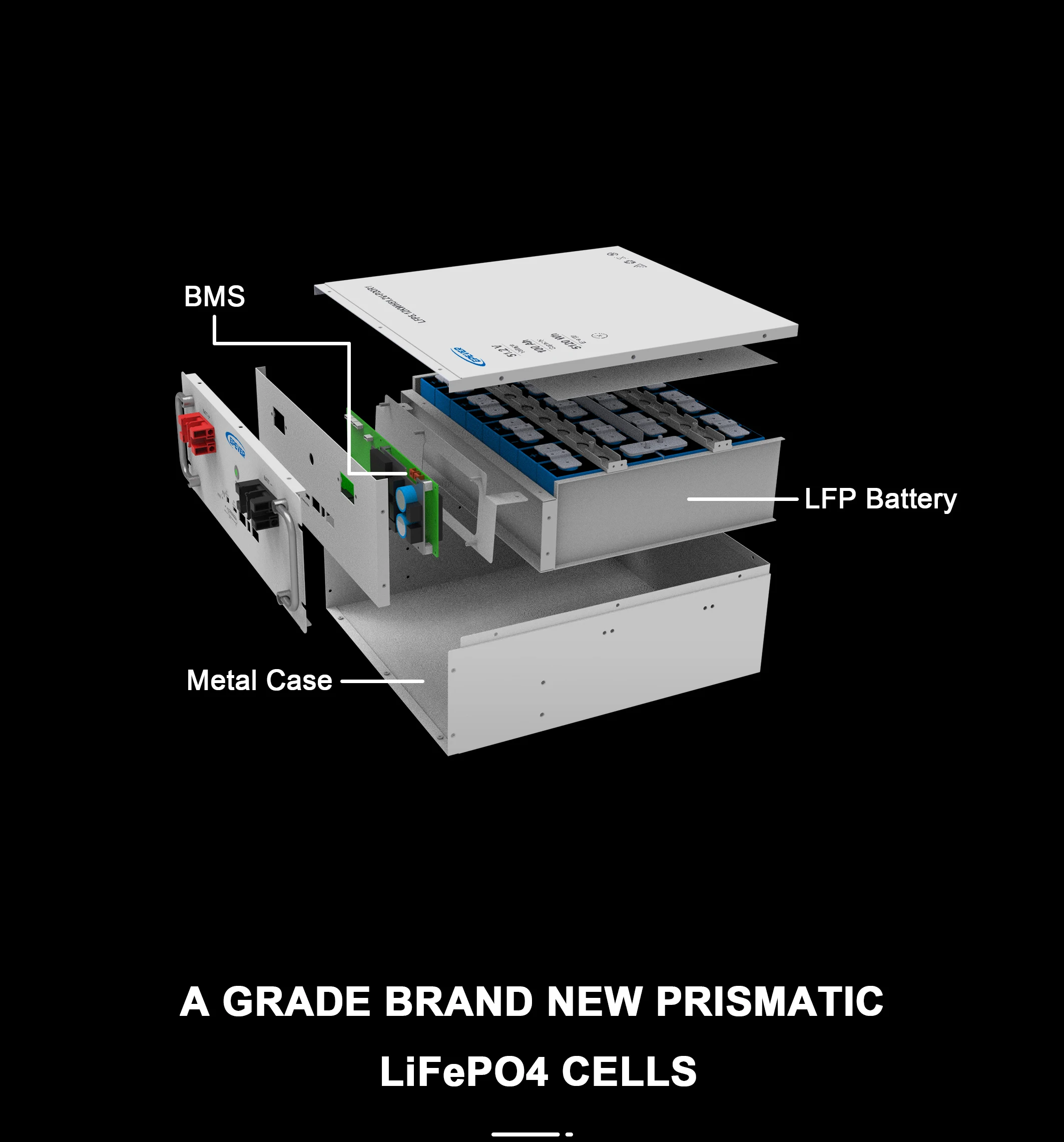

A grade brand new prismatic LiFePO4 cells
≥5000 cycles @80% DOD(25℃,0.5C)
Cell balance function
Support RS485, CAN，RS232 communication
Over charge, over discharge, over temperature, low temperature, over current and short circuit protection
Max.8 battery packs can be connected in parallel
Cell balance function
Support RS485, CAN，RS232 communication
Over charge, over discharge, over temperature, low temperature, over current and short circuit protection
Max.8 battery packs can be connected in parallel
Model | LFP4.8KWH48V | LFP5.12KWH51.2V |
Utility Input | ||
Battery Type | LiFePO4 | LiFePO4 |
Nominal Voltage (V) | 48 | 51.2 |
Nominal Capacity (AH) | 100 | 100 |
Energy (WH) | 4800 | 5120 |
Pack Mode | 15S1P | 16S1P |
Continuous Discharge Current (A) | 50 | 50 |
Charge Cut-off Voltage (V) | 54 | 57.6 |
Discharge Cut-off Voltage (V) | 39 | 41.6 |
Max.Charge Current (A) | 50 | 50 |
Max.Discharge Current (A) | 100 | 100 |
Peak Discharge Current (A) | 130@10S | 130@10S |
Recommend Discharge Current (A) | 50 | 50 |
Recommend Discharge Depth (％) | 100 | 80 |
Cycle Life | ≥5000 cycles (25°C, 0.5C ) 80% DOD | ≥5000 cycles (25°C, 0.5C ) 80% DOD |
Communication | RS485 CAN RS232 | RS485 CAN RS232 |
Display | LCD | LCD |
Charge&Discharge Temperature (℃) | Charge: 0°C~+55°C / Discharge: -20°C~+60°C | Charge: 0°C~+55°C / Discharge: -20°C~+60°C |
Optimal Storage Temperature (℃) | 5℃～+35℃ | 5℃～+35℃ |
Recommend Storage Humidity | 20%~80% | 20%~80% |
Terminal | M6 | M6 |
Dimensions (L*W*H) (mm) | 502*482*176 | 502*482*176 |
Weight (Kg) | 47±1 | 49±1 |
Transportation | UN38.3 MSDS | UN38.3 MSDS |
IP Class | IP20 | IP20 |
Certifications
Company Profile
BEIJING EPSOLAR TECHNOLOGY CO.,LTD.founded in 2007, is a research, development and manufacturing enterprise focusing on photovoltaic off-grid controller, inverter, control inverter, photovoltaic energy storage inverter and photovoltaic power generation solutions.And set up a branch office in Shenzhen.
In 2019 we established subsidiary.HUIZHOU EPEVER TECHNOLOGY CO., LTD.passed ISO9001: 2015, ISO14001:2015 and ISO45001:2018.It is a cross-industry fast growing enterprise of green energy, integrating product design, research and development,production, sales and service.Manufacture solar charge controllers, off-grid inverters, inverter chargers, solar power system and other solar power units.
Our products comply with international standards CGC-SOLAR, CE, ROHS, FCC,ETL, and UL certificates.Widely used in solar power station system, communication power supply system, monitoring power supply system,off-grid hybrid power supply system, RV power supply system, street lamp power supply system and other application scenarios. It have been sold to more than 120 countries and regions around the world, and get the user's praise and recognition.
