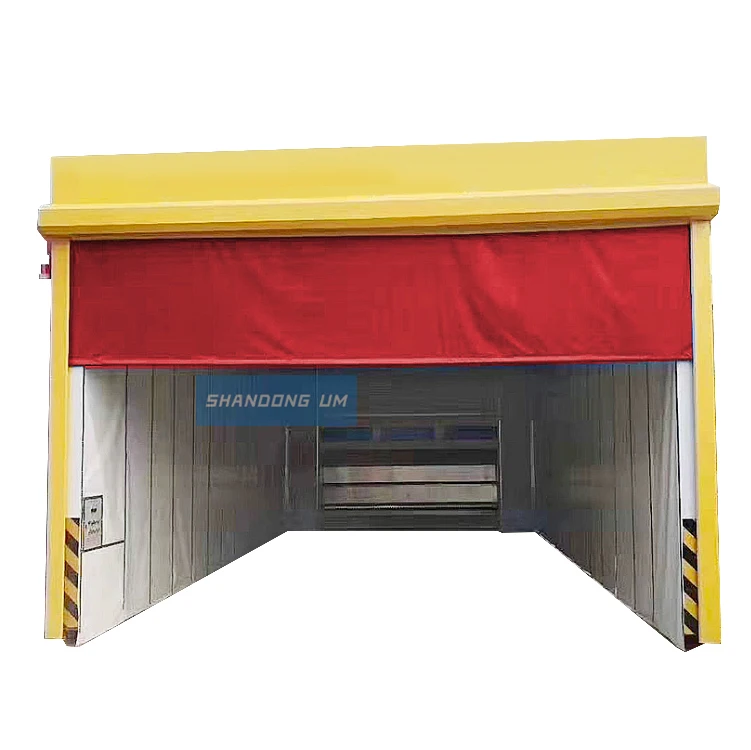

Mobile collapsible retractable spray paint booth customized industrial large telescopic paint
- Category: >>>
- Supplier: Shandong UM Technology Co. Ltd.
Share on (1601014262449):
Product Overview
Description
Product Overview
Size | Customized |

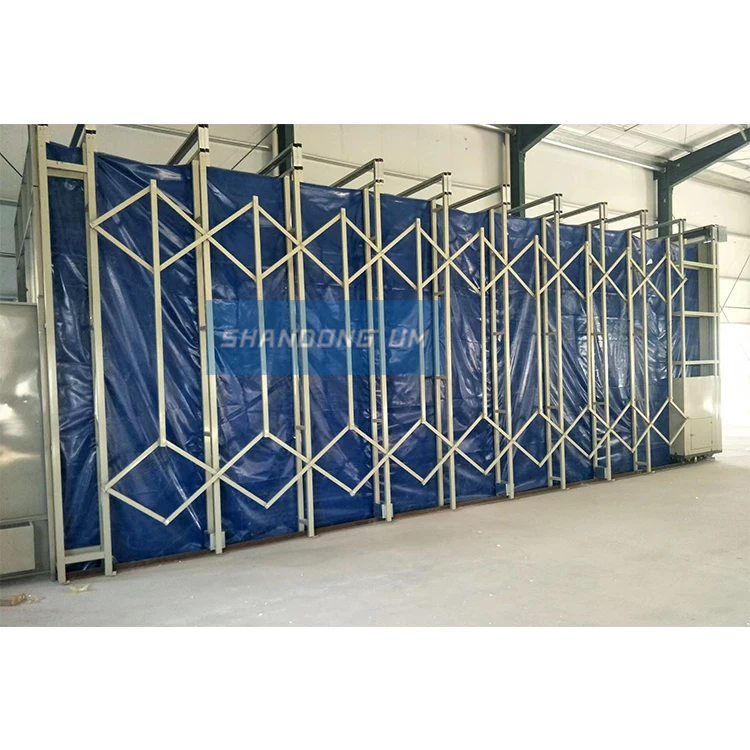

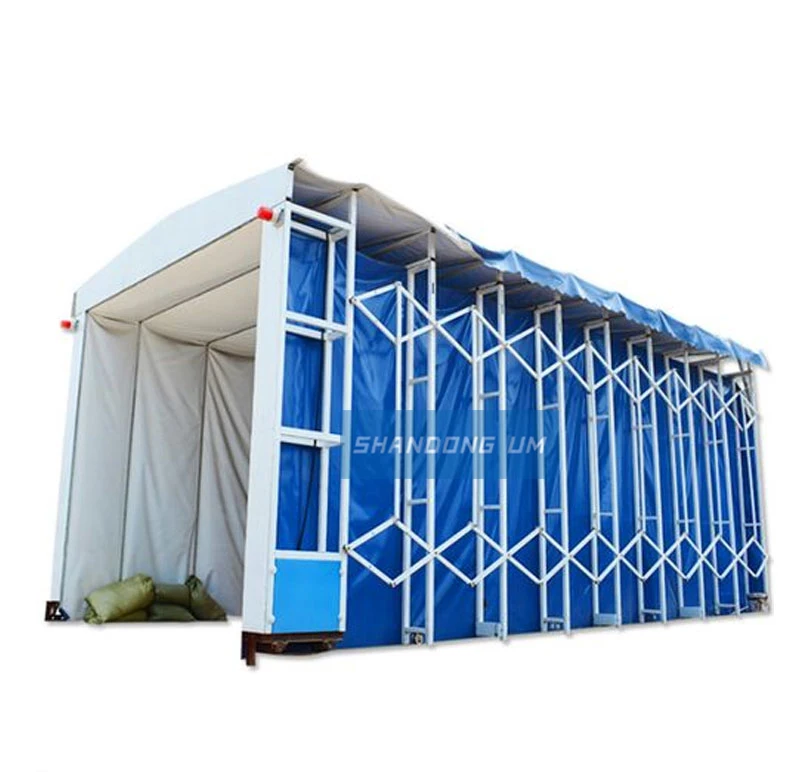

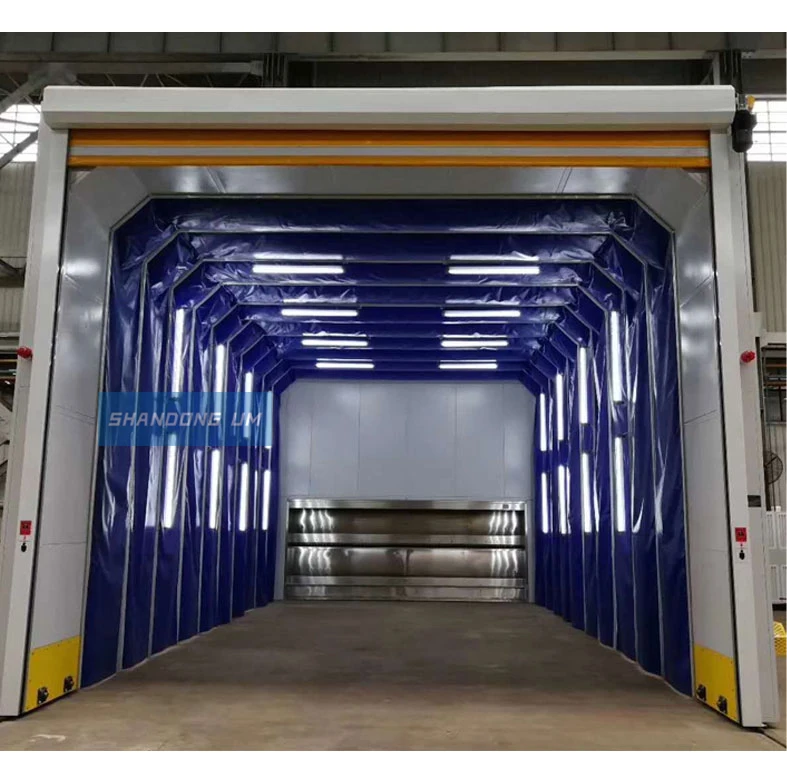

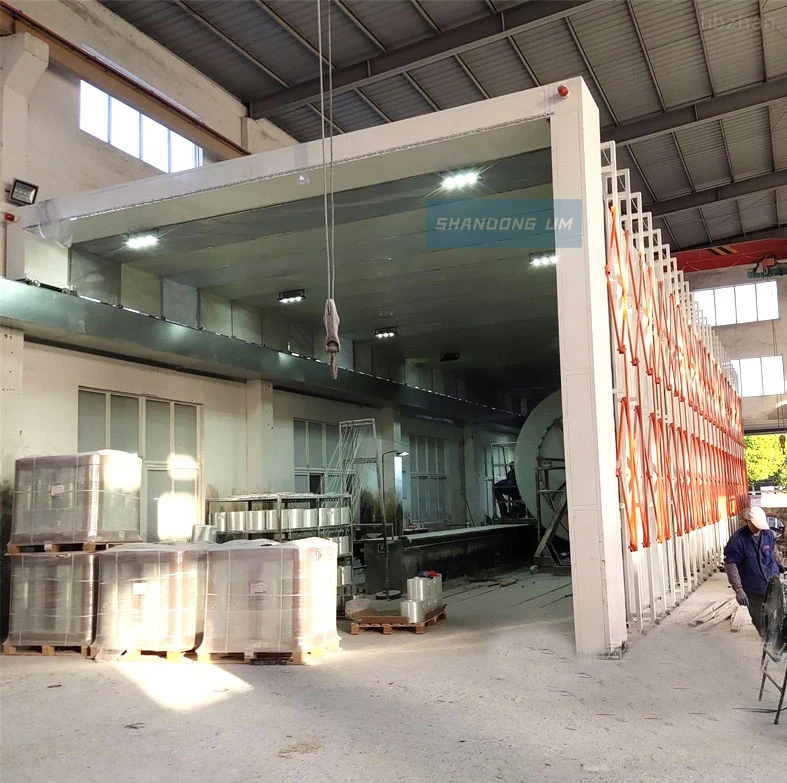

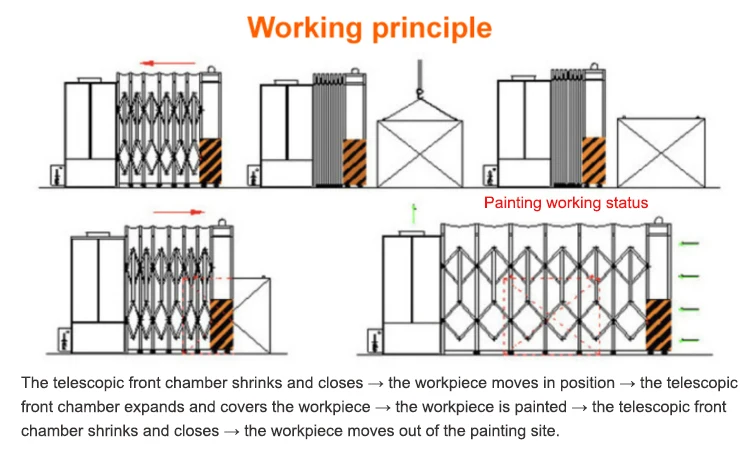

Cabin Structure | Retractable gantry structure,each gantry structure has 2 pieces of Mecanum wheels. Fireproof PVC soft curtain on 2 sides,rear side and ceiling of cabin. With air extraction box at the rear. Special guide rails on both sides for the retractable steel structure to move, both sides are driven together and they are interlocked,with safety limit control air the front and the back. |
Entrance door | Electric roller shutter |
Filtration system | *Optional,for details, please refer to the introduction |
Exhaust filter | Pleated andreae filter+Fiberglass paint arrestor filter |
Lighting system | LED lights. |
Intake system | Nature air intake or Intake fan. |
Exhaust system | Eahaust fan. |
Power & motor description | 7.5KW.970rpm,380V,50hz |
Empty loaded air speed | 0.3m/s |
Noise | <86db |
Ductwork | With 5 pieces of straight ducting |
Control System | Standard |
Functions | Standard step-down start control system |
Special Item | Rated power,10KW |
Filtration system
Primary Filtration
For painting booth,this one is a must,there are three types to choose from.

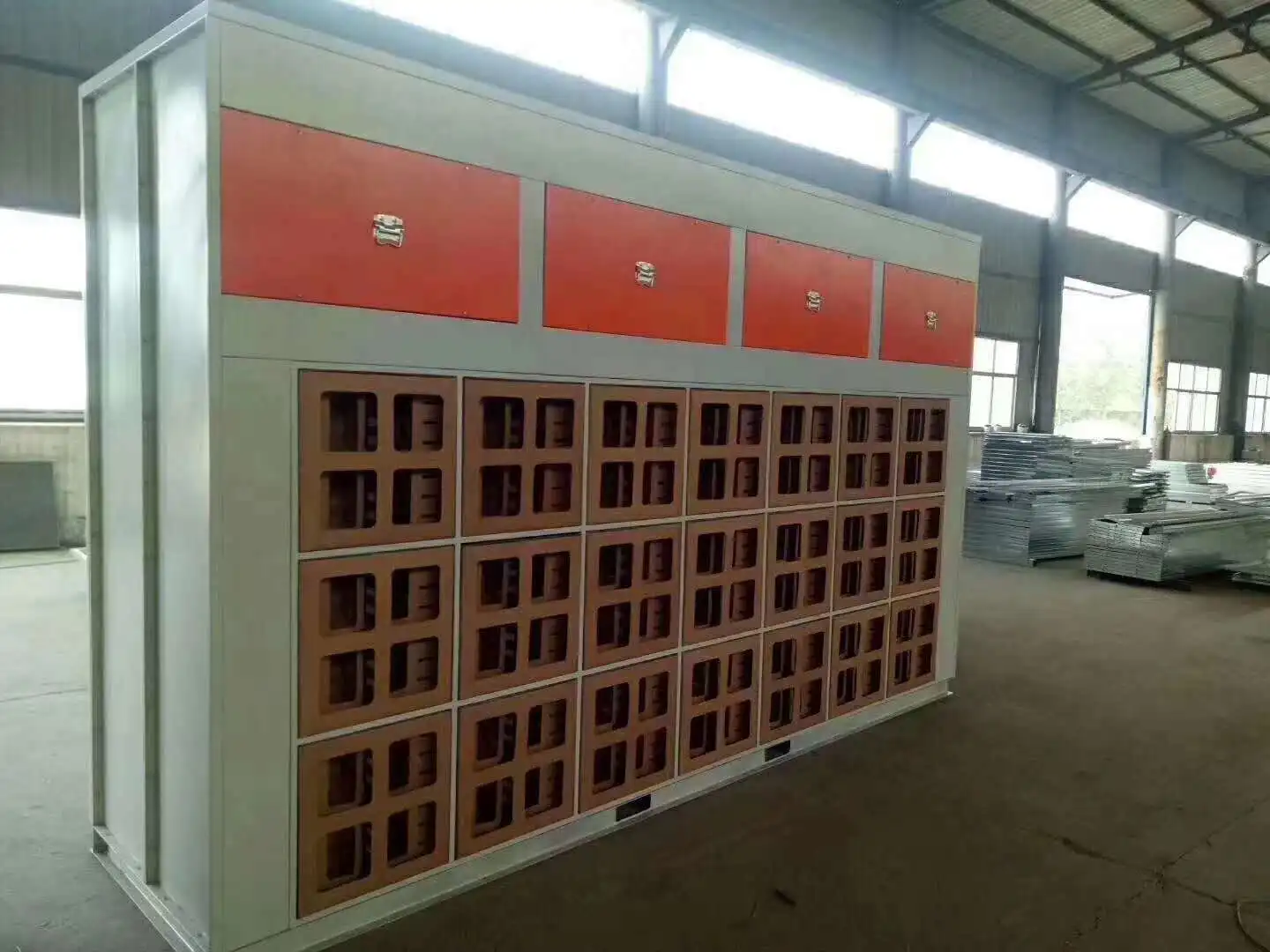

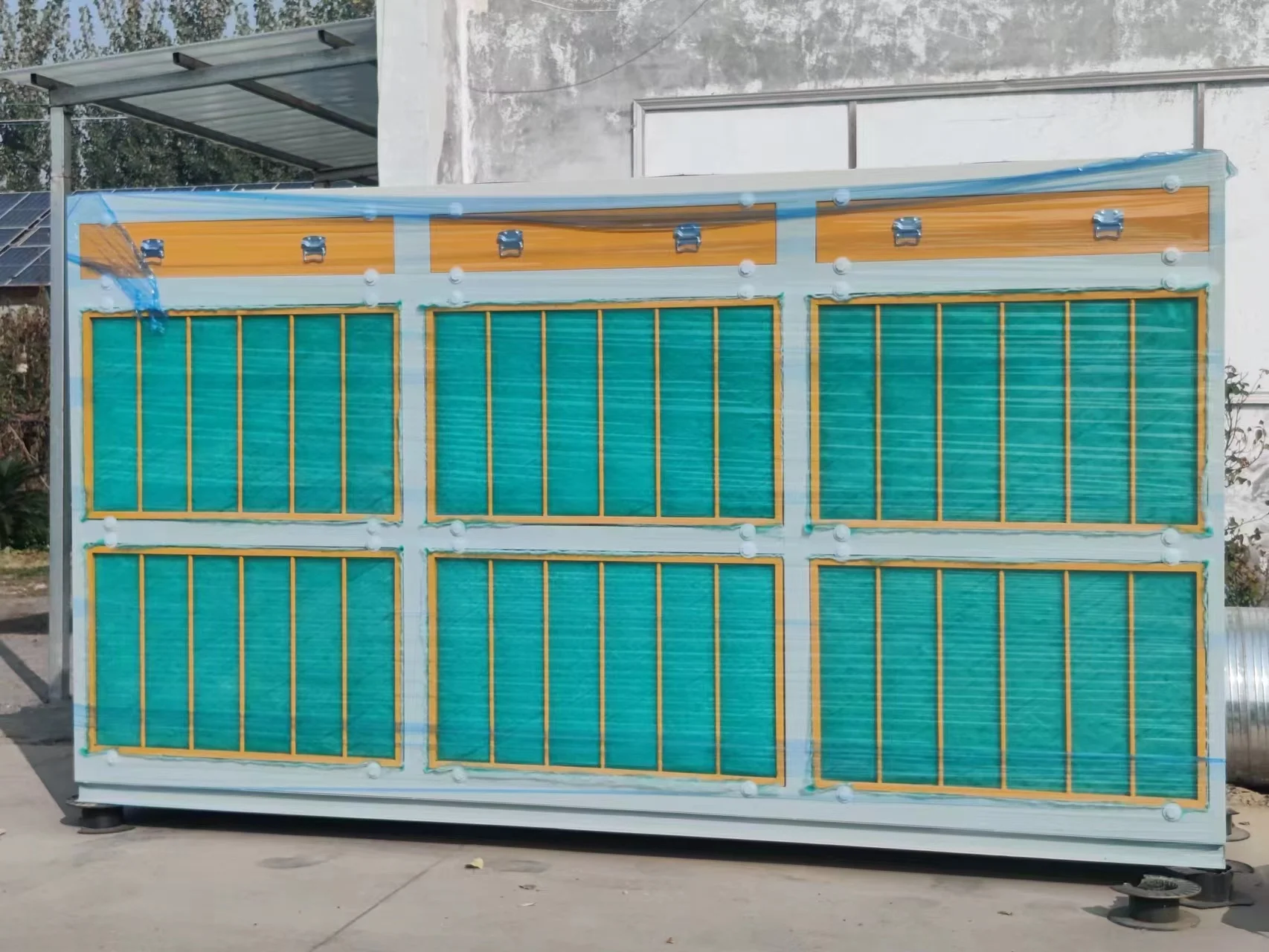

1.Dry filter cabinet
It is a common waste gas filtering equipment, which is usually used for filtering the exhaust air from various paint booths. It can effectively remove large particles of paint mist in the waste gas, and play a certain role in protecting the environment, especially suitable for filtering water-based paint.

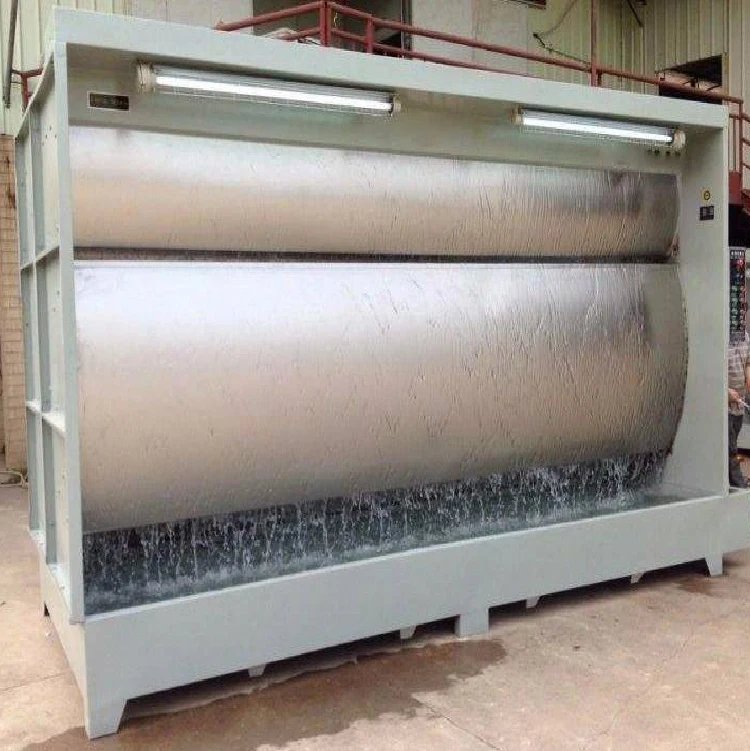

2.Water curtain cabinet
It is mainly used for environmental protection equipment for paint waste gas treatment in painting line workshops of all walks of life.
3.Fiberglass filtration cotton
Fiberglass has stable performance, high temperature resistance, high efficiency, large capacity, and long service life. It is widely used in primary filters, high-temperature resistant filters, and high-efficiency filters in general ventilation systems, and in places and environments with high air filtration requirements.
Secondary filtration:

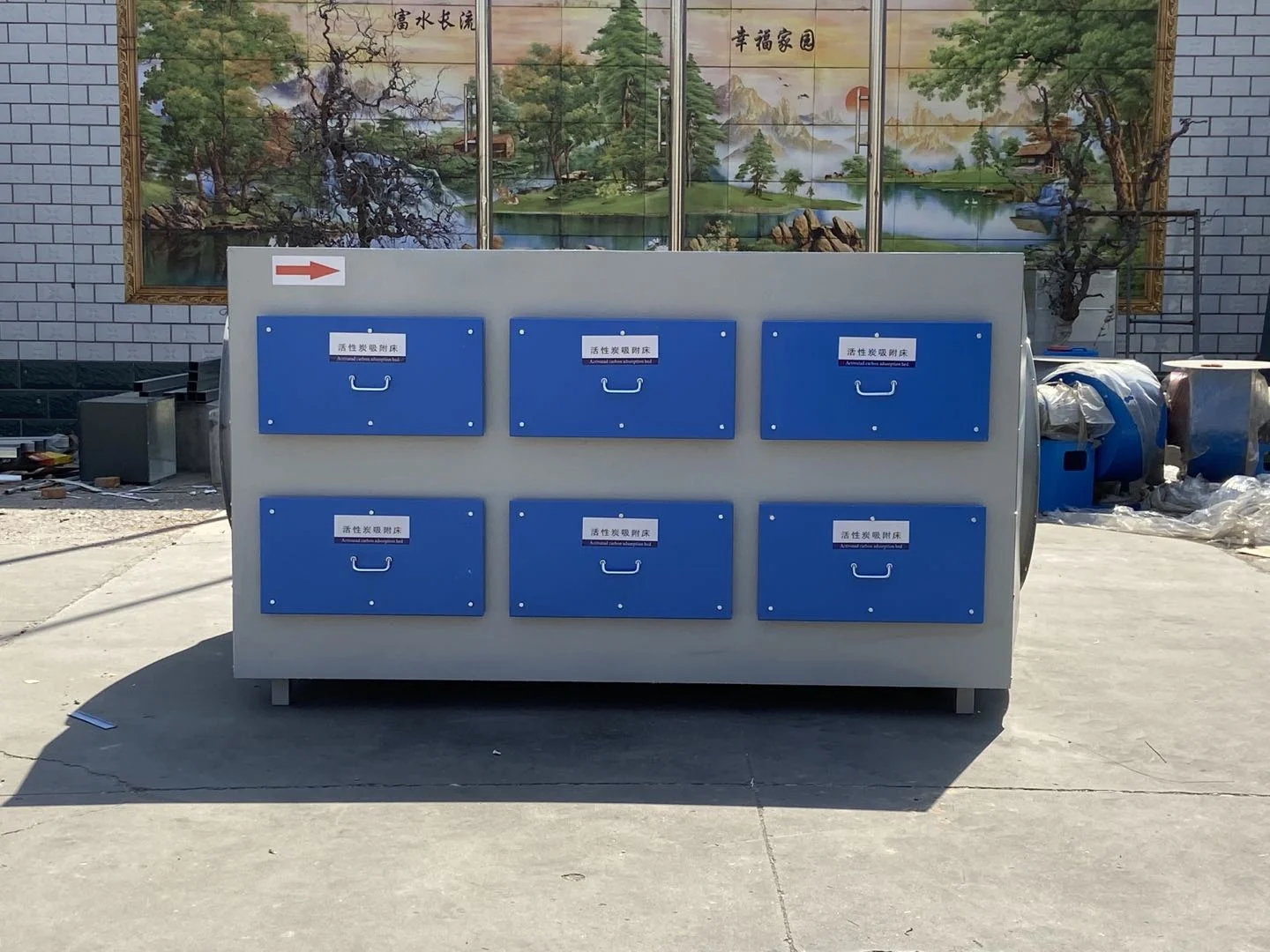

Active carbon filter cabinet
Its filter elements are active carbon with micro holes looks like honeycomb.
It can filter out the smaller paint particles in the exhaust air, thereby greatly improving the filtering effect.
It can filter out the smaller paint particles in the exhaust air, thereby greatly improving the filtering effect.
Three-stage filtration system:

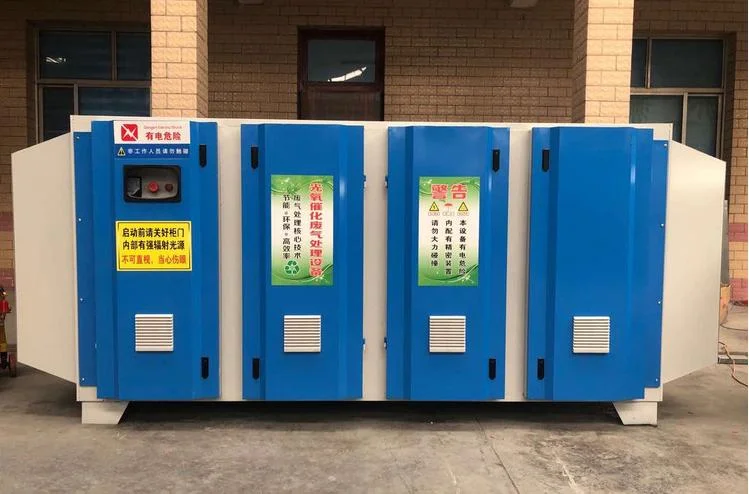

Photo oxygen catalytic equipment：
It is used to remove odors from exhaust gas.
Details Images

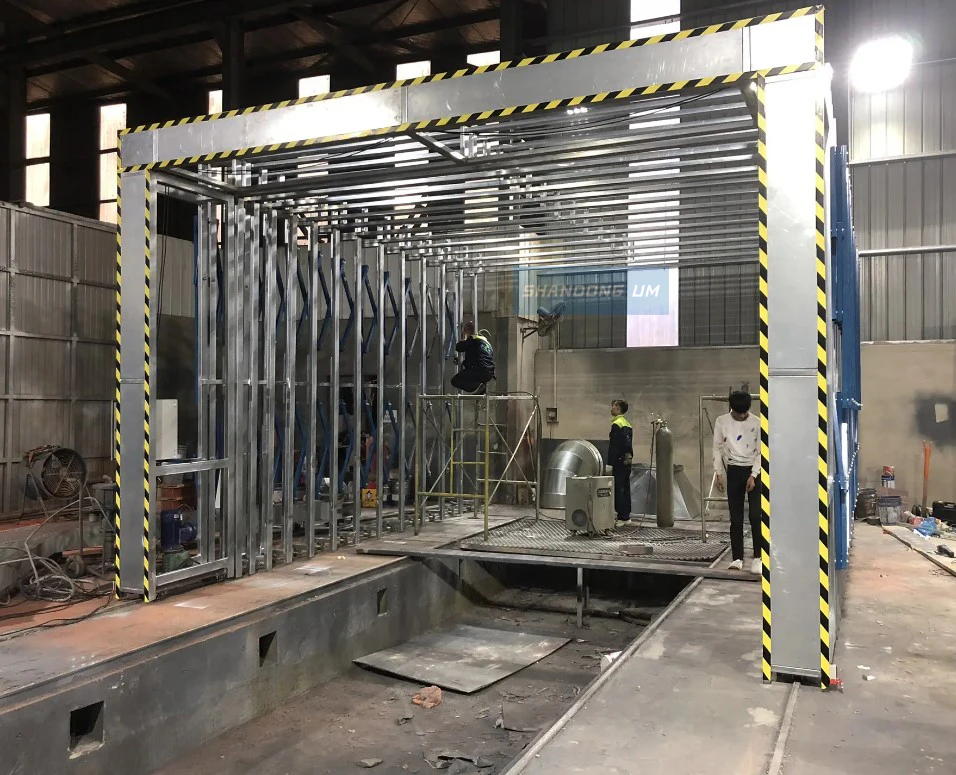

Successful Project
Why Choose Us
FAQ
1.Delivery time:
Within 15 working days after receiving deposit.
2.Package:
We use standard export packing in 20GP or 40GP. We will add stretchy film for the whole machine and spare parts for delicate protection.
3.Guarantee:
The machine is guaranteed for 12 months.If the machine has something problem in 12 months,you will get spare part for free.More than 12 months,you will get the cost price for accessories.
4.Technical support:
Technical support by phone,email,Wecaht, WhatsApp and Skype,24 hours online.Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery.You can operate the machine immediately after receiving machine.If you don't know how to use the machine,we will offer you free training.And if there is still have any questions,please contact us.
Within 15 working days after receiving deposit.
2.Package:
We use standard export packing in 20GP or 40GP. We will add stretchy film for the whole machine and spare parts for delicate protection.
3.Guarantee:
The machine is guaranteed for 12 months.If the machine has something problem in 12 months,you will get spare part for free.More than 12 months,you will get the cost price for accessories.
4.Technical support:
Technical support by phone,email,Wecaht, WhatsApp and Skype,24 hours online.Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery.You can operate the machine immediately after receiving machine.If you don't know how to use the machine,we will offer you free training.And if there is still have any questions,please contact us.
