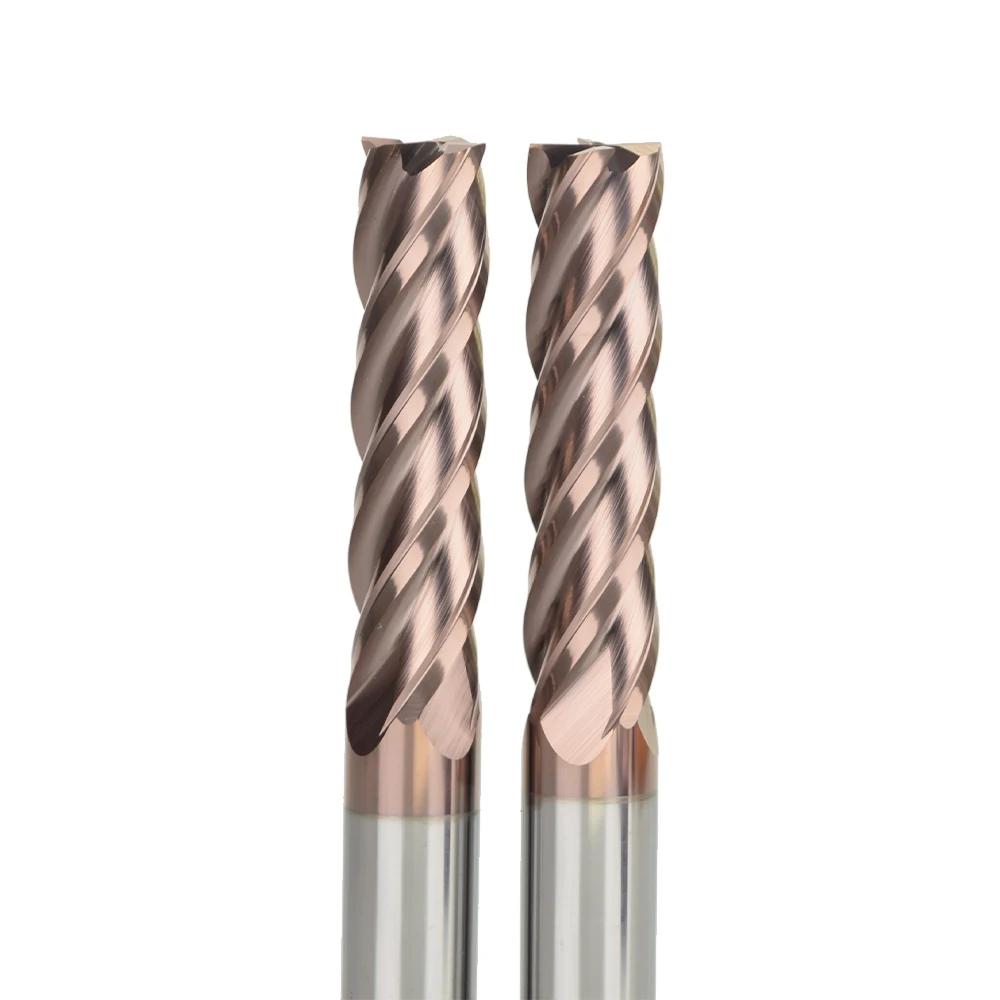

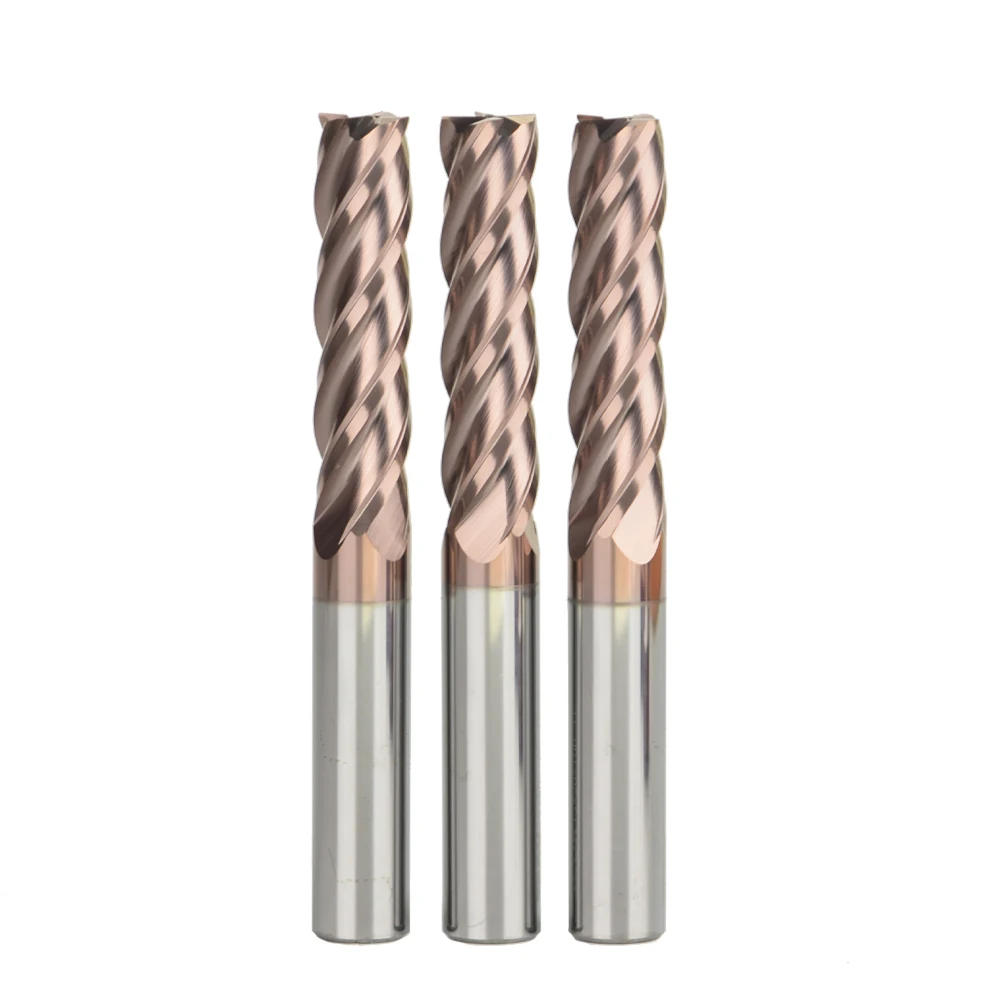

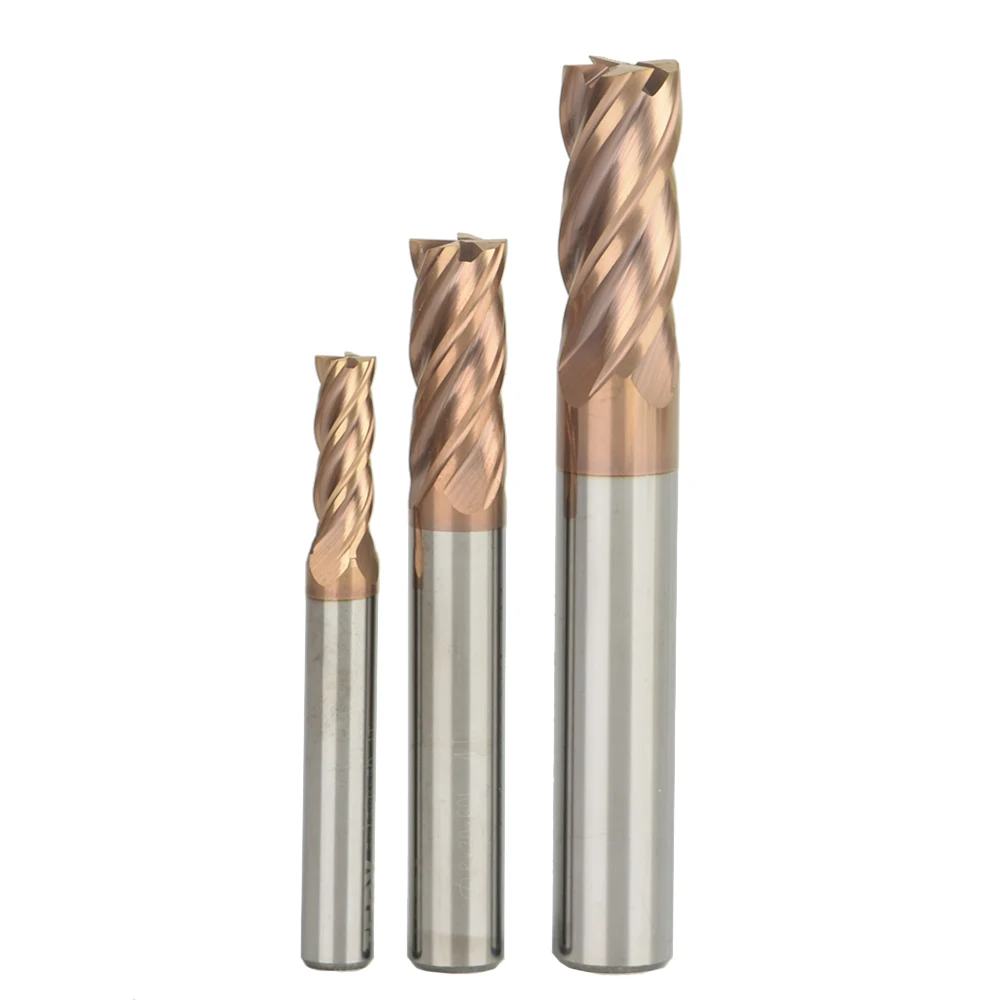

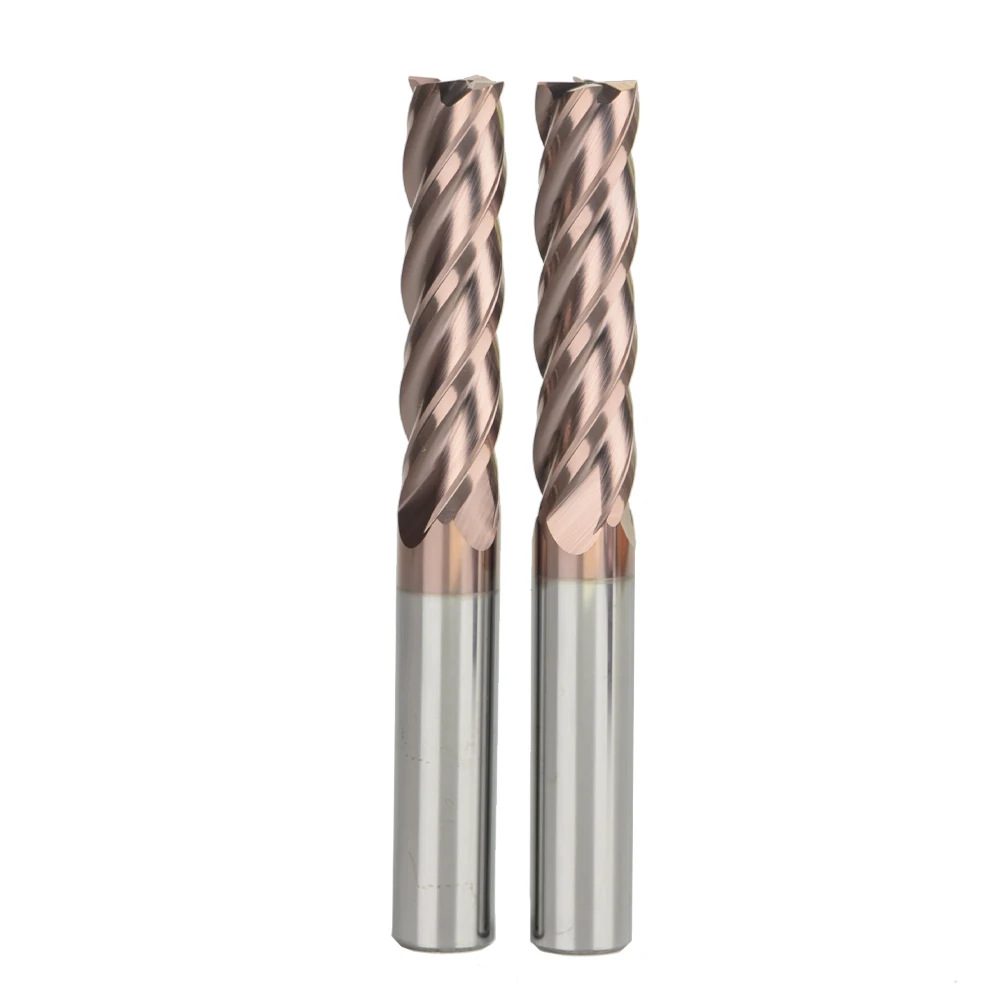

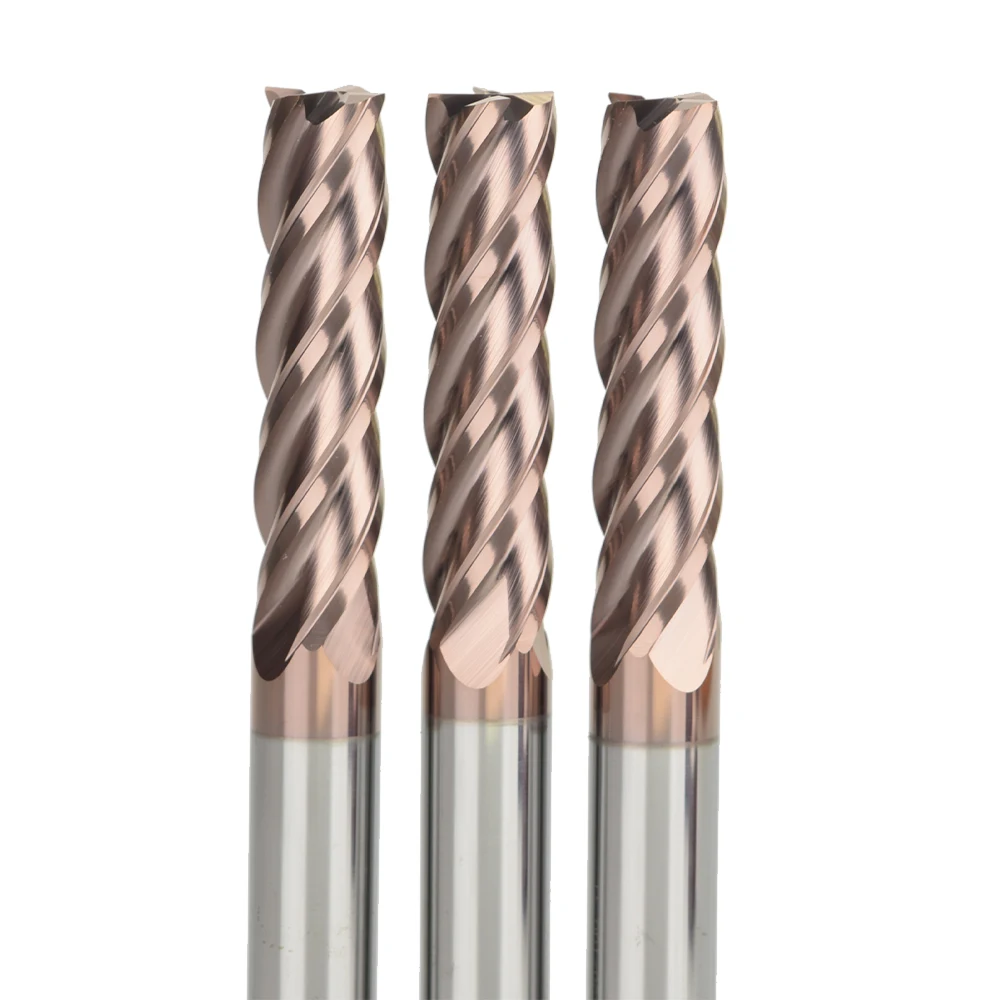

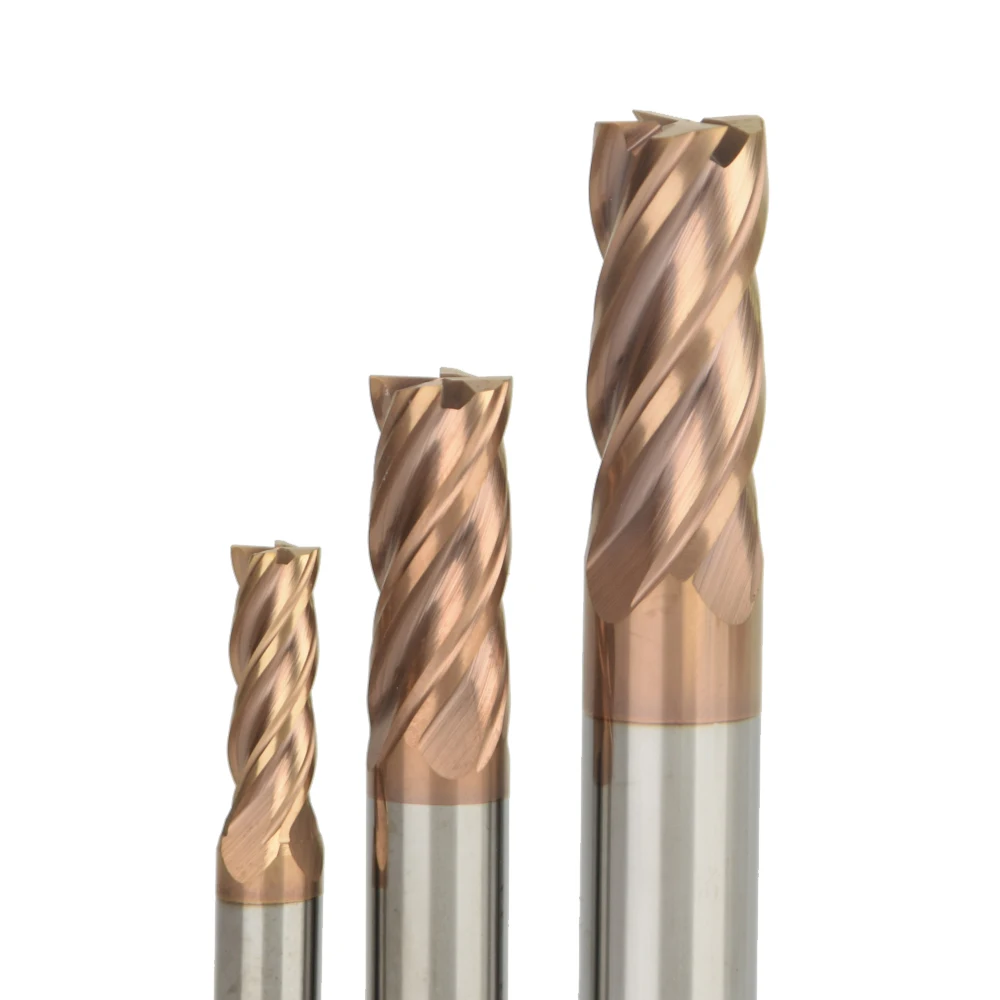

Weix Tungsten Carbide Indexable Cutters Flatten 4 Flutes Hrc50/Hrc55/Hrc60 Square Solid End Mill
Weix Tungsten Carbide Indexable Cutters Flatten 4 Flutes Hrc50/Hrc55/Hrc60 Square Solid End Mill
Weix Tungsten Carbide Indexable Cutters Flatten 4 Flutes Hrc50/Hrc55/Hrc60 Square Solid End Mill
Weix Tungsten Carbide Indexable Cutters Flatten 4 Flutes Hrc50/Hrc55/Hrc60 Square Solid End Mill
Weix Tungsten Carbide Indexable Cutters Flatten 4 Flutes Hrc50/Hrc55/Hrc60 Square Solid End Mill
Weix Tungsten Carbide Indexable Cutters Flatten 4 Flutes Hrc50/Hrc55/Hrc60 Square Solid End Mill
Weix Tungsten Carbide Indexable Cutters Flatten 4 Flutes Hrc50/Hrc55/Hrc60 Square Solid End Mill

Weix Tungsten Carbide Indexable Cutters Flatten 4 Flutes Hrc50/Hrc55/Hrc60 Square Solid End Mill

Share on (1601014413018):


Price:$1.88 - $16.88

Quantity:


Product Overview

Description



Product Description


WEIX 4 Flutes Solid Carbide End Mill

Specification:
Cutting dia:1-20mm
Cutting length:3-40mm
Shank dia:4 6 8 10 12 14 16 18 20
Overall length:50-150mm
Materail: Tungsten carbide

Suitable for:
Suggest cutting up to HRC55 degrees within the steel material.
Suitable processing material: carbon steel, alloy steel, tool steel, hardened and tempered steel and steel parts hrc40-below
Package include:1PC/ 4 flutes Solid Carbide Flat End Mill with plastic tube

Safty construction
1.Before using, please measure the tool deflection. When the accuracy of tool deflection exceeds 0.01mm, please correct it before cutting.

2. The shorter the length of the cutter protruding chuck, the better. If the cutter protruding chuck is longer, please lower the
RPM, feed speed or cutting amount.

3.In case of abnormal vibration or sound during cutting, please lower the spindle RPM or cutting amount until the situation is improved.

4.When operating, please wear safety glasses, safety push handle. using desktop mechanical equipment need to use the rebound device, to avoid the workpiece rebound accident during high-speed cutting.






Specification


NO
Order No.
specification
CED
SHK
CEL
OVL
1
14500104
d1*3*D4*50
1
4
3
50
2
14501504
d1.5*4*D4*50
1.5
4
4
50
3
14500204
d2*5*D4*50
2
4
5
50
4
14502504
d2.5*6*D4*50
2.5
4
6
50
5
14500304
d3*8*D4*50
3
4
8
50
6
14503504
d3.5*10*D4*50
3.5
4
10
50
7
14500404
d4*11*D4*50
4
4
11
50
8
14500106
d1*3*D6*50
1
6
3
50
9
14500206
d2*5*D6*50
2
6
5
50
10
14502506
d2.5*6*D6*50
2.5
6
6
50
11
14500306
d3*8*D6*50
3
6
8
50
12
14503506
d3.5*10*D6*50
3.5
6
10
50
13
14500406
d4*11*D6*50
4
6
11
50
14
14500506
d5*13*D6*50
5
6
13
50
15
14500606
d6*15*D6*50
6
6
15
50
16
14500708
d7*17*D8*60
7
8
17
60
17
14500808
d8*20*D8*60
8
8
20
60
18
14501010
d10*25*D10*75
10
10
25
75
19
14501212
d12*30*D12*75
12
12
30
75
