400mm Hdpe Electrofusion Welding Machine 20mm to 400mm Hdpe Electrofusion Welding Machine Portable Invertor
- Category: >>>
- Supplier: Qingdao Polyfusion Machinery Co. Ltd.
Share on (1601014424073):
Product Overview
Description

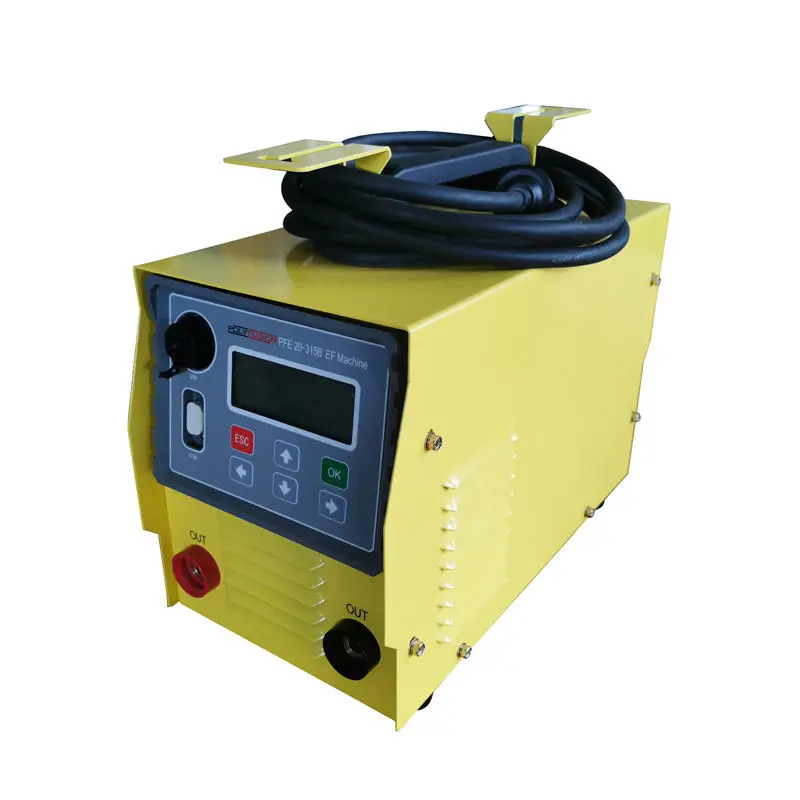

400mm Hdpe Electrofusion Welding Machine 20mm To 400mm Hdpe Electrofusion Welding Machine Portable Invertor
Hdpe Pipe Electrofusion Welding Machine

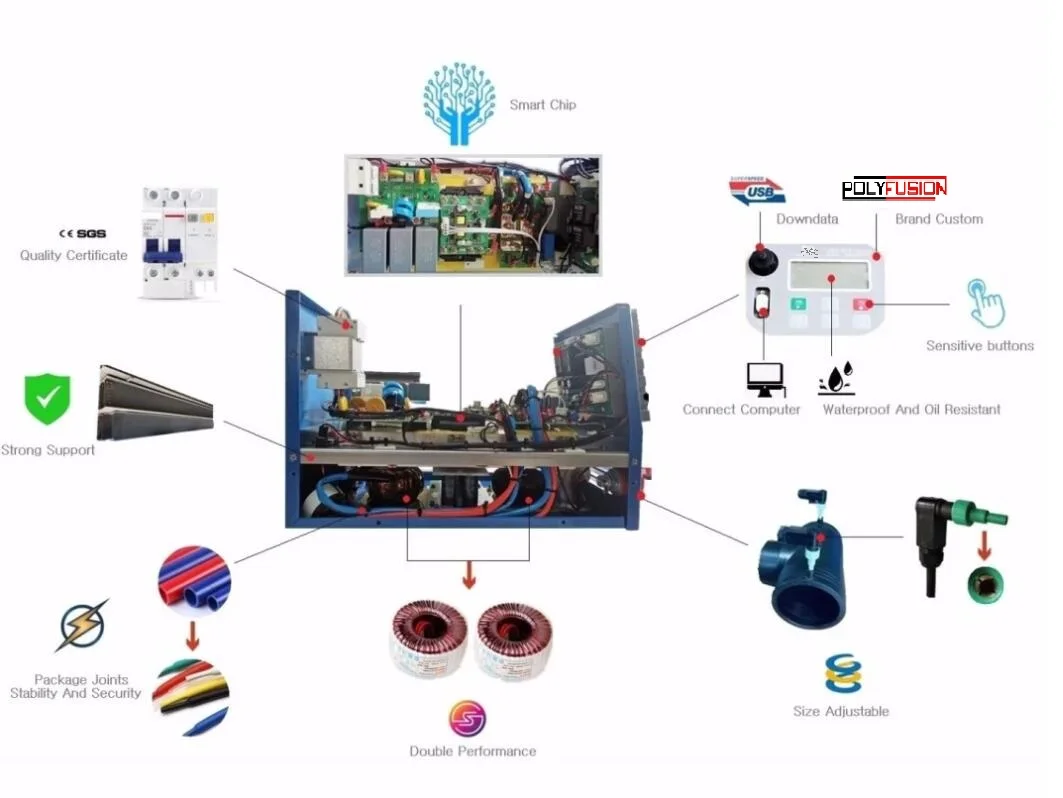

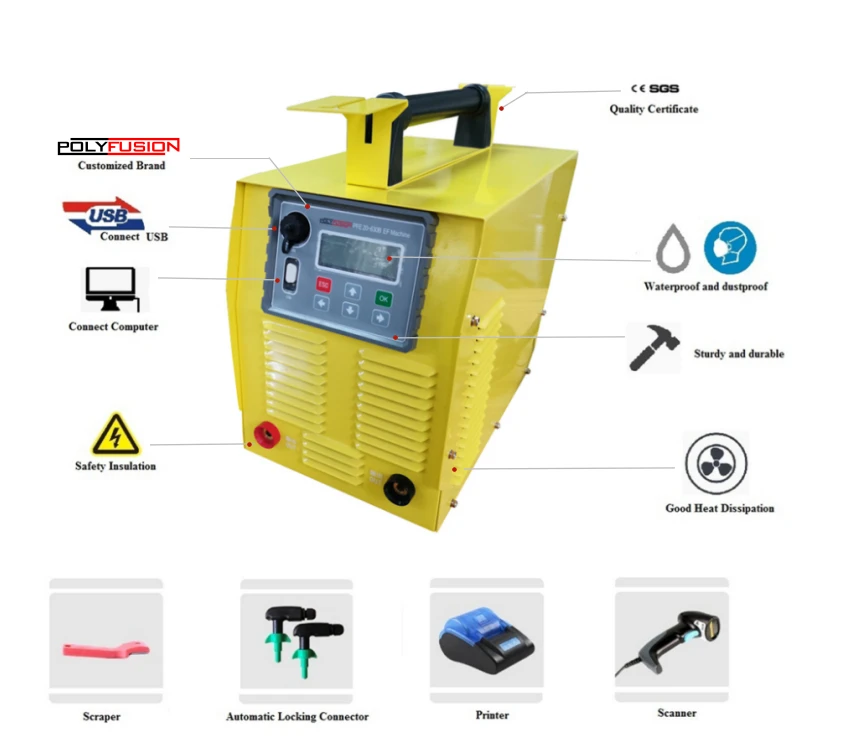

1. Advanced digital MCU as control core, with abundant parameter setting, detection and perfect protection functions.
2. High brightness LCD, multi language operation, friendly human-machine interface.
3. 20% wide supply voltage input, fully adapted to complex construction site specific power environment.
4. Swiftly output response time when power supply breaks, high stability.
5. 0.5% high precision power, time control, ensure welding quality.
6. USB read, import welding records storage function.
7. Keyboard manual input or bar code scan input.
8. Automatic retrieval of pipe fittings for welding.
6. USB read, import welding records storage function.
7. Keyboard manual input or bar code scan input.
8. Automatic retrieval of pipe fittings for welding.
9.Good doubling protection function.
10. English, Spanish, Russian, Polish and Chinese languages inside.
10. English, Spanish, Russian, Polish and Chinese languages inside.
Parameter
Model | PFE315B | PFE500B | PFE630B | PFE1000B | |||
Welding Range(mm) | DN20~315MM | DN20~500MM | DN20~630MM | DN20~1000MM | |||
Rated Power(Kw) | 3.5KW | 12KW | 15KW | 18KW | |||
Input Voltage(V) | AC220V±20% | AC380V±20% | |||||
Input Frequency(Hz) | 40~65Hz | ||||||
Rated Current(A) | 55A | 60A | 80A | 80A | |||
Output Voltage(V) | 75V | 150V | 170V | 280V | |||
Ambient Temperature | ﹣20℃~50℃ | ||||||
Control Mode | Constant Voltage/Constant Current | ||||||
Store Data Number | 270 Times | ||||||
Constant Accuracy | ≤±0.5% | ||||||
Data Output Port | USB Port &Scanner | ||||||
Package Weight (KG) | 18kg | 21kg | 25kg | 35kg | |||
Package Size(MM) | 460X300X430mm | 467x204x335mm | 515x204x386mm | 515x204x386mm | |||
Packing and delivery
Electrofusion machine -PFE315B

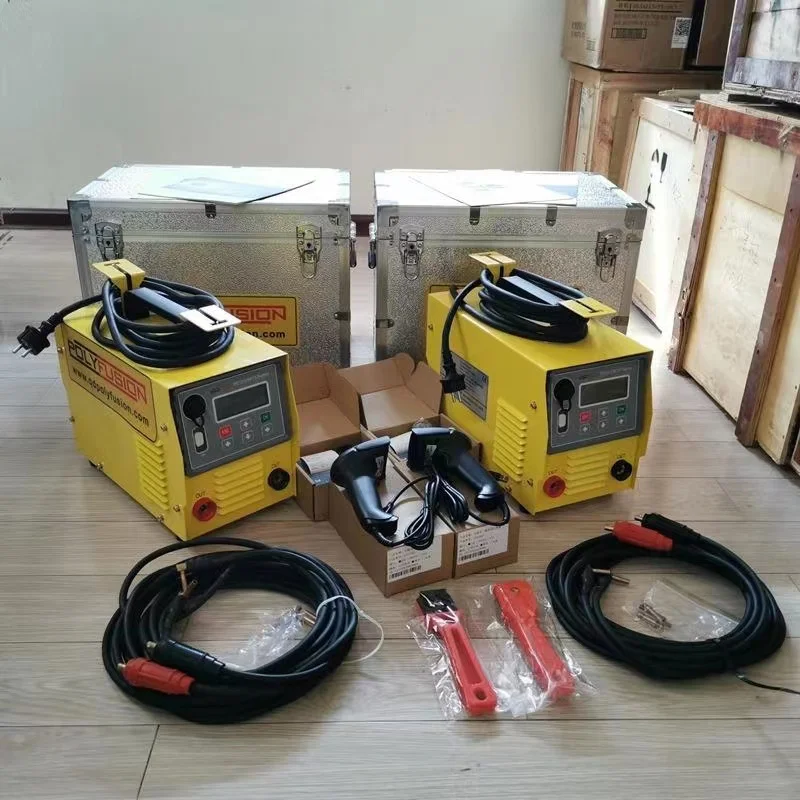

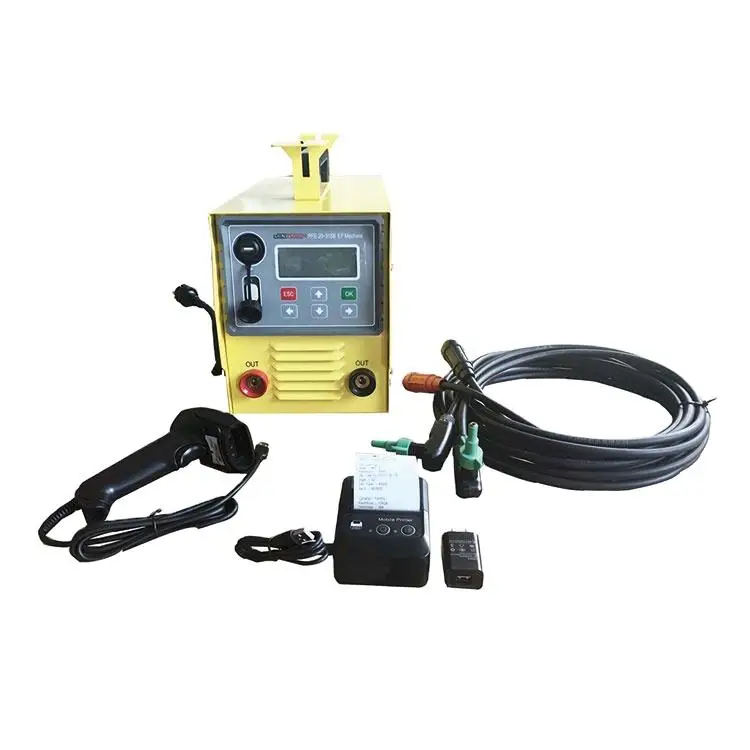

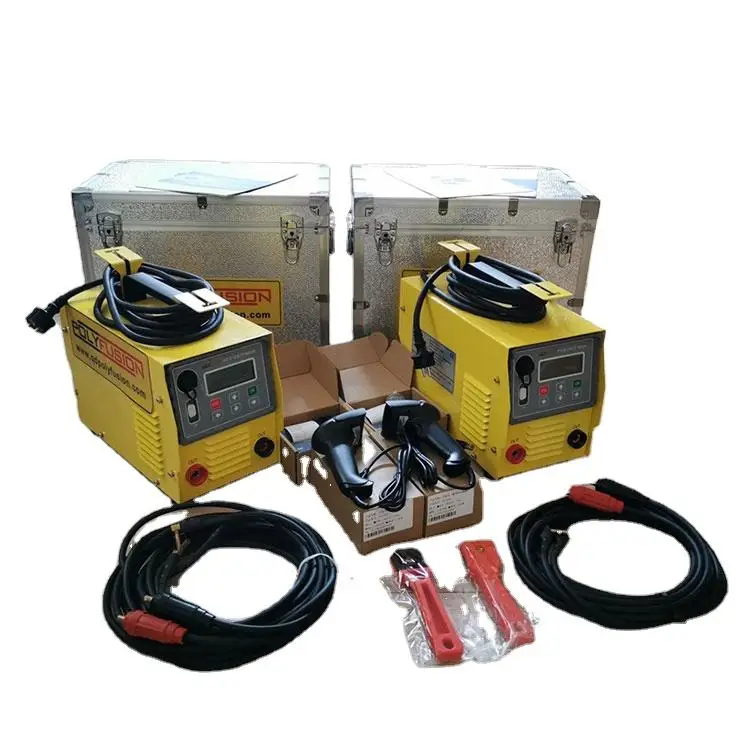

Standard Configuration: electrofusion machine body 1set, Cable 1pc, Scraper 1pc, Scanner 1pc, Pins 3 sets-4.0mm,4.7mm and 5.0mm. By cartons package. Of course, you also can choose the Aluminum box and cartons to package and easy to storage.
If package by carton, package weight is 13kg, easy to transport by DHL,FEDEX,TNT and other Express.
Application
scrape off the oxide layer on the surface of the pipe
scrape off the oxide layer on the surface of the pipe
Socket the pipe(scrape off the oxide layer) to the electrofusion coupler
Connect the electrofusion coupler to machine
Scan the bar code on the EF coupler surface
Start to weld after read the data by scan
Recommend Products

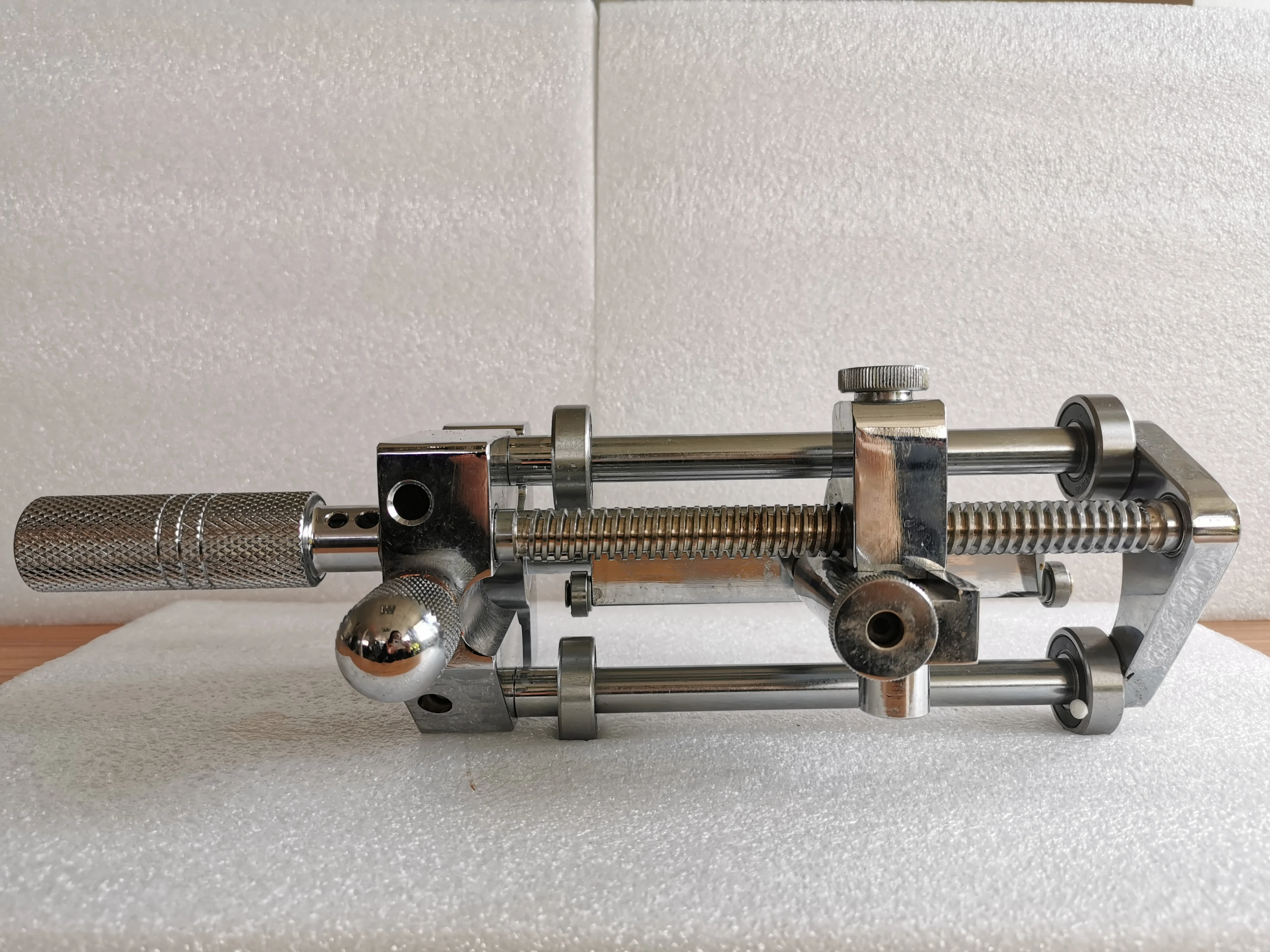

By adjusting the telescopic fixture, it can effectively adapt to the scraping of different pipe diameters by the scraper. The scraping is continuous, even if the pipe is deformed, the scraping effect can still meet the desired needs. At the same time, the position of the surface to be scraped can be adjusted according to the welding depth of the electrofusion coupler.
Model | Working Range (out Diameter) | Working Range (inner Diameter) | Maximum scraping depth(mm) | Diamension(mm) | Weight(kg) |
PF-TC200 | 63~200MM | 55~192MM | 129MM | 425x305x125MM | 3.8kg |
PF-TC400 | 63~400MM | 55~365MM | 150MM | 425x305x125MM | 3.8kg |
PF-TC800 | 200~800MM | 182~728MM | 225MM | 430x340x130MM | 5.2kg |
PFS Series ScraperProfessional rotary scrapers, essential to prepare the plastic pipes and fittings before electrofusion welding.The tools has an
adjustable chuck covering all the diameter of the working range, and a blade holders orbital arm.The PFS series guarantees a
constant and regular removal of the shaving. The scrapers blade holder permits the scraping of the entire electrical sleeve's
lenght, most useful when doing on site repairs.
adjustable chuck covering all the diameter of the working range, and a blade holders orbital arm.The PFS series guarantees a
constant and regular removal of the shaving. The scrapers blade holder permits the scraping of the entire electrical sleeve's
lenght, most useful when doing on site repairs.
