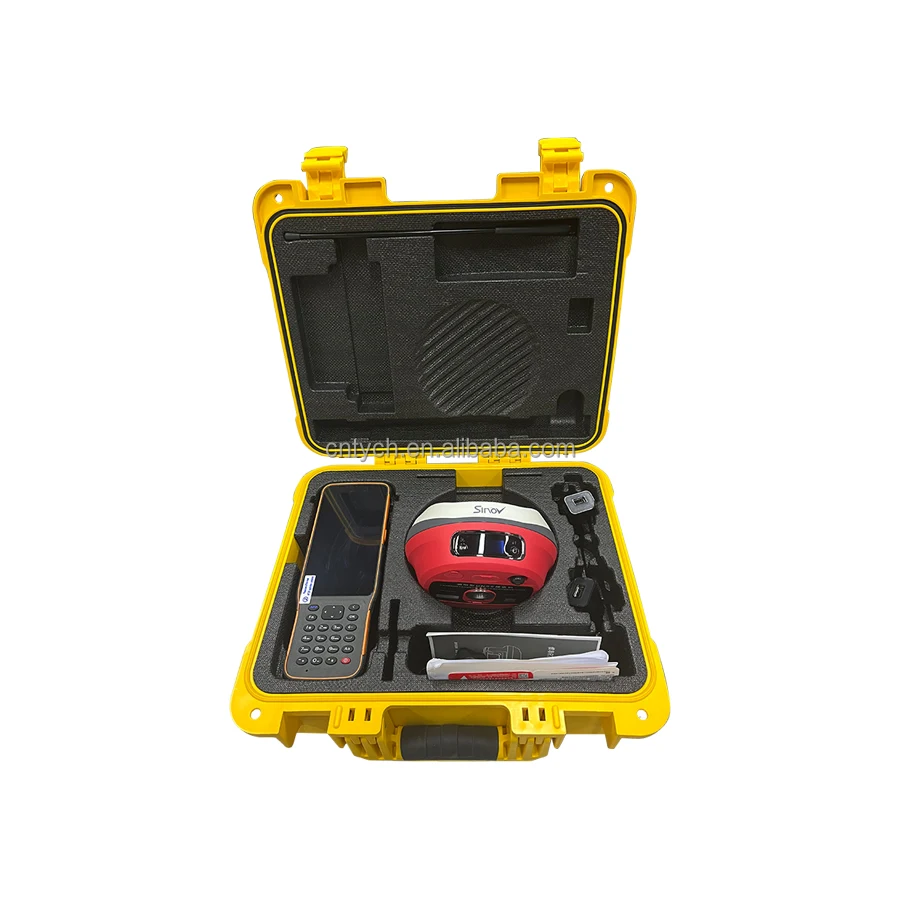

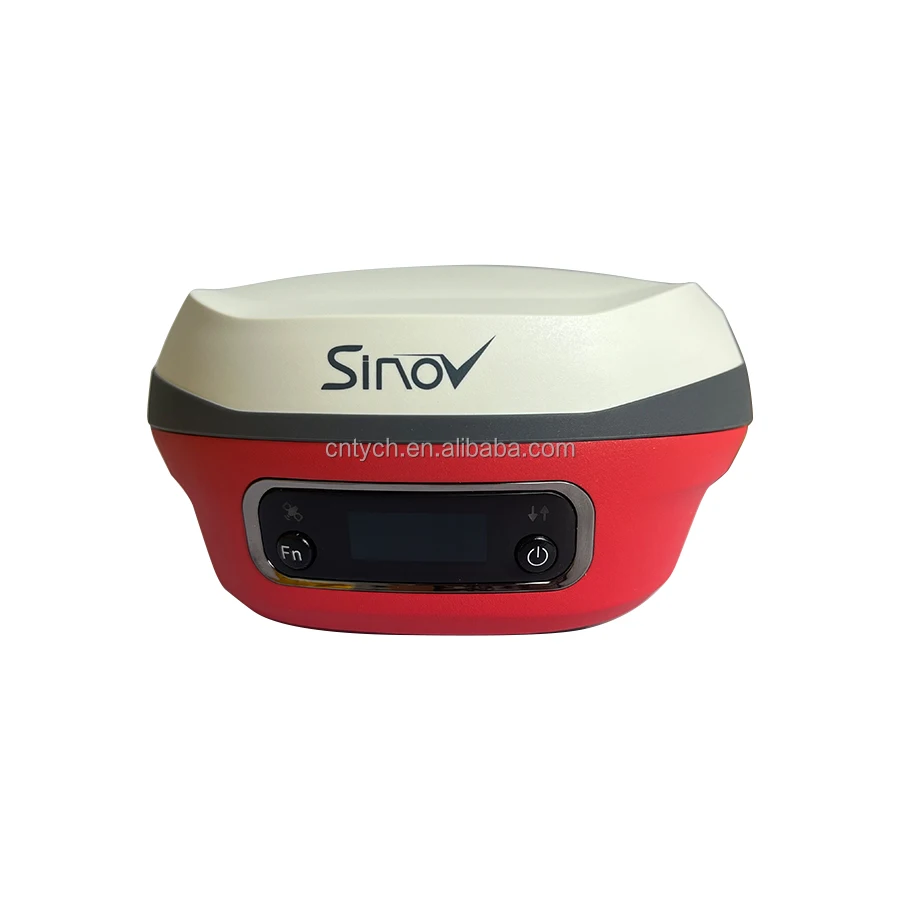

rtk gnss base and rover gps rtk gnss Chcnav Sinov M7 II Rtk Receiver for Geographic Surveying
- Category: >>>
- Supplier: Shandong Tongyuan Surveying And Mapping Technology Co. Ltd.
Share on (1601014490786):
Product Overview
Description

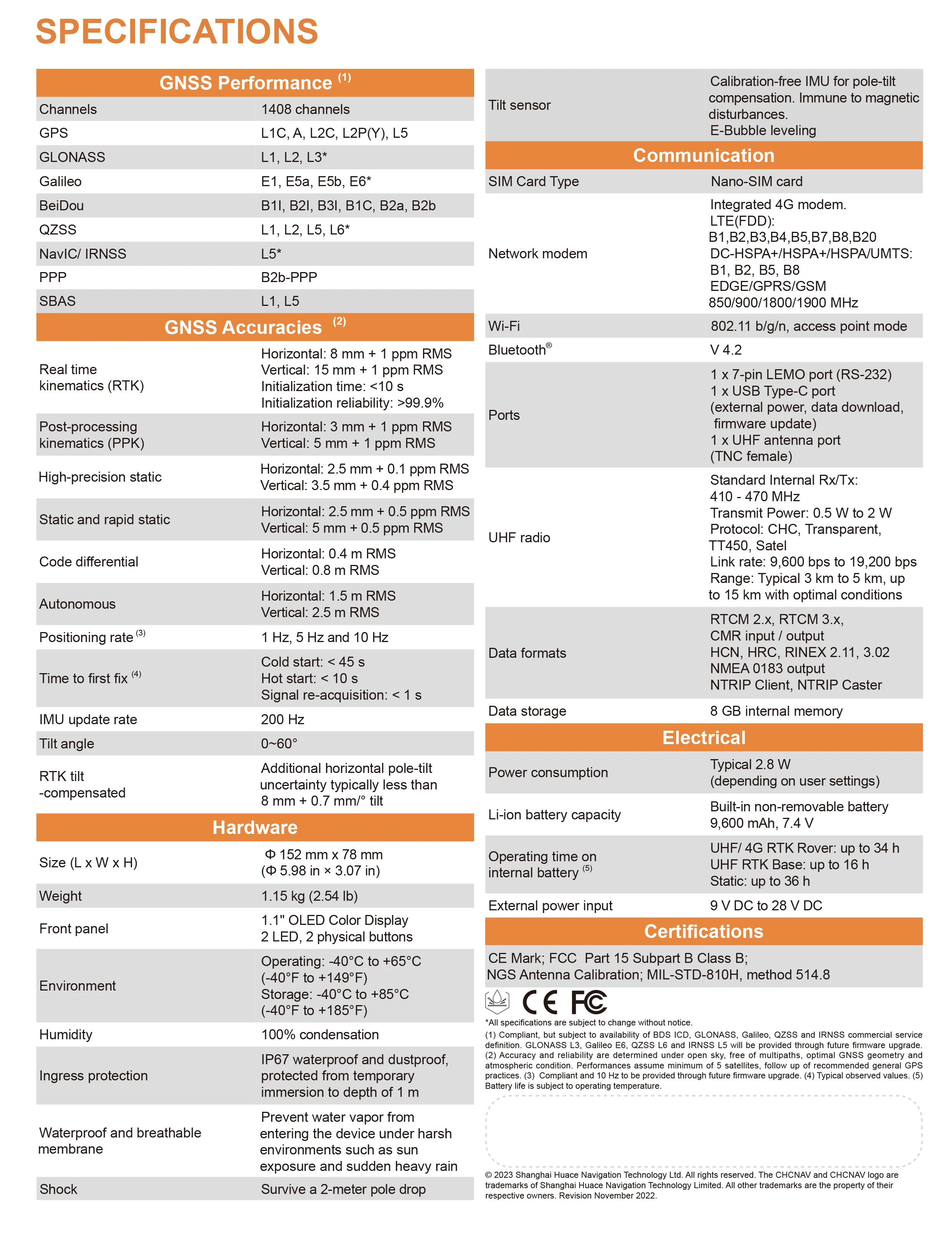

Satellites and Accuracy | Satellite system | GPS+BDS+Glonass+Galileo+QZSS, support Beidou 3rd generations, support five-star twenty-one frequency |
Channels | 1408 | |
Initialize reliability | 99.9% | |
RTK precision | Horizontal accuracy:±(8 + 1.0×10-6×D) mm | |
Vertical accuracy:±(15 + 1.0×10-6×D) mm | ||
Static precision | Horizontal accuracy: ±(2.5+ 0.5×10-6×D) mm | |
Vertical accuracy: ±( 5 + 0.5×10-6×D) mm | ||
GNSS + inertial navigation | IMU update rate | 200Hz |
Tilt angle | 0-60° | |
Tilt compensation precision | 10 mm + 0.7 mm/° tilt (accuracy <2.5cm within 30°) | |
User interaction | LCD screen | Quasi-retina screen, clear and transparent even in direct sunlight |
Indicators | 1 satellite indicator 1 differential data indicator | |
Buttons | Fn function key + power/confirm key | |
Webpage | Support PC/mobile web pages | |
Voice | Support hand-controller voice broadcast | |
Physical characteristics | Size | Φ152mm*78mm |
Weight | 1.15Kg | |
Material | Magnesium alloy | |
Working temperature | -45ºC~+75ºC | |
Storage temperature | -55ºC~+85ºC | |
Anti-breathing membrane | Prevent water vapor from entering the equipment in harsh environments such as sun exposure and sudden heavy rain | |
Waterproof and dustproof | IP68 (Protection against 1 meter immersion in water for 30 minutes) | |
Anti-collision | IK08(It will not be damaged by the same mechanical impact force as a 2.5 kg steel ram, and it will resist a 3-meter drop) | |
Electrical performance | Fast charge | Up to 15w fast charge |
External power supply | (9-28)V DC | |
Storage | 8GB | |
Electronic bubble | Support | |
Wireless communication | Wireless connection | Support NFC, support Bluetooth, Wi-Fi touch IGRS receiver |
Network | 4G full Netcom | |
Radio | Built-in transceiver station, support up to 2w transmit power | |
Support CTI/TT450/Transparent Transmission Protocol | ||
Hand-controller | Type | HCE600 Android |
Operating system | Android 10 | |
CPU | Octa-core 2.0GHz processor | |
Network | 4G full Netcom, built-in eSIM for three years of surveying and mapping traffic | |
LED screen | 5.5'' HD display | |
Battery | Continuously work 14 hours | |
Waterproof & Dustproof | IP68 | |
Advanced functions | Online upgrade | Support remote push receiver upgrade |
Smart function | Support super double transmission, super double reception, one key fixed | |
Smart service | Support cloud service, provide cloud storage, function code sharing | |
Provide intelligent road data editing function |
