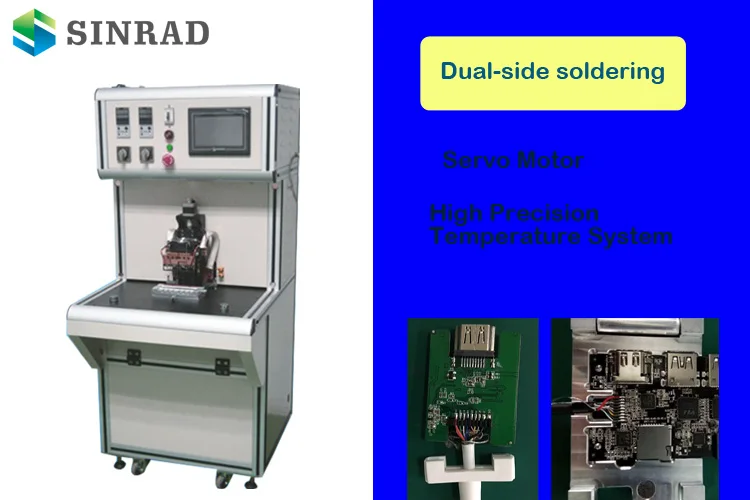

Welder C Type Cable Machine Dual side Pulse Heat Soldering Welding

Product Introduction Of High speed pulse FPC, FFC, wire to PCB, HDM1, Type-C, USB connector hot bar soldering machine

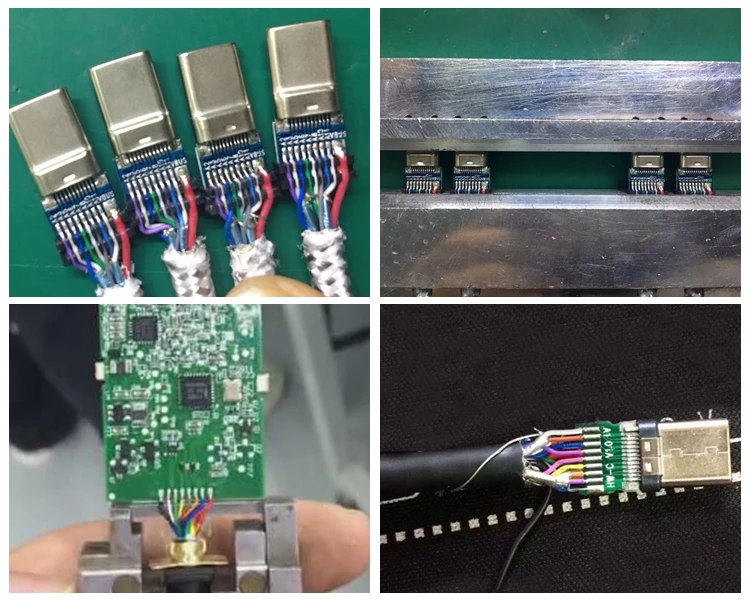

Pulse soldering machine is used to solder FPC, PCB, LED display, HDM1, Type-C cable, terminal and other products.

Soldering machine uses pulse heating technology to work, so the temperature control is very accurate. This makes hot presses often used in places where temperature is very critical. When the hot press is working, the machine can be effectively controlled by multi-stage heating. The temperature of the hot press can be expressed by the real-time temperature curve, which is easy to understand and greatly facilitates the operation of the operator.

Main Features:

1.Japan high-speed temperature controlling system.
Pulse heating, easy set soldering parameter, can be set to different multi-zone temperature control sensor detected by the system.
2.Microcomputer control system used to keep the equipment stability.

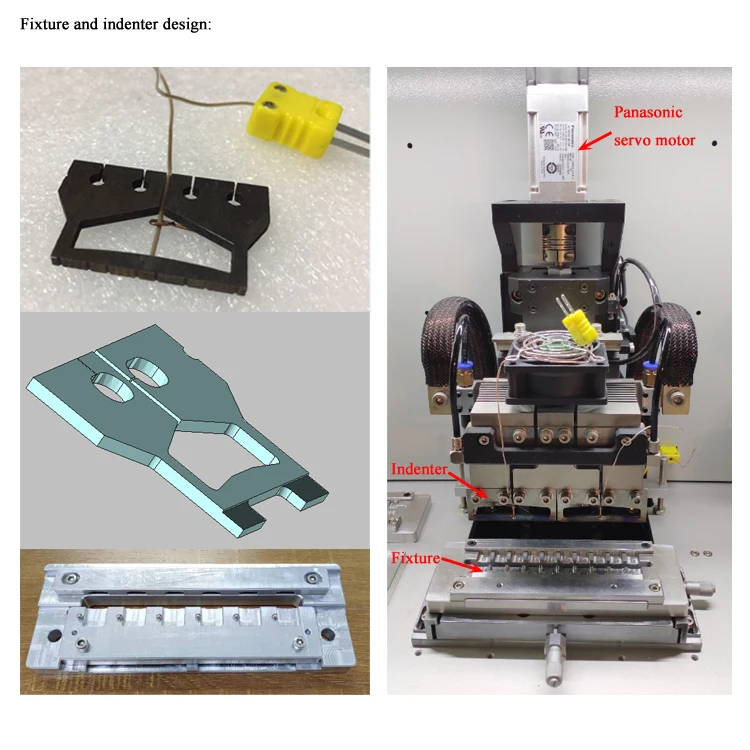

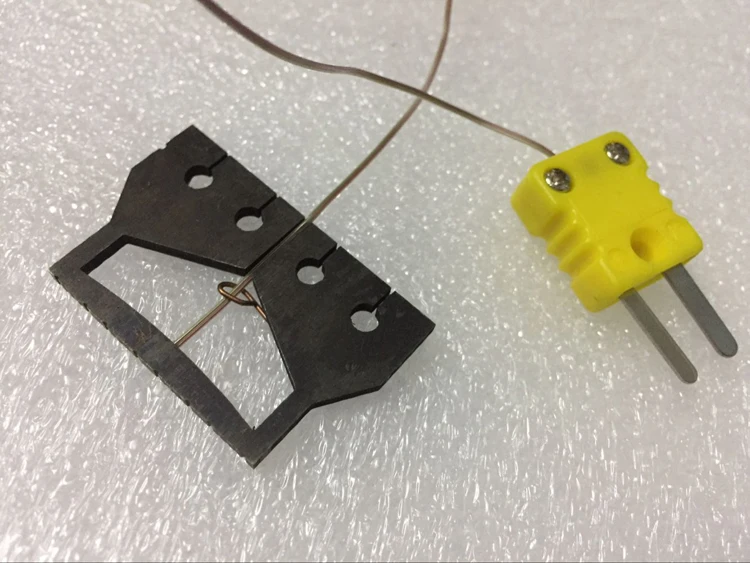

3. High quality titanium alloy pressure of indenter and imported temperature sensor, to ensure accurate heating temperature.
4.Clamp fixed type, so that soldering is more sophisticated and efficient.
5. Applicable to all kinds of ordinary TAB, TCP crimping, and FPC, FFC and PCB soldering, high speed cable mini SAS, SAS cable, QSFP+, SFP+ and so on.
6. Temperature sensor detected by the system control, and equipped with password protection, the system self-test.

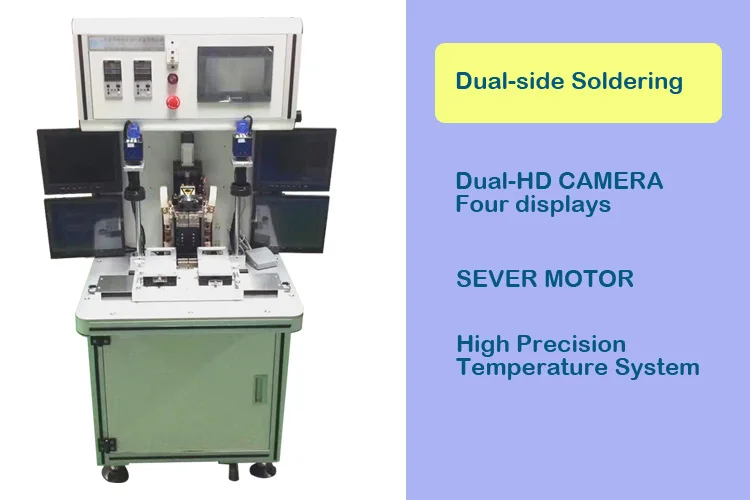

7. Optional: High definition CCD alignment position.

8. High quality heat seal application up to 0.25mm pitch.
9. Digital programmable temperature control with LCD display.

10. Touch screen, easy operation. Chinese or English display.
