High Quality Outdoor Giant 3D Led Video Advertising Panel P4 P5 P6 P8 P10 HD Naked Eye 3D LED Display Screen With Corner Design
- Category: >>>
- Supplier: Shenzhen DDW Technology Co. Ltd.
Share on (1601014548926):
Product Overview
Description
Discover Your Right Application , Make Your Business Possible !
Common warranty in LED field is 2 years, ours is 3 years Longer warranty
periods, better after-sale services, worry-free user experience
periods, better after-sale services, worry-free user experience
Products Description
Specifications
Item Number | P2.9 | P3.9 | P4.8 | P5.7 | P6.66 | P8 | P10 | ||||||
Pixel Pitch | 2.97 | 3.91 | 4.81 | 5.7 | 6.67 | 8 | 10 | ||||||
Pixel Density | 112896 | 65536 | 65536 | 30625 | 22500 | 15625 | 10000 | ||||||
LED Arrangement | SMD1515 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | ||||||
Module Resolution | 84x84 | 128x64 | 104x52 | 84x56 | 72x48 | 60x40 | 48x32 | ||||||
Module Dimension | 250x250 | 500x250 | 500x250 | 480x320 | |||||||||
Module Weight | 1.0kg | 1.86kg | 1.86kg | 1.98kg | |||||||||
Module Thickness | 21.5mm | 20.5mm | |||||||||||
Grey Scale (bit) | >15bit | 16>14bit | |||||||||||
Brightness Level | 3500- 4500nits | 6500- 7000nits | 4800- 7000nits | 5500-6500nits | |||||||||
Cabinet Size(mm) | 500x500 | 500x500/500*750/500*1000 | 960*1280 960*960 1440*960 960*640 1440*640 | ||||||||||
Cabinet Weight(Kg) | 36KG/m² | 33KG/m² | 33KG/m² | 28KG/m² | |||||||||
Cabinet Thickness(mm) | 77mm | 74.3mm | |||||||||||
Max Power Consumption/m | 700w/m² | 650w/m² | 650w/m² | 680w/m² | |||||||||
Ave Power Consumptionnt | 230w/m² | 205w/m² | |||||||||||
Visual View Angle | 160/100° | 180/80° | |||||||||||
Operating Temperature | （-30-55°） | ||||||||||||
Refresh Rate | >3840Hz | ||||||||||||

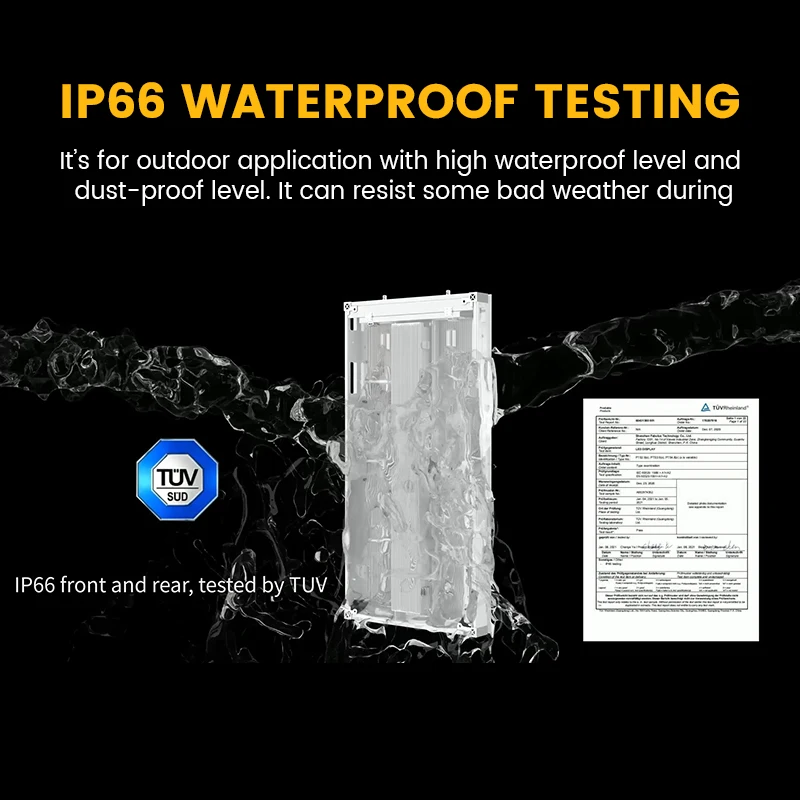

Protecting Rating | IP66 | ||||||||||||
Company Profile
About Us
Shenzhen DDW Technology Co, Ltd is a professional manufacturer and developer of LED display screens in Shenzhen, China since 2012. DDW Display focus on providing indoor outdoor creative LED screen, LED poster, Rental LED screen,Ultra fine HD LED screen,Flexible LED Display,Transparent LED display and various of LED display screens. We are always committed to providing high-quality hardware and software, our excellent pre-sales and after-sales service, and win-win cooperation for all customers.
