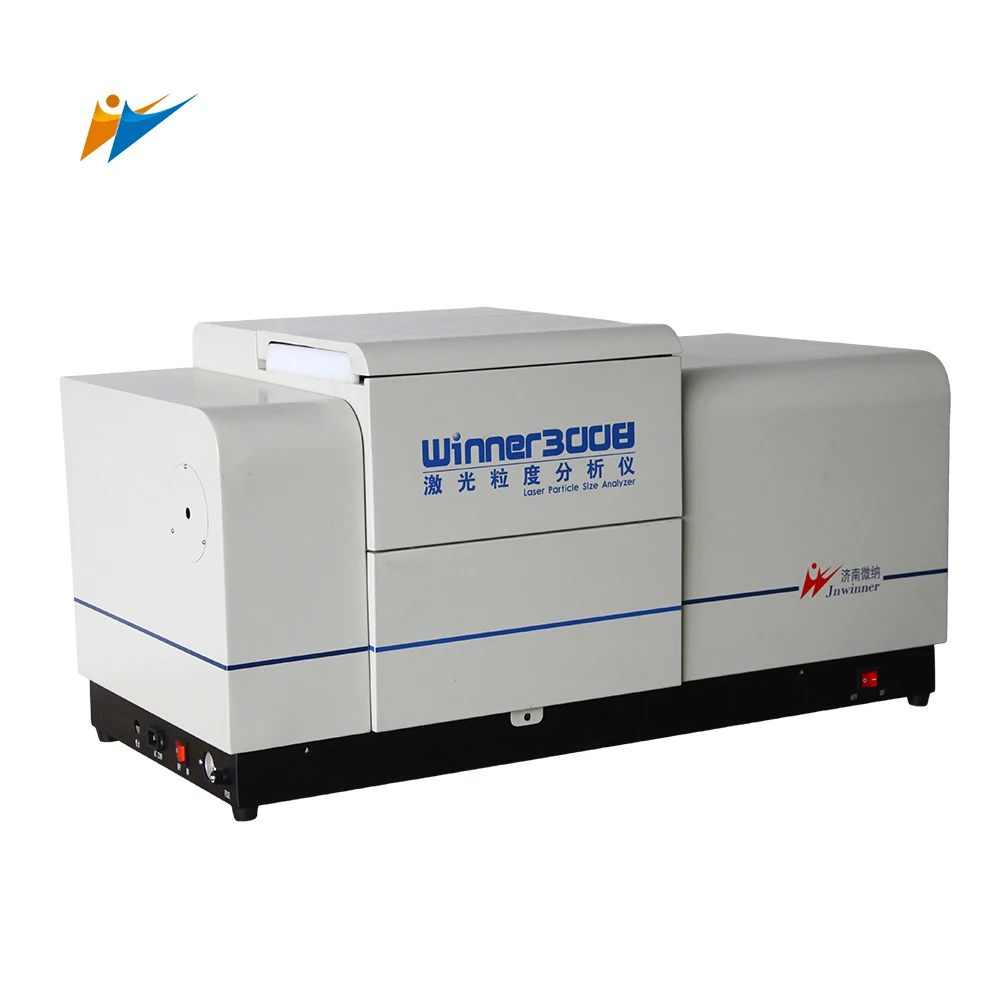

Winner 3008A dry dispersion laser particle size analyzer 0.1-2000um particle size distribution analyzer measuring instruments
Product Description
Winner3008A is intelligent dry laser particle size analyzer, manual and full automatic operation model. MIE scattering principle as basic, Converging light Fourier transform light path, Highly stable He-Ne laser and High sensitive ring photoelectric detector,guarantee good repeatability and accuracy.
It uses air as dispersion medium, and uses turbulent dispersion principle with High precision feeding device, patent powder spray pump and oil-free silent gas source guaranteeing the samples to be fully dispersed. It’s fit for any dry powder materials, especially the powder that takes chemical reaction with water or changes its shape in liquid. Compared to the wet laser particle size analyzer, It’s with the same accuracy and repeatability.
It uses air as dispersion medium, and uses turbulent dispersion principle with High precision feeding device, patent powder spray pump and oil-free silent gas source guaranteeing the samples to be fully dispersed. It’s fit for any dry powder materials, especially the powder that takes chemical reaction with water or changes its shape in liquid. Compared to the wet laser particle size analyzer, It’s with the same accuracy and repeatability.
Main Features
(1) Advanced testing optical path.
Converging light Fourier transform light patented technology, make scattering light not be restricted to lens aperture. Use main detector and large angle auxiliary detector efficiently collect all angles of scattering light in the testing range, ensure good testing accuracy and reliability in the whole range.
(2)Scientific dispersion system
Turbulence dispersion patented technology and Normal shock shearing effect, make particles sufficient dispersion, Adopt wearable ceramics improve dispersion system’s working life.
(3)Human-based operation mode Manual and Full automatic, easy choose.
(4)High precision-automatic optical path calibration system
It’s composed of precise four phase hybrid stepper motor, Its inching precision is reach to micron level, so light path is always in a good state.
(5)Intelligent data analysis-winner unique software support
Analysis software collect large quantity of particle information in high speed, and inverse particle distribution by unconstrained free fitting technology, then intelligent statistics and analysis of testing data, ensure accuracy and repeatability of the output.
(6) The results not only show particle distribution,the cumulative value curve and typical particle sizes( D10, D50, D90.), but also support user-defined analyze result, such as any features particle diameter from D0 to D100,Cumulative percent(bigger than or less than a certain particle diameter).
Converging light Fourier transform light patented technology, make scattering light not be restricted to lens aperture. Use main detector and large angle auxiliary detector efficiently collect all angles of scattering light in the testing range, ensure good testing accuracy and reliability in the whole range.
(2)Scientific dispersion system
Turbulence dispersion patented technology and Normal shock shearing effect, make particles sufficient dispersion, Adopt wearable ceramics improve dispersion system’s working life.
(3)Human-based operation mode Manual and Full automatic, easy choose.
(4)High precision-automatic optical path calibration system
It’s composed of precise four phase hybrid stepper motor, Its inching precision is reach to micron level, so light path is always in a good state.
(5)Intelligent data analysis-winner unique software support
Analysis software collect large quantity of particle information in high speed, and inverse particle distribution by unconstrained free fitting technology, then intelligent statistics and analysis of testing data, ensure accuracy and repeatability of the output.
(6) The results not only show particle distribution,the cumulative value curve and typical particle sizes( D10, D50, D90.), but also support user-defined analyze result, such as any features particle diameter from D0 to D100,Cumulative percent(bigger than or less than a certain particle diameter).
(7)Users can design the test report output and display forms according to industry requirements.
Specification
Model | Winner3008A | ||
Standard | ISO 13320-1:1999；GB/T19077.1-2308；Q/0100JWN001-2013 | ||
Measuring Range | 0.1-2000μm | ||
Channels Number | 100/97pcs | ||
Accuracy | <1% (Deviation of D50 on national standard sample) | ||
Repeatability | <1% (Deviation of D50 on national standard sample ) | ||
Light source | He-Ne laser (λ= 632.8nm, P>2.0MW) | ||
Dispersion | Dry-turbulence dispersion mode, normal shock wave shear technique | ||
Operation Mode | Manual & Full automatic | ||
Operation temperature | +5°C to +40°C | ||
Feeding | Automatic vibration feeding | ||
Optical Calibration System | Automatic | ||
Software function | Analysis mode | Free Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc. | |
Statistic Method | Volume Distribution, Quantity Distribution | ||
Statistic Comparison | Several Testing Results of samples Different batches of samples testing result, Samples before and after processing, Test result of samples in different time. | ||
User-defined Analysis | Figure out percentage according to the particle size Figure out particle size according to the percentage Figure out percentage according to the particle size range Meet demands of representation of particle test in different industries | ||
Test Report | Word, Excel,Photo( Bmp), Text etc | ||
Multiple language Support | Multiple language Support | ||
Intelligent operation | Better Repeatability after remove human-factor | ||
Test Speed | <1min for each time | ||
Power supply | 220V | ||
Volume | L105cm×W44cm×H54cm | ||
Net Weight | 58Kg | ||

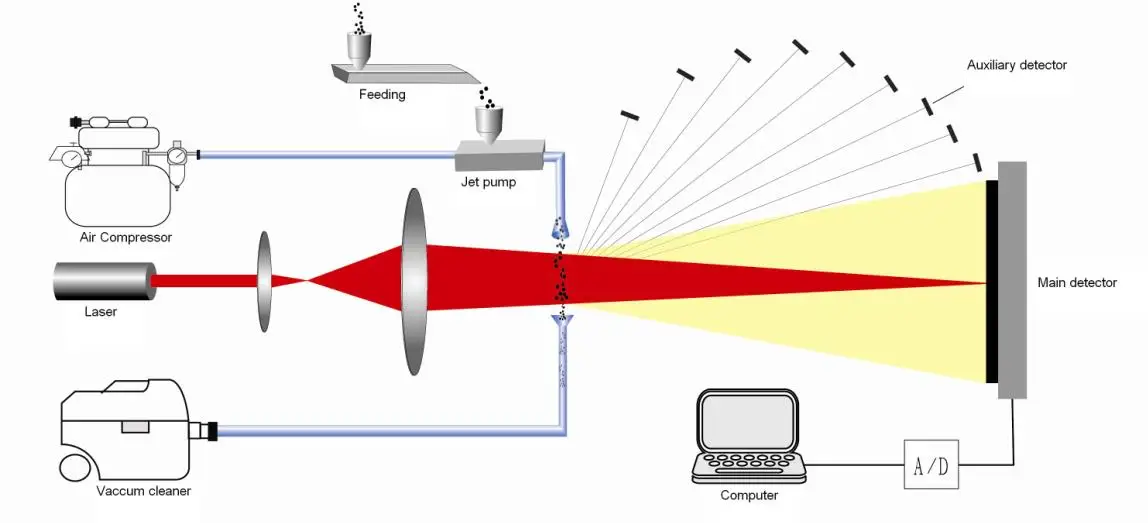

Principle

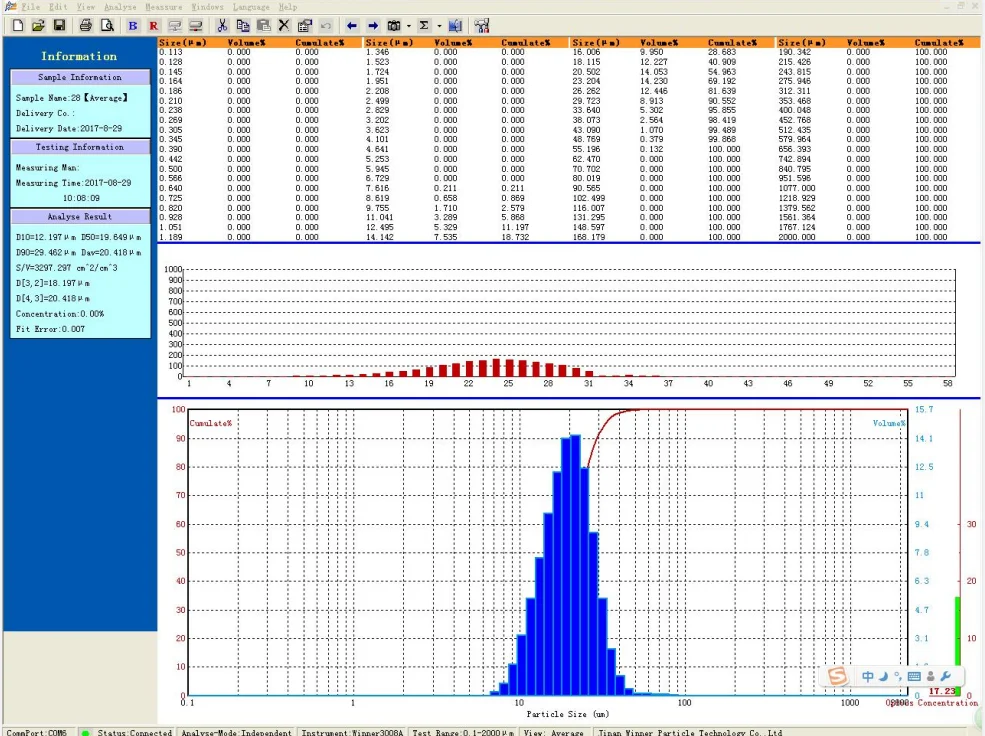

Test Operation Interface:

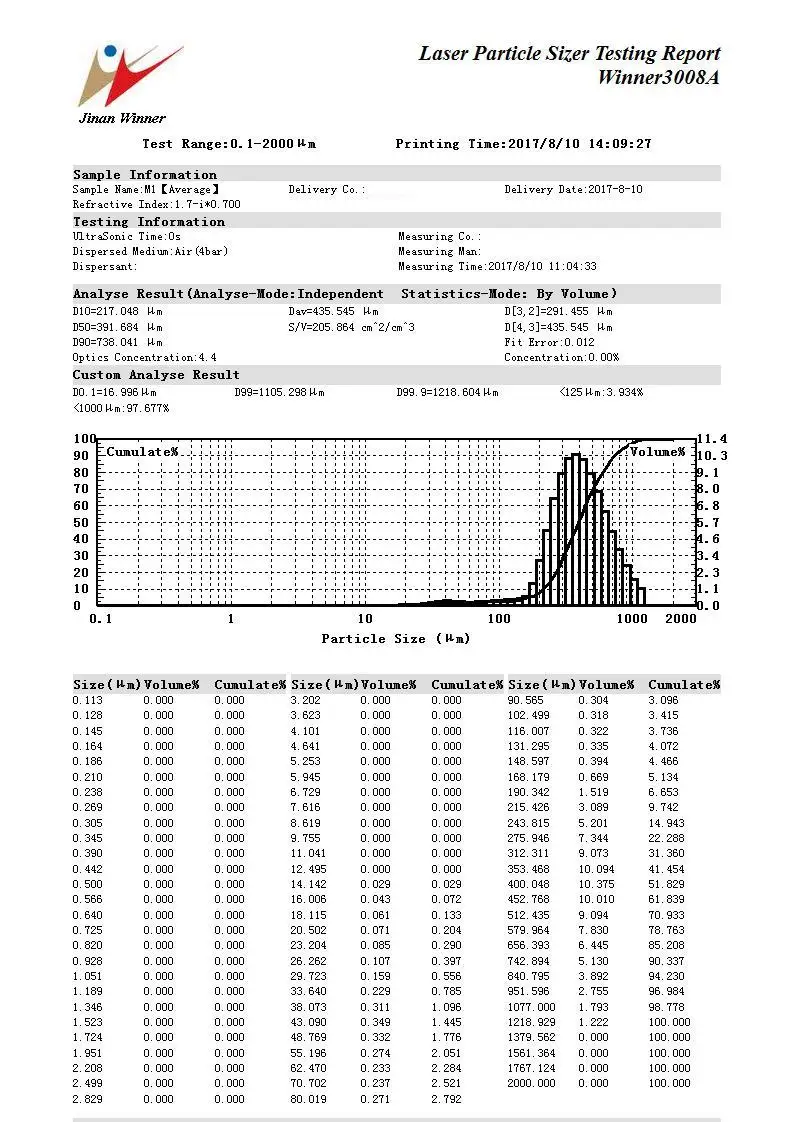

Demo Test Report
Application
Particle size analyzer is widely used for cement, ceramic, medicine, dope, dye, padding, chemical products, catalyst, braize, dust, additive,pesticide, explosive, graphite, photosensitive material, fuel, metal and nonmetal powder, calcium carbonate, kaolin and other powder materials.
Company Profile
Jinan Weiner Particle Instrument Co., Ltd. has been specialized in particle size analyzers for more than 30 years since it undertook the development of particle size analyzers, a national scientific and technological project in 1985.
We are the first origin manufacturer in China to produce nanoparticle size analyzers.
Our particle size analyzers will give you a better understanding of your materials and save you time and costs. Reliable data enables scientists, researchers and engineers to improve formulations and processes with confidence. Our products guide research and product development, manage and control manufacturing quality and optimize yields.
We work with the world's leading businesses, universities and research institutions. They value not only the solutions we provide, but also our professional knowledge, cooperation philosophy and integrity.
Currently, we have laser particle size analyzers, image particle size analyzers, spray particle size analyzers, particle counters and nanoparticle size analyzers, etc. At the same time, we have created more than 30 China's first particle size patented technologies!
For example, there are utility model patents for three-dimensional automatic centering systems, invention patents for nanoscale particle detection devices, and utility model patents for drop-type particle image online monitoring equipment.
We are committed to providing you with the best particle size analysis solutions.
Your satisfaction is our eternal goal!
We are the first origin manufacturer in China to produce nanoparticle size analyzers.
Our particle size analyzers will give you a better understanding of your materials and save you time and costs. Reliable data enables scientists, researchers and engineers to improve formulations and processes with confidence. Our products guide research and product development, manage and control manufacturing quality and optimize yields.
We work with the world's leading businesses, universities and research institutions. They value not only the solutions we provide, but also our professional knowledge, cooperation philosophy and integrity.
Currently, we have laser particle size analyzers, image particle size analyzers, spray particle size analyzers, particle counters and nanoparticle size analyzers, etc. At the same time, we have created more than 30 China's first particle size patented technologies!
For example, there are utility model patents for three-dimensional automatic centering systems, invention patents for nanoscale particle detection devices, and utility model patents for drop-type particle image online monitoring equipment.
We are committed to providing you with the best particle size analysis solutions.
Your satisfaction is our eternal goal!
Certifications
Exhibition
Our Customers
Cooperative Partner
Our Team
Our goal is to provide super quality and competitive price laser particle size analyzer for clients all over the world!
We created more than 30 first particle size analysis technology in China!
We created more than 30 first particle size analysis technology in China!
Recommend Products
Quality Assurance
2. Strict control from purchasing materials, process inspection to final particle size distribution test.
3. QC department to execute quality control regulations.
4.Only qualified components will be assembled and total laser particle size analyzer must be inspected completely before sale.
5.Laser particle size analyzer will be processed preventing -shake test before delivery.
4.Only qualified components will be assembled and total laser particle size analyzer must be inspected completely before sale.
5.Laser particle size analyzer will be processed preventing -shake test before delivery.
After sale service
1. Provide operation demonstration video.
2. Provide free installation and training services.
3. The warranty period is 1 year after receipt of the goods, and technical support is provided for life.
4. If repair parts are provided, we will provide parts at favorable prices, only charge cost prices, and provide long-term maintenance.
2. Provide free installation and training services.
3. The warranty period is 1 year after receipt of the goods, and technical support is provided for life.
4. If repair parts are provided, we will provide parts at favorable prices, only charge cost prices, and provide long-term maintenance.
Packing & Delivery
Winner particle testing equipment is Wooden box package.
We would ship machine by DHL, FeDex, China express, by sea and by air.
FAQ
Purchase laser particle size analyzer need know points:
(1) What are the commonly used media?
The most commonly used liquid medium for wet particle size testing is water, followed by absolute ethanol; the commonly used medium for dry particle size testing is compressed air, followed by nitrogen.
(2) What are the commonly used dispersants?
Dispersants are substances that significantly reduce the surface tension of the medium, thereby improving the wetting or charging state of the particle surface. Commonly used particle size dispersants are sodium hexametaphosphate and sodium pyrophosphate. For some special samples, it is better to use a special dispersant .
(3)What is the basic method of particle dispersion?
Particle agglomeration refers to aggregated particles formed by the aggregation of multiple individual particles under the action of certain factors. Aggregated particles are characterized by low internal binding force and instability, and will disperse under the action of external factors, but will conjoin dense together once the conditions are right. The main reason for "agglomeration" is the charge carried by the particles, water content, van der Waals force, etc. The finer the particles, the more opportunities there are for 'agglomeration' due to their greater surface energy.
(1) What are the commonly used media?
The most commonly used liquid medium for wet particle size testing is water, followed by absolute ethanol; the commonly used medium for dry particle size testing is compressed air, followed by nitrogen.
(2) What are the commonly used dispersants?
Dispersants are substances that significantly reduce the surface tension of the medium, thereby improving the wetting or charging state of the particle surface. Commonly used particle size dispersants are sodium hexametaphosphate and sodium pyrophosphate. For some special samples, it is better to use a special dispersant .
(3)What is the basic method of particle dispersion?
Particle agglomeration refers to aggregated particles formed by the aggregation of multiple individual particles under the action of certain factors. Aggregated particles are characterized by low internal binding force and instability, and will disperse under the action of external factors, but will conjoin dense together once the conditions are right. The main reason for "agglomeration" is the charge carried by the particles, water content, van der Waals force, etc. The finer the particles, the more opportunities there are for 'agglomeration' due to their greater surface energy.
More questions, please contact us, we will offer you the best suitable laser particle size analyzer for you!
