Multifunction dress apparel pearl and riveting machine
US $1200-$3500
Changzhou HuaEn ZJ 816 fabric textile ruffle raffel mesin plisket rolling pleating machine ZJ 816 scarf making machine
- Category: >>>
- Supplier: Changzhou Huaen Garment Machinery FactoryChangzhou Factory
Share on (1601014562517):
Product Overview
Description
Company Profile

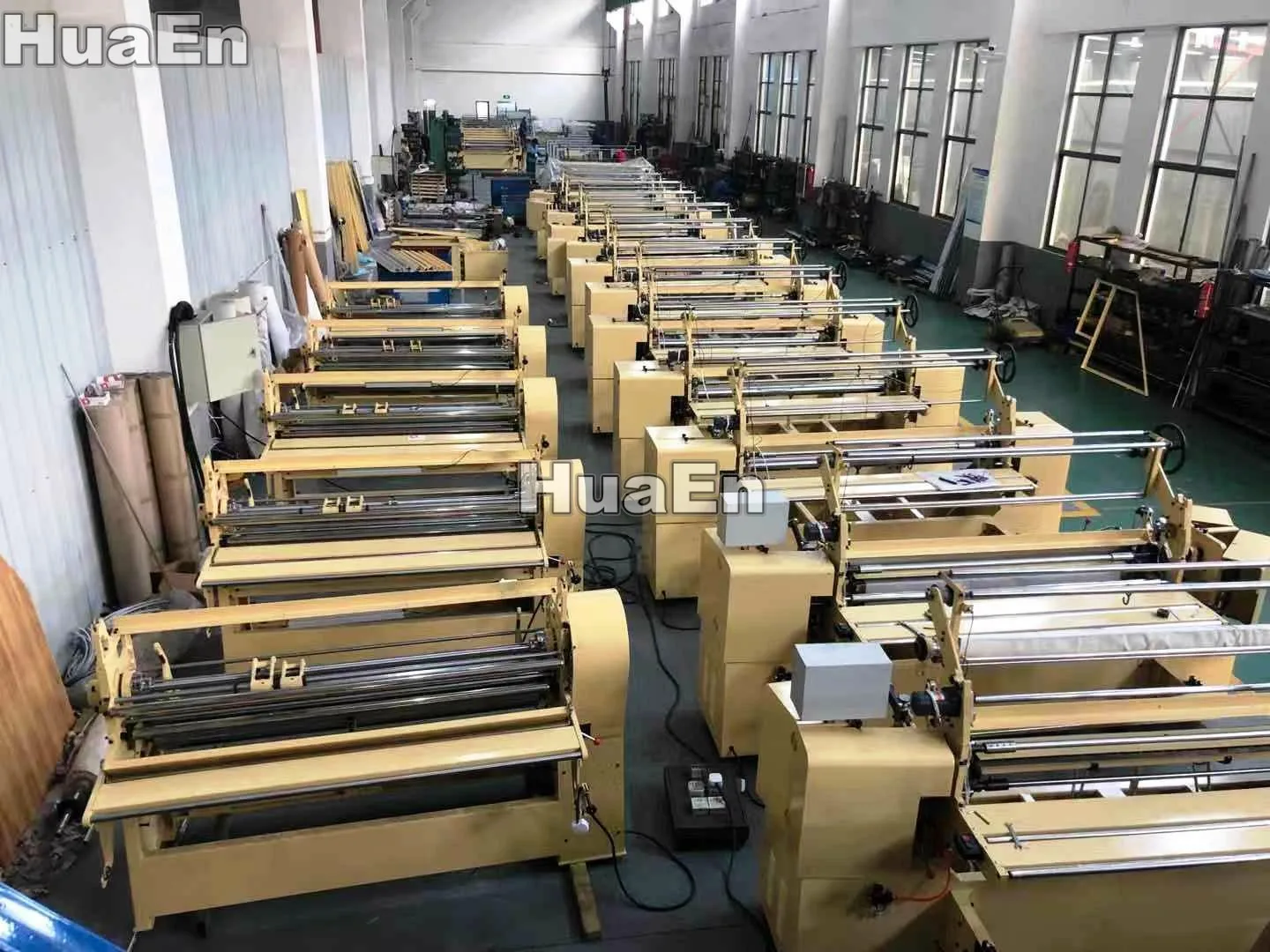

Changzhou HuaEn Garment Machinery Factory
Changzhou HuaEn Garment Machinery Factory is located in Xuejia Town, Xinbei District, Changzhou City. It covers an area of more than 17 acres and has a building area of over 10,000 square meters. It is acomprehensive enterprise integrating design, development, manufacturing and trade. It specializes in producing and manufacturing all kinds of multifunctional folding machines. We have a high-quality, young and innovative research team, based on high starting point, high standards, abide by customer satisfaction, and create excellent business philosophy, providing services from sample to mass production. A rapid response mechanism has been established to continuously meet customer needs.
We totally have model ZJ-217, ZJ-416, ZJ-516, HE-202, HE-217-T, ZJ-316D, ZJ-816 fabric pleating machine (smocking pleater machine).
►ZJ-217 is the most functional machine and possible to equipped with computer and pneumatic system, and it is fixed with the most knife types.
To produce bamboo leaf pattern, box pleat pattern, side pleat pattern, wave pleat pattern individually, users just need change knife to achieve it.
►ZJ-316D knife moves leftwards and rightwards. And, knife is custom made
►ZJ-416 pleats single vertical pattern, which is called by toothpick pleat. It is fixed with only steel belt and steel comb.
►ZJ-516 pleats accordion but is merely applicable for sun-ray fabric piece / panel.
►HE-202 pinch pleating machine
►HE-217-T jacquard machine
►ZJ-816 (smocking pleater machine) isn't so prevalent like the above models, it is kind of shrinking pleating. Its feature is Roller type decides pleat pattern. Please vide our product ZJ-816 machine separately.
►ZJ-217 is the most functional machine and possible to equipped with computer and pneumatic system, and it is fixed with the most knife types.
To produce bamboo leaf pattern, box pleat pattern, side pleat pattern, wave pleat pattern individually, users just need change knife to achieve it.
►ZJ-316D knife moves leftwards and rightwards. And, knife is custom made
►ZJ-416 pleats single vertical pattern, which is called by toothpick pleat. It is fixed with only steel belt and steel comb.
►ZJ-516 pleats accordion but is merely applicable for sun-ray fabric piece / panel.
►HE-202 pinch pleating machine
►HE-217-T jacquard machine
►ZJ-816 (smocking pleater machine) isn't so prevalent like the above models, it is kind of shrinking pleating. Its feature is Roller type decides pleat pattern. Please vide our product ZJ-816 machine separately.

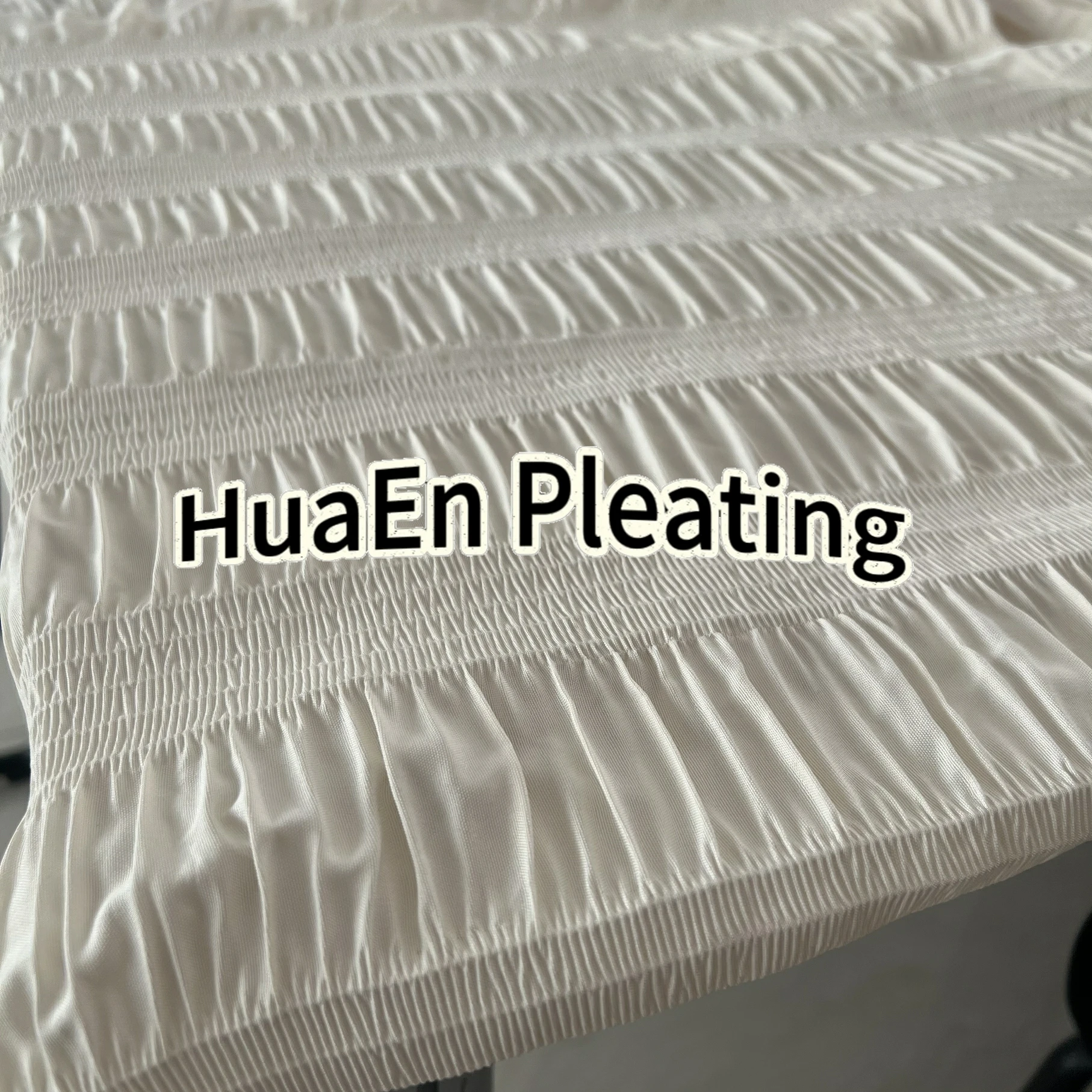

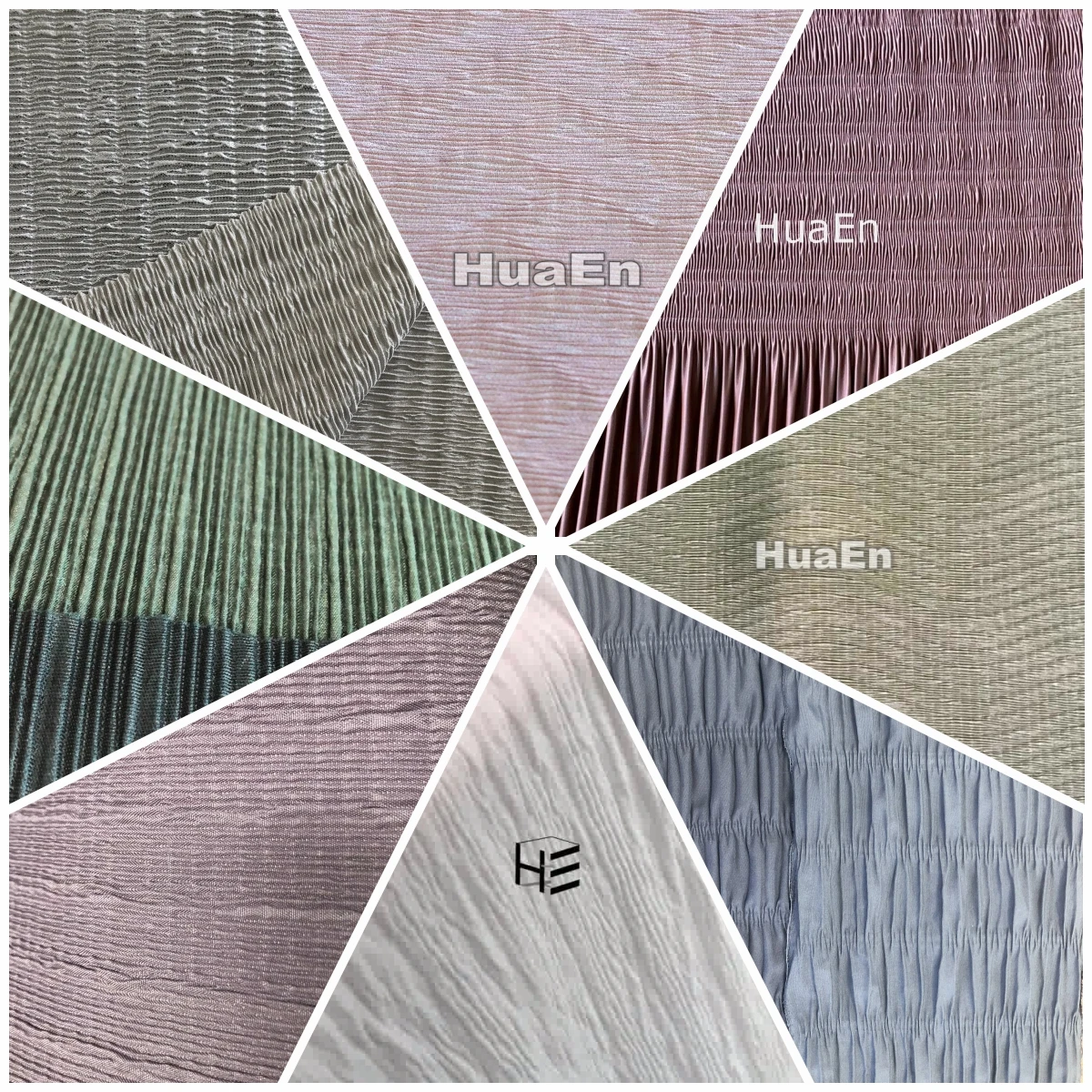

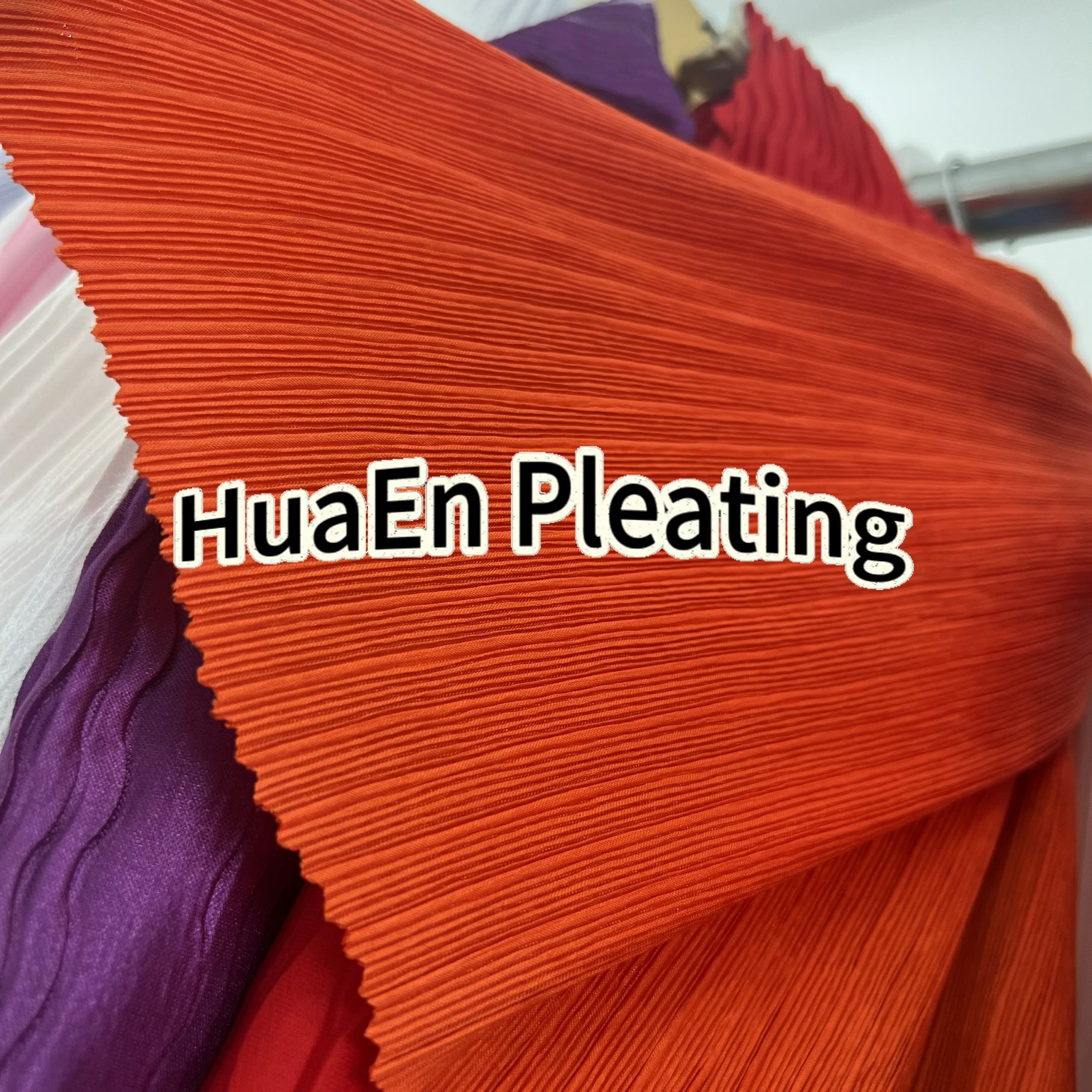

Pleat Patterns
Product Paramenters
Model-1 | ZJ-816 Ruffles |
Specification | Max. pleating width: 1600mm Max. pleating speed: 200m/h Consumption: paper Motor power: 1.1kW Heating power: 10kW Size: 2600*1450*1650mm Packing size: 2600*1140*1800mm Net weight: 1000kgs Gross weight: 1250kgs |
Quantity of pleat patterns | Single. 1 roller included |
Pleat pattern | Wavy or Ruffle are basic |
Paper needed | Upper and lower. Fabric is sandwiched |
Key part | Roller/cylinder |
Possible to customize? | Yes. One roller, one type |
Pleating in roll or piece | Both piece and roll |

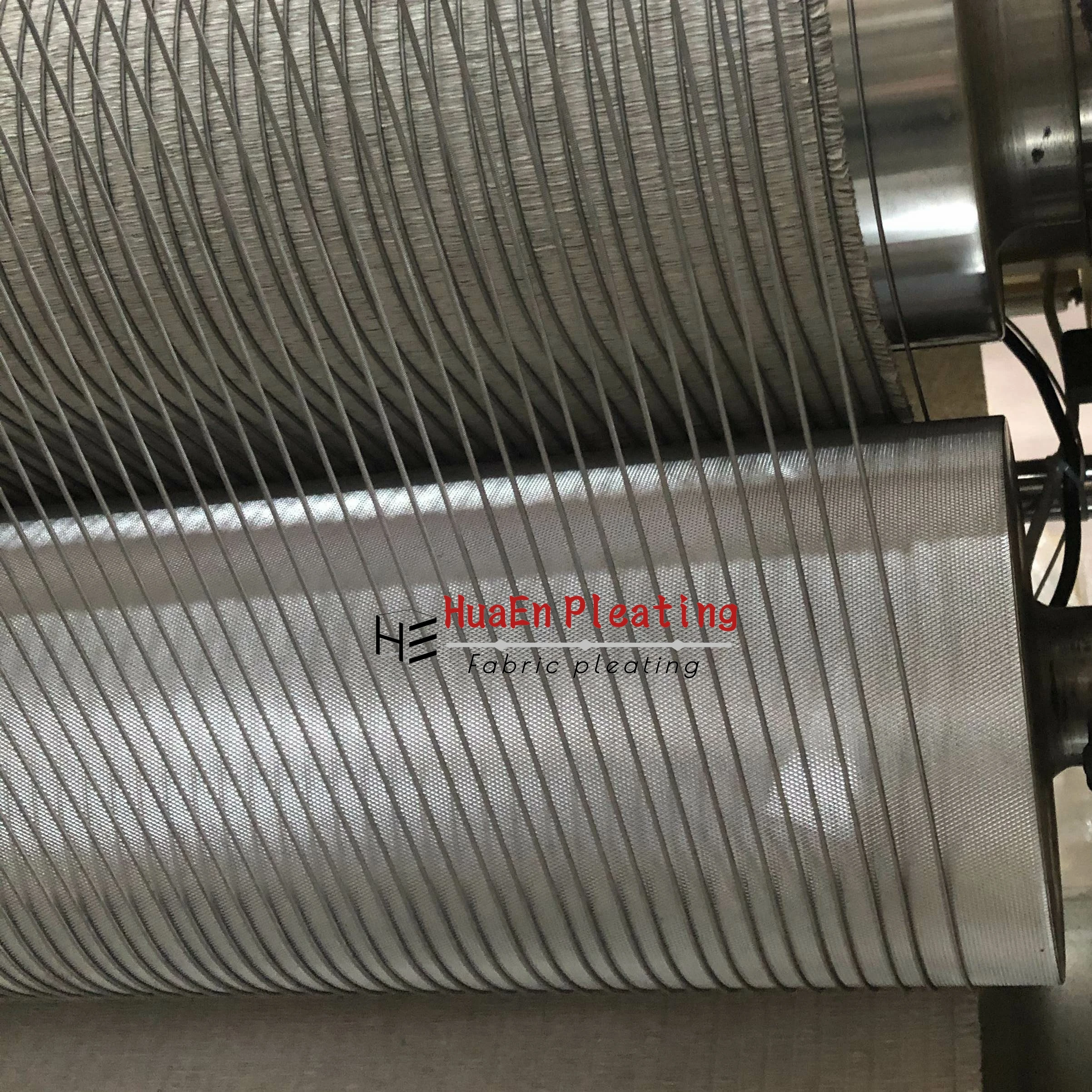

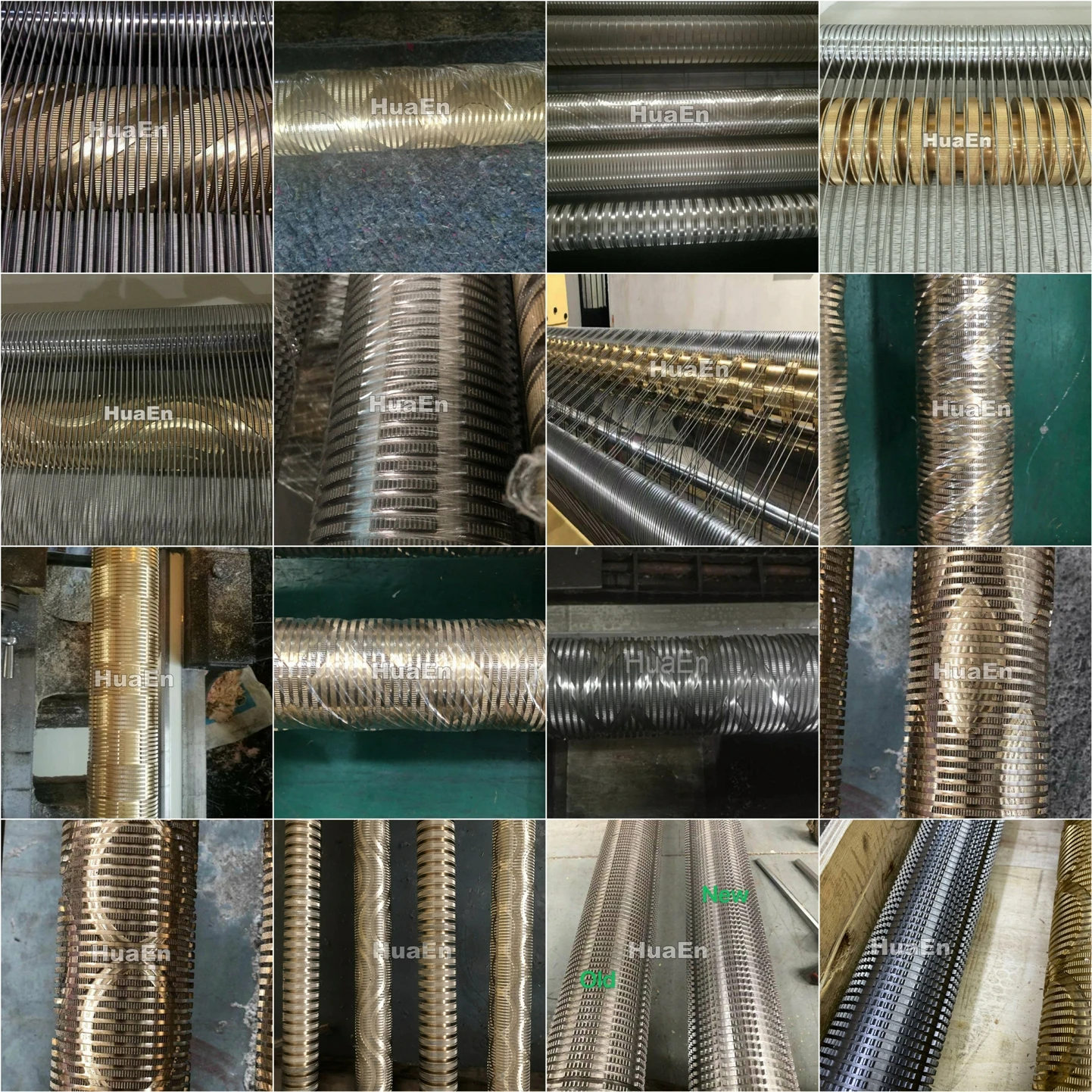

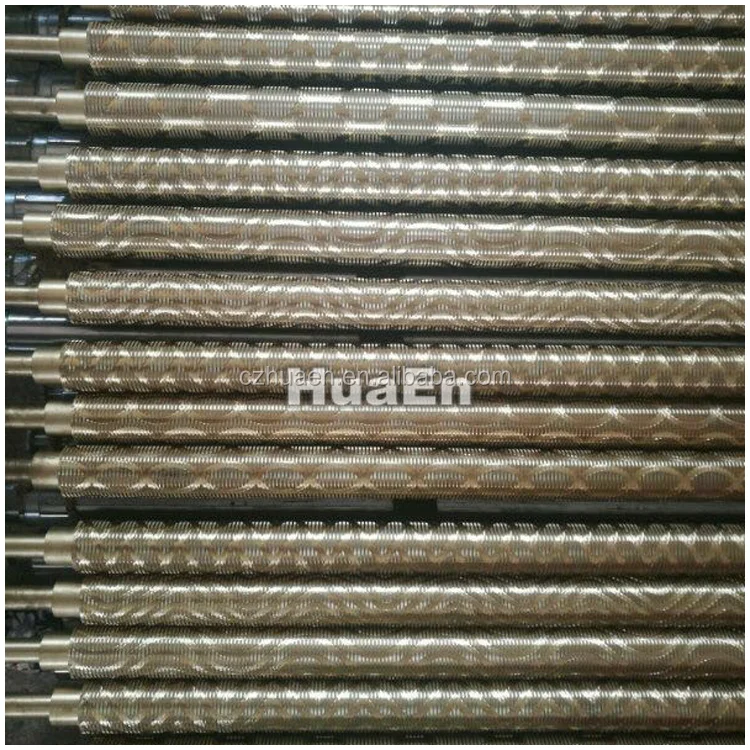

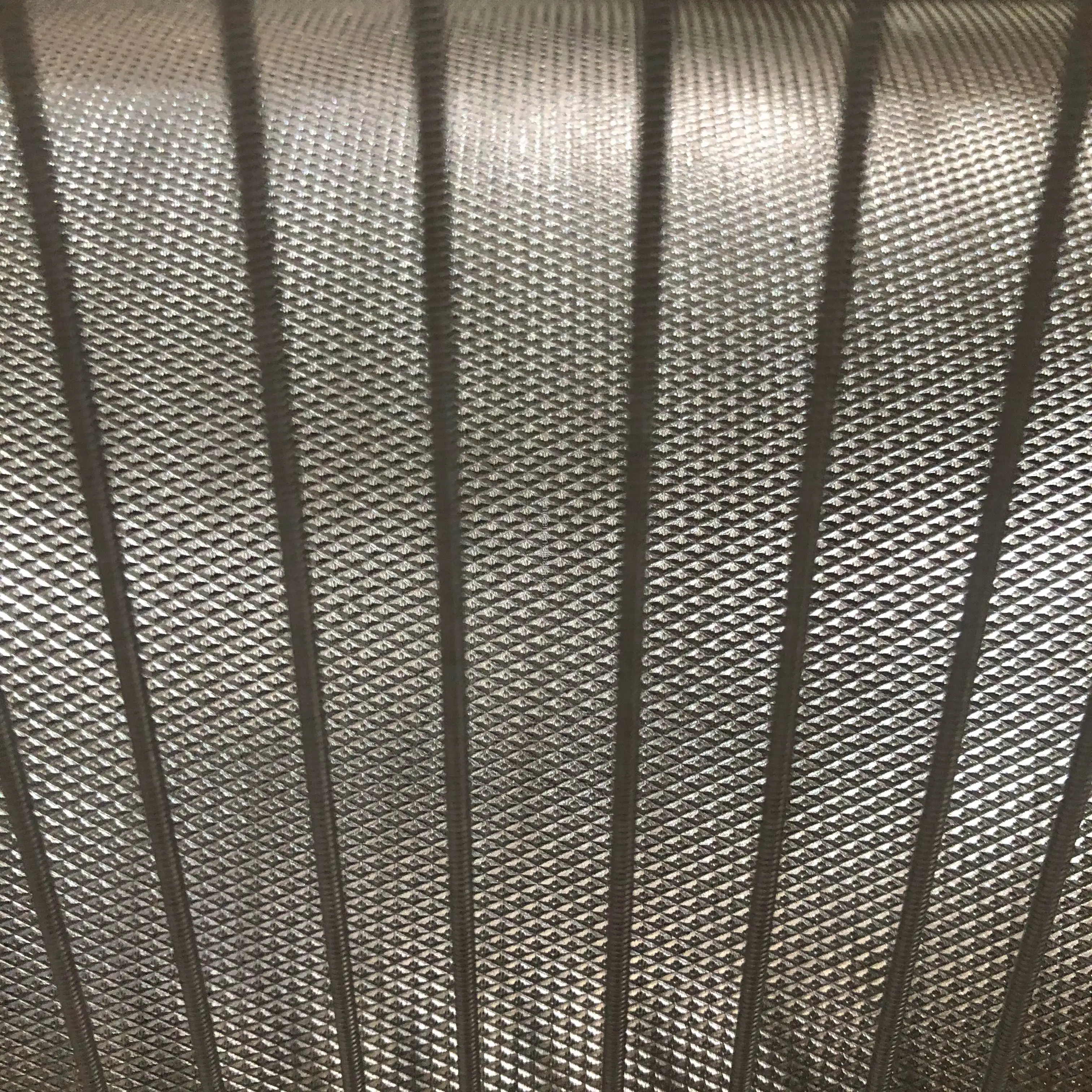

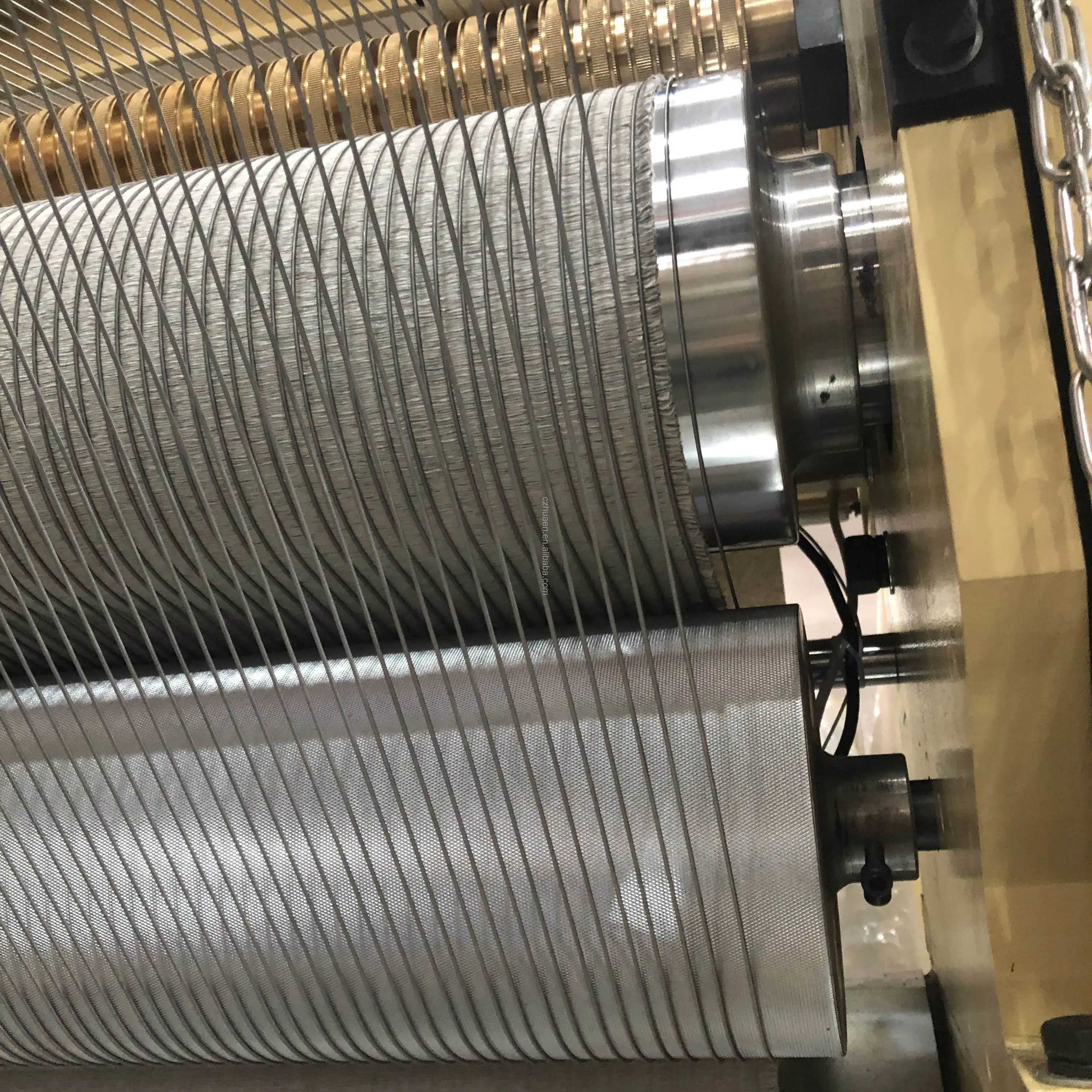

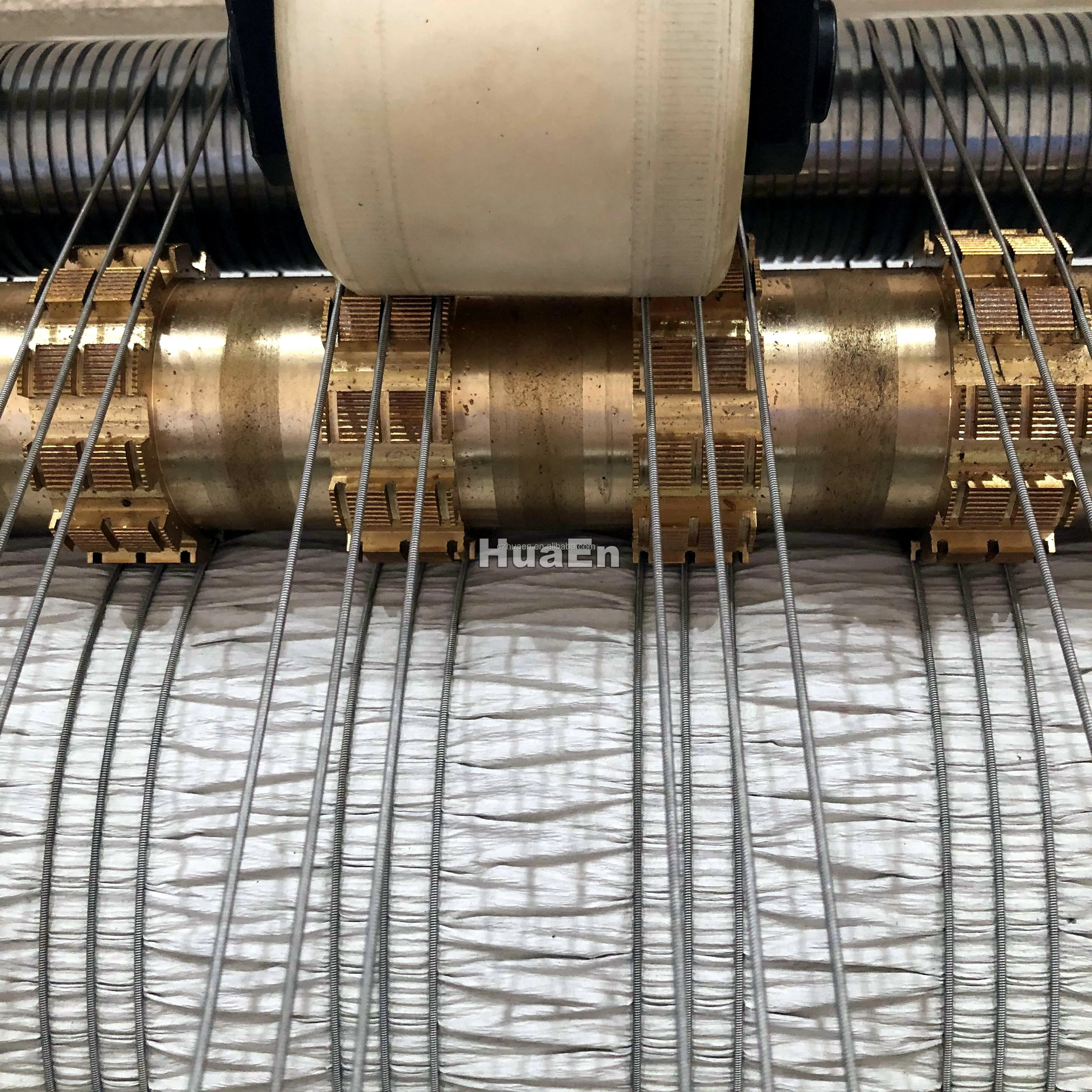

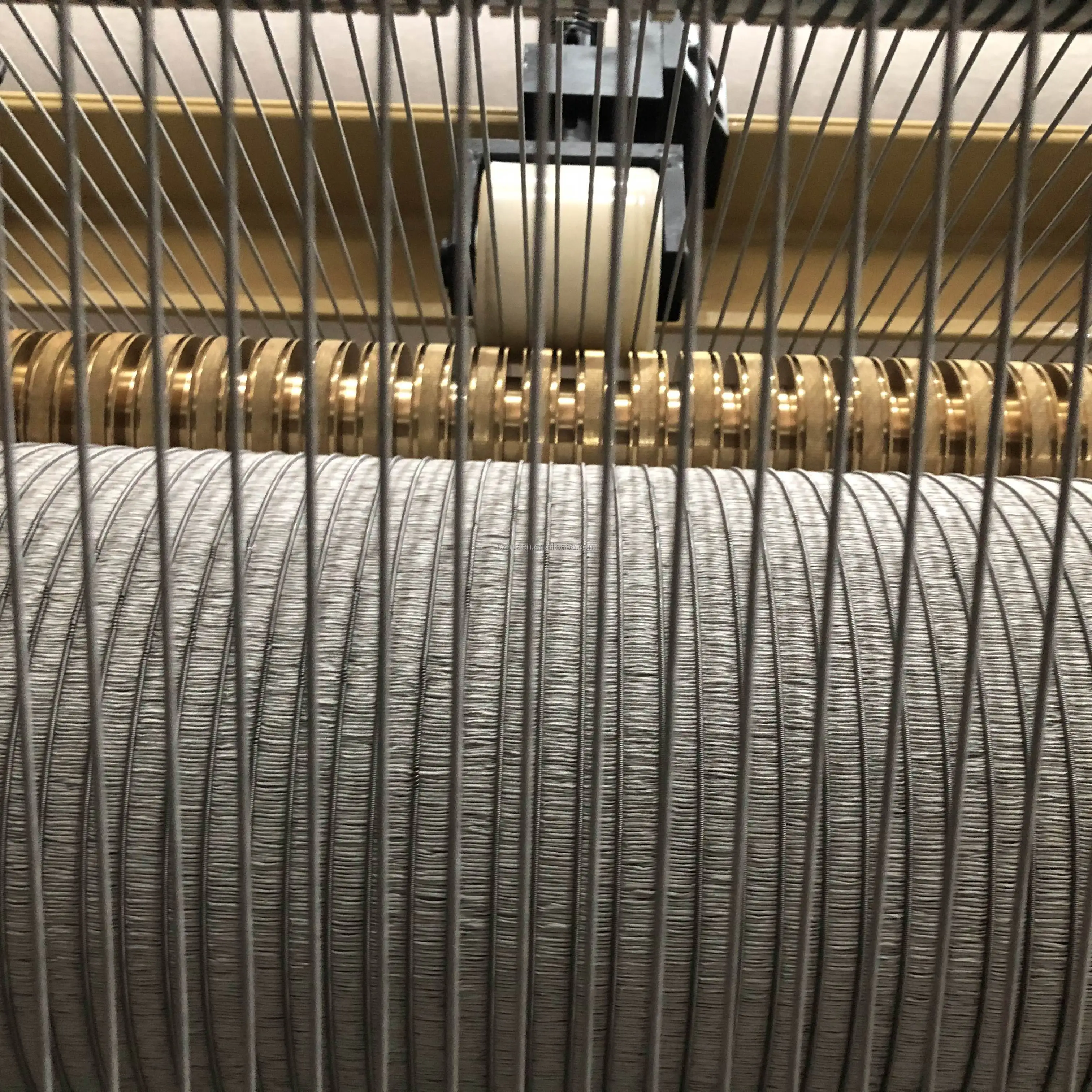

ZJ-816 machine roller/cylinder
Roller/cyclinder is verstatile and custom made.

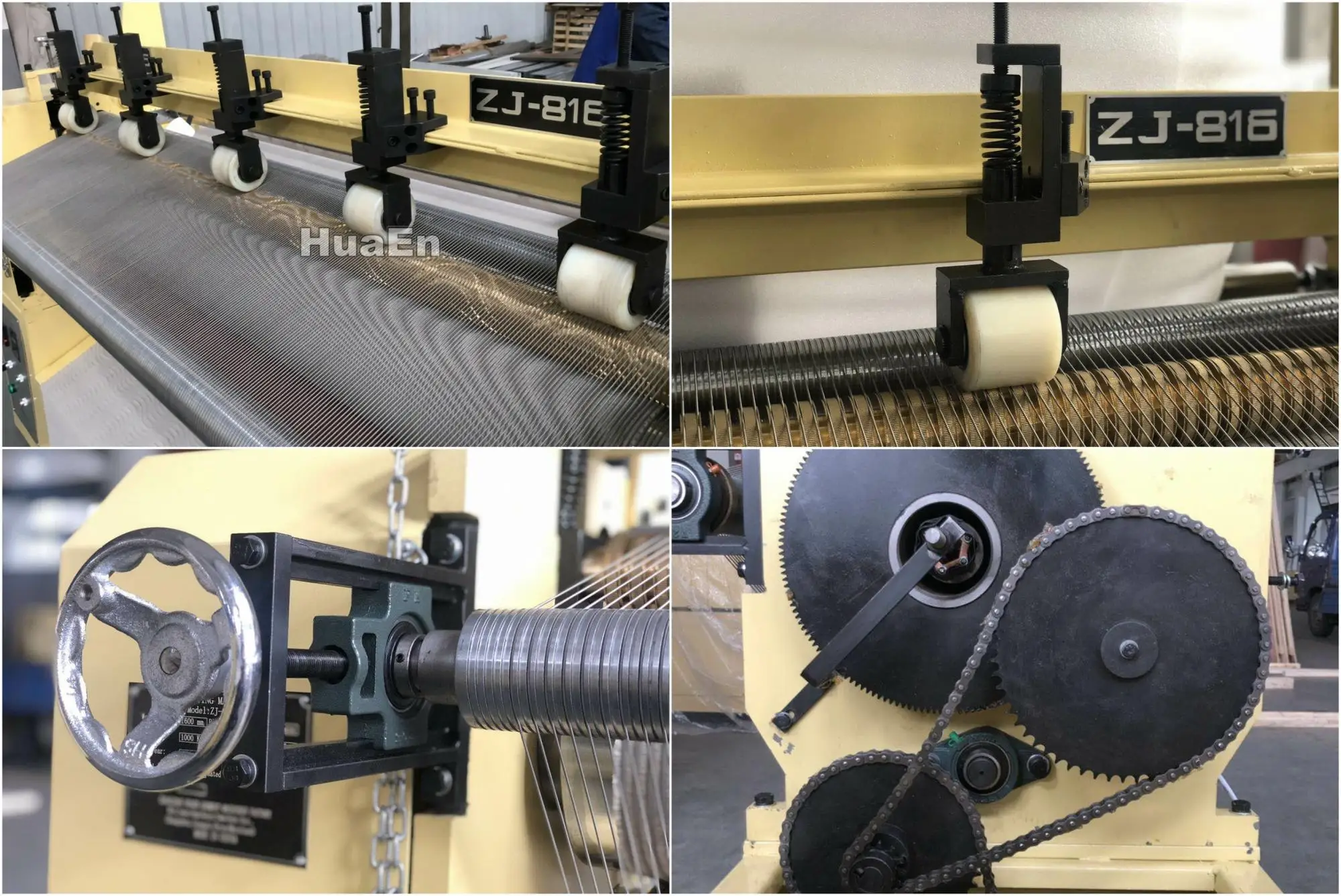

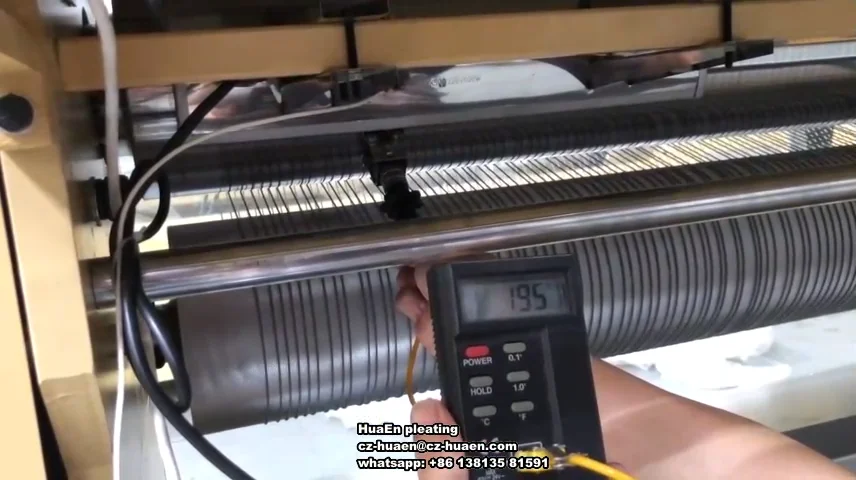

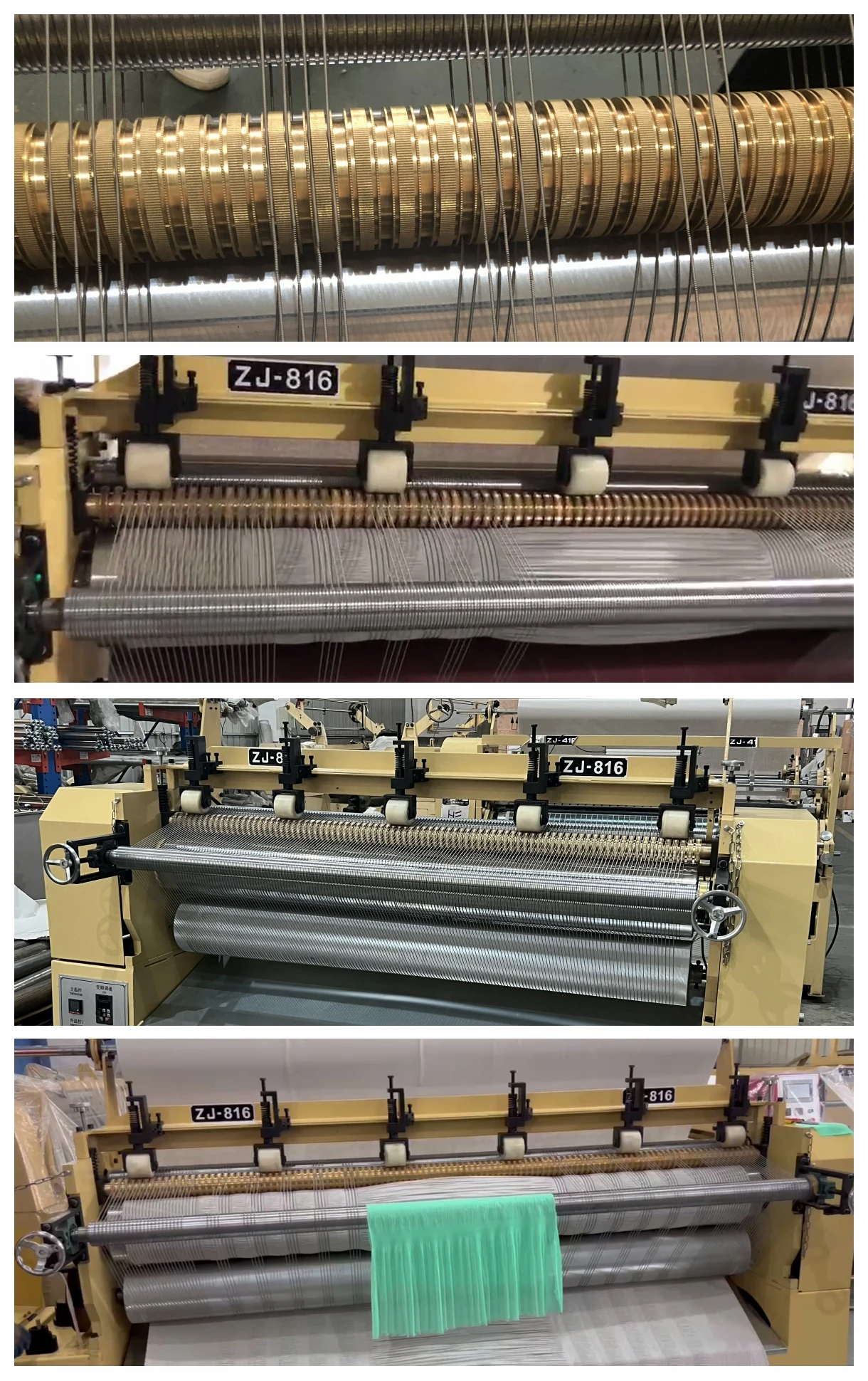

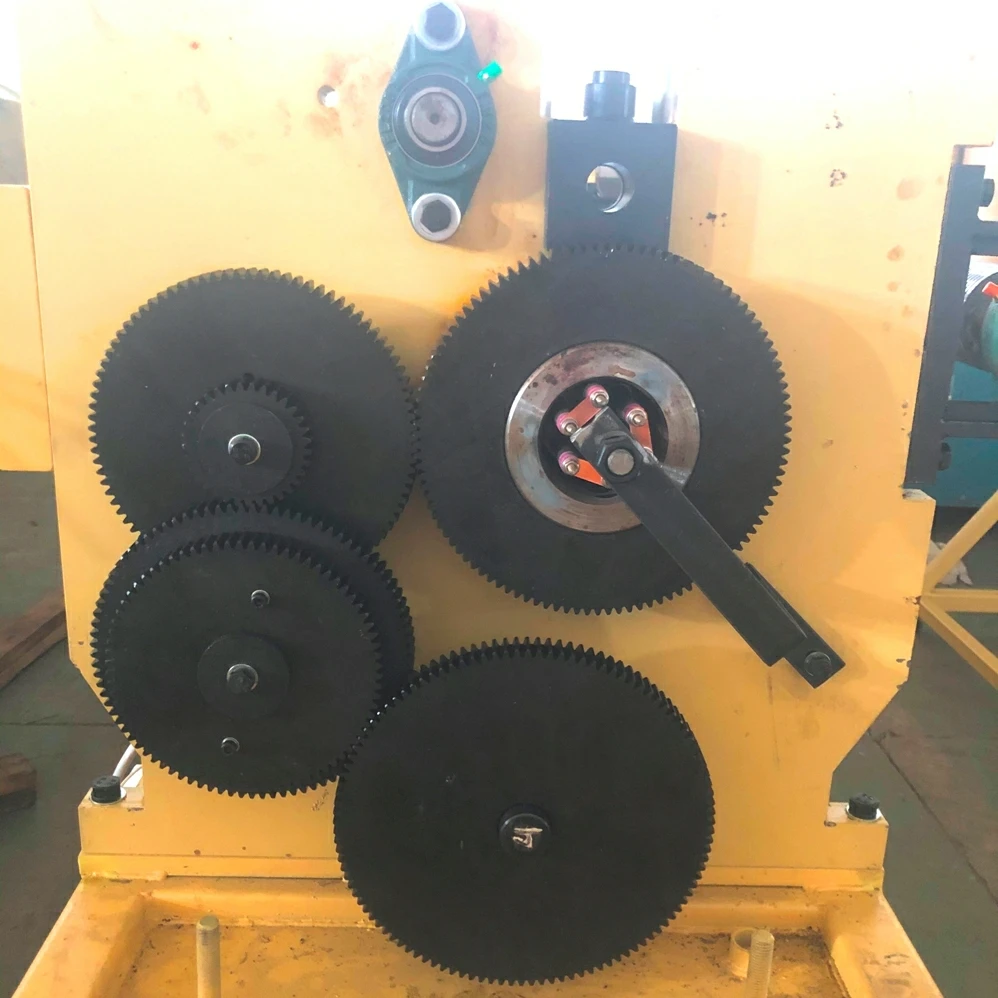

ZJ-816 machine details
It is cylinder rolling and heat-setting for final pleat deigns

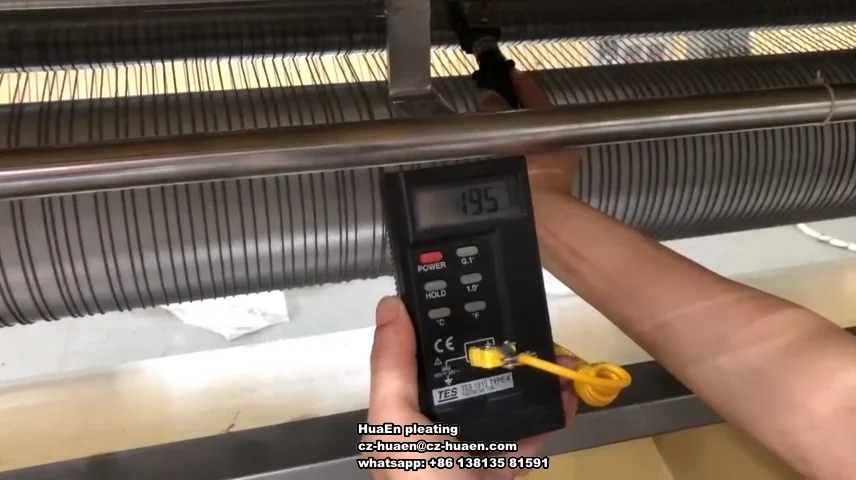

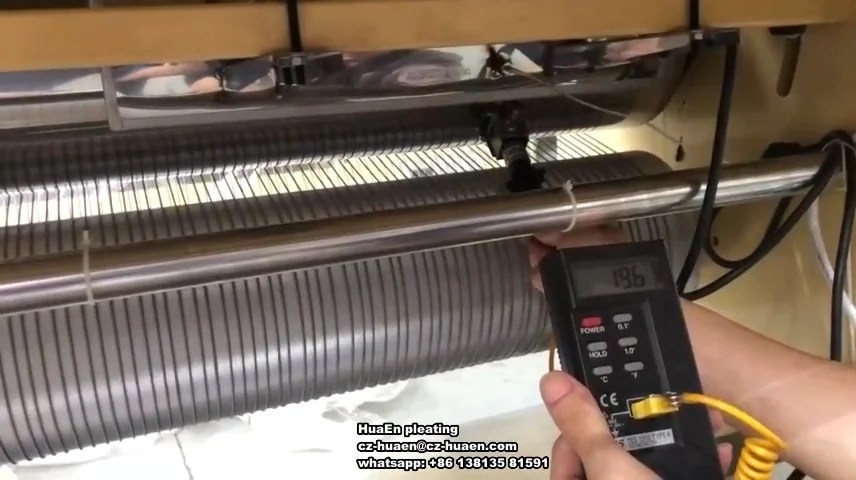

Oil heating is available
Standard heating is electricity with heating tubes.
Oil heating is able to narrow temperature difference at two ends and the middle.
Related machines
Customer Photos
Certifications

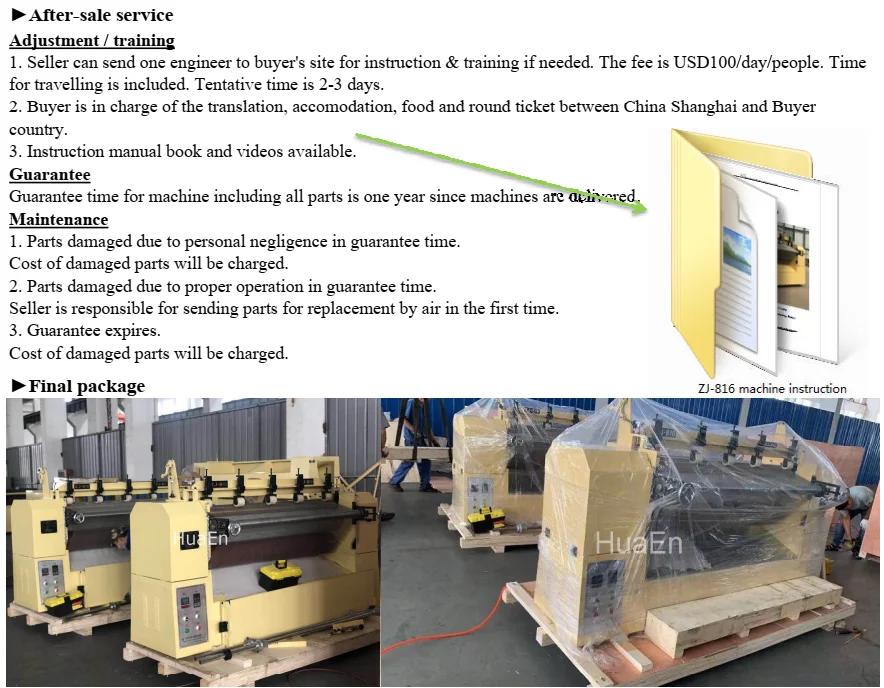

After-sale service
