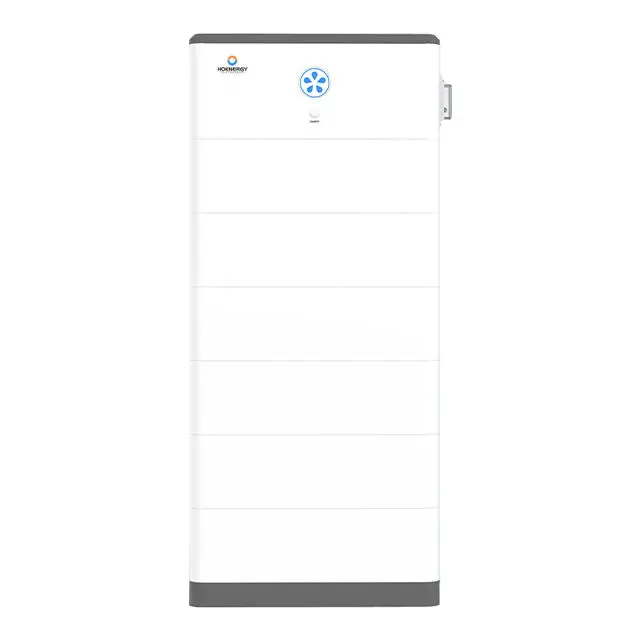

All in one rack mounted battery panels rechargeable 48v lithium ion batteries for solar system
All in one rack mounted battery panels rechargeable 48v lithium ion batteries for solar system
All in one rack mounted battery panels rechargeable 48v lithium ion batteries for solar system
All in one rack mounted battery panels rechargeable 48v lithium ion batteries for solar system
All in one rack mounted battery panels rechargeable 48v lithium ion batteries for solar system
All in one rack mounted battery panels rechargeable 48v lithium ion batteries for solar system
All in one rack mounted battery panels rechargeable 48v lithium ion batteries for solar system

All in one rack mounted battery panels rechargeable 48v lithium ion batteries for solar system

Share on (1601014576812):


Price:$0.95 - $0.99

Quantity:


Product Overview

Description





Product Description

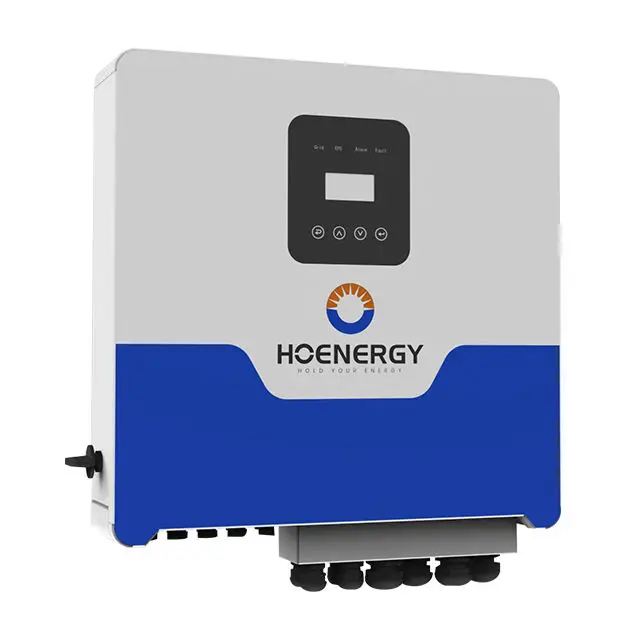

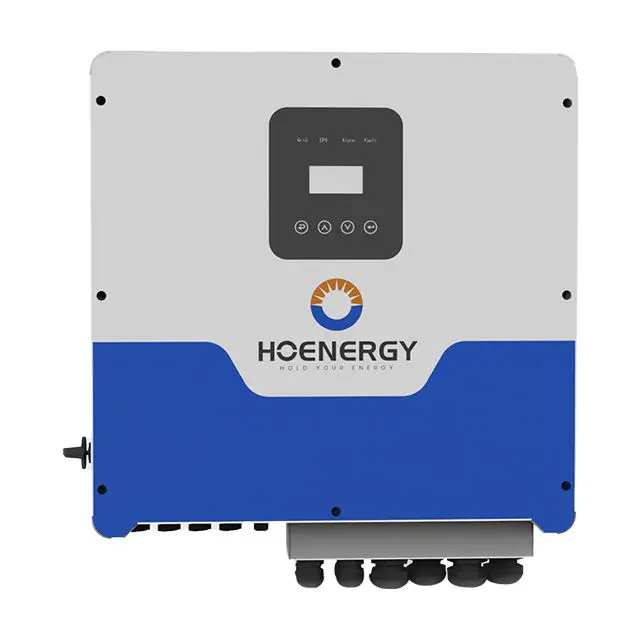

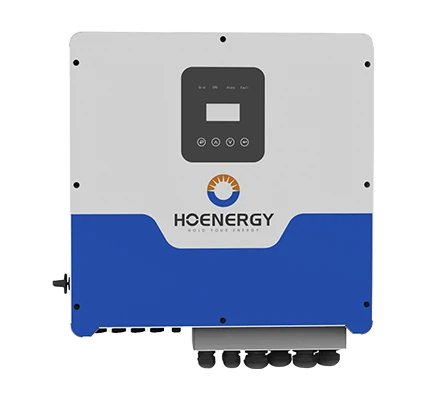

Hoenergy hybrid inverter adopts ZVS,phase-shifted full bridge and other technologies,while achieving seamless multi-mode switching,it also ensures safety,hign efficiency,and low-interference operating performance,thereby enhancing the stability and reliability of the overall energy storage system.


Flexible
125V-500V wide input voltage range
Lightweight and compact easy to install
IP65 protection grade,wall-mounted to save space
Advanced
Touch flexible commissioning with smartphone
Remote firmware updates and customizable settings
Free online monitoring to enhance energy management for end users,installer and retailer
Reliable
Provides 100 unbalanced loads in backup mode
High self-consumption with optimized built-in EMS
Seamless transition to backup mode for protectionagainst power outages


Configuration Details&Specification


Model No.
ilNV-HB3-8.0KH
ilNV-HB3-10.0KH
ilNV-HB3-12.0KH
PV input
Max.Input Power
10.4KW
13KW
15.6KW
Max.PV voltage
1000V
MPPT range/nominal
125V-850V
125V-500V/360V
Max.input current
12.5A*2
14A/14A
MPPT tracker/strings
2/1
2/1
AC output
Max.output power
8.8KVA
11KVA
13.2KVA
Max.output current
12.7A
15.9A
19.1A
Nominal voltage/range
400V/360V~440V
230V/176V-270V
Frequency
50/60Hz
50/60Hz
Power Factor
1(0.99lagging-0.99leading)
1(0.99lagging-0.99leading)
THDI
<3%
<3%
AC output topology
3W+N+PE
L+N+PE
Battery
Battery voltage range
125V~600V
40V-58V
Max.charging voltage
600V
58V
Charge/discharge current
50.0A
50.0A
50.0A
Charge/discharge power
8.8KW
11KW
13.2KW
Battery type
lithium/Lead-acid
lithium/Lead-acid
Communication interface
CAN
EPS output
Max.output power
8.8KVA
11KVA
13.2KVA
Rated voltage/frequency
400Vac/50Hz/60Hz
230V
Max.output current
12.7A
15.9A
19.1A
Rated frequency
50/60Hz
5./60Hz
Automatic switchover time
<20ms
<20ms
THDU
<2%
<2%
General data
Battery charge/discharge
96.6%
96.7%
96.8%
DC max.efficiency
97.9%
98.2%
98.2%
Euro efficiency
97.2%
97.5%
97.5%
MPPT efficiency
99.5%
99.5%
99.5%
Protection class
IP65
Noise emission(typical)
<35dB
<35dB
Operation temperature
-25℃~+60℃
-25℃~+60℃
Cooling
Natural
Natural
Relative humidity
0~95%(non-condensing)
0~95%(non-condensing)
Altitude
2000m
2000m
Dimensions(LxWxH)
530✖200✖600mm/21✖8✖23inch
550✖200✖520mm/22✖B✖20inch
Weight
29kg
26kg
Inverter topology
Without transformer
Without transformer
Self-consumption
<3W
<3W
Features
Display
LCD
LCD
Interface:rs485/can/drm/wifi/gprs
yes/yes/yes/opt/opt
yes/yes/yes/opt/opt
Certificates
Certificates
CE/TUV
CE/TUV/SAA/IEC62116:2014/IEC61683:1999

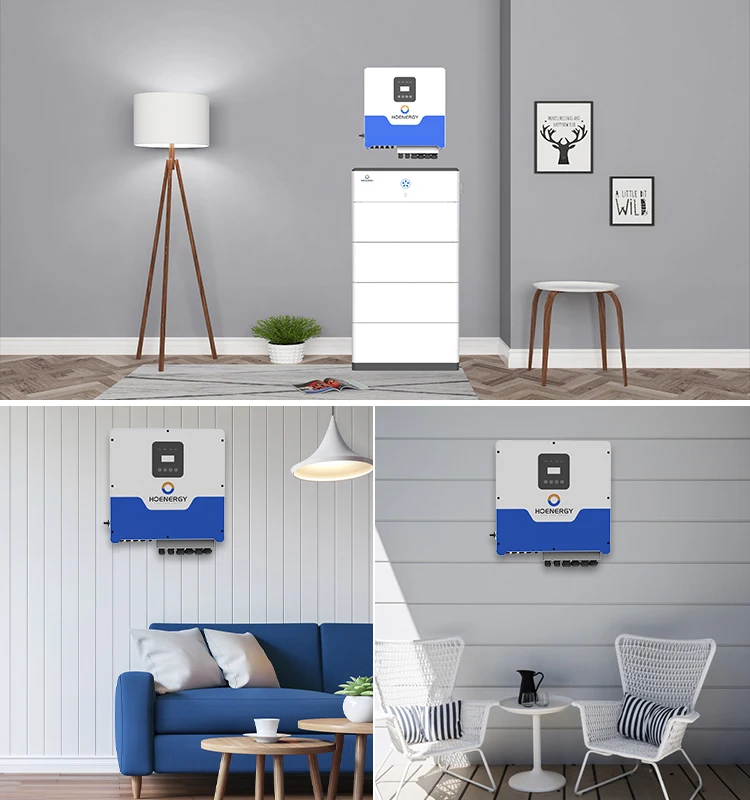

Application

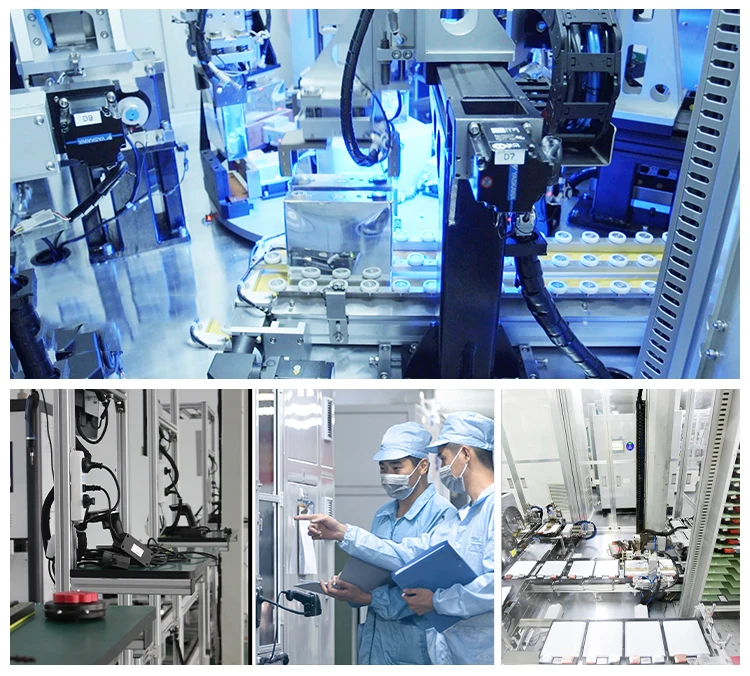

Production Process




Certifications

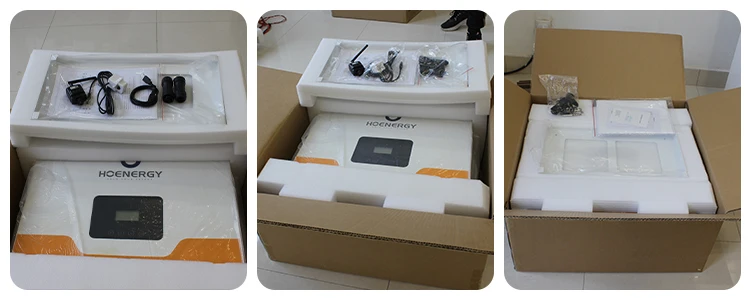

Packing & Delivery




Payment Terms



Payment Term



T/T
EXW
30% T/T in advance, paid the balance before shipment
FOB
CNF
30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union
Amount lower than 5000usd
Delivery Time
7~10days after receiving payment for one container


We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount




FAQ


Q1: How to insatll and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q2: What if I don't have export experience?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q3. We want to know month capacity.
A3: 20000-30000PCS per Month.
Q4: How is your technical support?
A4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
Q5: How can I make sure it's a secure transaction?
A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q6: Can you get the the solar inverter customized for us?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
