Arc Welding Machine Robot Manufacturer 6 Axis Aluminum Automated Robot
- Category: >>>
- Supplier: Shandong Chenxuan Robot Technology Co. Ltd.
Share on (1601014586533):
Product Overview
Description
Product Description

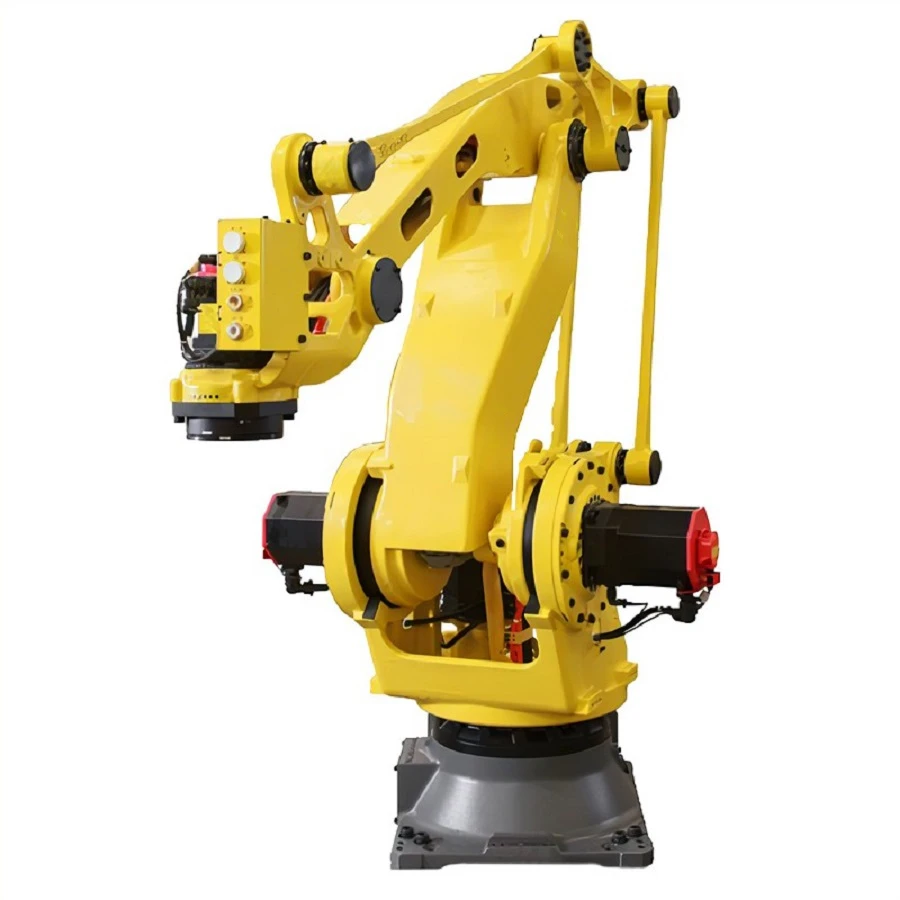

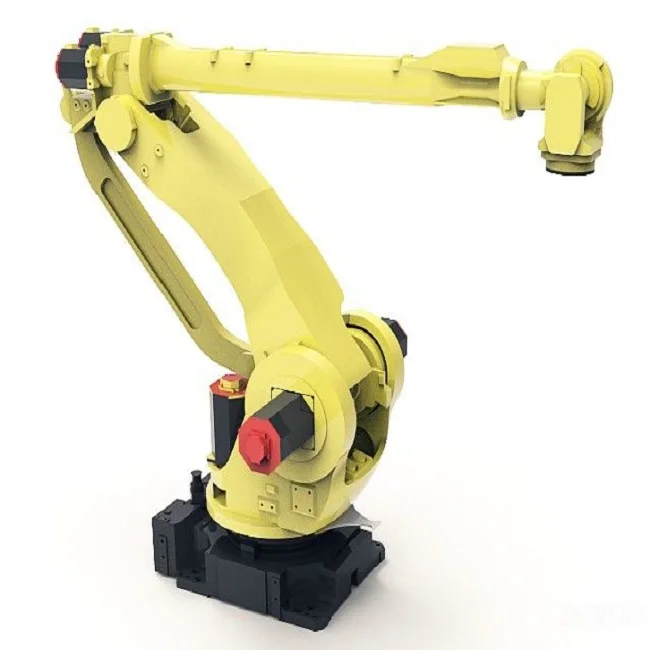

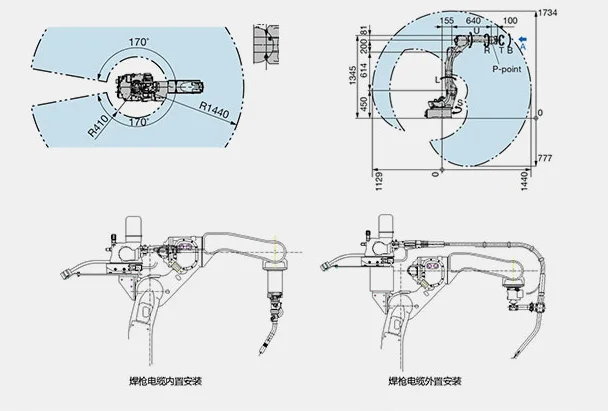

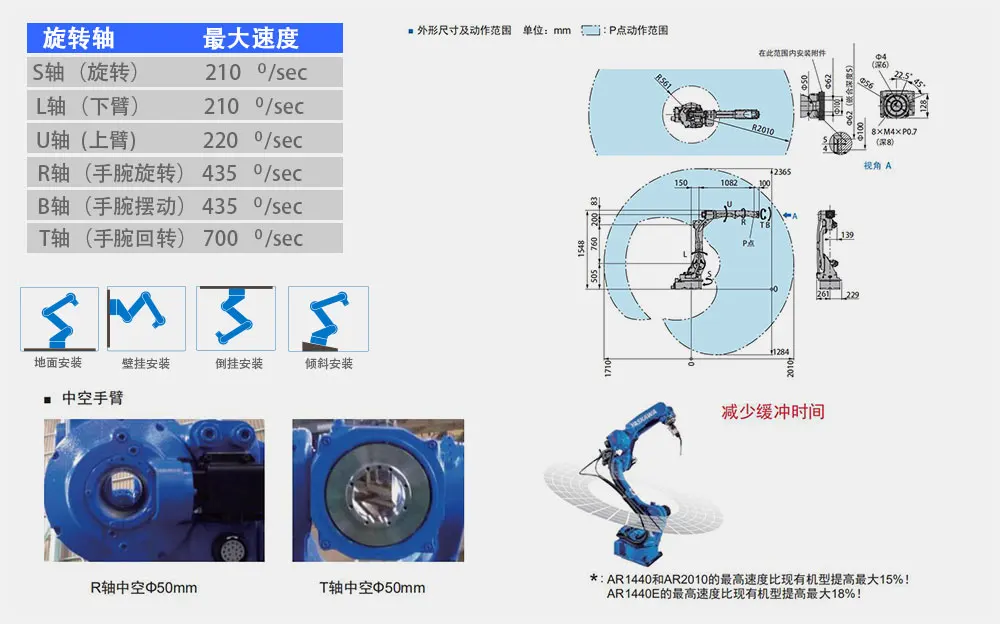

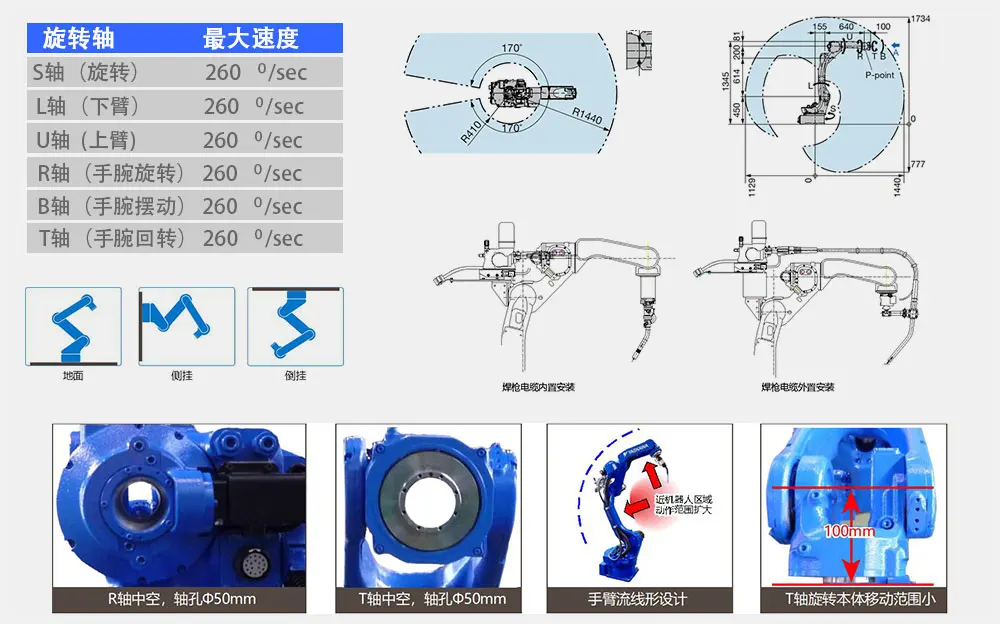

Introduction to Welding Robot Products：

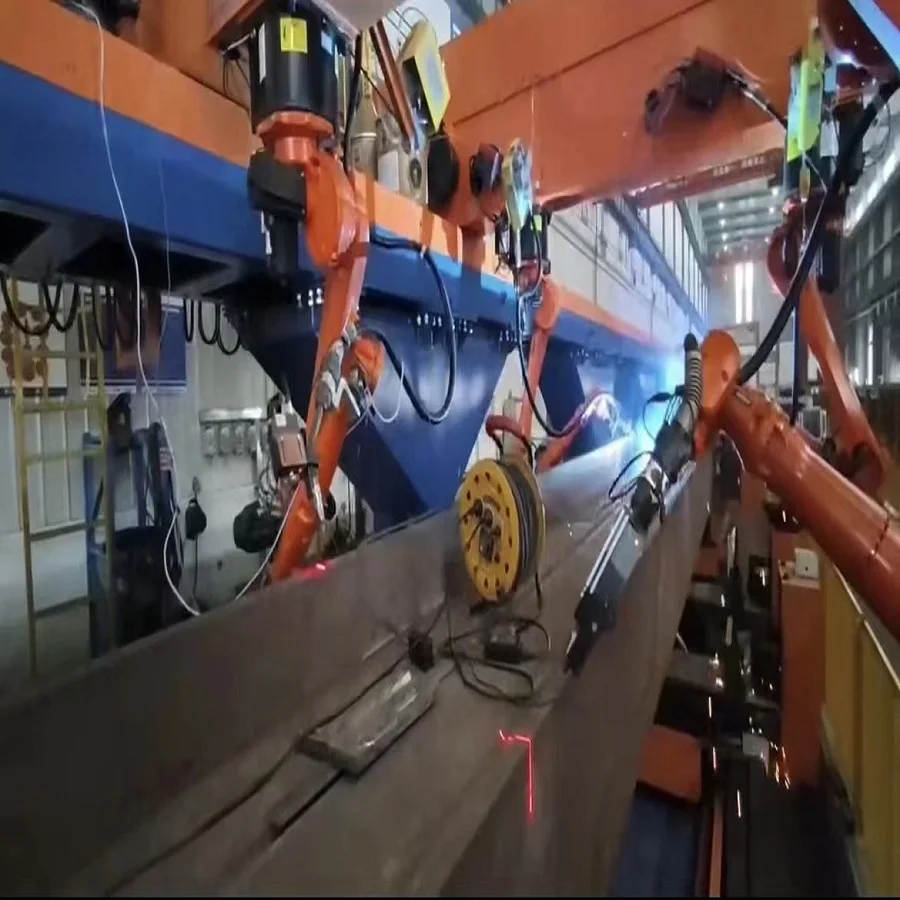

The emergence of industrial robots has replaced traditional labor models, improved work efficiency, assisted the development of enterprises, and greatly saved labor costs. It is efficient, stable, and economically safe. Chenxuan welding robots can achieve DeviceNeT bus digital communication with MEGMEET, WEM, LORCH, KEMMPPI, ESAB welding machines, and I/O analog communication with LINCONLN, OTC, Panasonic welding machines. They can also be retrofitted according to customer requirements using current welding machines. And it is widely used in hardware welding fields such as automobiles and accessories, motorcycles and accessories, agricultural machinery, engineering machinery, etc. (Note: Avoid contact with flammable, explosive, and corrosive gases and liquids; do not splash water, oil, or dust; stay away from electrical noise sources such as plasma)
Transfer robot
Welding robot
Stamping machine
Cooperative Robot
Conveyor line
Positioner
Silo
Ground track

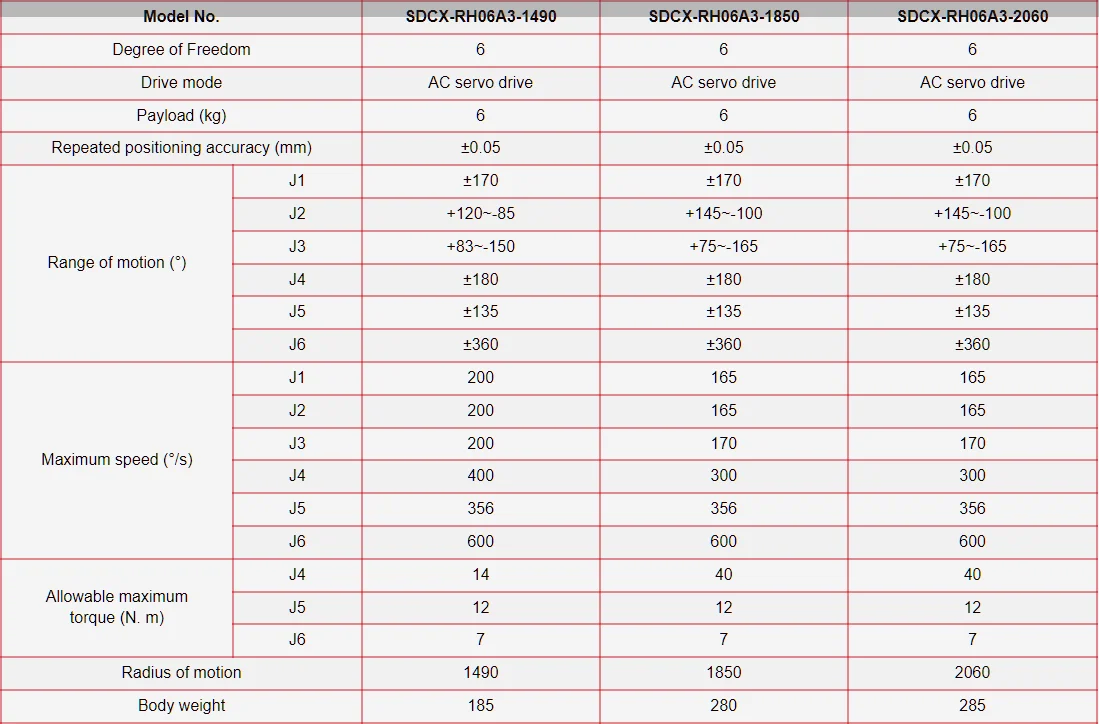

Specification
model | M-10iD/16S | M-10iD/12 | M-10iD/10L | M-10iD/8L | M-20iD/25 | M-20iD/35 | M-20iD/12L | ||||||||
Number of control axes | 6-axis (J1, J2, J3, J4, J5, J6) | ||||||||||||||

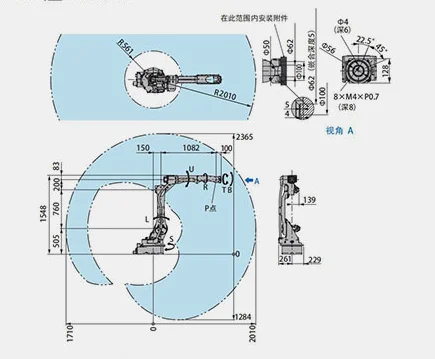

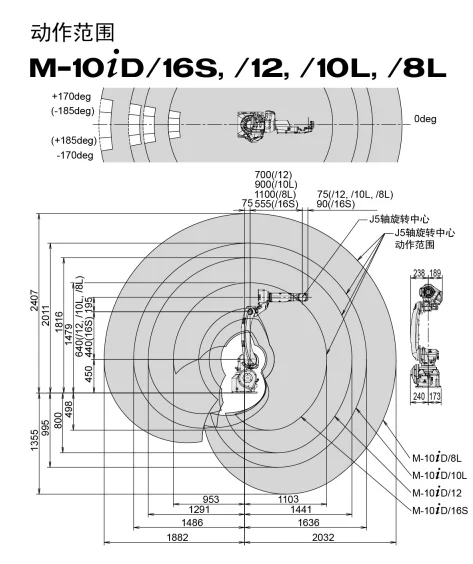

Reachable radius | 1103 mm | 1441 mm | 1636 mm | 2032 mm | 1831 mm | 2272 mm | |||||||||
Installation method note 1) | Ground mounted, top mounted, with a tilt angle of 370 ° (210% s) | ||||||||||||||
Action range (maximum speed) Note 2), Note 3), Note 4) | J1轴 | 370(290%/s)6.46 rad (5.06 rad/s | 370 '(260s) 6.46 rad (4.54 rad/s) | 370°(210%s)6.46 rad (3.67 rad/s) | 370°(180%s)6.46 rad (3.14 rad/s) | 370°(210%s)6.46 rad (3.67 rad/s) | |||||||||
J2轴 | 235(270%s)4.10 rad (4.71 rad/s) | 235°(240%s)4.10 rad (4.19 rad/s) | 235(210°s)4.10 rad (3.67 rad/s) | 260°(210s)4.54 rad (3.67 rad/s) | 260°(180s)4.54 rad (3.14 rad/s) | 260°(210s)4.54 rad (3.67 rad/s) | |||||||||
J3轴 | 455°(270s)7.94 rad (4.71 rad/s) | 455°(260%s)7.94 rad (4.54 rad/s) | 455°(220%s)7.94 rad (3.84 rad/s) | 458°(265%s)8.00 rad (4.63 rad/s) | 458°(200s)8.00 rad (3.49 rad/s) | 458(265%s)8.00 rad (4.63 rad/s) | |||||||||
J4轴 | 400°(420%s)6.98 rad (7.33 rad/s) | 400°(350s)6.98 rad (6.11 rad/s) | 400°(420%s)6.98 rad (7.33 rad/s) | ||||||||||||
J5轴 | 360°(420%s)6.28 rad (7.33 rad/s) | 360°(350s)6.28 rad (6.11 rad/s) | 360°(450%s)6.28 rad (7.85 rad/s) | ||||||||||||
J6轴 | 900°(730%s)15.71 rad (12.74 rad/s) | 15.71 rad (12.57 rad/s) | 900°(400%s)15.71 rad (6.98 rad/s) | 900°(720%s)15.71 rad (12.57 rad/s) | |||||||||||
Wrist transportable mass | 16kg | 18kg | 10kg | 8kg | 25kg | 35kg | 12kg | ||||||||
Wrist allowable load torque | J4轴 | 26.0 Nm | 22.0 Nm | 16.1 Nm | 52.0 Nm | 110.0 Nm | 22.0 Nm | ||||||||
J5轴 | 26.0 Nm | 22.0 Nm | 16.1 Nm | 52.0 Nm | 110.0 Nm | 220 Nm | |||||||||
J6轴 | 11.0 N-m | 9.8.0 Nm | 5.9 Nm | 32.0 Nm | 60.0 Nm | 9.8 Nm | |||||||||
Permissible load moment of inertia of wrist | J4轴 | 0.90 kg*㎡ | 0.65 kg*㎡ | 0.63 kg*㎡ | 2.40 kg*㎡ | 4.00 kg*㎡ | 0.65 kg*㎡ | ||||||||
J5轴 | 0.90 kg*㎡ | 0.65 kg*㎡ | 0.63 kg*㎡ | 2.40 kg*㎡ | 4.00 kg*㎡ | 0.65 kg*㎡ | |||||||||
J6轴 | 0.90 kg*㎡ | 0.17 kg*㎡ | 0.061 kg*㎡ | 1.20kg*㎡ | 1.50 kg*㎡ | 0.17 kg*㎡ | |||||||||
Repetitive positioning accuracy note 5) | 士0.02 mm | 士0.03 mm | 士0.02 mm | 士0.03 mm | |||||||||||
Robot Quality Note 6) | 145 kg | 150kg | 180kg | 250kg | |||||||||||
Installation conditions | Environmental temperature: 0-45C Environmental humidity: usually below 75% RH (without condensation), short-term below 95% RH (within one month) Vibration acceleration: below 4.9m/s (0.5G) | ||||||||||||||
