150bar IBC Tank Cleaning Automatic High Pressure Water Jet Cleaner Hydro Blasting Machine
- Category: >>>
- Supplier: Zhengzhou Guangyuan Cleaning Equipment Co. Ltd.
Share on (1601014613629):
Product Overview
Description
Product Description
Main Features
1.High pressure pump imported from Italy UDOR, copper pump head, ceramic plunger;
2.The pressure regulating valve is stainless steel body, alloy valve core;
3.Resistance of high temperature,high pressure, corrosion;
4.Small size and light weight, easy to move and operate;
5.Pure high-pressure water physical cleaning, no need to add any chemical agents, environmental protection and pollution-free.
6.High endurance, can be used for 24 hours continuous working;

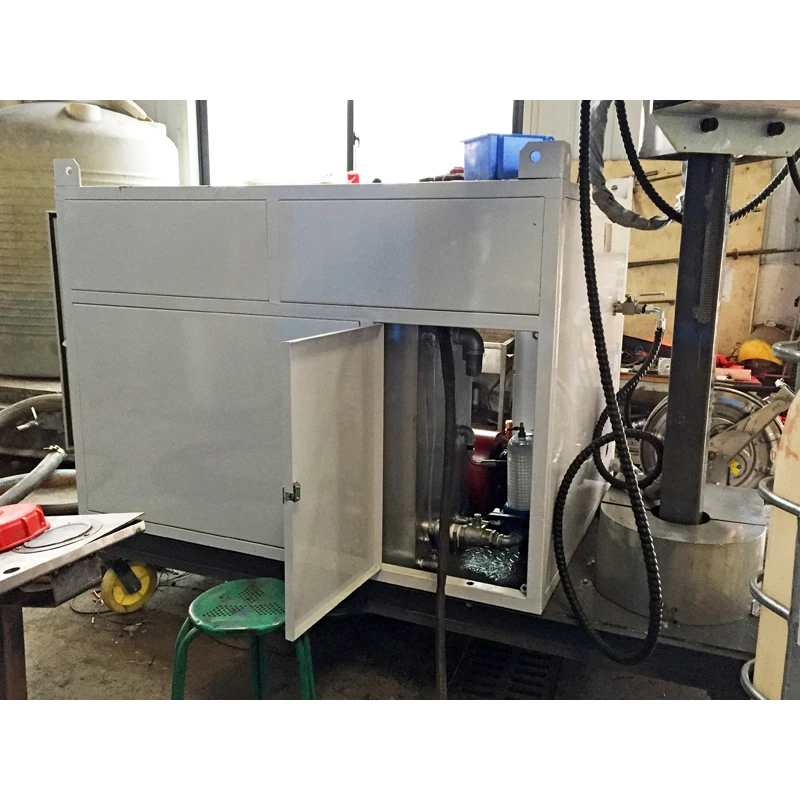

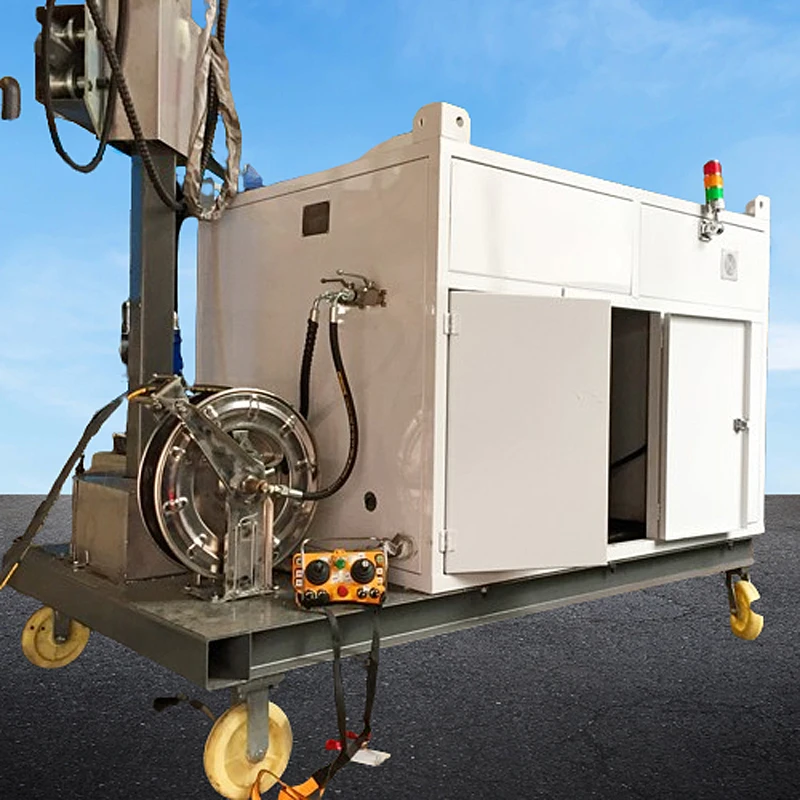

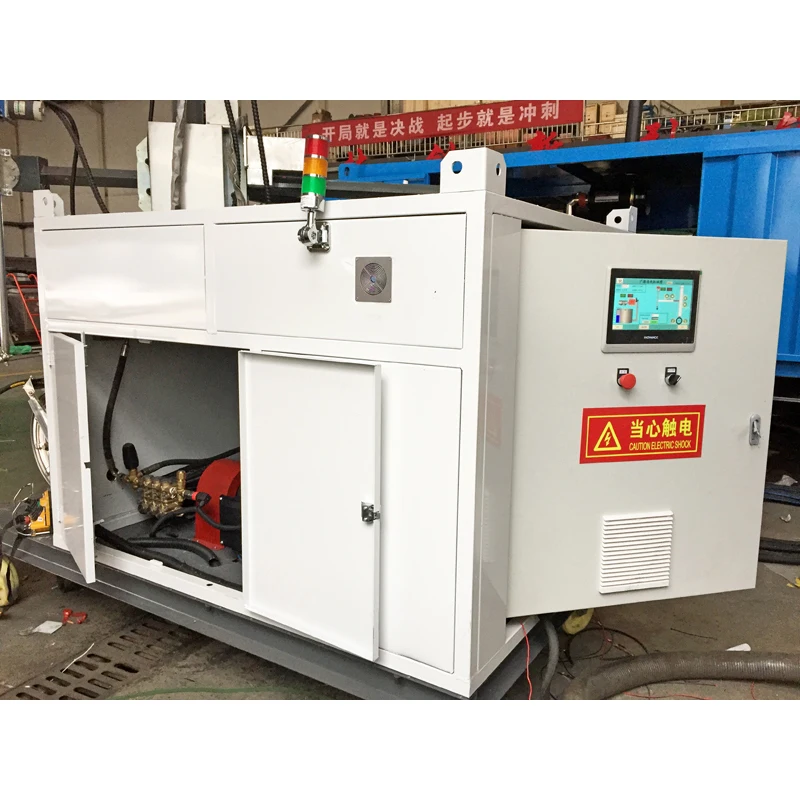

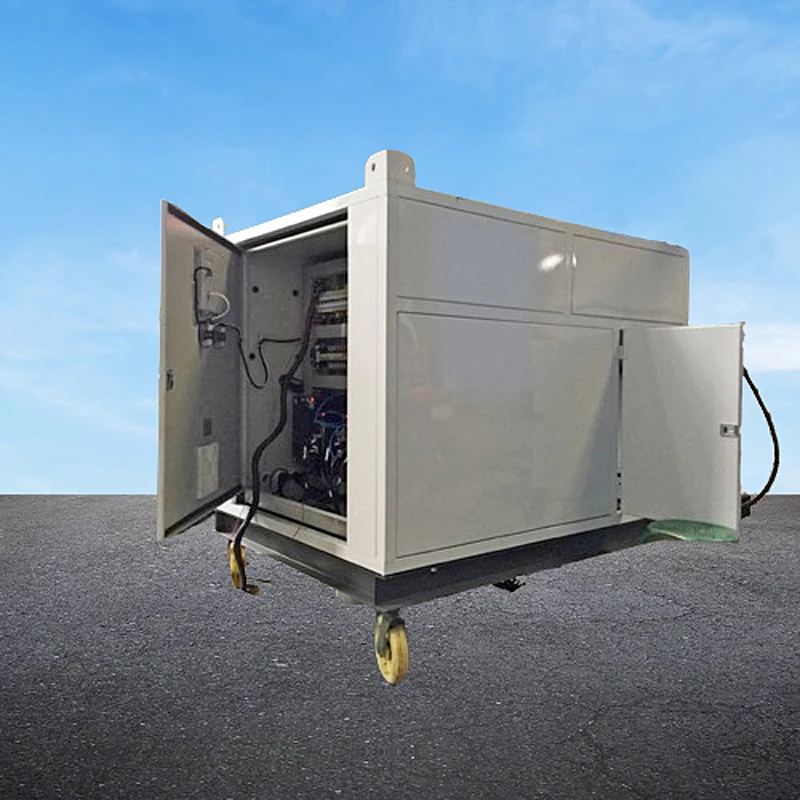

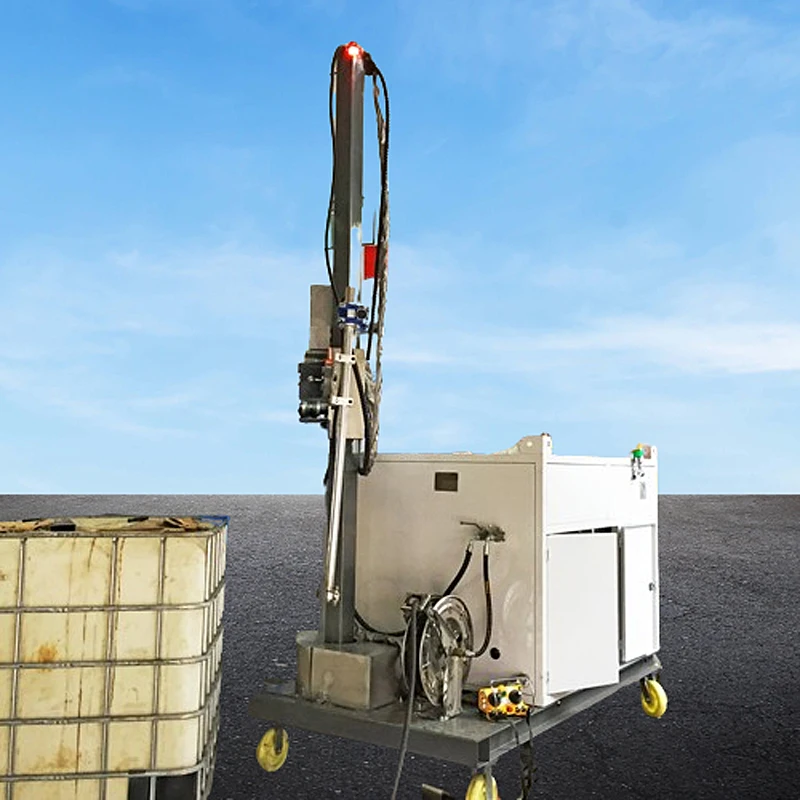

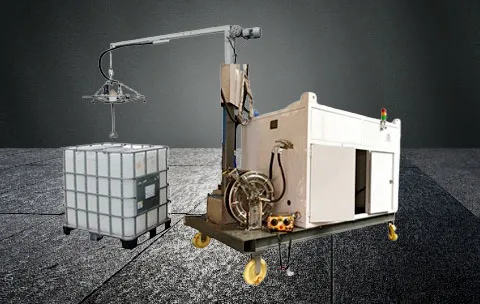

Guangyuan Cleaning Equipment has developed an automatic IBC Tank cleaning hydro blasting machine based on the characteristics and cleaning needs of IBC Tank. Two high-pressure hoses extend from the main machine, and one high-pressure hose is attached to the telescopic rod next to the main machine. The telescopic rod can be bent and stretched. Inside the IBC Tank, a three-dimensional rotating nozzle is equipped to clean the inside of the IBC Tank with a 360° high-pressure water jet. Another high-pressure hose can simultaneously clean the outside of the IBC Tank with high-pressure water jet.
The average time to clean a IBC Tank is 2-6 minutes ( Depending on the degree of dirt of the ton barrel), the system can clean the
inside and outside of the IBC Tank in an all-round and rapid manner. The cleaning efficiency is high and the labor burden on the
staff is small. It is suitable for today's IBC Tank cleaning industry.
inside and outside of the IBC Tank in an all-round and rapid manner. The cleaning efficiency is high and the labor burden on the
staff is small. It is suitable for today's IBC Tank cleaning industry.

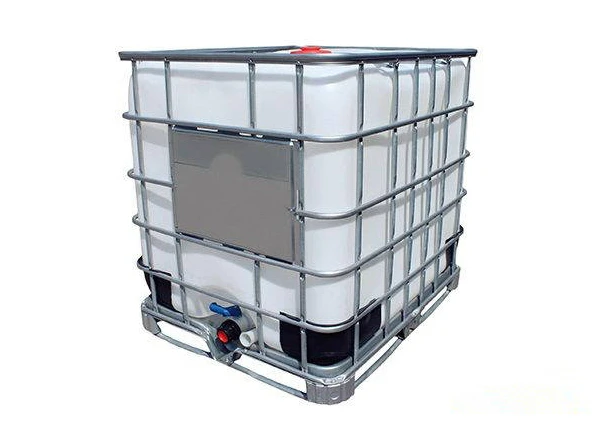

IBC Tank refers to IBC intermediate bulk container. It is an essential tool for modern storage and transportation of liquid products. The container barrel is composed of an inner container and a metal frame. The inner container is blow-molded with high molecular weight and high-density polyethylene, which has high strength, corrosion resistance and good hygiene. Packaging in container barrels can greatly reduce production, storage, transportation, and operating costs, and save a lot of manpower and material resources. Ton barrels can be reused, but they must be cleaned each time to ensure that the liquid or materials inside will not be Impurity contamination.
Specification
Name | IBC tank automatic cleaning high pressure machine |
Model | GYB-150 |
Speed | 1480 rpm |
High pressure pump | 150bar high pressure water jet blaster pump Triple plunger pump Pump head material: stainless steel Plunger material:ceramic |
Rate Pressure | 150 bar / 2200 psi |
Water flow | 30 L/min |
Plunger dia. | 18mm |
explosionproof motor power | 5.5kw, 3 phase, 380v/50Hz/ 440v/60Hz can be customized |
High pressure hose
Rubber high pressure hose
inside Wire winding
Contact thread: M22*1.5
can produce with quick connect
High pressure water spray gun
Max pressure: 350bar
with lance 800mm, can be customized
easy to be operate
High pressure nozzle
Plastic material with steel cone
Spray angle can be chose: 0°，15°，25°，40°，65°
Automatic hose reel
Can automatically retract and release high-pressure hose for external surface cleaning
Remote control
It can remotely control the start and stop of the equipment, the vertical expansion and contraction of the telescopic rod, the retraction and release of the automatic hose reel, etc.
Three-dimensional rotating nozzle
The nozzle rotates inside the box to achieve 360° high-pressure water jet cleaning of dirt inside the tank.
Application
1.Many area industrial cleaning purpose, heat exchanger tube cleaning, condenser tube cleaning, pipe cleaning, reactor tank cleaning, filter screen cleaning, boil cleaning, tank cleaning, etc…
2.Pipe pressure test, valve / hose pressure test, hydro pressure test, etc
3.Water injection
4.Cement plant pipe cleaning, grease remove from the equipment surface, fouling layer removal
5.Construction industry, car/truck cleaning, mixing drum/tank cleaning, tar/cement/agglutinant cleaning, etc…
6.Food processing plant, mixing tank cleaning, grease/ fouling layer / residual removal, evaporator/boil cleaning, etc.
7.Shipyard rust removal, paint removal, ship hull cleaning, boat surface cleaning, dirt removal, sea creatures remove from the hull bottom.
8.Metallurgy plant, heat exchanger tube cleaning, boil, feed tank, warehouse dirt cleaning, descale removal…
9.Metal cutting, steel plate cutting, thickness about 20mm
10.Aluminium smelters tank cleaning, rosebox cleaning, molding machine cleaning, bauxite deposit removal..
11.Machine producing plant, volume / pipe / tank / rust / oxide skin cleaning…
2.Pipe pressure test, valve / hose pressure test, hydro pressure test, etc
3.Water injection
4.Cement plant pipe cleaning, grease remove from the equipment surface, fouling layer removal
5.Construction industry, car/truck cleaning, mixing drum/tank cleaning, tar/cement/agglutinant cleaning, etc…
6.Food processing plant, mixing tank cleaning, grease/ fouling layer / residual removal, evaporator/boil cleaning, etc.
7.Shipyard rust removal, paint removal, ship hull cleaning, boat surface cleaning, dirt removal, sea creatures remove from the hull bottom.
8.Metallurgy plant, heat exchanger tube cleaning, boil, feed tank, warehouse dirt cleaning, descale removal…
9.Metal cutting, steel plate cutting, thickness about 20mm
10.Aluminium smelters tank cleaning, rosebox cleaning, molding machine cleaning, bauxite deposit removal..
11.Machine producing plant, volume / pipe / tank / rust / oxide skin cleaning…
Customized service
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zhengzhou GuangYuan Cleaning Equipment Co.,Ltd. Is a manufacturer for high pressure water jetting machine, founded in 2012, is committed to explore the field of a high pressure water jet market brand. Our company is located in Henan Province, China.
We are professional in the design, manufacture and production of high pressure cleaning machine, water blaster, High pressure cleaner, high pressure pump, cleaning system customization etc. Our cleaning machine can be applied in both industrial and family cleaning, such as shipyard, power plant, starch factory, etc. 15kw electric sewer pipeline cleaner, which are used for pipe cleaning, pressure test, shipyard rust remove, paint remove, building surface cleaning, concrete cutting, etc. Our company has years of research and experience in first-class design technology, excellent assembly line and good quality control system. Our products are welcomed by customers from all over the world. We sincerely look forward to cooperating with new and old clients.
We are professional in the design, manufacture and production of high pressure cleaning machine, water blaster, High pressure cleaner, high pressure pump, cleaning system customization etc. Our cleaning machine can be applied in both industrial and family cleaning, such as shipyard, power plant, starch factory, etc. 15kw electric sewer pipeline cleaner, which are used for pipe cleaning, pressure test, shipyard rust remove, paint remove, building surface cleaning, concrete cutting, etc. Our company has years of research and experience in first-class design technology, excellent assembly line and good quality control system. Our products are welcomed by customers from all over the world. We sincerely look forward to cooperating with new and old clients.
Certifications
FAQ
1. Are you trading company or manufacturer?
--We are manufacturer here for over 15 years. Producing commercial high pressure cleaner.
2. How to choose suitable model?
-- You can confirm your working purpose request, we have rich experience on water jetting field, and also we have our own Professional technical team to give you better suggest and recommend;
3.What kind of engine we can choose?
-- Here has Electric motor drive, Diesel engine, Petrol engine; you can freely choose it.
4.What's your warranty?
--Warranty is one year.
5.How long is your delivery time?
--It's according to the model you order. If has in stock,within 2 days; if without stock, within 15 days.
6.What's your payment terms?
-- We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment <=USD 5000, suggest 100% in advance;
Payment >=USD 5000, suggest 40% in advance, balance before shipment.
7.What Certificate do you have?
--We can offer CO ( Certificate of Origin), FA(Form A), FE, FF; CE certificate,
-- Or if you have other request certificate, pls confirm with us.
8.Which is your shipping port?
--Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
9.What's the shipping way?
--As machine is little big, suggest delivery by sea, if accessories or spare parts, suggest by express (DHL, Fedex, etc).
--We are manufacturer here for over 15 years. Producing commercial high pressure cleaner.
2. How to choose suitable model?
-- You can confirm your working purpose request, we have rich experience on water jetting field, and also we have our own Professional technical team to give you better suggest and recommend;
3.What kind of engine we can choose?
-- Here has Electric motor drive, Diesel engine, Petrol engine; you can freely choose it.
4.What's your warranty?
--Warranty is one year.
5.How long is your delivery time?
--It's according to the model you order. If has in stock,within 2 days; if without stock, within 15 days.
6.What's your payment terms?
-- We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment <=USD 5000, suggest 100% in advance;
Payment >=USD 5000, suggest 40% in advance, balance before shipment.
7.What Certificate do you have?
--We can offer CO ( Certificate of Origin), FA(Form A), FE, FF; CE certificate,
-- Or if you have other request certificate, pls confirm with us.
8.Which is your shipping port?
--Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
9.What's the shipping way?
--As machine is little big, suggest delivery by sea, if accessories or spare parts, suggest by express (DHL, Fedex, etc).
