Product Overview
Description

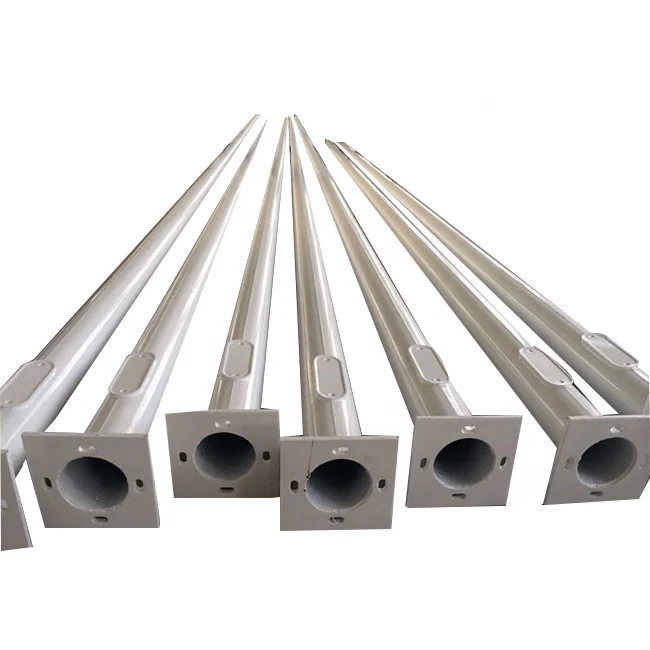

conical pole, total 5m high, diameter 114-60mm (bottom pole diameter suitable to enter bottom base top diameter 100mm)
Street light pole high mast pole garden light pole traffic light pole electric pole aluminum pole aluminum profile pole fiberglass pole concrete pole copper pole steel pole steel pipe conical pole tapered pole solar light pole decorative pole landscaping pole bollard light pole square pole hexagon octagonal pole round pole foldable tilt pole galvanised pole traffic sign pole signal light pole camera pole speed limit pole cast iron pole cast aluminum pole cast copper pole flag pole pole manufacturing equipment solar pole flexible solar panel pole cast iron pole cast aluminum pole outdoor furniture
Triangle square pentagon hexagon heptagon octagon nonagon decagon hendecagon dodecagon tetradecagon Octadecagon 24 sided polygon
Volttalent street light pole pillar post garden lamp cast iron aluminum dustbin bench leg base bollard
fb dot com slash volttalent
wssapp wichatt: 0086 one five two 0176 zero six seven eightt
H | S | D1 | D2 | F1 | F2 |
| (mm) | (cm) | (cm) | (cm) | (kg) |
6M | 2.5/3 | 60-76 | 135/140 | 280*280*12 | 55 |
7M | 2.75/3 | 60-76 | 150 | 280*280*12 | 81 |
8M | 3 | 60-76 | 150/160 | 280*280*12 | 100 |
9M |
3.25/3.50 |
60-76 |
175/180 | 300*300*12 340*340*14 |
118 |
10M |
3.5/3.75 |
60-75 |
180/190 | 350*350*12 360*360*14/16 |
146 |
11M |
3.5/3.75/4 |
60-70/80 |
180/200/210 | 350*350*16 360*360*16/18 |
165 |
12M |
3.75/4 |
60-70/80 |
200/210 | 350*350*16 380*380*16/18/20 |
190 |
The poles are manufactured from tapered polygonal sections which are
slipped together at site and so maintenance of close tolerances and
straightness arethrust areas. They come ready as ange-plated, galvanizeda
nd custom designed.
Uses high-strength sheet steel and can produce single-piece poles up to a
length of 14 meters. The two shell halves are welded together with
advanced systems and with automatic sigma machines. The octagonal
poles shafts are continuously tapered with single longitudinal welding &
no circumferential weld. The manufacturing facilities available allows
production of single section of length up to 14 meters, which can be

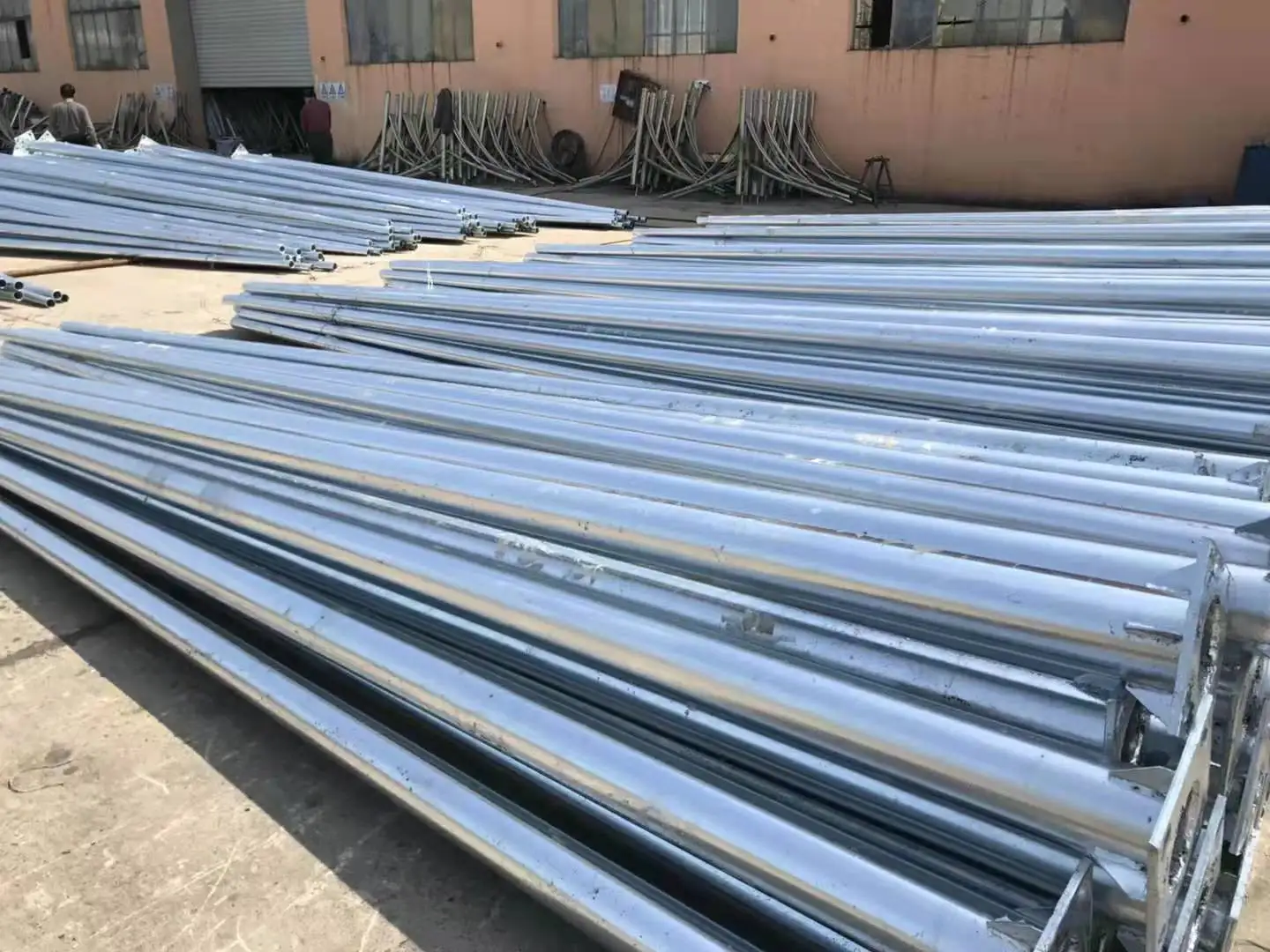

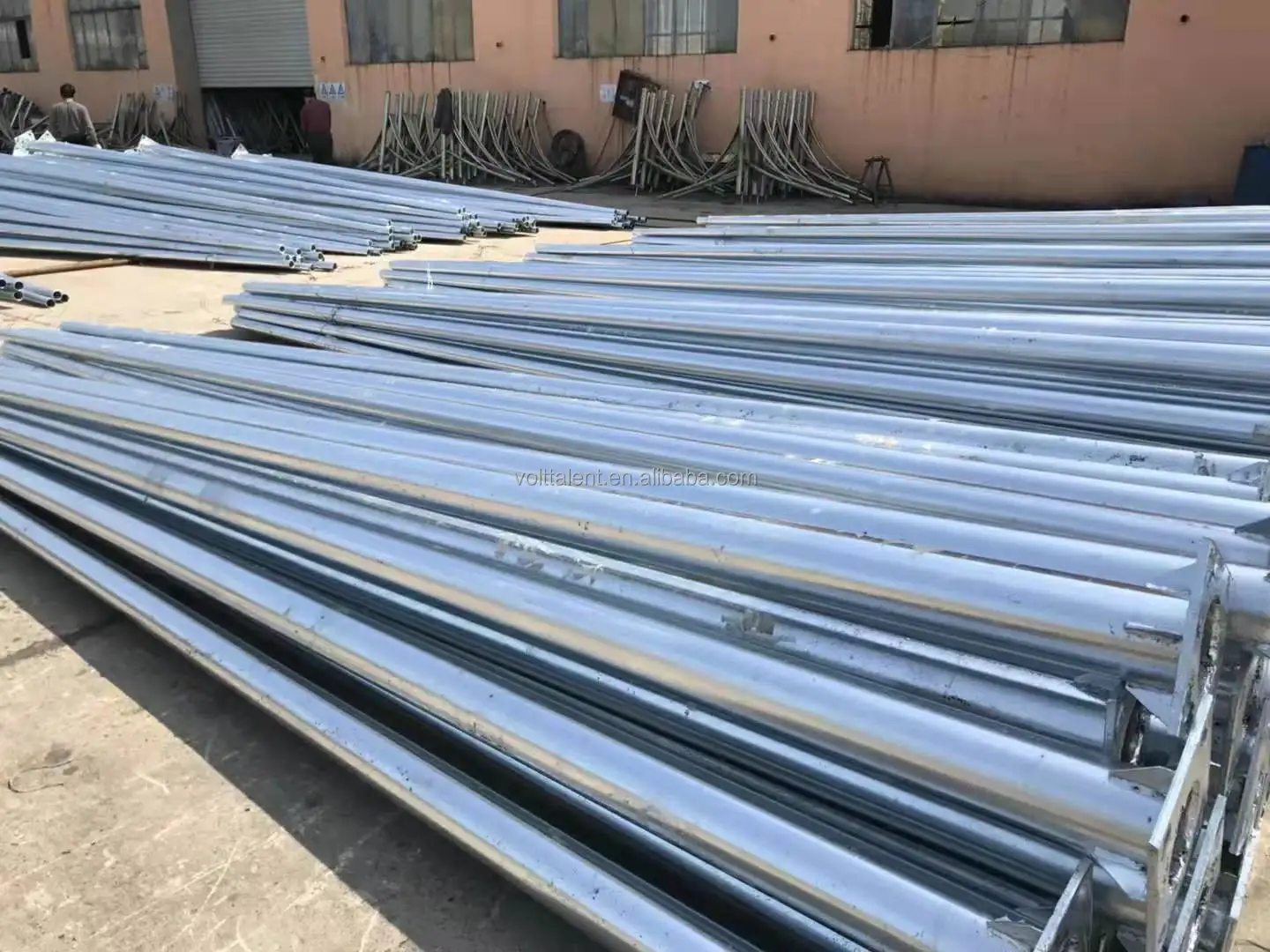

galvanized through single dip process at the company's in-house
sophisticated galvanizing facilities, and guarantees great corrosion resistance.
X-ray,ultrasound, and surface-crack inspections ensure top material quality
and help maximize the life of poles and masts.
DesignThe Octagonal Poles are designed to withstand maximum wind
speed aslevel18 The top loading area and the weight of xtures are
considered while calculating the maximum deection of the pole and
tomeet the national standard
Pole ShaftThe pole shafts have octagonal cross section and are continuously tapered
with single longitudinal welding There is no circumferential welding. The
welding of pole shaft is done by Submerged Arc Welding (SAW) process.

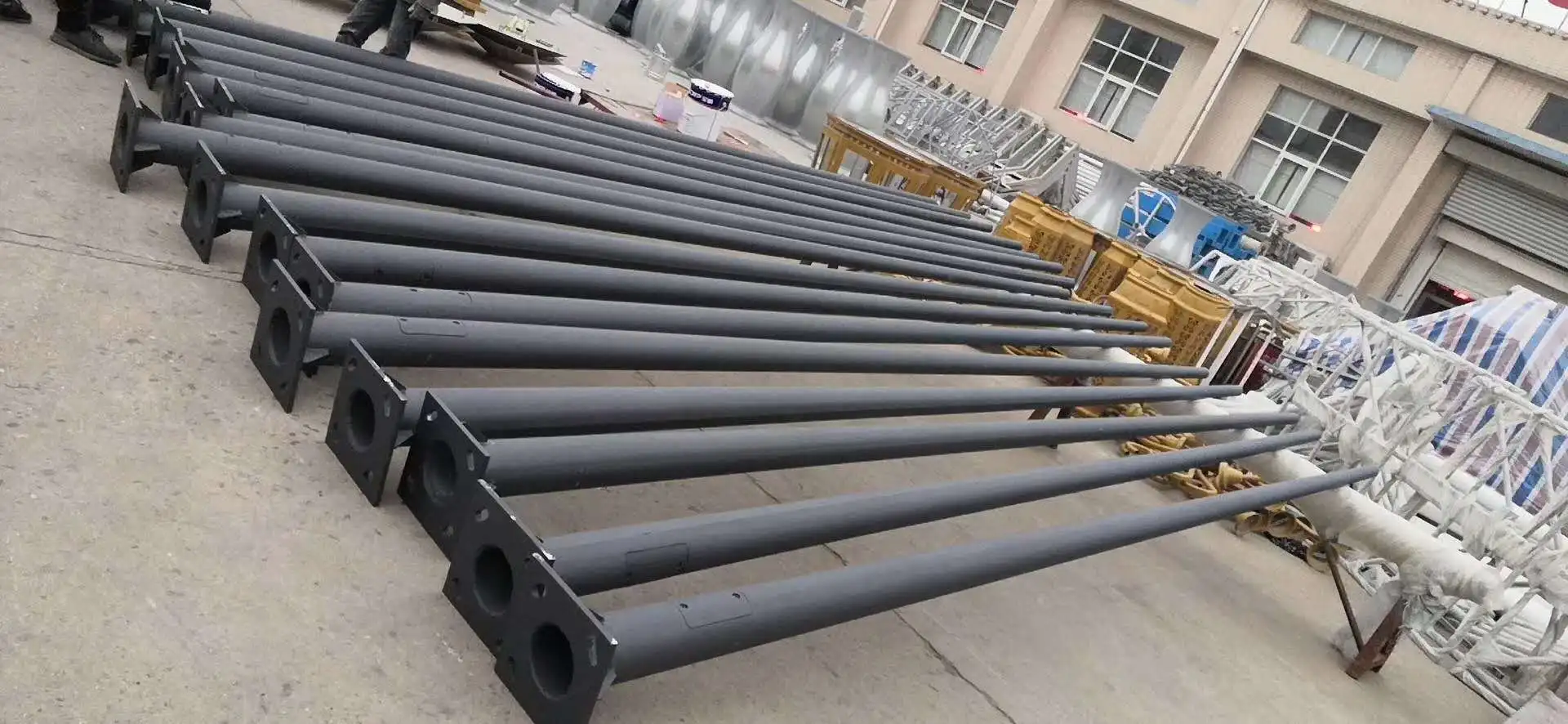

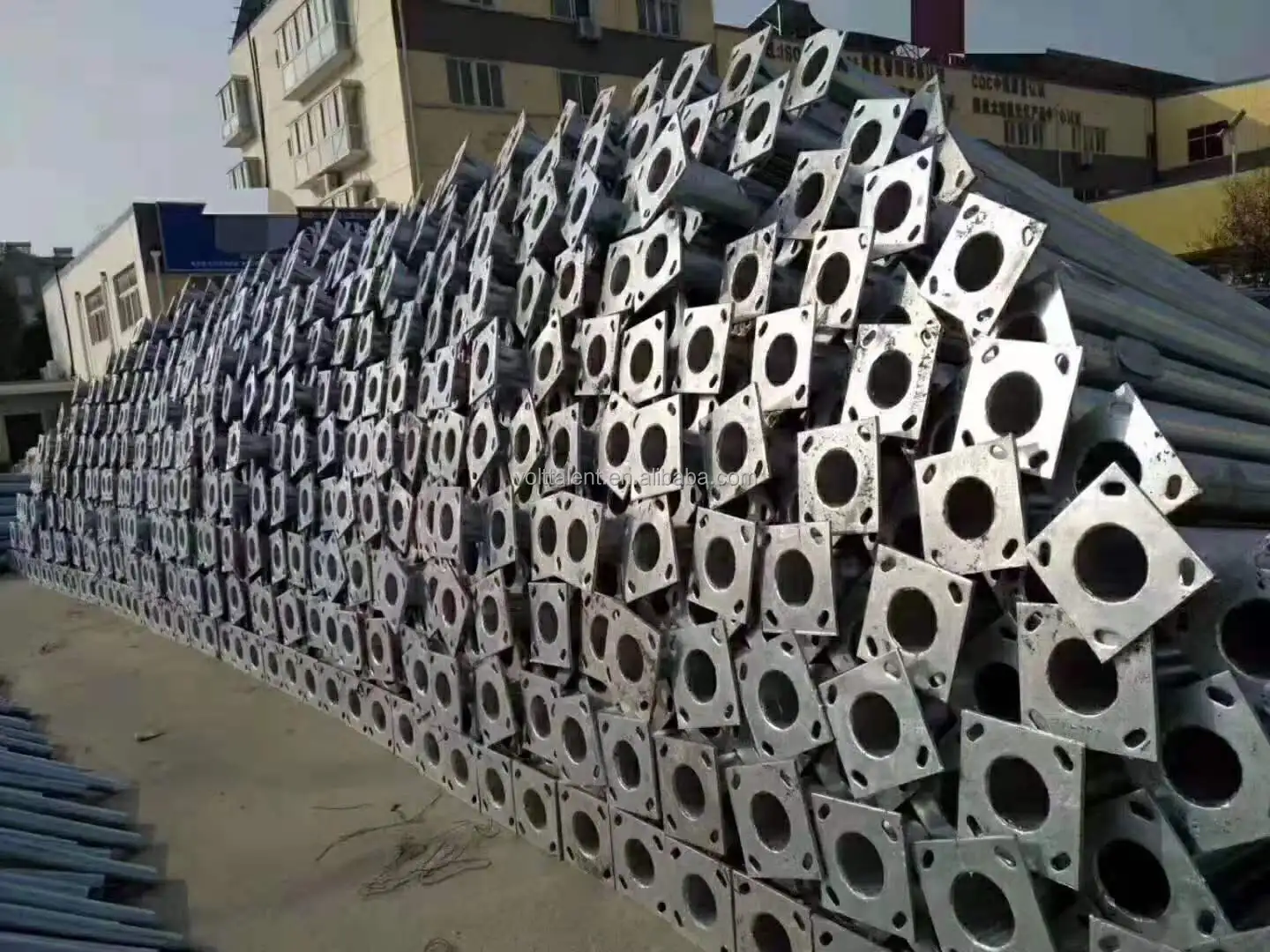

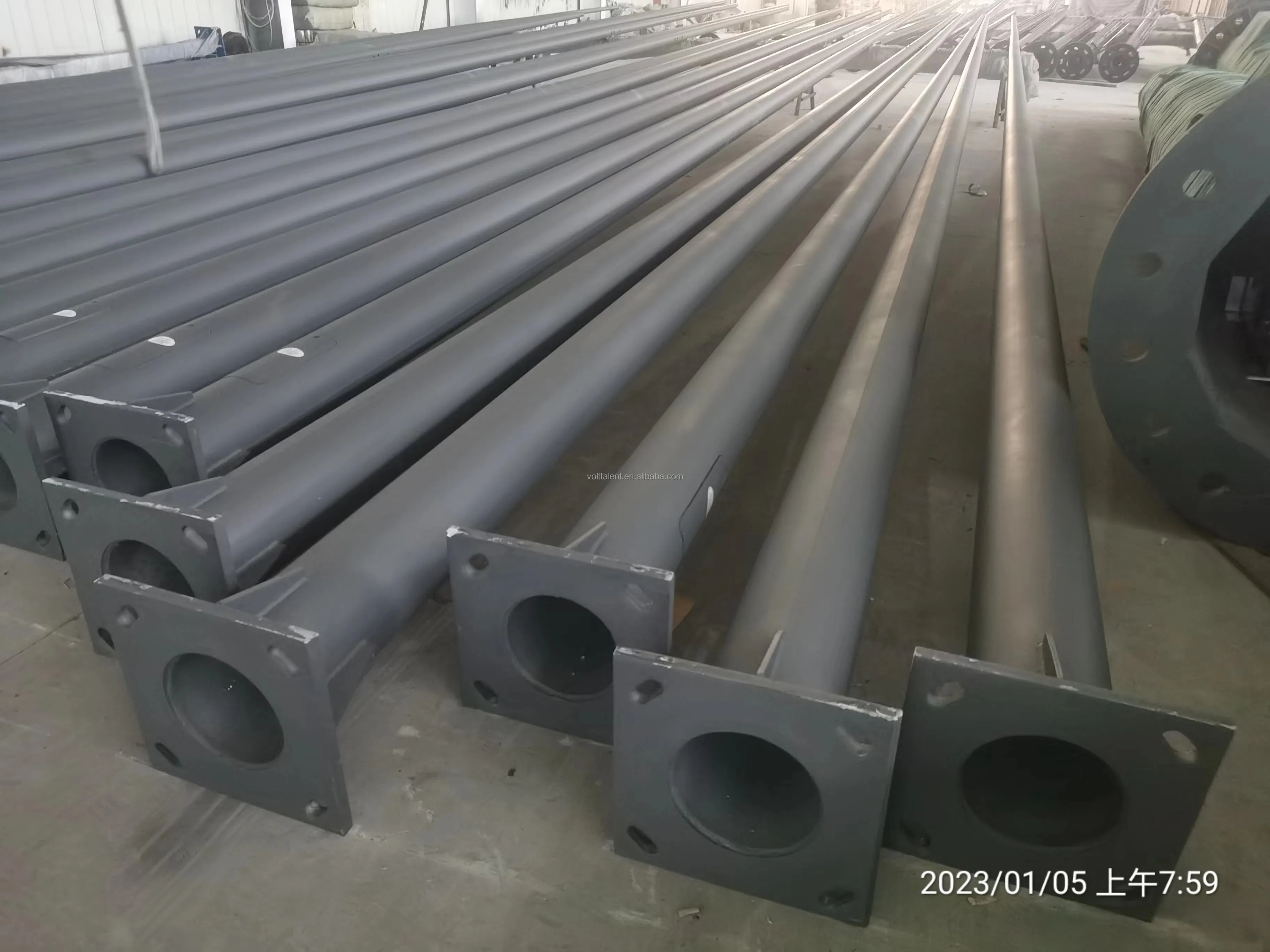

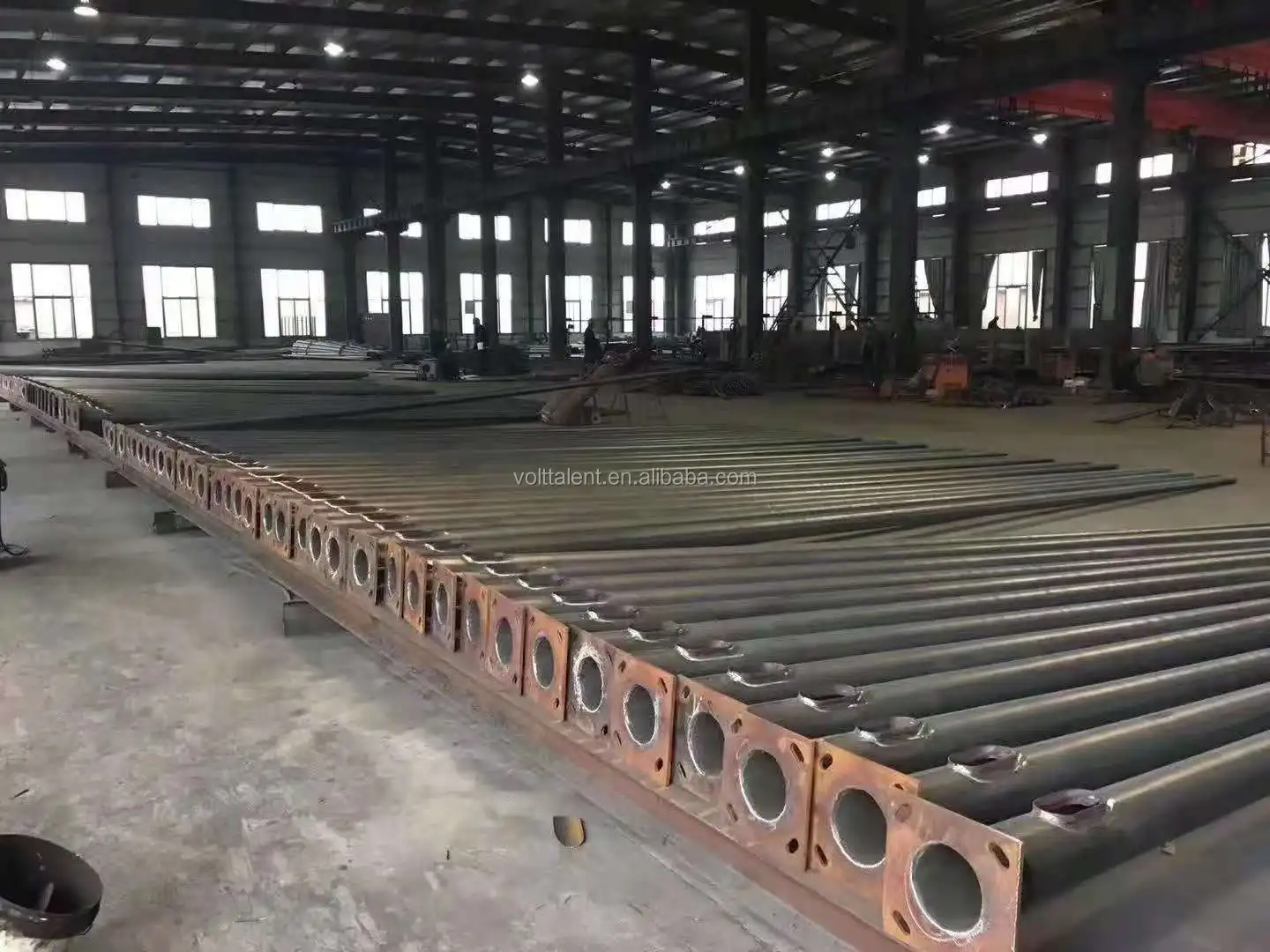

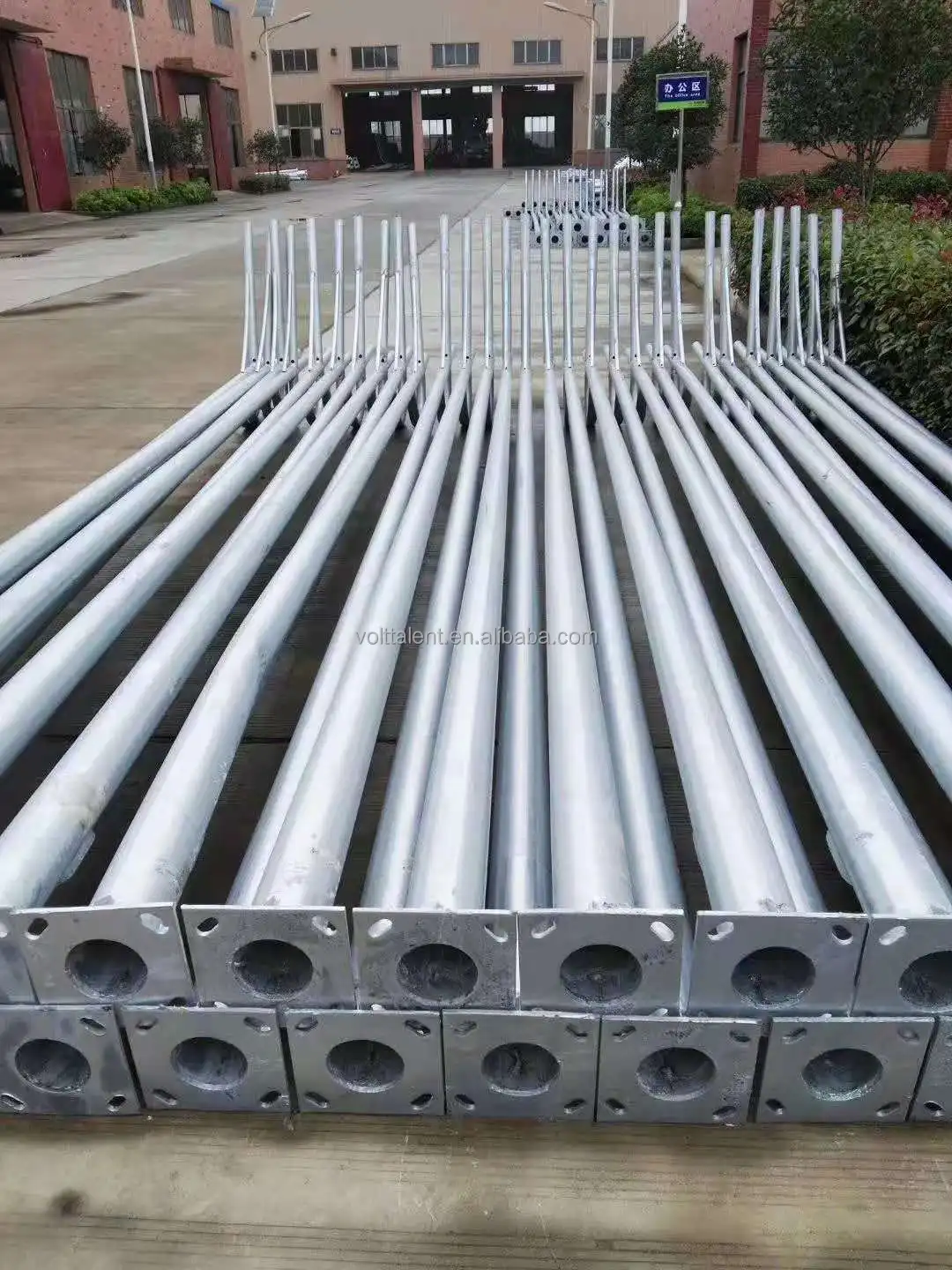

They are provided with rigid ange plate of suitable thickness with provision
for xing 4 foundation bolts. This base plate is llet welded to the pole
shaft from inside and outside.
Wire Door openingThe octagonal Poles have a door of approximate 500 mm length at the
elevation of 500 mm from the Base plate. The door is vandal resistant and
weather proof to ensure safety of internal connections. The door is ush
with the exterior surface and has suitable locking arrangement. There is
also a suitable arrangement for earthling. The poles are adequately
strengthened at the location of the door.
H6M7M8M9M10M11M12MS(mm)2.5/32.75/333.25/3.503.5/3.753.5/3.75/43.75/4D1(cm)60-7660-7660-7660-7660-7560-70/8060-70/80D2(cm)135/140150150/160175/180180/190180/200/210200/210F1(cm)280*280*12280*280*12280*280*12300*300*12
340*340*14
350*350*12
360*360*14/16
350*350*16
360*360*16/18
350*350*16
380*380*16/18/20
F2(kg)5581100118146165190
