Waterproof roller safety limit switches

Share on (1601014638671):


Price:

Quantity:


Product Overview

Description


Product Description

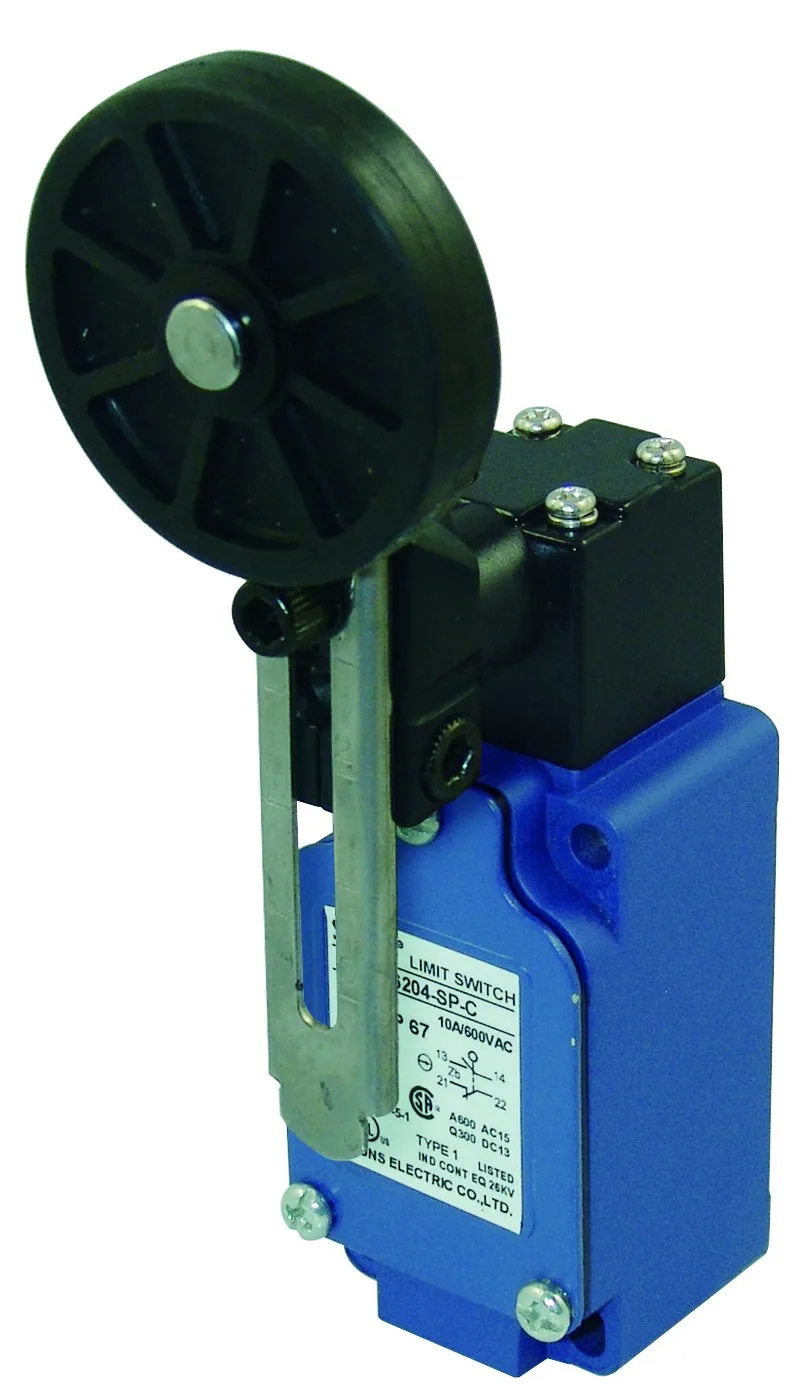

SN6218 electrical rotary type waterproof safety UL rated switches

\t
Specifications
\t
2
\t
Operating Speed
\t
0.02mm-0.5m/sec
\t

2
\t

Operating Frequency
\t
Mechanical:120ops/min
\t
Electrical:20ops/min
\t
3
\t
Insulation Resistance
\t
>100MΩ@500V DC
\t
4
\t
Contact Resistance
\t
<25mΩ
\t
5
\t
Rated Thermal Current
\t
10A /600V AC (EN60947-5-1)
UL/cUL Listed (216958) AC15 A600/ DC13 Q300
\t

6
\t

Dielectric Strength
\t
1000VAC for 1 min between current carrying parts
\t
2500VAC for 1 min between non-current carrying parts
\t

7
\t

Service Life
\t
Mechanically 1.0x107 (operations)
\t
Electrically 5x105 (operations)
\t
8
\t
Operating Temperature
\t
-25~80℃ (-13~176°F) with no icing
\t
9
\t
Humidity
\t
<95% RH
\t
10
\t
Weight
\t
220-300g
\t
11
\t
Degree of Protection
\t
IP67
\t
Features
\t
1
\t
Aluminum die cast body
\t
2
\t
Earth grounding surface on same level as switching
\t
3
\t
Easily interchangable contact block
\t
4
\t
Galvanically separated contacts
\t
5
\t
Positive Opening of NC contacts
\t
6
\t
4x90° actuator positions
\t
7
\t
Cable entry available: M20, PG13.5 and 1/2'' NPT
Detailed Images
Packing & Delivery

FOB Port: XIAMEN

Payment Terms: TT or L/C

Minimum Order Quantity: 100 Piece/Pieces

Delivery Time: 2-4weeks
