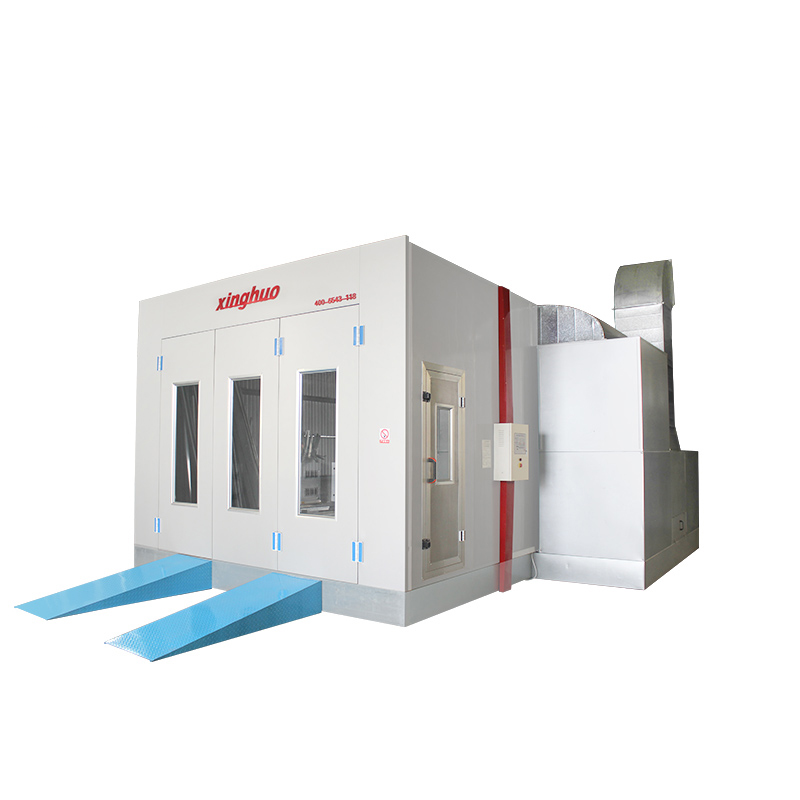

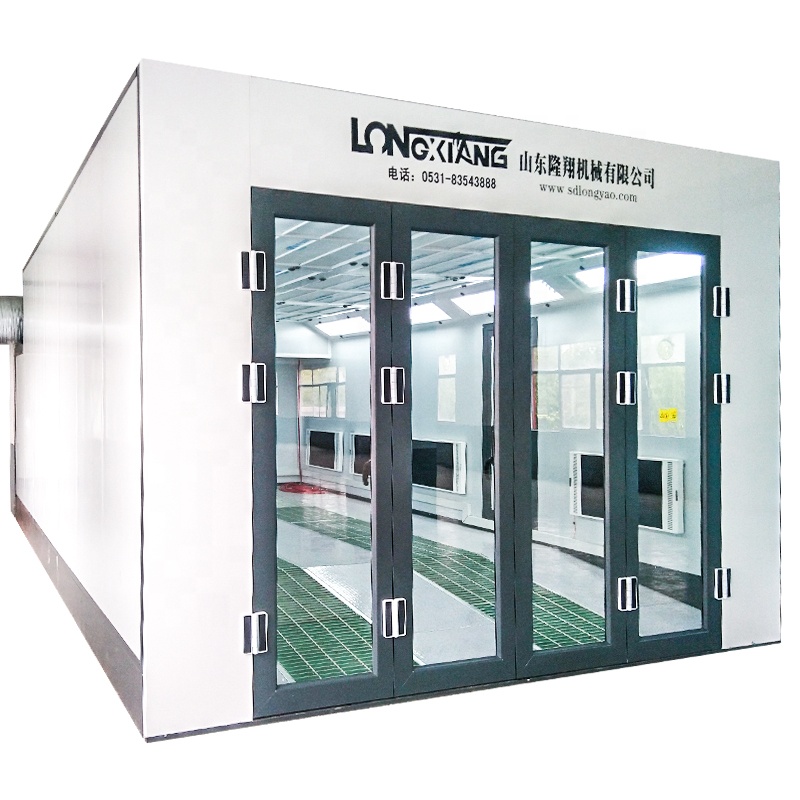

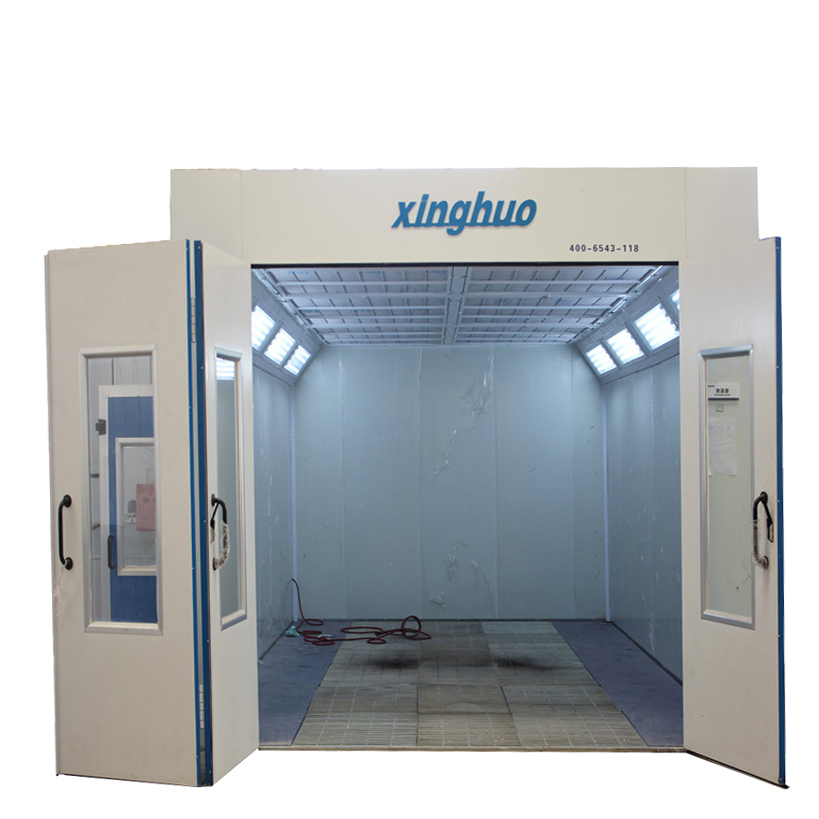

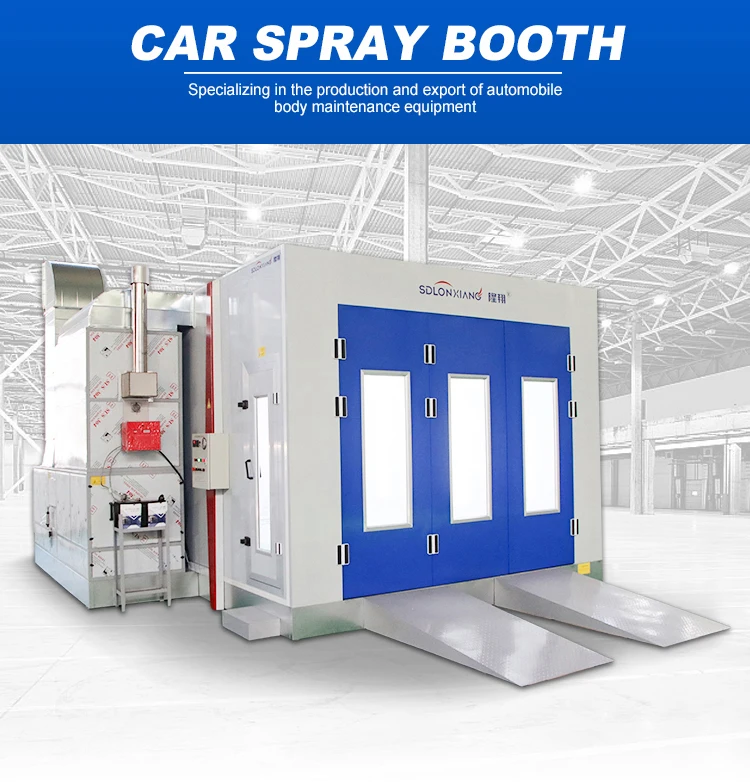

hot selling ordinary electricity heating car spray booth with outlet fan system
- Category: >>>
- Supplier: Shandong Longxiang Machinery Co. Ltd.
Share on (1601014650172):
Product Overview
Description
Product Paramenters
LX-1 | ||||||||
Outside size | 8350×4000×3200mm(L×W×H) | |||||||
Inside size | 6900×3900×2650mm(L×W×H) | |||||||
Entrance door | 3 folds,3000x2600 mm(W×H), bending steel door | |||||||
Emergency door | 650*2000mm(W*H),equipped with handle lock | |||||||
Main System | ||||||||
Cabin system | Wall panel | -Sandwich style EPS 50mm,0.4mm thick steel, anti-flame and heat-insulation. -High quality galvanized steel roof panel. | ||||||
Basement | Optional | |||||||
Ventilation system | Inlet fan | Optional | ||||||
Outlet fan | 1 set European-style exhaust air fan, air capacity:18000m³/h. Large air volume and low noise. | |||||||
Cabinet setting type | -Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful. -Cabinet for the fan*1unit ,air duct*2units. -Elbow:90°*1 unit. | |||||||
Airflow speed | On load 0.3m/s,ventilation rate:280time/h | |||||||
Heating system | Optional : Movable infrared baking lamps(3 lamps or 6 lamps) | |||||||
Lighting system | Ceiling lights | 32pcs*16w LED lighting | ||||||
Side lights | Optional | |||||||
Filtering system | Primary filter | Grade G2 plate type , filtering rate＞83% | ||||||
Floor filter | Multi-layer fiberglass filter,filtering rate＞70% | |||||||
Control system | Control panel | Intelligent control system | ||||||
Function | Lighting,painting, Overload, lack of phase protection | |||||||
Total power | 6 KW | |||||||
Voltage/ frequency | 380V,50HZ,3phase | |||||||

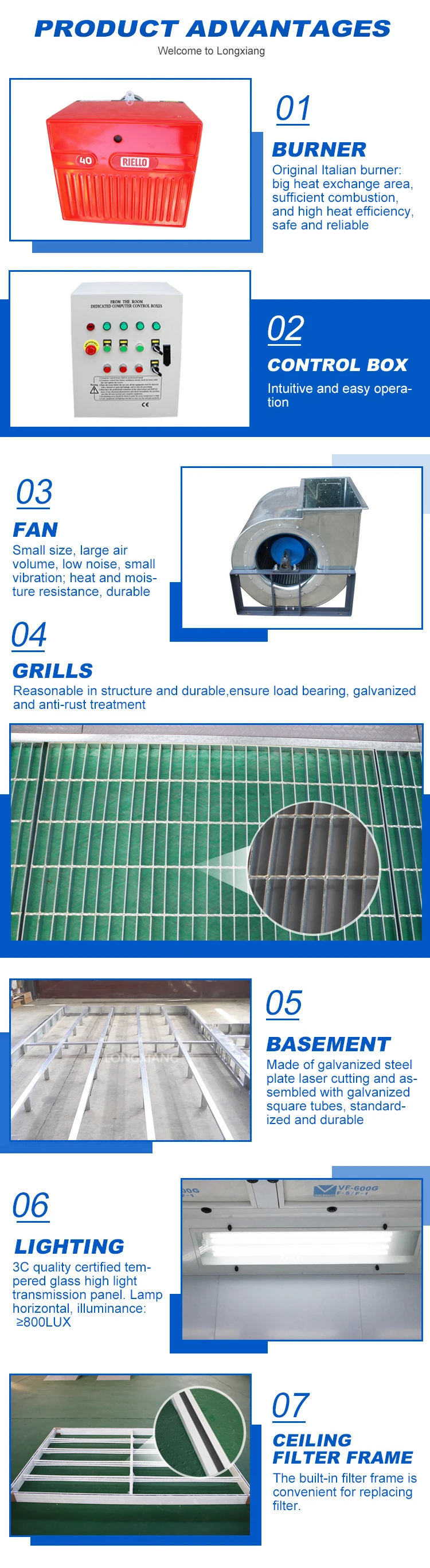

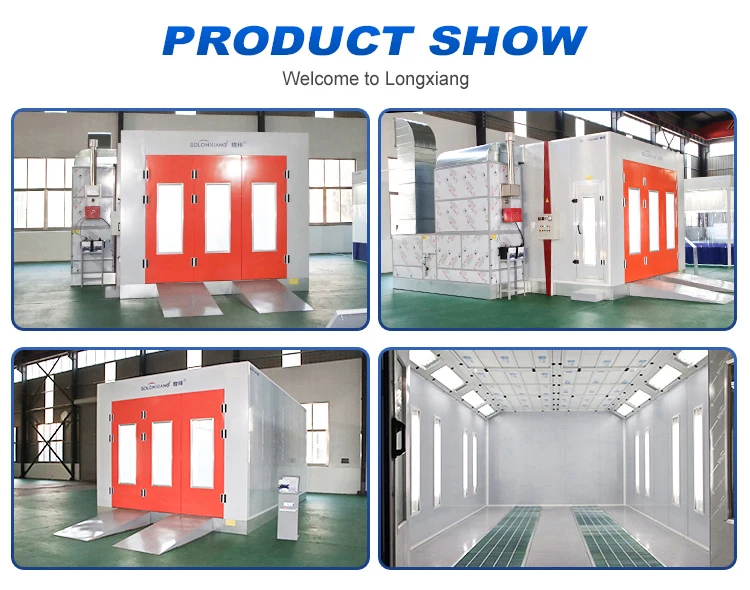

Details Images

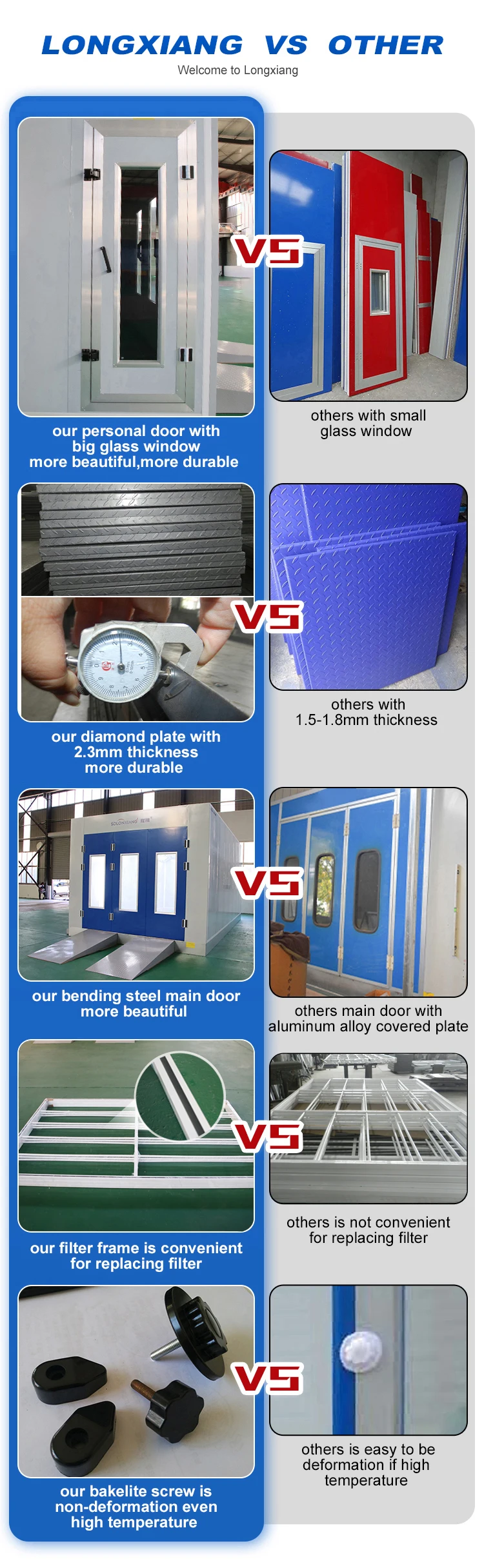

Why Choose Us

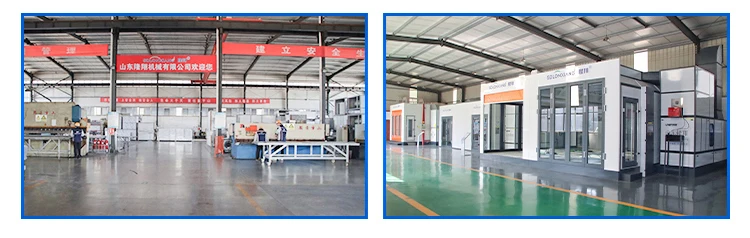

Product Process
Company Profile
Exhibition
Packaging&Shipping
FAQ
