Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
Top Ranked Automatic Coil Fed Laser Sheet Cutting Machine for Fiber Laser Metal Cutting Automatic Steel Cutting Router for Sale
- Category: >>>
- Supplier: Blue Elephant CNC Machinery Co. Ltd
Share on (1601014678069):
Product Overview
Description
Products Description
Top Ranked Automatic Coil Fed Laser Sheet Cutting Machine for Fiber Laser Metal Cutting Automatic Steel Cutting Router for Sale

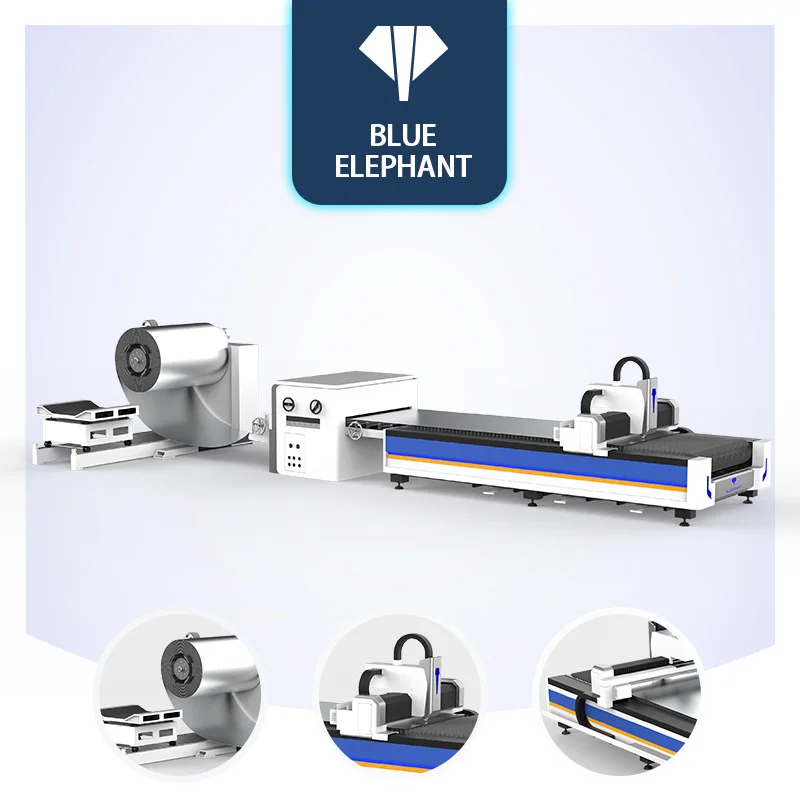

The coil fed laser cutting machine is specially designed for automatic cutting of thin metal sheets. Especially thin stainless steel sheets. It realizes the loading, uncoiling, leveling and cutting processes automatically, which saves labor and improves working efficiency.
1. Improved loading efficiency.
The coil material weight reaches up to 20T, breaking through the limit of ordinary 3T loading. It is 6 times efficiency of ordinary loading equipment.
2. Stress relief.
After uncoiling the coil, the leveling machine will level the metal sheet and, at the same time, eliminate the stress of the sheet in the leveling process. This makes the sheet material more flat and suitable for cutting.
3. Ultra-precision transmission structure.
The machine adopts an ultra-precision transmission system, making the sheet material transmission accuracy within ±0.5mm and guaranteeing higher precision.
4. Automatic production line design.
This machine completes the whole cutting process automatically from feeding, uncoiling, leveling, cutting to discharging. The whole automated process saves labor, realizes the zero waste of coil material, and improves the utilization efficiency of sheet metal.
5. Unlimited material length.
This coil fed laser production line breaks through the limit of the previous laser cutting machine in the cutting length limit, and in some special areas, has a subversive significance.
Product Details
Automatic lubrication system
Whole body layout, automatic lubrication of guide rails and racks.
Automatic focusing laser head
Laser head follow-up function Follow the change of the height of the board, don't worry about the unevenness of the board affecting the cutting effect.
Max Laser Source
Raycus/Max/IPG, multiple choice different brands, different laser power are available. The higher power, the thicker cutting thickness.
Servo Motor
By adding and improving vibration suppression function, it can improve the following performance and shorten the setting time.
The aviation aluminum beam
The fiber laser cutting machine beam is processed by T6 heat treatment process to make the beam obtain the highest strength.
Thick-walled carbon steel plate welding bed
Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The
high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Product Paramenters
Model | ELECNC-1530FC | ELECNC-1540FC | ELECNC-2040FC | ||
Total machine weight | 6.2t | 6.7t | 6.9t | ||
Working area (mm) | 1515*3030 | 1515*4040 | 2020*6060 | ||
Max. acceleration | 1.5G | 1.5G | 1.5G | ||
Worktable | Rolling blade | ||||
Positioning accuracy | ±0.05mm | ||||
Repositioning accuracy | ±0.03mm | ||||
Laser power | 1kW - 2kW | ||||
Coil sheet thickness | 0.5-3mm | ||||
Machine bed | Plate welded bed | ||||
Laser | Multiple options | ||||
Focusing method | Auto/manual | ||||
X/Y-axis max. linkage speed | 140m/min | ||||
Leveling speed | ≤20m/min | ||||
Coil weight | ≤15t | ||||
Sample & Application
Company Information
Exhibition
Packaging & Delivery
FAQ
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
