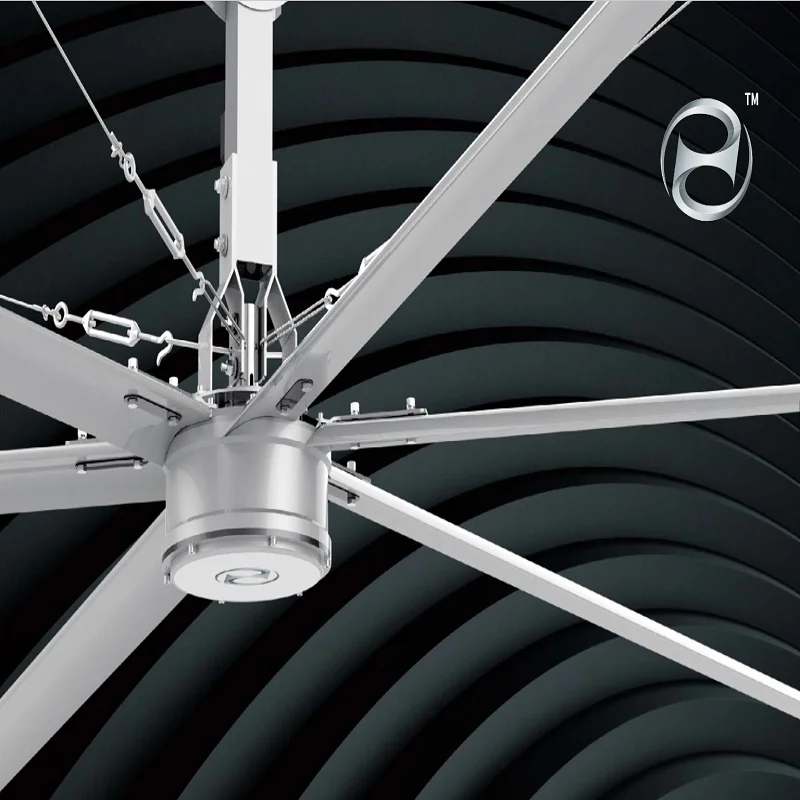

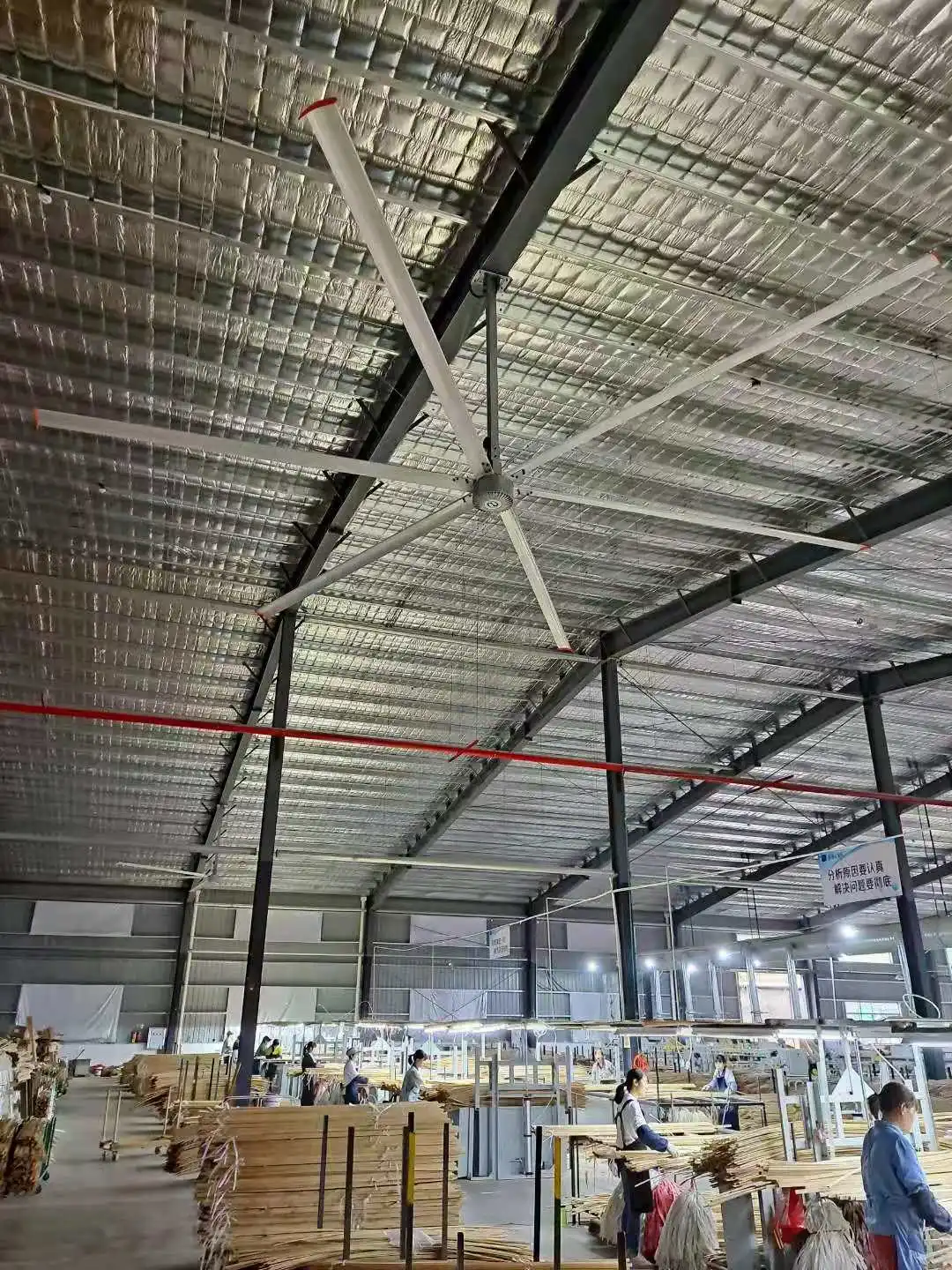

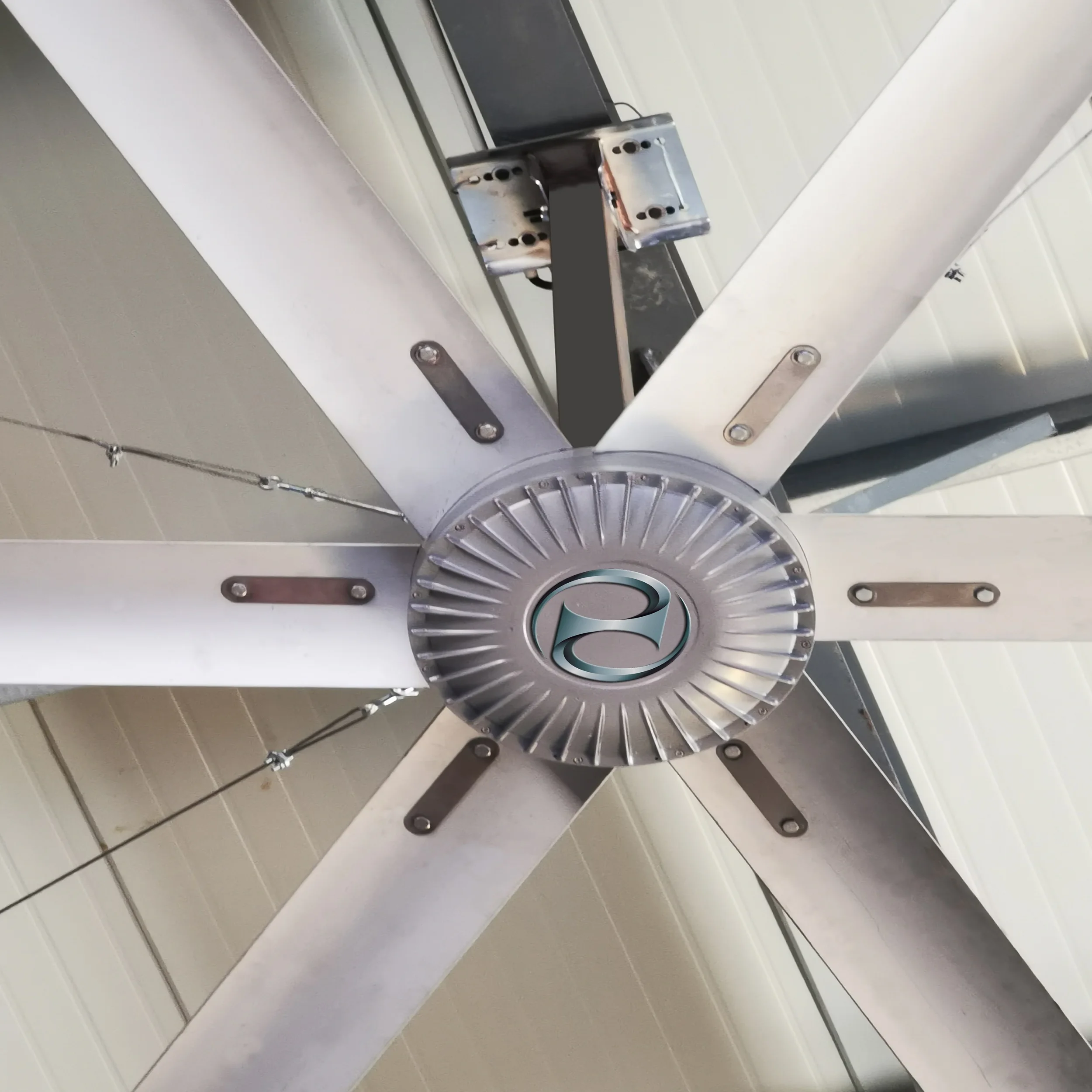

12ft 3.7M HVLS Warehouse Ventilation Fans IP66 Controlled for Efficient Cooling
- Category: >>>
- Supplier: Fujian Diamond Electrical And Mechanical Equipment Co. Ltd.
Share on (1601014686987):
Product Overview
Description
Products Description
Big HVLS Fans | Keep your heating and cooling costs down.
Our HDS series smart permanent magnet large ceiling fan is a new product specially developed for improving the comfort of the working environment. Self-designed variable frequency speed control, high efficiency and energy saving permanent magnet external rotor motor drive. It has the advantage of low noise, small volume, lightweight, compact structure and beautiful appearance.Widely used in industrial plants, logistic ware-housing, waiting room, exhibition hall and so on..

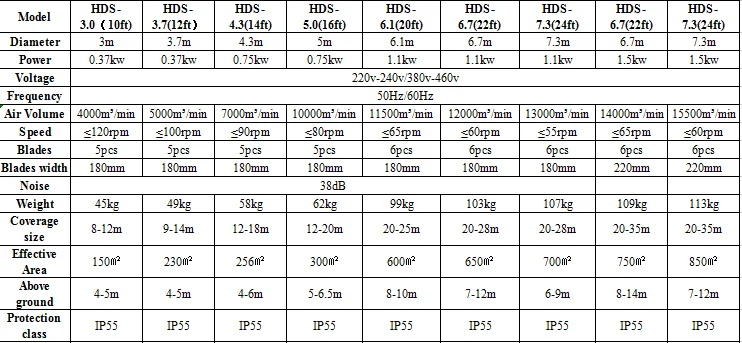

Technical Data

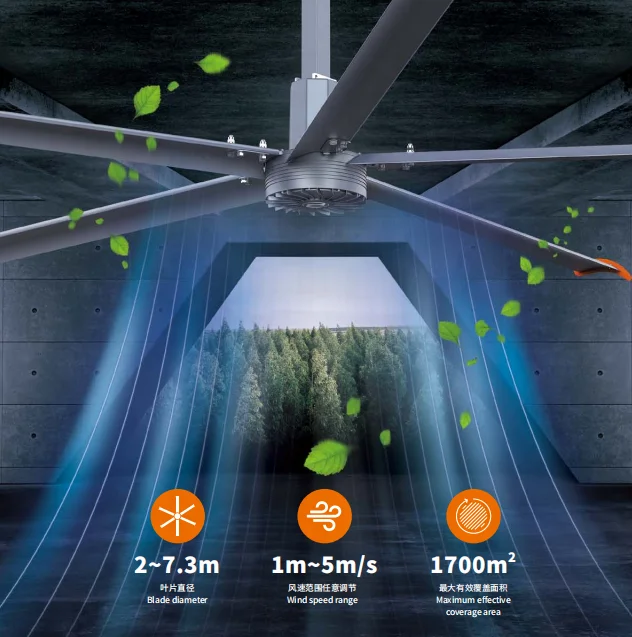

Large ceiling fan diameter of 10 feet (3m) to 24 feet (7.4m) propel air effectively through extra-large spaces.
Main Features
1) 10 to 24ft in diameter
2) Pushing air for areas from 250 to 1700 sq. meter
3) Slower velocity for far-reaching airflow
4) More output,less horsepower.
5) Easy install in just a few steps.
6) Lighter,more efficient,easier to maintain than other industrial fans.
7) Bearings are requiring less maintenance for a longer life.
8) Insurance, each sold ceiling fan has $150,000 sum insured
1) 10 to 24ft in diameter
2) Pushing air for areas from 250 to 1700 sq. meter
3) Slower velocity for far-reaching airflow
4) More output,less horsepower.
5) Easy install in just a few steps.
6) Lighter,more efficient,easier to maintain than other industrial fans.
7) Bearings are requiring less maintenance for a longer life.
8) Insurance, each sold ceiling fan has $150,000 sum insured
Details Images

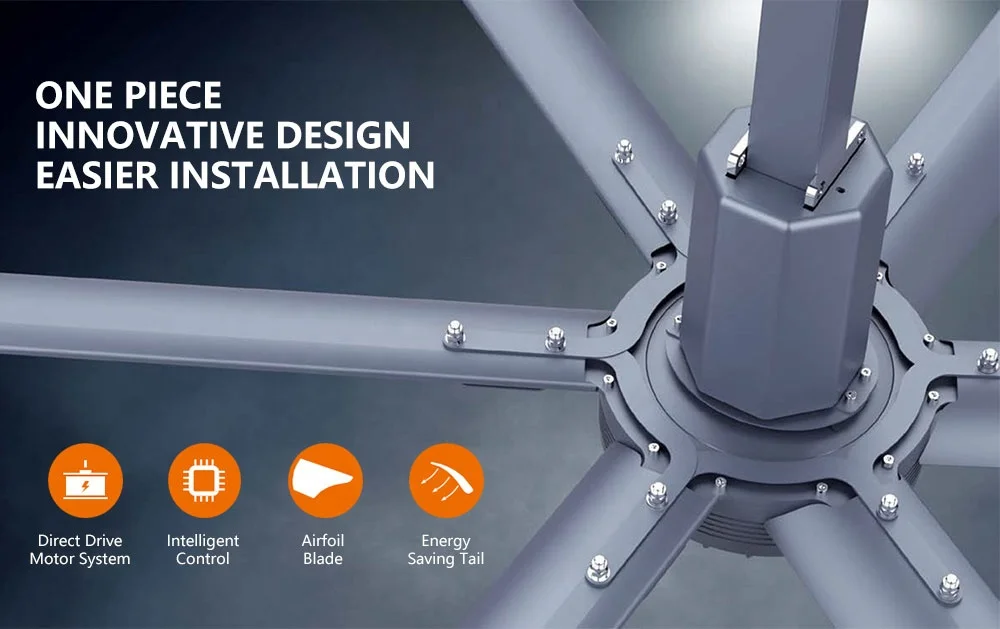

FAN Parts

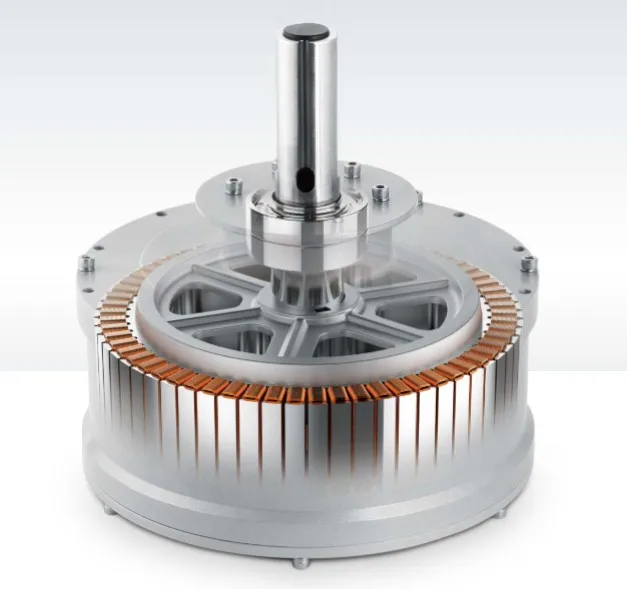

Name: Direct Drive Motor System
The new self-developed external rotor motor with large torque and permanent magnet synchronization replaces the traditional
motor+gearbox reducer, achieving a high degree of integration and improving reliability and transmission efficiency.
Aluminium alloy material is adopted in many parts to realize the lightweight design.
FAN Parts

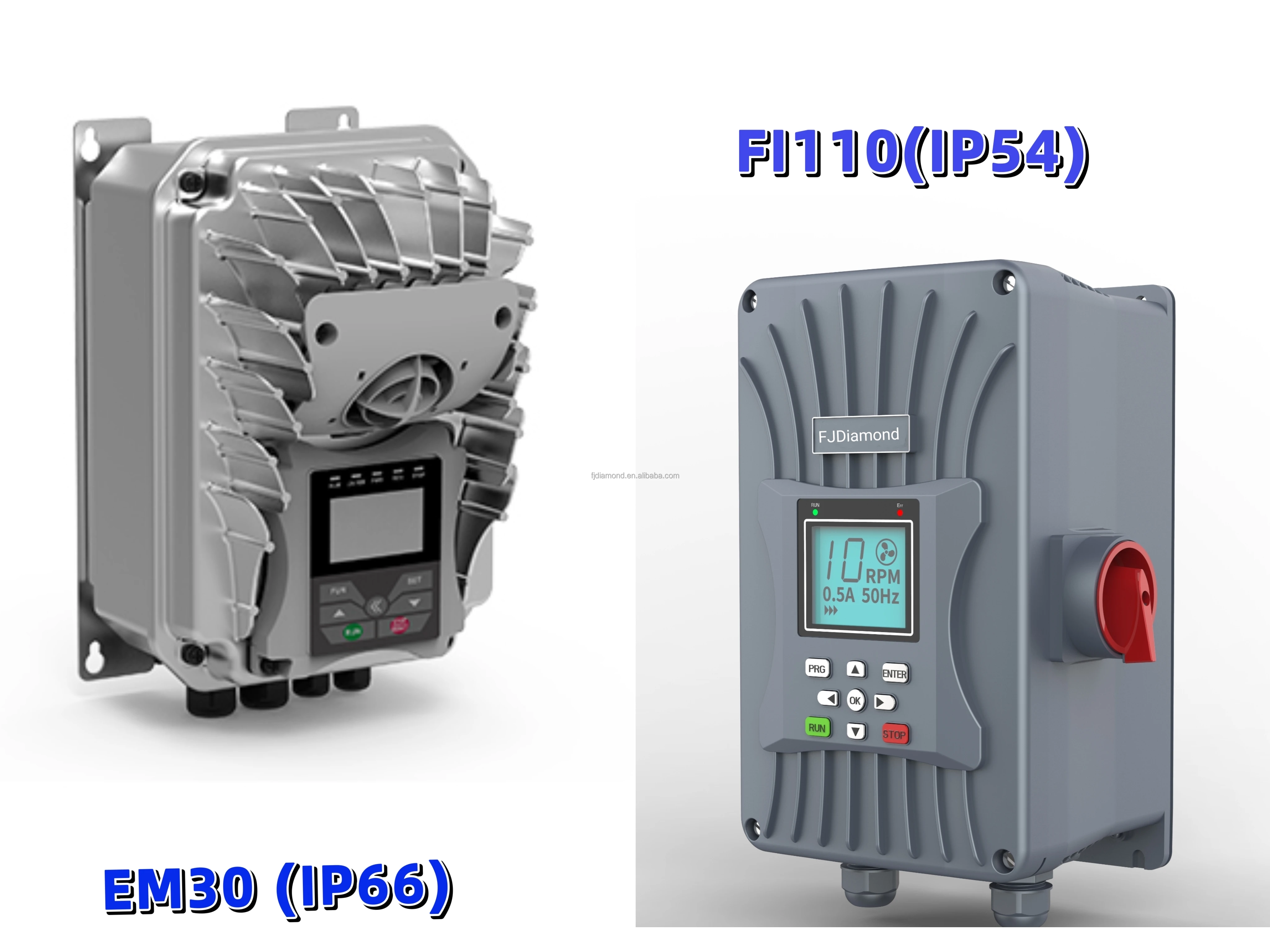

Name: Smart control system
The control system adopts the closed design of IP66, which is dustproof, waterproof, moisture-proof and can withstand high
temperature indoor and outdoor harsh environment.
The system is no position vector control,anti-electromagnetic interference, anti-radiation, small size, lightweight, beautiful
appearance.
The system function is simple, 4 buttons easy to operation( start, stop, speed up, slow down).
The control system adopts the closed design of IP66, which is dustproof, waterproof, moisture-proof and can withstand high
temperature indoor and outdoor harsh environment.
The system is no position vector control,anti-electromagnetic interference, anti-radiation, small size, lightweight, beautiful
appearance.
The system function is simple, 4 buttons easy to operation( start, stop, speed up, slow down).
FAN Parts

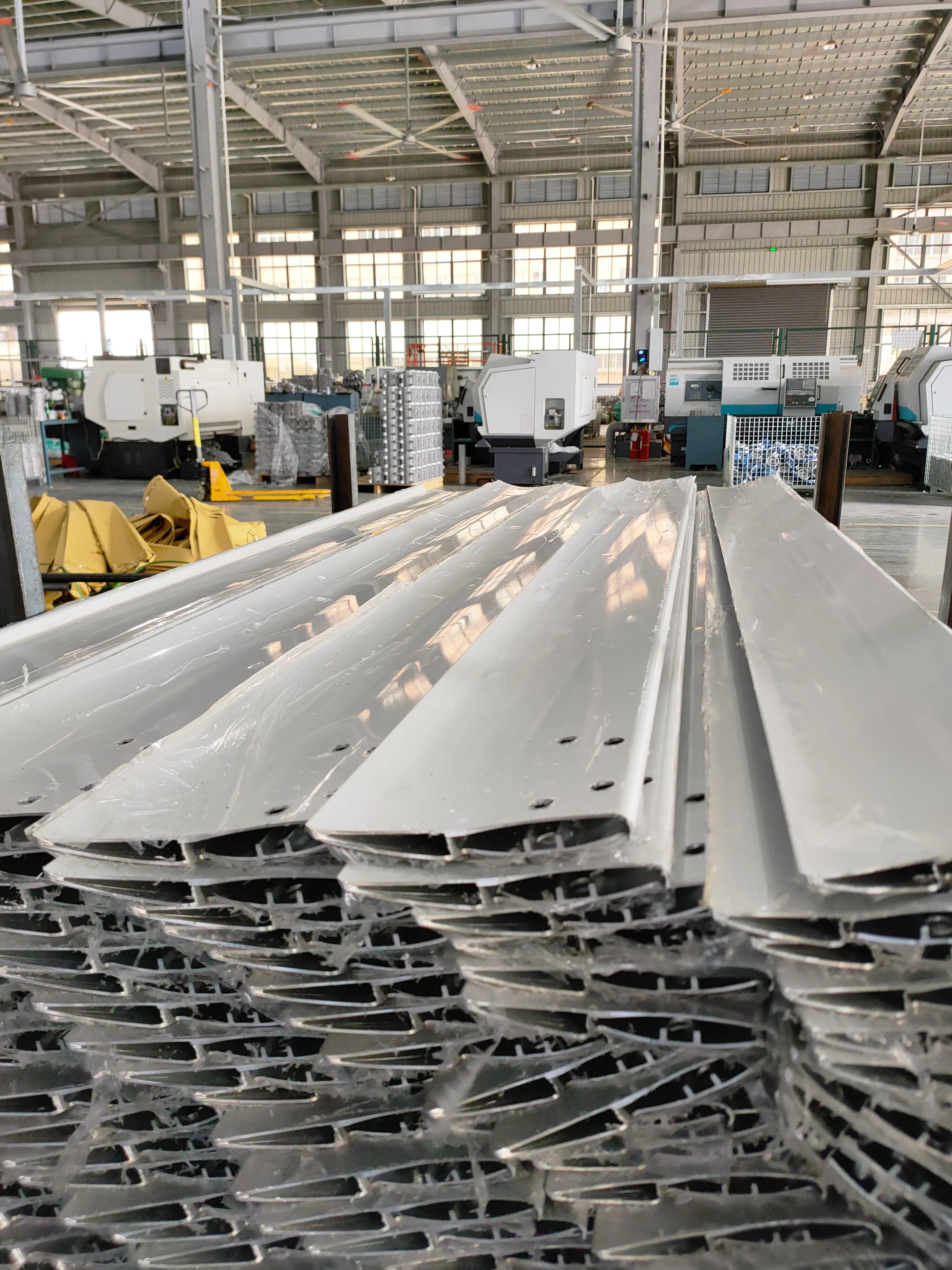

Name: Fan blade
It is made of aluminium and magnesium alloy extruded and stretched, and has the advantages of high strength, good toughness,
lightweight, long life and safe operation. The fan blade surface is treated with T5+ bright surface oxidation treatment, which enhances the corrosion and oxidation resistance of the fan blade and can cope with special environmental operations.
Energy saving tail.
It is made of aluminium and magnesium alloy extruded and stretched, and has the advantages of high strength, good toughness,
lightweight, long life and safe operation. The fan blade surface is treated with T5+ bright surface oxidation treatment, which enhances the corrosion and oxidation resistance of the fan blade and can cope with special environmental operations.
Energy saving tail.
Five Levels Of Security Guarantee
Motor bracket is integrated to prevent any parts from falling off and ensure the safety of the whole structure.
Anti-off-plate break-off protection structure design ensures the safety of the ceiling fan.
Aluminum magnesium alloy tensile blade, internal reinforcement structure, strength, toughness, to ensure the safety of the blade.
Aluminium-magnesium alloy tensile blade, internal reinforcement structure, strength, toughness, to ensure the safety of the blade.
Automatic power off protection, to ensure that the blade accidental tough, timely safety shutdown..
Long Warranty
We always provide customers with high-quality products and excellent after-sales service.
Permanent magnet motor warranty period of 3 Years
The controller warranty period of 18 Month.

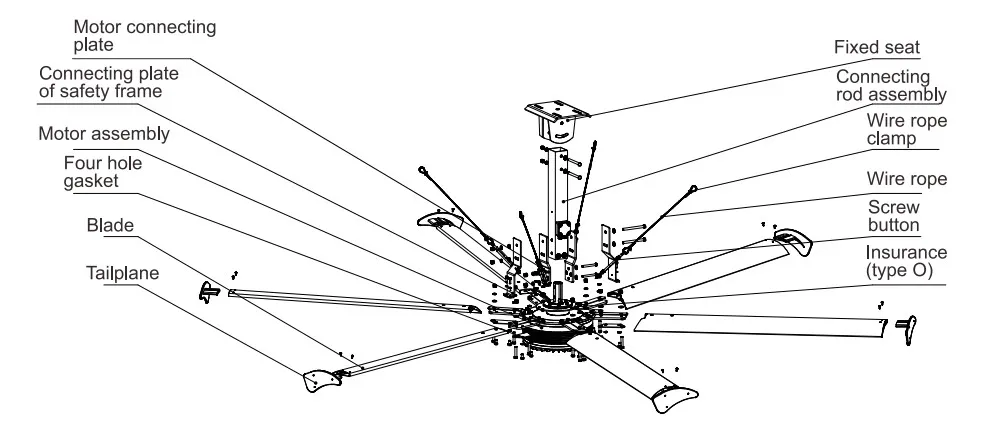

Installation Instruction

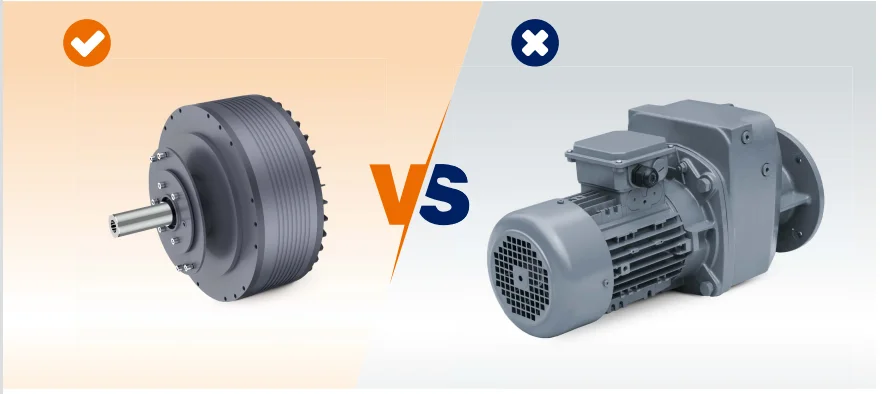

Permanent Magnet Motor Ceiling Fan VS Gear Box Variable Speed Ceiling Fan
A. Permanent magnet synchronous high temper- ature resistant outer rotor motor,super energy efficient.
B. Small size and light weight
C. Low noise
D. Simple structure
E. Frequency modulation width (0~50HZ)
F. Direct drive motor maintenance free
G. No running hazard
C. Low noise
D. Simple structure
E. Frequency modulation width (0~50HZ)
F. Direct drive motor maintenance free
G. No running hazard
A. The use of asynchronous ordinary motor + gear
box consumes a lot of energy.
B. Large and heavy
C. Loud noise
D. Complex structure
E. FM narrow (25~50HZ)
F. Need frequent daily maintenance (change seals,
add gearbox oil)
G.There are hidden dangers such as gearbox leakage
box consumes a lot of energy.
B. Large and heavy
C. Loud noise
D. Complex structure
E. FM narrow (25~50HZ)
F. Need frequent daily maintenance (change seals,
add gearbox oil)
G.There are hidden dangers such as gearbox leakage

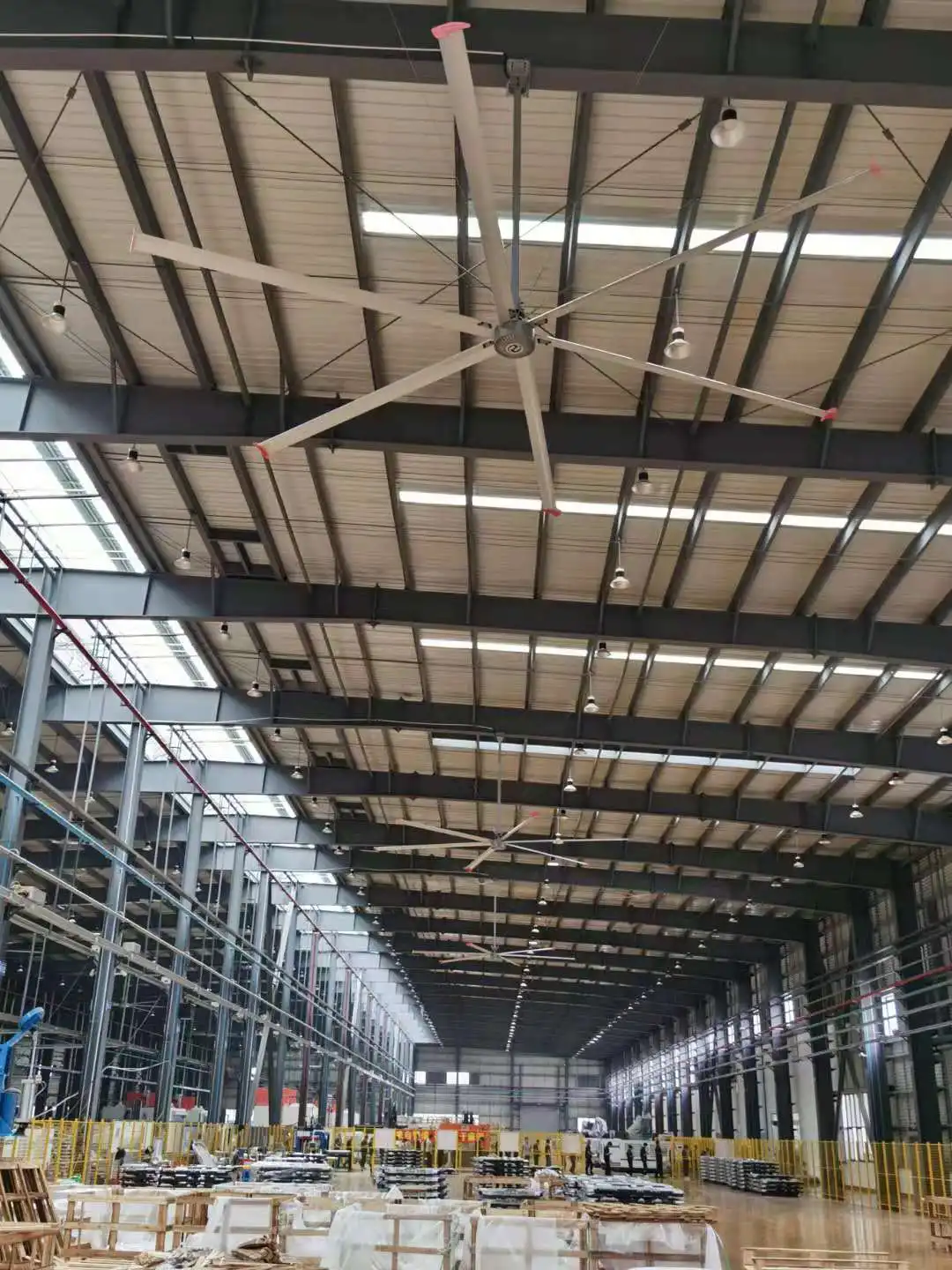

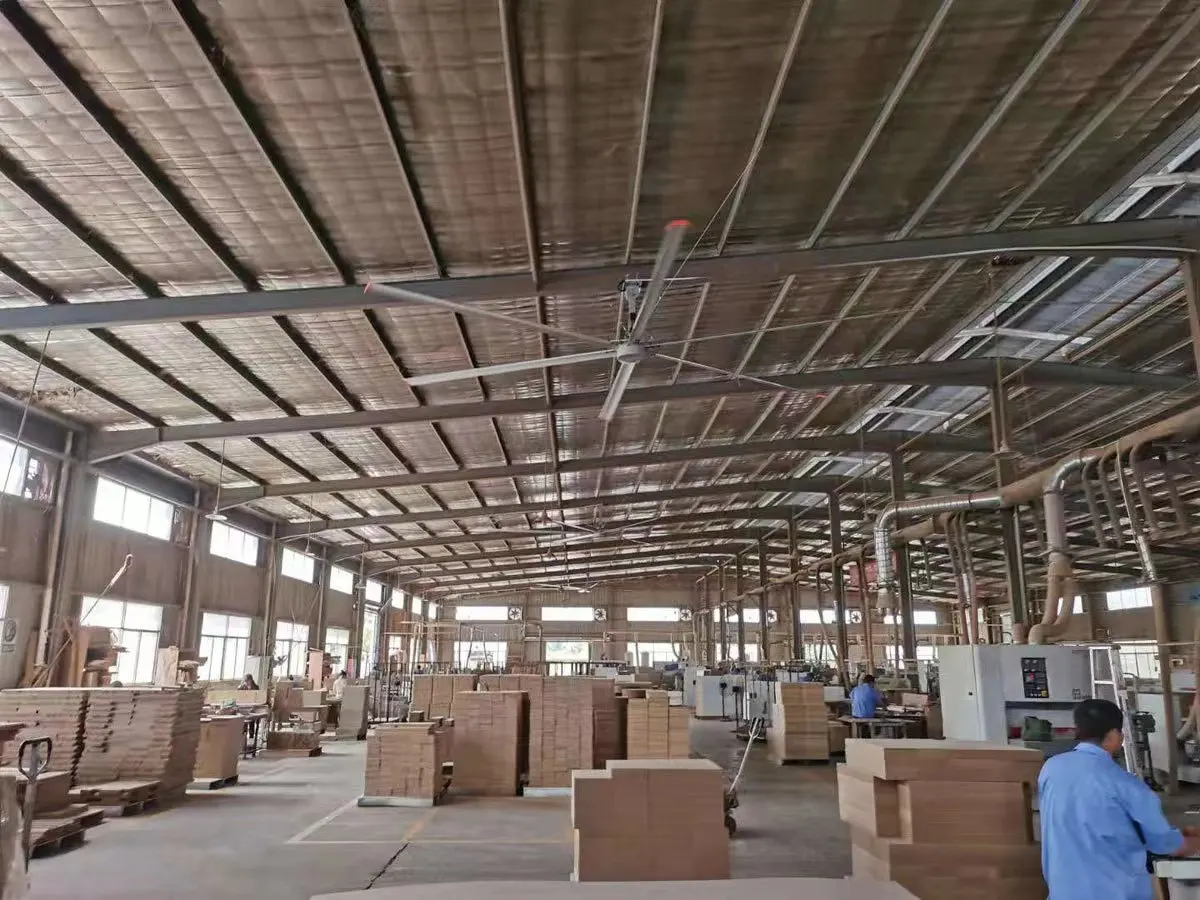

Application Case
Super-Large Plant

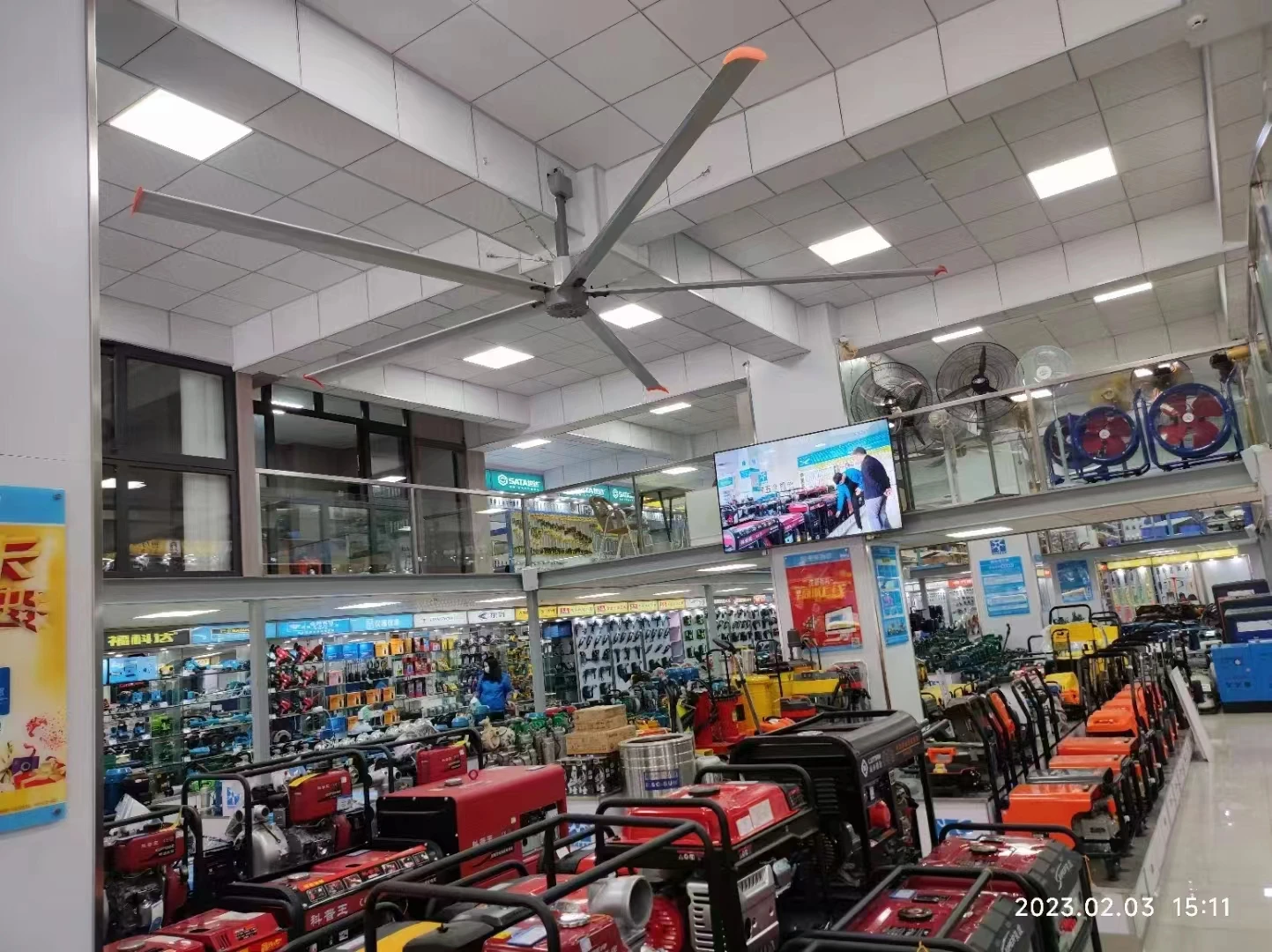

Commercial area
Animal Husbandry
Large-scale public places

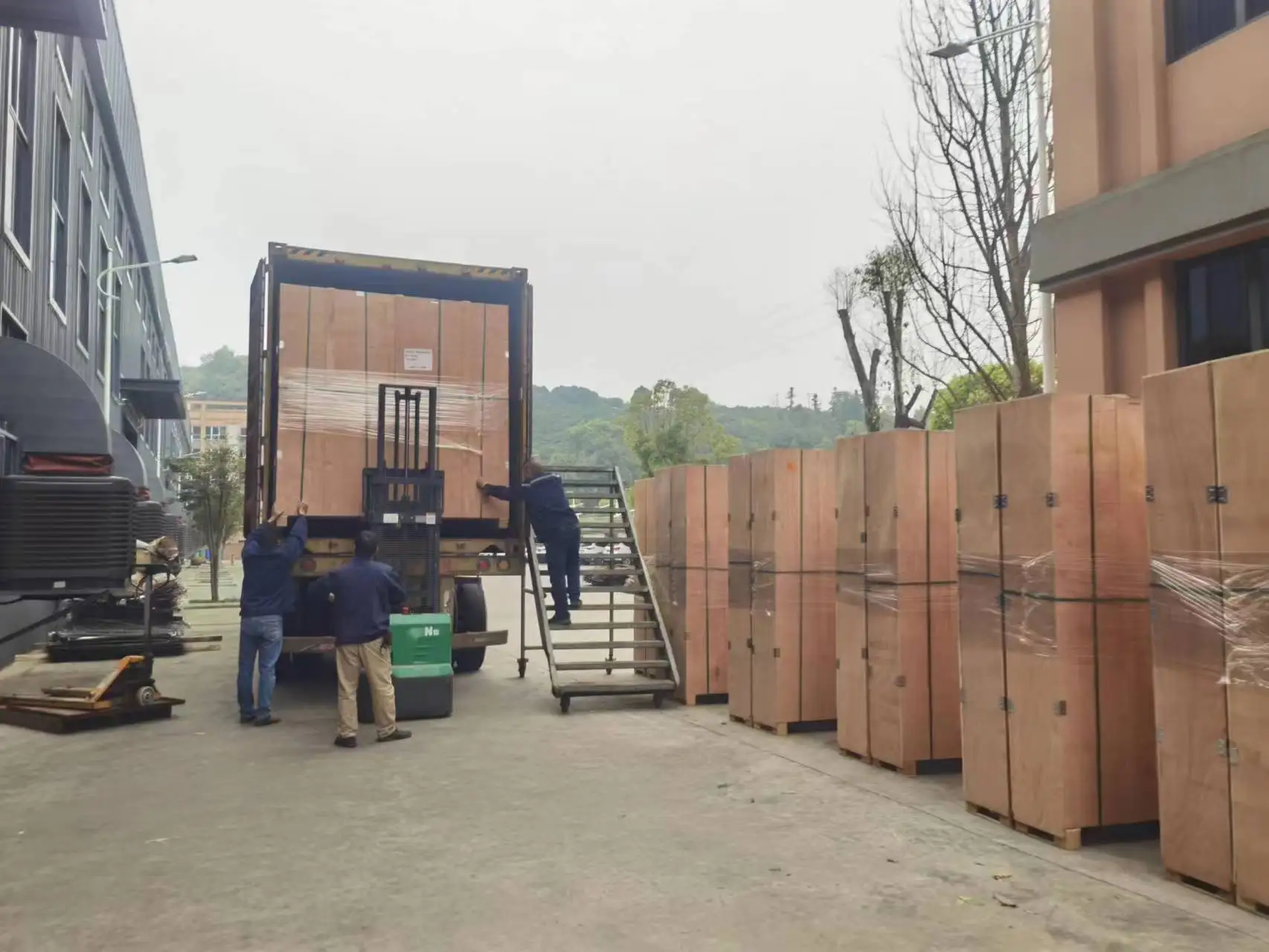

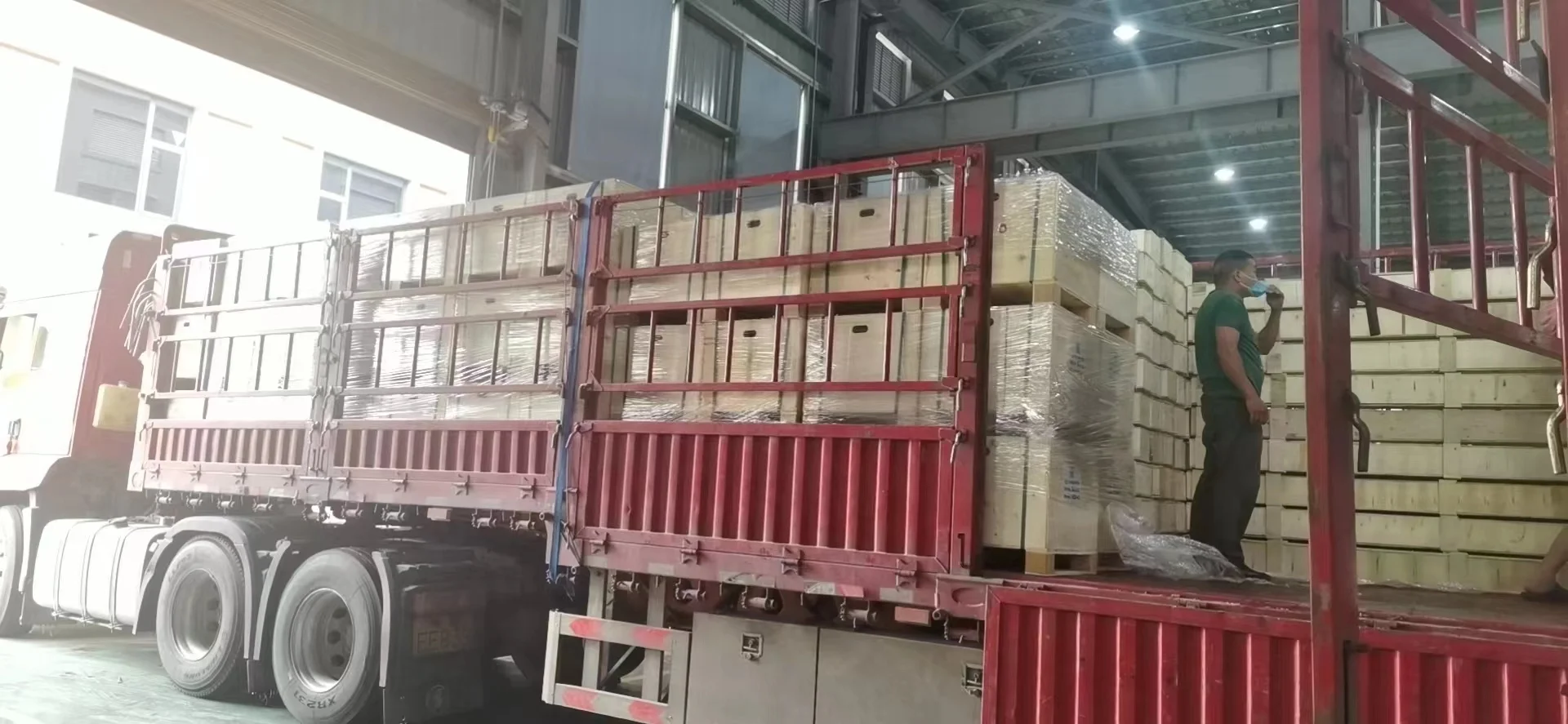

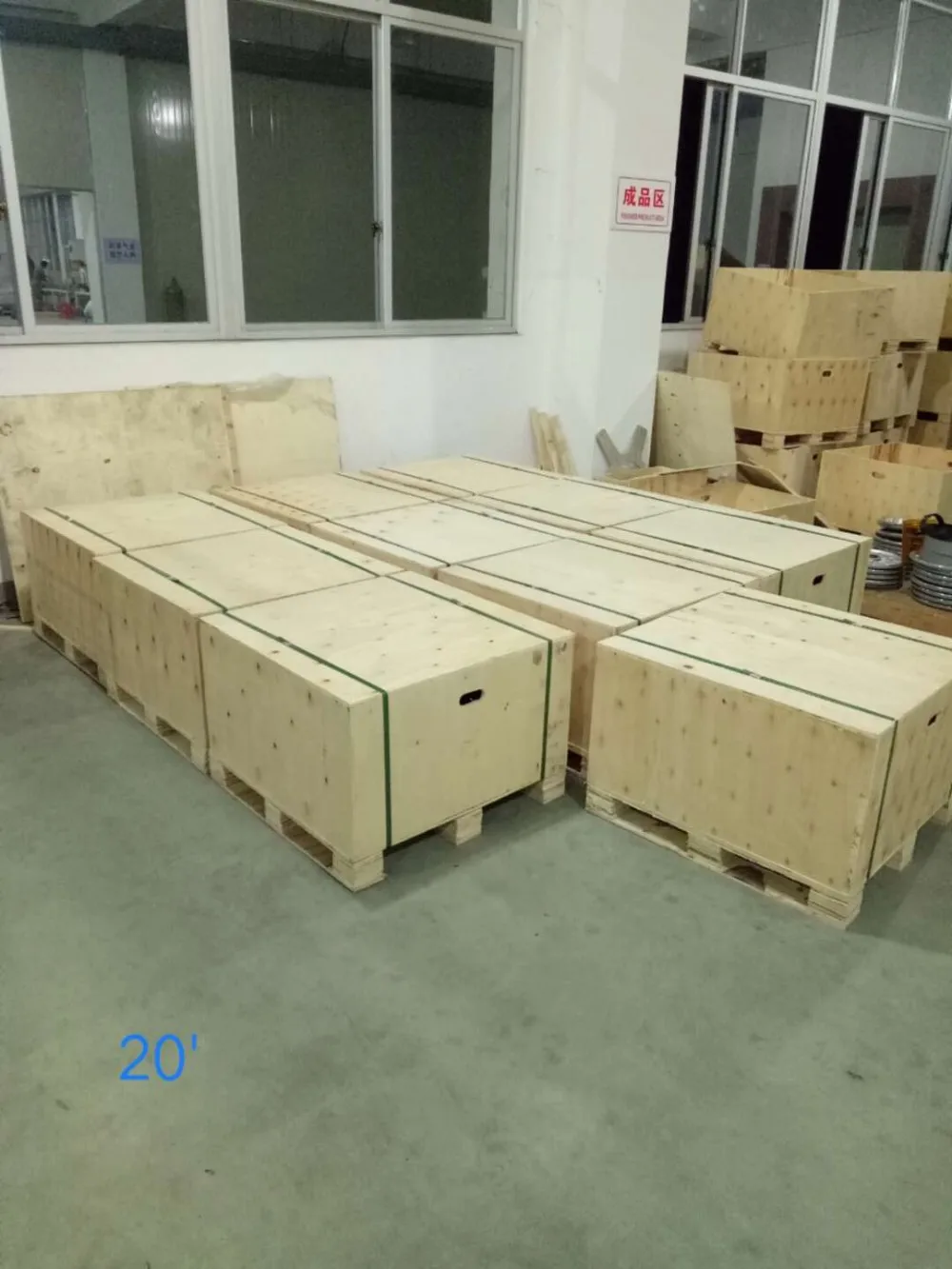

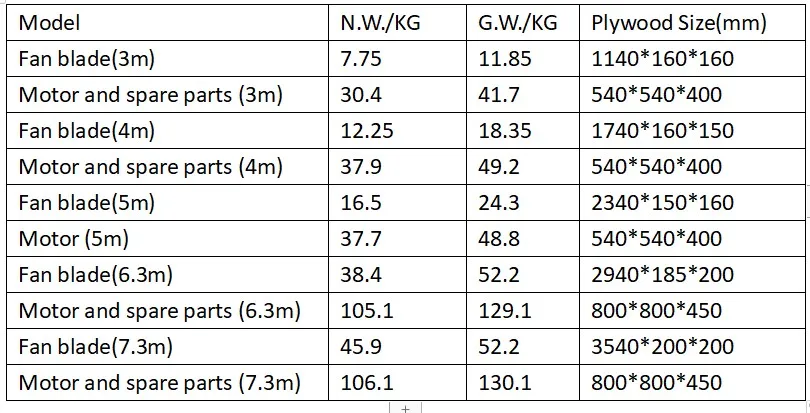

Payment&Delivery

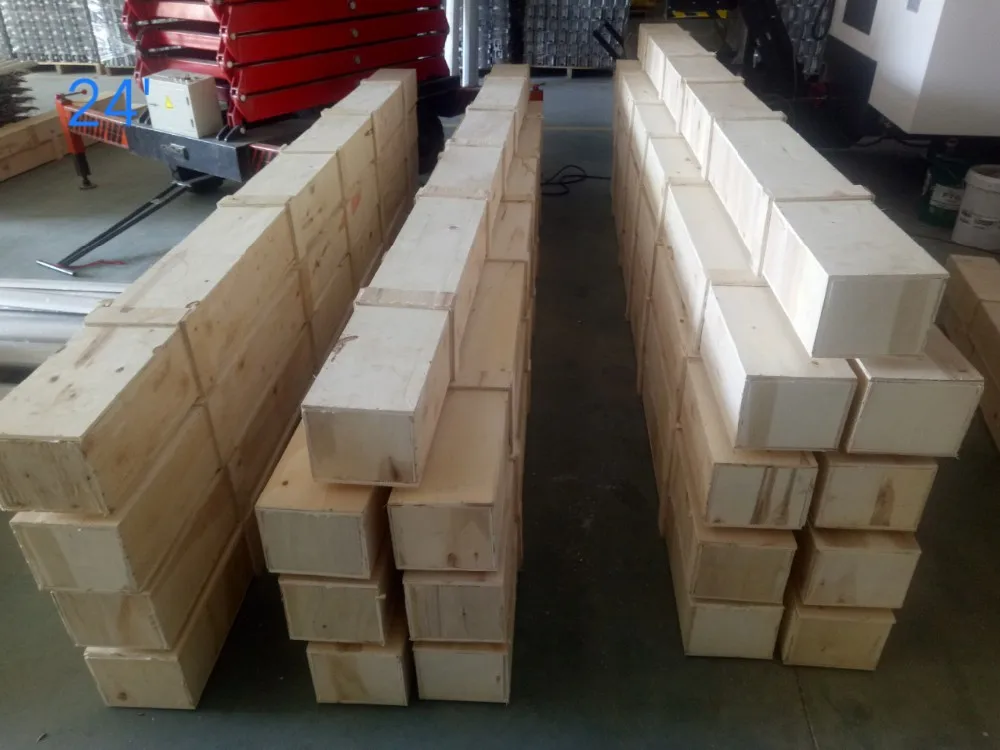

International standard plywood: packing for blade 1800*220*180mm, packing for motor 590*590*550mm. G.W: 91kgs

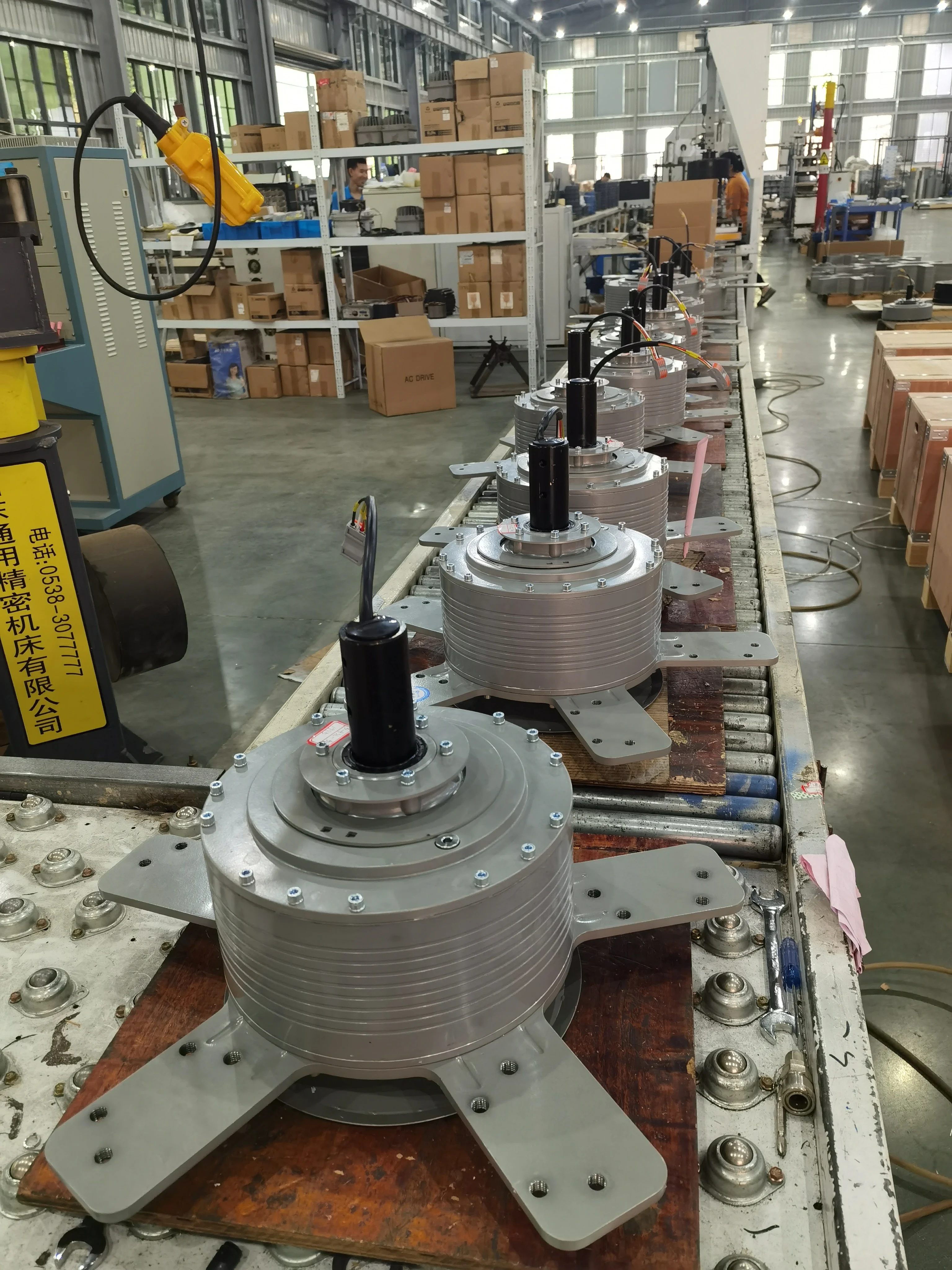

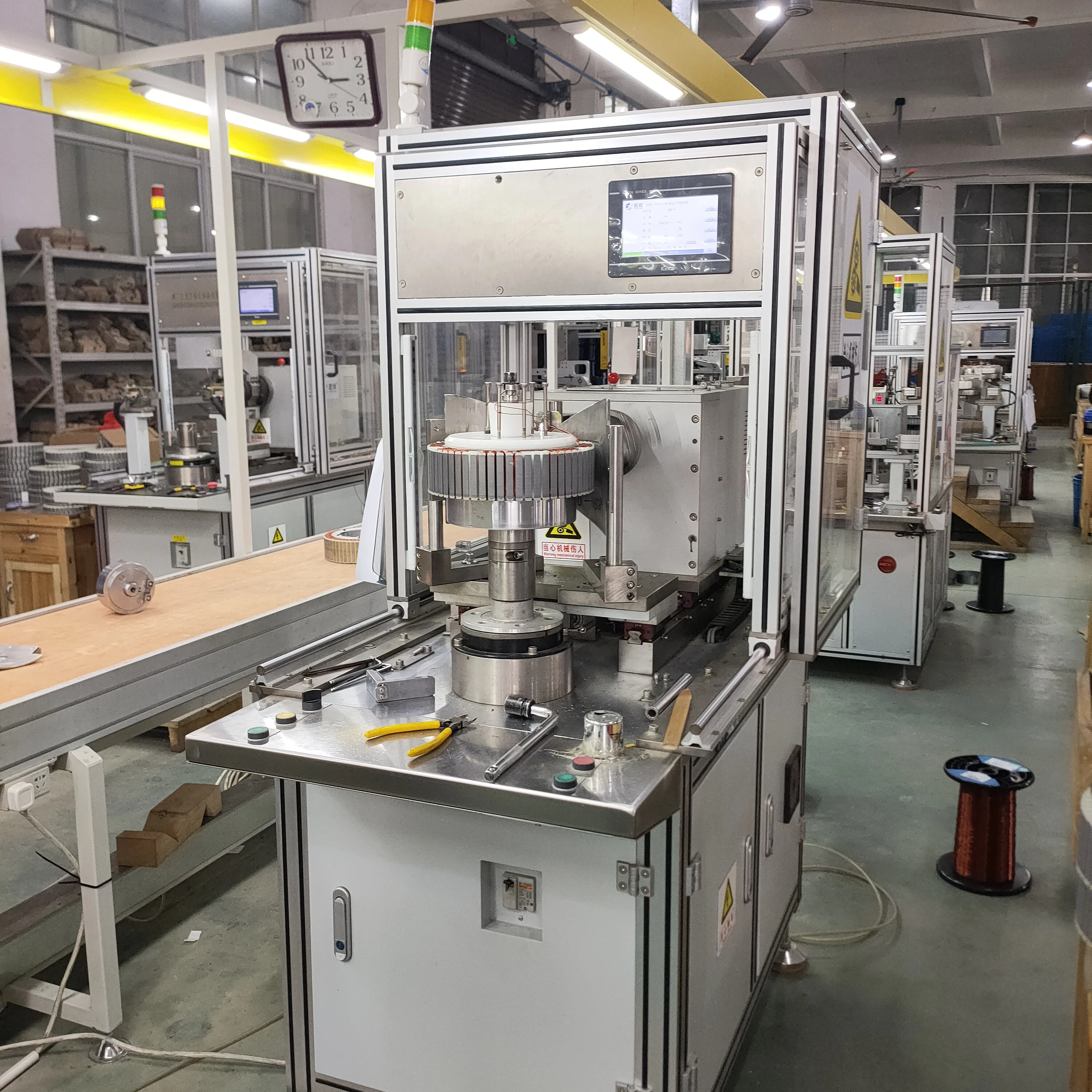

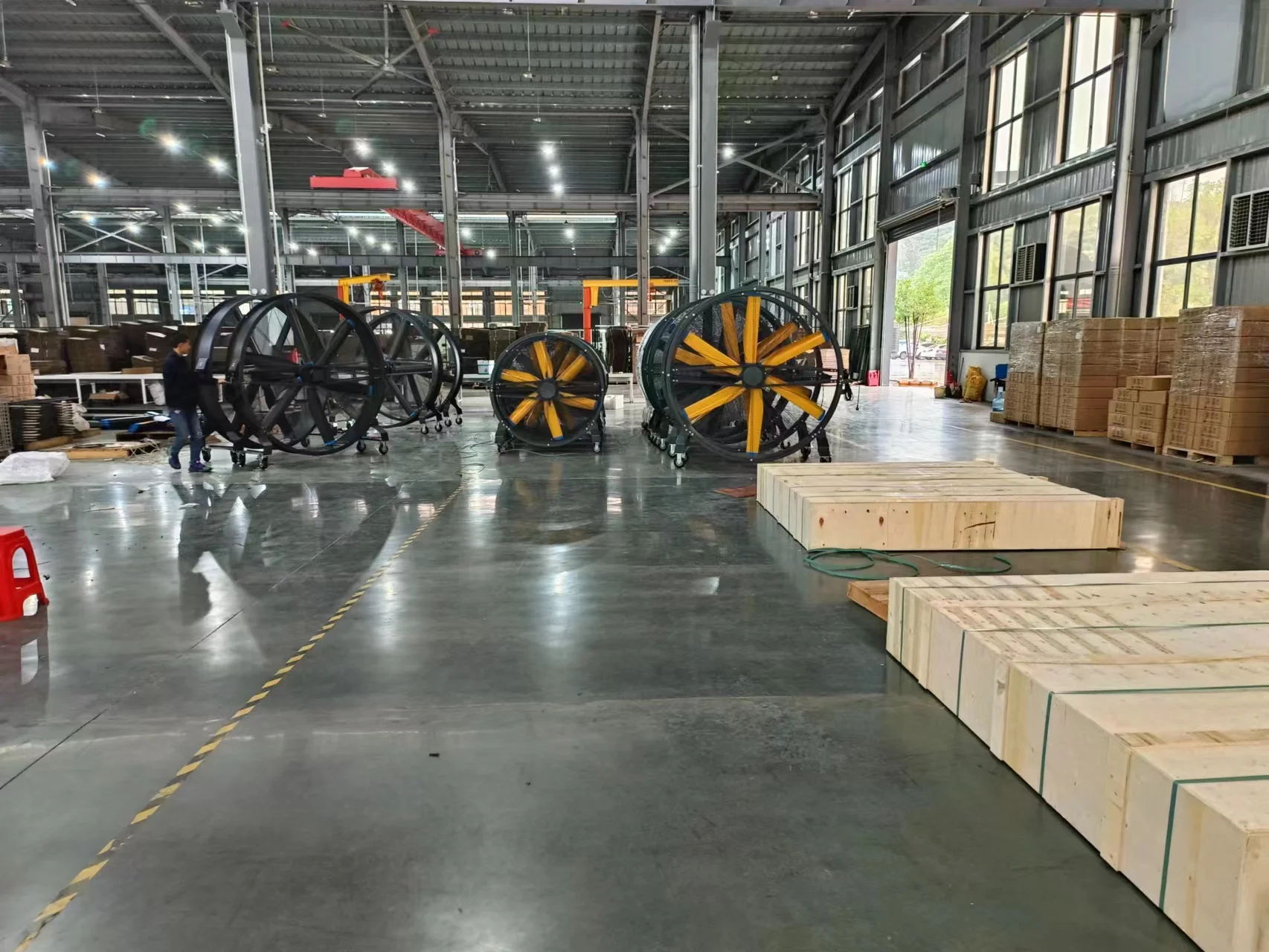

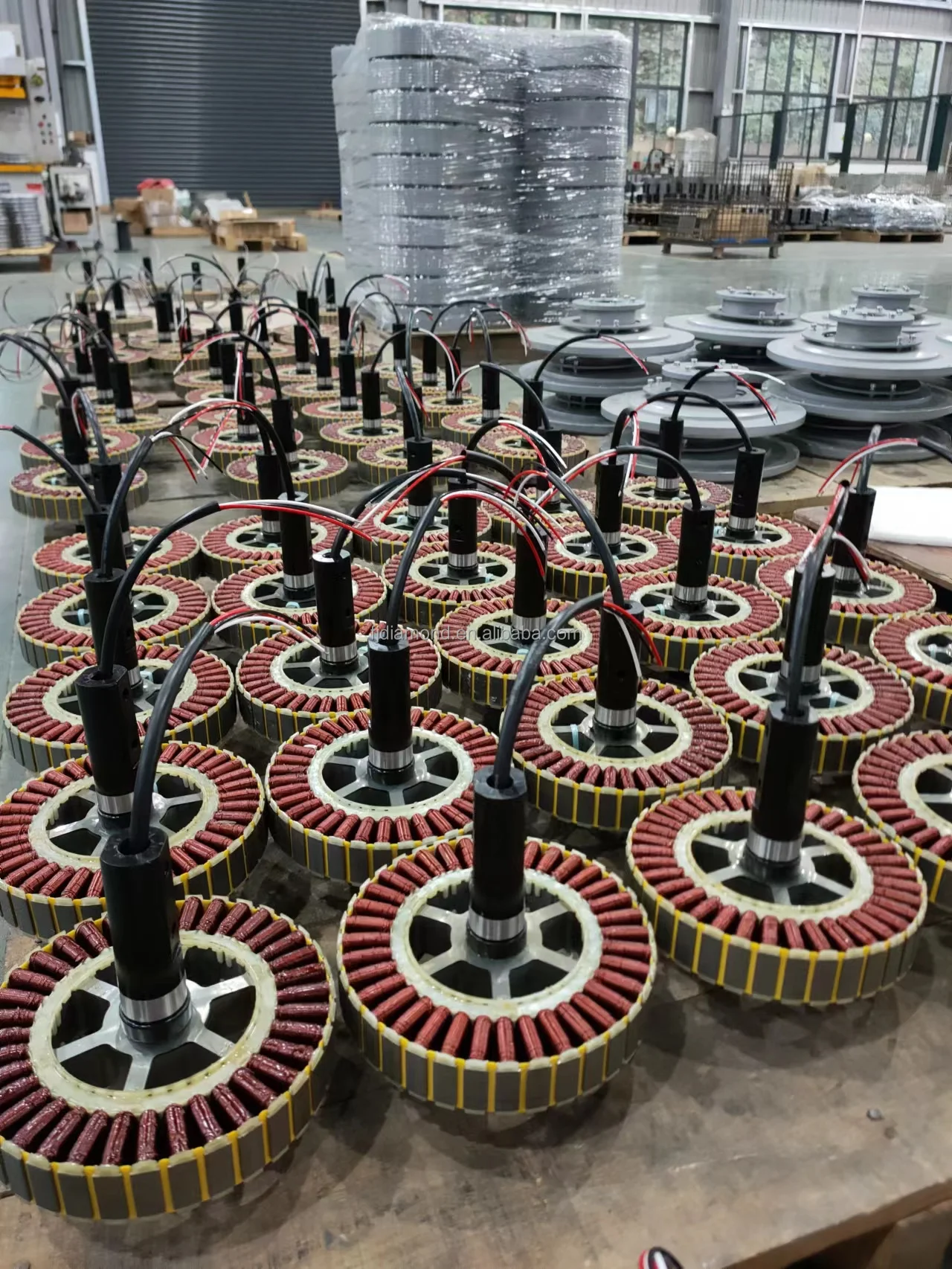

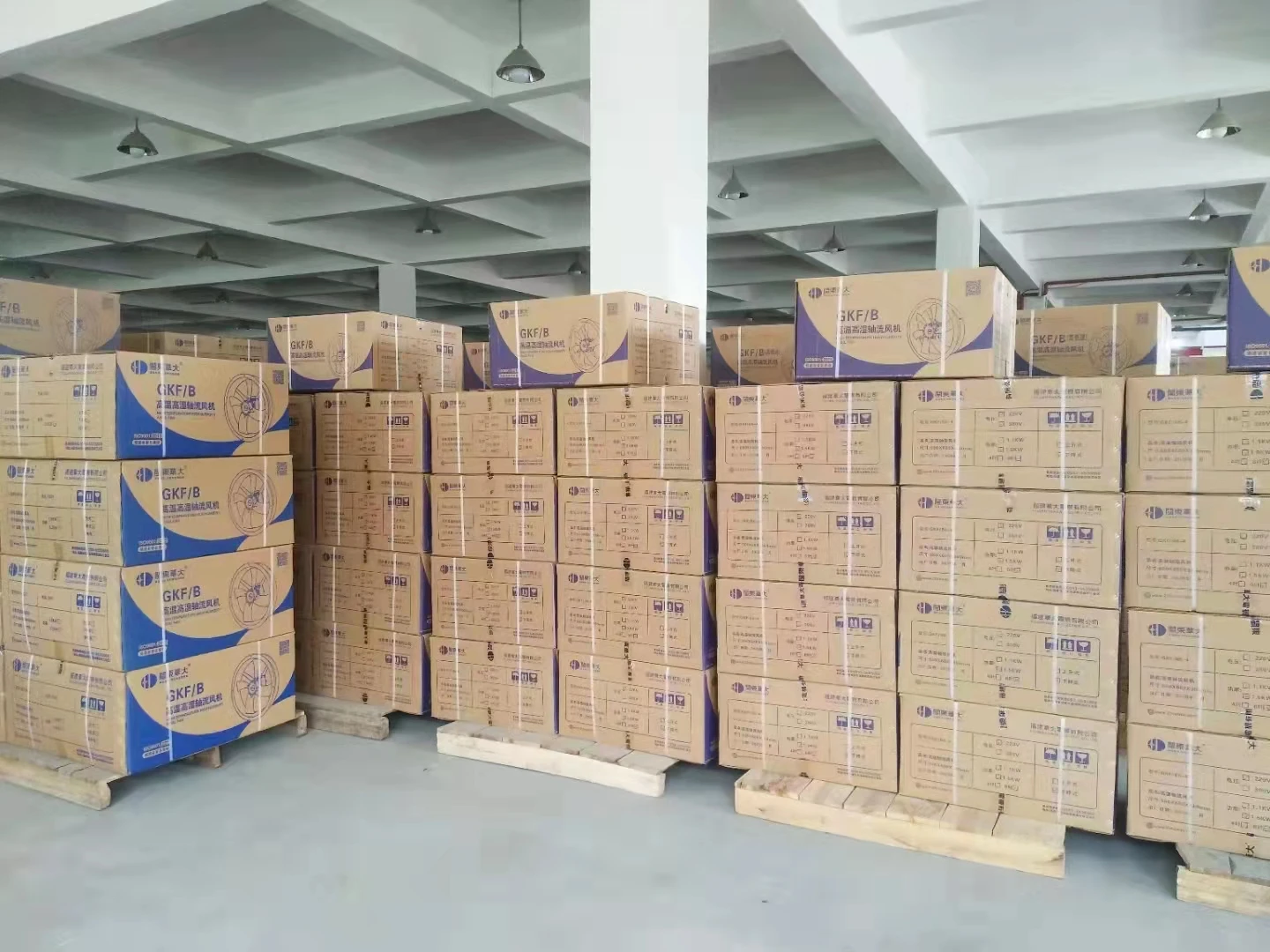

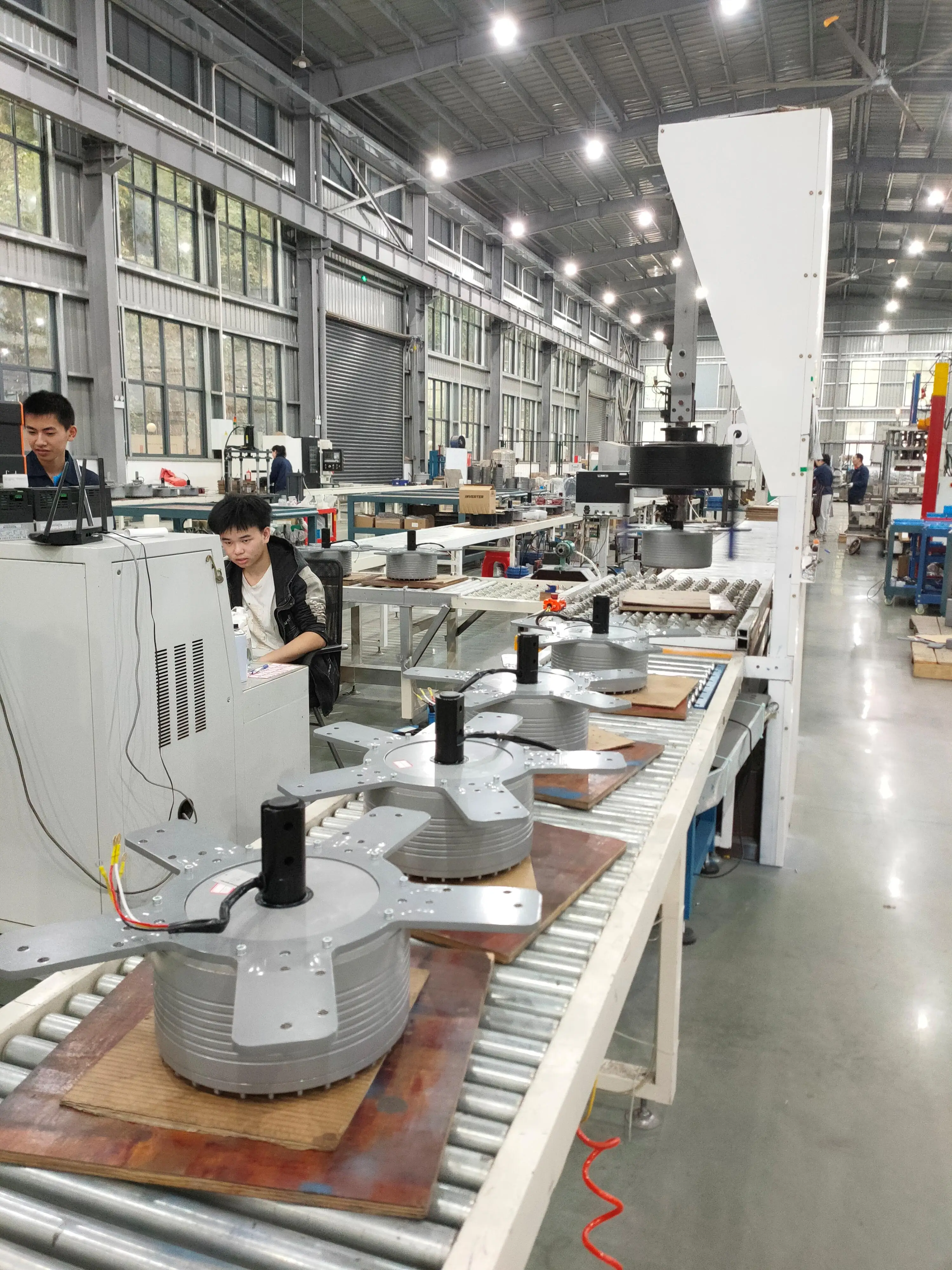

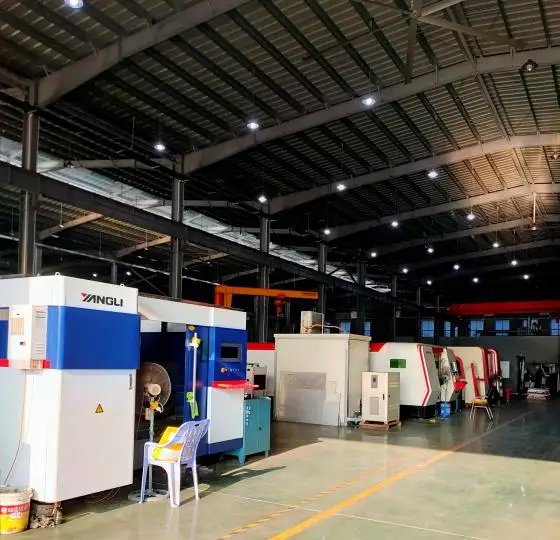

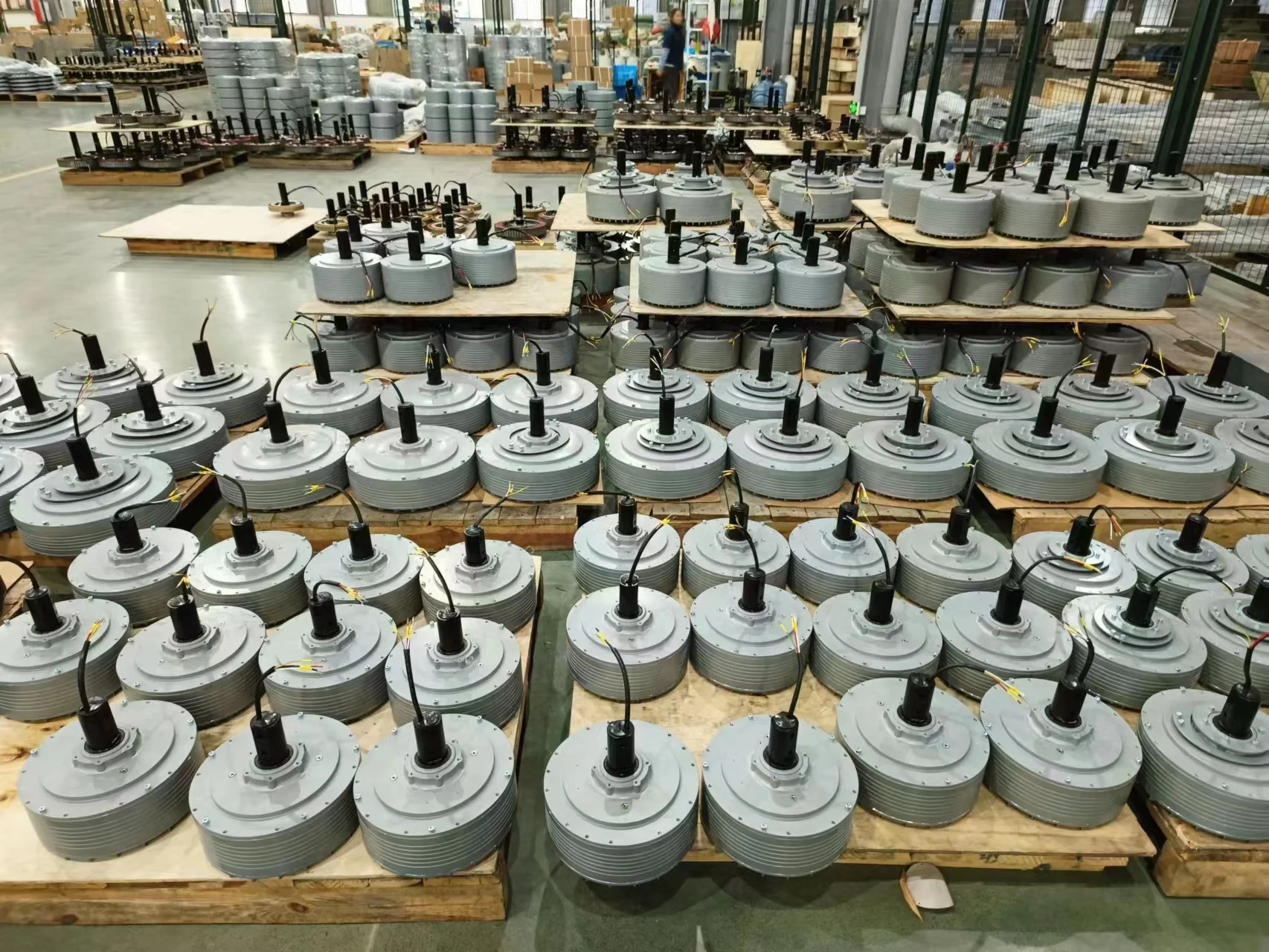

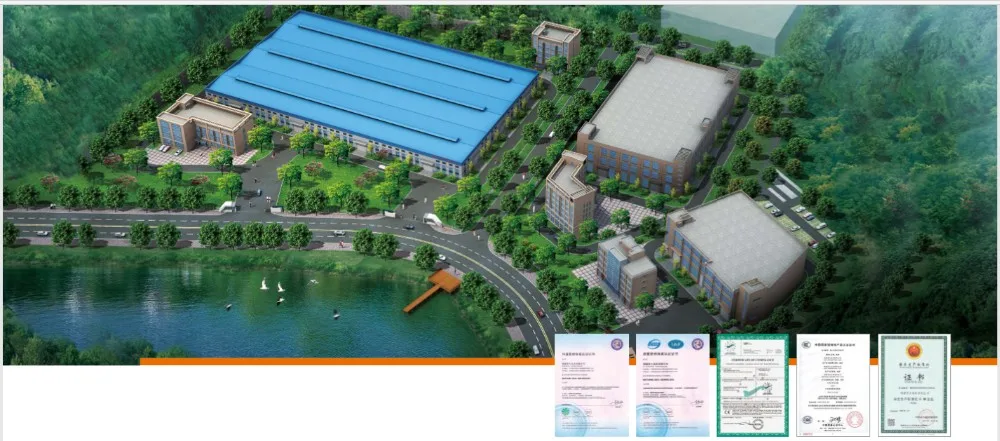

Our Factory
For more than ten years, the company focuses on the research, development and production of the high-temperature
motor,high-temperature fan and permanent magnet variable frequency ceiling fan, Strict control of production technology, to create quality.
motor,high-temperature fan and permanent magnet variable frequency ceiling fan, Strict control of production technology, to create quality.
The company has passed the standard acceptance of safety standardization; ISO9001:2008 quality management system certification, ISO14001:2015 environmental quality system certification. It has obtained the national production license for industrial products and the pollution discharge certificate of Fujian province. Products through CCSAus certificate, CCC certification, European CE certificate, fire safety certificate, best-selling national and overseas markets.
The company has owned 16 utility model patents and appearance patents. It was awarded"2017 China agricultural machinery industry annual parts quality award".
FAQ
Q: Are you the factory?
A: Of course, we are a factory focusing on large ceiling fans based in Fujian, China, be your direct fan supplier.
Q Where does your fan use in?
A: Ths fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
Q: Is it used in electrcity?
A: Yes, it's power supply is electricity, but only 1.5KW or less, very energy-saving.
Q: What the price per fan?
A: We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 7-10 working days.
Q: How long is the warranty?
A: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is above 20 years.
A: Of course, we are a factory focusing on large ceiling fans based in Fujian, China, be your direct fan supplier.
Q Where does your fan use in?
A: Ths fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
Q: Is it used in electrcity?
A: Yes, it's power supply is electricity, but only 1.5KW or less, very energy-saving.
Q: What the price per fan?
A: We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 7-10 working days.
Q: How long is the warranty?
A: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is above 20 years.
