Large Size Working Area Laser Marking Big Format Fiber Laser Marking Machine For Sale Steel Engraving Machine
- Category: >>>
- Supplier: Shandong Pratt Cnc Machinery Co. Ltd.
Share on (1601014697054):
Product Overview
Description
Hot Selling
It can cut metal plate and tube, aluminum,stainless steel,iron and so on

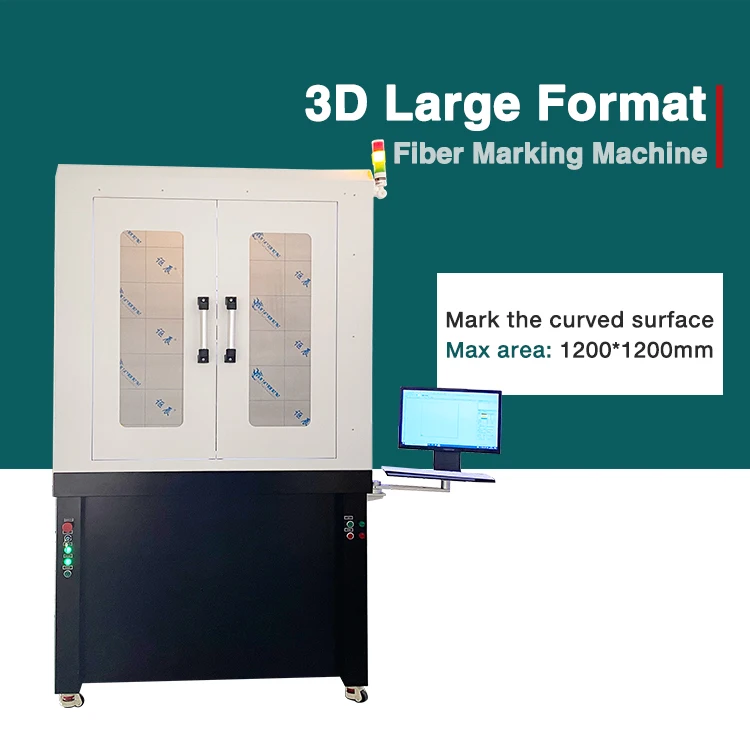

Dynamic auto focus 3D large format 100W fiber laser marking machine
JPT Mopa laser marking metal engraving machine
Product Feature
What can Dynamic Auto focus 3D fiber laser marking machine 2.5D 50W 60W 80W 100W JPT Mopa laser marking metal engraving machine do?
This 3D laser printing machine software allows for industrial laser marking on various part geometries. This industrial laser marking machine will perform fast and reliable laser etching on various part geometries. It specialize in creating 3D images on a variety of materials.
1. 3D Laser engraving machines specialize in creating 3D images on a variety of materials.
2.It is special use full for coin mould and die mould. it is also know for mould making machine
3.Marks curved, tilted, multi-level surfaces without rotary.
3.Marks curved, tilted, multi-level surfaces without rotary.
What is the difference between 2D 2.5D 3D machines?
2D laser can be used for flat surface marking , deep engraving and some thin metals cutting, works 2D galvo scanning head and EZCAD2 control card, EZCAD2.1 4.11 version software.
2.5D laser means 2D laser+ motorized Z axis. Based on the common 2D laser, the latest 2.5D machine is composed by the motorized Z axis and EZCAD3 software, mainly used for STL file metal mold coin relief engraving etc + All features of 2D machines.
3D laser is the most comprehensive machine, which also have the motorized Z axis and EZCAD3 control card, plus a 3D Dynamic focus scanning head , it can be used for curved surface (app 120 degree) marking without rotary, can be used for metal mold and coin relief engraving, what's more, it can be used for big format like 300*300mm metal deep engraving. (for 2D and 2.5D laser, the max deep engraving area is app 110*110MM)
Specification
2.5D 3D Fiber laser engraving marking machine - Technical Parameters
Products Name | Fiber Laser Marking Machine | Types & Model | PRATT CNC LASER |
Laser Source Brand | Raycus, JPT, IPG, Max | Laser Power | 50W, 60W, 80W, 100W,200W |
Frequency Rate for Normal Fiber | 30KHZ to 100KHZ ( Raycus) 1KHZ to 600KHZ (JPT) | Frequency Rate for Mopa Fiber | 30KHZ to 1000KHZ (Raycus) 1KHZ to 4000KHZ (JPT) |
Max Pulse Energy | 30KHZ to 100KHZ ( Raycus) 1KHZ to 600KHZ (JPT) | Pulse Width | 10 - 350ns (Raycus) 2 - 500ns (JPT) |
Laser Wavelength | 1064um | Pulse Width | 7000mm/s |
Control Card | Original EZCAD from JCZ brand | Filed Lens Brans | Wavelength/ Ronar Smith |
2D Galvo Head | Sino Galvo 2206 / OV8810 | 3D Galvo Head | Feeltek, JCZ, Sino Galvo |
Field Lens Brand | Wavelength/ Ronard Smith | Marking Area | 800*800mm |
Mininum Line Width | 0.015mm | Mininum Character | 0.2mm |
Operation System | Win XP / 7 / 8 / 10 (32 bit , 64 bit) | Power Supply | AC110V /220V +10%, 50HZ/60HZ |
Operation Environment | Working temperature: 0°-40°. | Storage temperature: -10°-60°. | Humidity: 30% - 85%. |
Samples:
Company Profile
Packing & Delivery
Certificates
FAQ
Q1. How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video.
We will recommend you the suitable model with the reasonable price.
Q2. How about the lead time?
For the standard machine, the delivery time is 3-7 days after the payment.
For the non-standard machine, the delivery time is 7-15 days after the payment.
Q3. How to install and use it?
We have the instruction Book, Operational manual and Training Video inside the machine.
We also can provide the training on line by free.
Q4. How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solve it by mail.
phone, or video communication.
Q5. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training
course in our company.
Q6. Do you provide the onsite service if we needed?
Yes. We can provide the onsite service if you needed. But need the customer pay for the transport, hotel, food and 60USD/day.
