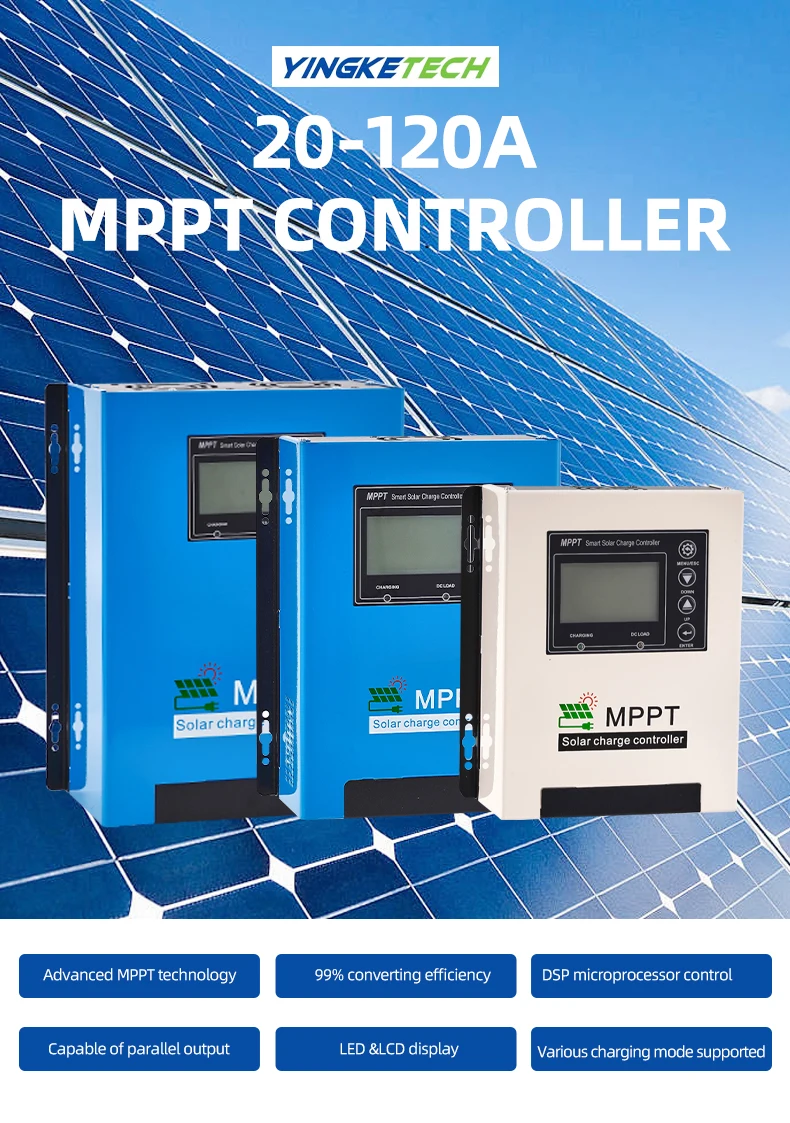

12V 24V 48V 96V 20A 30A 40A 50A MPPT Charger Regulator 60A 80A 100A 120A Auto Solar Charge Controller for Solar Power System
- Category: >>>
- Supplier: Foshan Yingke Intelligent Electronic Technology Co. Ltd.
Share on (1601014728326):
Product Overview
Description
Products Description
Technical Parameter | ||||||||||||
Model No. | MPPT-10 | MPPT-15 | MPPT-20 | MPPT-30 | MPPT-40 | |||||||
Rated Charge Current | 10A | 15A | 20A | 30A | 40A | |||||||
Charge Voltage | 12V/24V | 12V/24V/48V | ||||||||||
Charging pattern | MPPT automatic maximum power point tracking | |||||||||||
System type | 12V/24V/48V | Auto sensing / Manual setting | ||||||||||
Static power | 12V/24V/48V | ≤ 2W | ||||||||||
Overall efficiency | 12V/24V/48V | ≥96.5% | ||||||||||
PV modules utilization | 12V/24V/48V | ≤ 99.97% | ||||||||||
Input characteristic | ||||||||||||
MPPT working voltage range | 12V SYSTEM | DC18V-DC170V | ||||||||||
24V SYSTEM | DC34V-DC170V | |||||||||||
48V SYSTEM | DC65V-DC170V | |||||||||||
Input low voltage protection | 12V SYSTEM | DC16V | ||||||||||
24V SYSTEM | DC30V | |||||||||||
48V SYSTEM | DC60V | |||||||||||
12V SYSTEM | DC18V | |||||||||||
24V SYSTEM | DC34V | |||||||||||
48V SYSTEM | DC65V | |||||||||||
Input voltage limit | 12/24/48-DC170V | |||||||||||
Input over-voltage protection | 12/24/48-DC175V | |||||||||||
Input over-voltage recovery | 12/24/48-DC170V | |||||||||||
Solar panel maximum input power | 12V SYSTEM | 140W | 210W | 280W | 420W | 560W | ||||||
24V SYSTEM | 280W | 420W | 560W | 840W | 1120W | |||||||
48V SYSTEM | 550W | 825W | 1100W | 1650W | 2200W | |||||||
Output characteristic | ||||||||||||
Battery type available (Defaut to lead-acid battery) | 12V/24V/48V | Maintenanc-free lead acid battery, colloidal battery, liquid battery, LIFEPO4 lithium series battery (other types of batteries are available by customizing) | ||||||||||
Protect current | 12V/24V/48V | 12A | 17A | 22A | 32A | 42A | ||||||

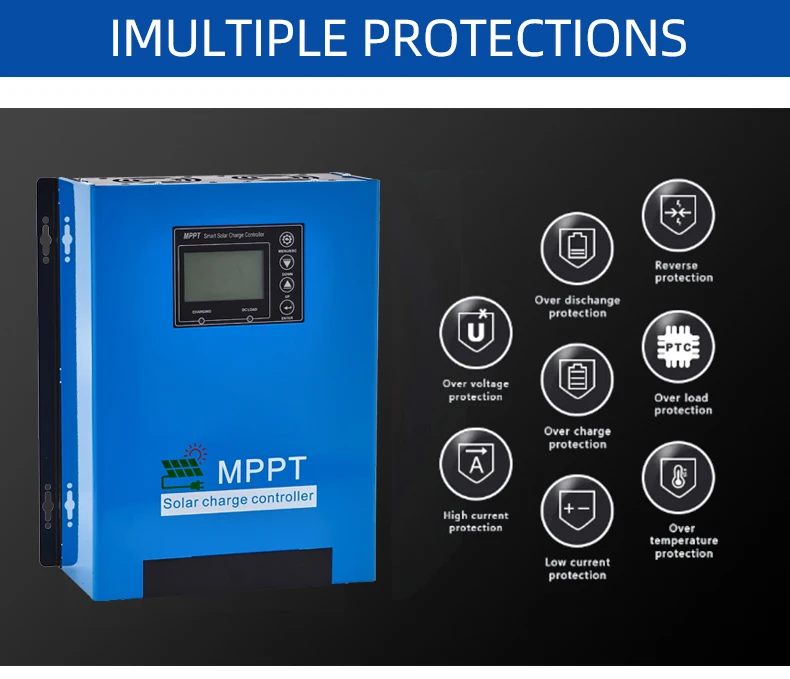

Protection | Input high voltage, Input connection, output connection, short circuit, over temperature, high temperature protection. | |||||||||||
Noise | 40dB | |||||||||||

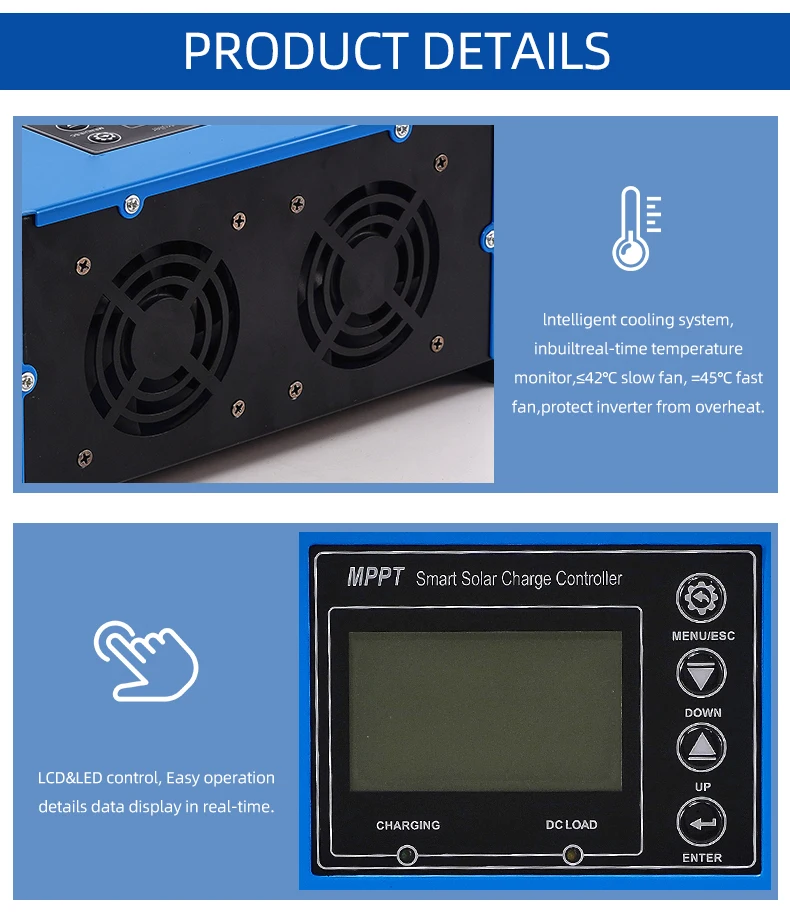

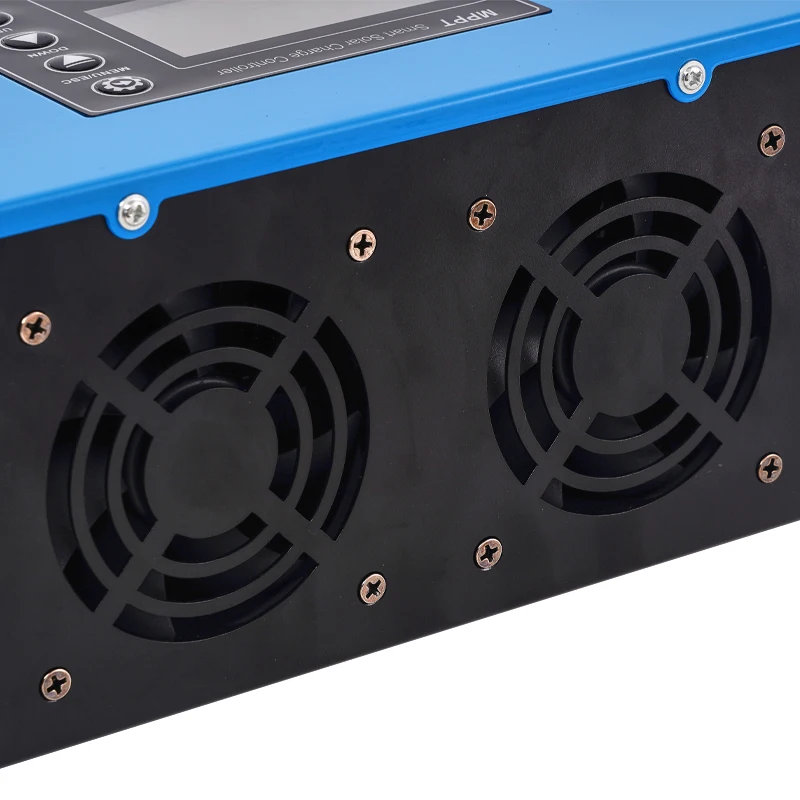

Cooling | Intelligent fan cooling, low temp. fan runs slow or stop. | |||||||||||

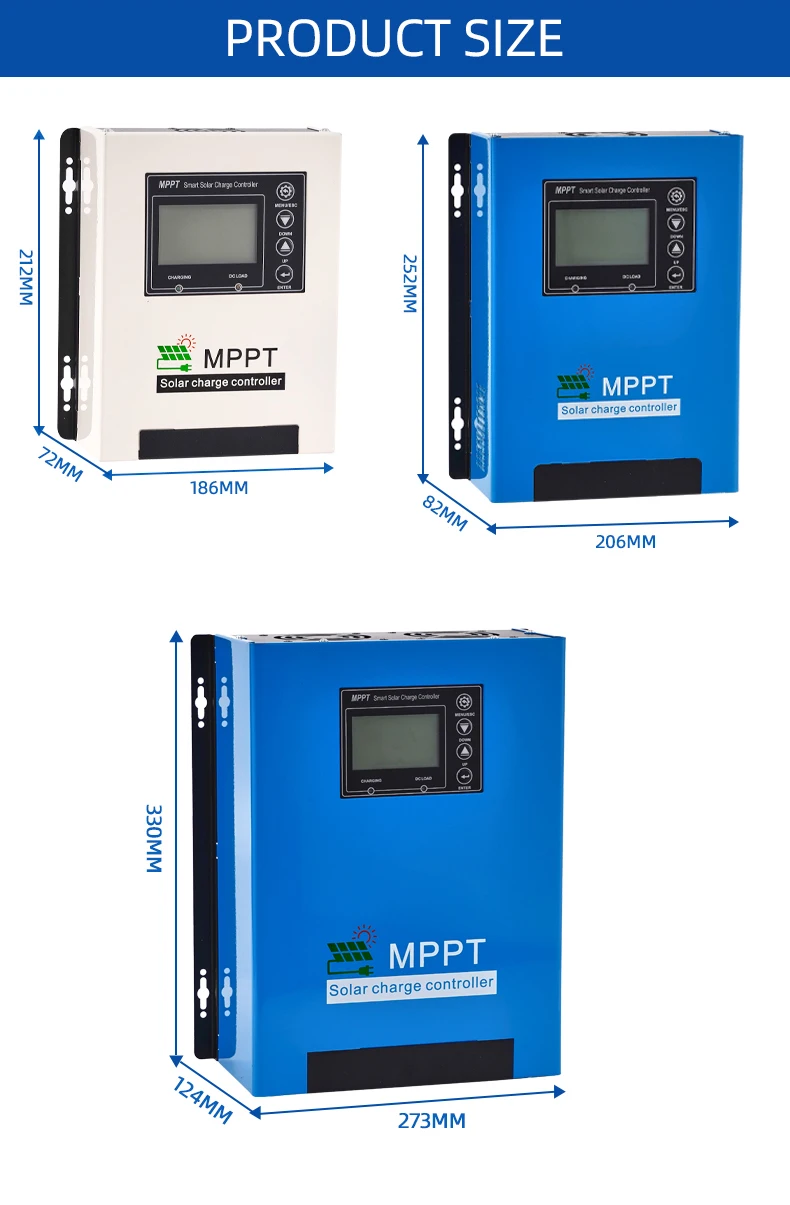

Size | 90*151*58 | 212*186*72 | ||||||||||

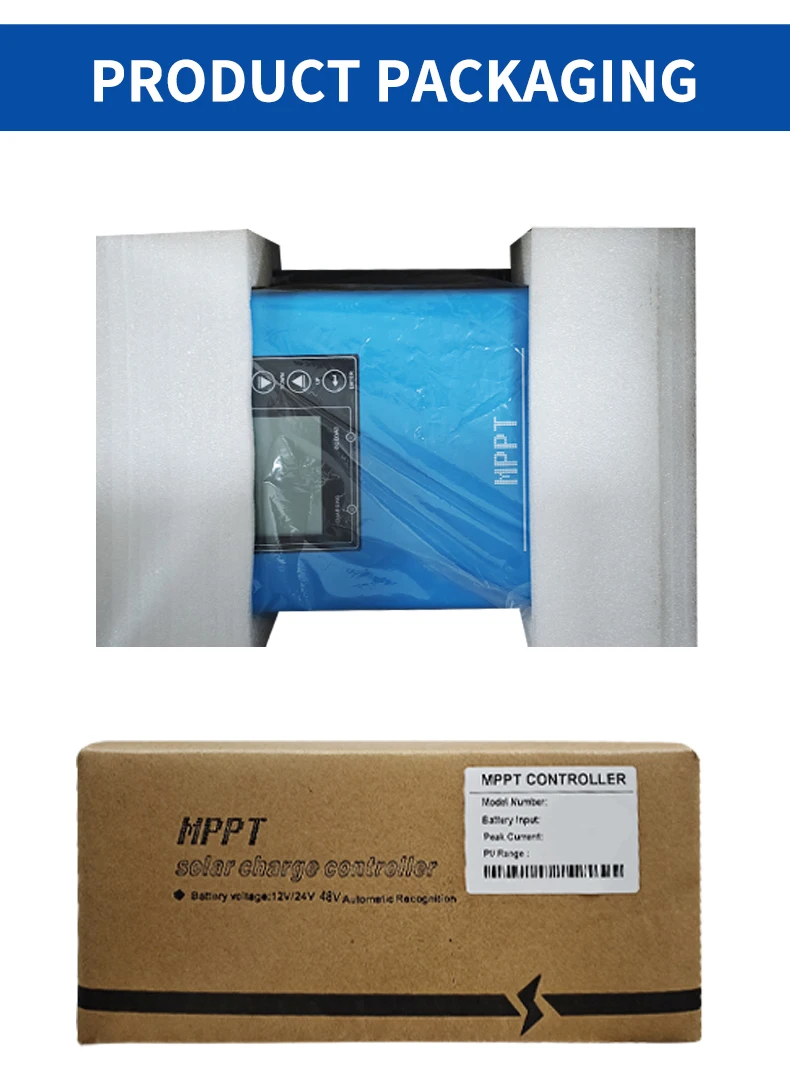

Package size | 165*125*70 | 260*220*115 | ||||||||||
Net Weight （kg) | 0.65 | 0.8 | 1.2 | 1.3 | 1.5 | |||||||
Gross Weight （kg) | 0.8 | 1 | 1.5 | 1.8 | 2 | |||||||
*Products Specification are subjected to changed without further notice. | ||||||||||||
Technical Parameter | ||||||||||||
Model No. | MPPT-50 | MPPT-60 | MPPT-80 | MPPT-100 | MPPT-120 | |||||||
Rated Charge Current | 50A | 60A | 80A | 100A | 120A | |||||||
Charge Voltage | 12V/24V/48V | 48V/96V | ||||||||||
Charging pattern | MPPT automatic maximum power point tracking | |||||||||||
System type | 12V/24V/48V/96V | Auto sensing / Manual setting | ||||||||||
Static power | 12V/24V/48V/96V | ≤ 2W | ||||||||||
Overall efficiency | 12V/24V/48V/96V | ≥96.5% | ||||||||||
PV modules utilization | 12V/24V/48V/96V | ≤ 99.97% | ||||||||||
Input characteristic | ||||||||||||
MPPT working voltage range | 12V SYSTEM | DC18V-DC170V | ||||||||||
24V SYSTEM | DC34V-DC170V | |||||||||||
48V SYSTEM | DC65V-DC170V | |||||||||||
96V SYSTEM | DC130V-DC230V | |||||||||||
Input low voltage protection | 12V SYSTEM | DC16V | ||||||||||
24V SYSTEM | DC30V | |||||||||||
48V SYSTEM | DC60V | |||||||||||
96V SYSTEM | DC12V | |||||||||||
12V SYSTEM | DC18V | |||||||||||
24V SYSTEM | DC34V | |||||||||||
48V SYSTEM | DC65V | |||||||||||
96V SYSTEM | DC130V | |||||||||||
Input voltage limit | 12/24/48-DC170V 96V-DC230V | |||||||||||
Input over-voltage protection | 12/24/48-DC175V 96V-DC235V | |||||||||||
Input over-voltage recovery | 12/24/48-DC170V 96V-DC230V | |||||||||||
Solar panel maximum input power | 12V SYSTEM | 700W | 900W | 1140W | 1400W | 1680W | ||||||
24V SYSTEM | 1400W | 1700W | 2260W | 2600W | 3360W | |||||||
48V SYSTEM | 2800W | 3400W | 4540W | 5600W | 6720W | |||||||
96V SYSTEM | 5600W | 7200W | 9120W | 11200W | 13440W | |||||||
Output characteristic | ||||||||||||
Battery type available (Defaut to lead-acid battery) | 12V/24V/48V | Maintenanc-free lead acid battery, colloidal battery, liquid battery, LIFEPO4 lithium series battery (other types of batteries are available by customizing) | ||||||||||
Protect current | 12V/24V/48V | 52A | 62A | 82A | 102A | 122A | ||||||
Protection | Input high voltage, Input connection, output connection, short circuit, over temperature, high temperature protection. | |||||||||||
Noise | 50dB | |||||||||||
Cooling | Intelligent fan cooling, low temp. fan runs slow or stop. | |||||||||||
Size | 252*181*82 | 330*280*120 | ||||||||||
Package size | 310*250*135 | 380*315*175 | ||||||||||
Net Weight （kg) | 2.5 | 2.5 | 6.5 | 6.8 | 7 | |||||||
Gross Weight （kg) | 3.1 | 3.1 | 7.3 | 7.5 | 8 | |||||||
*Products Specification are subjected to changed without further notice. | ||||||||||||
Recommend Products
FAQ
Q1: Does your company also provide other solar products except MPPT Solar Controller?
A1: Yes, we also provide other solar products, like Pure Sine Wave Inverter, poly solar panel, off grid solar inverter, battery, portable solar system, solar charger and other accesories related to the solar power system.
Q2:What is our advantage ?
A2:We have professional R&D team, can customized the products you want.
Q3: How to choose a right inverter?
A3: Tell us your demand, then our sales manage will recommend a suitable inverter to you.
Q4: How about the delivery time?
A4: 3 days for sample; 5-25 days for bulk order.
Q5: What is the warranty of inverter?
A5: 3 year warranty.
Q6: How can we guarantee quality? How to solve the technical problem?
A6: Always a pre-production sample before mass production;Always final Inspection before packing.
24 hours after-service consultancy just for you and to make your problem to solve easily.
