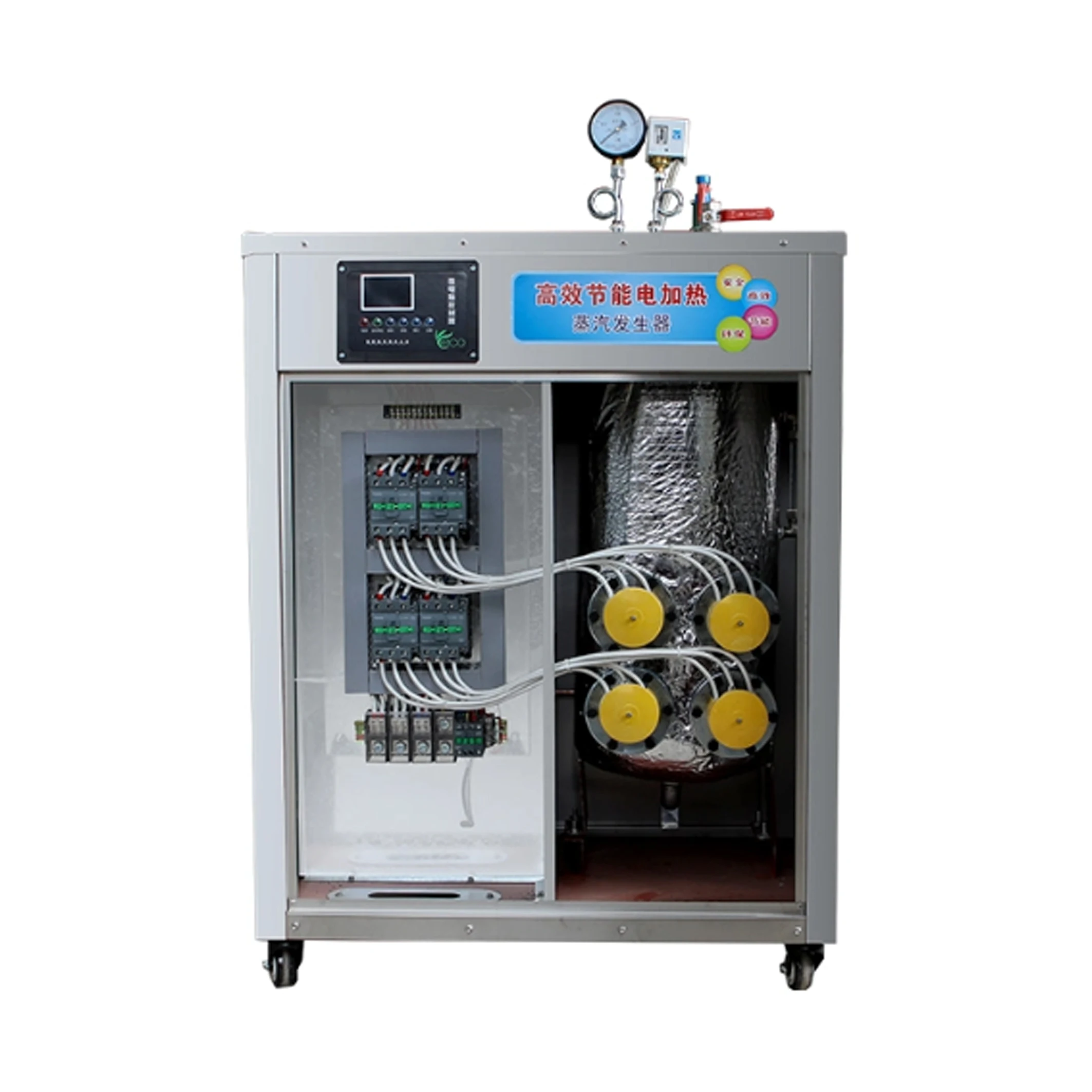

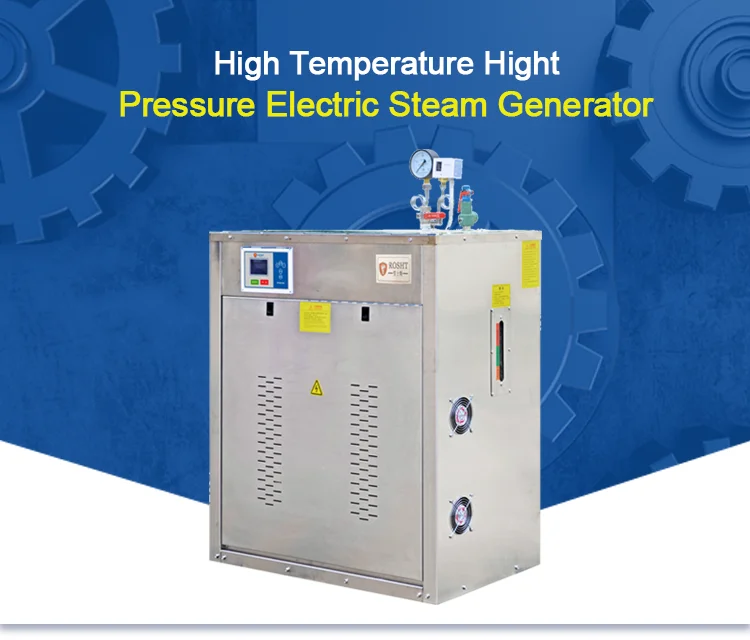

Mini Electrical Steam Boiler 48kw Electric Steam Generator for Indoor Heating and Bathing

Product Overview

Description

Mini Electrical Steam Boiler 48kw Electric Steam Generator for Indoor Heating and Bathing

LDR series full automatic electric heating boiler is a kind of new high technology product which takes electricity as energy. It has the advantages of environmental protection, no pollution, no noise, convenient installation, small occupation, full automatic control and high thermal efficiency.

Model			LDZ(K) 0.035-0.7	LDZ(K) 0.05-0.7	LDZ(K) 0.075-0.7	LDZ(K) 0.1-0.7	LDZ(K) 0.2-0.7	LDZ(K) 0.3-0.7	LDZ(K) 0.5-0.7
Rated evaporation		Kg/h	35	50	75	100	200	300	500
Rated steam pressure		Mpa	0.7
Electric heating tube power		Kw	24	36	48	72	144	216	360
Pump power		Kw	0.75				0.75*2	0.75*3	0.75*4
Overall size	Length	mm	700			900	1400	1500	2400
	Width	mm	450			600	570	700	600
	High	mm	1180			1460	1460	1460	1460

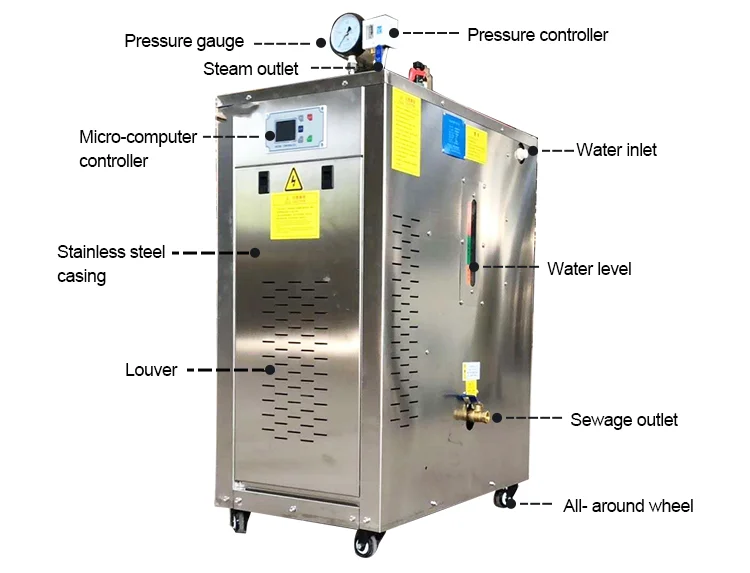

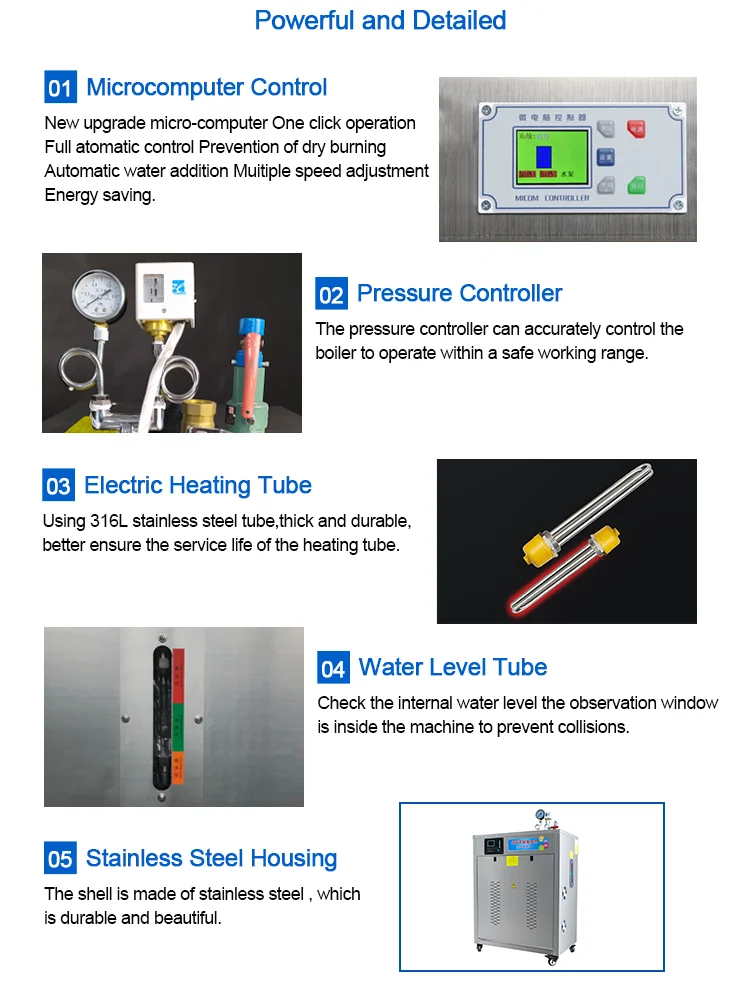

 Product Advantage:

1.One click intelligent control fully automatic operation.

2.Adopting thickened stainless steel electric heating tube, with long service life.

3.Using famous brand Schneider electrical components.

4.Equipped with a high-temperature and high-pressure pump, capable of using high-temperature condensate return water from the production line.

5.Configure customized high sensitivity and high temperature resistance pressure controller

6.Stainless steel one-time formed shell, corrosion-resistant, and aesthetically pleasing.

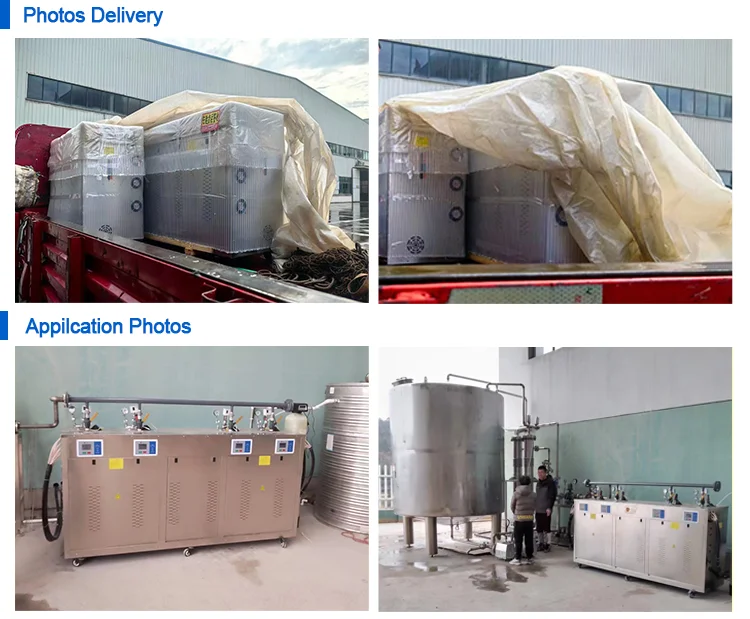

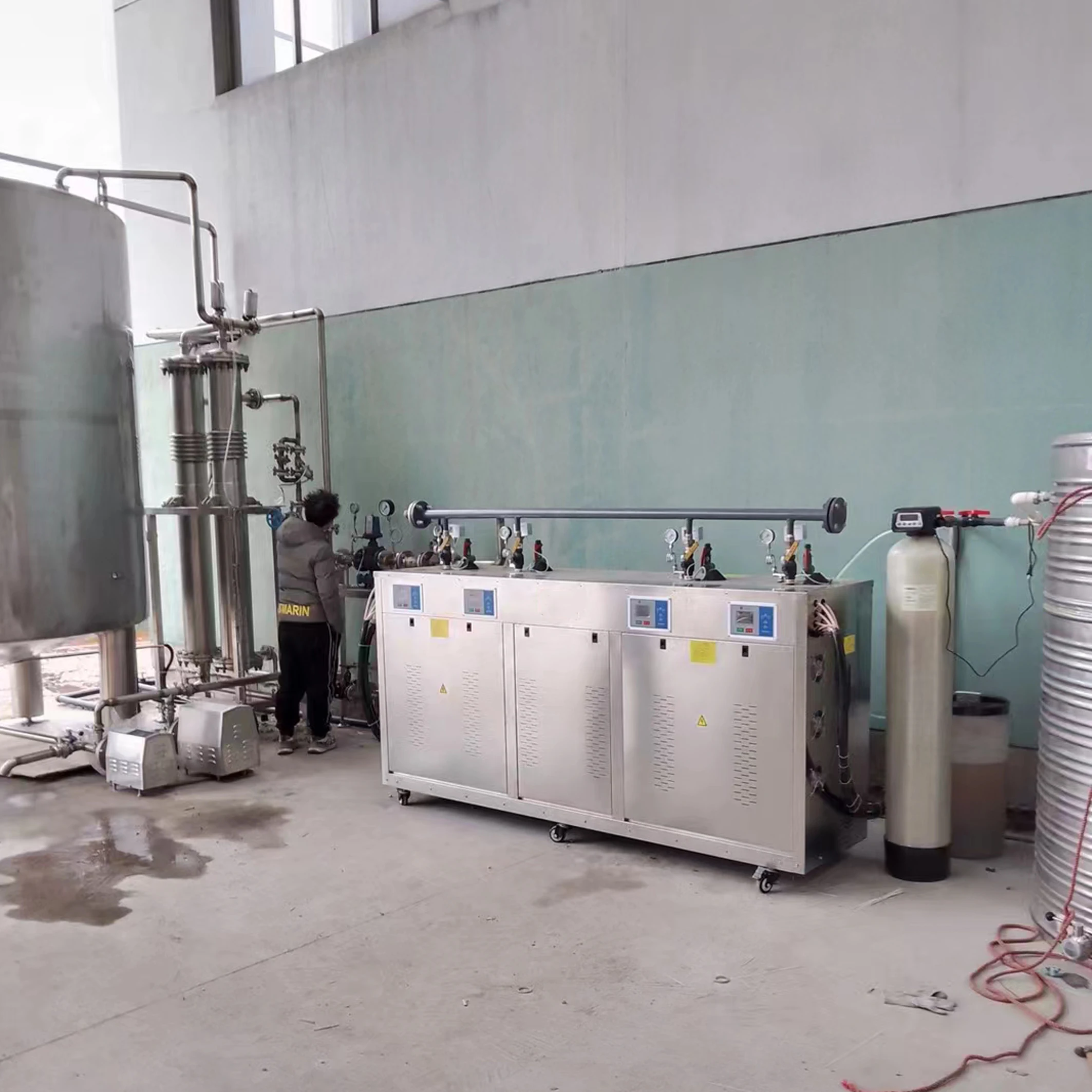

Appilcation:

1. Washing ironing industry:
Dry washer, dryer and washing machine, dryer, ironing machine, electric iron, and other ancillary equipment.
2. Food machinery industry:
Tofu machine, steam box, sterilization pot, packing machine, coating equipment, sealing machine, such as supporting the use of equipment
3. Biological chemical industry: Fermentation tank, reaction kettle, sandwich pot, mixer, emulsifying machine supporting the use of equipment
4. Other industries:
Oil field, steam cleaning industry, (hotel, school, dormitory, batch plant) , concrete curing, leisure (salon), sauna bath, heat exchange equipment.

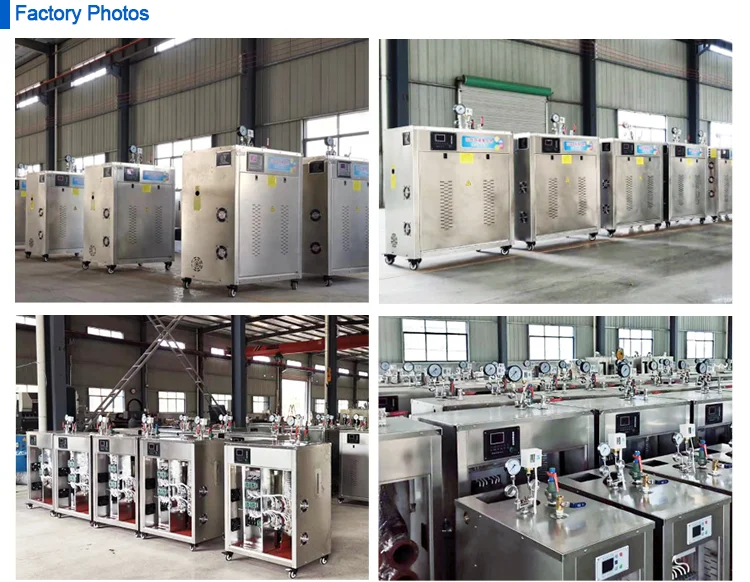

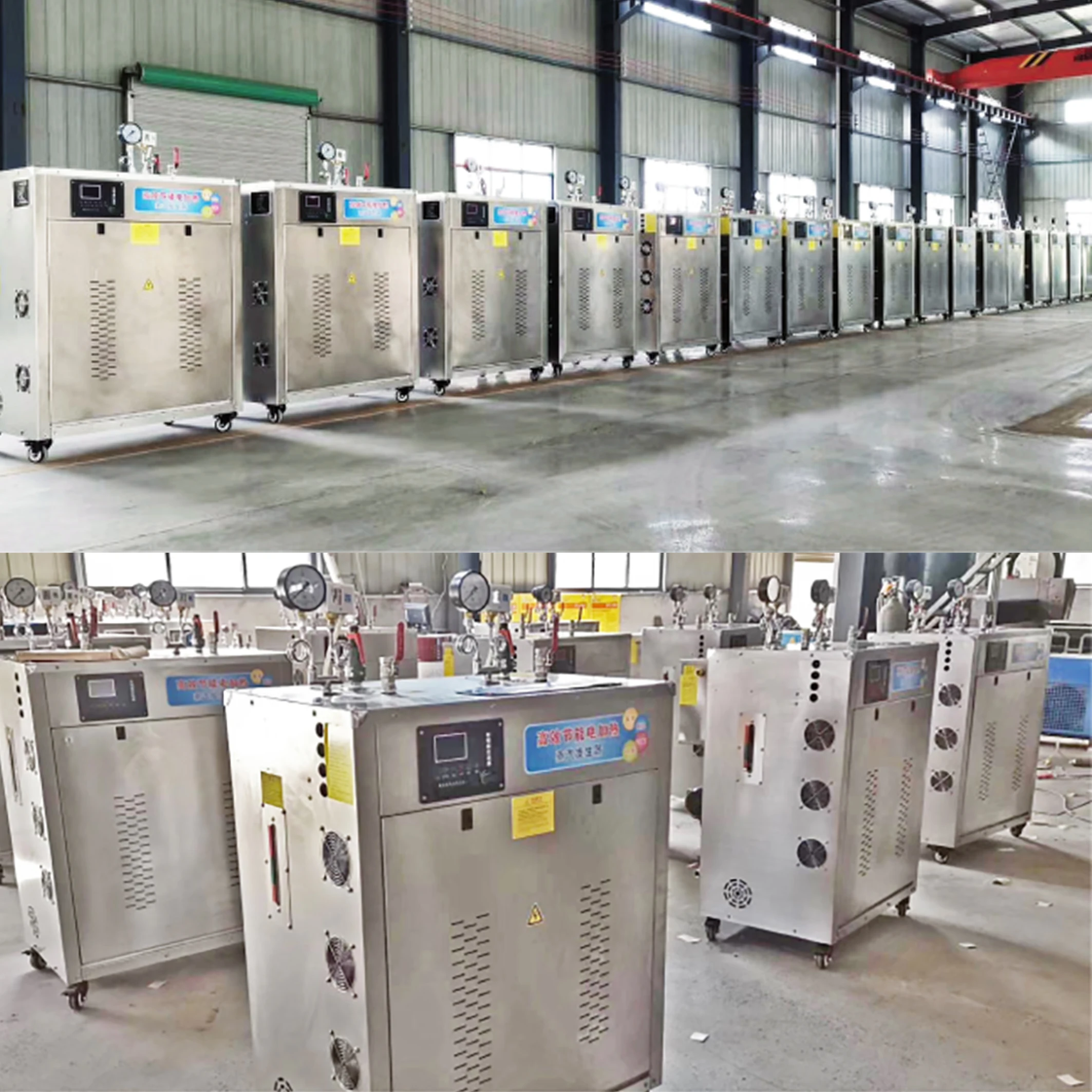

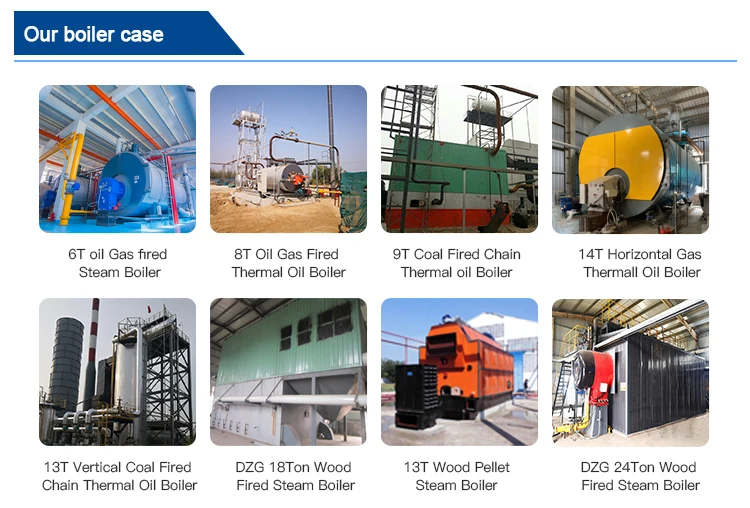

Bidragon Group is engaged in boiler for many years and we mainly supply steam generator,hot water boiler, steam boiler, thermal oil heater, etc., boilers. We have our own technical team, R&D team, sales team, and cooperative factories. Our factory was established in 1980, covering an area of 80,000 square meters, with more than 20 patented technologies. Take thermal oil heater for example, our technical team designs coil tube on boiler top and which design increases the thermal oil heaters thermal efficiency higher more than two points than the common oil gas fired thermal oil heater, which technical update is highly appreciated by customer at home and oversea because it saves fuel many consumption costs for customers.
