3 axis ab 2k two component liquid epoxy resin automatic dynamic glue dispenser dispensing mixing potting filling machine robot
- Category: >>>
- Supplier: Shenzhen Second Intelligent Equipment Co. Ltd.
Share on (1601014747970):
Product Overview
Description

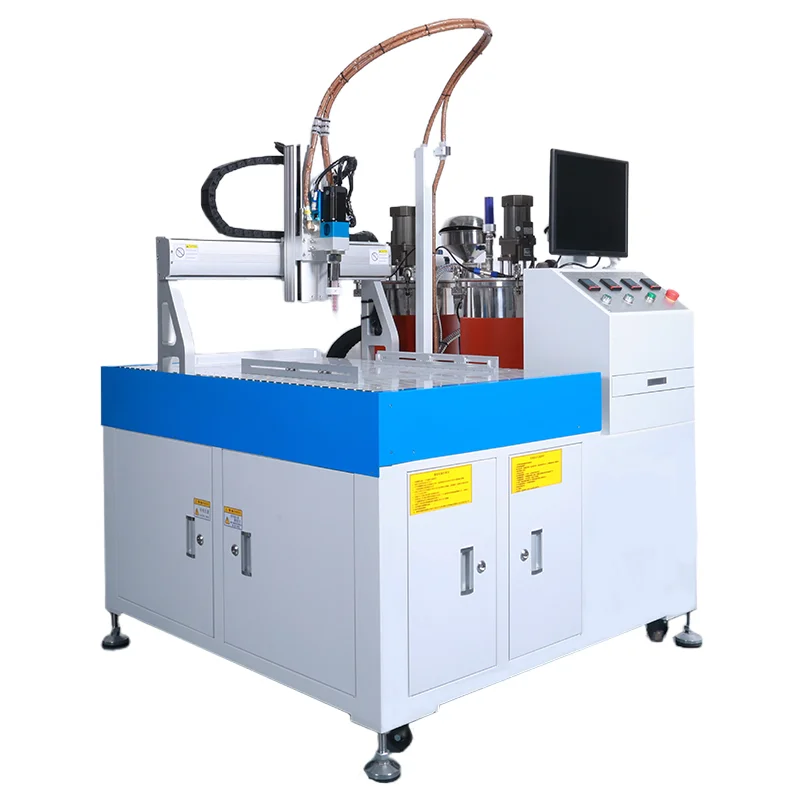

SEC-3030C automatic dispense AB glue epoxy resin doming machine for stickers tags keychain
Dome epoxy sticker AB glue mixing Two component epoxy resin machine SEC-3030C

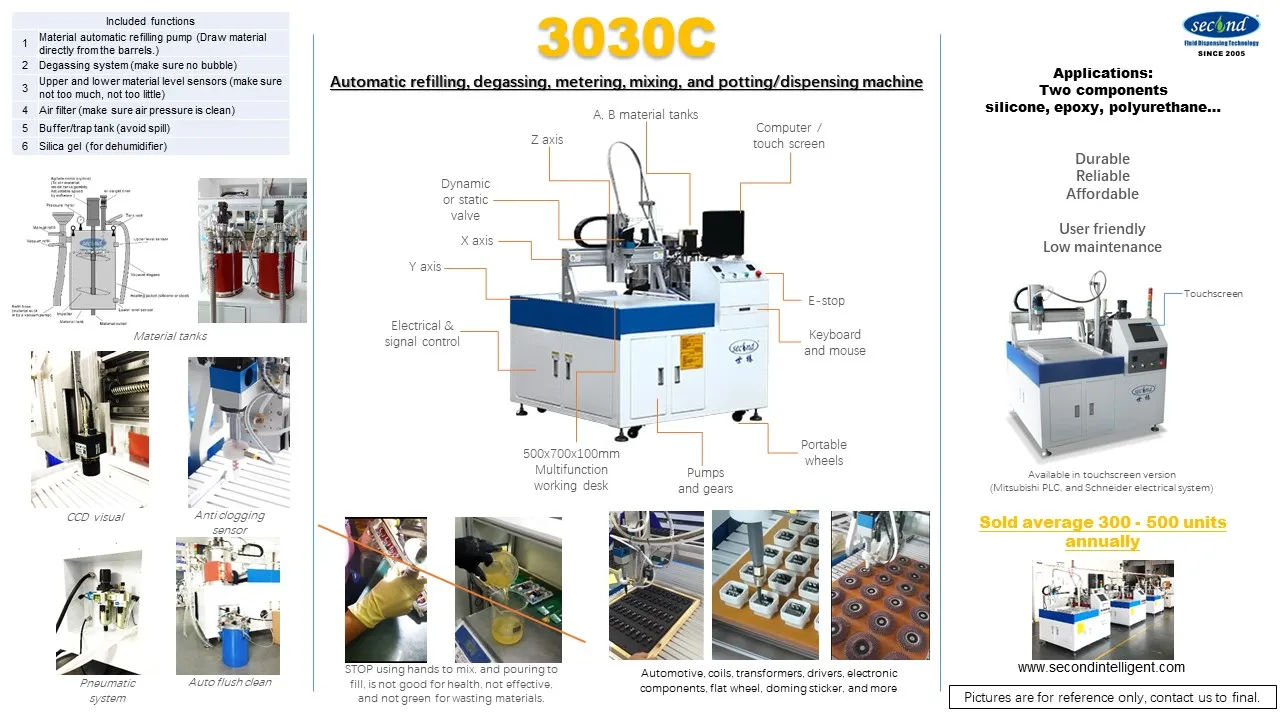

* Features
1, user friendly bilingual (Chinese/English) touch screen human interface, easy to learn and understand, can store 100 sets of glue parameters;
2. The filling speed, the filling time and the stopping time can all be parameterized, the amount of glue is stable, and the glue is not leaked;
3. It has the functions of point, line, surface, arc, circle and three-axis linkage, which can adapt to any irregular object filling;
4, saving labor, one device can reach the output of traditional 5-6 people;
5, according to the need ratio, to achieve side mixing while filling glue, to maximize the savings of glue;
6, Two tanks store material nindependently, avoid materials caking, and increase storage time;
7, the unique control system, not affected by the pressure mfactor, to avoid uneven rubber, drawing, air bubbles and other phenomena;
8. The storage tank is equipped with a liquid level sensor switch, with Automatic material shortage alarm;
9. Optional glue stirring, heating and vacuum defoaming function, suitable for different kinds of infusion process.
* Glue tank specification
Material : stainless steel 304
Standard : 15L, 30L,70L Optional
Specification | ||||||
Model | SEC-3030C/CH | |||||
Work Area | 500(X)╳700(Y)╳100(Z)mm | |||||
Travel speed | 300mm/sec | |||||
Mixing precision | ±2% | |||||
potting precision | ±2% | |||||
Mixing Ratio | 100：100～100：20 or 100:20～100:10 adjustable | |||||
Potting speed | 1g/sec～15g/sec or 5g/sec～30g/sec | |||||
Operable viscosity | <100000CPS | |||||
Operation system | Windows 7 | |||||
Measuring mode | Stepping motor/gear pump/ rotary plunger pump servo motor+piston pump | |||||
Drive Mode | Micro stepping motor& sync belt | |||||
Power supply | AC220V 50HZ 2.5KW | |||||

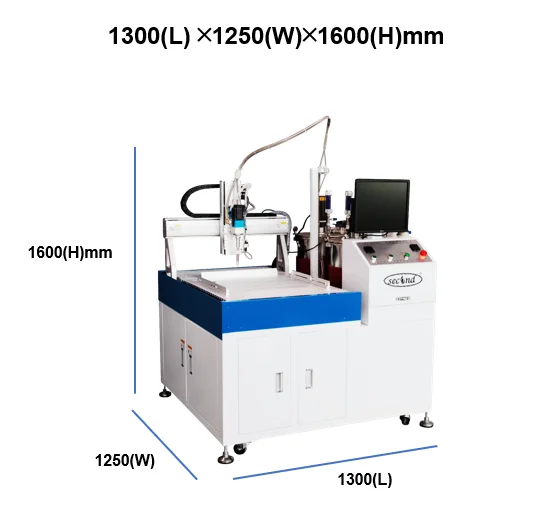

Size | 1300(L) ╳1250(W)╳1600(H)mm | |||||
Weight | About 330kg | |||||
Work environment | Humidity：20-90%， Temperature：0-40℃ | |||||

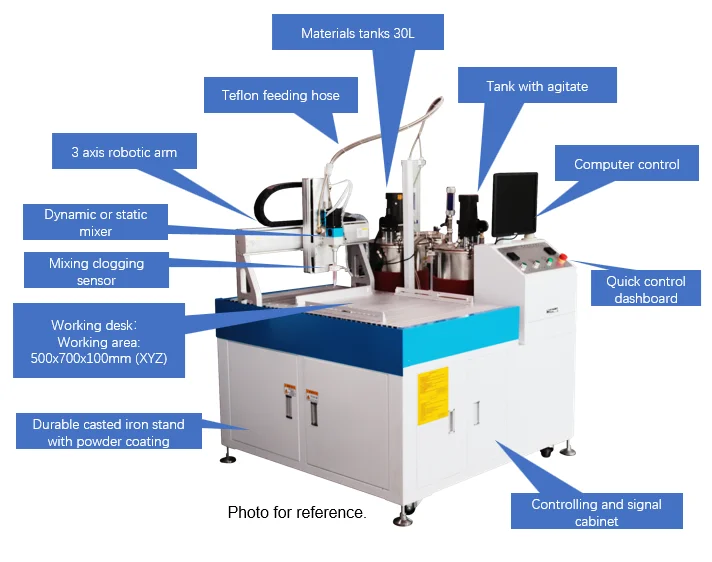

Configuration | ||||||
Part | Unit | QTY | Remarks | |||
X/Y/Z axis motor | kit | 3 | High-precision stepping motor and driver | |||
Material stirring system | kit | 2 | Optional | |||
Guide rail | kit | 4 | Taiwan TBA/ABBA | |||
Industrial Computer | kit | 1 | Advantech | |||
Monitor | Set | 1 | Dell | |||
Movement controller | kit | 1 | Second | |||

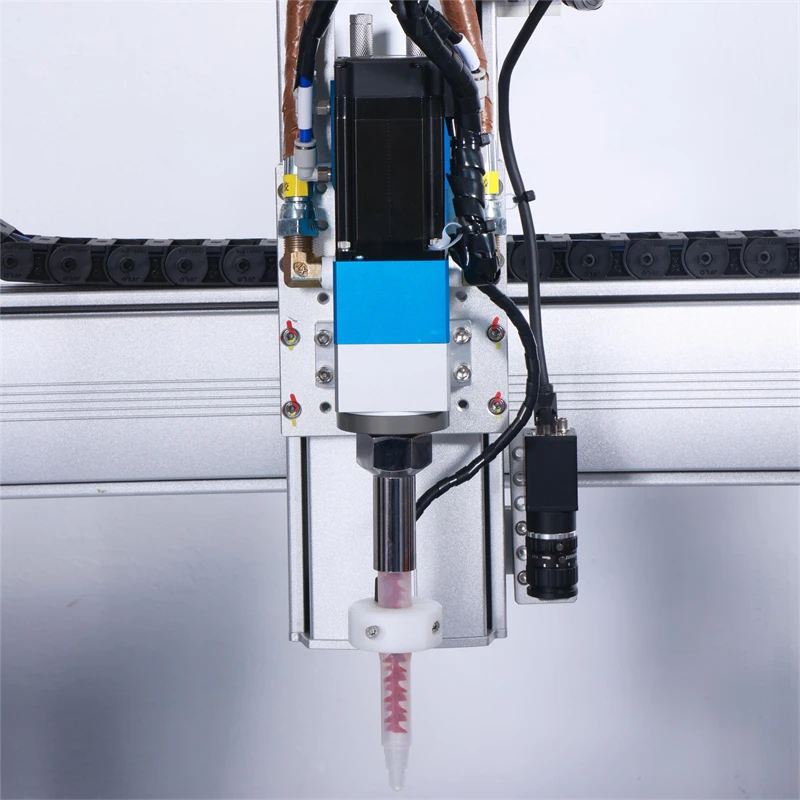

Double liquid mixing valve | kit | 1 | Static or dynamic valve as optional | |||
High precision metering pump | kit | 2 | Gear pump/rotary plunger pump as optional/piston pump | |||
Semi-automatic cleaning device | kit | 1 | Optional | |||
Measuring motor | kit | 2 | Stepping motor | |||
Barrel | kit | 2 | 15L,30Lor 70L, function of vacuum deaeration and heating is selectable. | |||
Conveying pipe | kit | 2 | Teflon hose | |||
Automatic potting software | kit | 1 | Second independent R&D | |||
Detecting for dynamic stir default | kit | 1 | Optional | |||
Discharging pressure detector | kit | 1 | Optional | |||
