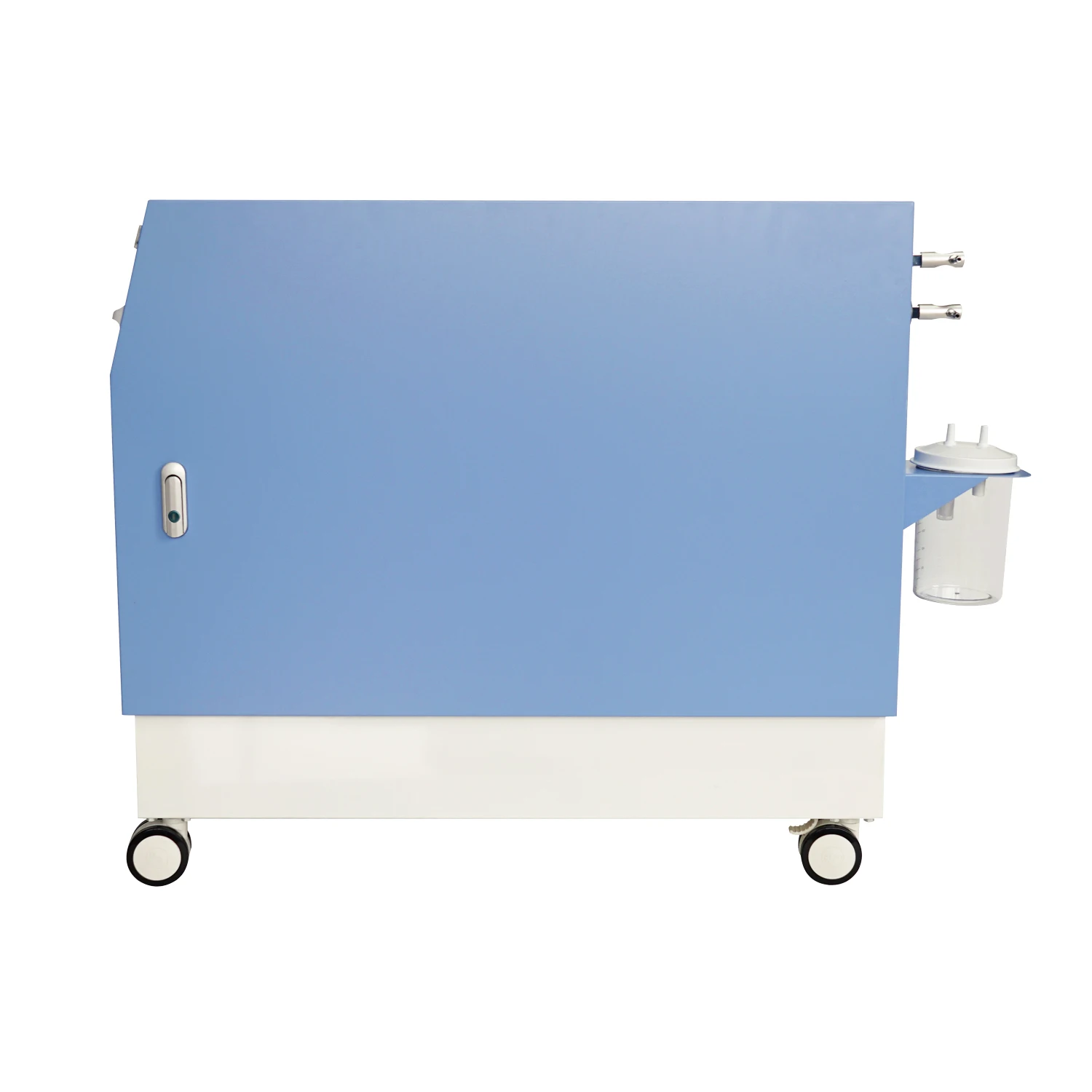

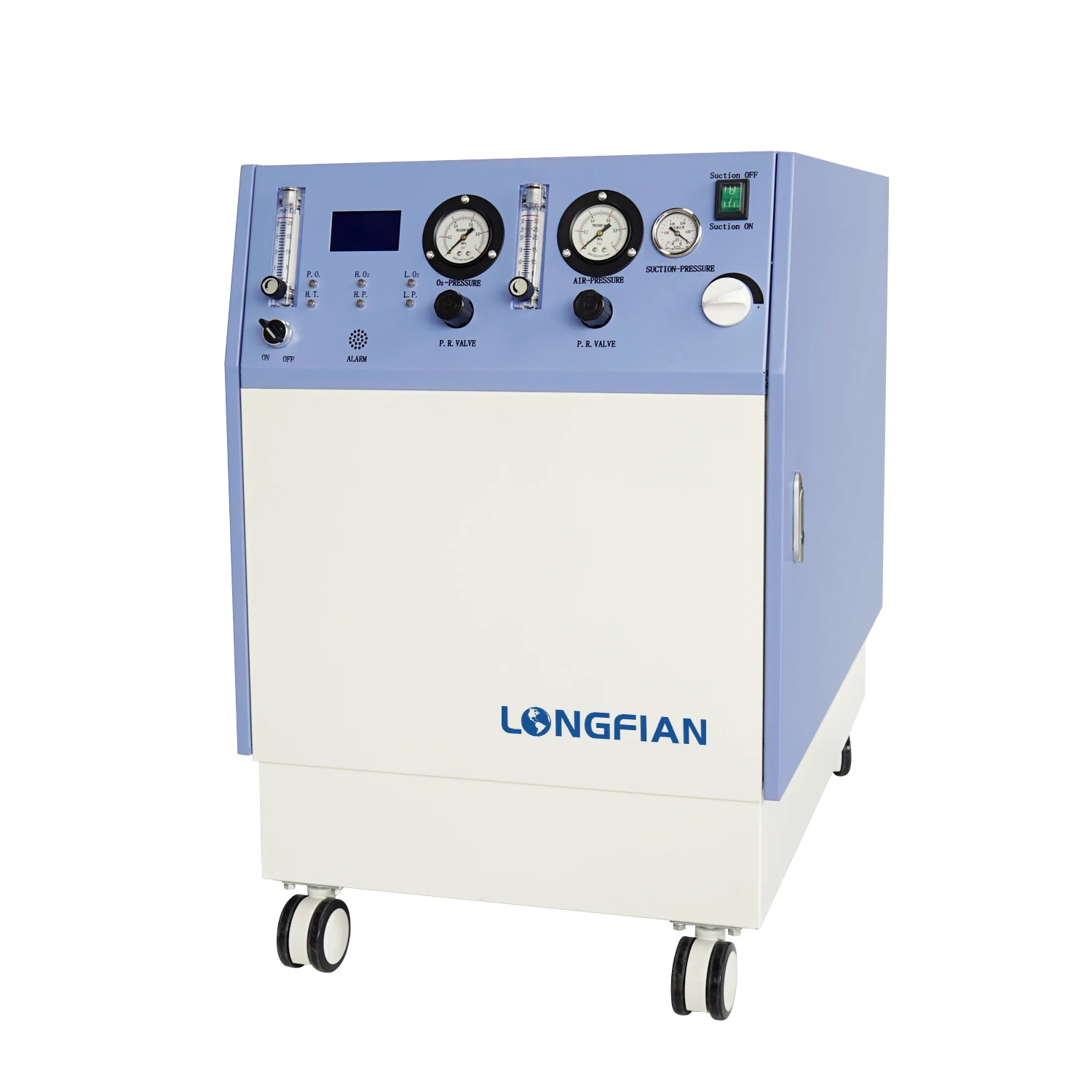

3.5 Bar Oxygen Generator With Vacuum Compress Air For Ventilator Machine
- Category: >>>
- Supplier: Longfian Scitech Co. Ltd.
Share on (1601014753221):
Product Overview
Description
Product Description
oxygen concentrators are with an outlet pressure of 3.5 bar. To obtain medical oxygen with a concentration of 95%, the air in the device is filtered twice, nitrogen is removed by means of adsorbers. Thus, the costs for the production of medical oxygen and the maintenance of the apparatus are minimal. The alarm system informs about the overheating of the device or violations in the operation of the valves.

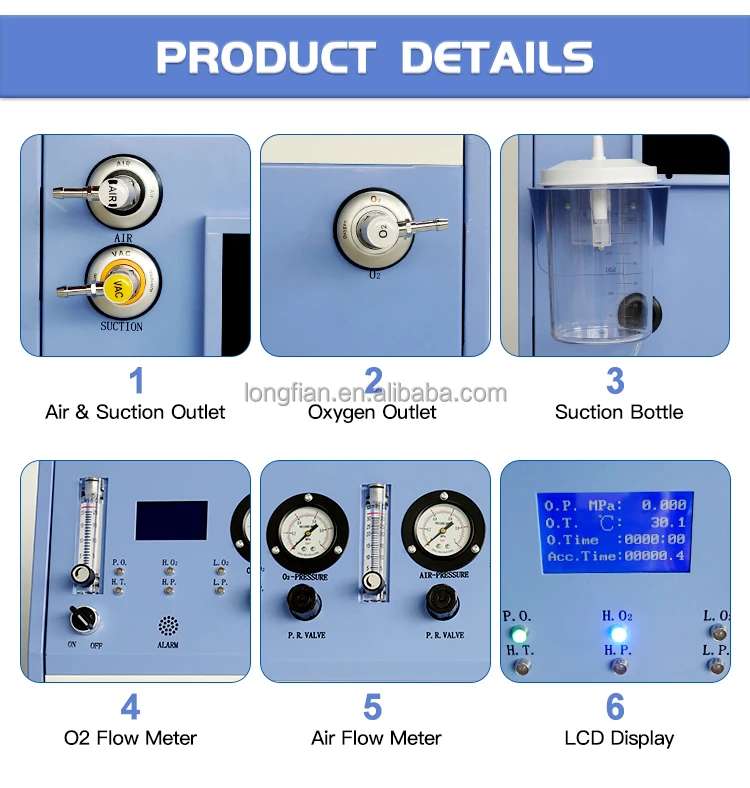

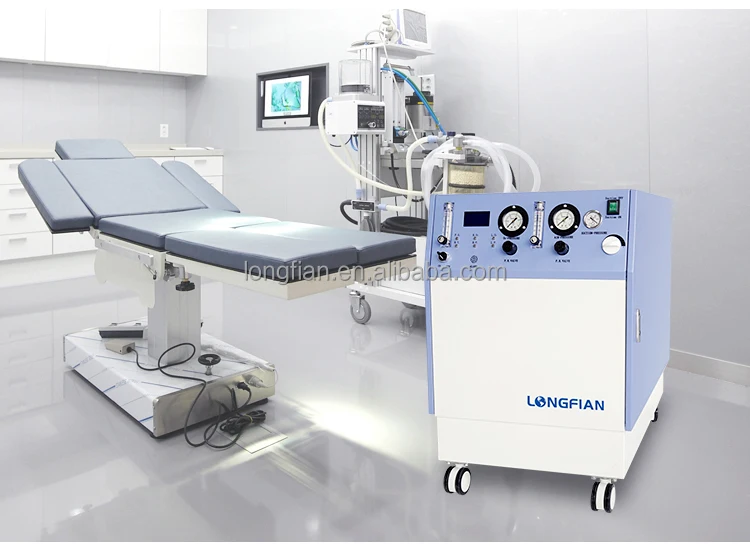

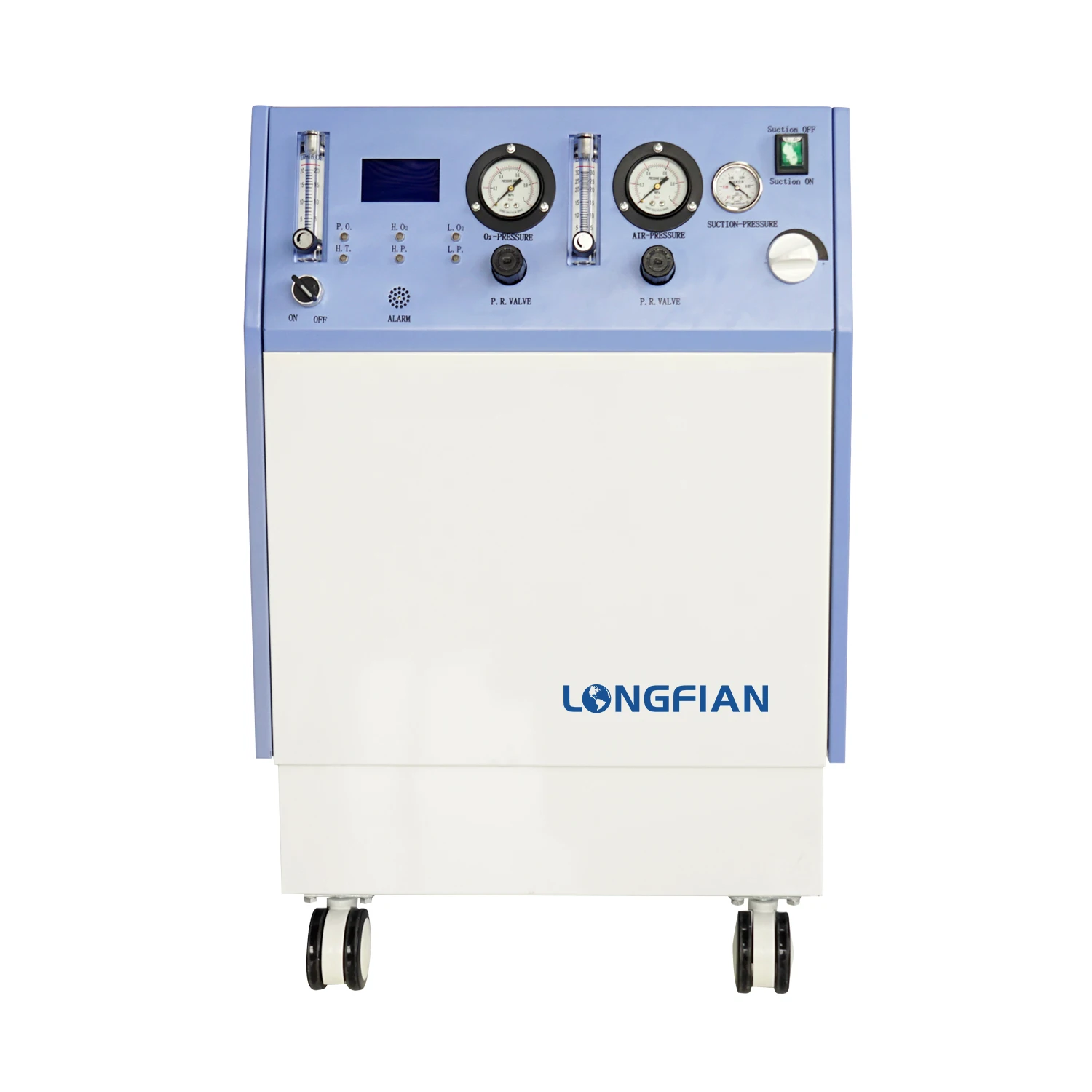

It is a rugged double metal cased device that supplies compressed air and oxygen to anesthesia and ventilation systems. The air passes through a coarse filtration system, a porous and bacterial filter, and ultrafine filtration. On the control panel, there are power switch, pressure gauge, LCD screen, flow meter etc.

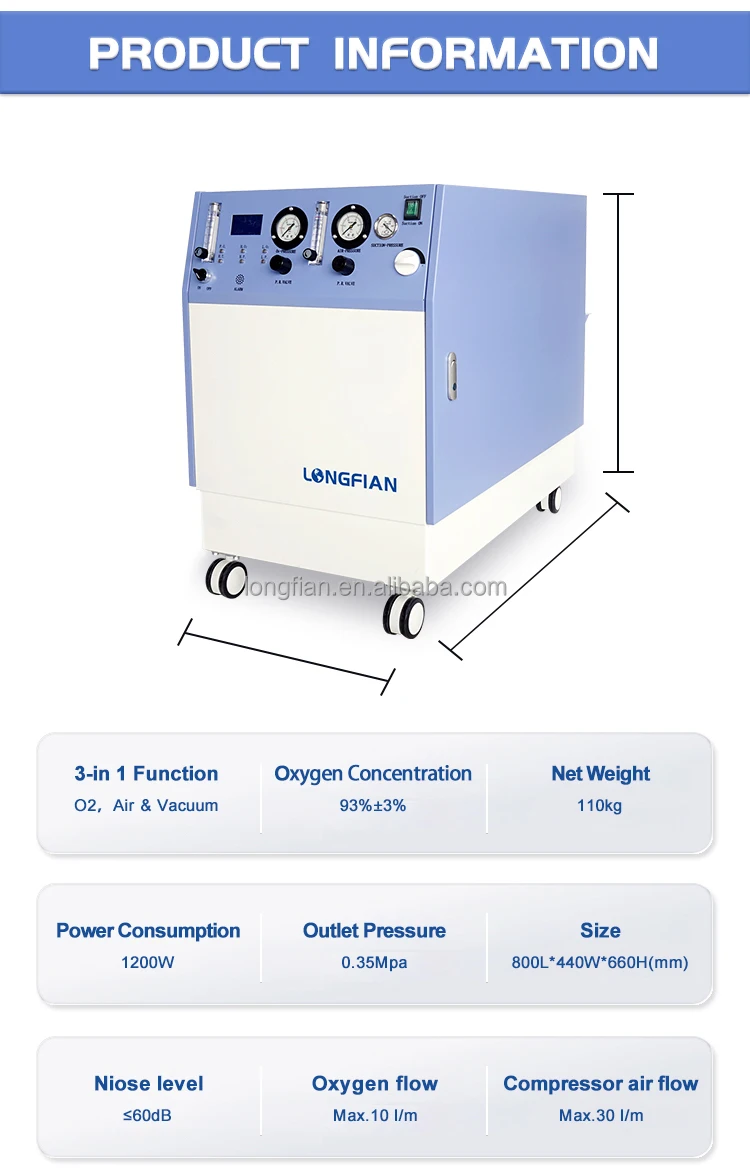

MODEL | JAY-2A type 30 |
Oxygen Flow rate | 1-10LPM |
Oxygen purity | 93±3% |
Outlet pressure | 0.35MPA |
Air flow | 1-30LPM |
Vacuum | 0-0.7bar |
Noise level | ≤60db |
Switch on Current | 7.0A |
Power consumption | ≤1200W |
Pressure guage | Air,Oxygen,VAC |
Alarm | Low purity alarm ,High&low pressure alarm, High temperature alarm, Power failure alarm |
Size | 800x440x660mm |
Net weight | 110kgs |
Features:
:- ease of operation
- high oxygen performance
- low noise level
- improved mobility
- wear-resistant zeolite material for oxygen absorption
- accumulation of oxygen/compressed air
- high oxygen performance
- low noise level
- improved mobility
- wear-resistant zeolite material for oxygen absorption
- accumulation of oxygen/compressed air
Longfian self-contained oxygen concentrator offers a more advantageous alternative compared to the delivery of containers with gas and centralized gas supply, namely the production of compressed air with a decrease in the condensation temperature, with a roller fan, a condensed water separator with a fine filter.
Using state-of-the-art medical device technology, it guarantees a continuous supply of oxygen and compressed air thanks to its extreme reliability and the highest quality standards.
Using state-of-the-art medical device technology, it guarantees a continuous supply of oxygen and compressed air thanks to its extreme reliability and the highest quality standards.

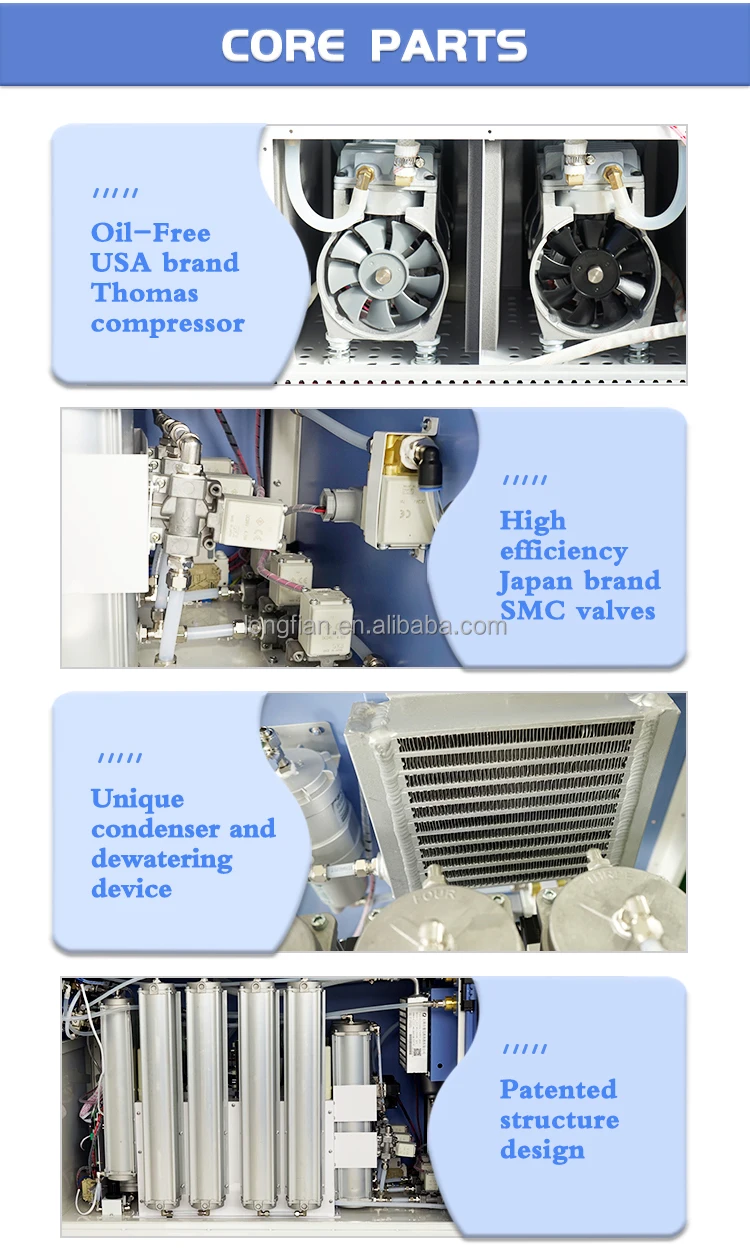

The principle of oxygen production is based on the adsorption effect of the molecular lattice. Air from the environment is drawn in and filtered through a double filter system, compressed, treated in a drying chamber with coolant, and then fed into one of two adsorption tanks. Due to the adsorption effect, nitrogen is retained, while oxygen, with a small amount of inert gases, passes into the tank for subsequent use. Reservoirs work alternately. While compressed air is flowing through one tank to produce oxygen, the cleaning process starts in the other tank by venting some of the gas. This alternating work and, as a result, the continuous production of oxygen is controlled by an electronic system. The resulting gas mixture consists of up to 93%±3% oxygen, partly argon and a small amount of other inert gases. The maximum oxygen concentration of 93%±3% is reached a few minutes after the device is turned on. This level of concentration does not change at production volumes up to 10l/min.

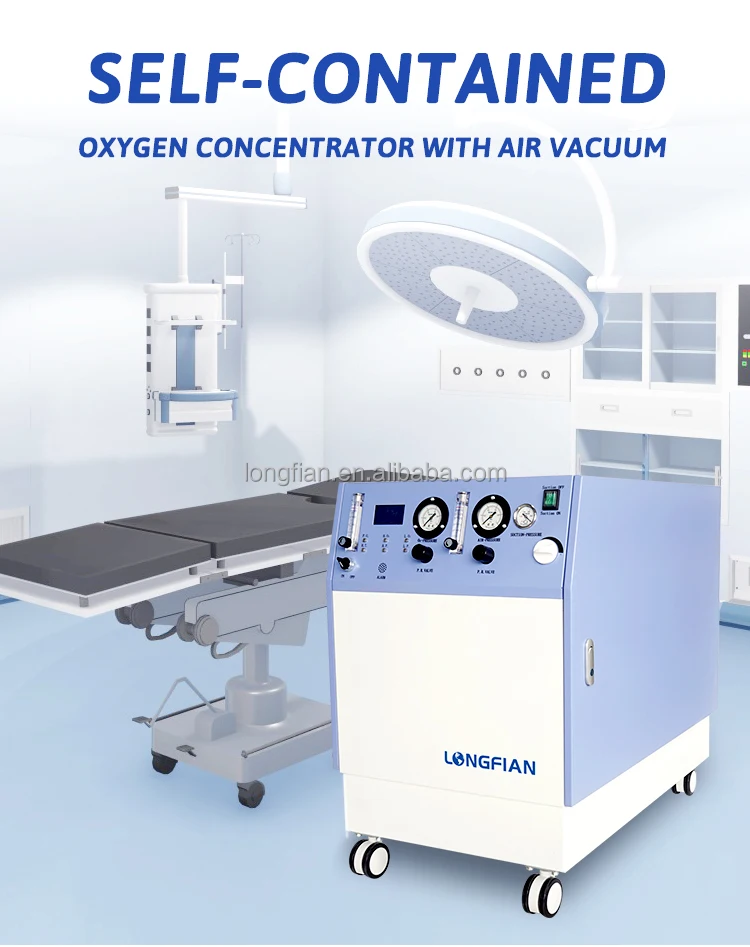

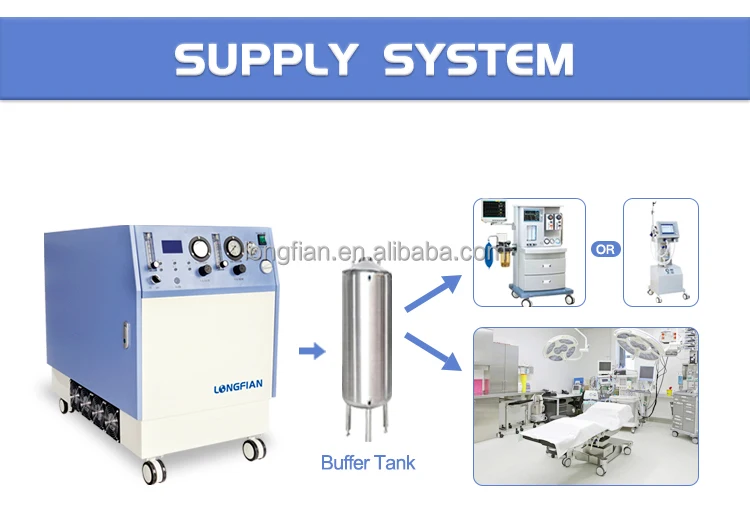

It is a cost-effective alternative to traditional gas supply sources from a central system or from gas cylinders. The device provides supply of 3 medical gases (oxygen, compressed air, vacuum) from one autonomous source. The output to the operating mode occurs within 2 minutes. It can be used both in hospitals and in mobile hospitals.
*High oxygen performance
*Low noise level
*Minimal care and maintenance during operation, which significantly reduces maintenance costs
*Convenience and versatility in use
*Self-contained (includes air compressors)
*Low operating cost
*Advanced Engineering
*Time-proven reliability
*High oxygen performance
*Low noise level
*Minimal care and maintenance during operation, which significantly reduces maintenance costs
*Convenience and versatility in use
*Self-contained (includes air compressors)
*Low operating cost
*Advanced Engineering
*Time-proven reliability
