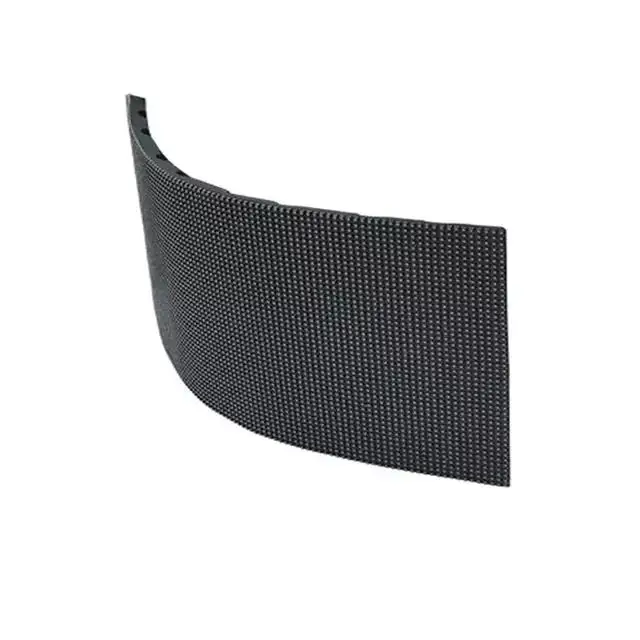

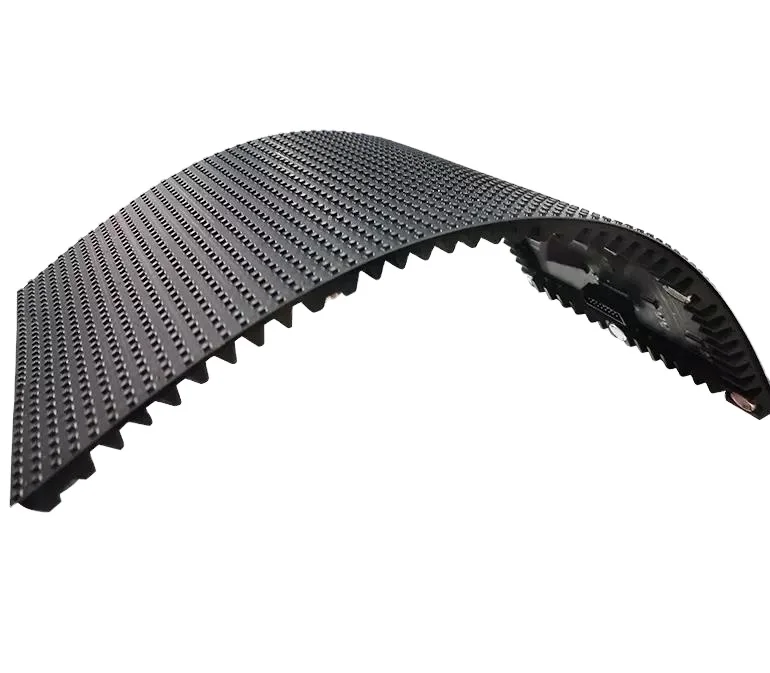

Indoor P1.86 Video Wall Display Module 320mm*160mm Round Circle Curve Full Color LED Advertising Display Module
- Category: >>>
- Supplier: Guangdong Zhongzhou Color Optoelectronic Technology Co. Ltd.
Share on (1601014774766):
Product Overview
Description
Features.
2.1 × 2.1mm surface mount light-emitting diodesGel color: glossy
Luminous color: RGB tri-color
Half power angle :110°
Chip material: AlGaInP2&InGaN
Stent black housing, inner wrapped foot structure, high contrast
Product Paramenters
Total number of pixels on the screen | oem |
Total number of screen display | oem |
LED drive/scanning mode | Dynamic constant current 2037 drive, 1/32 scan, refresh 1920 |
Optimal viewing distance | 3M |
Blind spot rate | ＜1/10000 (discrete distribution) |
Working environment temperature | -20℃～50℃ |
Input working voltage | AC220V/380V±10％, 50Hz (three-phase five-wire system) |
Weight of screen body | ＜55kg/ m2 |
Average trouble-free time | ≥5000 hours |
Electricity resistance strength | 50HZ/1500V(AC rms)/1min |
Temperature rise | After thermal equilibrium, metal ≤ 40K, insulation ≤ 65K |
Electricity resistance | 50HZ/1500V(AC RMS)/1min |
Leakage current to ground | < 3mA |
Input signal | S-Video; VGA; RGB; Composite Video; SDI, etc. |
Control method | WIN, XP computer + control software hardware + playback software and hardware |
Grayscale level | Red, green, 4096 levels each |
Brightness | ≥700cd |
Viewing angle | Horizontal 160º/vertical 120º |
Frame change frequency | 60HZ |
Refresh frequency | ≥300HZ |
Maximum power consumption | 700W/m2 |
Average power consumption | 300W/m2 |
Screen life | ≥100,000 hours |
Applications
Displays, indoor lighting and outdoor lighting, LCD backlighting, decorative lighting Automotive instrument indicator

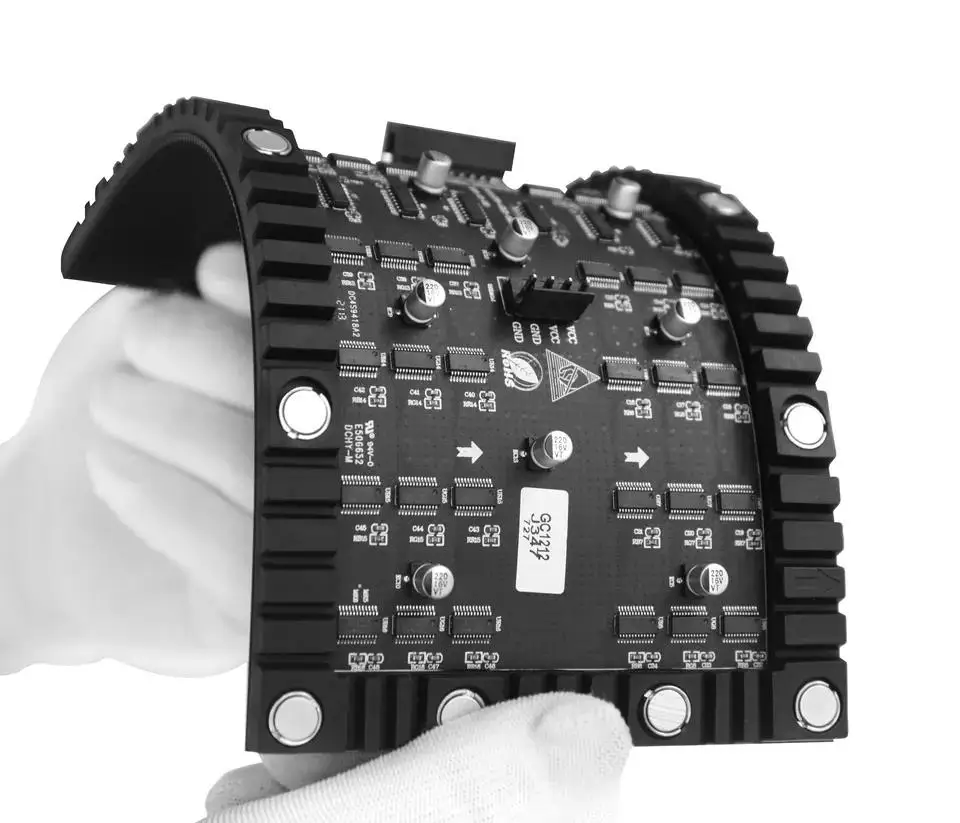

LED Module
Different pixel pitch, module size, LED size, and module capability can be selected according to customer needs
Products Description
Recommend Products
Company Profile
Our Advantages
Certifications
Product packaging
FAQ
Q1. Are you a factory or trading company?
A:We are a factory.
Q4. What's the shipping way, shipping time?
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty
A:We are a factory.
Q2. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
A: For samples: 1-3 working days, For sall quantity order: 3-7 working days, For large quantity order: 7-15 working days\\
A: For samples: 1-3 working days, For sall quantity order: 3-7 working days, For large quantity order: 7-15 working days\\
Q4. What's the shipping way, shipping time?
A:Our products could be shipped by Sea, by Air or by Express. Which method to be used is based on the weight and size of the package and with consideration of customer's requirements.By sea: 10-30 days;By air: 5-10 days ; By express: 3-6days.
Q5. How to proceed an order for led light?
A: Please send us your purchase order by Email, Fax, Skype, Whats App, Facebook or making a call, and we will send you PI as your approval. Please let us know the following information for your order.
1) Product information: Quantity, Specification (Item , logo and Packing requirement)
2) Delivery time required
3) Shipping information: Company name, Detailed shipping address with zip code and Phone number.
A: Please send us your purchase order by Email, Fax, Skype, Whats App, Facebook or making a call, and we will send you PI as your approval. Please let us know the following information for your order.
1) Product information: Quantity, Specification (Item , logo and Packing requirement)
2) Delivery time required
3) Shipping information: Company name, Detailed shipping address with zip code and Phone number.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty
