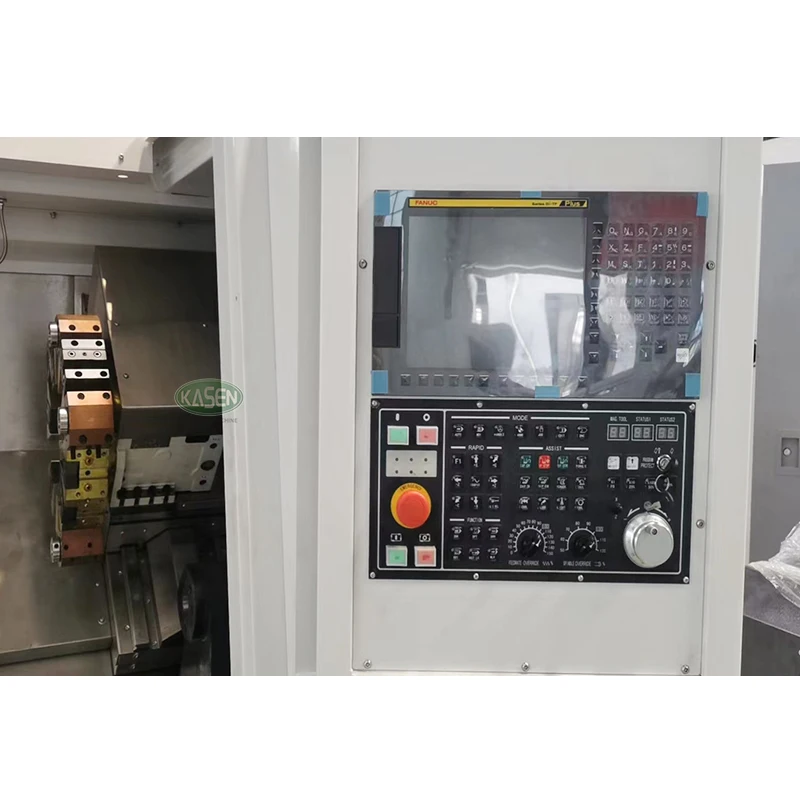

High Quality Cnc Lathe Stainless Machine TCK56 Cnc Lathe For Sale Cnc Lathe Slant Bed
- Category: >>>
- Supplier: Jinan Kasen Cnc Equipment Co. Ltd.
Share on (1601014779133):

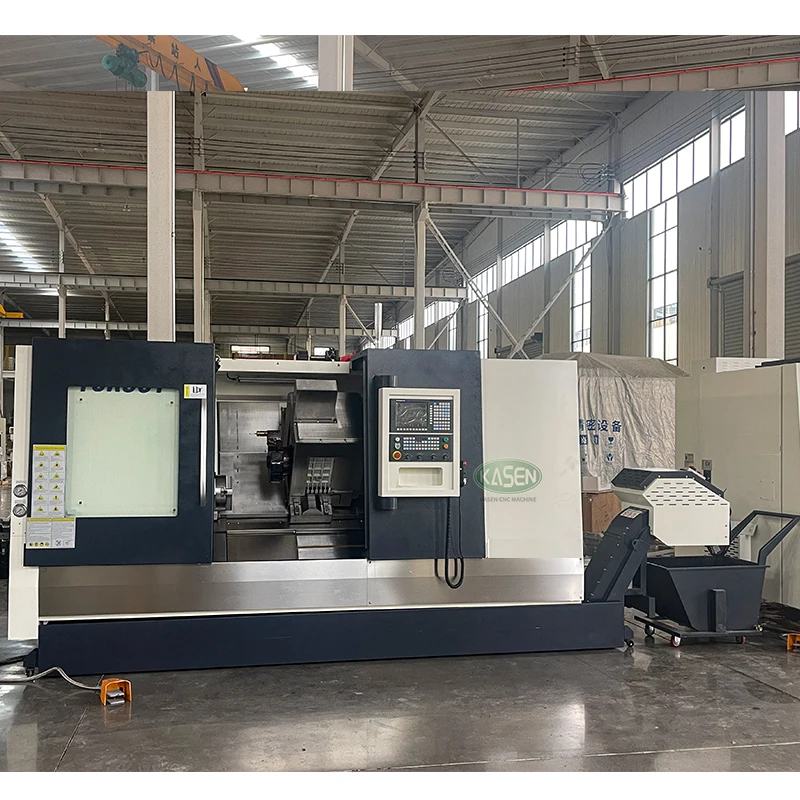

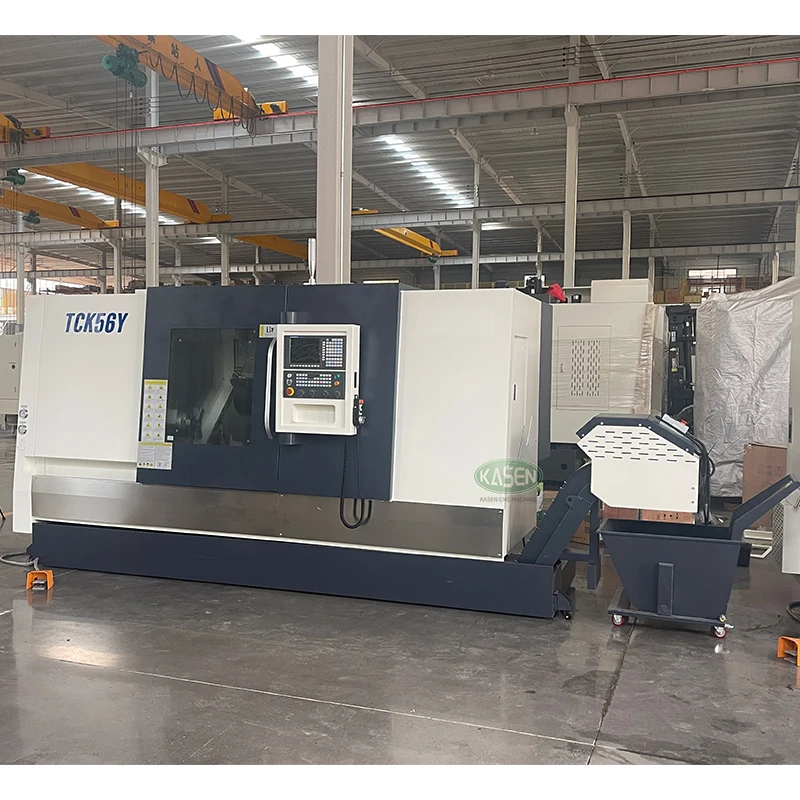

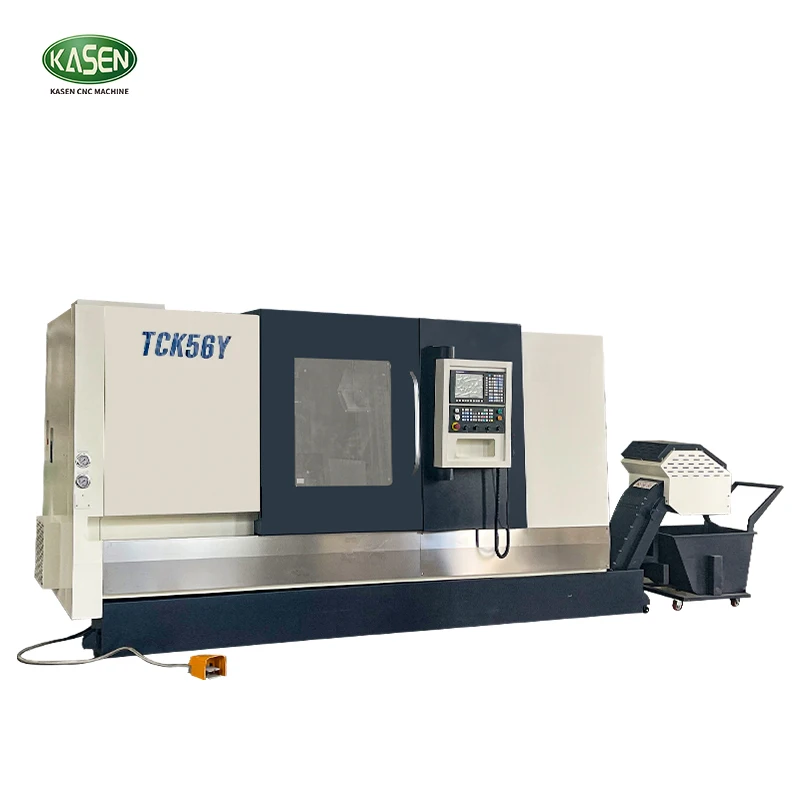

Product Overview
Description
Features:
The cnc turning center has X/Y/Z/C four linkage axes, and the travel of Y axis is ± 30mm. It can also be processed by C axis linkage.
The cnc turning center integrates turning, milling, drilling, boring, tapping and other functions, and can perform milling,
drilling, tapping and other composite processing of end and side faces.

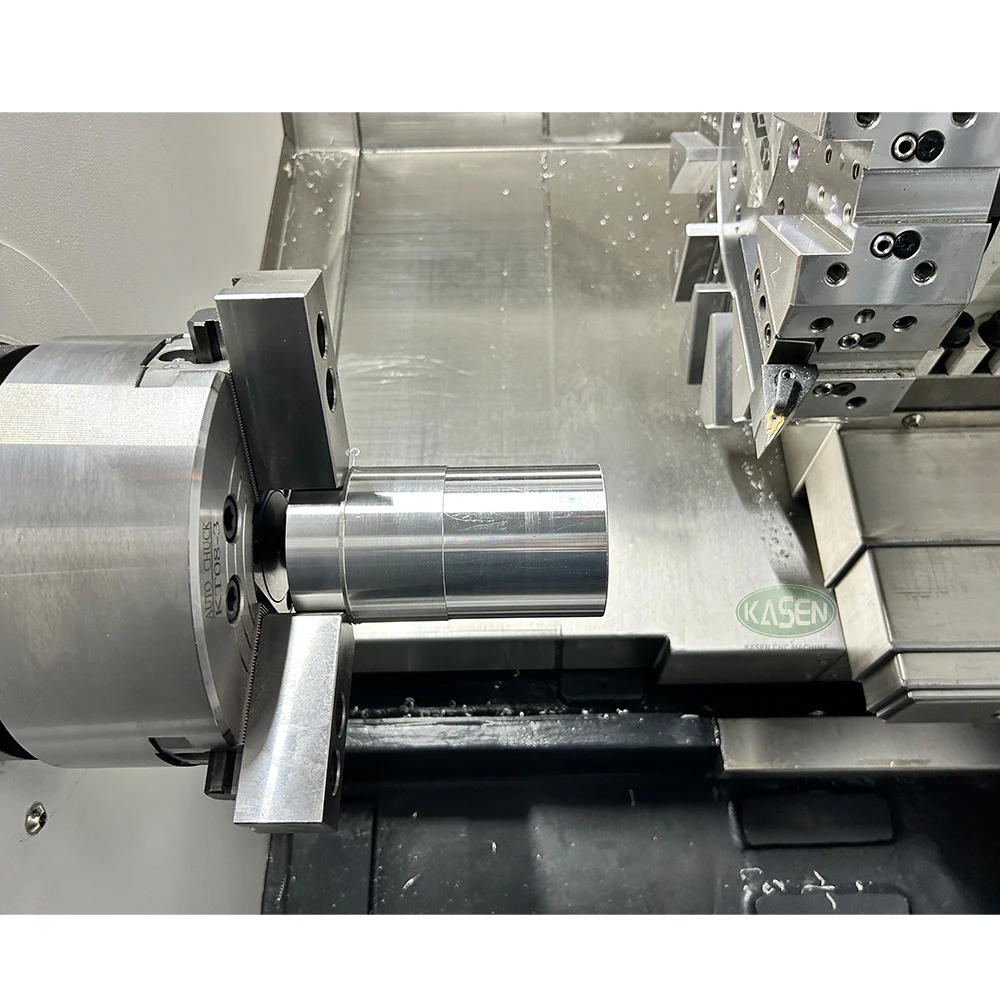

The cnc turning center is used to process revolving parts with complex shape and high precision requirements. The whole process is completed by clamping at one time.
The cnc turning center has X/Y/Z/C four linkage axes, and the travel of Y axis is ± 30mm. It can also be processed by C axis linkage.
The cnc turning center integrates turning, milling, drilling, boring, tapping and other functions, and can perform milling,
drilling, tapping and other composite processing of end and side faces.
The cnc turning center is used to process revolving parts with complex shape and high precision requirements. The whole process is completed by clamping at one time.
Specification
Item | Unit | Specs | ||||
Slant bed degree | ° | 45° | ||||
swing over bed | mm | 560 | ||||
Maximum processing length | mm | 1000 | ||||
Maximum processing diameter | mm | 350(8 position turret) | ||||
280(12 position turret) | ||||||
Standard processing diameter | mm | 280 | ||||
Maximum turning diameter on slide plate | mm | 350 | ||||
spindle nose form and code | A2-6/ A2-8 | |||||
Diameter of spindle hole | mm | 65/ 80 | ||||
Maximum bar diameter | mm | 50/ 70 | ||||
spindle headstock | Spindle speed range | r/min/Nm | 50～4500 | |||
Output power of main motor | kW | 15 | ||||
X-axis fast moving speed | m/min | 30 | ||||
Y-axis fast moving speed | m/min | 30 | ||||
X-axis travel | mm | 200 | ||||
Z-axis travel | mm | 1050 | ||||

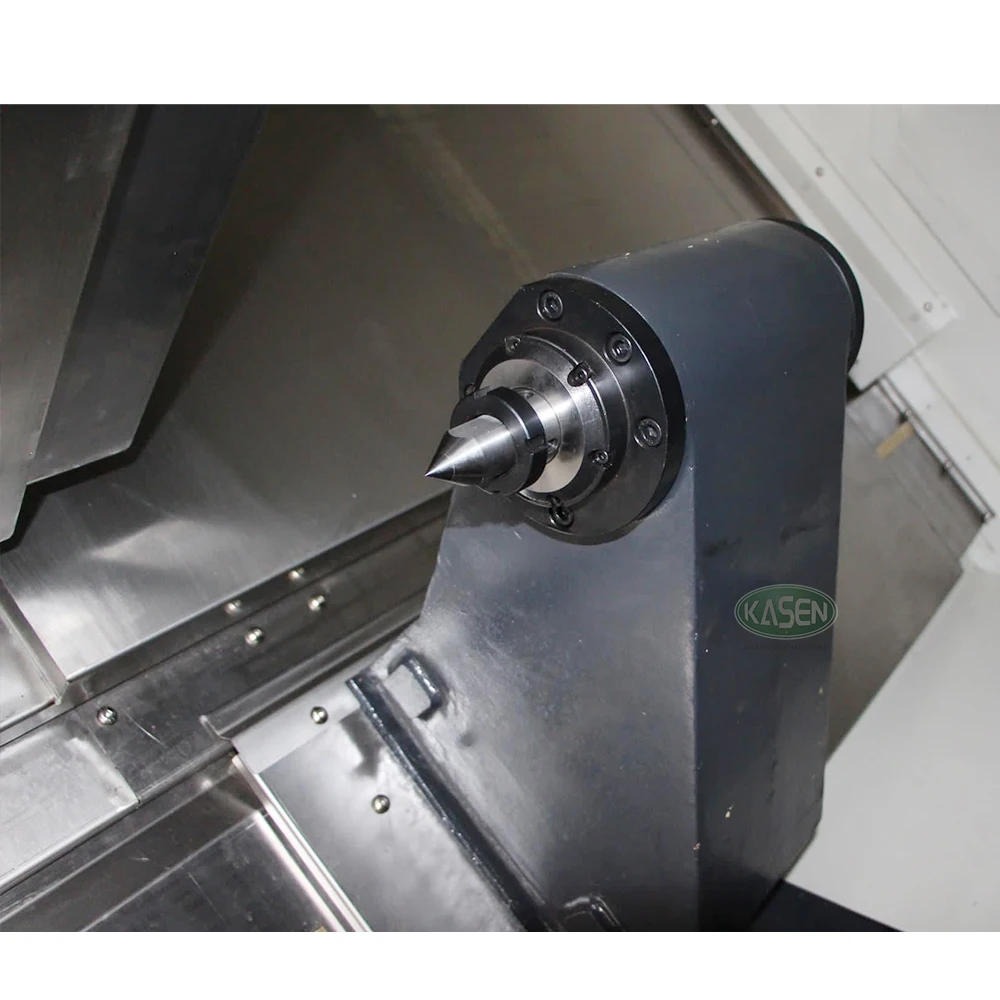

tailstock travel | mm | 900 | ||||
Minimum clamping length of tailstock | mm | 200 | ||||
Taper of tailstock sleeve | Morse | 4# | ||||
tool turret | 12 station turret | |||||
Tool size | External circular knife | mm | 25×25 | |||
Boring blade diameter | mm | Ф40/Ф32/Ф25/Ф20 | ||||
The cutter head selects the tool nearby | yes | |||||
Machine weight | Total weight | kg | 4500 | |||
maximum safe load (Including chuck and other machine tool accessories) | Disk workpiece | kg | 200 | |||
Shaft workpiece | kg | 500 | ||||
dimension of machine tool | (L*W*H) | mm | 3570×1860×1850 (Without chip conveyor) | |||
Product Description

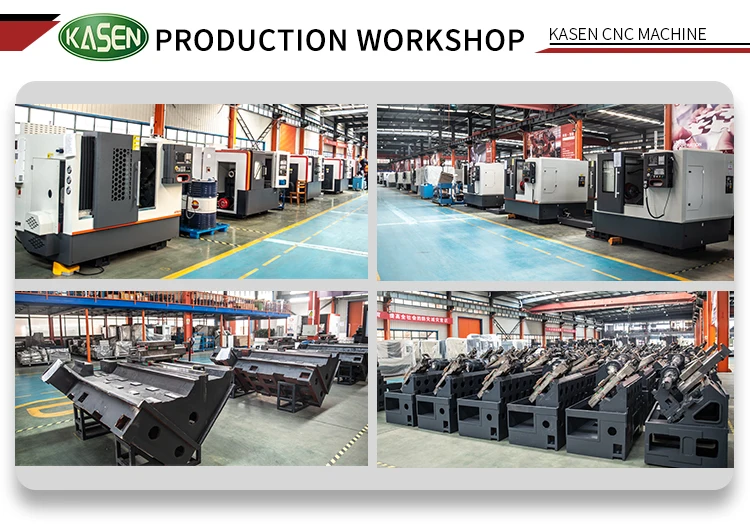

Company Profile
Exhibition
Certifications
Customer visiting
Packing & Delivery
FAQ
1: Where is your company?
A: Our company is located in JInan City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.se
