ZICAR SIX Sides Automatic Cabinet Cnc Boring Drilling Milling Machine applicable to tailor made furniture
- Category: >>>
- Supplier: Jaya International Co. Ltd.
Share on (1601014796357):
Product Overview
Description
Product Parameter
ZICAR CNC boring machine 6 sided six surface drilling machine automatic 6 side machine for drilling holes in wood
CNC Drilling Machine Advantages:
CNC six-sided drill belongs to other general equipment manufacturing industry in the construction machinery manufacturing industry. Firstly, raw materials such as steel, square tube and aluminum are processed by opening, welding, machining and painting, and then finally assembled with other accessories into CNC six-sided drill.1.Steel rack structure with one-piece framework.
2.One time Completing the workpiece drilled in six sides, and front or back grooved.
3.Multi-shift production and easy operation, production efficiency up to 1.3-1.8 slices/min. and 8 Hourly capacities up to 190 sqm. (Unfolded area) – 230 sqm. (Unfolded area).
4.Minimum board support for single machine 35mm*70mm.
2.One time Completing the workpiece drilled in six sides, and front or back grooved.
3.Multi-shift production and easy operation, production efficiency up to 1.3-1.8 slices/min. and 8 Hourly capacities up to 190 sqm. (Unfolded area) – 230 sqm. (Unfolded area).
4.Minimum board support for single machine 35mm*70mm.
5.Loading table and discharge table are covered with air floatation hole, that could protect the workpiece from damage effectively.

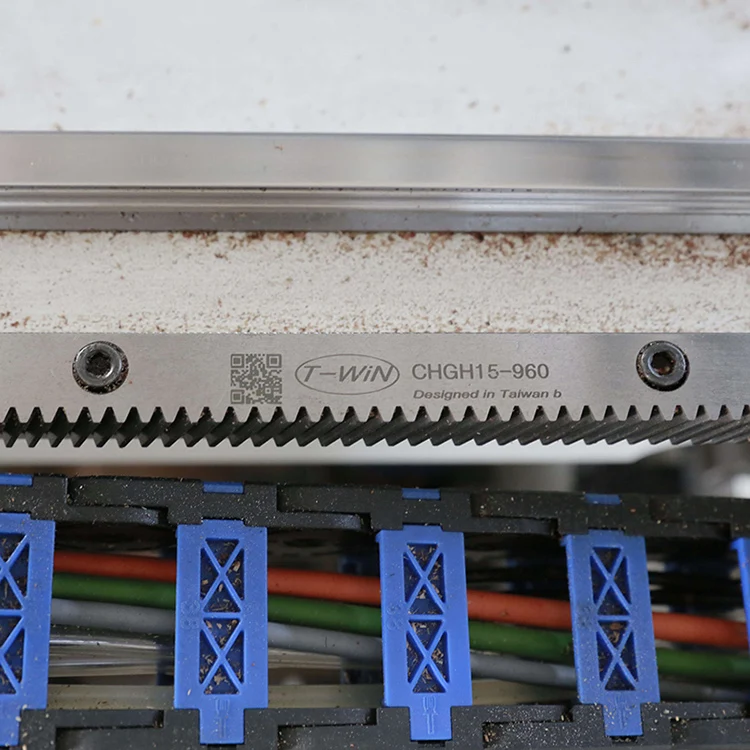

6.Long guide rail for Y-axis guarantees maximum machining efficiency. Double grippers and automatic side leaning device guarantee the stability of the workpiece during the movement.
7.The operating system is compatible with XML, BAN, MPR and other formats, and it could seamlessly connect with the furniture dismantling software. Just need to scan barcode to process and No need to program.
6.Long guide rail for Y-axis guarantees maximum machining efficiency. Double grippers and automatic side leaning device guarantee the stability of the workpiece during the movement.
7.The operating system is compatible with XML, BAN, MPR and other formats, and it could seamlessly connect with the furniture dismantling software. Just need to scan barcode to process and No need to program.
Model | C6 | ||
Processing Plate Size Range： | Length | 70mm-2750mm | |
Width | 35mm-1200mm | ||
Thickness | 12-50mm | ||
Processing Type | Machining Hole Type | Depends on the Tool | |
Door Reaming Processing Method | Add Drilling Package | ||
Shaped Plate Parts (Can be Processed or Not) | YES | ||
Six-Sided Drill Grip (Fixed or Not) | Intelligent Three-Stage Lift Function | ||
Program Docking | Mpr/Xml/Dxf/Ban | ||
Usage Mode | Alone Or Inline | ||
Scanning Method | Two-dimensional Code Scanning (Standard with Handheld Scanner) | ||
Total Power | Around 26kw | ||
Working Pressure | 0.8mpa/M2 | ||
Net Weight | Around 3000kg | ||
Equipment Size | 4300*2800*2200mm | ||
Product Details
1.Integral welding steel rack structure with one-piece framework.
2.One-piece framework molding distinguished from the assembly structure of other brands on the market
3.Effectively protect the stability and precision of the frame structure.
4.The rack is annealed to eliminate stress and increase the stability of the rack (10 years of rack life guaranteed).
2.One-piece framework molding distinguished from the assembly structure of other brands on the market
3.Effectively protect the stability and precision of the frame structure.
4.The rack is annealed to eliminate stress and increase the stability of the rack (10 years of rack life guaranteed).

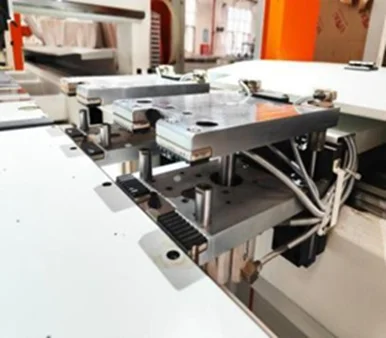

1.With the national exclusive patent - three-stage intelligent lifting grip.
2.When loading, the grippers is lower than the working table surface for loading easily.
3.When moving, the gripper is higher than the table surface to avoid scratching the plate.
4.When processing, the gripper is flat on the table to ensure the accuracy of small plate punching.
5.Accurate positioning of perforation and dust removal function. Adaptive gripper changing function (reduce the number of gripper work)
2.When loading, the grippers is lower than the working table surface for loading easily.
3.When moving, the gripper is higher than the table surface to avoid scratching the plate.
4.When processing, the gripper is flat on the table to ensure the accuracy of small plate punching.
5.Accurate positioning of perforation and dust removal function. Adaptive gripper changing function (reduce the number of gripper work)

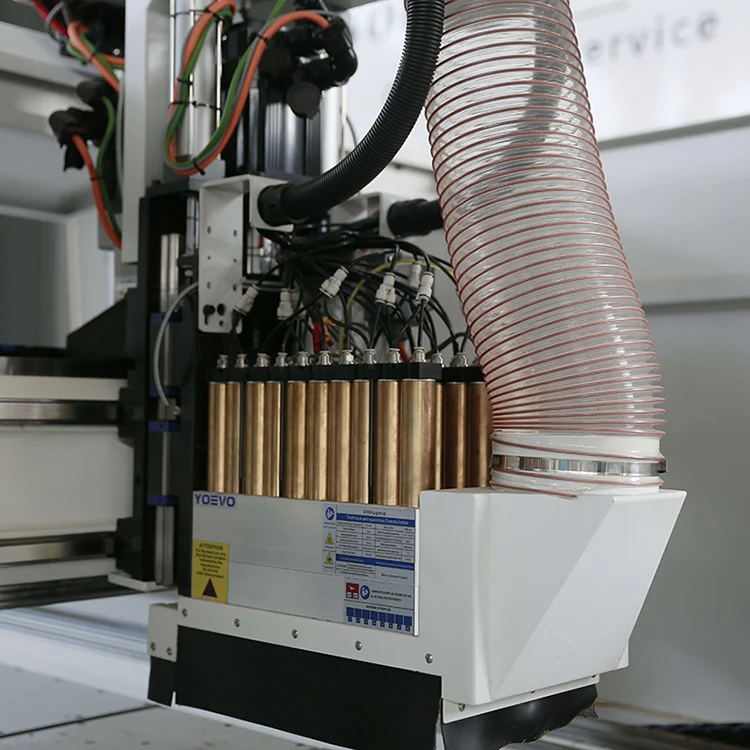

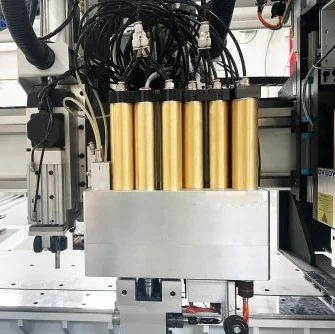

1.Exclusive customized drill packages.
2.Integrated drilling package with built-in auxiliary press wheel.
3.90% Efficiency in double row drilling, 30%-45% increase in production efficiency.
2.Integrated drilling package with built-in auxiliary press wheel.
3.90% Efficiency in double row drilling, 30%-45% increase in production efficiency.

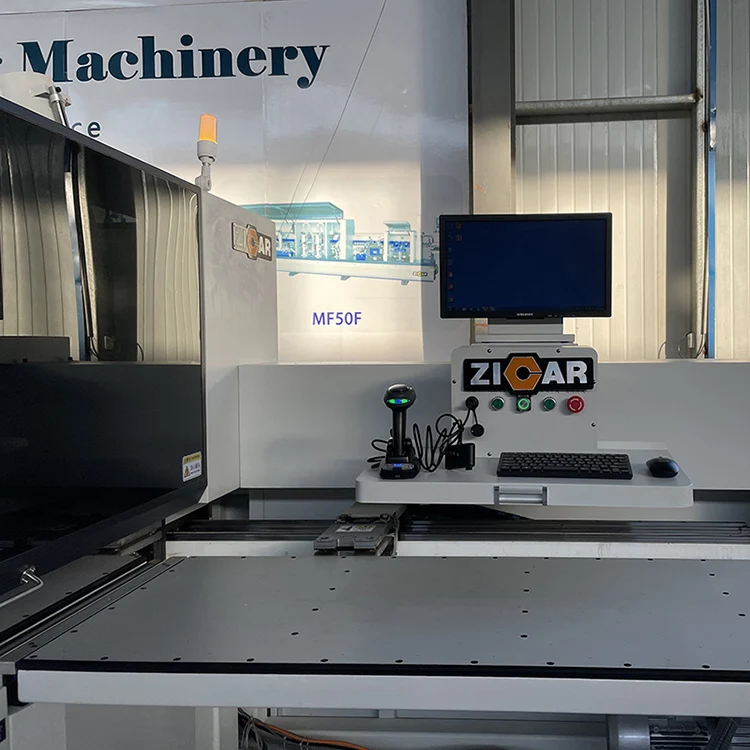

1.Customized SUNVEGA operation system.
2.Exclusive dynamic acceleration algorithm.
3.Slotting adaptive speed algorithm.
4.Dynamic positioning algorithm for shaped plates.
5.Minimal tool lift machining path algorithm.
2.Exclusive dynamic acceleration algorithm.
3.Slotting adaptive speed algorithm.
4.Dynamic positioning algorithm for shaped plates.
5.Minimal tool lift machining path algorithm.
Company equipment display

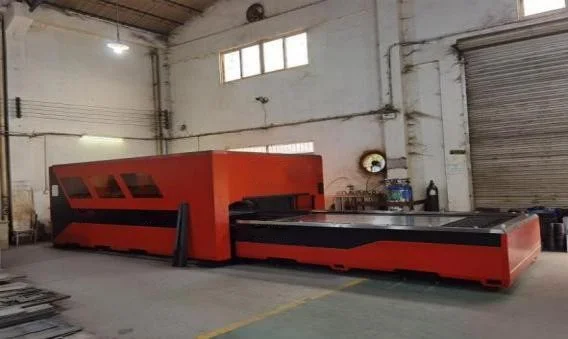

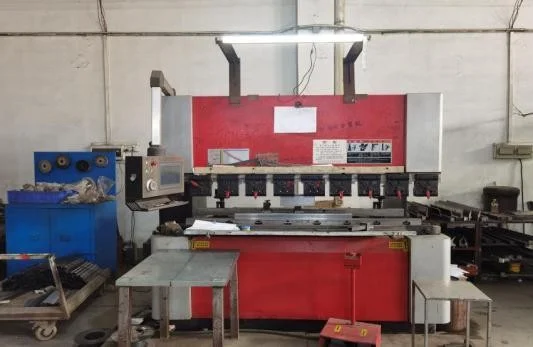

Process Equipment

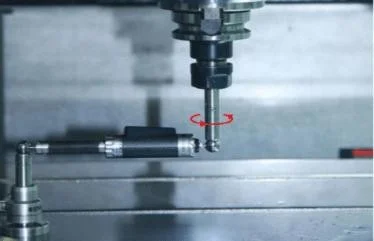

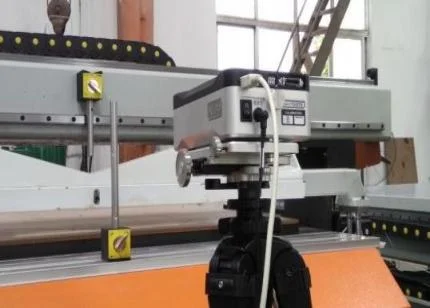

Testing Equipment

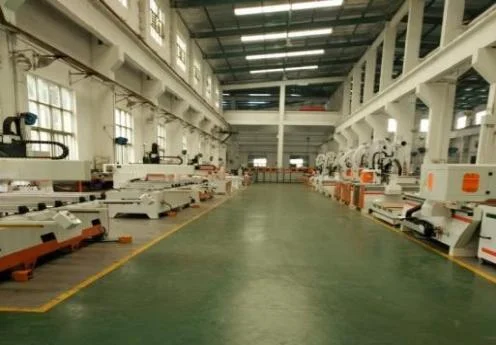

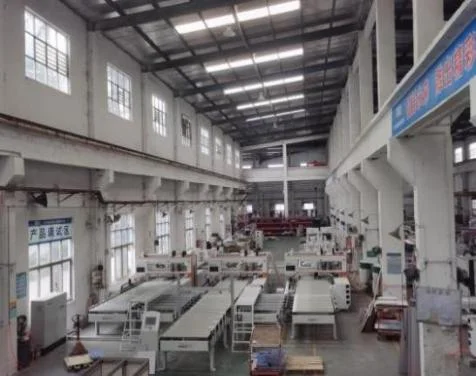

Assembly Center

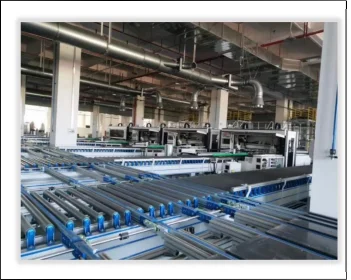

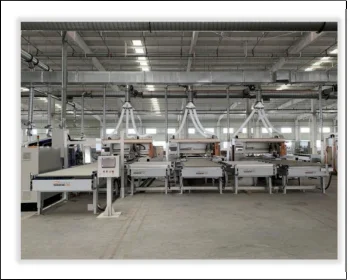

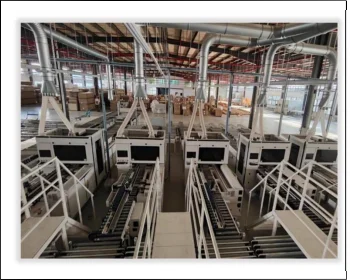

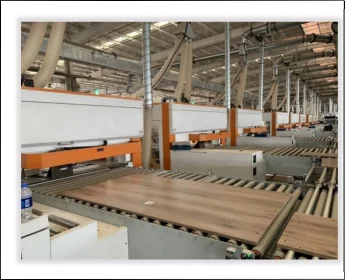

Cooperation Customer Cases and Real Pictures
