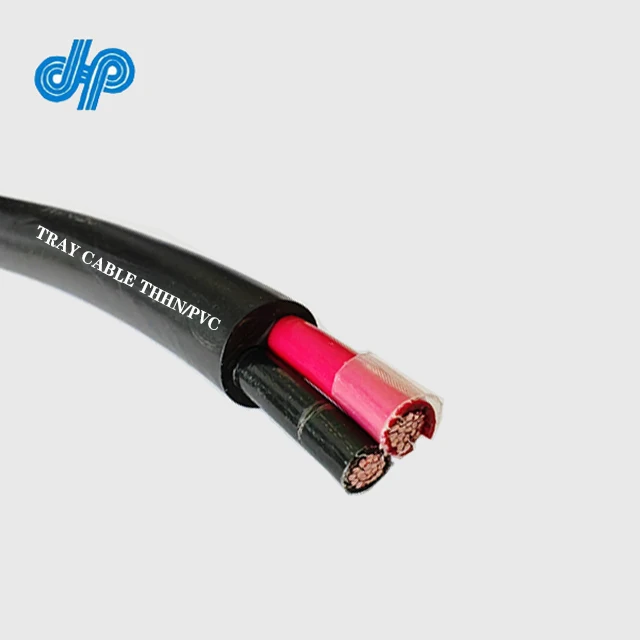

TRAY CABLE XHHW-2 or RW90/PVC, Shielded 600/1000 Volt Copper 3 or 4 Conductor



1.Applications:

Control circuits for operation and interconnection of protective and signaling devices, and for general use in manufacturing, industrial and commercial distribution,systemsUL listed and labeled for installation in ladders,troughs, channels, solid bottom trays and other similar structures (NEC Articles 318 and 340), and in duct,conduit, wireways and all other installations approved

for building wire.

2.Construction:

Conductor:Stranded bare copper Class B per UL 83

Insulation:Extruded polyvinyl chloride to UL requirements for Class THHN and THWN insulation, which with nylon,jacket is approved for Type THHN and THWN wires per UL 83

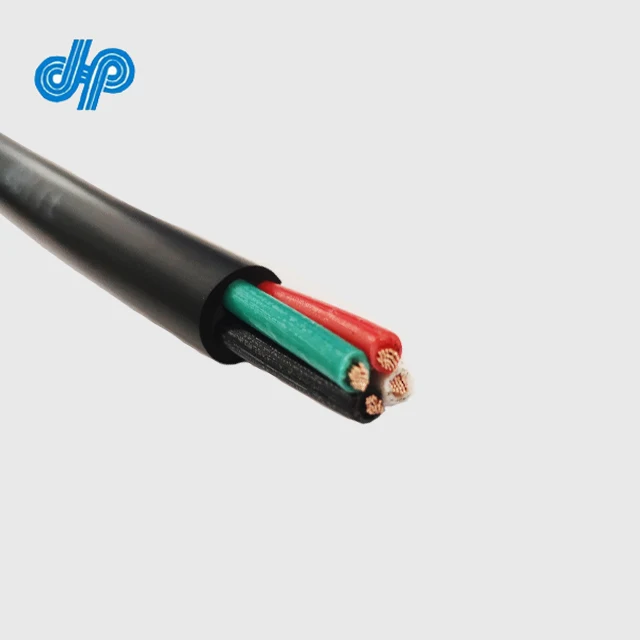

Assembly:The conductors are cabled with fillers where needed to make a round compact core and a suitable tape is applied over the construction

Jacket: Black sunlight resistant, flame retardant polyvinyl chloride per UL 1277 requirements for Type TC power and control cables In hazardous locations per NEC Articles 190 and 501.

May be used in wet or dry locations, sunlight resistant,

and suitable for direct burial

3. Part of Techical Data for Tray Cable without Gounding Wire

Size	Core	Cu Conductor		PVC Insult. Thick	Nylon	PVC Jacket Thick.	Overall OD
AWG	no.	wire no.	mm	mm	mm	mm	mm
10	3	7	0.98	0.51	0.13	1.14	11.4
10	4	7	0.98	0.51	0.13	1.14	12.5
14	3	7	0.62	0.38	0.1	1.14	8.4
14	4	7	0.62	0.38	0.1	1.14	9.1
12	3	7	0.78	0.38	0.1	1.14	9.4
12	4	7	0.78	0.38	0.1	1.14	10.3
