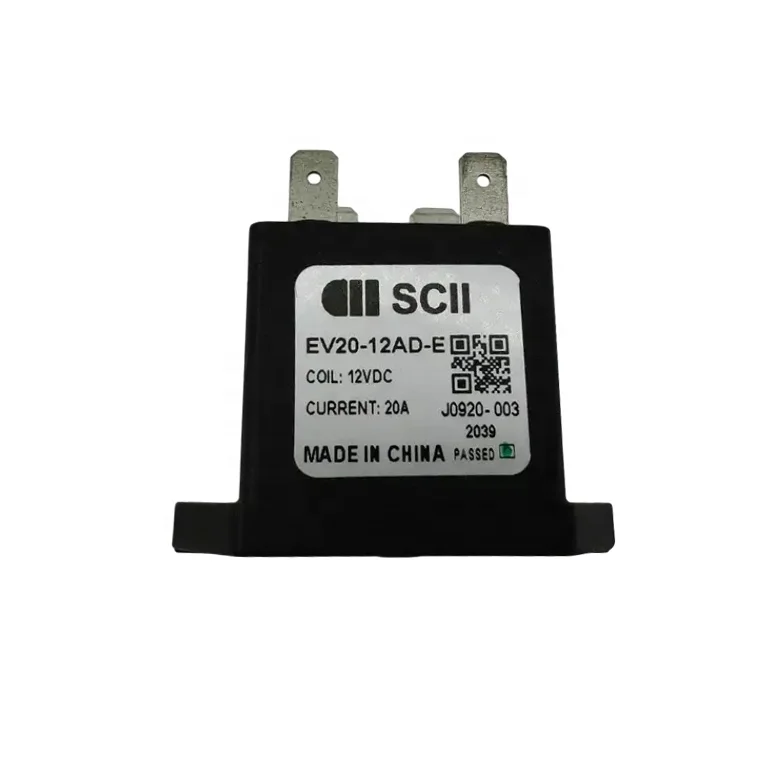

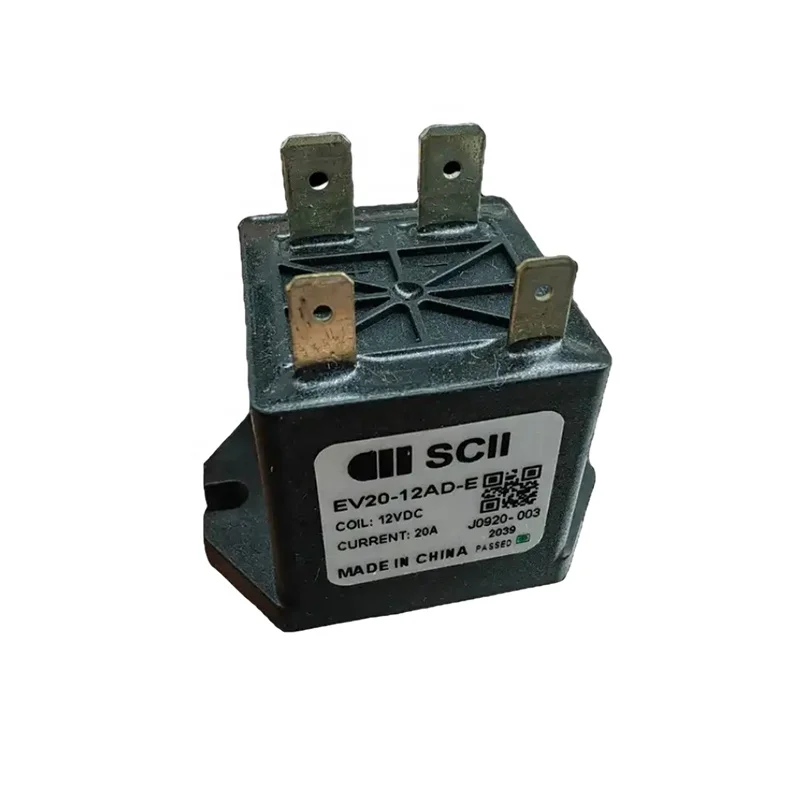

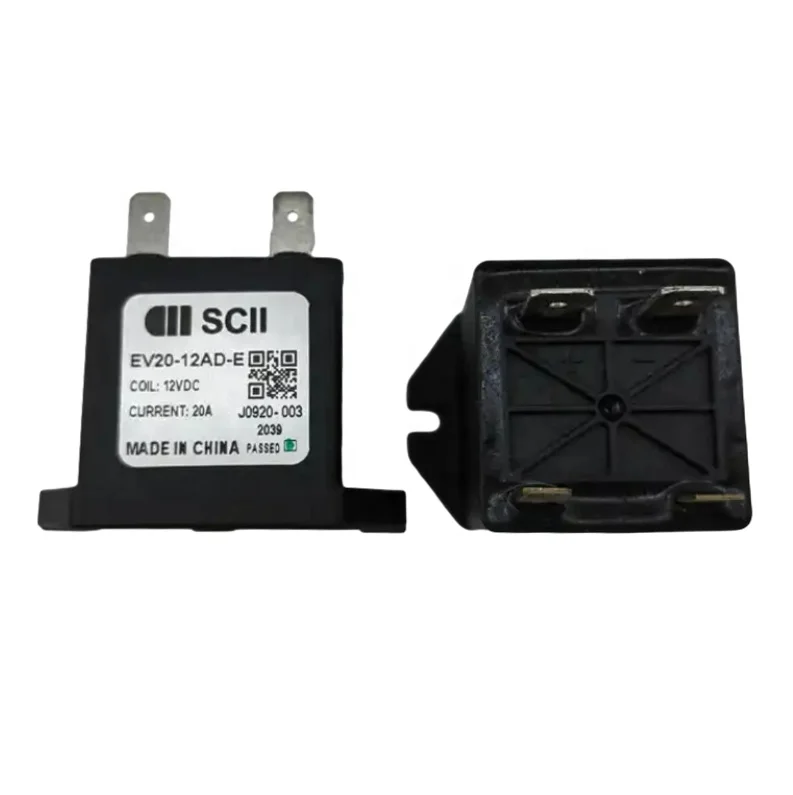

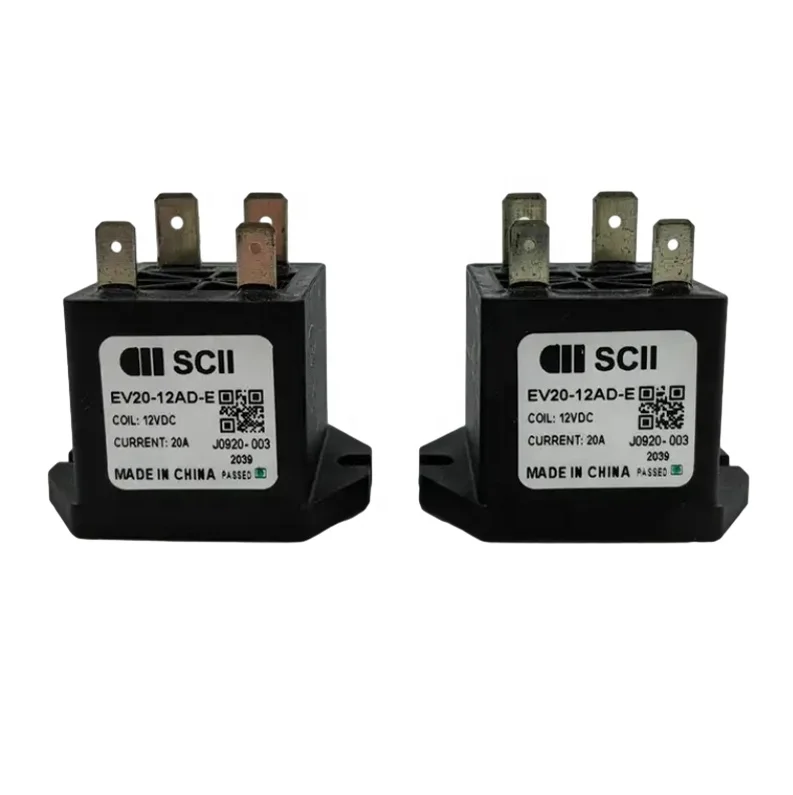

Hot Sale SCII DC Contactor EV20 12AD E Series Coil Voltage Relay Auto Safety Relays
- Category: >>>
- Supplier: Hefei Ev Parts Technology Co. Ltd.
Share on (1601014799612):
Product Overview
Description
Specification

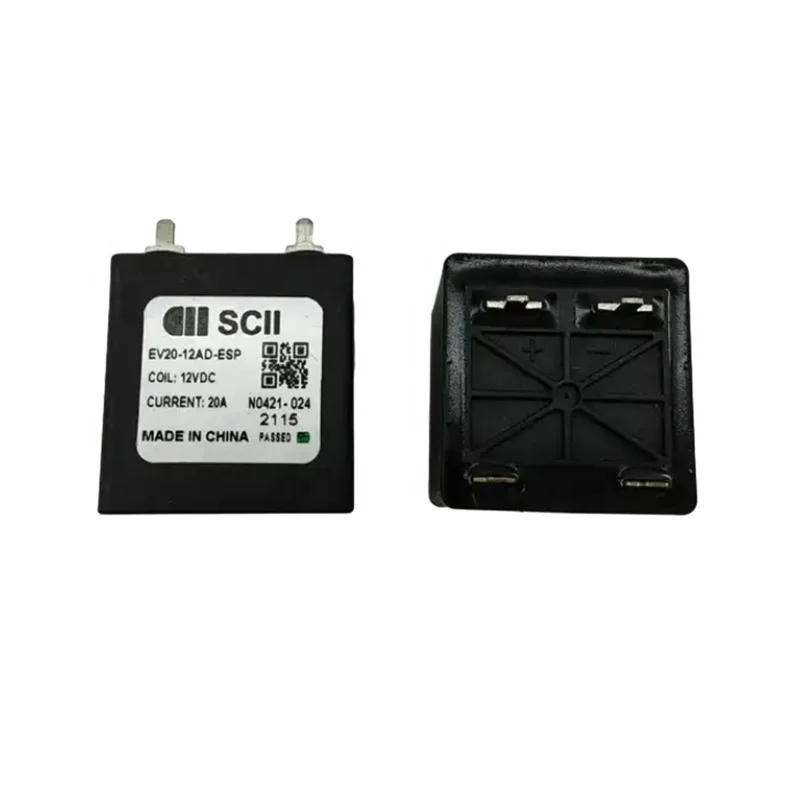

Product Name： | EV20-12AD-E | EV20-12AD-ESP | |
Rated Current: | 20A | 20A | |
Short Term Current | 30A（1h） | 30A（1h） | |
Coil Voltage: | 12VDC | 12VDC | |
Pick-up Voltage（20°C） | ≤9VDC | ≤9VDC | |
Drop-out Voltage（20°C） | ≥0.8VDC | ≥0.8VDC | |
Rated Coil Resistance±10%（20°C） | 48Ω | 48Ω | |
Max. Switching Voltage | 750VDC | 750VDC | |
Dielectric Withstanding Voltage (Initial) | Between Open Contacts | 2500VAC 1mA 1min | |
Between Contacts to Coil | 3000VAC 1mA 1min | ||
Insulation Resistance (Initial) | Terminal to Terminal | ≥1000 MΩ@500VDC | |
Terminals to Coil | |||
Voltage Drop (Initial) | ≤50mV@10A | ||
Limit breaking | 30A@450VDC，5 Cycle | ||
Contact the seller to obtain the data sheet！

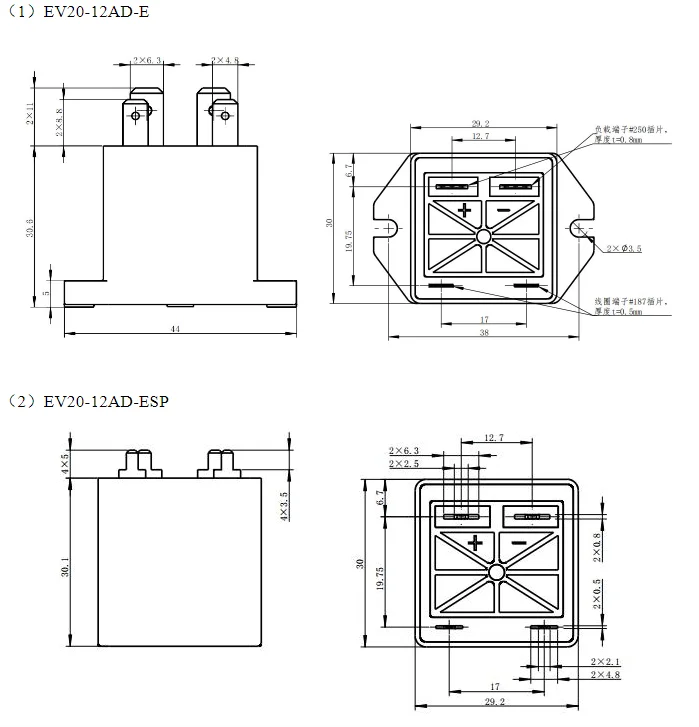

PCB Welding
8) s.
Plug type
Be sure to use washer to prevent screws from loosening, all the terminals or copper bar must be in direct
contact with the contactor ’ s terminals,When use the screws, make sure the steel ring’s thickness and
strength are enough. Otherwise it will deform, and relay housing will be broken.
contact with the contactor ’ s terminals,When use the screws, make sure the steel ring’s thickness and
strength are enough. Otherwise it will deform, and relay housing will be broken.
Product Description

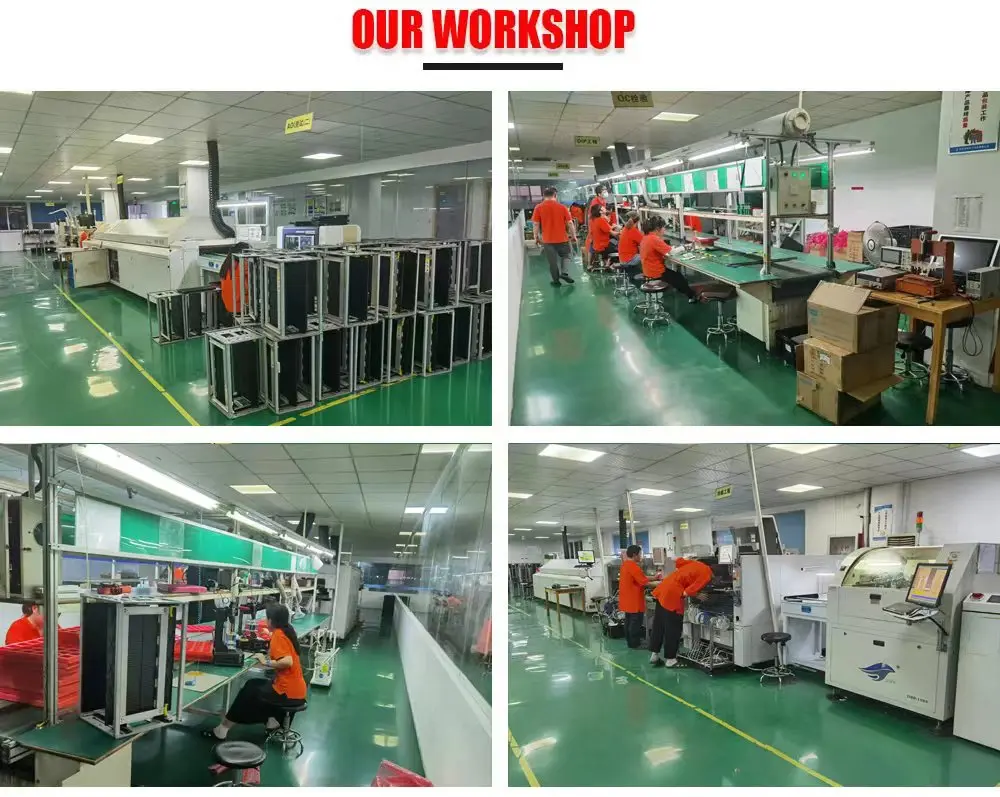

Company Profile
Certifications
Customer Feedback
Packing & Delivery
Packing Method:
1. Foam+ Box+ Carton+ Wooden frame.
2. Foam + Color box + Carton.
3. As per clients require.
Shipping Time:
About 15-30 days for small quantity.
About 45-60 days for large quantity.
2. Foam + Color box + Carton.
3. As per clients require.
Shipping Time:
About 15-30 days for small quantity.
About 45-60 days for large quantity.
Delivery Method:
By air, sea or land according to customer's choice.
Loading Port:
Shanghai port or other port you want.
Guarantee:
1 Year.
Loading Port:
Shanghai port or other port you want.
Guarantee:
1 Year.
