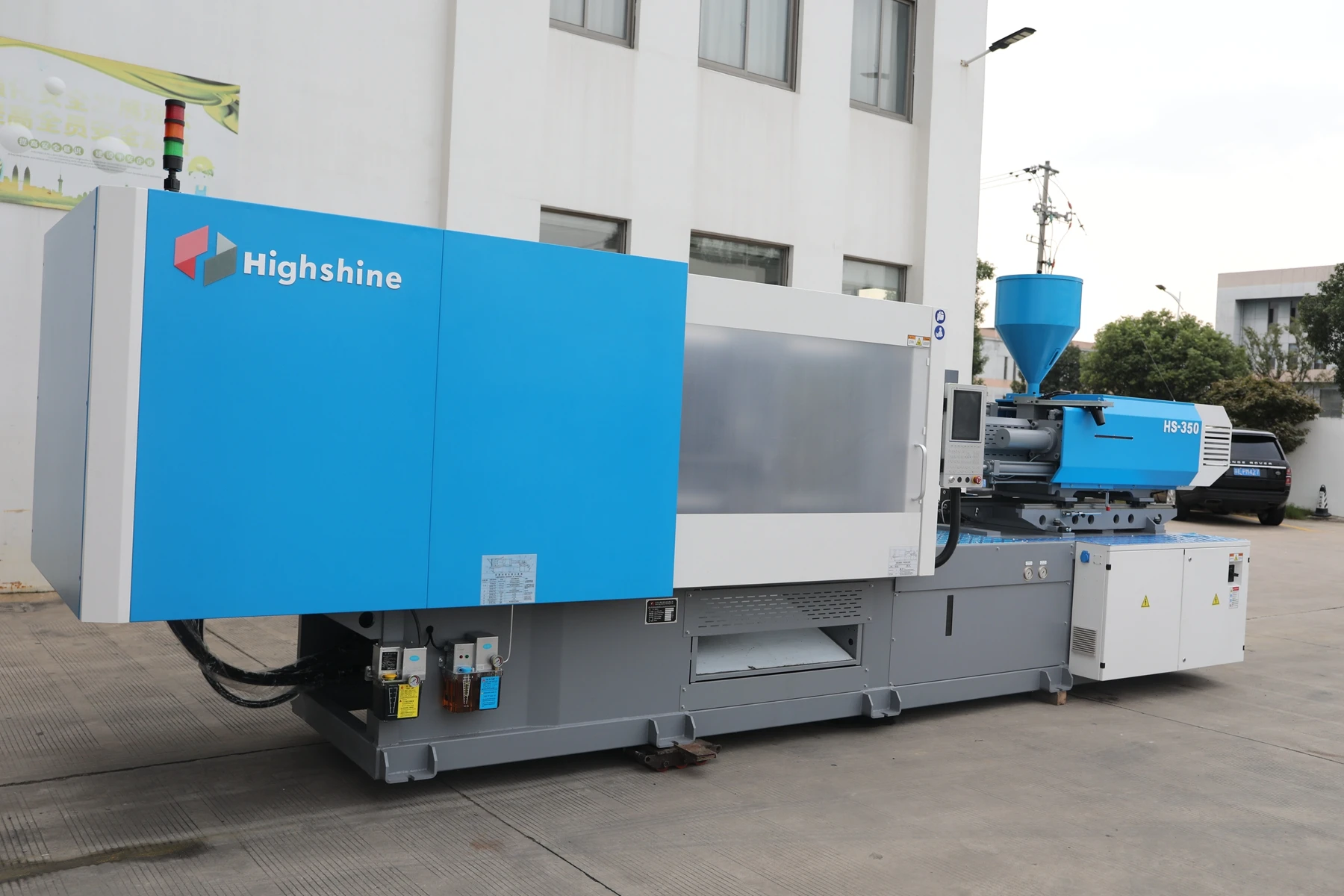

Highshine China Competitive Price Manufacturers Hand Operated HS 600 Injection Molding Machine For Plastic Toys

Product Overview

Description

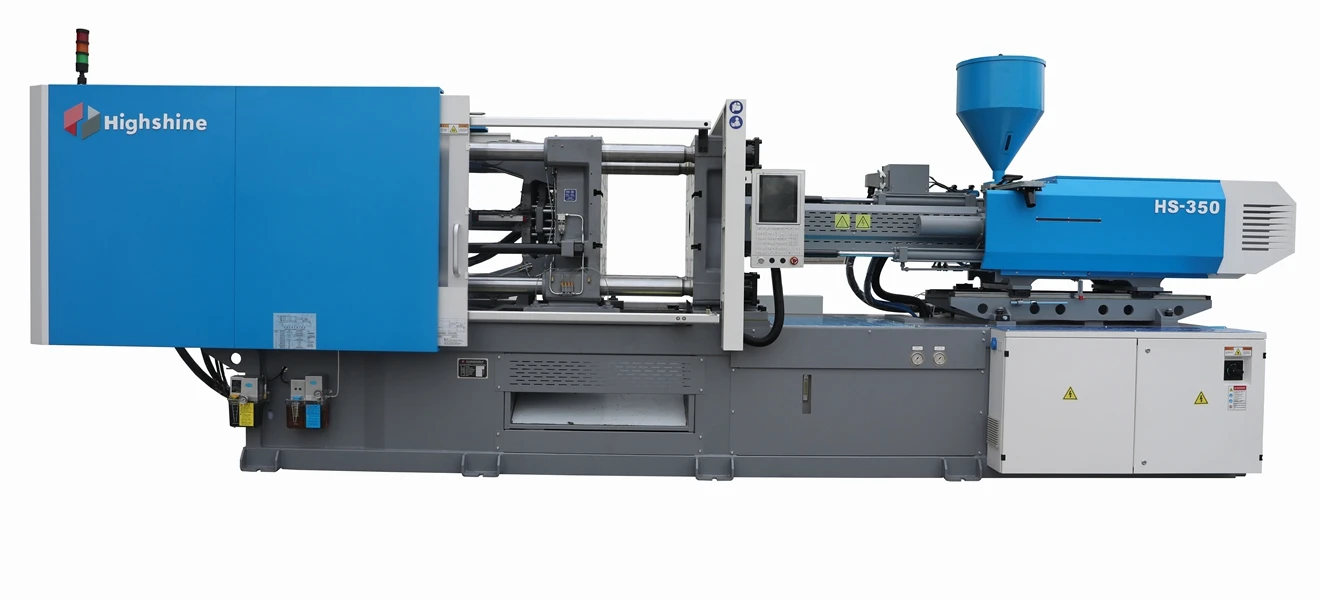

Highshine 350 ton injection molding machine

Contactor : Kevin zhou
Whatsapp & Wechat : +18067841986

HS-350 MACHINE PARAMETERS

HS-350 Parameters
Injection System		A	B	C
Screw Diameter	mm	65	70	75
Screw L/D Ratio		21.5	20.0	18.7
Shot Volume	cm³	1161	1347	1546
Shot Weight(PS)	g	1056	1226	1407
Injection Pressure	Bar	1988	1714	1493
Injection Velocity	cm³/s	290	337	387
Plasticizing Capacity	g/s	44.2	51.9	64.9
Max. Speed of Screw	r/min	183
Clamping System
Clamping Force	KN	3500
Tie Bar Distance(HxV)	mm	730x670
Min.Overall Size of Mold(HxV)	mm	550x550
Opening Stroke	mm	660
Min.Mold Thickness	mm	250
Max.Mold Thickness	mm	700
Max.Distance Between Platens	mm	1360
Ejector Stroke	mm	170
Ejector Force	KN	95
Quantity of Ejector Rods	PCS	13
Power/Electrical Heating
Pressure of Hydraulic System	Bar	175
Power of Motor of Oil Pump	KW	37
Power of Electrical Heating	KW	23.0
Other
Tank Volume	L	400
Overall Size	m*m*m	7x1.7x2.4
Machine Weight	T	12.5
Hopper Volume	Kg	75

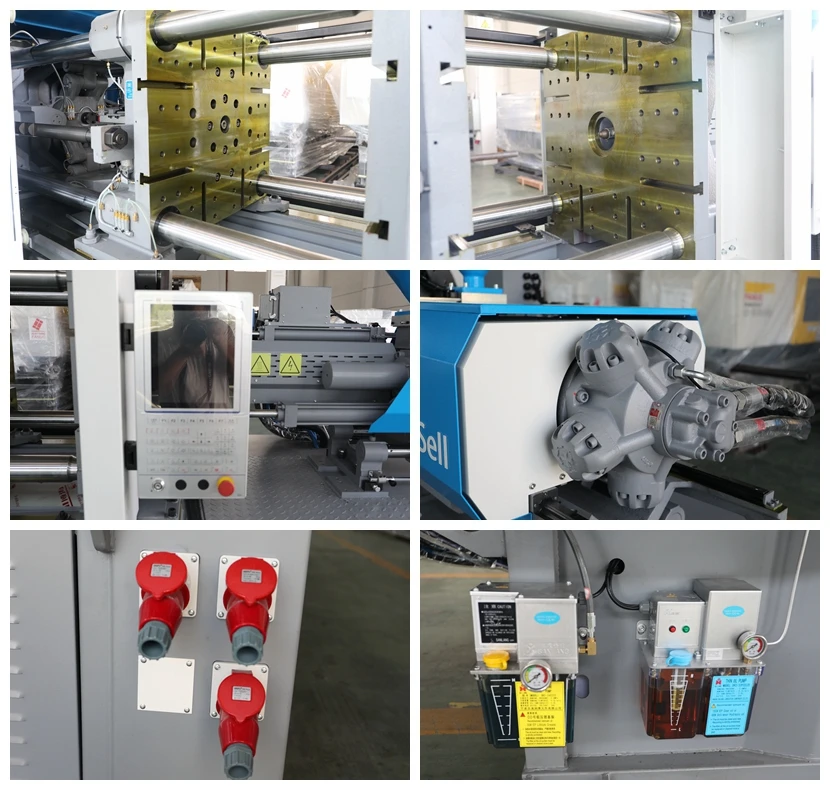

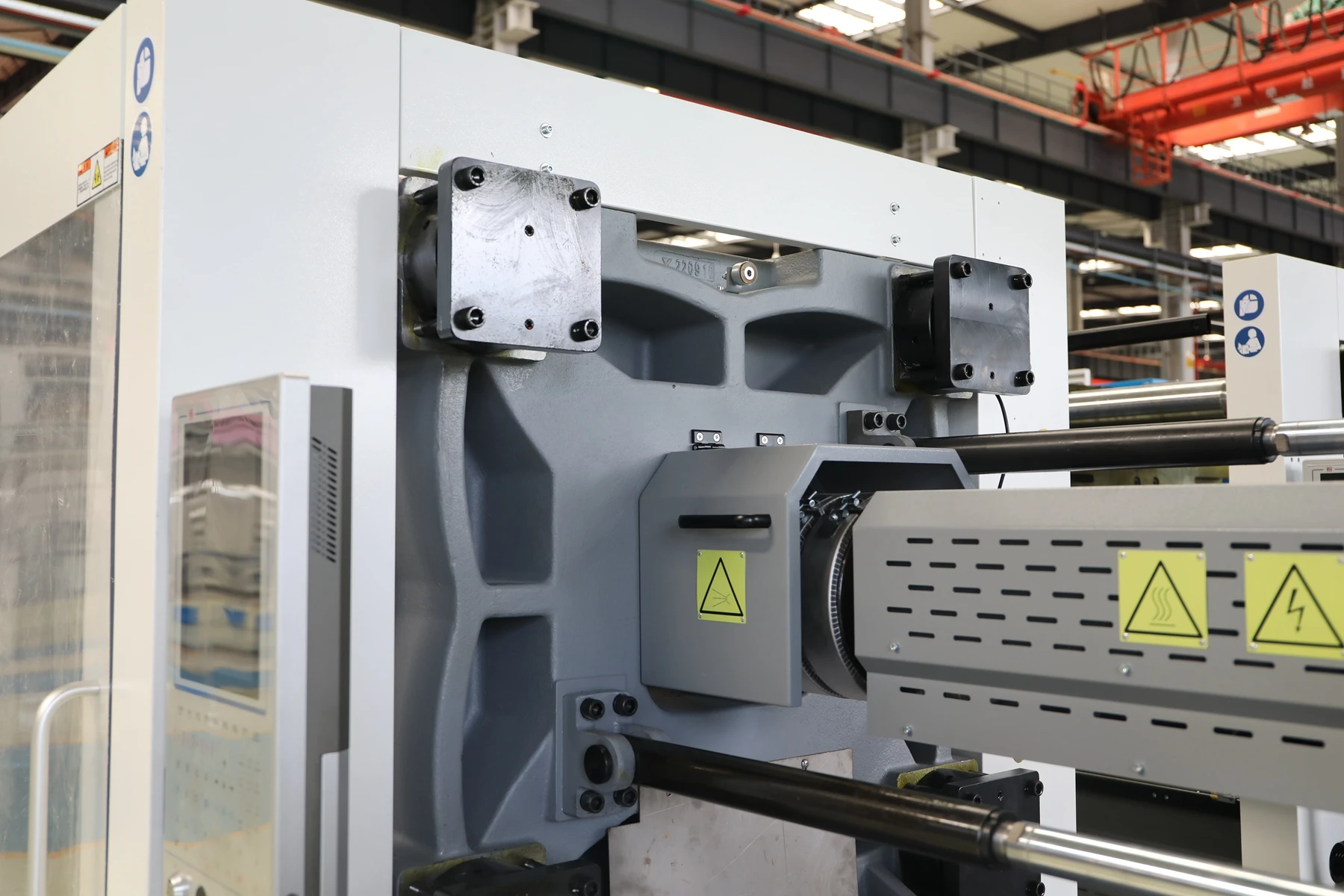

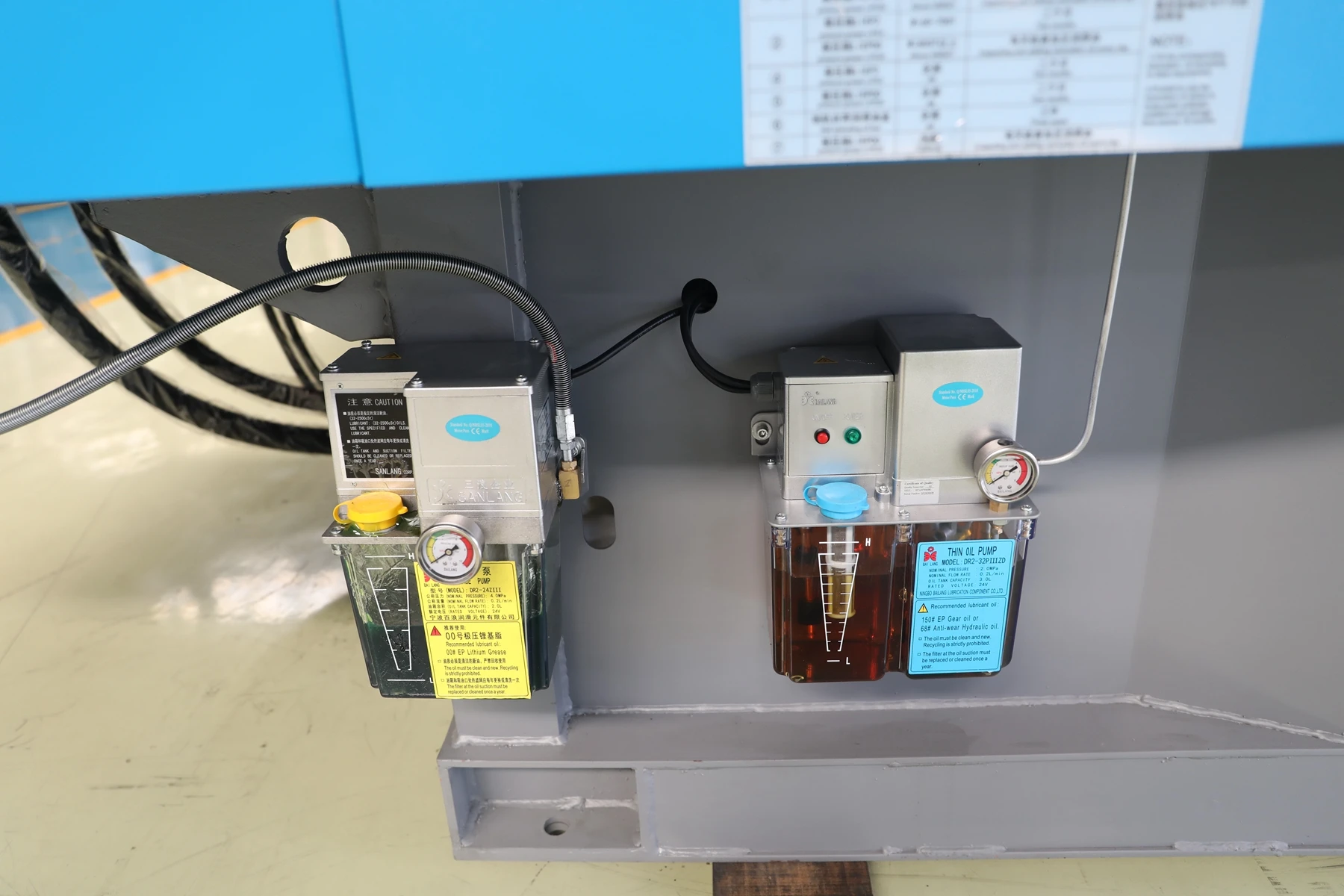

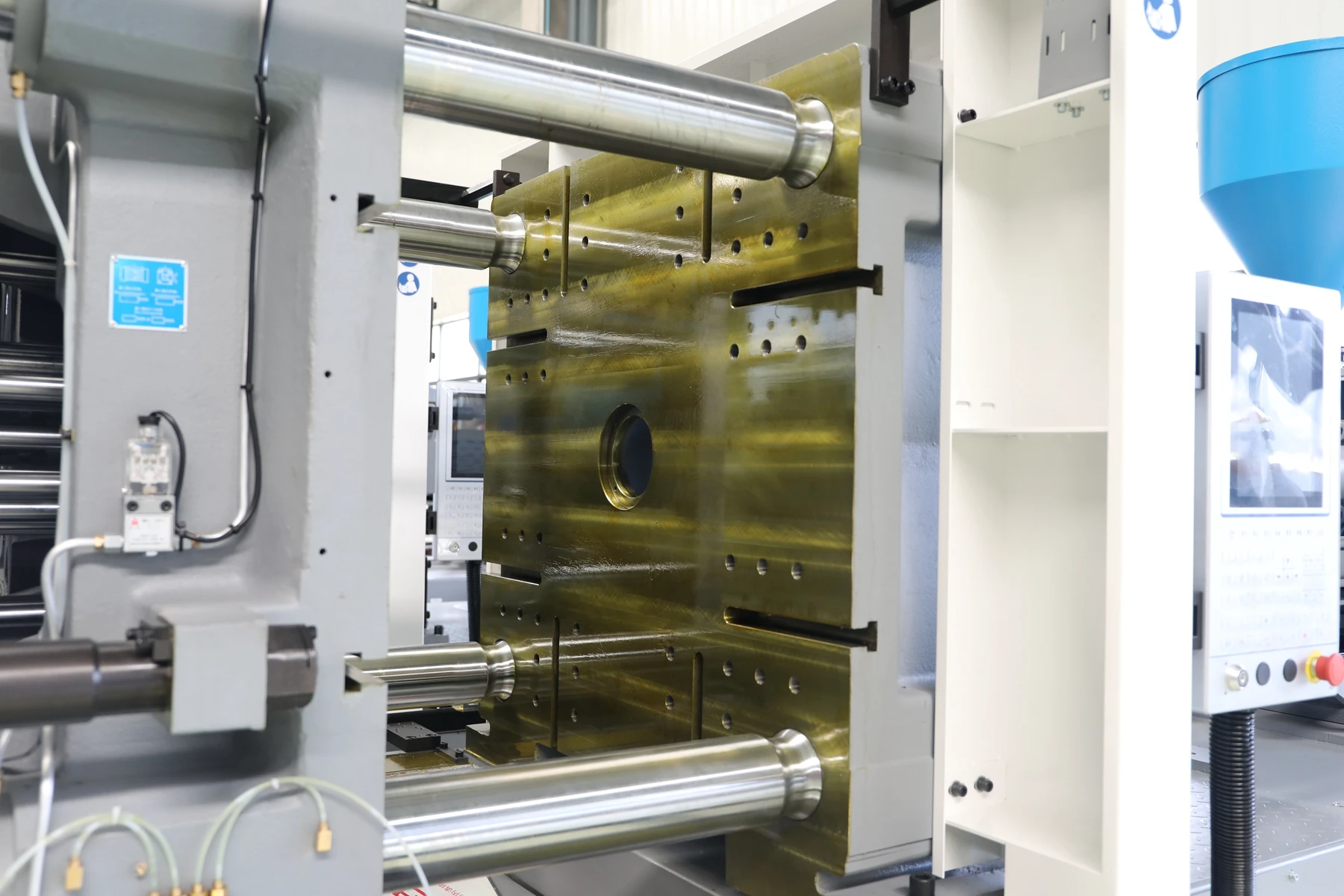

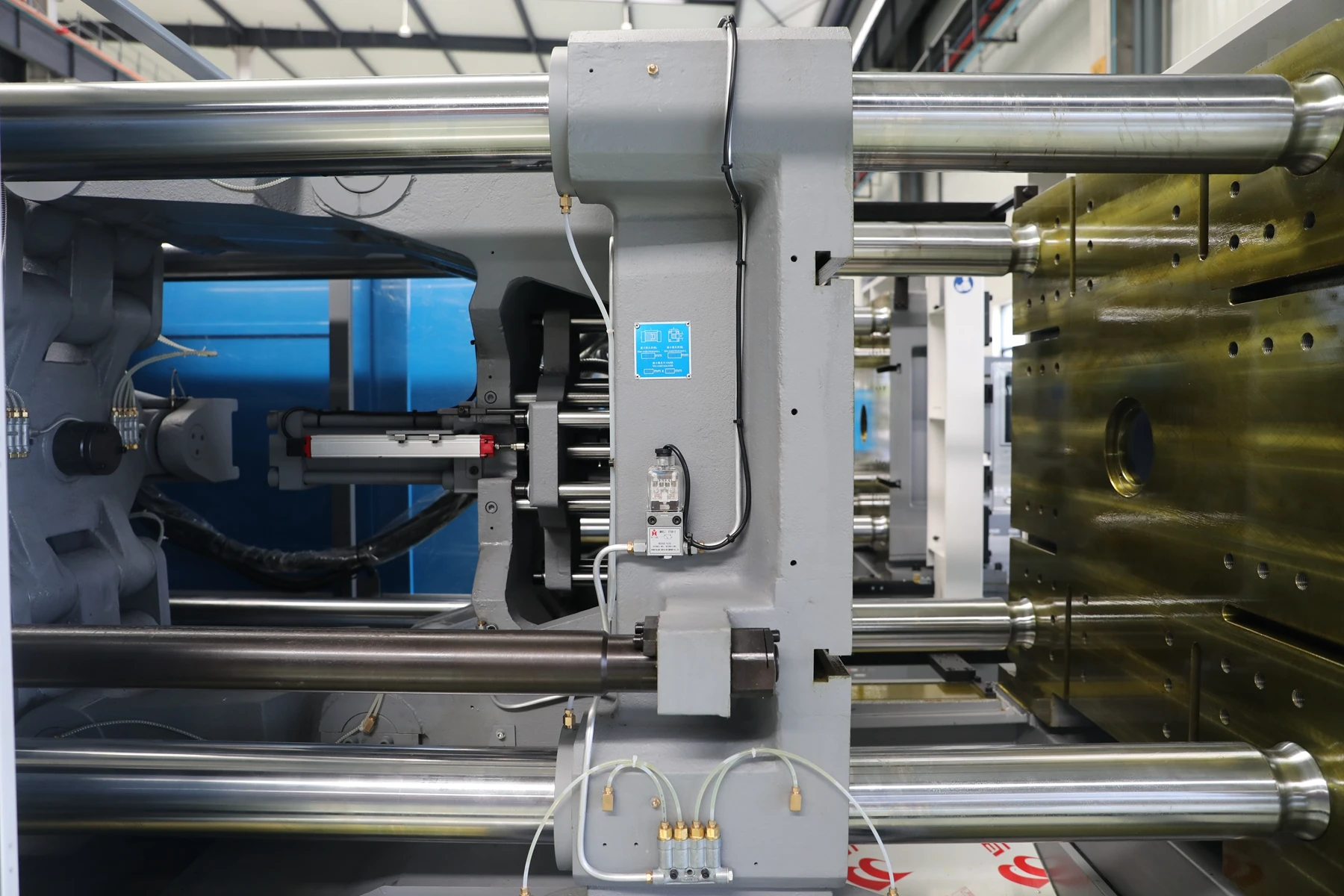

MACHIINE DETAILS

APPLICIATION

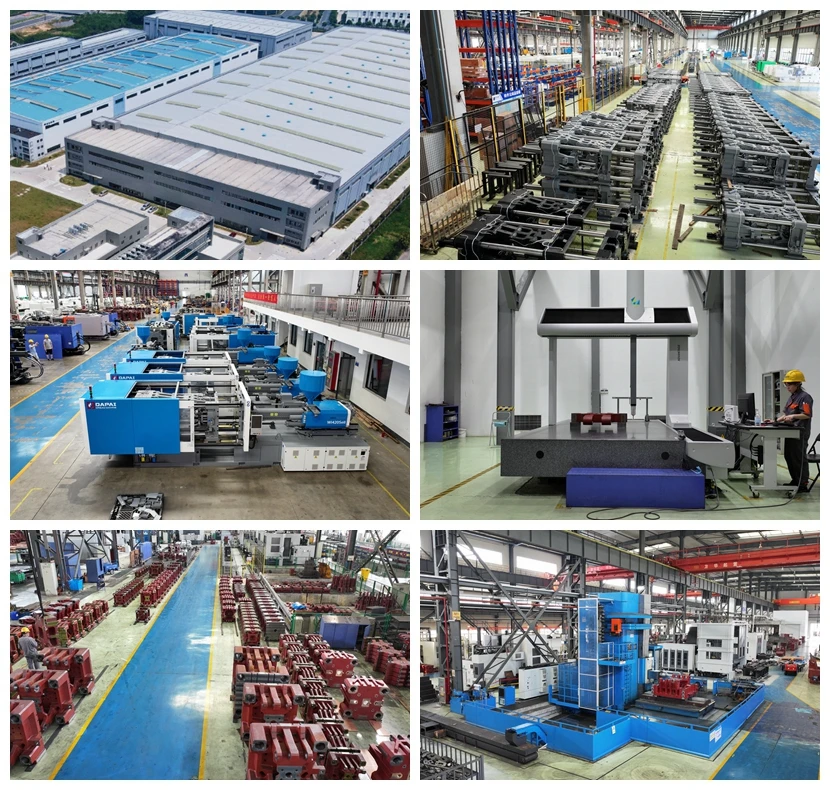

COMPANY OVERVIEW



RFQ

1.How to choose injection molding machine?

The injection weight should be about 1.2× product's weight; The tie bar space should be bigger than the mold dimension; Contact with us for more information.



2.How to pay?

30% deposit T/T in advance, the balance 70% payment by T/T before delivery (we accept payment by T/T, L/C and alibaba trade insurance, etc.)



3.Is that possible for your company to send engineer to install machine for commissioning, even train our workers?

Yes, we can send our engineer to your factory for installing, commissioning, training. We have some engineers flying among different countries for after sale service and technical support. As per experience, if everything OK usually 5-15 days is enough. Therefore, before shipment, we need you to prepare invitation letter for visa. However, please be noted that all cost happened for visa, travel, hotel should be paid in advance by customers. In addition, we cannot guarantee each visa is successful.



4.If we buy your machines, is there any warranty?

Yes, definitely. 1YEAR after shipment for mechanical parts, hydraulic parts, electric components (The screw just has 6-months). We are responsible for broken parts within 3YEARS. We will supply those parts in freeway but the possible transportation cost should be paid by clients.
