Anran Tb02 Over Current And Over Temperature Protection Thermal Protector Thermostat Switch
- Category: >>>
- Supplier: Changzhou Anran International Trading Co. Ltd.
Share on (1601014906107):
Product Overview
Description
Product Description
Product details
| Product name | TB02 |
| Usage | Control Temperature |
| Certification | CQC UL |
| MAX Temperature | 155℃ |
| Contact capacity | 250VAC 6A |
| Keywords | thermostat |
| Features | current or temperature protection |
| Temperature Tolerance | ±3℃,±5℃ |
| Case | Metal Plastic |
| Lead wire | optional |
| Rated Current: | 5A~8A | Rated Voltage: | AC250V/AC125V |
| Case: | Plastic Or Metal | Type: | Normal Closed Or Normal Open |
| Electric Intensity: | >800V | Contact Resistance: | <30mΩ |
| Insulation Resistance: | >100MΩ | Action Temperature: | 50C To 150C |
| Number Of Automatic Cycles: | >6000(Resistive Load) | Cable Length: | Customized |
Product Description:
TB02 thermal protector possess the benifits of miniature size,shell insulation,sensitive in action,long life etc.It is widely used in battery pack, fractional horsepower motor, electric heating appliance, fluorescent lamp ballast, transformer, automobile motor, integrated circuit and general electrical equipment.
| NO | Action temperature | Reset temperature | NO | Action temperature | Reset temperature |
| 50 | 50±5℃ | ≥35℃ | 115 | 115±5℃ | 80±15℃ |
| 55 | 55±5℃ | 42±6℃ | 120 | 120±5℃ | 85±15℃ |
| 60 | 60±5℃ | 45±8℃ | 125 | 125±5℃ | 85±15℃ |
| 65 | 65±5℃ | 48±10℃ | 130 | 130±5℃ | 90±15℃ |
| 70 | 70±5℃ | 50±12℃ | 135 | 135±5℃ | 95±15℃ |
| 75 | 75±5℃ | 53±14℃ | 140 | 140±5℃ | 100±15℃ |
| 80 | 80±5℃ | 55±15℃ | 145 | 145±5℃ | 100±15℃ |
| 85 | 85±5℃ | 60±15℃ | 150 | 150±5℃ | 105±15℃ |
| 90 | 90±5℃ | 65±15℃ | |||
| 95 | 95±5℃ | 70±15℃ | |||
| 100 | 100±5℃ | 70±15℃ | |||
| 105 | 105±5℃ | 75±15℃ | |||
| 110 | 110±5℃ | 75±15℃ |
Main Products
Company Profile

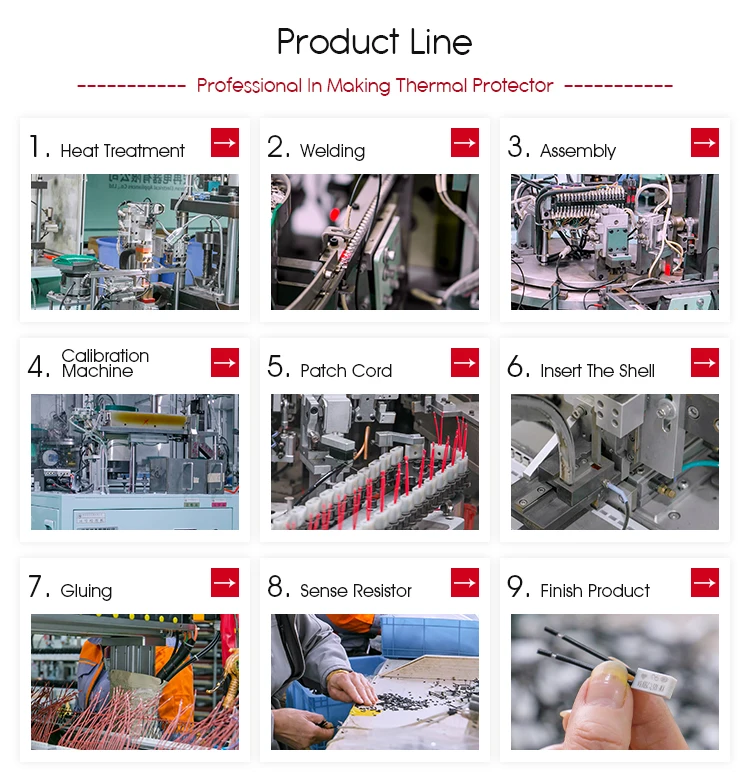

Product Line
Certificates & Honors
Packing & Shipping
Question & Answer
Q: Are you trading company or manufacturer ?
A:We are a manufacturer
Q: Do you provide samples ? is it free or extra ?
A:There are many kinds of products in our company. Samples should be sent according to the types of products and negotiated with customers.
Q:Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
