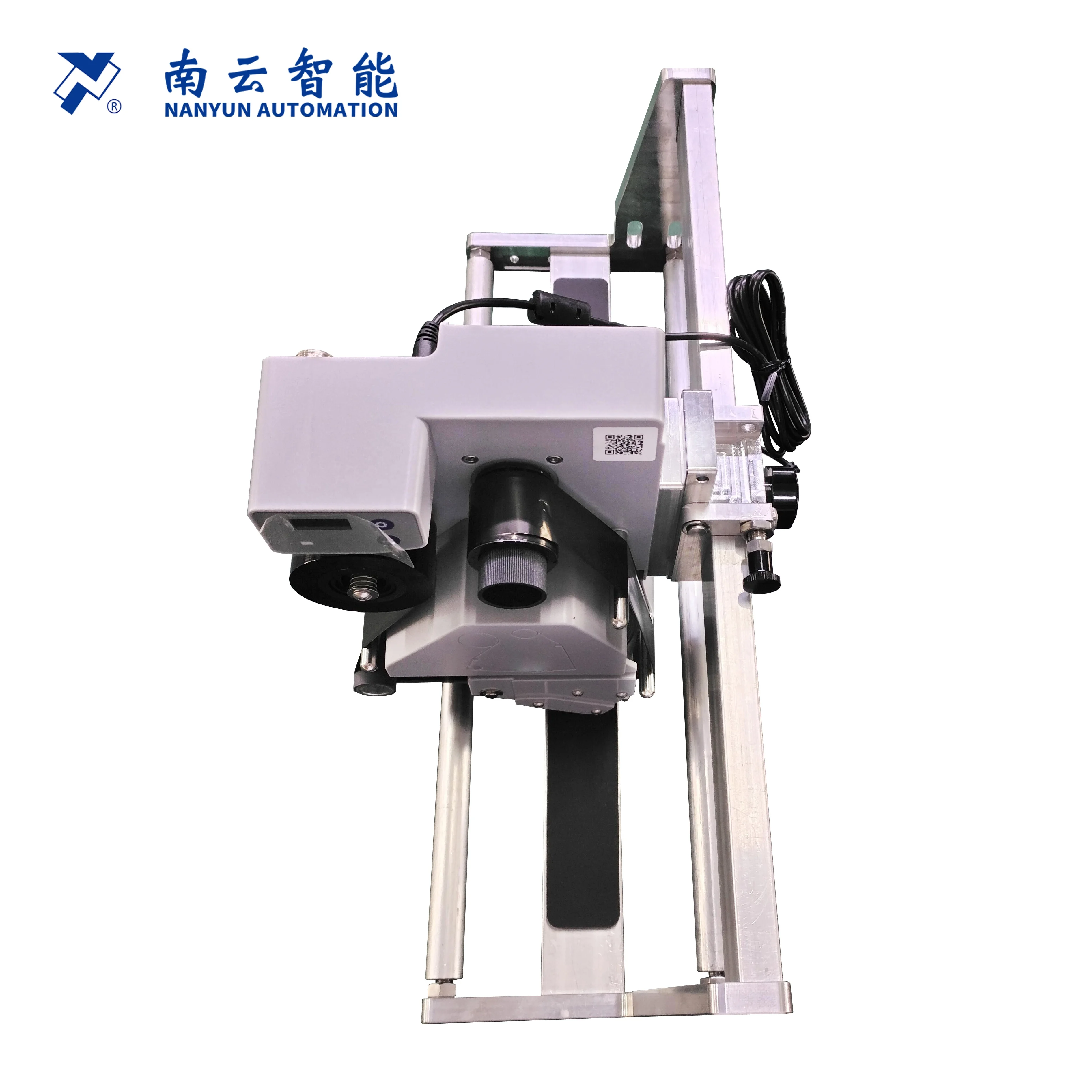

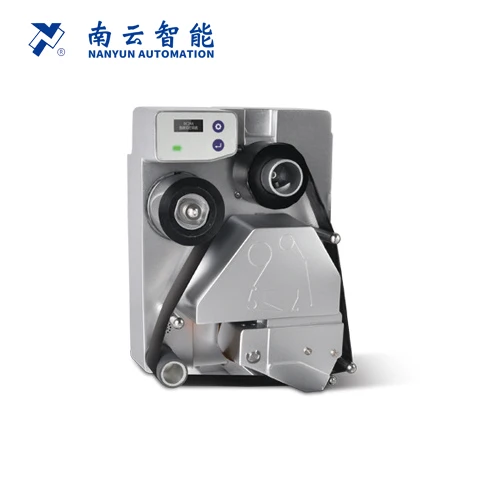

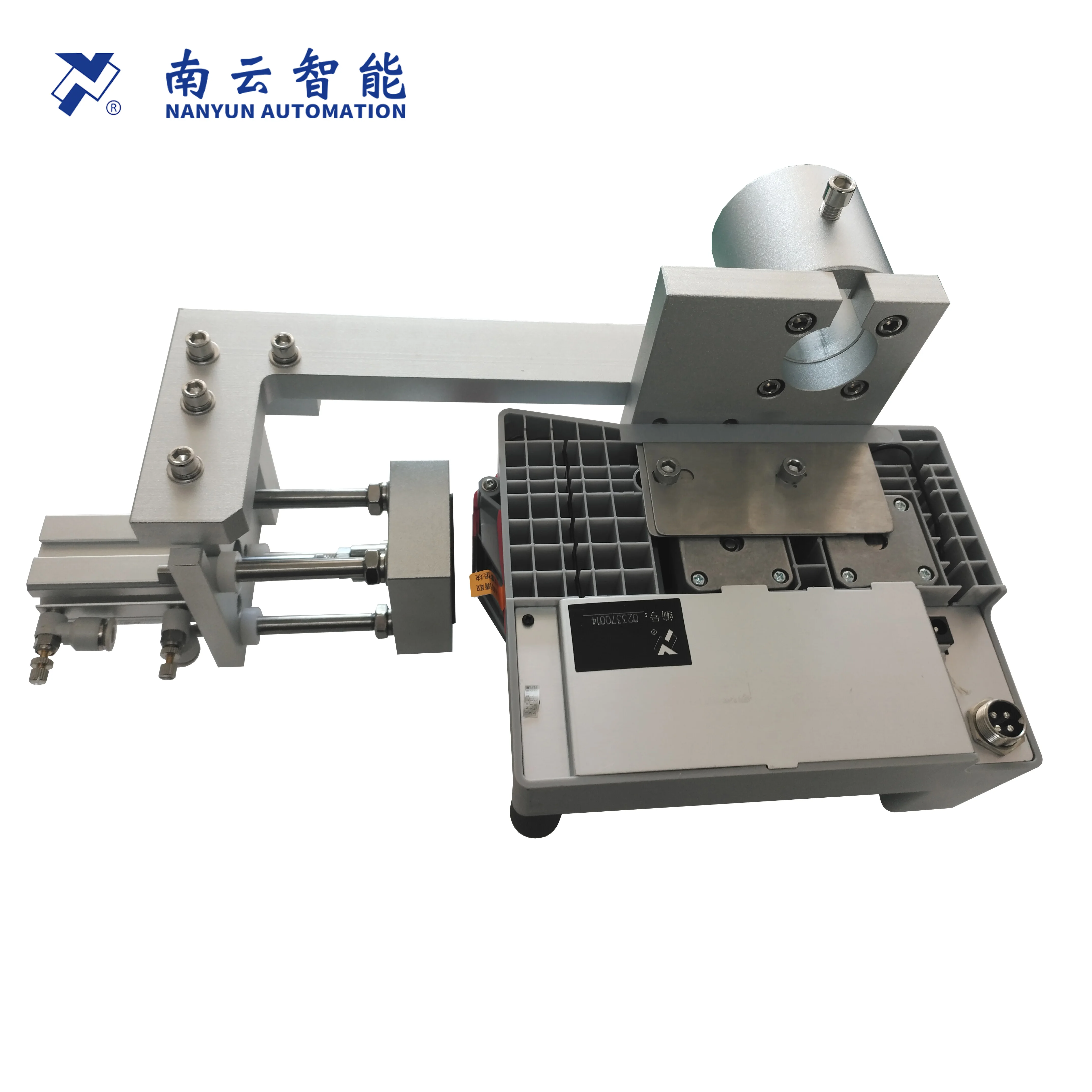

NanYun Date Coding Machine 24mm TTO NY UMR870A Bar Code Print Thermal Transfer Printer Industrial On Plastic Bag
- Category: >>>
- Supplier: Fujian Nan Yun Packing Machinery Co. Ltd.
Share on (1601014913675):
Product Overview
Description
▶ Attention: The price shown on Alibaba system has no reference value. The quotation varies with different configurations and requirements like mounting bracket structure, quantity and so on.
Thermal Transfer Overprinter For Multi-Functional Flexible Packaging or Labeling Machine
▶ Description
The thermal transfer printers can integrate seamlessly into a range of flexible packaging machines and can print clear legible alpha numeric, logo, variable data, QR code, graphics, 2D code, random code for traceability, as well as text on both intermittent and continuous high-speed packing machine or production lines. NanYun TTO printer is one of most cost-effective smart coding machines, provides excellent solutions to soft-packaging coding in a wide range of fields like food, daily use chemicals, seeds, daily use paper and financial bill etc.
This includes printing onto plastics, film packaging, labels, gloss card, and other flexible materials requiring consistent, error free best before dates, real time, batch codes, barcode, ingredients, graphics, pictures, logos and other variable product information. Print on snack foods, confectionery and bakery products, frozen and refrigerated foods (meat & poultry, dairy, bagged fruits & vegetables), cosmetics, chemical, nutraceuticals and other products packaged in flexible films.

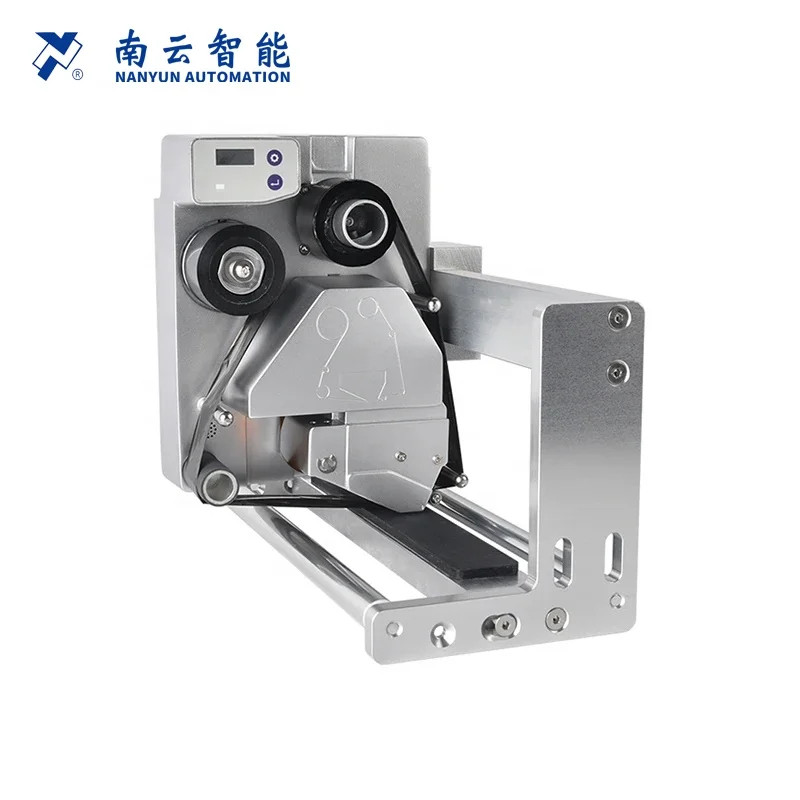

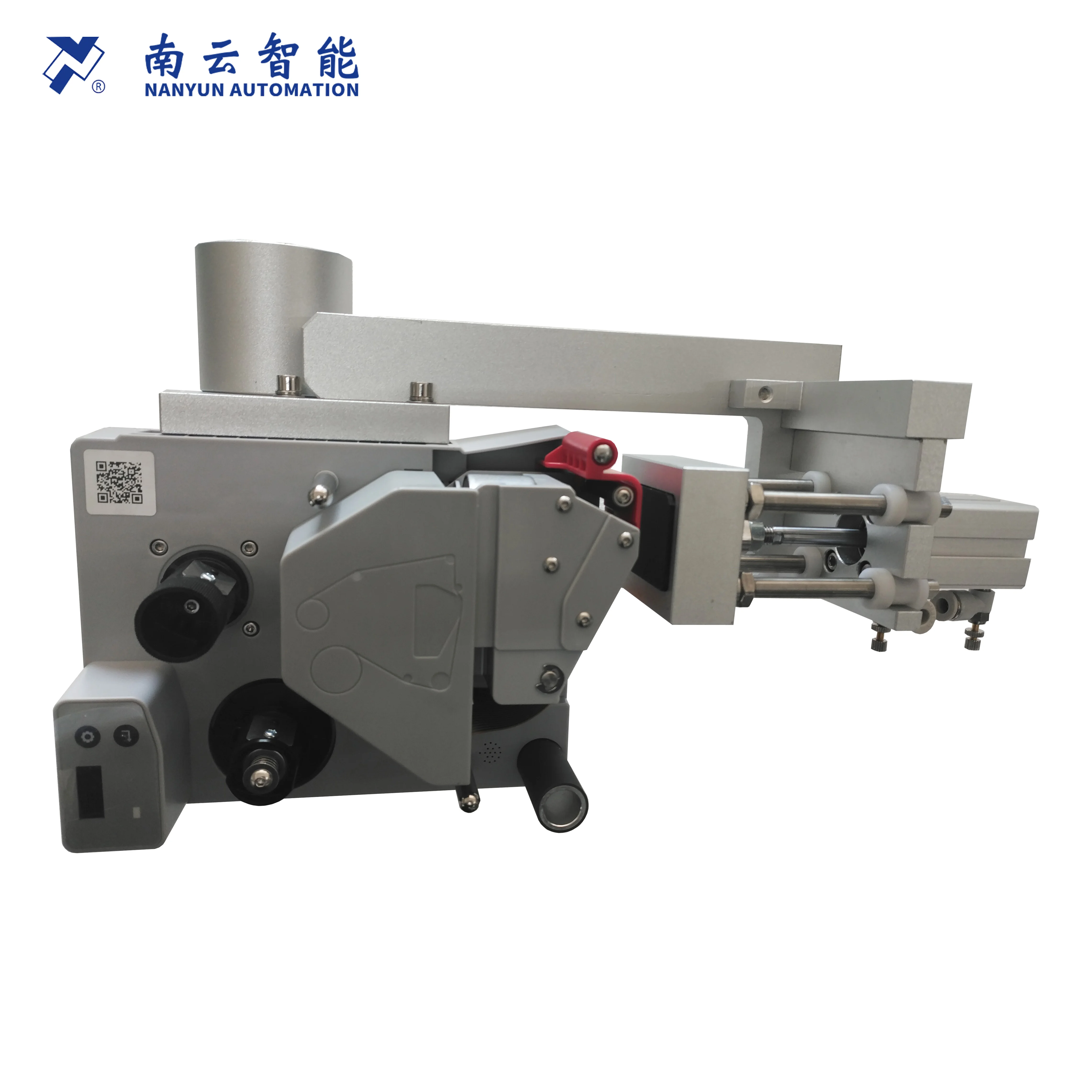

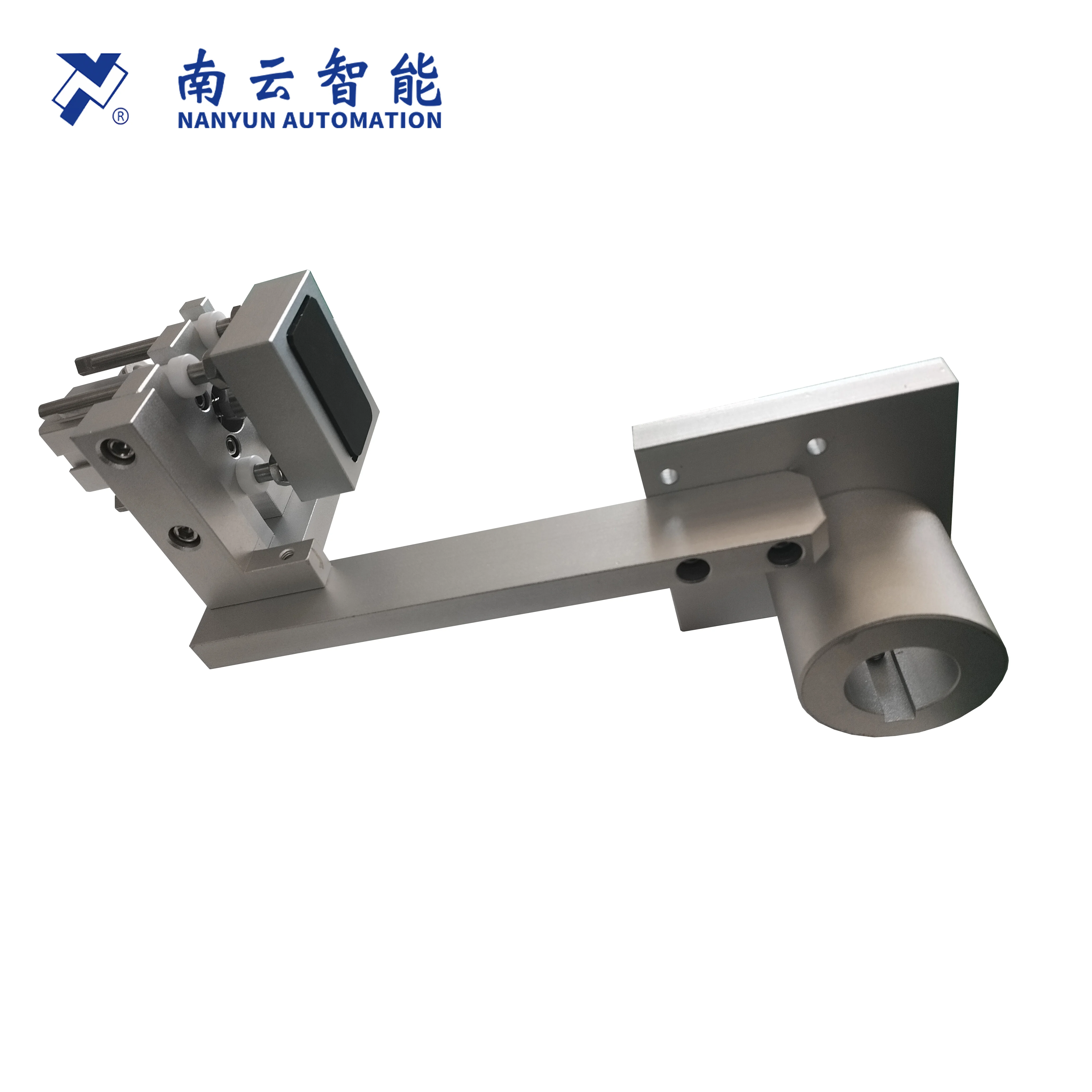

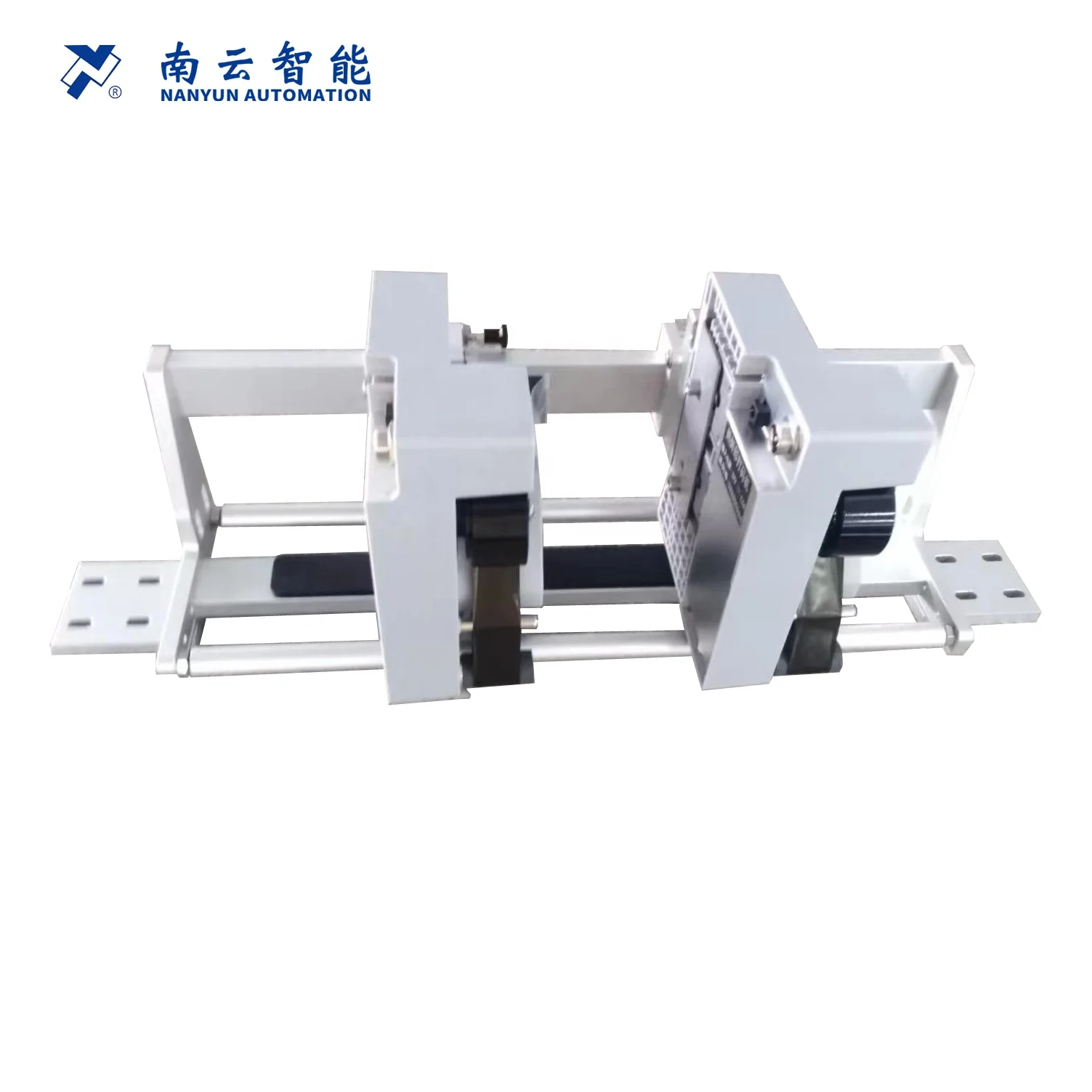

▶ Application and Mounting Bracket Optional:

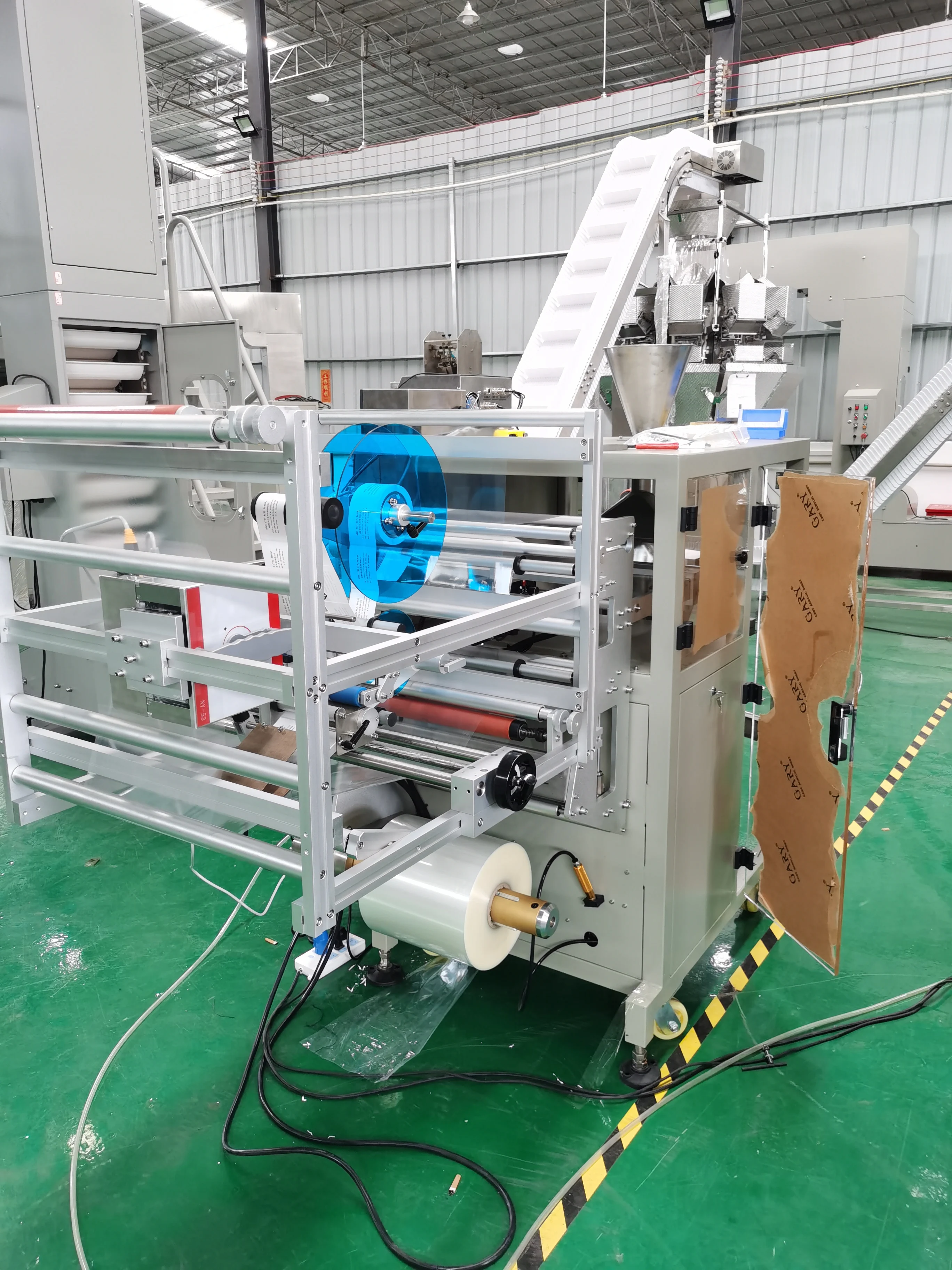

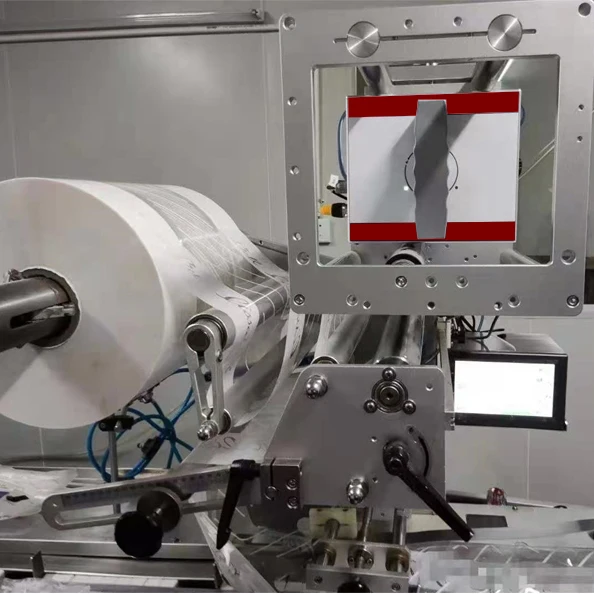

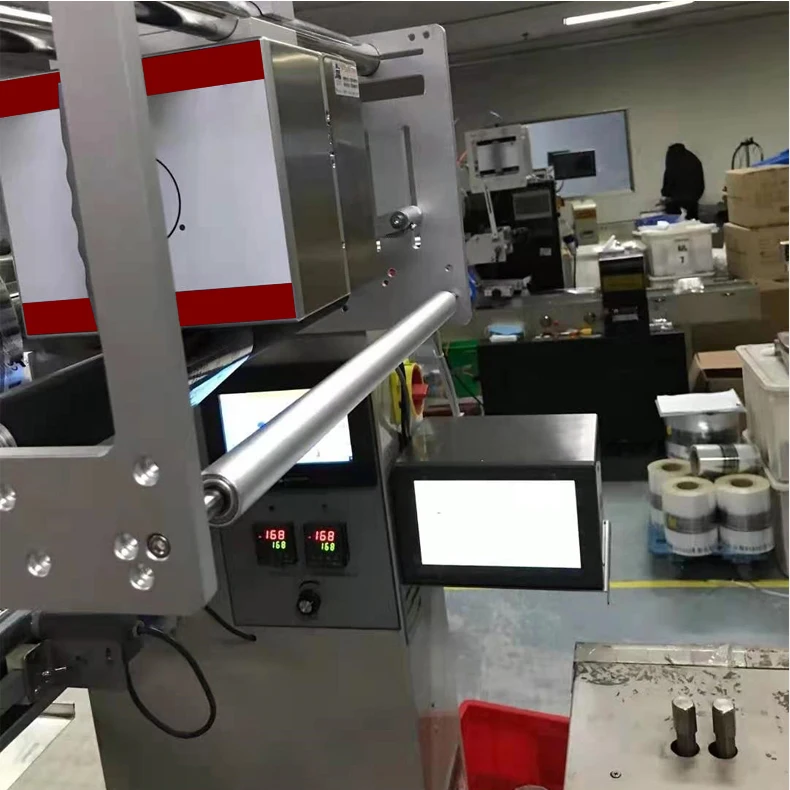

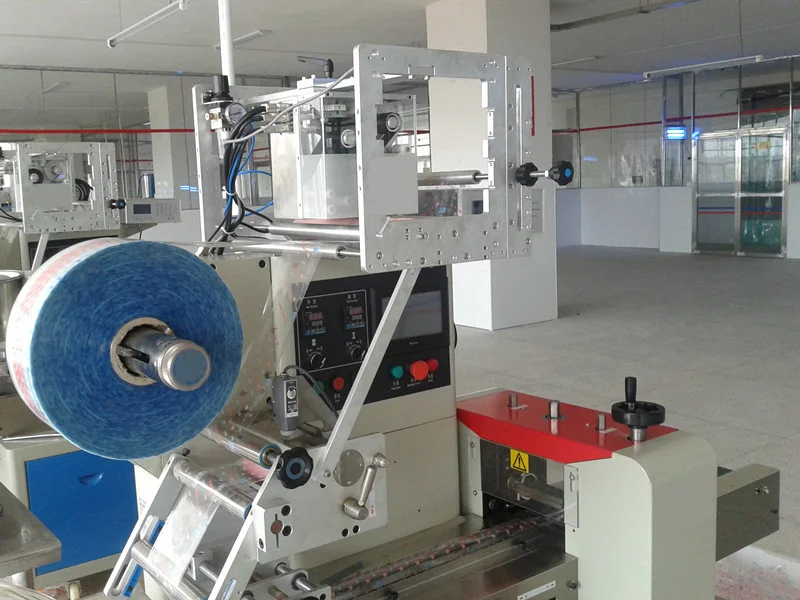

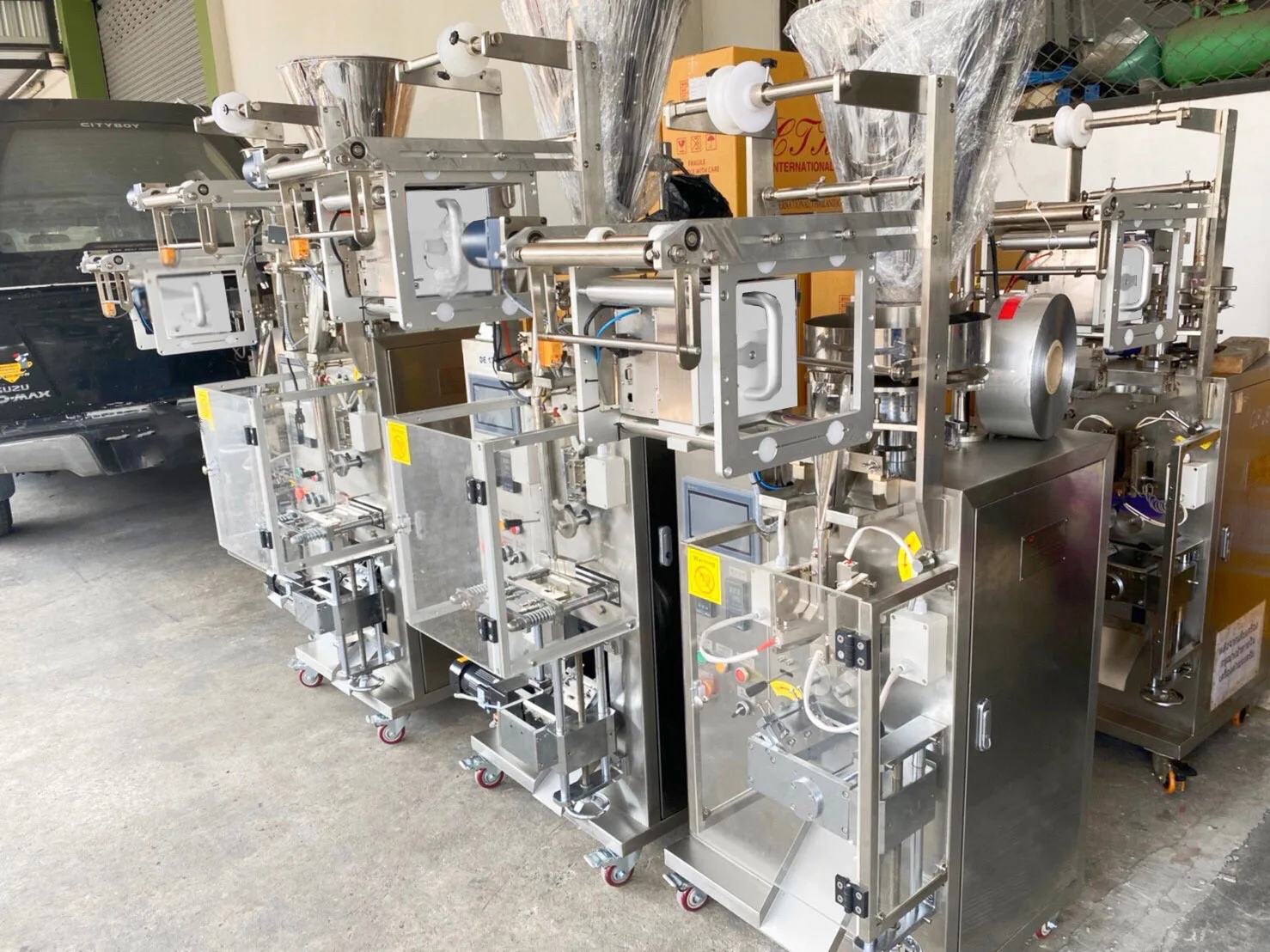

▪ For Vertical Intermittent Packing Machine

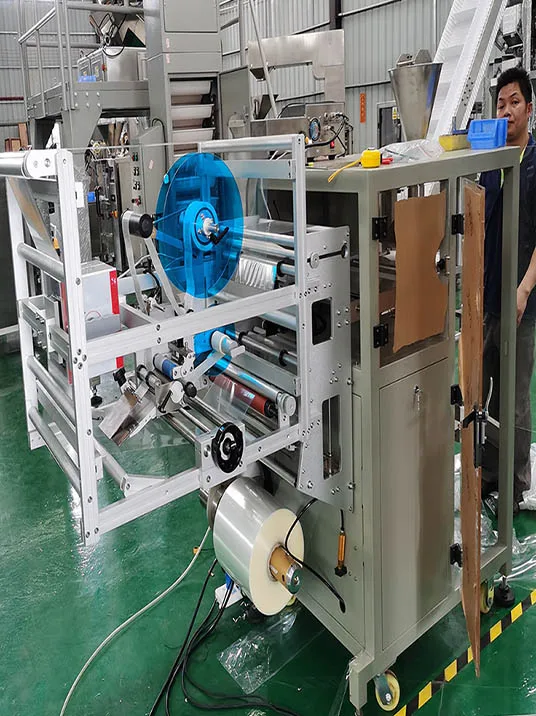

▪ For Bag Making Feeding Packaging System
The thermal transfer printers can integrate seamlessly into a range of flexible packaging machines and can print clear legible alpha numeric, logo, variable data, QR code, graphics, 2D code, random code for traceability, as well as text on both intermittent and continuous high-speed packing machine or production lines. NanYun TTO printer is one of most cost-effective smart coding machines, provides excellent solutions to soft-packaging coding in a wide range of fields like food, daily use chemicals, seeds, daily use paper and financial bill etc.
The upgraded movable type thermal transfer over-printer opens a new era of intelligent code printing! DC24Ais an enhanced smart TTO product designed for the leapfrog upgrade of traditional TTO.In addition to use it to easily complete the printing of production date,shelf life,series number,batch number, time (accurate to seconds), etc., you can also print any 1D code,2D code,product traceability code,logo,graphics and other content as needed.
Our thermal transfer overprinters (TTO) provide an ideal printing solution onto flexible packaging across a wide variety of industrial applications. Intuitive touch screen technology makes it easy to add code content—like a new date, a time, or traceability data—without mechanical changes to the printer.
This includes printing onto plastics, film packaging, labels, gloss card, and other flexible materials requiring consistent, error free best before dates, real time, batch codes, barcode, ingredients, graphics, pictures, logos and other variable product information. Print on snack foods, confectionery and bakery products, frozen and refrigerated foods (meat & poultry, dairy, bagged fruits & vegetables), cosmetics, chemical, nutraceuticals and other products packaged in flexible films.
▶ Application and Mounting Bracket Optional:

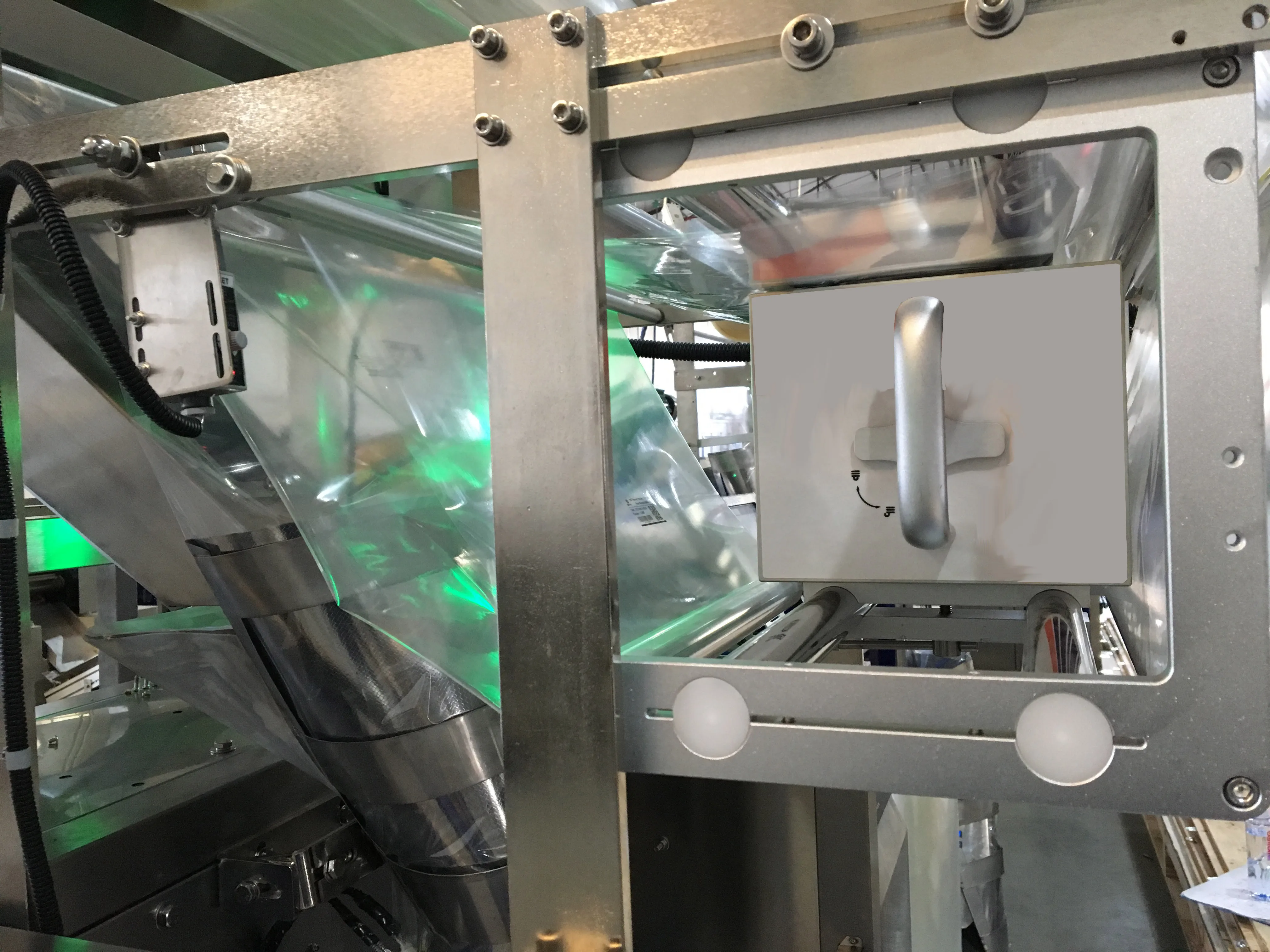

▪ For Vertical Intermittent Packing Machine
▪ For Bag Making Feeding Packaging System

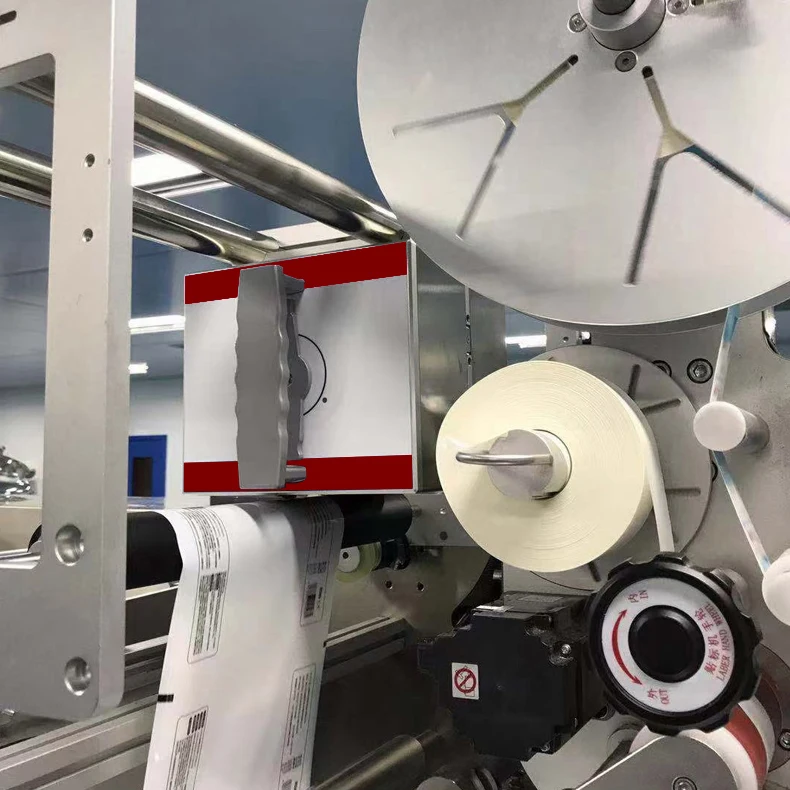

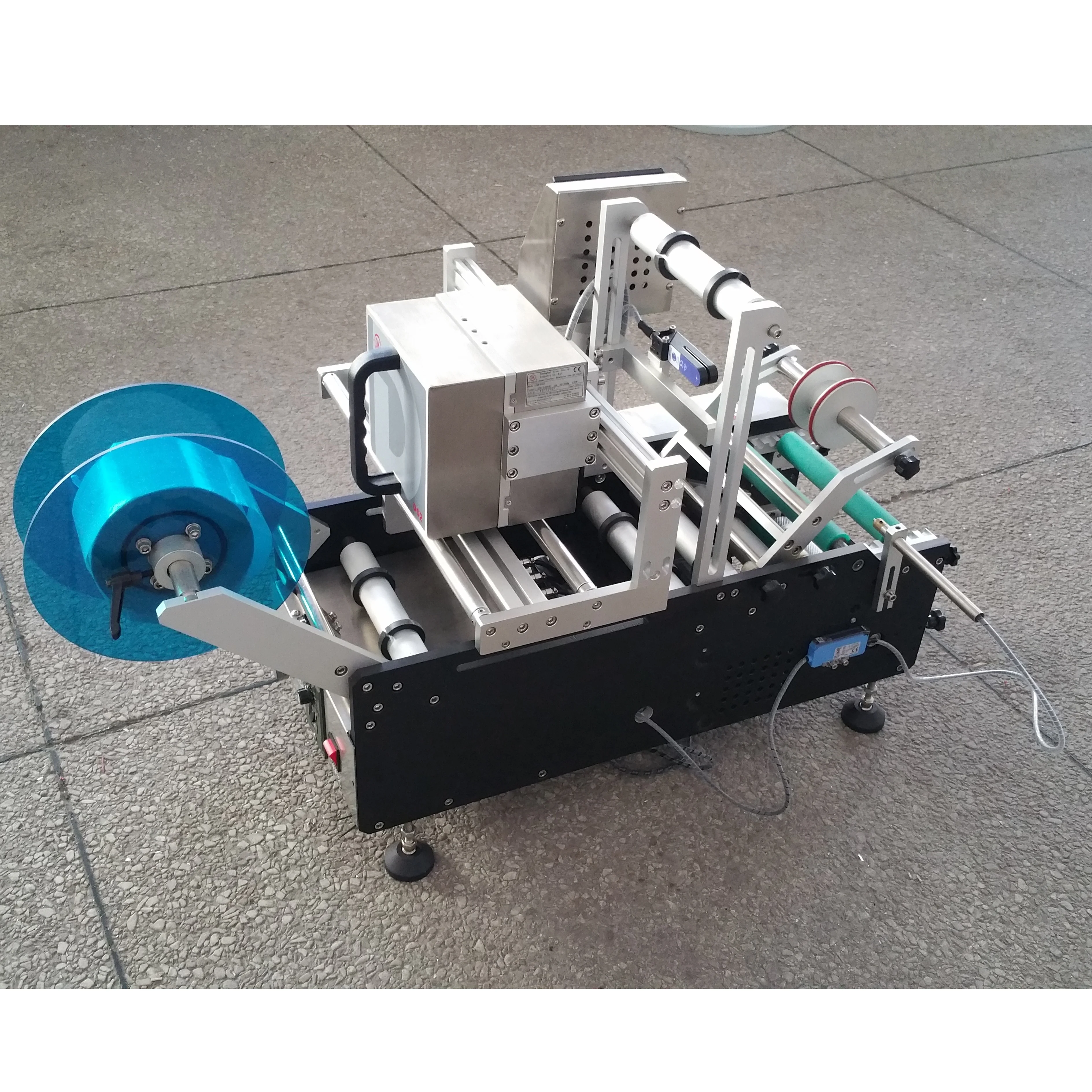

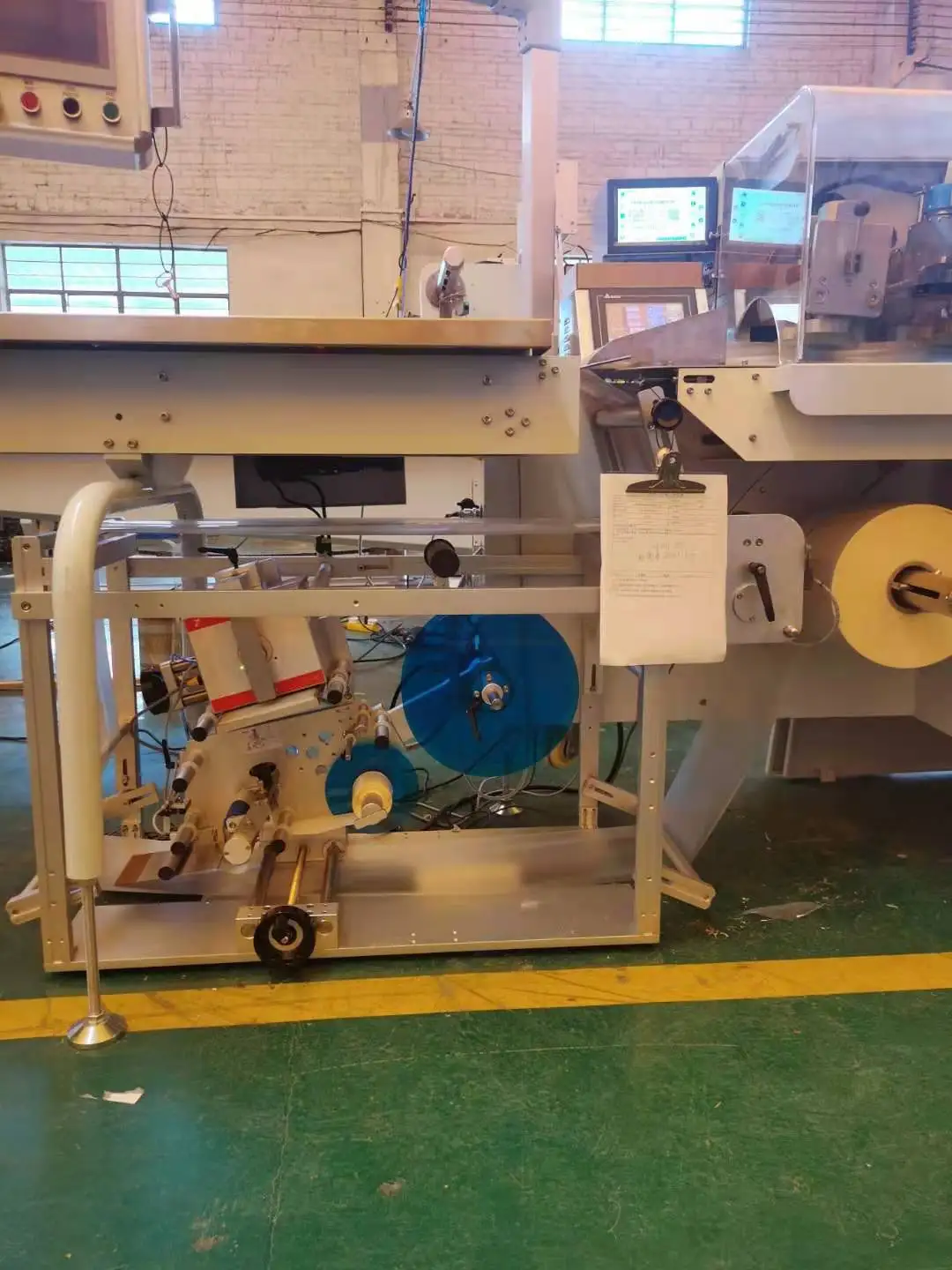

▪ For Self-adhesive Sticker Labeling Machines

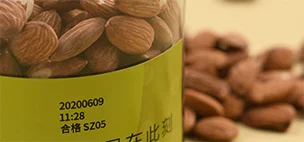

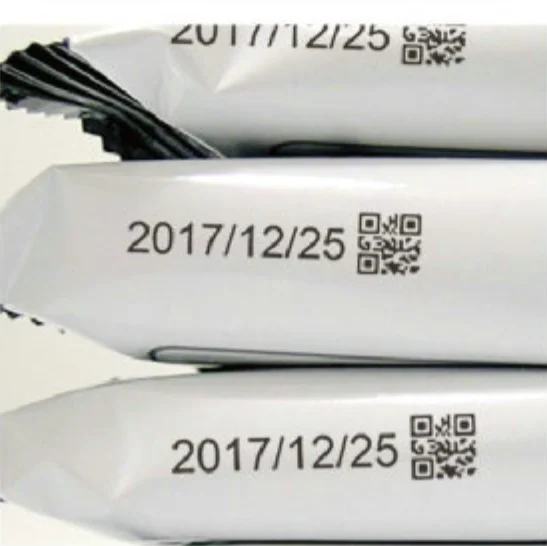

▶ Print Effect:
▶ Specifications:
Model | NY-UMR870A |
Printing Modes | Intermittent Mode (IM) Thermal Transfer Printing |
Print Density | 203 dpi (8 dots/min) |
Print Speed | 20-200mm/s |
Print Area | 24mm*12mm |
Character Size | 2mm~4mm adjustable |
Character Type | Chinese and English characters, numbers, punctuation |
Coding Direction | 0°Or 180° |
Ribbon Type | Wax / Resin |
Max. Ribbon Length | 200m |
Ribbon Width | 26mm |
Coding Type | Production date, batch number, shelf life and custom text etc. |
Print Job | Real time clock (hours/minutes), dates, user entered alphanumeric date, automatic shift code, automatic serial number, logos, barcodes, QR codes, nutrition tables, etc. |
Bar code | Code128(Support GS1 Mode), EANX, Code11, QR code(Support GS1 Mode), C25matrix, C25inter, C25iata, Upca, Upce, EAN128, PDF417, DataMatrix(Support GS1 Mode), etc. |
Type of Flexible Packaging Material | Various films and composite films such as Pvdcpet, PE,NY,CPP,OPP,BOPP,BOPET,BOPA, PE,VMPET,VMCPP, etc. |
External Input | Sensor signal output: NPN/PNP (DC 12V-24V), switch-type sensor |
External Output | Borderless contact |
Menu languages | Simplified Chinese, English, Traditional Chinese, Spanish, Portuguese, French, Arabic, Russian, etc |
Dimensions (W*H*D) | Printer Unit: 250mm*210mm*250mm; |
Weight | Print Unit: 4.0kg, Gross weight depends on mounting bracket |
Power Supply | Adapter input: AC 100-240V士10%,50-60Hz, maximum output current 4A |
IP Class | IP40 |
Working Environment | Temperature: 5-40℃ Humidity: 10-90% (non-condensing) |
▶ Features:
* Easy and quick installation, can directly replace the traditional TTO
* The mobile phone controls the coding, and there is no need for cumbersome operations (such as typesetting)except the replacement of ribbon
* Start and play immediately without heating
* Stable printing quality without puncture of packaging materials and unclear printing
* High ribbon utilization, and the intelligent control of ribbon operation enables ribbon not to run empty
* High speed printing
* Low print cost
* Coding time and batch number can be updated automatically to avoid human errors, misprinting and omission
* Printing real-time time, Chinese and English characters, numbers, dots, etc.
* The mobile phone controls the coding, and there is no need for cumbersome operations (such as typesetting)except the replacement of ribbon
* Start and play immediately without heating
* Stable printing quality without puncture of packaging materials and unclear printing
* High ribbon utilization, and the intelligent control of ribbon operation enables ribbon not to run empty
* High speed printing
* Low print cost
* Coding time and batch number can be updated automatically to avoid human errors, misprinting and omission
* Printing real-time time, Chinese and English characters, numbers, dots, etc.
▶ NanYun TTO VS Traditional Hot Stamp Coder:

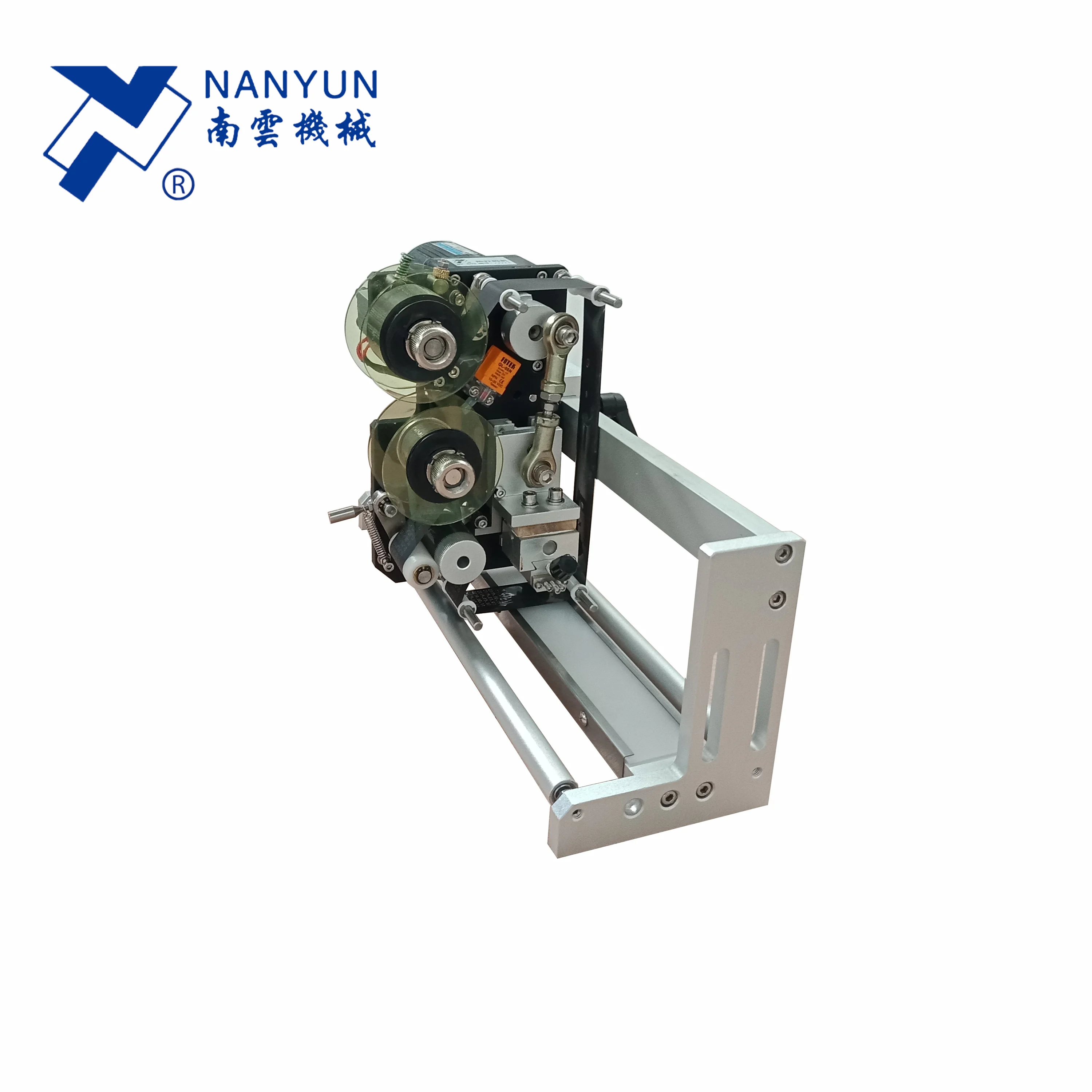

Model | NY-UMR870A TTO | HP-241 Hot Stamp Coder |
Print Cost | No cost increased | Cheap |
Start Time | Start and play immediately | Should wait for heating |
Print the date | Complete it automatically | Replace the movable type manually |
Print the time | Can print the real-time | Not support |
Print the batch | Complete it automatically | Replace the movable type manually |
Code Editing | Complete it on the mobile phone | Manual sorting and replacement of movable type |
Print Quality | No change throughout the life cycle | Unstable |
Print Pressure | Set it on the mobile phone | Adjust manually |
Ribbon Rewinding | Automatic | Manual |
Touch Screen Controller
7 inches touch screen controller and user-friendly interface simplifies all the operation. Easy-to-use Design Software-all the contents can be edit and perfectly printed.

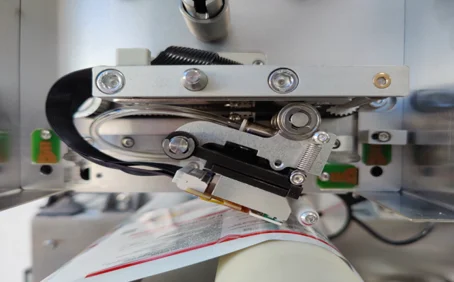

High Quality Print Head 34mm/53mm
Thermal transfer printing uses a high resolution (300 dpi) thermal printhead and thermal transfer ribbon. 300DPI printing quality with super strong adhesion to
prevent scratches.
prevent scratches.
Long Ribbon Length 500/600meter
Long ribbon rolls reduces changeovers and maximizes production uptime.
Detection & Alarm.
Ribbon tension detection; thermal head position detection; cover opening detection; thermal head over temperature detection; ribbon break detection.
Various Input & Output Connections.
Support interlaced, radial, multiple print signals. To print in Iranian calendar, Persian calendar, or the special language, you can edit it freely in PC.
Ribbon Saving Mode
Optimized Ribbon usage, 0.1mm gap between prints. Ribbon saving features help to minimize reduce ribbon waste.
Can Print Various of Contents.
Can print much more content in greater scope than ink jet printer, such as date time, composition table, QR code, bar code, variable digital, etc, which lays a solid foundation for product traceability.
Wide Application in Packaging Field

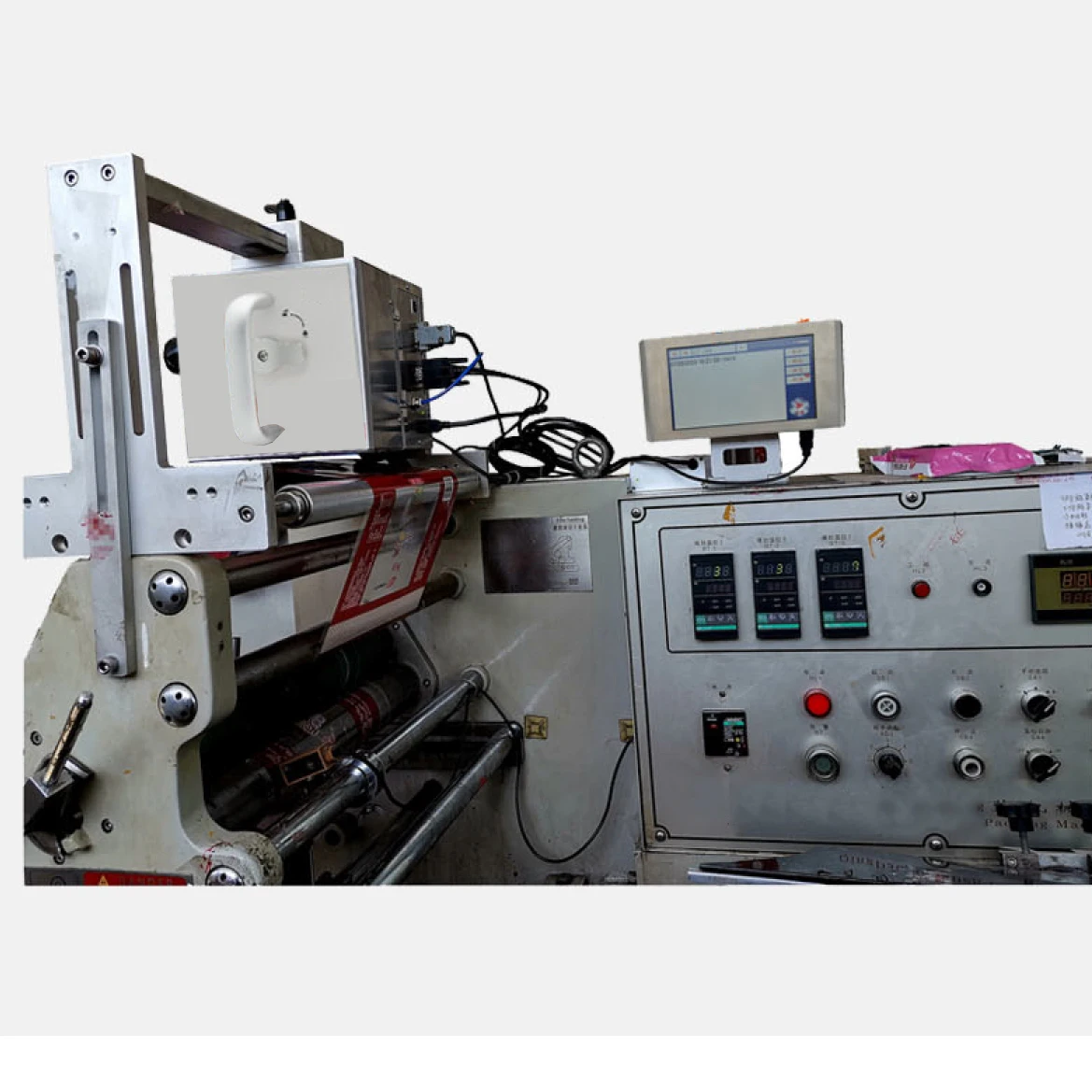

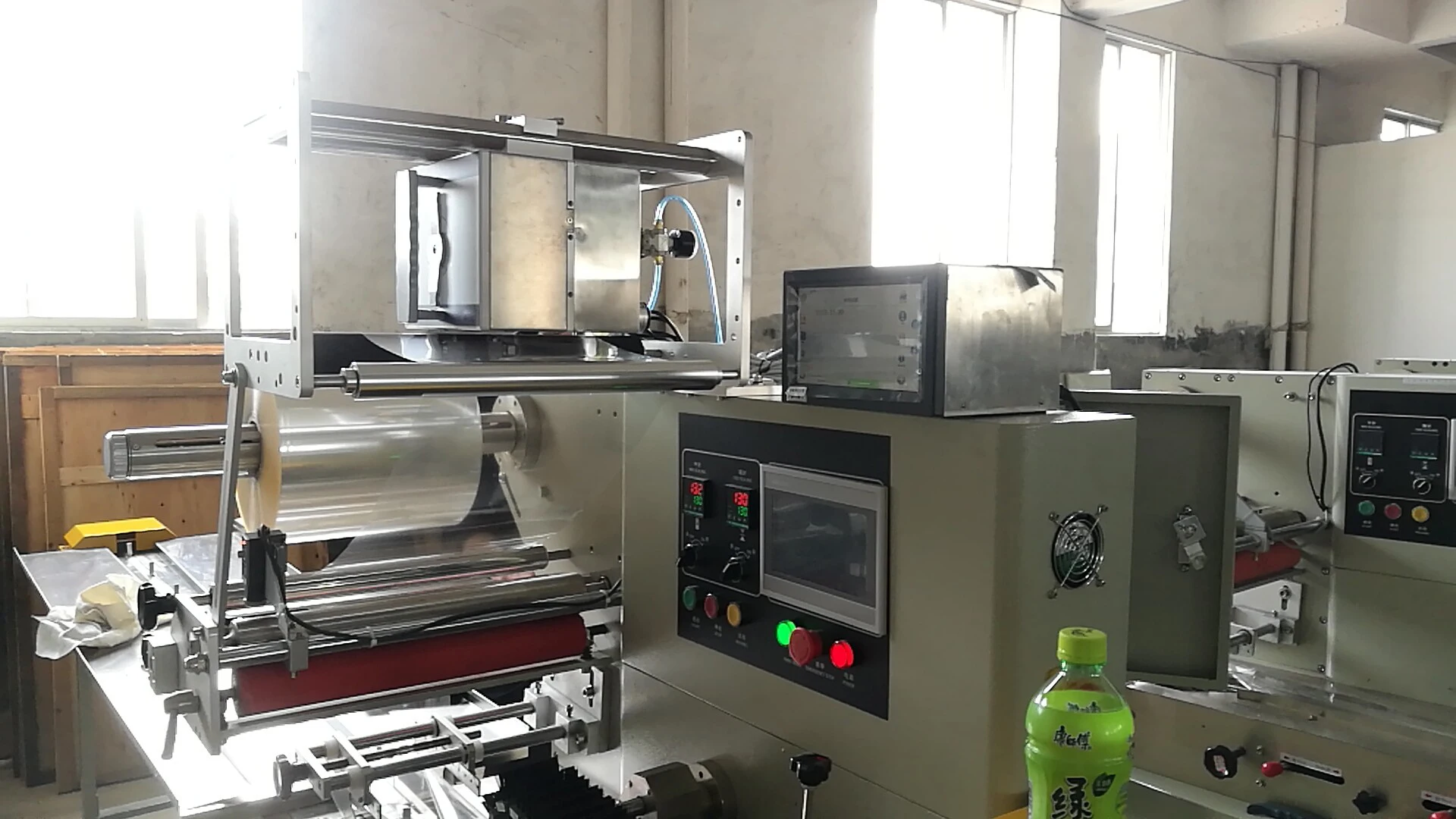

Print Intermittently or continuously from one unit, thus can be applied to both continuous and intermittent packing machines such as grain packing machine, VFFS, HFFS and labeling machine etc.
Suitable Many Kinds of Material
Plastic film PT, PE, PVC, OPP, KT, aluminum foil; All kinds of plastic composites, plastic bags, paper, stickers, cards, leather, cloth; Coated, Synthetics, Polypropylene & Polyester, Flexible Packaging, etc.

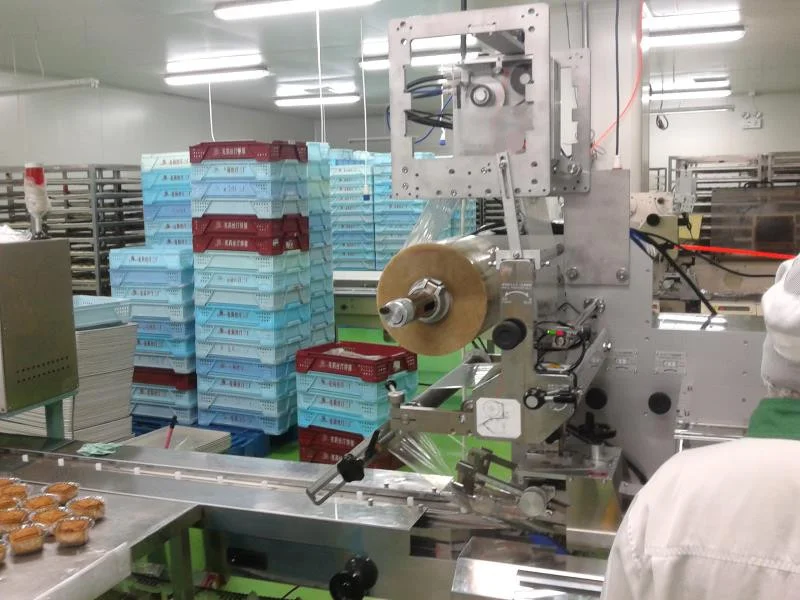

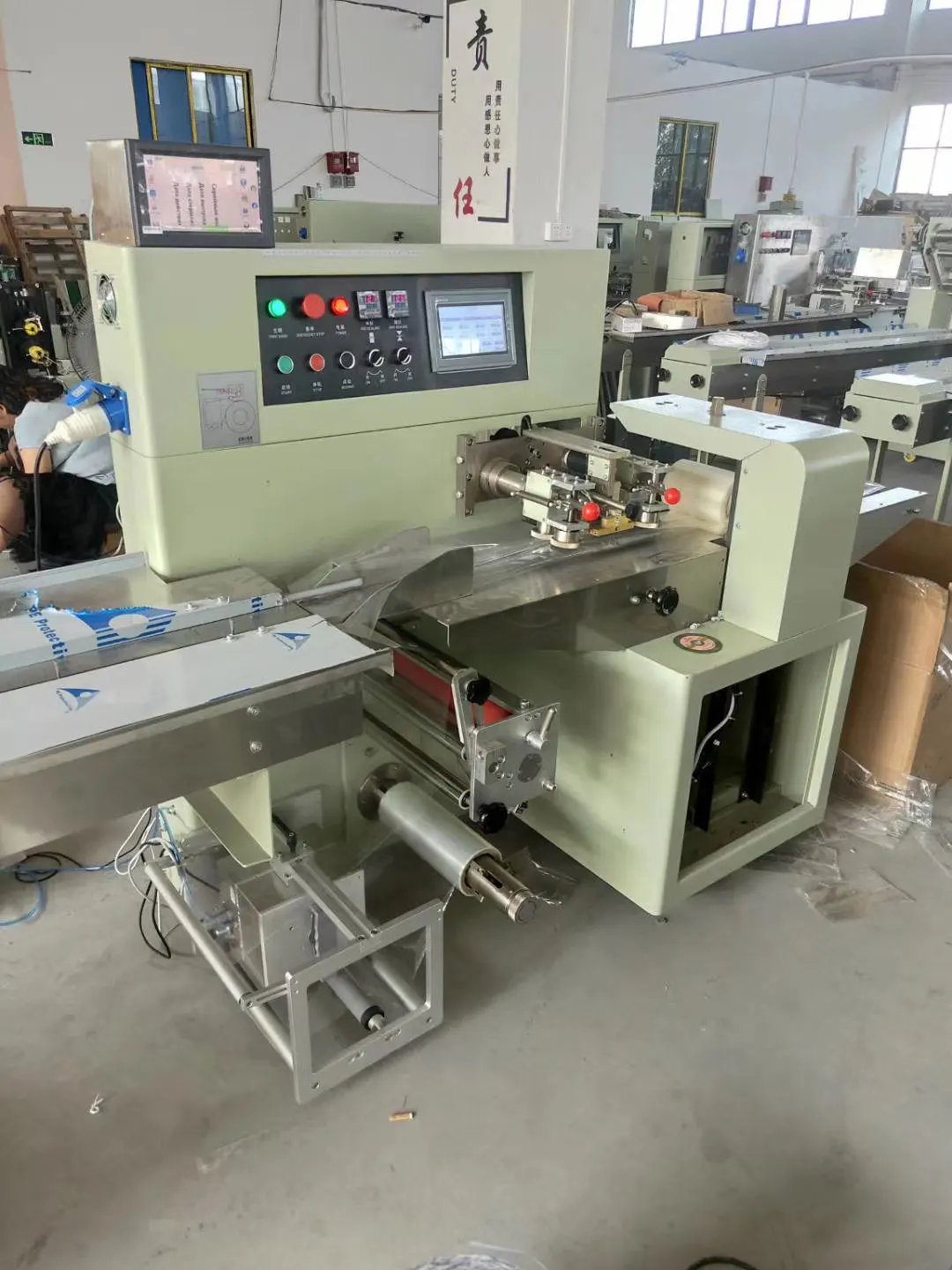

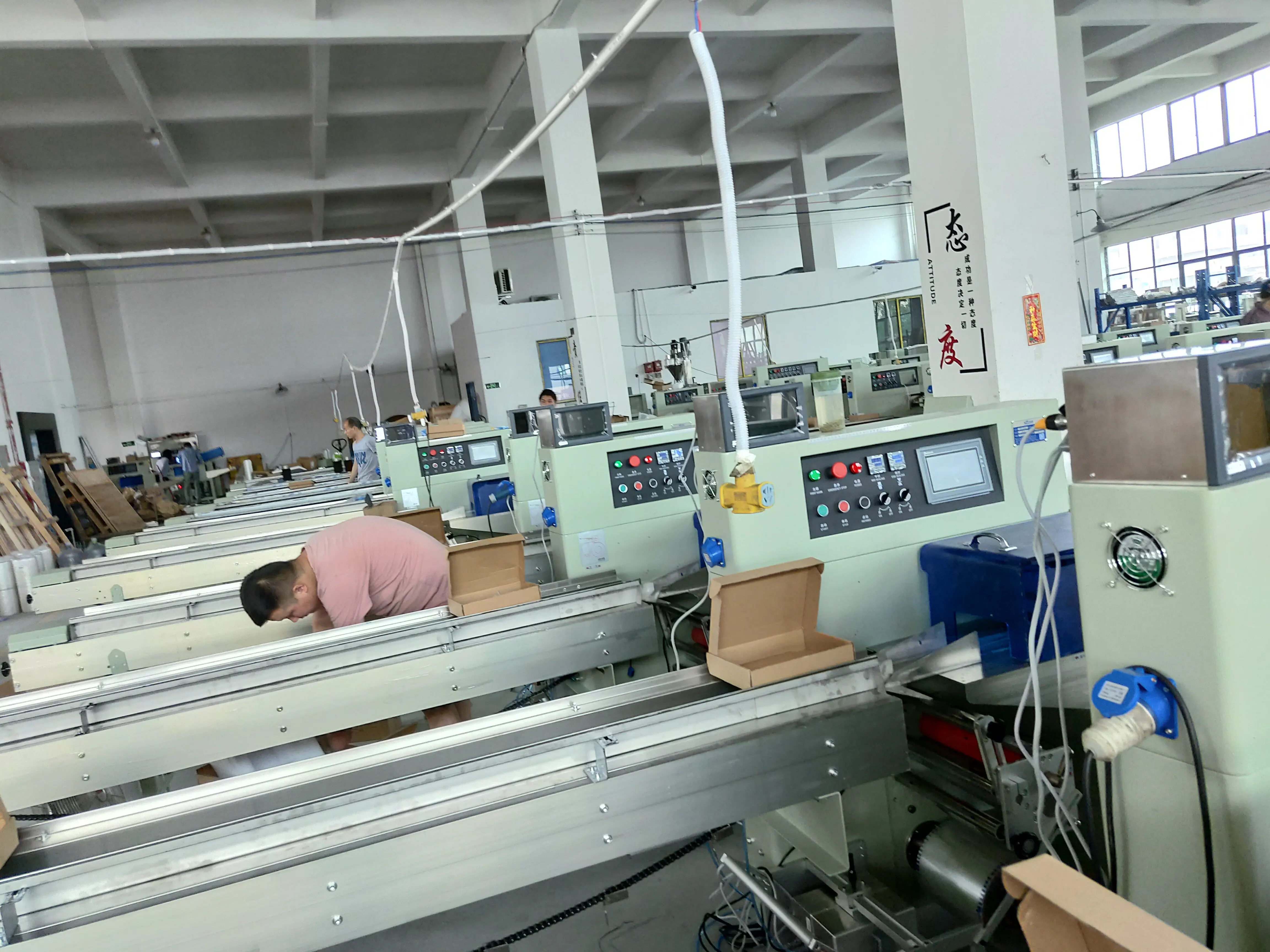

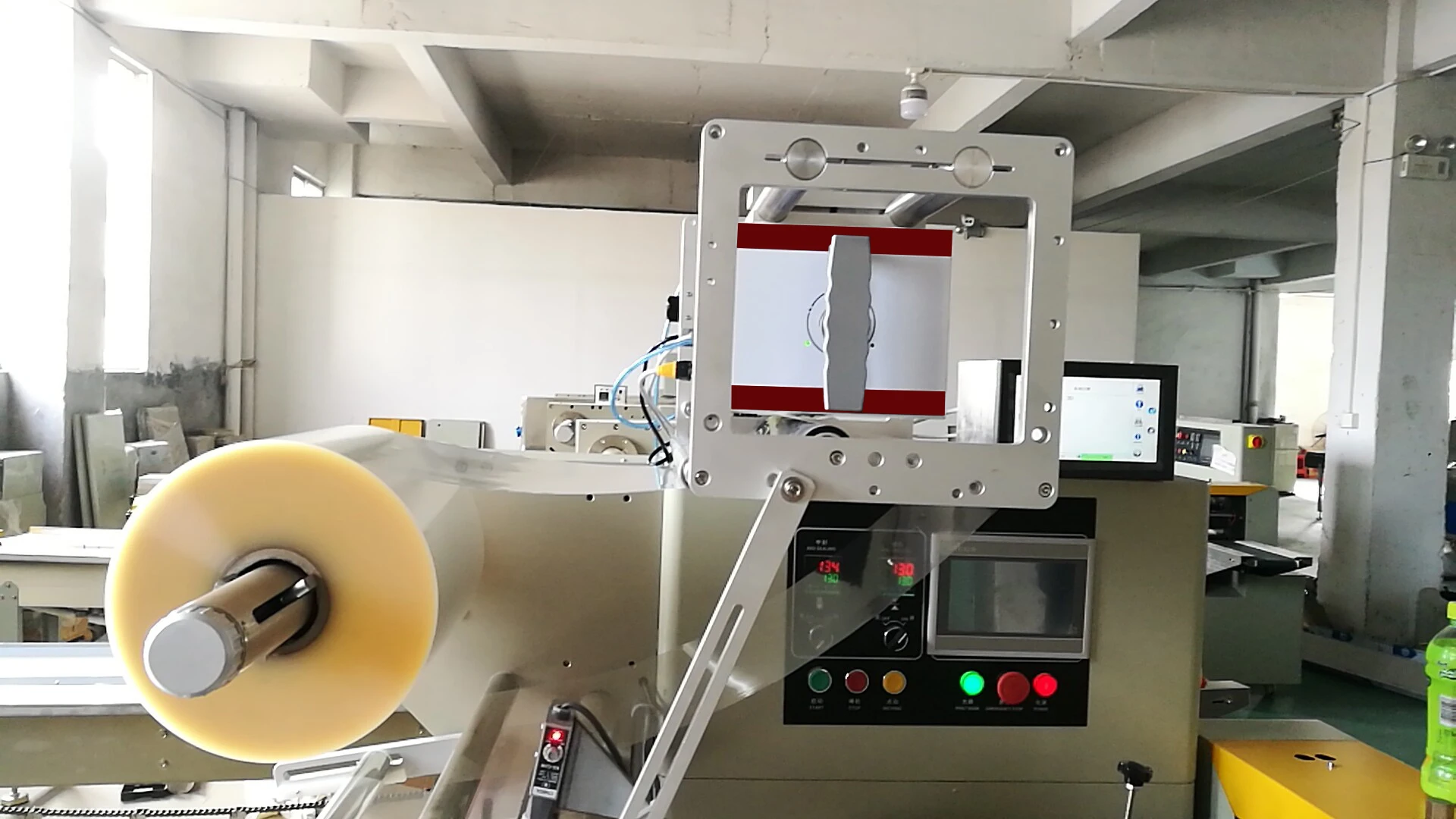

Horizontal Continuous packaging machine, Vertical Intermittent packaging machine, Labeling Machine, Feeder etc.
