Micro Grain Carbide Endmill Tungsten Carbide Cutter 1mm 2mm 3mm 4mm End Mill
- Category: >>>
- Supplier: Changzhou Youruinai Precision Tools Co. Ltd.
Share on (1601014927031):
Product Overview
Description
Most Popular
Product Description
Product Parameters
| Product Name | Micro Grain Carbide Endmill Tungsten Carbide Cutter 1mm 2mm 3mm 4mm End Mill |
HRC | 65 |
| Coating | NaCo |
| Suitable For | High Speed Processing For Heat-treated Steel/Titanium Alloy etc. |
| Application | Side Face/ Step Shoulder/ Straight Slot /Deep Slot |
| OEM | Yes and Welcome |
Raw Material
| Item | Grade No. | Details |
| HRC45 | Y10X | Grain size 0.7um, Co10%, Flexural strength 3320N/mm2 |
| HRC55 | MC12U | Grain size 0.6um, Co10%, Flexural strength 4000N/mm2 |
| HRC60 | WF25 | Grain size 0.5um, Co12%, Flexural strength 4300N/mm2 |
| HRC65 | GU25 | Grain size 0.5um, Co10%, Flexural strength 4300N/mm2 |
Coating Introduction
| Attributes | Coating Type | |||
| AlTiN | TiSiN | Nano Black | Nano Blue | |
| Hardness(HV) | 3300 | 4300 | 40(GPA) | 42(GPA) |
| Thickness(UM) | 2.5-3 | 3 | 3 | 3 |
| Oxidation Temp.(°C) | 900 | 1000 | 1100 | 1200 |
| Friction Coefficient | 0.35 | 0.25 | 0.3 | 0.4 |
| Color | Black | Bronze | Black | Blue |
| Advantages | High heat stability | Suitable for common use, roughing and finishing | For high precision cutting | For high precision and high hardness Cutting |
| Suitable for cast iron | Suitable for steel | Suitable for cutting stainless steel | Suitable for mould steel and Titanium | |
Size List (HRC65 Square End Mill)
| Item Code | Flute Dia. | Flute Len. | Shank Dia. | Total Len. | Button |
| (D) | (l) | (d) | (L) | ||
| YRN-SQ652/4F01004050 | 1 | 2.5 | 4 | 50 | VIEW MORE |
| YRN-SQ652/4F01504050 | 1.5 | 4 | 4 | 50 | VIEW MORE |
| YRN-SQ652/4F02004050 | 2 | 5 | 4 | 50 | VIEW MORE |
| YRN-SQ652/4F02504050 | 2.5 | 6 | 4 | 50 | VIEW MORE |
| YRN-SQ652/4F03003050 | 3 | 8 | 3 | 50 | VIEW MORE |
| YRN-SQ652/4F03004050 | 3 | 8 | 4 | 50 | VIEW MORE |
| YRN-SQ652/4F03504050 | 3.5 | 10 | 4 | 50 | VIEW MORE |
| YRN-SQ652/4F04004050 | 4 | 10 | 4 | 50 | VIEW MORE |
| YRN-SQ652/4F01006050 | 1 | 2.5 | 6 | 50 | VIEW MORE |
| YRN-SQ652/4F01506050 | 1.5 | 4 | 6 | 50 | VIEW MORE |
| YRN-SQ652/4F02006050 | 2 | 5 | 6 | 50 | VIEW MORE |
| YRN-SQ652/4F02506050 | 2.5 | 6 | 6 | 50 | VIEW MORE |
| YRN-SQ652/4F03006050 | 3 | 8 | 6 | 50 | VIEW MORE |
| YRN-SQ652/4F03506050 | 3.5 | 10 | 6 | 50 | VIEW MORE |
| YRN-SQ652/4F04006050 | 4 | 10 | 6 | 50 | VIEW MORE |
| YRN-SQ652/4F04506050 | 4.5 | 12 | 6 | 50 | VIEW MORE |
| YRN-SQ652/4F05005050 | 5 | 13 | 5 | 50 | VIEW MORE |
| YRN-SQ652/4F05006050 | 5 | 13 | 6 | 50 | VIEW MORE |
| YRN-SQ652/4F06006050 | 6 | 15 | 6 | 50 | VIEW MORE |
| YRN-SQ652/4F07008060 | 7 | 18 | 8 | 60 | VIEW MORE |
| YRN-SQ652/4F08008060 | 8 | 20 | 8 | 60 | VIEW MORE |
| YRN-SQ652/4F09010075 | 9 | 25 | 10 | 75 | VIEW MORE |
| YRN-SQ652/4F10010075 | 10 | 25 | 10 | 75 | VIEW MORE |
| YRN-SQ652/4F12012075 | 12 | 30 | 12 | 75 | VIEW MORE |
| YRN-SQ652/4F14014100 | 14 | 45 | 14 | 100 | VIEW MORE |
| YRN-SQ652/4F16016100 | 16 | 45 | 16 | 100 | VIEW MORE |
| YRN-SQ652/4F18018100 | 18 | 45 | 18 | 100 | VIEW MORE |
| YRN-SQ652/4F20020100 | 20 | 45 | 20 | 100 | VIEW MORE |
REMARK: If you need other sizes, welcome to contact us for customization.

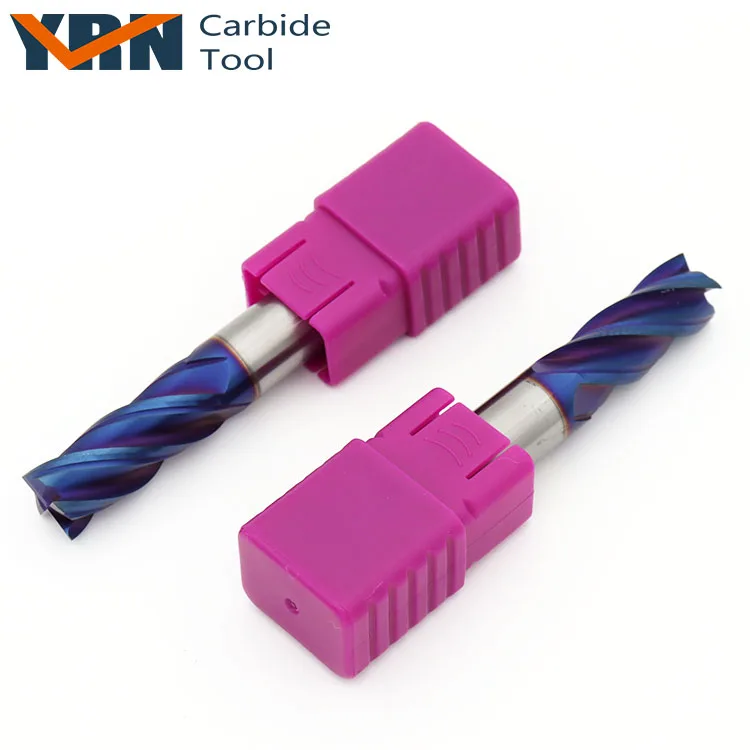

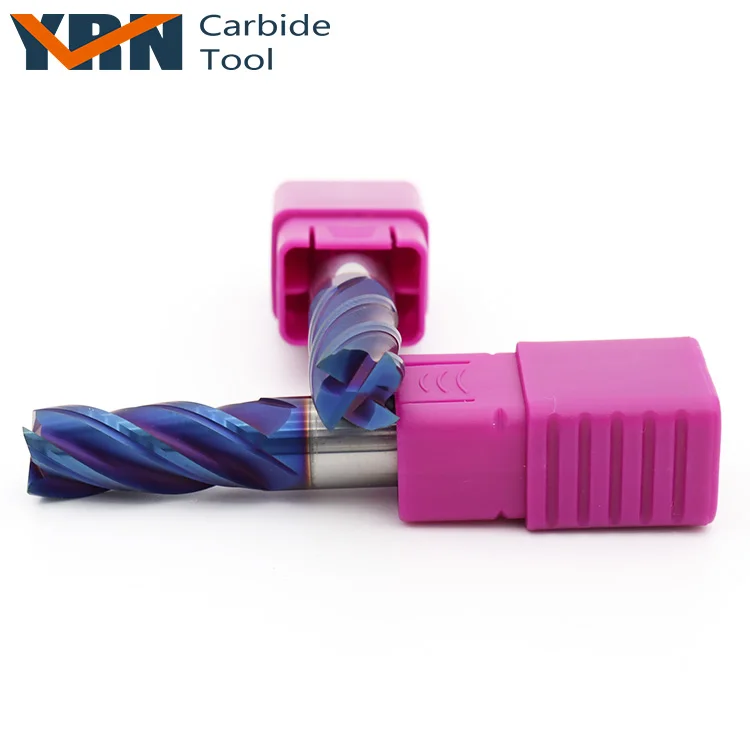

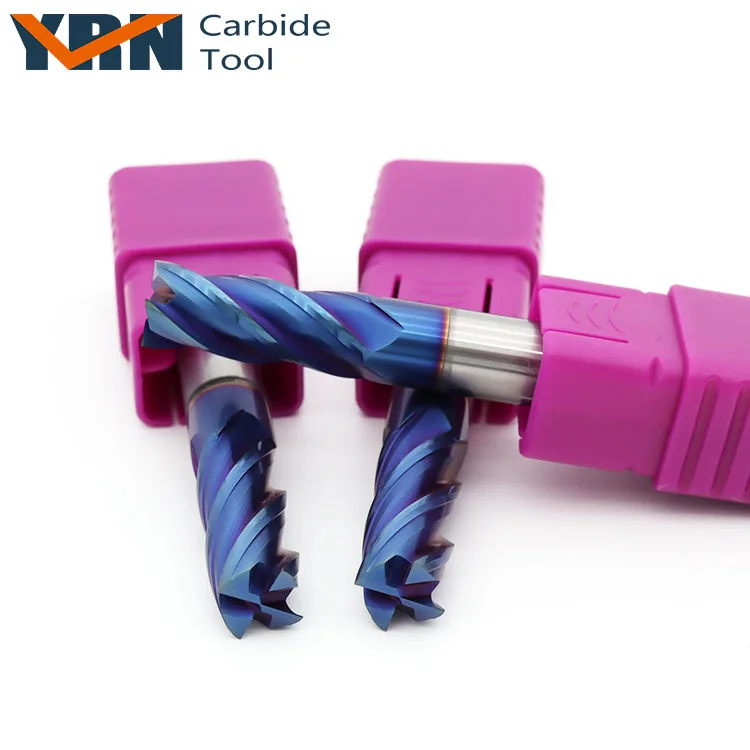

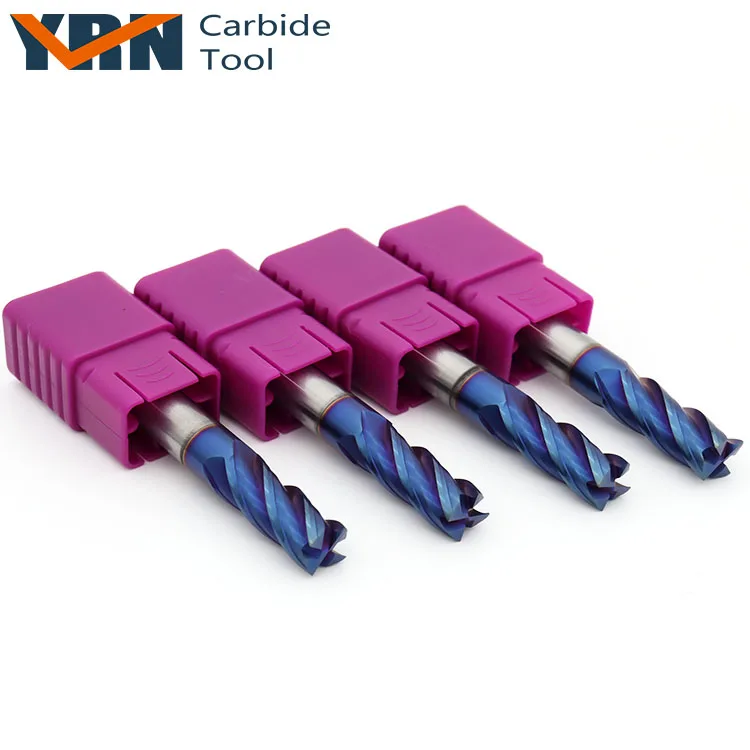

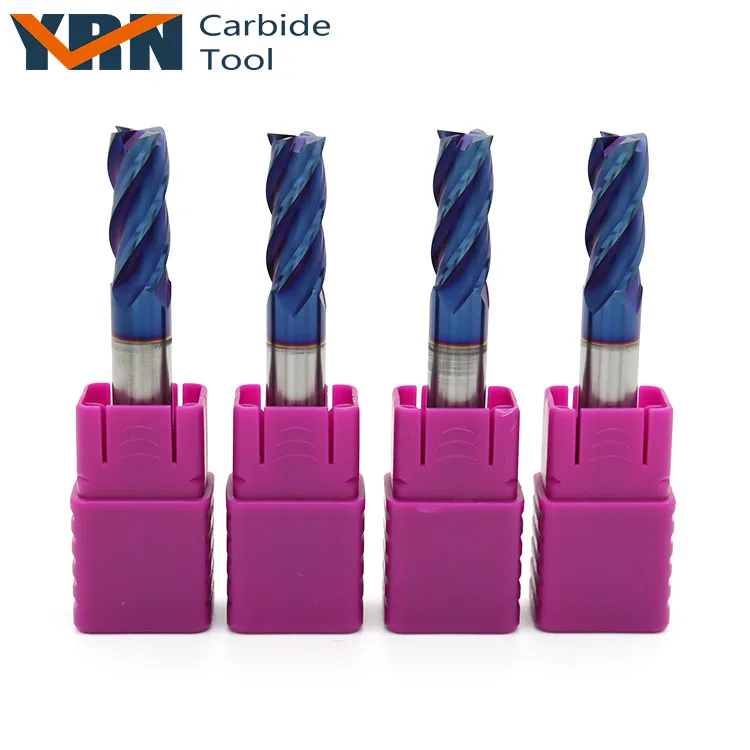

Product Show
Company Information
YRN (Changzhou Youruinai Precision Tools Co., Ltd.) is a professional manufacturer located in East China. Founded in 2014, we've earned our fame in designing, manufacturing, and selling solid carbide cutting tools. In order to guarantee high quality and precision, we introduced advanced CNC grinding machines from Australia, Germany and Switzerland, as well as precise inspection instrument from Germany and the Unites States. Our main products are standard & special carbide milling cutters, drill bits, reamers, ER Collets, CNC tool holders, and inserts etc.. These products are widely applied in the area of machinery processing, like automobile, aerospace, smart phone and so on. With the satisfactory product quality, competitive price and excellent pre-and-after sales service, YRN is making every effort to prove "We're Your Right choice Now"!
Packaging & Shipping
FAQ
1. Are you manufacturer? Do you have factory?
We are a professional manufacturer with more than 6 years experience in this field. And our factory is located in Changzhou, China.
2. Is free shipping possible?
We don't offer free shipping service, but we will give you some discount if you buy large quantity products. And we've established cooperation with many Express companies, thus can offer you the lowest shipping cost.
3. Can you send products to our Forwarder in China?
Yes, if you have a Forwarder in China,we will be glad to send products to him/her.
4.Can you produce Special carbide Tools ?
Yes, we can. Our engineers can design and program according to your drawings or samples.
5.What payment methods do you support ?
Normally we accept T/T, PayPal, Western Union, MoneyGram, Trade Assurance. 50% deposit, balance paid before shipping is supported but only for amount ≥ 10,000 USD.
