Dpp 80 Automatic Mini Alu Pvc Blister Capsule Tablets Packaging Machine Blister Packing Machine
- Category: >>>
- Supplier: Wenzhou Urban Machinery Co. Ltd.
Share on (1601014995769):
Product Overview
Description
Products Description
Model | DPB-80 | DPB-110 | DPB150 | DPB-250 |
Punch frequency | 10-33times/min | 10-33tims/min | 10-35times/min | 6-50times/min |
Production capacity | 2400plates/hour | 2400plates/hour | 1200-4200plates/hour | 35000-23000pcs/hour |
Max. Forming area & Depth | 105x70(standard depth <15mm) | 115x90(standard depth <15mm) | 145xll0(standard depth <15mm) | 240x70x26mm |
Max. Depth 25mm | Max. depth 26mm | Max. depth 26mm | ||
Standard Stroke range | 30-80mm | 35-90mm | 50-120mm | 40-160mm |
Standard plate size | 80x57mm | 80x57mm | 80x57mm | 80x57mm |
Air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
Compressed air required | Air compressor>0.3m3/min | Air compressor>0.3m3/min | Air compressor>0.3m3/min | Air compressor>0.3m3/min |
Total power supply | 220V 50Hz 2.4Kw | 220V 50Hz 2.4Kw | 220V 50Hz 2.4Kw | 380V220v 50Hz 6.2Kw |
Main motor | 0.75Kw | 0.75Kw | 1.5KW | 1.5KW |
PVC hard Film | 0.15-0.5xll0mm | 0.15-0.5X HOmm | 0.15-0.5x 160mm | 0.15-0.5x 160mm |
PTP Aluminum film | 0.02-0.035 x HOmm | 0.02-0.035 x HOmm | 0.02-0.035 x 160mm | 0.02-0.035 x 250mm |
Mould cooling | Tap water or Recycling water | Tap water or recycling water | Tap water or recycling water | Tap water or recycling water |
Overall Dimension(LxWxH) | 1450x590x 1100mm | 1600 x 620 x1420mm | 2315 x 635 x 1405mm | 3000x730x1600mm |
Weight | 465kg | 485kg | 890KG | 1400kg |
Noise | <75dBA | <75dBA | <75dBA | <75dBA |
Application:

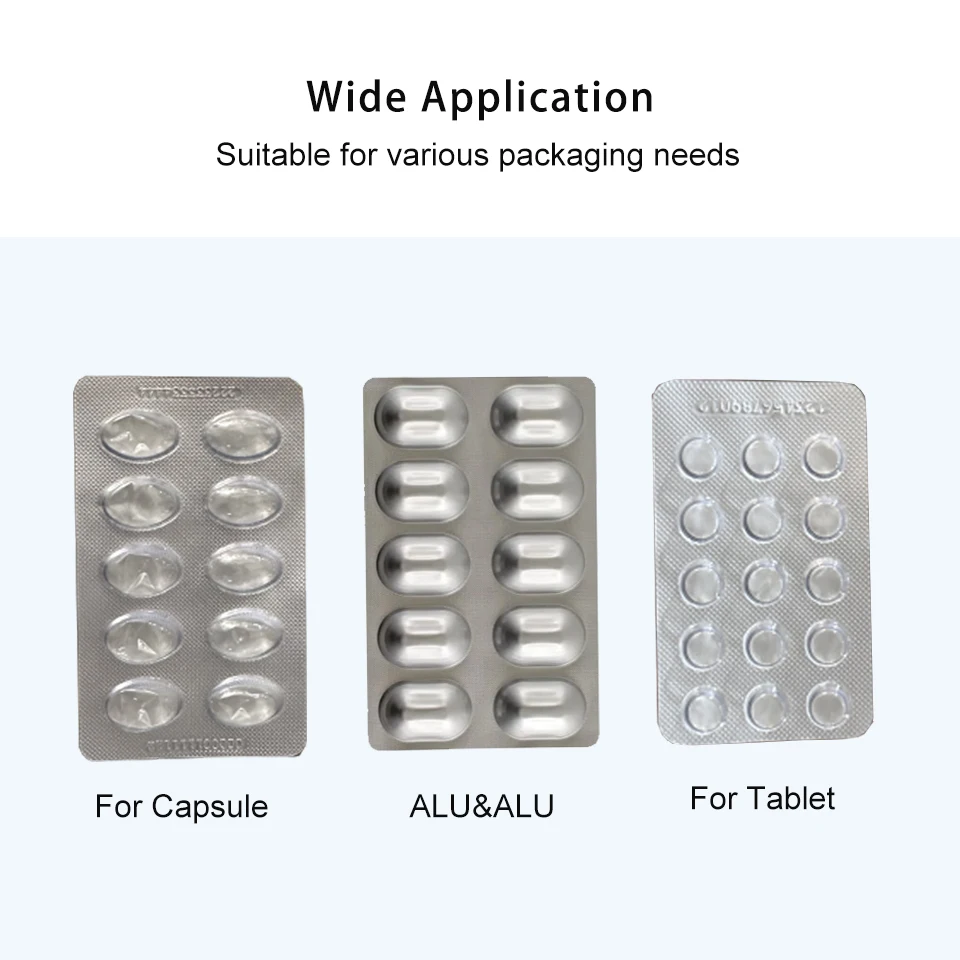

It is suitable for different shape packaging of Alu / PVC , Paper/Alu and Alu /Alu for candy, honey shape pills,disposable syringes and so on in industries of foodstuff, health product etc.
Product features:
1.Forming, heating sealing, batch marking, impression and cutting are with Rack mandrel for exact and easy fixed position. it is equipped with ruler for easy correction and accuracy orientation.
2.Mechanical hand traction: it adopts double rod of pendulum device which can increase the stroke travel range (up to 180mm). it widely is suitable for all kinds of size packaging of blister.Plate heating, positive forming, upper and lower web plates, heating sealing , automatic feeding, automatic impression and embossing and automatic cutting are easy and reliable operation.
3.It has Positive pressure forming and mechanical punch for uniformity and perfect blister forming. It is applicable for packaging with larger size or special shaped of honey pill, big honey pills and etc. it is equipped with special automatic feeder for packaging of ampoule, syringes It is a machine with wide range of application for packaging. 4.The main drive shaft adopts parallel axis bevel gear reducer, forming, heating sealing, impression and etc. which of mould are adopting pill for tightly and accuracy position-setting, easier to change an save packing material.
5.The body of machine can be produced under the split production for easier moving into the working room.
Note:
1.Optional Equipped with Photocell detecting device
2.Optional Equipped with Acylic glass cover
3.Optional Equipped with ink jetcoding device
