Chinese high quality Mini Backhoe Wheel Loader Automatic Yunnei Engine
- Category: >>>
- Supplier: Xuzhou Bonovo Machinery & Equipment Co. Ltd.
Share on (1601014998152):
Product Overview
Description
PRODUCTS DESCRIPTION

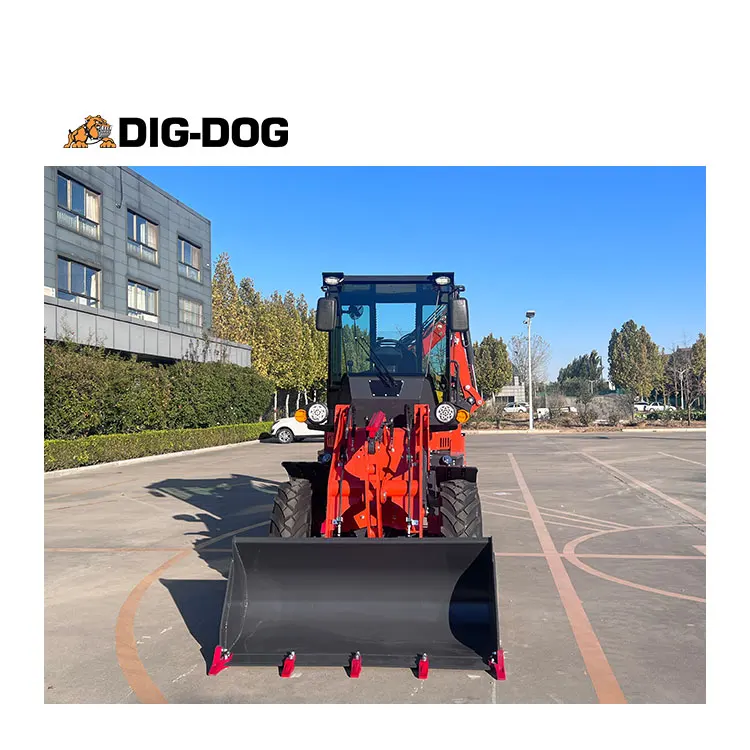

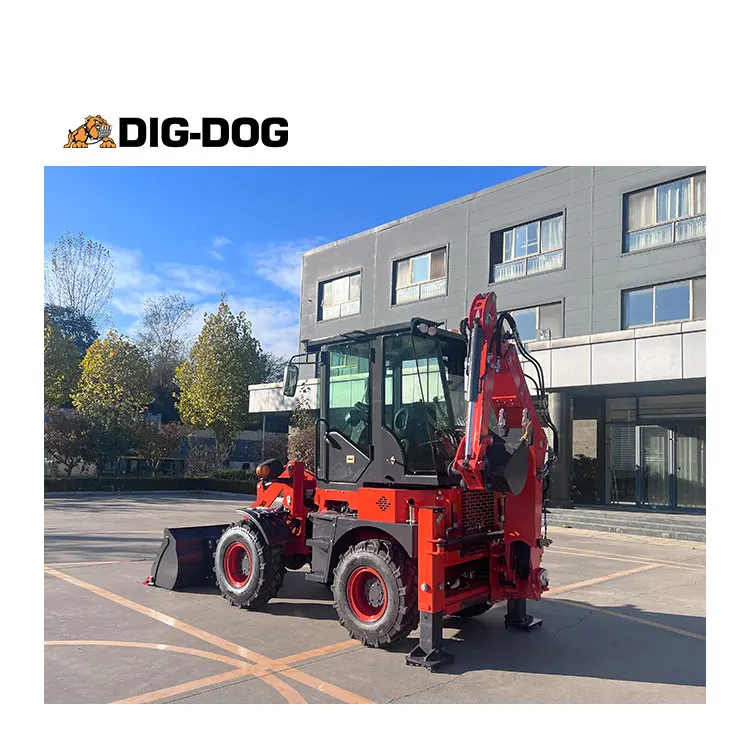

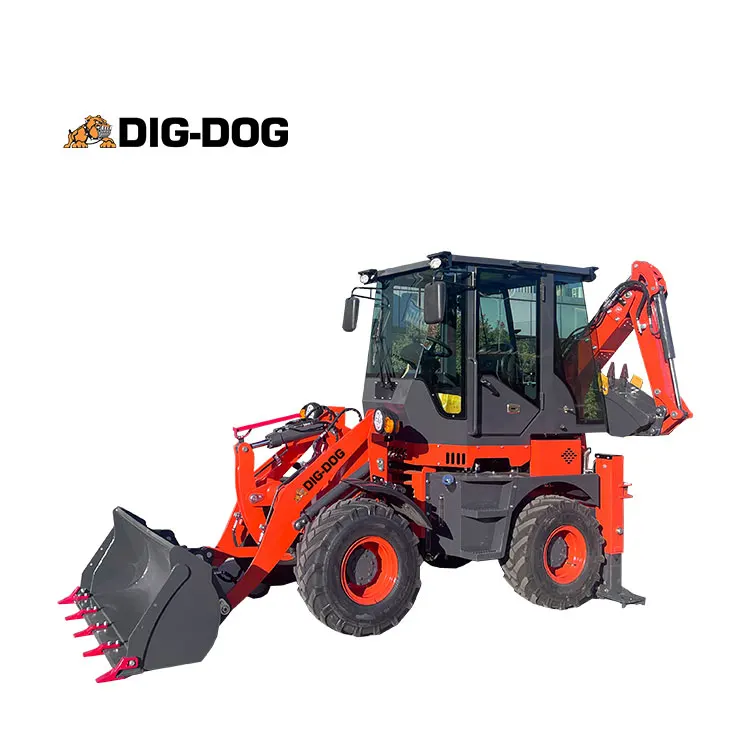

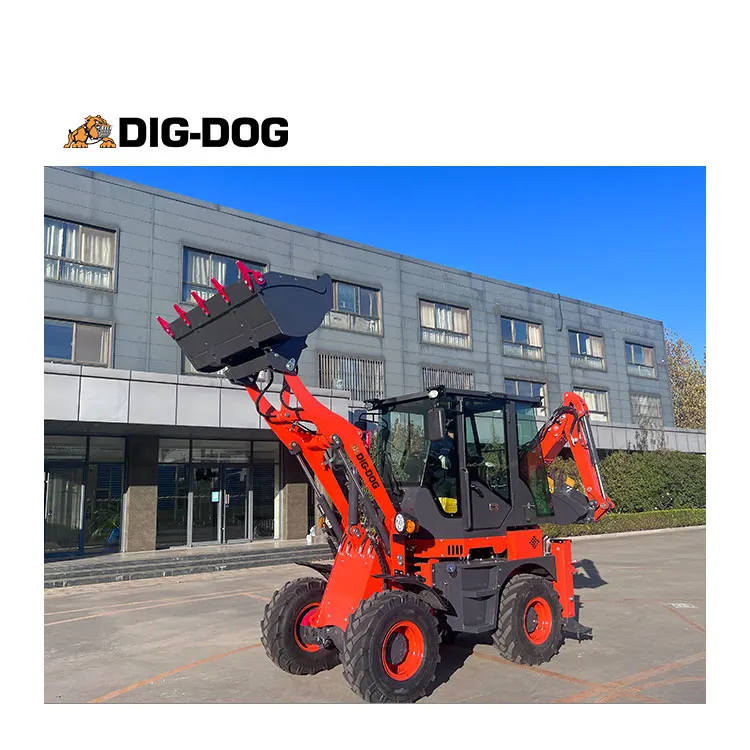

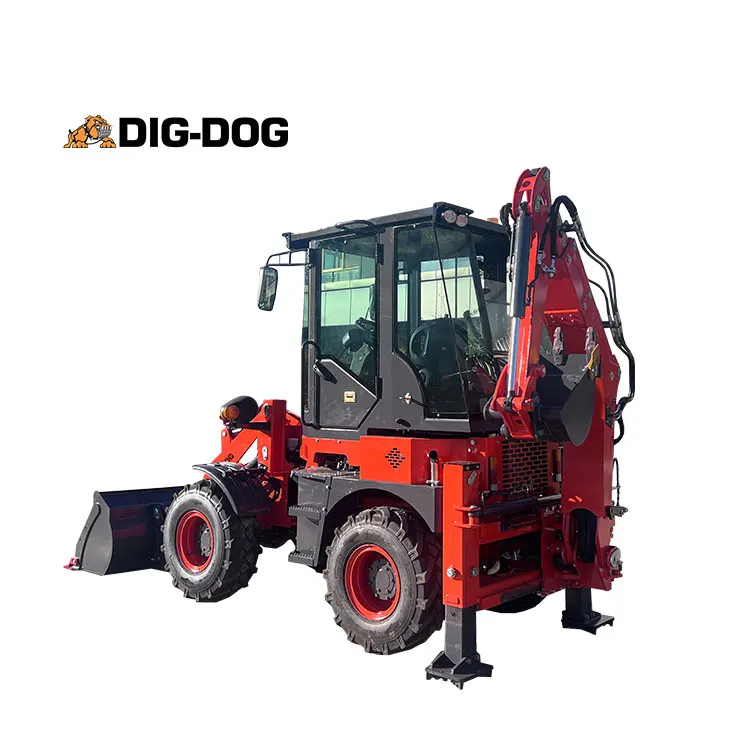

DIG-DOG BL350 MINI BACKHOE LOADER 1.2 TON
The DIG-DOG BL350 mini backhoe loader is red in color, with beautiful appearance and compact structure. Its rated loading weight is 1200kg, the loading bucket capacity is 0.8 cubic meters, and the digging bucket capacity is 0.2 cubic meters. Form speed 5/18 kilometers per hour.
The BL350 backhoe loader is equipped with an 18.4KW engine. It is a powerful and easy-to-operate multi-purpose mechanical equipment that can meet the various needs of homes, farms, small commercial uses, emergency rescue, rivers, gardens, road maintenance and other places.
TOP FEATURES & BENEFITS
- It is equipped with a rear digging arm lock to prevent the arm from sinking and ensure the safety and reliability of the
machine;
- Steering angle 28 degrees, turning radius 3000mm;
- It adopts the excavator multi-way valve system, and its performance is more stable and reliable;
- Its rear digging arm can be equipped with a telescopic arm (boom telescopic): while working telescopically, it does not affect the digging force of the entire machine;
- The rear excavation part has an automatic side shift function, which can move sideways while working, improving work efficiency and ensuring that the machine is more stable when driving on the road.
machine;
- Steering angle 28 degrees, turning radius 3000mm;
- It adopts the excavator multi-way valve system, and its performance is more stable and reliable;
- Its rear digging arm can be equipped with a telescopic arm (boom telescopic): while working telescopically, it does not affect the digging force of the entire machine;
- The rear excavation part has an automatic side shift function, which can move sideways while working, improving work efficiency and ensuring that the machine is more stable when driving on the road.
PRODUCT PARAMENTERS
Whole Operation Weight | 3500KG | Bucket Dumping Height | 2650 mm |
L*W*H | 5600*1680*2730mm | Bucket Dumping Distance | 1325 |
Wheel base | 1620 | Digging Depth | 2630 |
Min.Ground Clearance | 230 | Backhoe Capacity | 0.2m3 |
Bucket Capacity | 0.8m3 | Max.Digging Depth | 2630 |
Breakout Force | 20kn | Swing Angle of Excavator Grab | 170 |
Loading Lifting Capacity | 1000kg | Max.Pulling Force | 2T |
Rated Speed | 2200 | Main Transmission Type | Hydraulic transmission |
Min.Fuel Consumption | 2L/h | Rated Loader of Axle | 4000 KG |
Max.Torque | 152N.m | Cooling Method | Water cooled |
Displacement | 2.54 L | Max.Speed | 18km/h |
Steering System | Hydraulic steering | Brake System | Mechanical |
Model of Steering Device | 250 | Service Brake | Hydraulic |
Steering Angle | 28° | Hydraulic System | High pressure gear pump |
Min.turning radius | 3000 mm | Pressure of the system | 18 mpa |
DETAILS IMAGES
Booster Pump
Increase the pressure of the hydraulic system to meet the needs of various working conditions;
Work is smoother;
Improve work efficiency.
Pilot-operated Operation
softer and lighter
has better versatility
ergonomically distributed near the driver's seat
comfortable operation
Cab
The braking system is safe and reliable, with air-capped oil caliper disc-type foot brake system and external beam-type drum hand brake.
20.5/70-16 Tire
The tooth groove design is anti-slip and durable; Widen and thicken tire walls;
High quality rubber, strong grip;
Suitable for various complex construction sites.
High quality rubber, strong grip;
Suitable for various complex construction sites.
Hydraulic device
Using fully hydraulic components; High quality hydraulic cylinder; Thickened hydraulic oil pipe; Pilot hydraulic operating system;
Flexible movement and smooth operation.
Flexible movement and smooth operation.
Articulated frame
There is no relative deflection between the wheel and the frame;
Improved machine adhesion and passing performance Small turning radius.

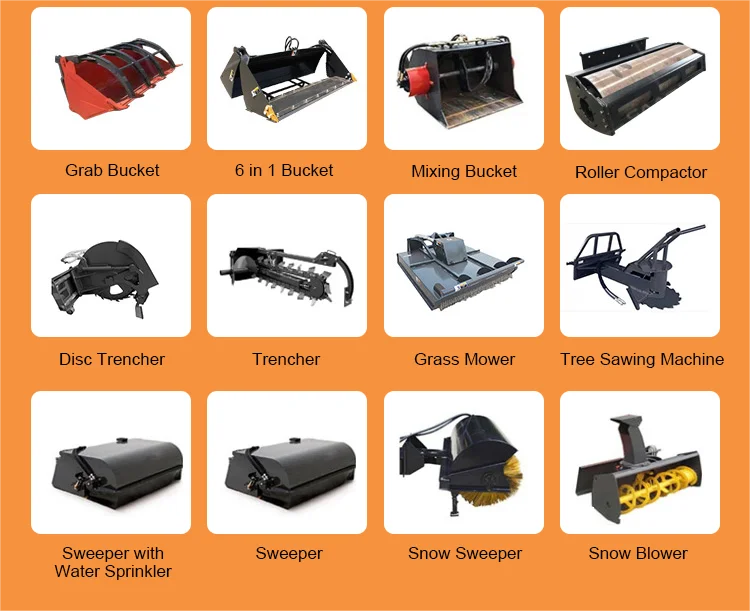

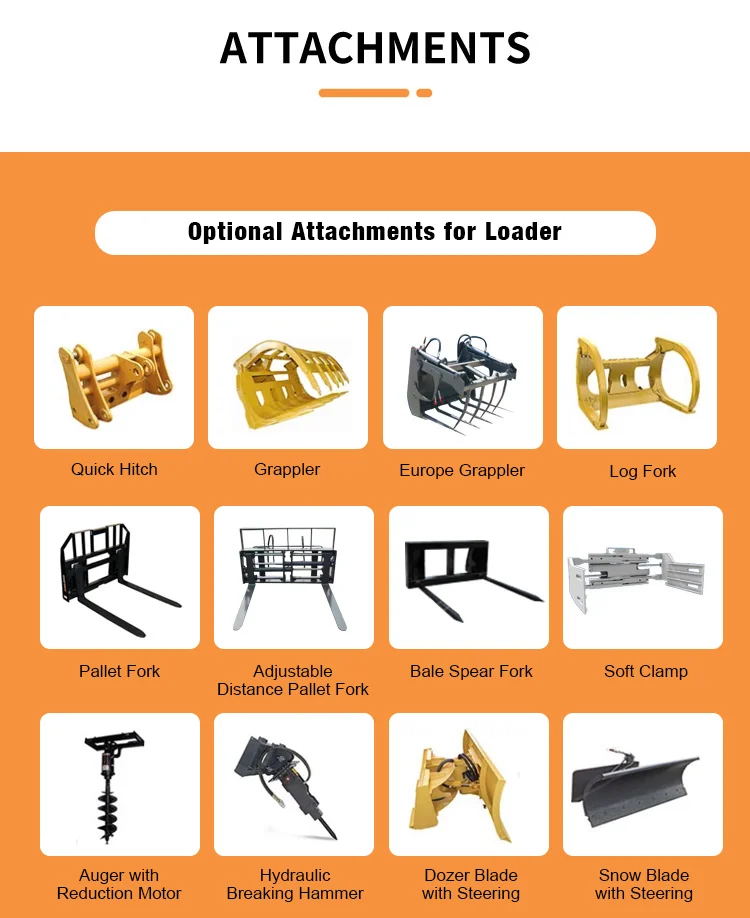

ATTACHMENTS
During construction, the operator only needs to turn the seat once in the cab to complete the transformation from excavator to loader. Backhoe loader main function is to excavate and load, also can install quick change device, by changing the different fittings, can be realized in addition to the mining, loading of different functions such as crushing, drilling, snow removal,cleaning, to municipal emergency rescue, city pipeline, landscaping, roads and other industry customers to provide comprehensive solutions.
COMPANY PROFILE
DIG-DOG, dig love build dream!
DIG-DOG is a branch of BONOVO Group. We have an independent brand and are dedicated to excavation projects in the construction machinery market.
DIG-DOG can provide excavators, wheel loaders, backhoe loaders, skid steer loaders, forklifts for the construction machinery industry, so that you can buy not only a single machine, but also full range of multi-functional and customized attachments to deal with different work requirements.
DIG-DOG machinery products exported more than 80 countries, and DIG-DOG have our own brand agents in North America, South America, Europe and many other regions,and we welcome more friends to become our brand agents. We can provide customers with more convenient and comprehensive after-sales service. Choose DIG-DOG to make your excavation work more easier and more convenient, and choose DIG-DOG to fully realize the possibility of configuring more accessories for the machine.
DIG-DOG can provide excavators, wheel loaders, backhoe loaders, skid steer loaders, forklifts for the construction machinery industry, so that you can buy not only a single machine, but also full range of multi-functional and customized attachments to deal with different work requirements.
DIG-DOG machinery products exported more than 80 countries, and DIG-DOG have our own brand agents in North America, South America, Europe and many other regions,and we welcome more friends to become our brand agents. We can provide customers with more convenient and comprehensive after-sales service. Choose DIG-DOG to make your excavation work more easier and more convenient, and choose DIG-DOG to fully realize the possibility of configuring more accessories for the machine.

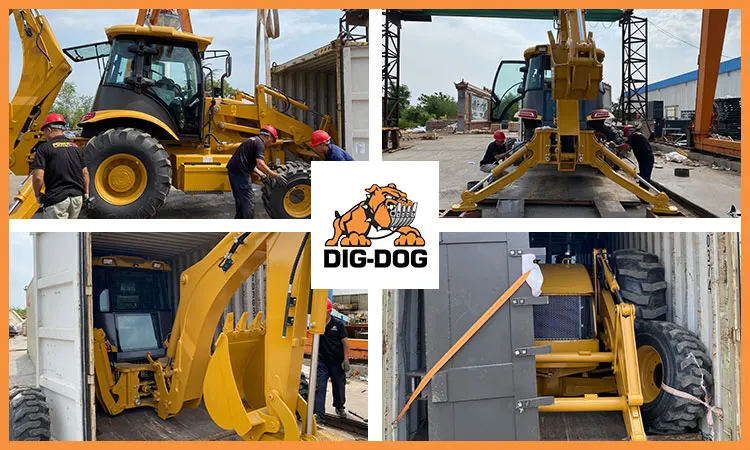

PRODUCT PACKAGING
FAQ
1. Are You Original Manufacture?
Yes, DIG-DOG is a Manufacture In Construction Machinery In China And We Have The Wholeseries
Products You Need.
2.Which Incoterms Terms Can We Work?
Normally We Work On FOB, CFR, CIF.
3.Which Payment Terms Do You Accept?
Normally We Can Work On T/T Term Or L/C Term.
4.What About The Warranty Time?
12 Months After Shipment Or 2000 Working Hours.
5.What About The Delivery Time?
7-30 Days After Receiving The Deposit.
6.What About The Minimum Order Quantity?
The MOQ Is 1 Pcs.
7.How Do I Choose The Right Walk-Behind Vibratory Road Roller?
-Type of material that will be compacted (dirt, sand, gravel, asphalt, etc.)
Products You Need.
2.Which Incoterms Terms Can We Work?
Normally We Work On FOB, CFR, CIF.
3.Which Payment Terms Do You Accept?
Normally We Can Work On T/T Term Or L/C Term.
4.What About The Warranty Time?
12 Months After Shipment Or 2000 Working Hours.
5.What About The Delivery Time?
7-30 Days After Receiving The Deposit.
6.What About The Minimum Order Quantity?
The MOQ Is 1 Pcs.
7.How Do I Choose The Right Walk-Behind Vibratory Road Roller?
-Type of material that will be compacted (dirt, sand, gravel, asphalt, etc.)
-Budget.
-Size of area.
-Site layout (open area or confined areas)
-Transportation to and from the job site.
8. Price Difference？
8. Price Difference？
The product prices on the website fluctuate due to factors such as raw material costs. Please refer to the quotation from the business person in charge.
