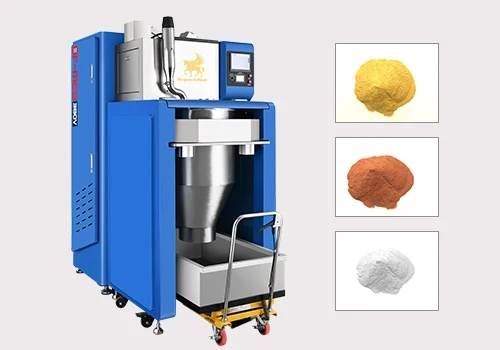

SuperbMelt 4kg Gold Platinum Powder Making Machines 50 200mesh Water Metal Atomizer Milling Powder Machine for Refractory Metals

Product Overview

Description

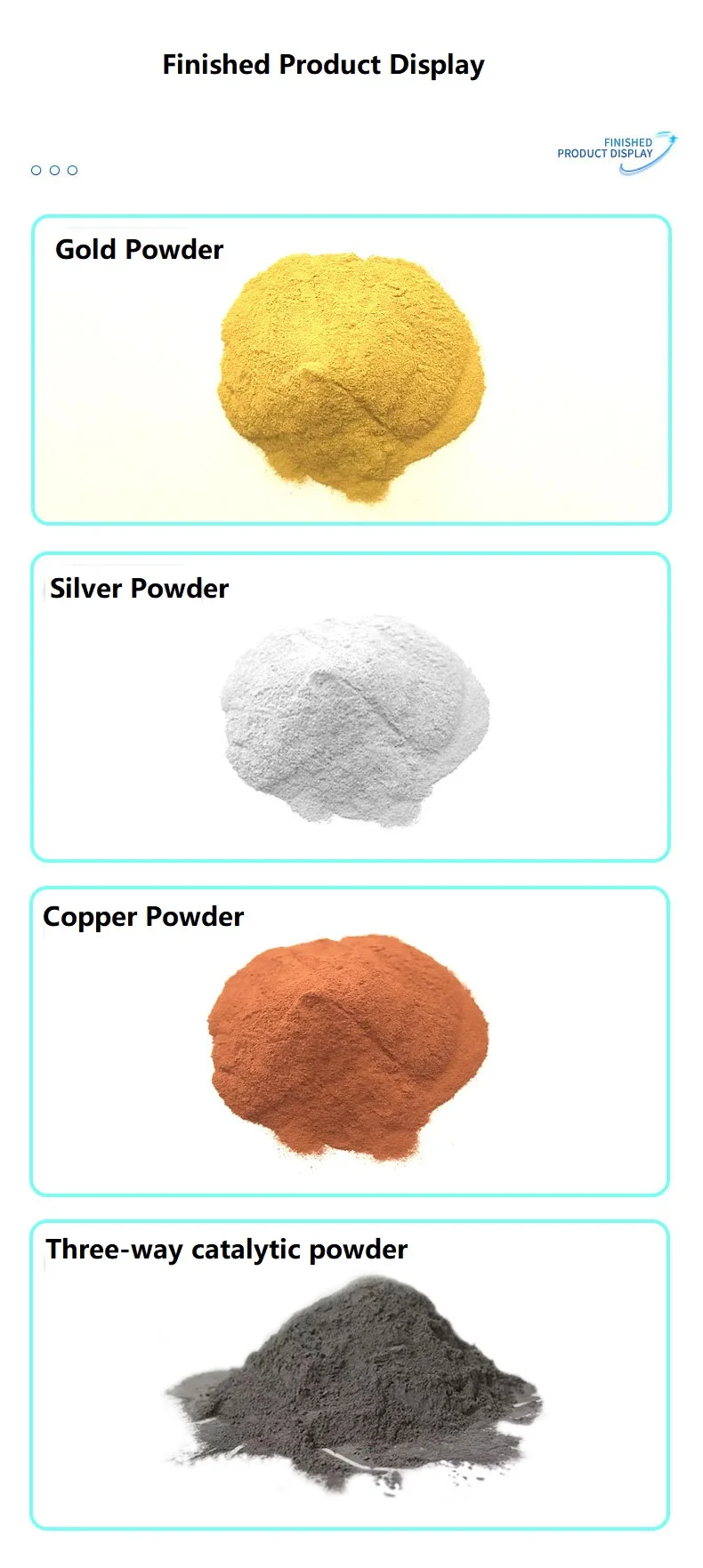

• Mass production of gold, silver, platinum, palladium, copper, zinc, aluminum and other precious and non-precious metal powders.


• The water pressure can be adjusted to make the mesh sizes controllable.


• Capacity ranges 10-100kg metal rapid powder making.


• 80% of metal powder can reach less than 50 mesh.


• Reduced metal dissolving speed in aqua regia refining to increase production efficiency.

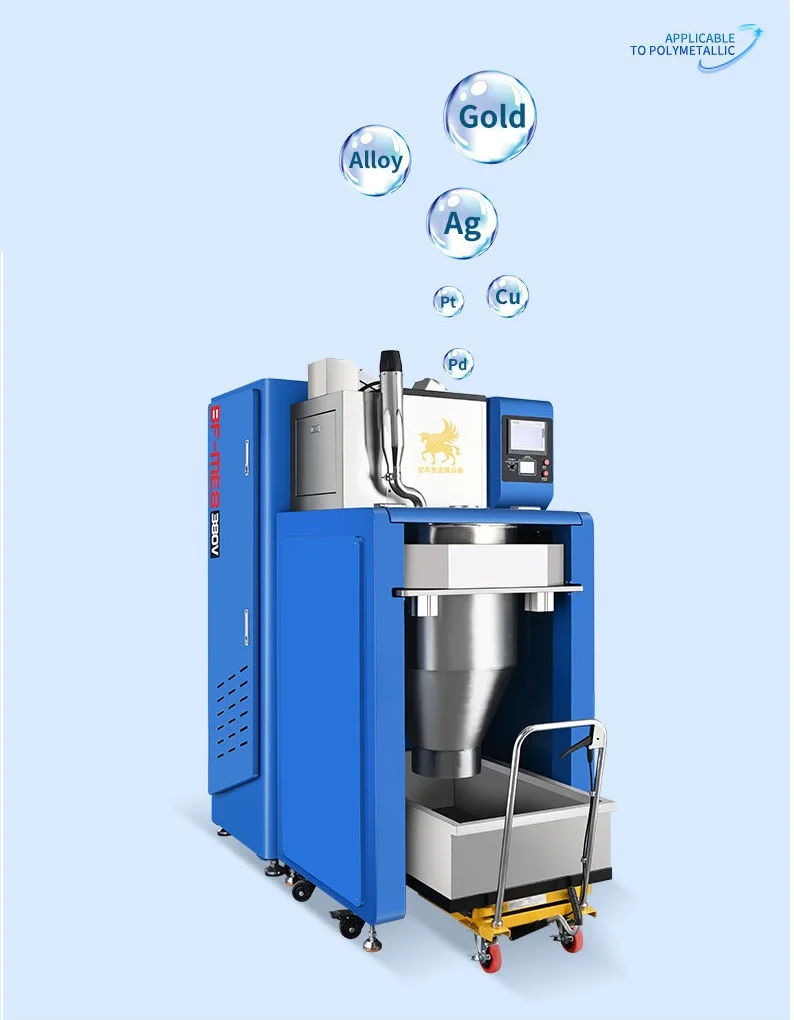

SuperbMelt uses a combination of melting furnace and water metal atomizer to achieve the pulverization of most metals and alloys. Especially some refractory metals with high melting point and high reactivity characteristics, including Au, Ag, Pd, Pt, Co, Cu, Ni, Fe, Zn, etc.

In the traditional metal milling process, limited by physical factors, the powder cannot be changed according to the cleanliness and fineness required by customers.

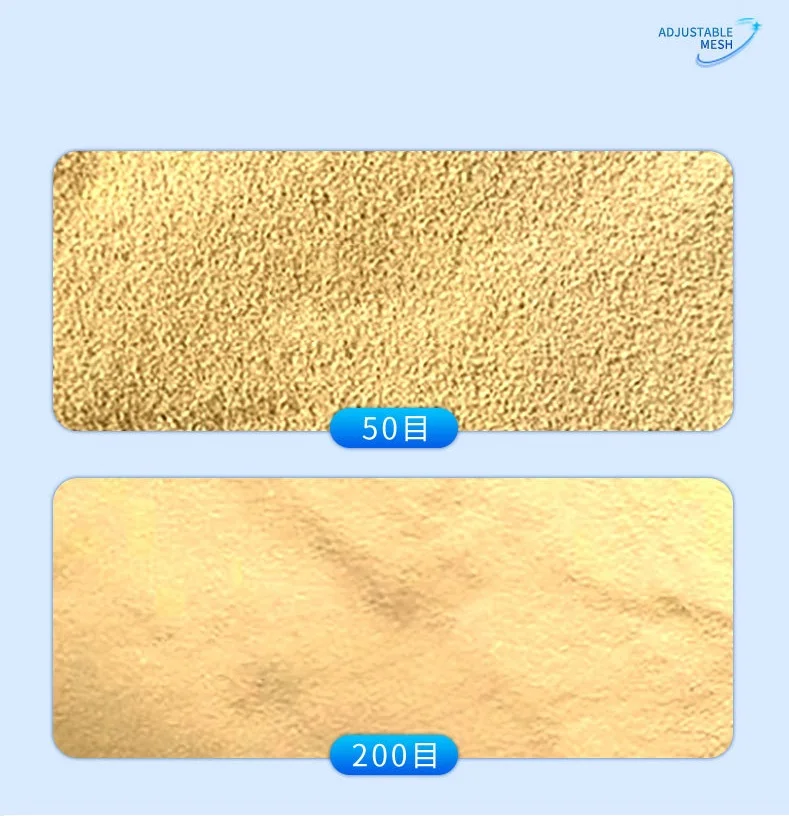

Our metal powder atomizer can custom the particle size of the powder within 50-200 mesh according to the processing technology required by customers.

Under the use of ultra-high pressure water system, the metal liquid can be broken into fine metal droplets, and a large number of sub-spherical and irregular particles can be formed after rapid cooling of water, and under the protection of inert gas, the finished powder can be made very meticulous.

















Model number:   SPB-VPM4 Power source:   380V Power:   45 kw Max Temperature:   1600-2600℃ Melting Time:   15-20Min Max capacity:   4kg(Pt) Applicable Metals:   Au,Ag,Cu,Pt,Pd,Rh Milling specifications:   50-200 Mesh Cooling Method:   Water Cooling Milling Time:   20Min Cooling way:   Water cooling Dimensions:   1500*1300*2100mm
